headlights TOYOTA RAV4 2007 XA30 / 3.G Quick Reference Guide

14
FEATURES/OPERATIONS
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

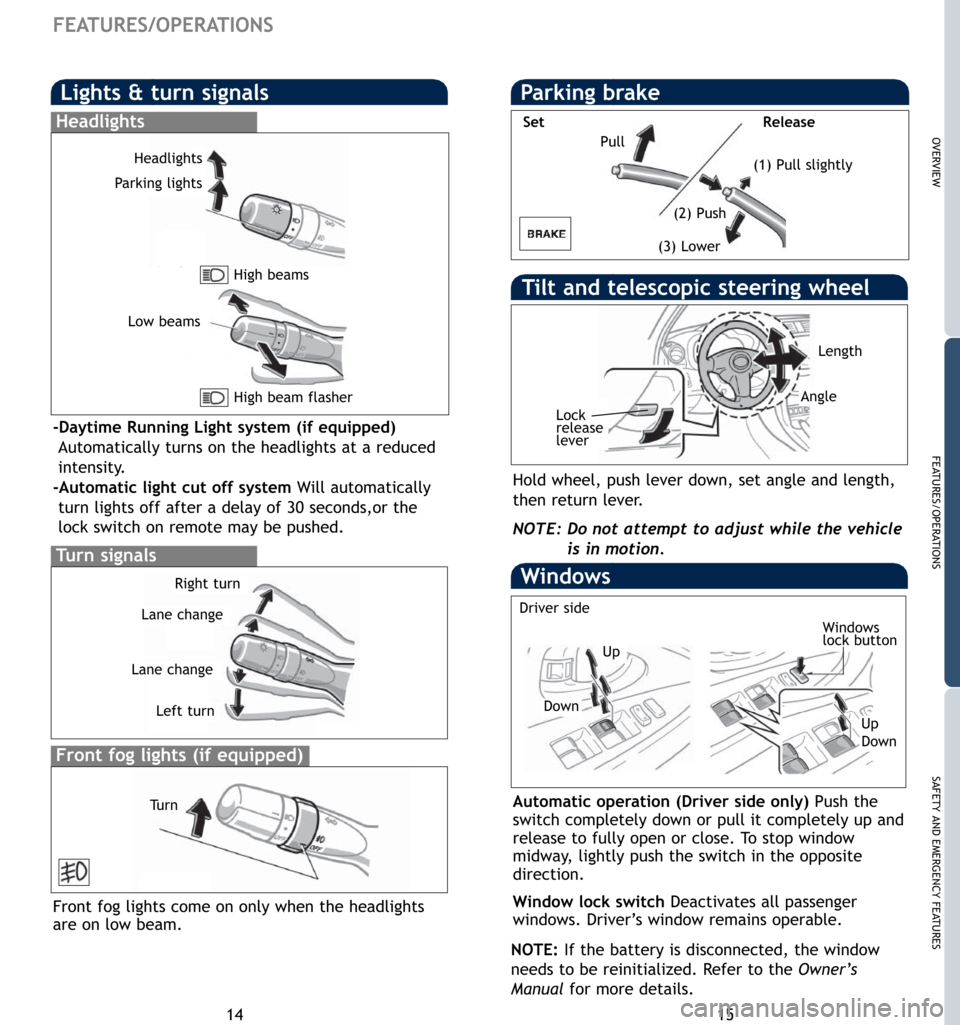

Tilt and telescopic steering wheel
Hold wheel, push lever down, set angle and length,
then return lever.
NOTE: Do not attempt to adjust while the vehicle
is in motion.
Lock
release
lever
Length
Angle
Lights & turn signals
Tu r n signals
Headlights
High beam flasher
Low beams
Front fog lights (if equipped)
Headlights
-Daytime Running Light system (if equipped)
Automatically turns on the headlights at a reduced
intensity.
-Automatic light cut off system Will automatically
turn lights off after a delay of 30 seconds,or the
lock switch on remote may be pushed.
Front fog lights come on only when the headlights
are on low beam.
Parking lights
Right turn
Tu r n
Lane change
Lane change
Left turn
Windows
Driver side
Automatic operation (Driver side only) Push the
switch completely down or pull it completely up and
release to fully open or close. To stop window
midway, lightly push the switch in the opposite
direction.
Window lock switch Deactivates all passenger
windows. Driver’s window remains operable.
Up
DownWindows
lock buttonUpDown
NOTE: If the battery is disconnected, the window
needs to be reinitialized. Refer to the Owner’s
Manualfor more details.
15
Parking brake
Pull
(2) Push(1) Pull slightly
(3) Lower Set Release
High beams

23
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
22
FEATURES/OPERATIONS
Cup holders
FrontRear
Second row
Third row side trim
(if equipped)
115V AC (if equipped)
ON/OFF switch
Rear console Push
NOTE:Key must be in the “ON” position to be used.
Light control-Instrument panel
Brightness
control+
-
Power outlets
12V DC
Luggage Compartment
Instrument panelInside center console
NOTE:Designed for car accessories. Key must be in
the “ACC” or “ON” position to be used.
With the dial turned fully up, instrument panel
lights will not dim when the headlights are turned
ON.
Cruise control
Turning system ON/OFF
Functions
System ON/OFF
Resume
2/Increase speed
Set/Decrease speed Cancel1
1The set speed may also be cancelled by depressing
the brake pedal.
2The set speed may be resumed once vehicle speed
exceeds 25 mph.
Refer to the Owner’s Manualfor more details.
