When waxing your vehicle, make sure that
the washer nozzles do not become
blocked. If a nozzle becomes blocked,
contact your Toyota dealer to have the
vehicle serviced.
NOTICE
If a nozzle becomes blocked, do not
try to clear it with a pin or other
object. The nozzle will be damaged.

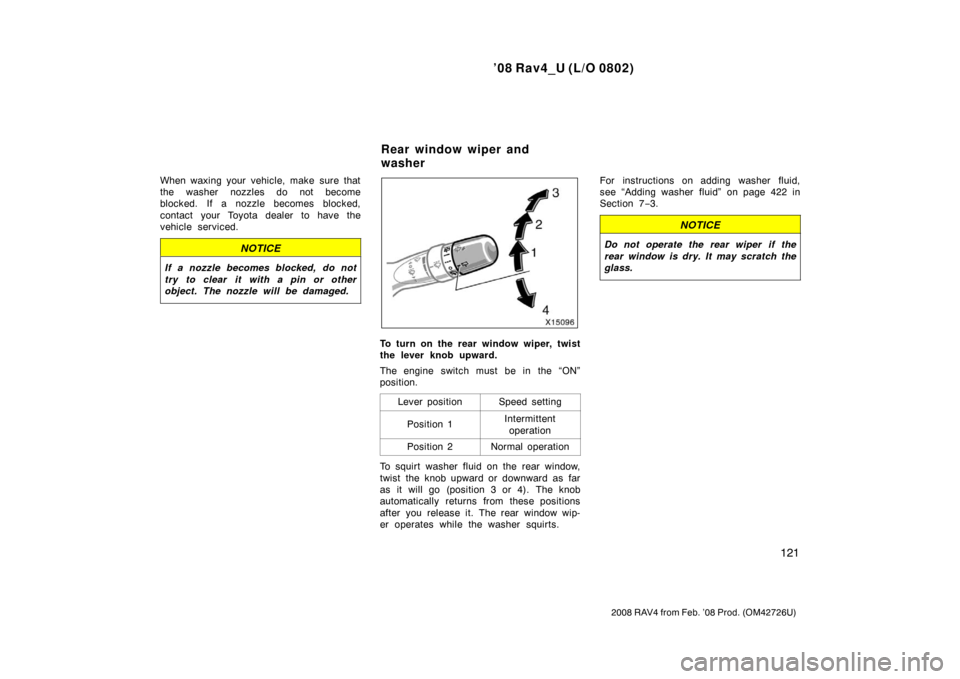

To turn on the rear window wiper, twist
the lever knob upward.
The engine switch must be in the “ON”
position.Lever position
Speed setting
Position 1Intermittentoperation
Position 2Normal operation
To squirt washer fluid on the rear window,
twist the knob upward or downward as far
as it will go (position 3 or 4). The knob
automatically returns from these positions
after you release it. The rear window wip-
er operates while the washer squirts. For instructions on adding washer fluid,
see “Adding washer fluid” on page 422 in
Section 7
−3.
NOTICE
Do not operate the rear wiper if the
rear window is dry. It may scratch the
glass.
Rear window wiper and
washer

’08 Rav4_U (L/O 0802)
122
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
To deice the windshield wiper blades,
push the switch.
The engine switch must be in the “ON”
position.
The system will automatically shut off af-
ter the deicer has operated about 15 min-
utes. An indicator light will illuminate to
indicate the deicer is operating.
If further deicing is desired, simply actuate
the switch again. When the wiper blades
have deiced, push the switch once again
to turn the deicer off. Continuous use may
cause the battery to discharge, especially
during stop−and−go driving.Manual air conditioning system
Automatic air conditioning system

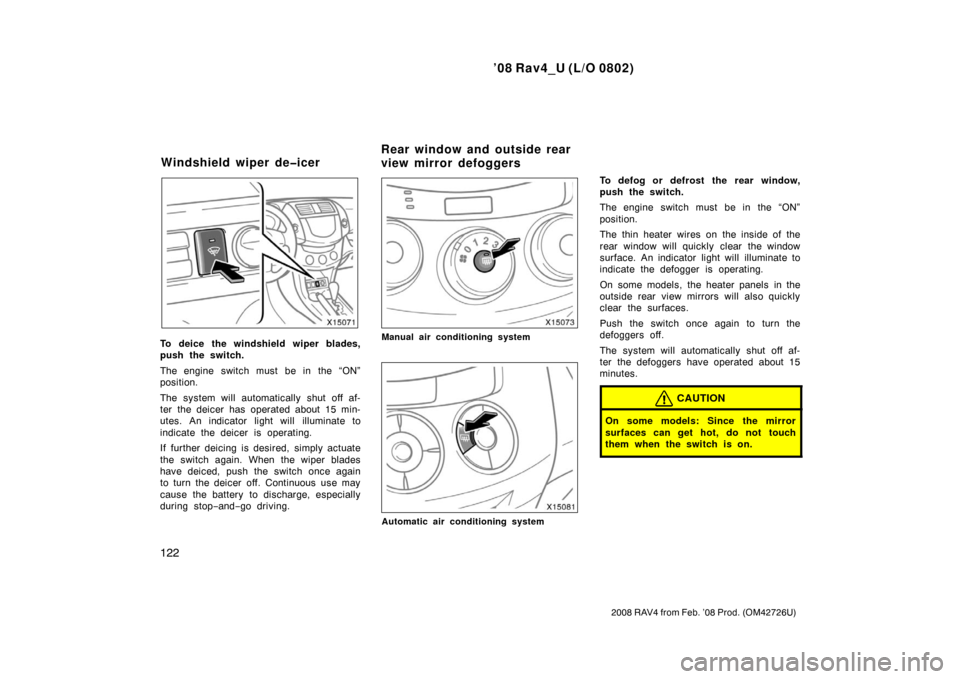

To defog or defrost the rear window,
push the switch.
The engine switch must be in the “ON”
position.
The thin heater wires on the inside of the
rear window will quickly clear the window
surface. An indicator light will illuminate to
indicate the defogger is operating.
On some models, the heater panels in the
outside rear view mirrors will also quickly
clear the surfaces.
Push the switch once again to turn the
defoggers off.
The system will automatically shut off af-
ter the defoggers have operated about 15
minutes.
CAUTION
On some models: Since the mirror
surfaces can get hot, do not touch
them when the switch is on.
Windshield wiper deicer Rear window and outside rear
view mirror defoggers

’08 Rav4_U (L/O 0802)
123
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
Make sure you turn the defoggers off
when the surfaces are clear. Leaving the
defoggers on for a long time could cause
the battery to discharge, especially during
stop−and− go driving. The defoggers are
not designed for drying rain water or for
melting snow.
If the outside rear view mirrors are heavi-
ly coated with ice, use a spray de −icer
before operating the switch.
NOTICE
When cleaning the inside of the rear
window, be careful not to scratch or
damage the heater wires or connec-
tors.

’08 Rav4_U (L/O 0802)
124
2008 RAV4 from Feb. ’08 Prod. (OM42726U)

’08 Rav4_U (L/O 0802)
125
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Gauges, Meters and Service reminder indicators
Fuel gauge126
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . .
Engine coolant temperature gauge 126
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer 127
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Odometer and two trip meters 127
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside temperature display 128
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers 129
. . . . . . . . . . . . . .
SECTION 1 6

’08 Rav4_U (L/O 0802)
126
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
The gauge indicates the approximate
quantity of fuel remaining in the tank
when the engine switch is in the “ON”
position.
Nearly full—Needle at “F”
Nearly empty—Needle at “E”
It is a good idea to keep the tank over
1/4 full.
The needle moves when braking, acceler-
ating or making turns. This is caused by
the movement of the fuel in the tank.
If the fuel level approaches “E” or the low
fuel level warning light comes on, fill the
fuel tank as soon as possible.On inclines or curves, due to the move-
ment of fuel in the tank, the fuel gauge
needle may fluctuate or the low fuel level
warning light may come on earlier than
usual.
If the fuel tank is completely empty, the
malfunction indicator lamp comes on. Fill
the fuel tank immediately.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.The gauge indicates the engine coolant
temperature when the engine switch is
in the “ON” position. The engine oper-
ating temperature will vary with
changes in weather and engine load.
If the needle moves into the red zone,
your engine is too hot. If your vehicle
overheats, stop your vehicle and allow the
engine to cool.
Your vehicle may overheat during severe
operating conditions, such as:
Driving up a long hill on a hot day.
Reducing speed or stopping after high
speed driving.
Fuel gauge
Engine coolant temperature
gauge

’08 Rav4_U (L/O 0802)
127
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
Idling for a long period with the air
conditioning on in stop−and− go traffic.
Towing a trailer.
NOTICE
Do not remove the thermostat in
the engine cooling system as this
may cause the engine to overheat.
The thermostat is designed to con-
trol the flow of coolant to keep the
temperature of the engine within
the specified operating range.
 Do not continue driving with an
overheated engine. See “If your ve-
hicle overheats” on page 360 in
Section 4.
The tachometer indicates engine speed
in thousands of rpm (revolutions per
minute). Use it while driving to select
correct shift points and to prevent en-
gine lugging and overrevving.
Driving with the engine running too fast
causes excessive engine wear and poor
fuel economy. Remember, in most cases
the slower the engine speed, the greater
the fuel economy.
NOTICE
Do not let the indicator needle get
into the red zone. This may cause
severe engine damage.
This meter displays the odometer and
two trip meters.
1. Odometer—Shows the total distance the vehicle has been driven.
2. Two trip meters—Show two different distances independently driven since
the last time each trip meter was set
to zero.
You can use one trip meter to calculate
the fuel economy and the other to
measure the distance on each trip. All
trip meter data is cancelled if the elec-
trical power source is disconnected.
Tachometer Odometer and two trip meters

’08 Rav4_U (L/O 0802)
128
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
3. Trip meter reset knob—Resets the twotrip meters to zero, and also change
the meter display.
To change the meter display, quickly
push and release the knob. The meter
display changes in the order from the
odometer to trip meter A to trip meter
B, then back to the odometer each
time you push.
To reset the trip meter A to zero, dis-
play the meter A reading, then push
and hold the knob until the meter is
set to zero. The same process can be
applied for resetting the trip meter B.
The displayed temperature ranges from
−40 C ( −40 F) up to 50 C (122 F).
The engine switch must be in the “ON”
position.
If an abnormality exists in the connection
of the outside air temperature sensor,
“ −− C” will appear on the display. If
“ −− C” appears on the display, contact
your Toyota dealer.
When the outside air temperature falls be-
low 3 C (37F) while driving, the tempera-
ture display flashes to indicate that the
outside air temperature is becoming low.
However, if the temperature is already
3 C (37 F) or below, the display does not
flash when the engine is turned to the
“ON” position.
Outside temperature display

’08 Rav4_U (L/O 0802)
129
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
If the indicator or buzzer comes on...Do this.
(a)orIf parking brake is off, stop immediately and contact Toyota dealer.
(b)
(indicator and buzzer)
Fasten driver ’s seat belt.
(c)
(indicator and buzzer)
Fasten front passenger ’s seat belt.
(d)Stop immediately and contact Toyota dealer.
(e)Stop and check.
(f)orTake vehicle to Toyota dealer.
(g)Fill up tank.
Service reminder indicators and warning buzzers

’08 Rav4_U (L/O 0802)
130
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
If the indicator or buzzer comes on...Do this.
(h)orTake vehicle to Toyota dealer.
If brake system warning light is also on, stop immediately and contact Toyota dealer.
(i)Close all side doors and back door.
(j)Take vehicle to Toyota dealer immediately.
(k)Stop and check.
(l)Take vehicle to Toyota dealer.
(m)Adjust the tire inflation pressure. If warning light remains, contact Toyota dealer.
(n)Cool the driveline without turning off the engine. If warning light remains, contact
Toyota dealer.
(o)Take vehicle to Toyota dealer as soon as possible.
