Fan speed selector
Turn the dial to adjust the fan speed—to
the right to increase, to the left to de-
crease.
Temperature selector
Turn the dial to adjust the temperature—to
the right to warm, to the left to cool.
Air flow selector
Turn the dial to select the vents used for
air flow.1. Panel— Air flows mainly from the
instrument panel vents.
2. Bilevel— Air flows from both the floor
vents and the instrument panel vents.
3. Floor— Air flows mainly from the floor
vents.
4. Floor/Windshield— Air flows mainly
from the floor vents and windshield
vents.
Turning the air flow selector to the
floor/windshield position turns on the
defogging function with the purpose of
clearing the front view. In this position, air intake selector
mode changes to FRESH automatically
to clean up the front view quickly. It is
not possible to return to RECIRCULATE
in this position.
Press the “A/C” button for dehumidified
heating or cooling. This setting clears
the front view more quickly.
5. Windshield— Air flows mainly from the
windshield vents.
Turning the air flow selector to the
windshield position turns on the defog-
ging function with the purpose of clear-
ing the front view.
In this position, air intake selector
mode changes to FRESH automatically
to clean up the front view quickly. It is
not possible to return to RECIRCULATE
in this position.
Press the “A/C” button for dehumidified
heating or cooling. This setting clears
the front view more quickly.
For details about air flow selector settings,
see “—Air flow selector settings” on page
273.

’08 Rav4_U (L/O 0802)
272
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
Air intake selector
Press the button to select the air source.1. RECIRCULATE— Recirculates the air in-
side the vehicle.
2. FRESH— Draws outside air into the
system.
To prevent fogging up of the windshield,
the air intake mode may change automati-
cally to FRESH depending on the condi-
tion of the air conditioning system. “A/C” button
To turn on the air conditioning, press the
“A/C” button. The “A/C” button indicator
will come on. To turn the air conditioning
off, press the button again.

’08 Rav4_U (L/O 0802)
273
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
To cool off your Toyota after it has
been parked in the hot sun, drive with
the windows open for a few minutes.
This vents the hot air, allowing the air
conditioning to cool the interior more
quickly.
Make sure the air intake grilles in front
of the windshield are not blocked (by
leaves or snow, for example).
Keep the area under the front (and
second) seats clear to allow air to cir-
culate throughout the vehicle.
On cold days, set the fan speed to
high for a minute to help clear the
intake ducts of snow or moisture. This
can reduce the amount of fogging on
the windows.
When driving on dusty roads, close all
windows. If dust thrown up by the ve-
hicle is still drawn into the vehicle after
closing the windows, it is recommended
that the air intake selector be set to
FRESH and the fan speed selector to
any setting except “0”.

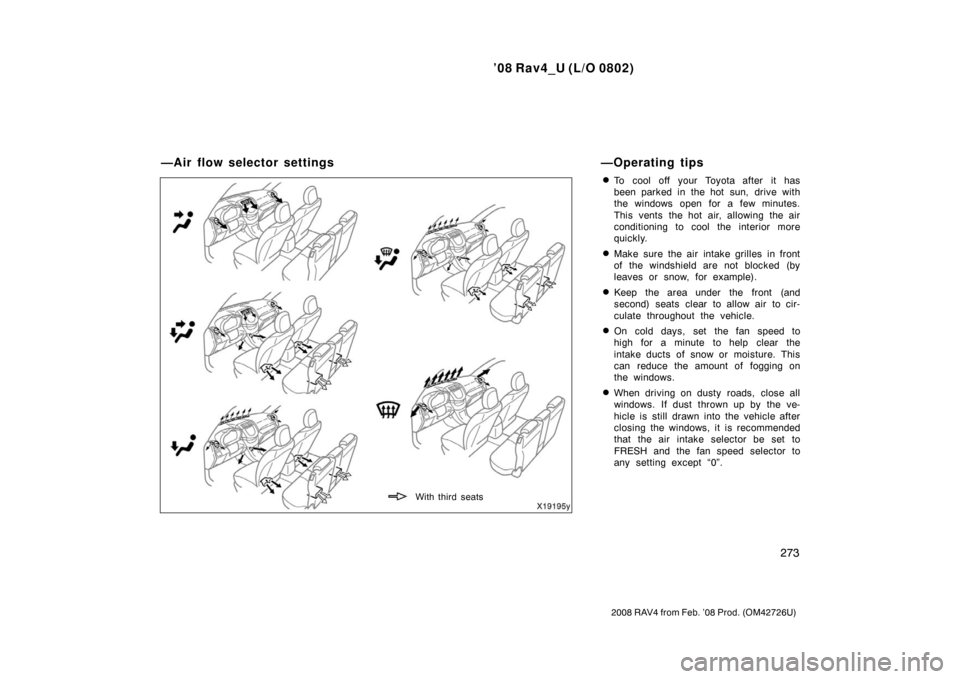

—Air flow selector settings
With third seats
—Operating tips

’08 Rav4_U (L/O 0802)
274
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
If following another vehicle on a dusty
road, or driving in windy and dusty
conditions, it is recommended that the
air intake selector be temporarily set to
RECIRCULATE, which will close off the
outside passage and prevent outside
air and dust from entering the vehicle
interior.

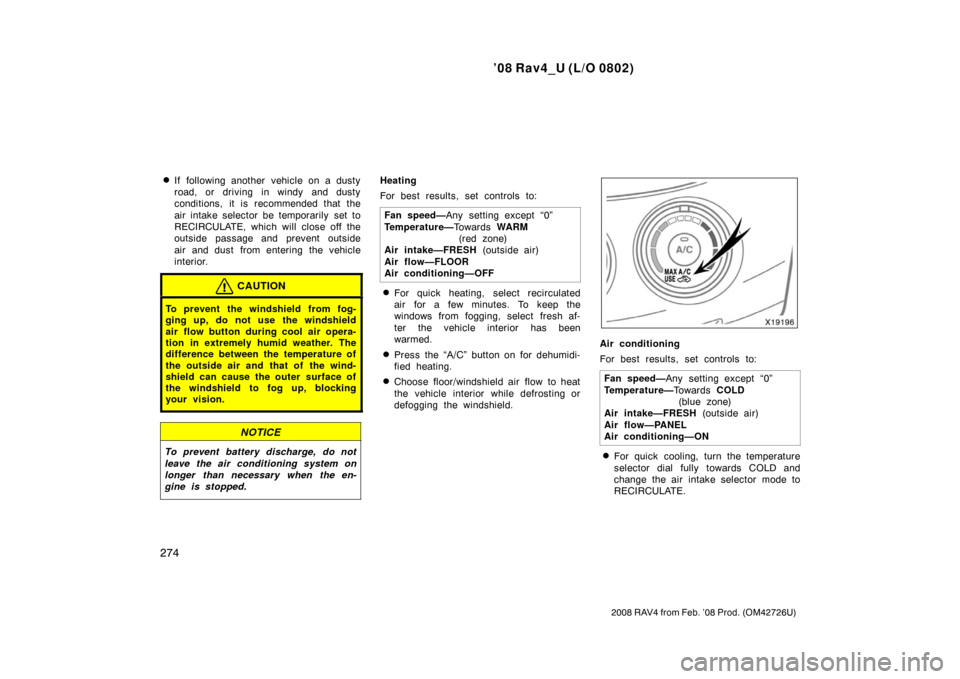

CAUTION
To prevent the windshield from fog-
ging up, do not use the windshield
air flow button during cool air opera-
tion in extremely humid weather. The
difference between the temperature of
the outside air and that of the wind-
shield can cause the outer surface of
the windshield to fog up, blocking
your vision.
NOTICE
To prevent battery discharge, do not
leave the air conditioning system on
longer than necessary when the en-
gine is stopped.
Heating
For best results, set controls to:Fan speed— Any setting except “0”
Temperature— To w a r d s WARM
(red zone)
Air intake—FRESH (outside air)
Air flow—FLOOR
Air conditioning—OFF
For quick heating, select recirculated
air for a few minutes. To keep the
windows from fogging, select fresh af-
ter the vehicle interior has been
warmed.
Press the “A/C” button on for dehumidi-
fied heating.
Choose floor/windshield air flow to heat
the vehicle interior while defrosting or
defogging the windshield.
Air conditioning
For best results, set controls to:
Fan speed— Any setting except “0”
Temperature— To w a r d s COLD
(blue zone)
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—ON
For quick cooling, turn the temperature
selector dial fully towards COLD and
change the air intake selector mode to
RECIRCULATE.

’08 Rav4_U (L/O 0802)
275
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
Ventilation
For best results, set controls to:Fan speed— Any setting except “0”
Temperature— To w a r d s COLD
(blue zone)
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—OFF
Defogging
The inside of the windshield
For best results, set controls to:
Fan speed— Any setting except “0”
Temperature— To w a r d s WARM
(red zone) to heat;
COLD (blue zone) to
cool
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Turning the air flow selector to the wind-
shield or floor/windshield position turns on
the defogging function with the purpose of
clearing the front view.
When turning the air flow selector to wind-
shield or floor/windshield position, air in-
take selector mode changes to FRESH
automatically to clean up the front view
quickly. It is not possible to return to
RECIRCULATE in this position. Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
On humid days, do not blow cold air
on the windshield—the difference be-
tween the outside and inside tempera-
tures could make the fogging worse.
Defrosting
The outside of the windshield
For best results, set controls to:
Fan speed— Any setting except “0”
Temperature— To w a r d s WARM
(red zone)
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Turning the air flow selector to the wind-
shield or floor/windshield position turns on
the defrosting function with the purpose of
clearing the front view.
When turning the air flow selector to wind-
shield or floor/windshield position, air in-
take selector mode changes to FRESH
automatically to clean up the front view
quickly. It is not possible to return to
RECIRCULATE in this position. Press the “A/C” button for dehumidified
heating. This setting clears the front view
more quickly.
To heat the vehicle interior while de-
frosting the windshield, choose
floor/windshield air flow.

’08 Rav4_U (L/O 0802)
276
2008 RAV4 from Feb. ’08 Prod. (OM42726U)

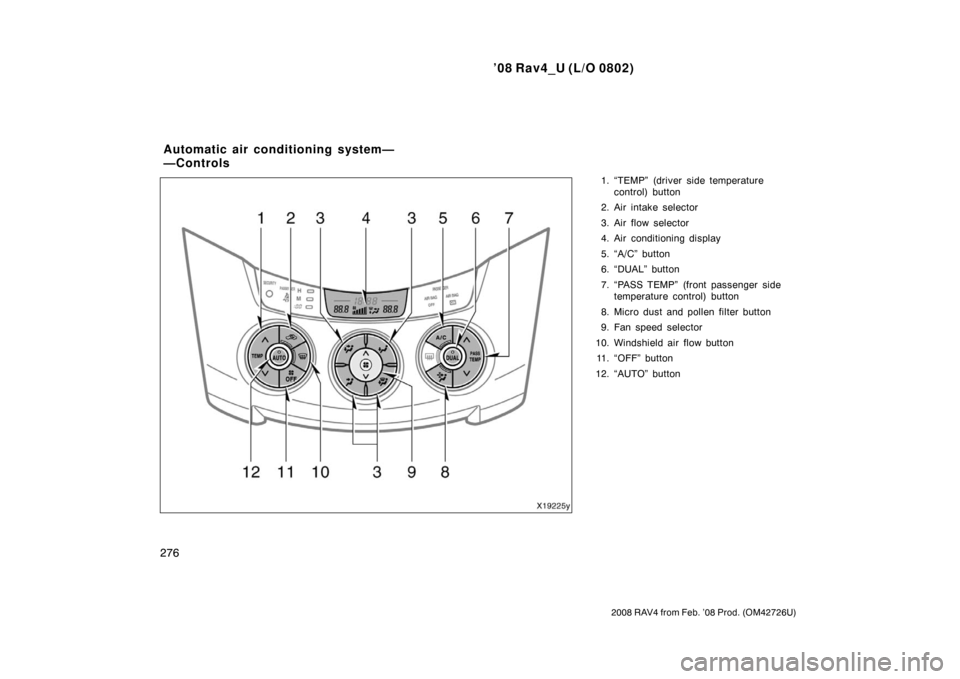

1. “TEMP” (driver side temperaturecontrol) button
2. Air intake selector
3. Air flow selector
4. Air conditioning display
5. “A/C” button
6. “DUAL” button
7. “PASS TEMP” (front passenger side temperature control) button
8. Micro dust and pollen filter button
9. Fan speed selector
10. Windshield air flow button 11. “OFF” button
12. “AUTO” button
Automatic air conditioning system—
—Controls

’08 Rav4_U (L/O 0802)
277
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
“AUTO” button
For automatic operation of the air condi-
tioning, push the “AUTO” button. An indi-
cator light will illuminate to show that the
automatic operation mode has been se-
lected.
In the automatic operation mode, the air
conditioning selects the most suitable fan
speed, air flow, air intake and on−off of
the air conditioning according to the tem-
perature. As a result, the following may
occur.
The system may switch automatically
to recirculated mode when the coolest
temperature setting is selected in sum-
mer.
Immediately after the switch is
pressed, the fan may stop for a while
until warm or cool air is ready to flow.
Cool air may flow to the area around
the upper body when the heater is on.
You may use manual controls if you want
to select your own settings.
Fan speed selector
Push the “ ” (increase) or “ ” (decrease)
side of the button to adjust the fan speed.
In automatic operation, you do not have
to adjust the fan speed unless you desire
another fan speed mode. “DUAL” button
Push the button to change the mode of
the temperature setting.
With the indicator on—
Individual temper-
ature setting
With the indicator off— Simultaneous
temperature setting
“TEMP” (driver side temperature con-
trol) button
To increase the temperature, press the
“  ” side. To decrease it, press the “ ”
side.
“LO” appears when you adjust to maxi-
mum cooling, and “HI” appears when you
adjust to maximum warming.
With the “DUAL” button indicator on—This
button changes the temperature on the
driver side only.
With the “DUAL” button indicator off—This
button changes the temperature on the
driver side and front passenger side si-
multaneously.
This function will be cancelled when the
“PASS TEMP” button is pushed. “PASS TEMP” (front passenger side
temperature control) button
To increase the temperature, press the
“
 ” side. To decrease it, press the “ ”
side.
“LO” appears when you adjust to maxi-
mum cooling, and “HI” appears when you
adjust to maximum warming.
This button changes the temperature on
the front passenger side only.
“OFF” button
Push the “OFF” button to turn off the air
conditioning system.

’08 Rav4_U (L/O 0802)
278
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
Air flow selector
Push one of the buttons to select the
vents used for air flow.
In automatic operation, you do not have
to select the air flow unless you desire
another air flow mode.1. Panel— Air flows mainly from the
instrument panel vents.
2. Bilevel— Air flows from both the floor
vents and the instrument panel vents.
3. Floor— Air flows mainly from the floor
vents. 4. Floor/Windshield—
Air flows mainly
from the floor vents and windshield
vents.
This position allows the air intake to
select FRESH automatically. This is to
clean up the front view more quickly. It
is not possible to return to
RECIRCULATE in this position.
Pushing this button turns on the
defroster −linked air conditioning. This is
to clean up the front view more quickly.
For details about air flow selector settings,
see “—Air flow selector settings” on page
280. Windshield air flow button
When this button is pressed, air flows
mainly from the windshield vents and
turns on the defogging function with the
purpose of clearing the front view.
Pressing this button once again returns
the air flow mode to the last one used.
In this position, the air intake selector
mode changes to FRESH automatically to
clean up the front view quickly. It is not
possible to return to RECIRCULATE in
this position.
Pressing the windshield air flow button
turns on the defroster
−linked air condition-
ing. This is to clean up the front view
more quickly.
To turn off the air conditioning alone,
press the “A/C” button once again.
When the “A/C” button is not pressed in,
pressing another air flow button turns off
the air conditioning.
For details about air flow selector settings,
see “—Air flow selector settings” on page
280.

’08 Rav4_U (L/O 0802)
279
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
Air intake selector
Press the button to select the air source.1. RECIRCULATE (indicator light is
on)—Recirculates the air inside the ve-
hicle.
2. FRESH (indicator light is off)—Draws
outside air into the system.
To prevent fogging up of the windshield,
the air intake mode may change automati-
cally to FRESH depending on the condi-
tion of the air conditioning system. “A/C” button
To turn on the air conditioning, press the
“A/C” button. The “A/C” button indicator
will come on. To turn the air conditioning
off, press the button again.
Micro dust and pollen filter button
Push the button to remove the airborne
pollen and micro dust from the cabin as
soon as possible. An indicator will come
on.
The air intake mode will switch to
RECIRCULATE mode. The air will flow to
the upper part of the body of the
occupants and pollen and micro dust will
be removed. After about 3 minutes have
elapsed, the operation stops, and the air
conditioning system automatically returns
to the settings prior to the button being
pushed.
To stop the operation, do one of the fol-
lowing:
Press the micro dust and pollen filter
button again.
Press the “AUTO” button.
Press one of the air flow selector but-
tons or the windshield air flow button.When the ambient temperature is low, the
following may occur:
Air intake mode does not switch to
RECIRCULATE.
The air conditioning system operates
automatically.
The operation is cancelled after 1 min-
ute.
In rainy weather, the windows may fog up.
Press the windshield air flow button.

’08 Rav4_U (L/O 0802)
280
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
To cool off your Toyota after it has
been parked in the hot sun, drive with
the windows open for a few minutes.
This vents the hot air, allowing the air
conditioning to cool the interior more
quickly.
Make sure the air intake grilles in front
of the windshield are not blocked (by
leaves or snow, for example).
Keep the area under the front (and
second) seats clear to allow air to cir-
culate throughout the vehicle.
On cold days, set the fan speed to
high for a minute to help clear the
intake ducts of snow or moisture. This
can reduce the amount of fogging on
the windows.
When driving on dusty roads, close all
windows. If dust thrown up by the ve-
hicle is still drawn into the vehicle after
closing the windows, it is recommended
that the air intake selector be set to
FRESH and the fan speed selector to
any setting except off.
—Air flow selector settings
With third seats
—Operating tips
