1. Reduce your speed gradually,keeping a straight line. Move cau-
tiously off the road to a safe place
well away from the traffic. Avoid
stopping on the center divider of
a highway. Park on a level spot
with firm ground.
2. Stop the engine and turn on your emergency flashers.
3. Firmly set the parking brake and put the transmission in “P”.
4. Have everyone get out of the ve- hicle on the side away from traffic.
5. Read the following instructions thoroughly.CAUTION
When jacking, be sure to observe
the following to reduce the possi-
bility of death or serious injury:
Follow jacking instructions.
 Do not put any part of your
body under the vehicle sup-
ported by the jack. Otherwise,
personal injury may occur.
 Do not start or run the engine
while your vehicle is supported
by the jack.
 Stop the vehicle on a level firm
ground, firmly set the parking
brake and put the transmission
in “P”. Block the wheel diago-
nally opposite to the one being
changed if necessary.
Make sure to set the jack prop-
erly in the jack point. Raising
the vehicle with jack improper-
ly positioned will damage the
vehicle or may allow the ve-
hicle to fall off the jack and
cause personal injury.
 Never get under the vehicle
when the vehicle is supported
by the jack alone.
 Use the jack only for lifting
your vehicle during wheel
changing.
 Do not raise the vehicle with
someone in the vehicle.
 When raising the vehicle, do
not place any objects on top
of or underneath the jack.
 Raise the vehicle only high
enough to remove and change
the tire.
If you have a flat tire—

’08 Rav4_U (L/O 0802)
362
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
NOTICE
Do not continue driving with a
deflated tire. Driving even a
short distance can damage a
tire and wheel beyond repair.
Tool bag
Jack1. Get the required tools and
spare tire on the back door.
To prepare yourself for an emergency,
you should familiarize yourself with
the use of the jack, each of the tools
and their storage locations.
— R eq u ired to o ls an d sp are
tire

’08 Rav4_U (L/O 0802)
363
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
To remove the jack, turn the jack joint
by hand.
To rem ov e: Tur n the joint in direction
1 until the jack is free.
To store: Turn the joint in direction 2
until the jack is fi rmly secured to pre-
vent it flying forward during a collision
or sudden braking.To remove the spare cover:
1. Open the back door. Unhook the latch handle which on the bottom
of the spare tire cover.
The latch handle can be released only
when the back door is opened.2. Close the back door. Remove the spare tire cover.

’08 Rav4_U (L/O 0802)
364
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
To remove the spare tire, turn the
hold −down nuts counterclockwise
with the wheel nut wrench and re-
move them.
When stowing the spare tire, put it in
place and secure it to prevent it from
flying forward during a collision or
sudden braking.2. Block the wheel diagonally op- posite the flat tire to keep the
vehicle from rolling when it is
jacked up.
When blocking the wheel, place a
wheel block in front of one of the front
wheels or behind one of the rear
wheels.Ty p e A
Ty p e B
—Blocking the wheel —Removing wheel ornament

’08 Rav4_U (L/O 0802)
365
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
3. Remove the wheel ornament.
Pry off the wheel ornament, using the
beveled end of the wheel nut wrench
as shown.
CAUTION
Do not try to pull off the orna-
ment by hand. Take due care in
handling the ornament to avoid
unexpected personal injury.

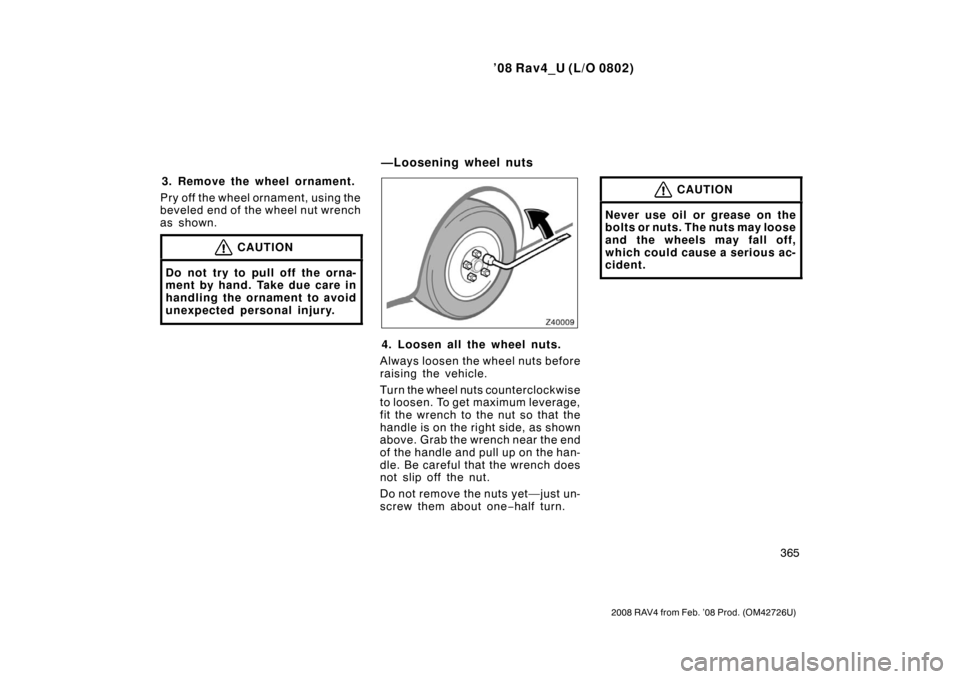

4. Loosen all the wheel nuts.
Always loosen the wheel nuts before
raising the vehicle.
Turn the wheel nuts counterclockwise
to loosen. To get maximum leverage,
fit the wrench to the nut so that the
handle is on the right side, as shown
above. Grab the wrench near the end
of the handle and pull up on the han-
dle. Be careful that the wrench does
not slip off the nut.
Do not remove the nuts yet—just un-
screw them about one −half turn.
CAUTION
Never use oil or grease on the
bolts or nuts. The nuts may loose
and the wheels may fall off,
which could cause a serious ac-
cident.
—Loosening wheel nuts

’08 Rav4_U (L/O 0802)
366
2008 RAV4 from Feb. ’08 Prod. (OM42726U)

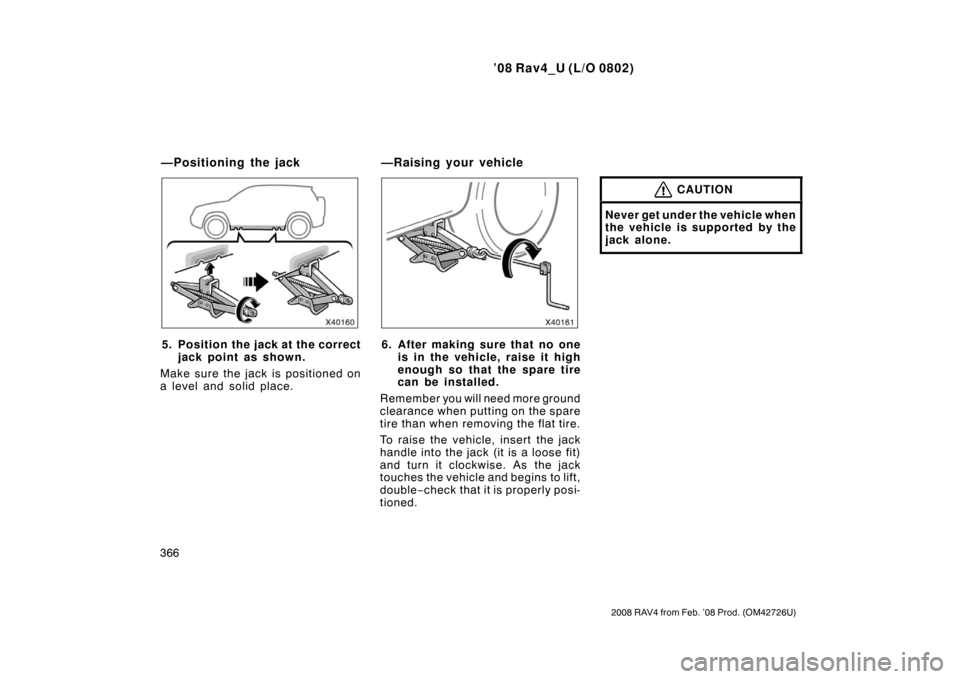

5. Position the jack at the correctjack point as shown.
Make sure the jack is positioned on
a level and solid place.6. After making sure that no one is in the vehicle, raise it high
enough so that the spare tire
can be installed.
Remember you will need more ground
clearance when putting on the spare
tire than when removing the flat tire.
To raise the vehicl e, insert the jack
handle into the jack (it is a loose fit)
and turn it clockwise. As the jack
touches the vehicle and begins to lift,
double −check that it is properly posi-
tioned.
CAUTION
Never get under the vehicle when
the vehicle is supported by the
jack alone.
—Positioning the jack —Raising your vehicle

’08 Rav4_U (L/O 0802)
367
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
7. Remove the wheel nuts andchange tires.

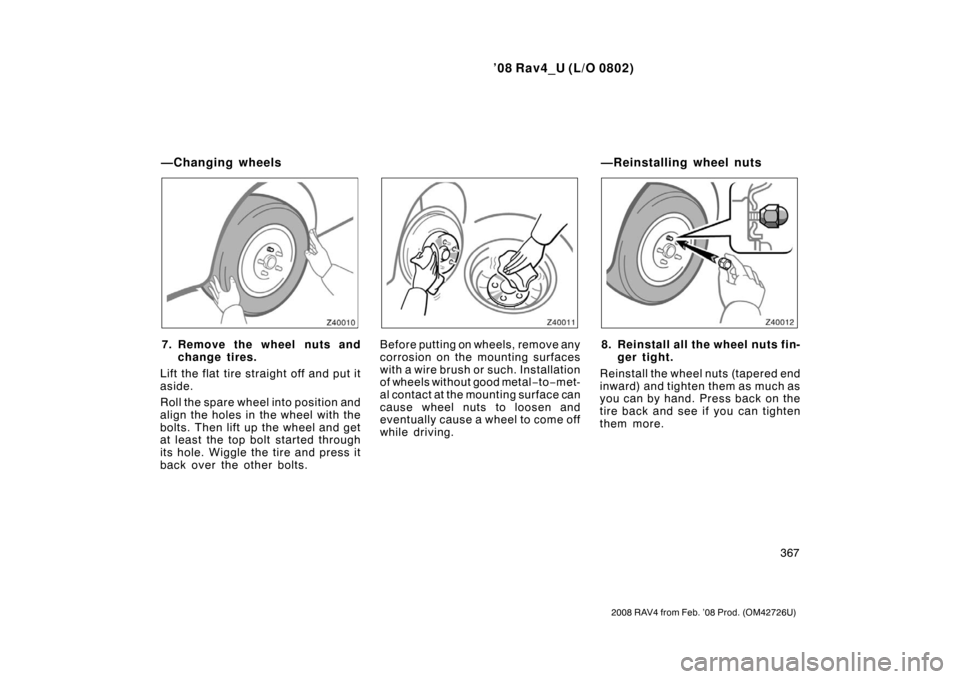

Lift the flat tire straight off and put it
aside.
Roll the spare wheel into position and
align the holes in the wheel with the
bolts. Then lift up the wheel and get
at least the top bolt started through
its hole. Wiggle the tire and press it
back over the other bolts.Before putting on wheels, remove any
corrosion on the mounting surfaces
with a wire brush or such. Installation
of wheels without good metal− to−met-
al contact at the mounting surface can
cause wheel nuts to loosen and
eventually cause a wheel to come off
while driving.8. Reinstall all the wheel nuts fin- ger tight.
Reinstall the wheel nuts (tapered end
inward) and tighten them as much as
you can by hand. Press back on the
tire back and see if you can tighten
them more.
—Changing wheels —Reinstalling wheel nuts

’08 Rav4_U (L/O 0802)
368
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
CAUTION
Never use oil or grease on the
bolts or nuts. Doing so may lead
to overtightening the nuts and
damaging the bolts. The nuts
may loose and the wheels may
fall off, which could cause a seri-
ous accident. If there is oil or
grease on any bolt or nut, clean
it.
9. Lower the vehicle completelyand tighten the wheel nuts.
Turn the jack handle counterclock-
wise to lower the vehicle.
Use only the wheel nut wrench and
turn it clockwise to tighten the nuts.
Do not use other tools or any addition-
al leverage other than your hands,
such as a hammer, pipe or your foot.
Make sure the wrench is securely en-
gaged over the nut.

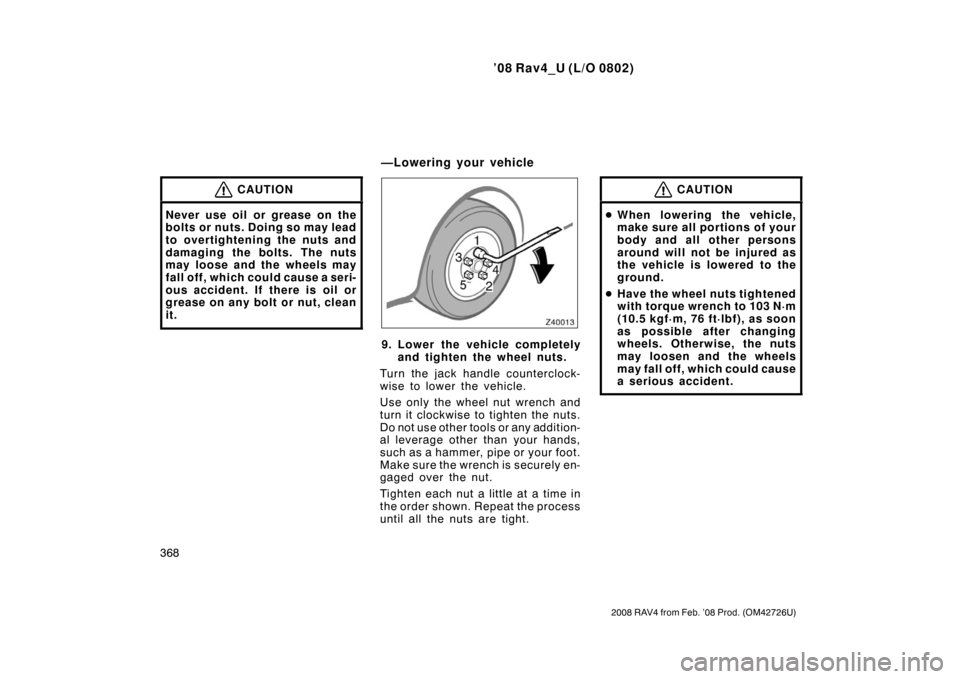

Tighten each nut a little at a time in
the order shown. Repeat the process
until all the nuts are tight.
CAUTION
 When lowering the vehicle,
make sure all portions of your
body and all other persons
around will not be injured as
the vehicle is lowered to the
ground.
 Have the wheel nuts tightened
with torque wrench to 103 N·m
(10.5 kgf·m, 76 ft·lbf), as soon
as possible after changing
wheels. Otherwise, the nuts
may loosen and the wheels
may fall off, which could cause
a serious accident.
—Lowering your vehicle

’08 Rav4_U (L/O 0802)
369
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
10.Install the flat tire and spare tirecover on the back door.
CAUTION
Make sure flat tire and spare tire
cover are securely in place in
their storage location to reduce
the possibility of personal injury
during a collision or sudden
braking.

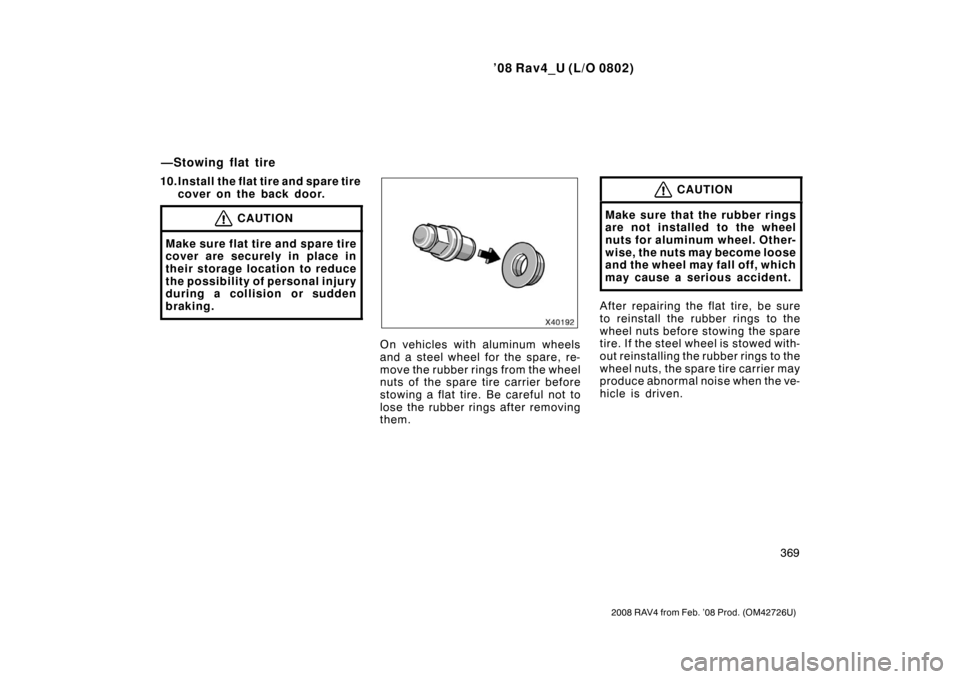

On vehicles with aluminum wheels
and a steel wheel for the spare, re-
move the rubber rings from the wheel
nuts of the spare tire carrier before
stowing a flat tire. Be careful not to
lose the rubber rings after removing
them.
CAUTION
Make sure that the rubber rings
are not installed to the wheel
nuts for aluminum wheel. Other-
wise, the nuts may become loose
and the wheel may fall off, which
may cause a serious accident.
After repairing the flat tire, be sure
to reinstall the rubber rings to the
wheel nuts before stowing the spare
tire. If the steel wheel is stowed with-
out reinstalling the rubber rings to the
wheel nuts, the spare tire carrier may
produce abnormal noise when the ve-
hicle is driven.
—Stowing flat tire

’08 Rav4_U (L/O 0802)
370
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
On some models—Before stowing the
flat tire, remove the center wheel or-
nament by pushing from the reverse
side.
Be careful not to lose the wheel orna-
ment.
Guides

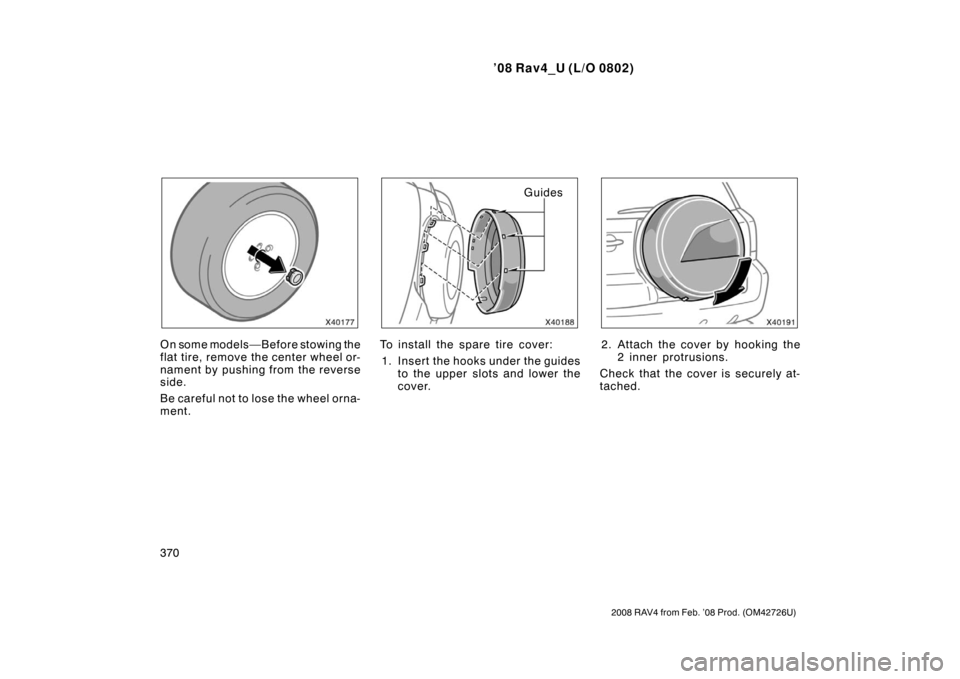

To install the spare tire cover: 1. Insert the hooks under the guides to the upper slots and lower the
cover.
2. Attach the cover by hooking the2 inner protrusions.
Check that the cover is securely at-
tached.
