GoodBlown
Ty p e C
If the headlights or other electrical
components do not work, check the
fuses. If any of the fuses are blown,
they must be replaced.
See “Fuse locations” on page 398 in Sec-
tion 7 −1 for locations of the fuses.
Turn the engine switch and inoperative
component off. Pull the suspected fuse
straight out and check it.
Determine which fuse may be causing the
problem. The lid of the fuse box shows
the name of the circuit for each fuse. See
page 434 in Section 8 for the functions
controlled by each circuit. Type A fuses can be pulled out by using
the pull
−out tool. The location of the pull −
out tool is shown in the illustration.
If you are not sure whether the fuse has
blown, try replacing the suspected fuse
with one that you know is good.
If the fuse has blown, push a new fuse
into the clip.
Only install a fuse with the amperage rat-
ing designated on the fuse box lid.
If you do not have a spare fuse, in an
emergency you can pull out the “RAD
NO.1” or “CIG” fuse, which may be dis-
pensable for normal driving, and use it if
its amperage rating is the same.
If you cannot use one of the same amper-
age, use one that is lower, but as close
to the rating as possible. If the amperage
is lower than that specified, the fuse
might blow out again but this does not
indicate anything wrong. Be sure to get
the correct fuse as soon as possible and
return the substitute to its original clip.
It is a good idea to purchase a set of
spare fuses and keep them in your ve-
hicle for emergencies.

’08 Rav4_U (L/O 0802)
422
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
If the new fuse immediately blows out,
there is a problem with the electrical sys-
tem. Have your Toyota dealer correct it as
soon as possible.
You should normalize the power window
and moon roof may not operate correctly
after replacing blown fuses. To normalize
the power window and moon roof, see
“Power windows” on page 24 and “Electric
moon roof” on page 30 in Section 1−2.
CAUTION
Never use a fuse with a higher am-
perage rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.
If any washer does not work or wind-
shield washer fluid level warning light
comes on, the washer tank may be
empty. Add washer fluid.
You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below the freezing point, use
washer fluid containing antifreeze. This
product is available at your Toyota dealer
and most auto parts stores. Follow the
manufacturer’s directions for how much to
mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the engine switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
The stop/tail lights and high mounted stop-
light consist of a number of LEDs. If any
of the LEDs burn out, take your vehicle
to your Toyota dealer to have the light
replaced.
If two or more LEDs in a stop/tail light
burn out, your vehicle may not conform to
local laws (SAE).

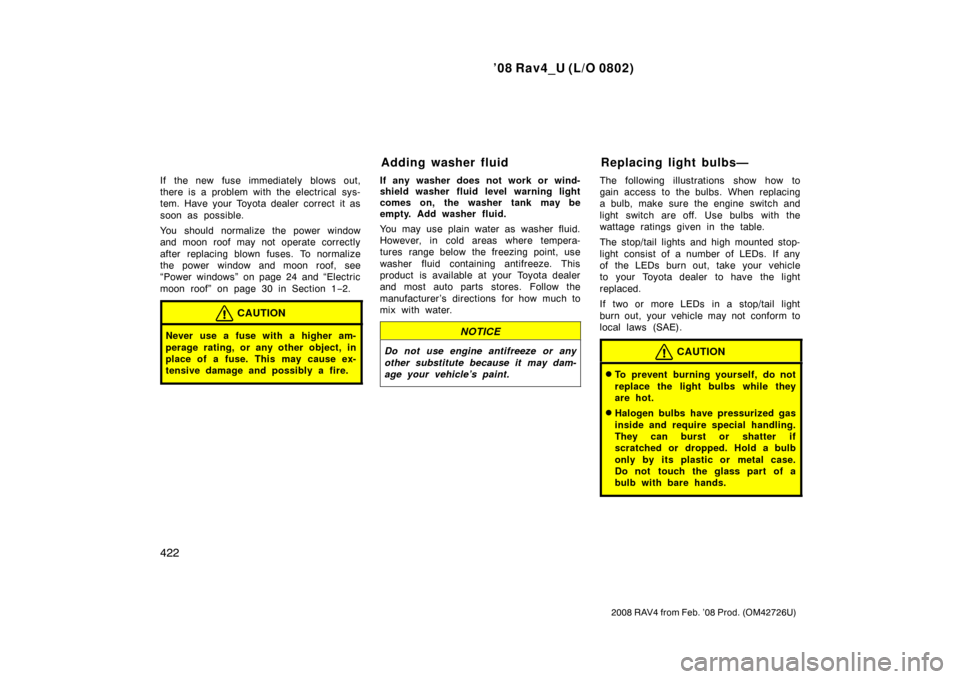

CAUTION
To prevent burning yourself, do not
replace the light bulbs while they
are hot.
Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if
scratched or dropped. Hold a bulb
only by its plastic or metal case.
Do not touch the glass part of a
bulb with bare hands.
Adding washer fluid Replacing light bulbs—

’08 Rav4_U (L/O 0802)
423
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
NOTICE
Only use a bulb of the listed type.
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogs up in the rain. However, if
there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your
Toyota dealer.Light bulbs
Bulb
No.WTy p e
Headlights (high)900560A
Headlights (low)900651B
Front turn signal,
parking and front
side marker lights
744321/5C
Front fog lights—55D
Rear turn signal
lights744021E
Back −up lights92116C
Rear side marker
lights—5C
License plate light1685C
Interior light—8F
Front personal
lights—8C
Vanity lights—8C
Luggage
compartment light—5E
A: HB3 halogen bulbs
B: HB4 halogen bulbs
C: Wedge base bulbs (clear)
D: H11 halogen bulbs
E: Wedge base bulbs (amber)
F: Double end bulbs

’08 Rav4_U (L/O 0802)
424
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
Low beam
(outside)High beam (inside)

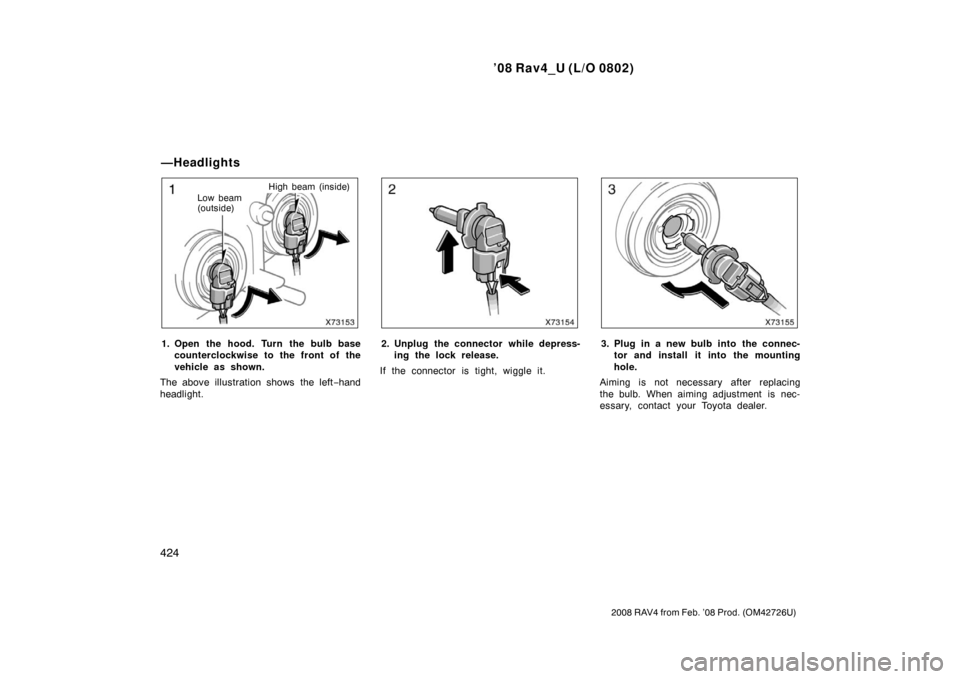

1. Open the hood. Turn the bulb base
counterclockwise to the front of the
vehicle as shown.
The above illustration shows the left −hand
headlight.2. Unplug the connector while depress- ing the lock release.
If the connector is tight, wiggle it.3. Plug in a new bulb into the connec- tor and install it into the mounting
hole.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.
—Headlights

’08 Rav4_U (L/O 0802)
425
2008 RAV4 from Feb. ’08 Prod. (OM42726U)

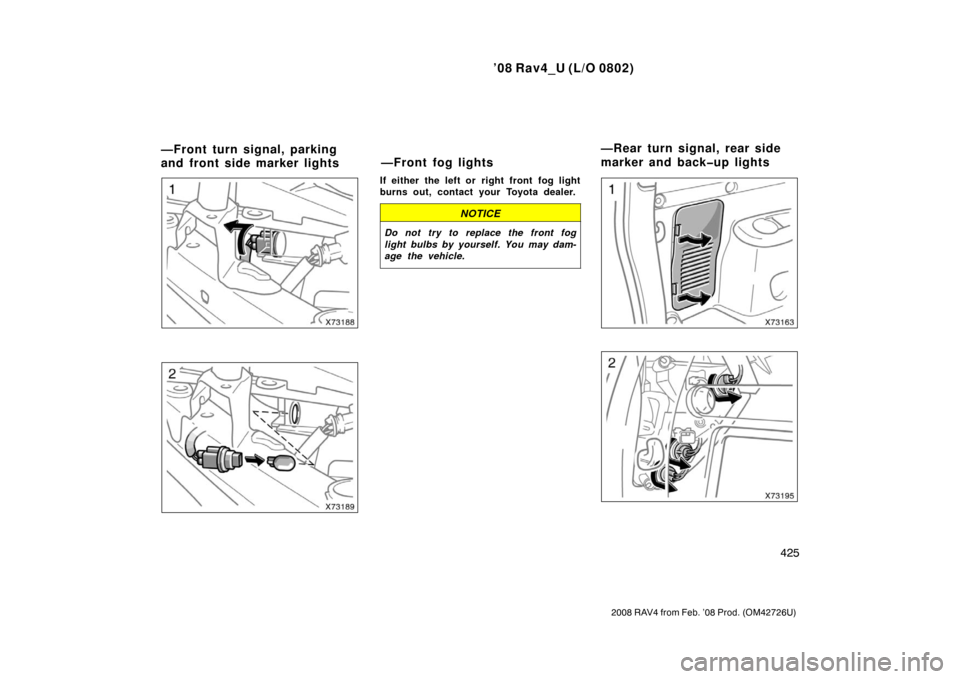

If either the left or right front fog light
burns out, contact your Toyota dealer.
NOTICE
Do not try to replace the front fog
light bulbs by yourself. You may dam-
age the vehicle.
—Front turn signal, parking
and front side marker lights—Front fog lights—Rear turn signal, rear side
marker and backup lights

’08 Rav4_U (L/O 0802)
426
2008 RAV4 from Feb. ’08 Prod. (OM42726U)

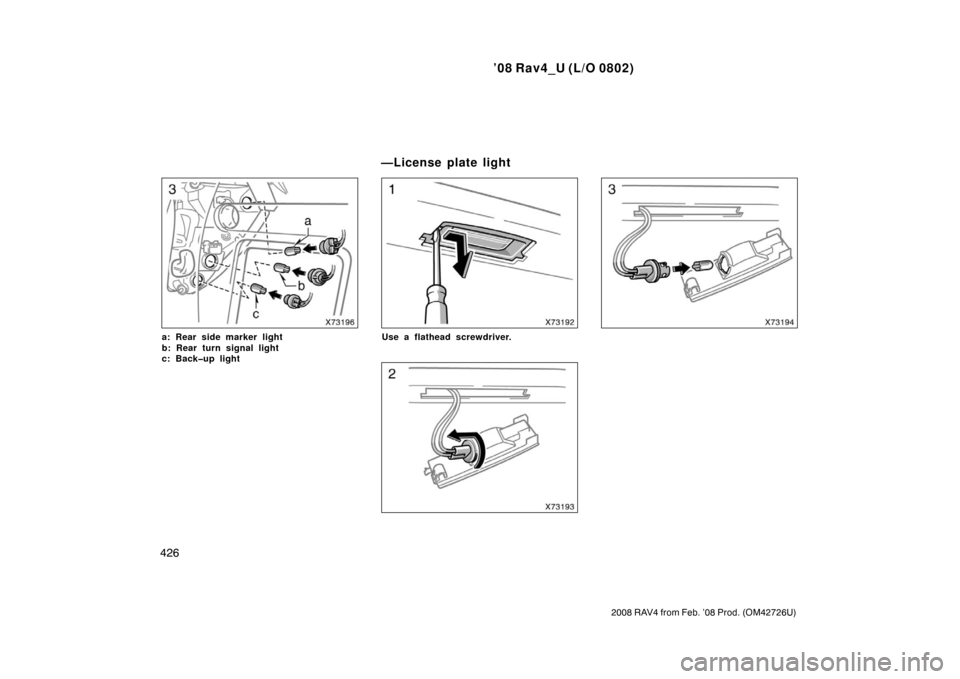

a: Rear side marker light
b: Rear turn signal light
c: Backup lightUse a flathead screwdriver.
—License plate light

’08 Rav4_U (L/O 0802)
427
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
SPECIFICATIONS
Specifications
Dimensions and weights428
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Engine 429
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 429
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 429
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 433
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 434
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

’08 Rav4_U (L/O 0802)
428
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
∗1: 215/70R16 tires∗2: 225/65R17 tires∗3: 235/55R18 tires∗4: With spare tire cover∗5: With over fender∗6: Unladen vehicle∗7: With third seat∗8: With roof rails∗9: 2.4 L 4 −cylinder (2AZ −FE) engine∗
10: 3.5 L V6 (2GR −FE) engine∗
11: Without towing package∗12: With towing package
Dimensions and weights
Overall length mm (in.)
Overall width mm (in.)
Overall height
∗ 6mm (in.)
Wheelbase mm (in.)
Front tread mm (in.)
Rear tread mm (in.)
Vehicle capacity weight
(occupants + luggage) kg (lb.) 1685 (66.3)
1690 (66.5)∗
7
1745 (68.7)∗8
1755 (69.1)∗7, 8
4570 (179.9)∗1
4575 (180.1)∗2
4580 (180.3)∗3
4600 (181.1)∗4
1815 (71.5)
1855 (73.0)∗5
2660 (104.7)
1560 (61.4)
1560 (61.4)
375 (825)
525 (1155)
∗7
Towing capacity
(trailer weight + cargo weight) kg (lb.) 680 (1500)∗
9
907 (2000)∗10, 11
1588 (3500)∗10, 12

’08 Rav4_U (L/O 0802)
429
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
Model:2AZ− FE and 2GR −FE
Type: 2AZ− FE engine
4 cylinder in line, 4 cycle, gasoline
2GR −FE engine
6 cylinder V type, 4 cycle, gasoline
Bore and stroke, mm (in.): 2AZ− FE engine
88.5 96.0 (3.48 3.78)
2GR −FE engine
94.0 83.0 (3.70 3.27)
Displacement, cm
3 (cu. in.):
2AZ− FE engine 2362 (144.1)
2GR −FE engine 3456 (210.9)Fuel type:
Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or higher
Fuel tank capacity, L (gal., Imp. gal.): 60 (15.9, 13.2) ENGINE
Valve clearance (engine cold), mm (in.):
2.4 L 4 −cylinder (2AZ −FE) engine only
Intake 0.19—0.29 (0.007—0.011)
Exhaust 0.38—0.48 (0.015—0.019)
Spark plug type: 2.4 L 4 −cylinder (2AZ −FE) engine
DENSO SK20R11
NGK IFR6A11
3.5 L V6 (2GR −FE) engine
DENSO FK20HR11
Spark plug gap, mm (in.): 1.1 (0.043)
NOTICE
3.5 L V6 (2GRFE) engine—Use only
above spark plugs. Do not adjust
gaps for engine performance or
smooth driveab ility.
Engine FuelService specifications

’08 Rav4_U (L/O 0802)
430
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
ENGINE LUBRICATION
Oil capacity (drain and refill),
L (qt., Imp. qt.):2.4 L 4 −cylinder (2AZ −FE) engine
With filter 4.3 (4.5, 3.8)
Without filter 4.1 (4.3, 3.6)
3.5 L V6 (2GR −FE) engine
With filter 6.1 (6.4, 5.4)
Without filter 5.7 (6.0, 5.0)
“Toyota Genuine Motor Oil” is used in
your Toyota vehicle. Use Toyota approved
“Toyota Genuine Motor Oil” or equivalent
to satisfy the following grade and
viscosity.

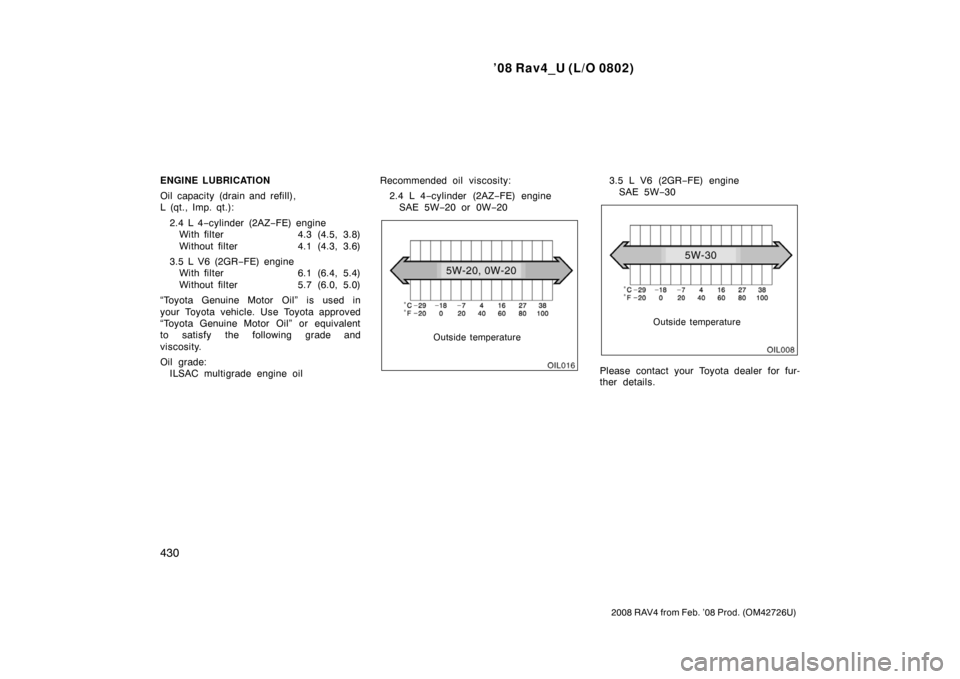

Oil grade: ILSAC multigrade engine oil Recommended oil viscosity:
2.4 L 4 −cylinder (2AZ −FE) engine
SAE 5W −20 or 0W −20
Outside temperature
3.5 L V6 (2GR −FE) engine
SAE 5W −30
Outside temperature
Please contact your Toyota dealer for fur-
ther details.
