fuel TOYOTA RAV4 2008 XA30 / 3.G Quick Reference Guide

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

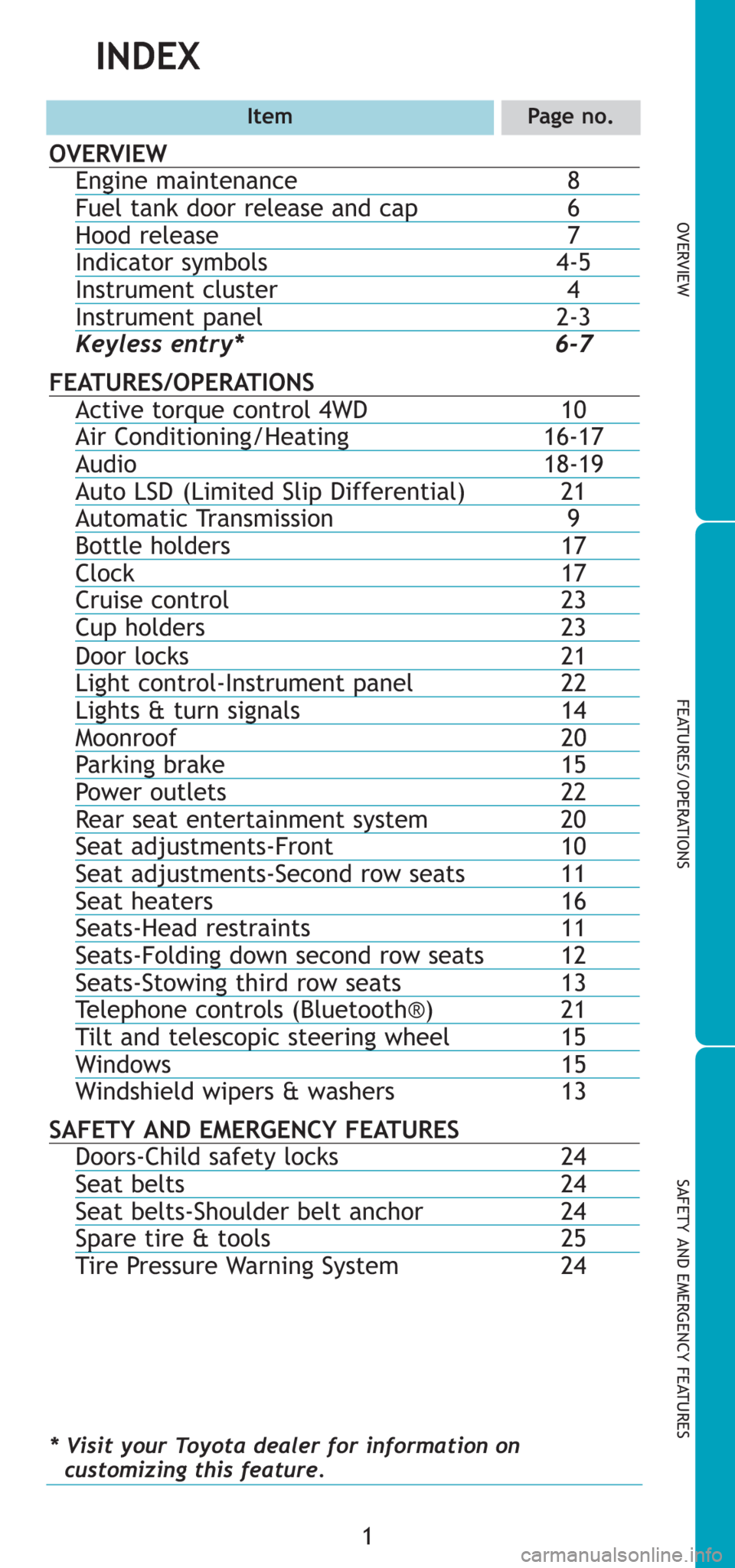

INDEX
ItemPage no.
OVERVIEWEngine maintenance8Fuel tank door release and cap6Hood release 7Indicator symbols 4-5Instrument cluster 4Instrument panel2-3Keyless entry* 6-7
FEATURES/OPERATIONSActive torque control 4WD 10Air Conditioning/Heating16-17Audio 18-19Auto LSD (Limited Slip Differential) 21Automatic Transmission 9Bottle holders 17Clock 17Cruise control 23Cup holders 23
Door locks21Light control-Instrument panel22Lights & turn signals14Moonroof 20Parking brake 15Power outlets 22Rear seat entertainment system 20Seat adjustments-Front 10Seat adjustments-Second row seats 11Seat heaters16Seats-Head restraints 11Seats-Folding down second row seats 12Seats-Stowing third row seats 13Te l e p h o n e controls (Bluetooth®) 21Tilt and telescopic steering wheel 15Windows 15
Windshield wipers & washers13
SAFETY AND EMERGENCY FEATURESDoors-Child safety locks 24Seat belts 24Seat belts-Shoulder belt anchor 24Spare tire & tools 25
Tire Pressure Warning System 24
* Visit your Toyota dealer for information on
customizing this feature.

Open door warning1
•Vehicle Stability Control warning1
•“AUTO LSD” warning1
•Traction Control warning1
•Downhill Assist Control warning1
•Hill-start Assist Control warning1
4
OVERVIEW
1For details, refer to “Service reminder indicators and warning
buzzers,” Section 1-6, 2008 Owner’s Manual.
2For details, refer to “Active torque control 4WD system,”
Section 1-7, 2008 Owner’s Manual.
Tachometer
Service indicator and reminder
Speedometer
Engine coolant temperature
Fuel gauge
Odometer, two trip meters and outside
temperature display
Trip meter reset knob

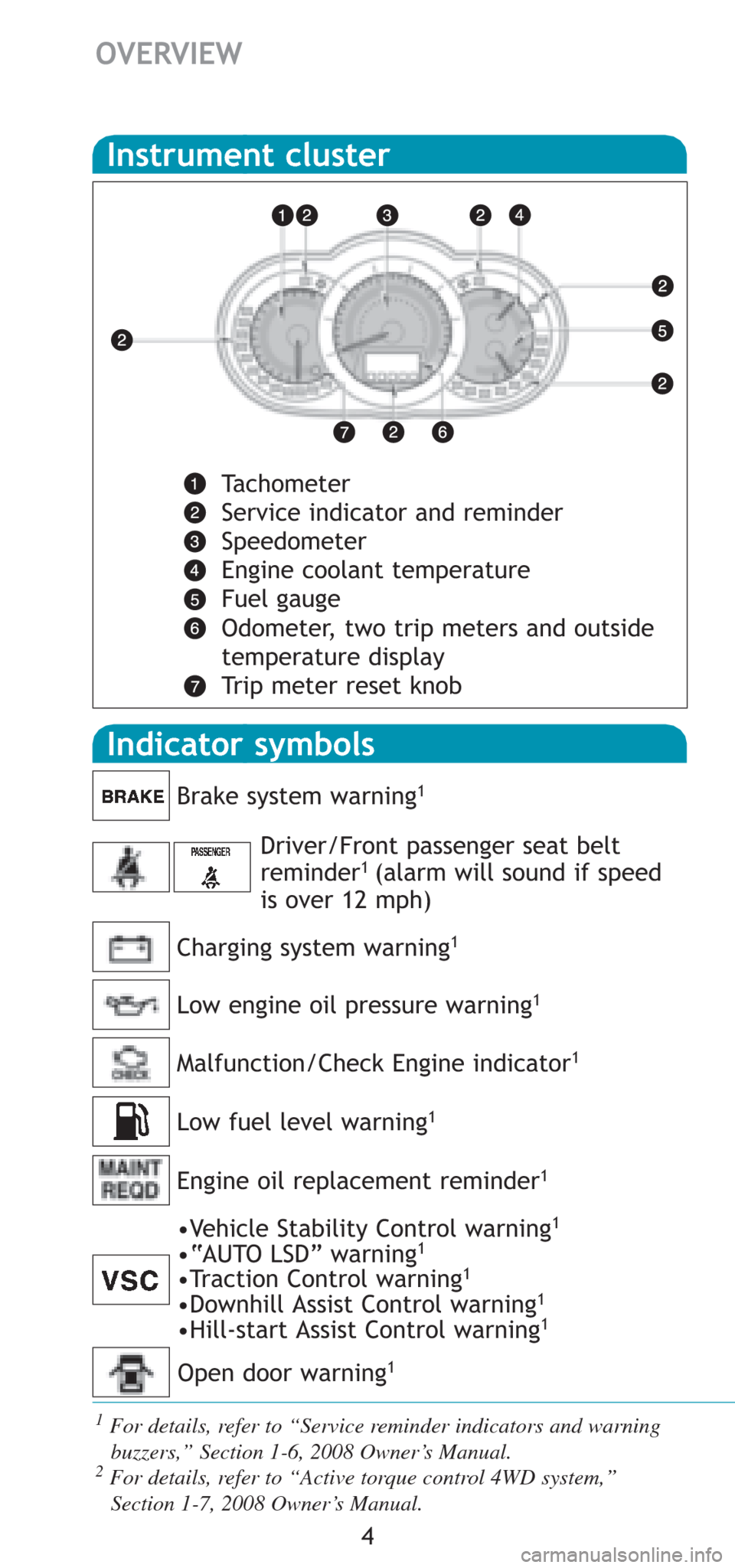

Instrument cluster
Charging system warning1
Low engine oil pressure warning1
Brake system warning1
Malfunction/Check Engine indicator1
Engine oil replacement reminder1
Indicator symbols
Driver/Front passenger seat belt
reminder1 (alarm will sound if speed
is over 12 mph)
Low fuel level warning
1

6
OVERVIEW
NOTE:Tighten until one click is heard. If the cap is
not tightened enough, Check Engine “ ” indicator
may illuminate.

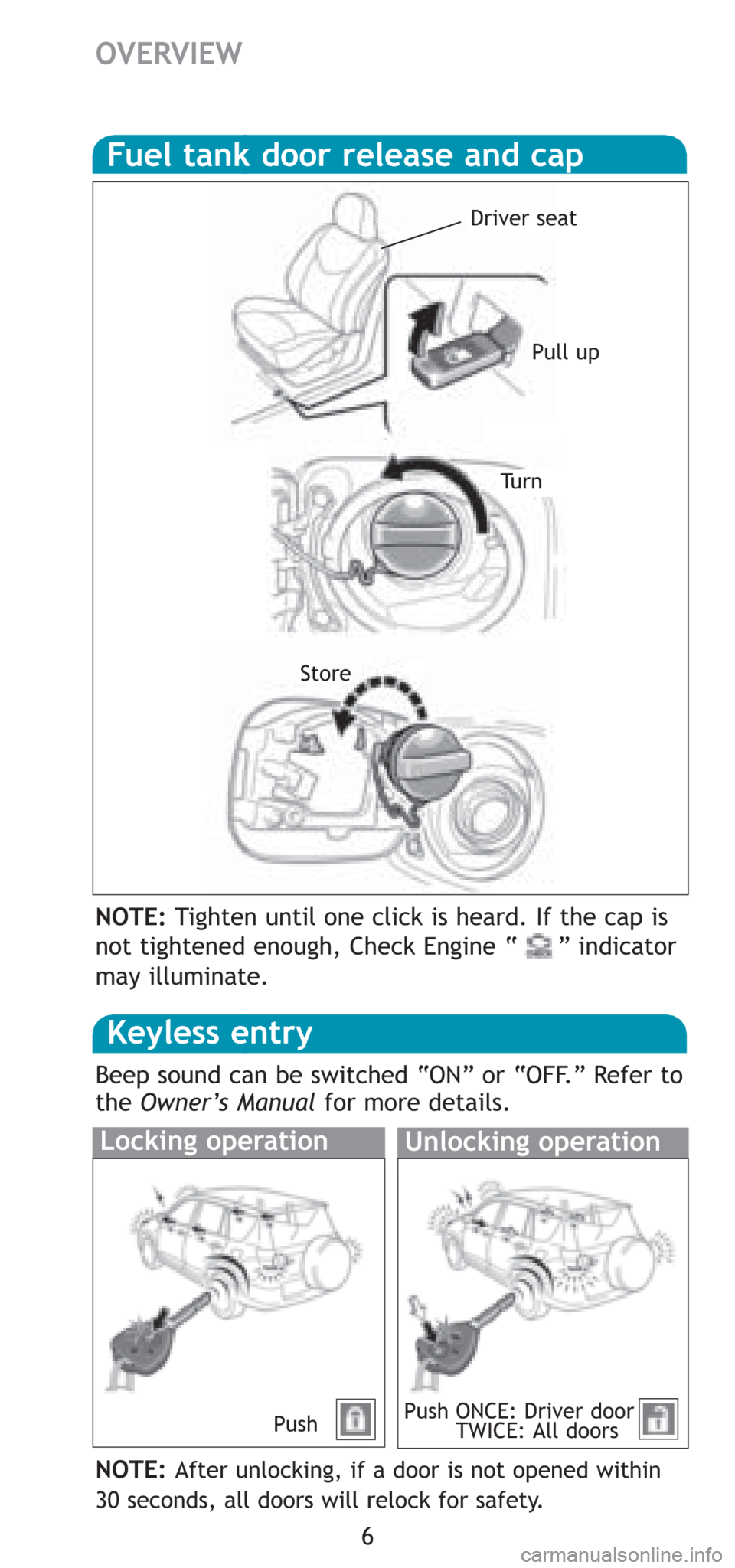

Fuel tank door release and cap
Pull up
Tu r n
Store
NOTE:After unlocking, if a door is not opened within
30 seconds, all doors will relock for safety.
Keyless entry
Locking operationUnlocking operation
PushPush ONCE: Driver door
TWICE: All doors
Driver seat
Beep sound can be switched “ON” or “OFF.” Refer to
the Owner’s Manualfor more details.

9
FEATURES/OPERATIONS
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

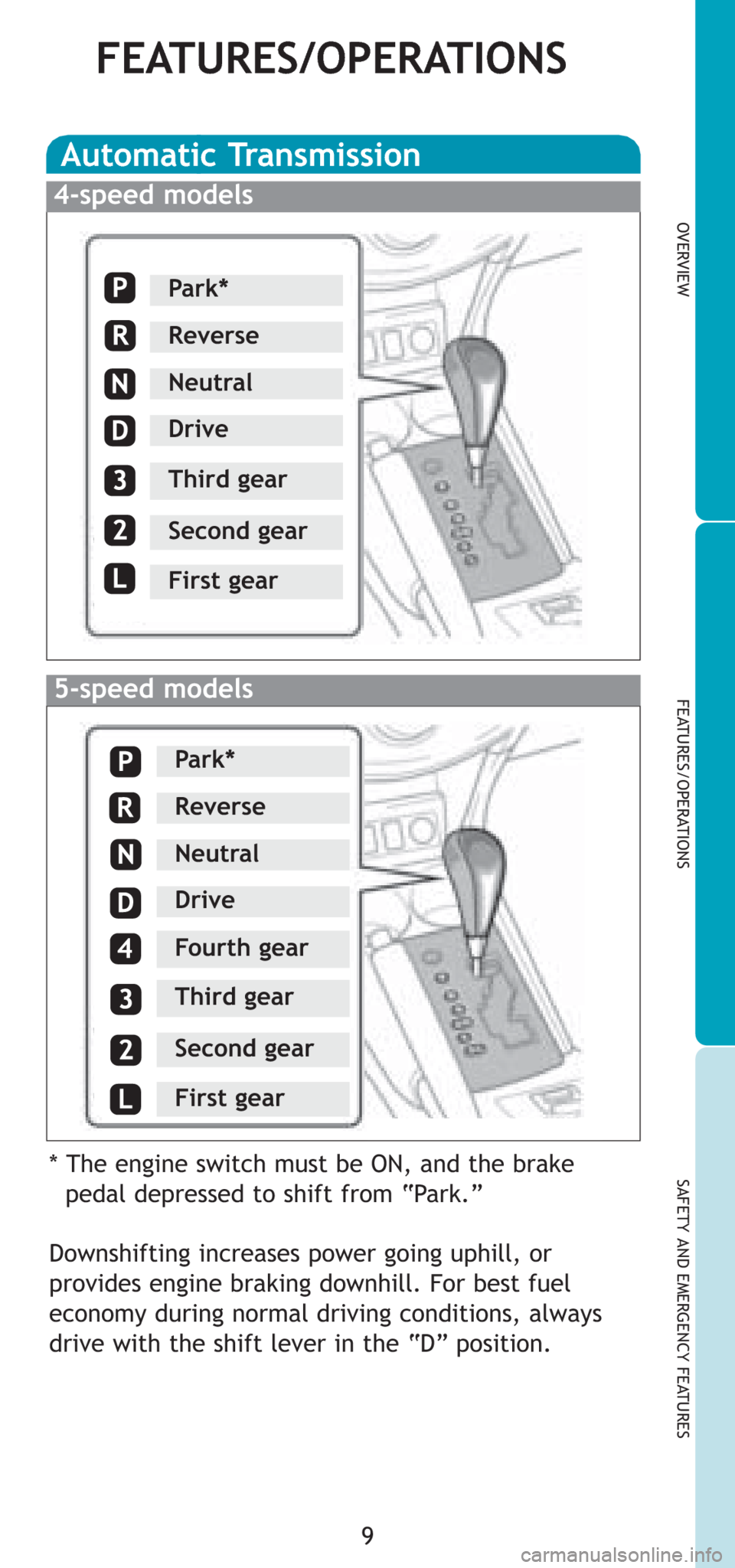

Automatic Transmission
* The engine switch must be ON, and the brake
pedal depressed to shift from “Park.”
Downshifting increases power going uphill, or
provides engine braking downhill. For best fuel
economy during normal driving conditions, always
drive with the shift lever in the “D” position.
Park*
Reverse
Neutral
Drive
Third gear
Second gear
First gear
4-speed models
5-speed models
Park*
Reverse
Neutral
Drive
Third gear
Second gear
First gear
Fourth gear
