AUDIO SYSTEM
146

Turning the system on and off
“AUDIO”:
Push this button to display
touch screen buttons for audio system (au-
dio control mode).
“PWR·VOL”: Push this knob to turn the
audio system on and off. Turn this knob to
adjust the volume. The system turns on in
the last mode used.
You can select the function that enables
automatic return to the previous screen
from the audio screen. See “(a) Automatic
transition” on page 139 for details.
Switching between functions
Push “AM·SAT”, “FM” or “DISC·AUX”
button to turn on the desired mode. The
selected mode turns on immediately.
Push these buttons if you want to switch
from one mode to another.
If the disc is not inserted, the “CD” screen
will not appear.

AUDIO SYSTEM
147
The function buttons for radio and CD play-
er operation are displayed on the screen
when the audio control mode is selected.Touch them lightly and directly on the
screen.
The selected button is highlighted.
INFORMATION

If the system does not respond to
a touch of a touch screen button,
move your finger away from the
screen and then touch it again.
 You cannot operate dimmed touch
screen buttons.
 Wipe off fingerprints using a glass
cleaning cloth. Do not use chemi-
cal cleaners to clean the touch
screen.

AUDIO SYSTEM
149

Your CD player
When you insert a disc, insert it with the la-
bel side up. The CD player will play from
track 1 through to the end of the disc. Then
it will play from track 1 again.
NOTICE
Never try to disassemble or oil any
part of the CD player. Do not insert
anything other than discs into the
slot.
The player is intended for use with 12 cm
(4.7 in.) discs only.
AUX adapter
The sound of portable audio players con-
nected to the AUX adapter can be enjoyed.
Push the “DISC·AUX” button to switch to
AUX mode. For details, refer to the “Own-
er’s Manual”.
Listening to the radio
Push these buttons to choose either an
AM or FM station.
“AM”, “FM1” or “FM2” appears on the
screen.
If your vehicle is equipped with a satellite
radio broadcast system, when you push
the “AM·SAT” button, “AM”, “SAT1”,
“SAT2”, “SA T3” station appears on the dis-
play. For details about satellite radio
broadcast, see “— Radio operation (XM
Satellite Radio broadcast)” on page 151.
— Radio operation

AUDIO SYSTEM
150
Push “” or “” sides of the
“TUNE·SEEK/TRACK” button to step
up or step down the station band.
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the screen. If the
signal becomes weak, the radio reduces
the amount of channel separation to pre-
vent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion. In this case, “ST” disappears from the
screen.
Presetting a station
1. Tune in the desired station.
2. Touch one of the channel selector
buttons (1 — 6) you want and hold it un-
til a beep is heard.
This sets the station to the touch screen
button and the frequency appears on the
touch screen button.
Each radio mode can store up to 6 station-
s. To change the preset station to a differ-
ent one, follow the same procedure.
The preset station memory is cancelled
when the power source is interrupted by
battery disconnection or a blown fuse.

AUDIO SYSTEM
153

Channel category
Touch
either “TYPE \b” or “TYPE ” to go
to the next or previous category.
Presetting a channel
1. Tune in the desired channel.
2. Touch one of the channel selector
buttons (1 — 6) and hold it until a beep
is heard.
This sets the channel to the touch screen
button and the name and number of the
channel appears on the touch screen but-
ton.
Each touch screen button can store three
SAT channels. To change the preset chan-
nel to a different one, follow the same pro-
cedure.
The preset channel memory is cancelled
when the power source is interrupted by
battery disconnection or a blown fuse.

RAV4_Navi_U(L/O 0808)
3

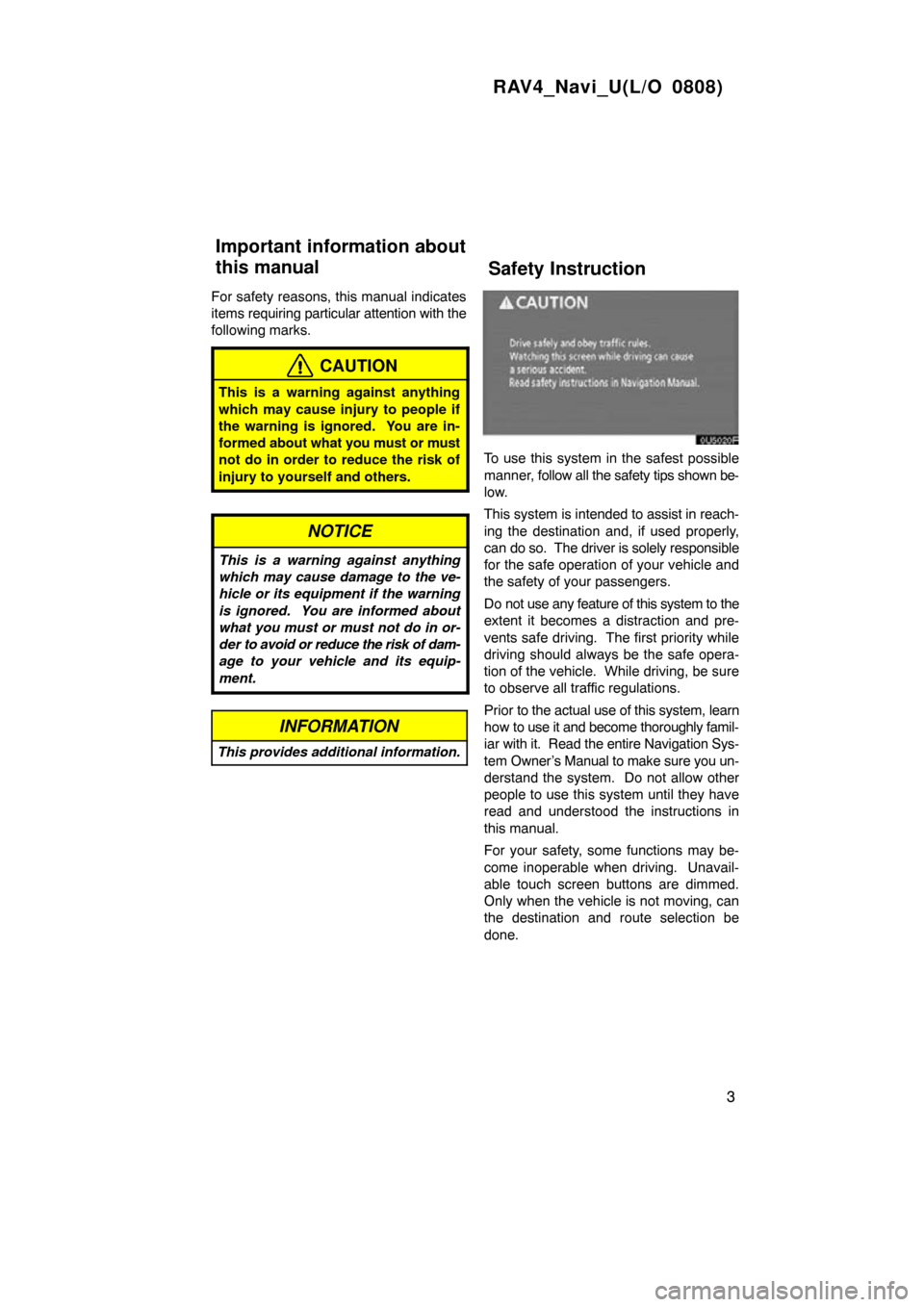

For safety reasons, this manual indicates
items requiring particular attention with the
following marks.
CAUTION
This is a warning against anything
which may cause injury to people if
the warning is ignored. You are in-
formed about what you must or must
not do in order to reduce the risk of
injury to yourself and others.
NOTICE
This is a warning against anything
which may cause damage to the ve-
hicle or its equipment if the warning
is ignored. You are informed about
what you must or must not do in or-
der to avoid or reduce the risk of dam-
age to your vehicle and its equip-
ment.
INFORMATION
This provides additional information.
To use this system in the safest possible
manner, follow all the safety tips shown be-
low.
This system is intended to assist in reach-
ing the destination and, if used properly,
can do so. The driver is solely responsible
for the safe operation of your vehicle and
the safety of your passengers.
Do not use any feature of this system to the
extent it becomes a distraction and pre-
vents safe driving. The first priority while
driving should always be the safe opera-
tion of the vehicle. While driving, be sure
to observe all traffic regulations.
Prior to the actual use of this system, learn
how to use it and become thoroughly famil-
iar with it. Read the entire Navigation Sys-
tem Owner’s Manual to make sure you un-
derstand the system. Do not allow other
people to use this system until they have
read and understood the instructions in
this manual.
For your safety, some functions may be-
come inoperable when driving. Unavail-
able touch screen buttons are dimmed.
Only when the vehicle is not moving, can
the destination and route selection be
done.
Important information about
this manualSafety Instruction

5
0U5111aX

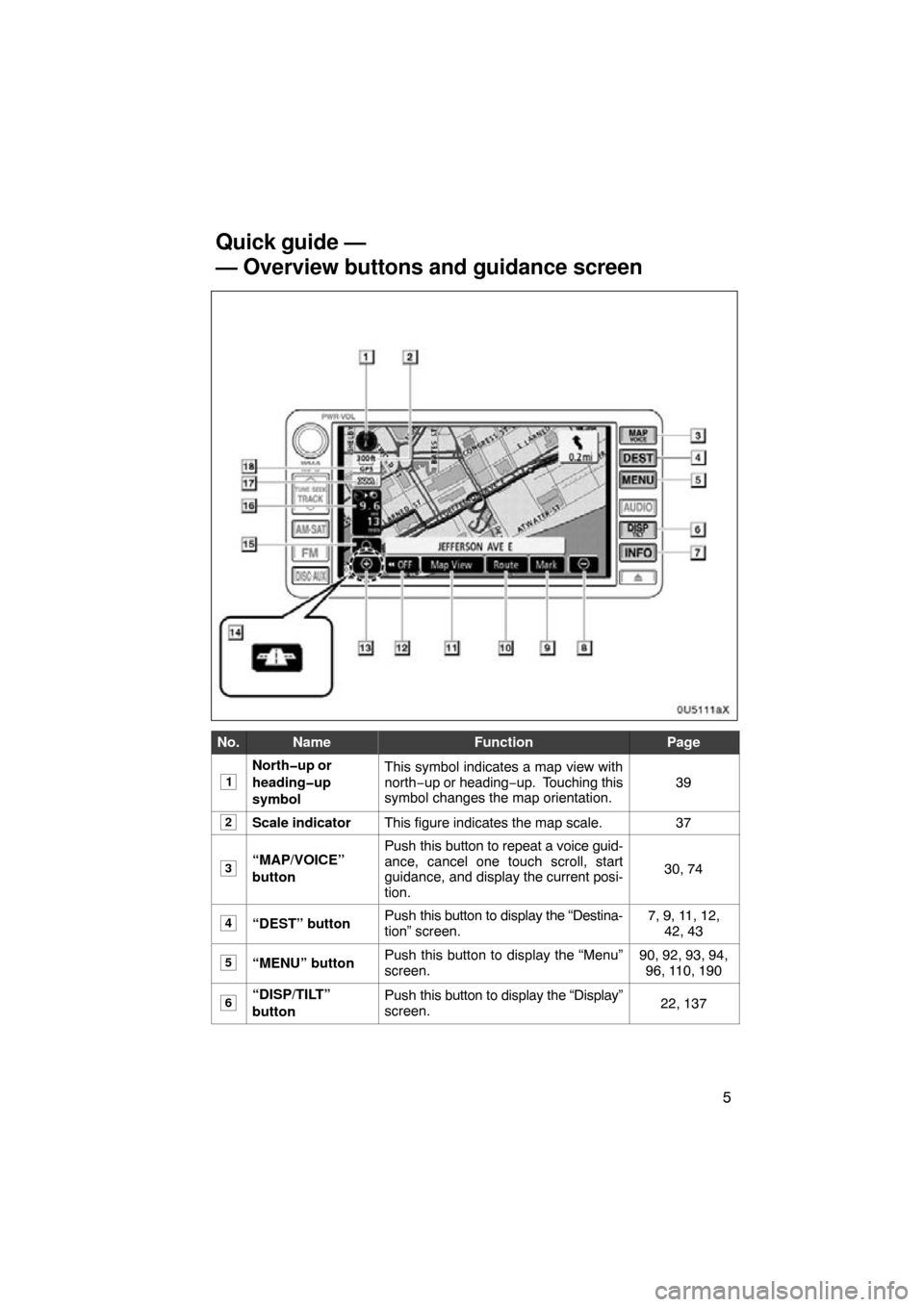

No.NameFunctionPage
1
Northup or
headingup
symbolThis symbol indicates a map view with
north−up or heading−up. Touching this
symbol changes the map orientation.
39
2Scale indicatorThis figure indicates the map scale.37
3“MAP/VOICE”
buttonPush this button to repeat a voice guid-
ance, cancel one touch scroll, start
guidance, and display the current posi-
tion.
30, 74
4“DEST” buttonPush this button to display the “Destina-
tion” screen.7, 9, 11, 12, 42, 43
5“MENU” buttonPush this button to display the “Menu”
screen.90, 92, 93, 94,96, 110, 190
6“DISP/TILT”
buttonPush this button to display the “Display”
screen.22, 137
Quick guide —
— Overview buttons and guidance screen

6
No.NameFunctionPage
7“INFO” buttonPush this button to display the “Informa-
tion” screen.128, 132, 138,141
8Zoom out buttonTouch this button to reduce the map
scale.37
9“Mark”
Touch this button to register the current
position or the cursor position as a
memory point.
31
10“Route”Touch this button to change the route.76, 78
11“Map View”
Touch this button to browse information
about guidance route, to set the Points
of Interest to be displayed on the
screen, or to record the route.
82, 84, 85, 86
12“\b\b OFF”
Touch this button to obtain a broader
view. Some of the buttons on the screen
are not displayed. They are displayed
again by touching “ON”.
11 4
13Zoom in buttonTouch this button to magnify the map
scale.37
14Foot print map
buttonTouch this button to display the foot print
map and the building information.37
15
Screen
configuration
buttonTouch this button to change the screen
mode.34
16Distance and time
to destinationDisplays the distance, the estimated
travel time to the destination, and the
estimated arrival time at the destination.
75
17XM NavTraffic
markThis mark is displayed when XM  Nav-
Traffic information is received.120
18
“GPS” mark
(Global
Positioning
System)Whenever the vehicle is receiving sig-
nals from the GPS, this mark is dis-
played.
178

9
0U5117X
1Push “DEST” button.
2Touch one of the quick access
buttons.
You can set a memory point to one of the
quick access buttons which has not been
set.
3There are 12 different methods to
search preset memory points.
See “Destination search” on page 43.
4Touch “Enter”.
The “Memory Point” screen is displayed.
— Registering preset memory points
(Quick access)
