TOYOTA RAV4 2009 XA30 / 3.G Navigation Manual

DESTINATION SEARCH
61
1. Push the “DEST” button.
2. Touch “Map” on the second page of
the “Destination” screen.
The screen changes and displays the map
location that was previously displayed just
before the destination input operation and
the route preference. (See “Starting route
guidance” on page 65.)
INFORMATION
Guidance starts if “Enter” is touched
even while driving. However , the cur-
sor cannot be moved.
1. Push the “DEST” button.
2. Touch “Intersection” on the second
page of the “Destination” screen.
3. Input the name of the two intersect-
ing streets which are located near the
destination to be set.
4. Touch the button of the desired
item.
After inputting the two intersecting streets,
the screen changes and displays the map
location of the selected destination and the
route preference. (See “Starting route
guidance” on page 65.)
— Destination search by
“Map”
— Destination search by
“Intersection”

DESTINATION SEARCH
62
If the same two streets cross at more than
one intersection, the screen changes and
displays the menu to select the city name
where the streets intersect. Select the city,
and the map location of the selected des-
tination and the route preference. (See
“Starting route guidance” on page 65.) 1. Push the “DEST” button.
2. To input a freeway entrance or exit,
touch “Freeway Ent./Exit” on the sec-
ond page of the “Destination” screen.
Be sure to use the complete name of the
freeway
or highway, including the hyphen,
when entering the destination. Freeways
and interstates use an “I” (I−405). US high-
ways use the state designation before the
number (CA −118).
3. Select the desired freeway by touch-
ing the button.
4. Either a freeway “Entrance” or
“Exit” can be selected.
— Destination search by
“Freeway Ent./Exit”

DESTINATION SEARCH
63

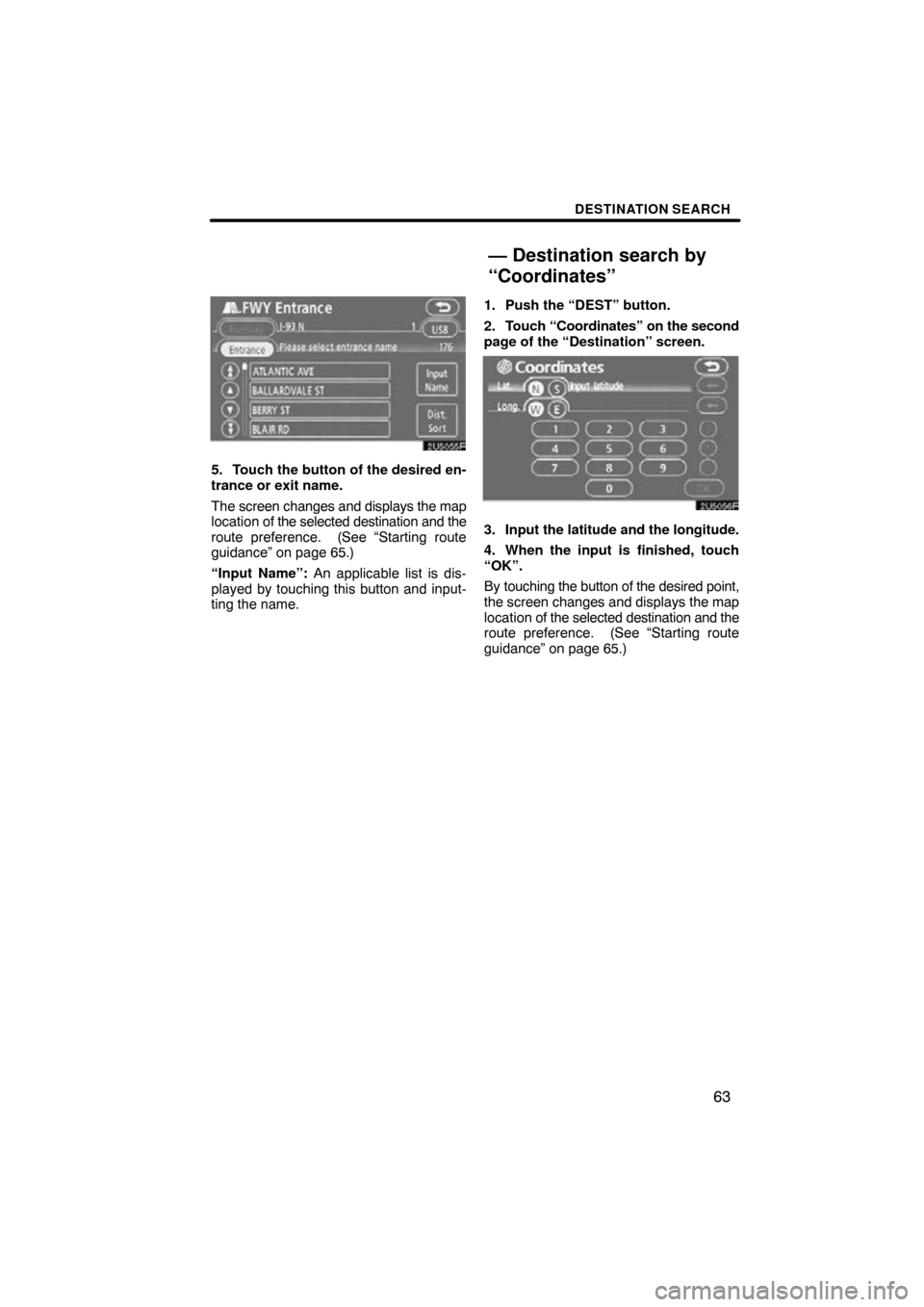

5. Touch the button of the desired en-
trance or exit name.
The screen changes and displays the map
location of the selected destination and the
route preference. (See
“Starting route
guidance” on page 65.)
“Input Name”: An applicable list is dis-
played by touching this button and input-
ting the name. 1. Push the “DEST” button.
2. Touch
“Coordinates” on the second
page of the “Destination” screen.3. Input the latitude and the longitude.
4. When the input is finished, touch
“OK”.
By touching the button of the desired point,
the screen changes and displays the map
location of the selected destination and the
route preference. (See
“Starting route
guidance” on page 65.)
— Destination search by
“Coordinates”

DESTINATION SEARCH
64

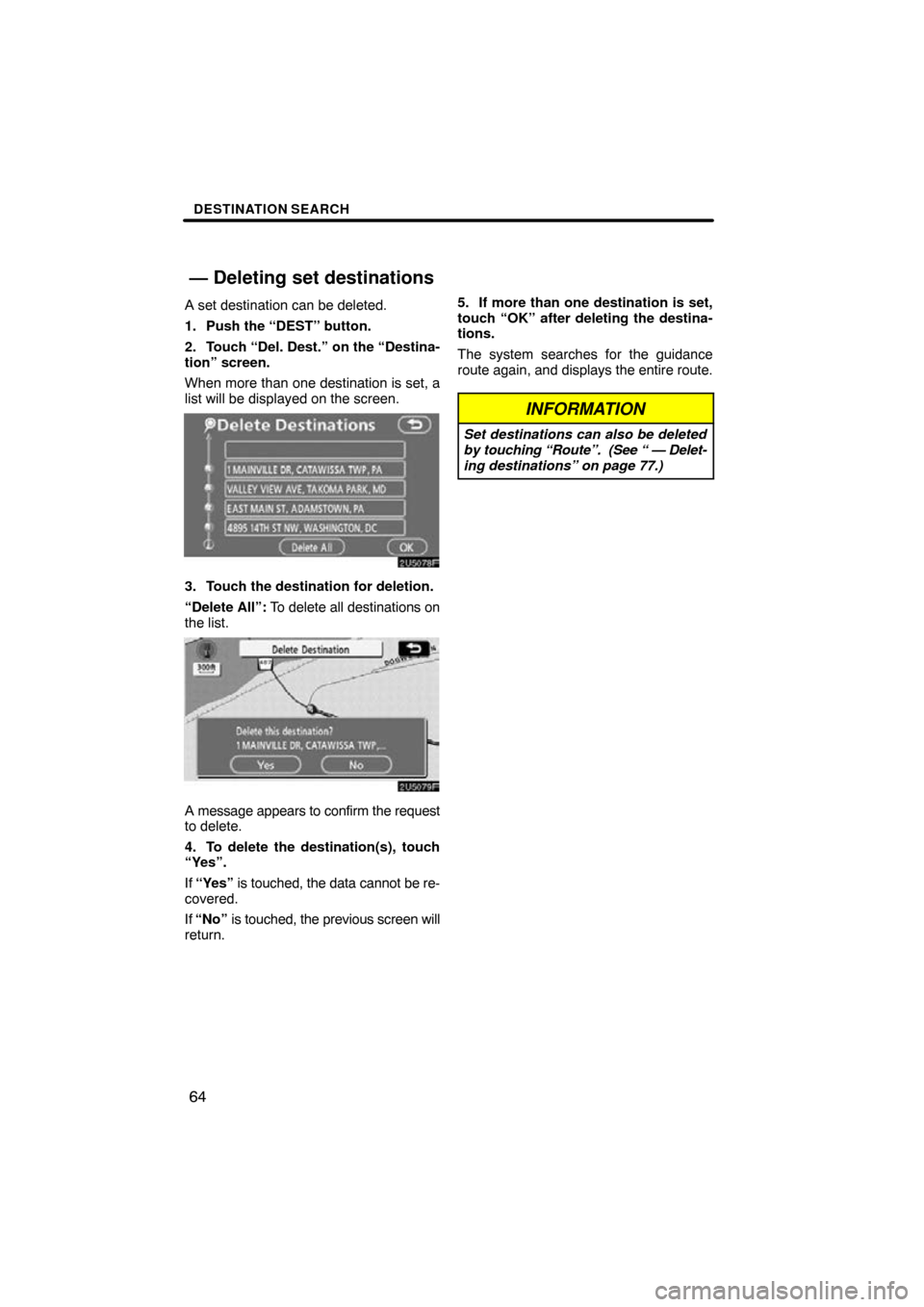

A set destination can be deleted.
1. Push the “DEST” button.
2. Touch “Del. Dest.” on the “Destina-
tion” screen.
When more than one destination is set, a
list will be displayed on the screen.
3. Touch the destination for deletion.
“Delete All”: To delete all destinations on
the list.
A message appears to confirm the request
to delete.
4. To delete the destination(s), touch
“Yes”.
If “Yes” is touched, the data cannot be re-
covered.
If “No” is touched, the previous screen will
return. 5. If more than one destination is set,
touch “OK” after deleting the destina-
tions.
The system searches for the guidance
route again, and displays the entire route.
INFORMATION
Set destinations can also be deleted
by touching “Route”. (See “ — Delet-
ing destinations” on page 77.)
— Deleting set destinations

DESTINATION SEARCH
65
After inputting the destination, the screen
changes and displays the map location of
the selected destination and the route pref-
erence.
1. When an arrow facing the desired
point is touched, the map scrolls in that
direction.
Releasing the finger from the arrow will
stop the scrolling.
2. Touch “Enter”.
The system starts route search and dis-
plays recommended routes.
If there is already a set destination, “Add
to
” and “Replace ” are displayed.
“Add to
”: To add a destination.
“Replace
”: To delete the existing des-
tinations and set a new one.
“Route Preference”: To change the route
preference. (See page 66.)
“Info.”: If this button is displayed on the
top of the screen, touch it to view items
such as name, address, and phone num-
ber.
1Current position
2Destination point
3Type of the route and the distance
4Distance of the entire route
3. To start guidance, touch “Guide”.
“3 Routes”: To select the desired route
from three possible routes. (See page 67.)
“Route”: To change the route. (See
pages 76 and 78.)
Starting route guidance

DESTINATION SEARCH
66
INFORMATION
Guidance can be suspended or re-
sumed. (See “Suspending and re-
suming guidance” on page 92.)
 If “Guide” is touched until a beep
sounds, demo mode will start.
Push the “MAP/VOICE” button to
finish Demo mode.
 The route for returning may not be
the same as that for going.
 The route guidance to the destina-
tion may not be the shortest route
nor a route without traffic conges-
tion.
 Route guidance may not be avail-
able if there is no road data for the
specified location.
 When setting the destination on a
map with a scale larger than 0.5
miles (800 m), the map scale
changes to 0.5 miles (800 m) auto-
matically. Set the destination
again.
 If a destination is entered, the road
nearest to the point you selected is
set as the destination.
CAUTION
Be sure to obey traffic regulations
and keep road conditions in mind
while driving. If a traffic sign on the
road has been changed, the route
guidance may provide incorrect in-
formation.

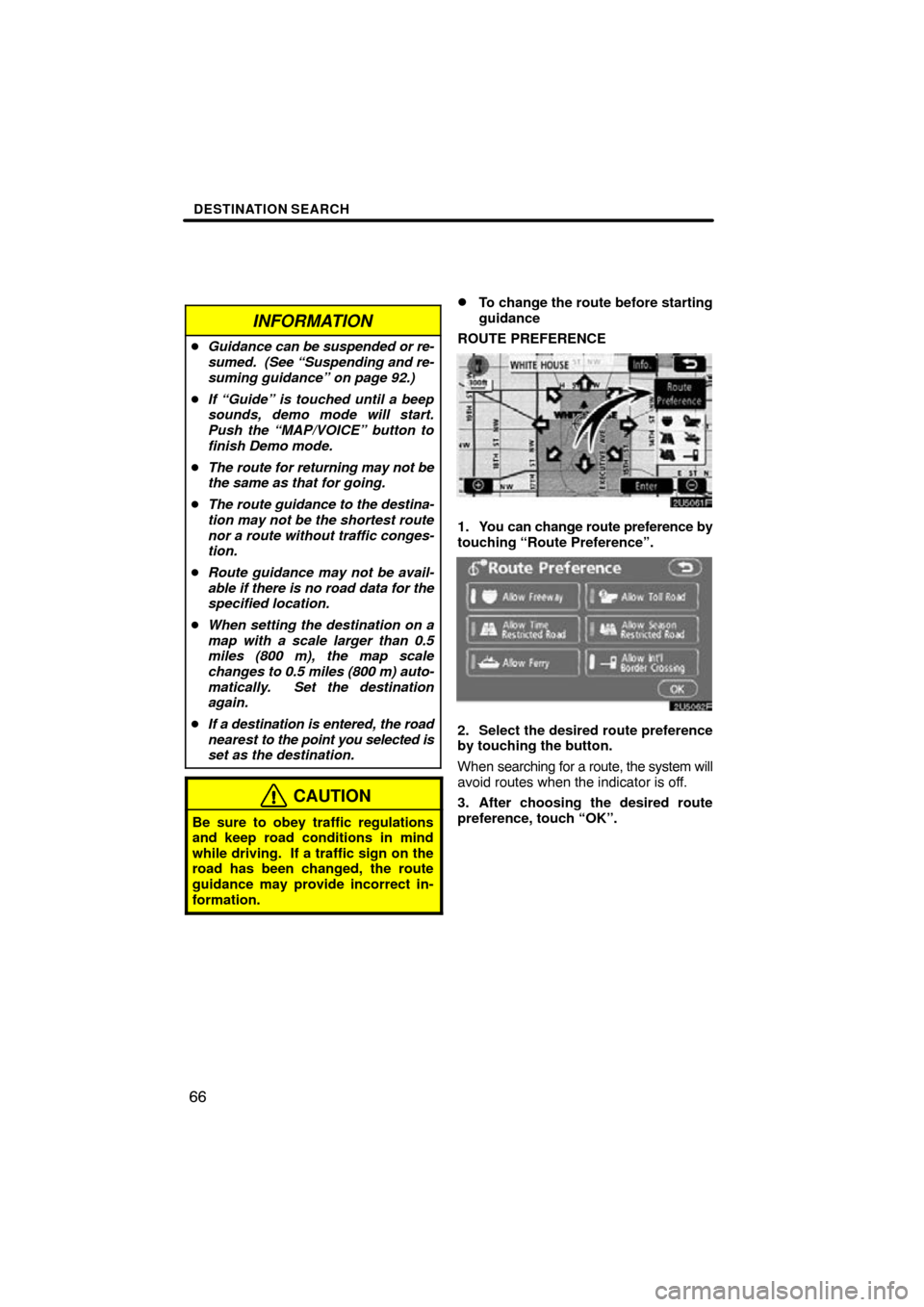

To change the route before starting
guidance
ROUTE PREFERENCE
1. You can change route preference by
touching “Route Preference”.
2. Select the desired route preference
by touching the button.
When searching for a route, the system will
avoid routes when the indicator is off.
3. After choosing the desired route
preference, touch “OK”.

DESTINATION SEARCH
67
INFORMATION
Even if the “Allow Freeway” indi-
cator is dimmed, the route cannot
avoid including a freeway in some
cases.
 If the calculated route includes a
trip by ferry, the route guidance
shows a sea route. After you travel
by ferry, the current vehicle posi-
tion may be incorrect. Upon recep-
tion of GPS signals, it is automati-
cally corrected.
3 ROUTES SELECTION
1. To select the desired route from
three routes, touch “3 Routes”.
2. Touch “Quick1”, “Quick2” or
“Short” to select the desired route.
“Quick1”: Recommended route.
This route is indicated by an orange line.
“Quick2”: Alternative route.
This route is indicated by a purple line.
“Short”: A route by which you can reach
the destination in the shortest distance.
This route is indicated by a green line.
“Info.”: To display the following informa-
tion about each of the 3 routes.

DESTINATION SEARCH
68
1Time necessary for the entire trip
2Distance of the entire trip
3Toll road
4Freeway
5Ferry

SECTION 3
ROUTE GUIDANCE
69
ROUTE GUIDANCE
Route guidance screen 70
 Typical voice guidance prompts 73
 Distance and time to destination 75
 Setting and deleting destination 76
Adding destinations 76
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reordering destinations 76
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting destinations 77
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 Setting route 78
Search condition 78
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Detour setting 79
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Route preference 81
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starting route from adjacent road 81
. . . . . . . . . . . . . . . . . . . . . . .
 Map view 82
Display POI* icons 82
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Route overview 84
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Route preview 85
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
Route trace 86
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
∗: Point of Interest

ROUTE GUIDANCE
70
During route guidance, various types of
guidance screens can be displayed de-
pending on conditions.
Screen layout
1Distance to the next turn and the
arrow indicating turning direction
2Current street name
3Distance and travel/arrival time to
the destination
4Current position
5Guidance route
INFORMATION
If the vehicle goes off the guidance
route, the route is searched again.
 For some areas, the roads have not
been completely digitized in our
database. For this reason, the
route guidance may select road
that should not be traveled on.
 When you arrive at your destina-
tion, the destination name will be
displayed on the top of the screen.
Touching “OFF” clears the display.
During freeway driving
During freeway driving, the freeway exit in-
formation screen will be displayed.
This screen displays the distance to the
next junction and exit, or POIs in the vicin-
ity of the freeway exit.
1Current position
2Points of Interest that are close to
a freeway exit
3Exit number and junction name
4Distance from the current position
to the exit or junction
5Current street name
: To display the selected map of the
exit vicinity.
:To scroll for farther junctions or exits.
:To scroll for closer junctions or exits.
:To scroll for the closest three junc-
tions or exits.
Route guidance screen
