ADVANCED FUNCTIONS
11 6

Notifying traffic restriction
When the “Traffic Restrict. Notification”
feature is turned on, the system notifies
you of traffic or seasonal restrictions.
To turn the “Traffic Restrict. Notification”
on:

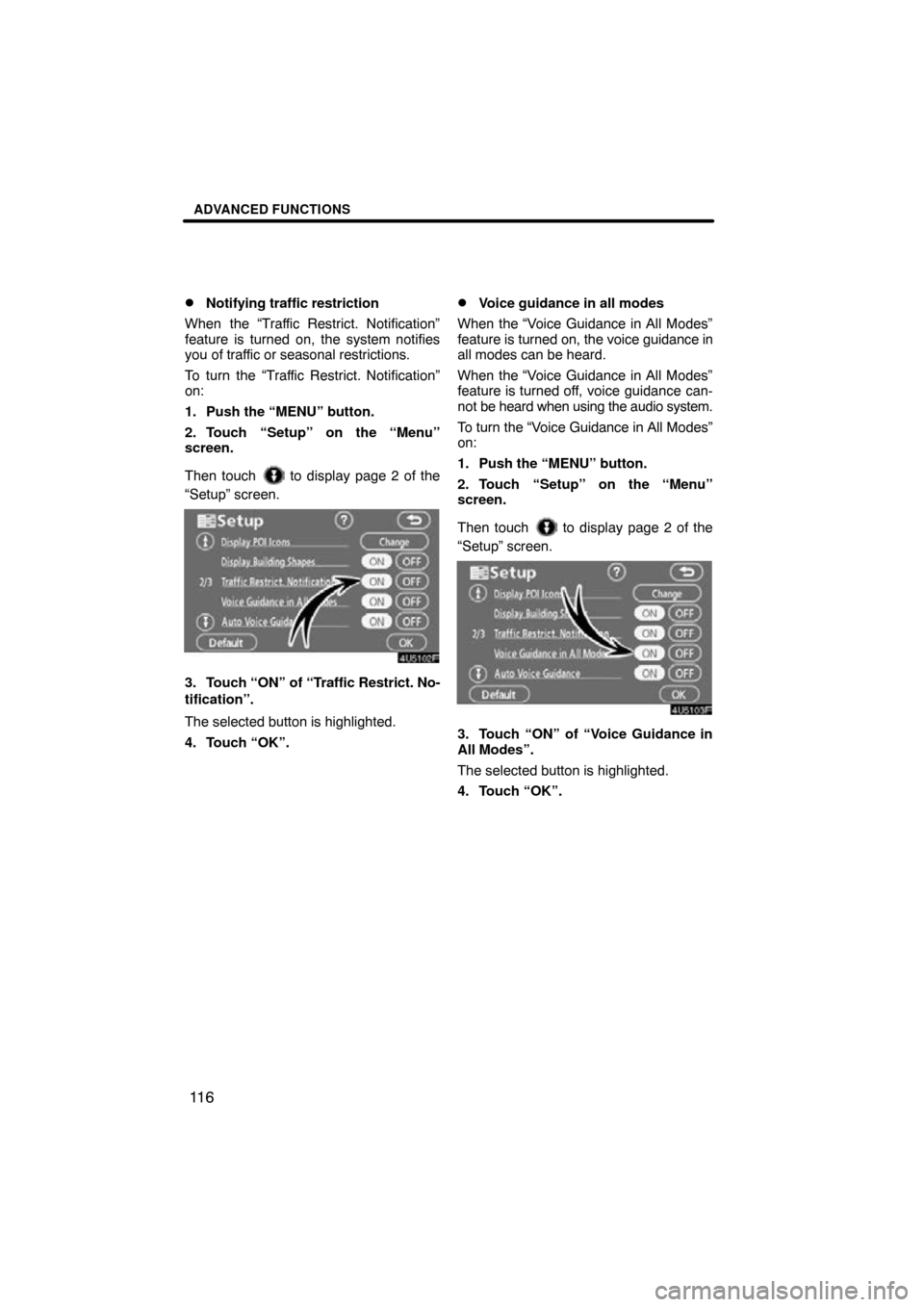

1. Push the “MENU” button.
2. Touch “Setup” on the “Menu”
screen.
Then touch
to display page 2 of the
“Setup” screen.
3. Touch “ON” of “Traffic Restrict. No-
tification”.
The selected button is highlighted.
4. Touch “OK”.
Voice guidance in all modes
When the “Voice Guidance in All Modes”
feature is turned on, the voice guidance in
all modes can be heard.
When the “Voice Guidance in All Modes”
feature is turned off, voice guidance can-
not be heard when using the audio system.
To turn the “Voice Guidance in All Modes”
on:
1. Push the “MENU” button.
2. Touch “Setup” on the “Menu”
screen.
Then touch
to display page 2 of the
“Setup” screen.
3. Touch “ON” of “Voice Guidance in
All Modes”.
The selected button is highlighted.
4. Touch “OK”.

OTHER FUNCTIONS
139
(a) Automatic transition
You can select a function that enables au-
tomatic return to the navigation screen
from the audio screen.
Select “ON” or “OFF” and then touch
“OK”.
“ON”: The navigation screen automatical-
ly returns from the audio screen 20 sec-
onds after the end of audio screen opera-
tion.
“OFF”: The audio screen remains on. (b) Switch color
You can select the color of the touch
screen buttons.
Select “Green” or “Orange” and then
touch “OK”.

SECTION 6
AUDIO SYSTEM
143
AUDIO SYSTEM
Quick reference 144
 Using your audio system 145
Some basics 145
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Radio operation 149
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

CD player operation 158
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 Audio remote controls 169
 Audio system operating hints 170

AUDIO SYSTEM
144
Operations such as selecting a preset station and adjusting the sound balance are c\
ar-
ried out on the touch screen. To display the audio screen, push the “AUDIO” button.

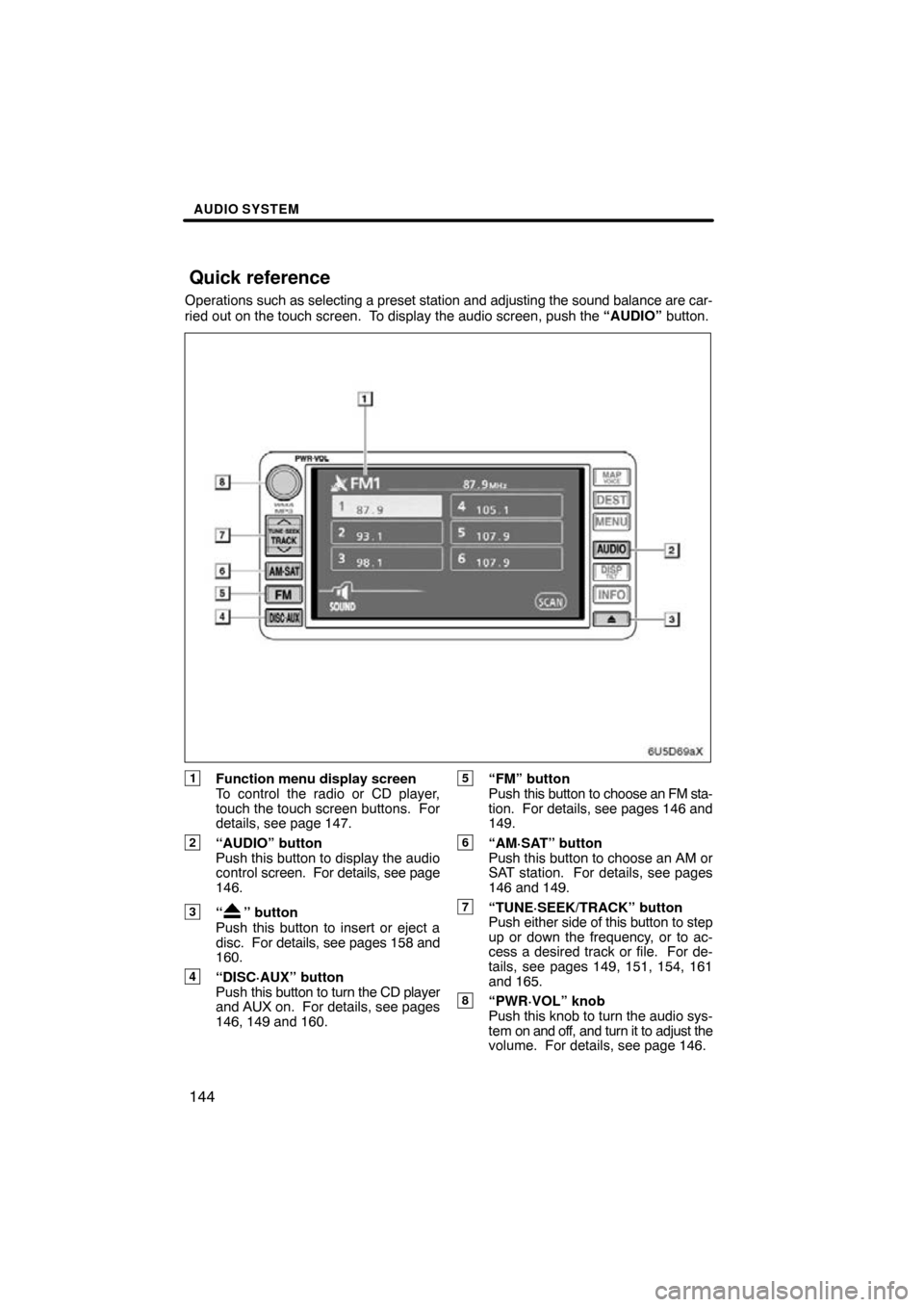

1Function menu display screen
To control the radio or CD player,
touch the touch screen buttons. For
details, see page 147.
2“AUDIO” button
Push this button to display the audio
control screen. For details, see page
146.
3“” button
Push this button to insert or eject a
disc. For details, see pages 158 and
160.
4“DISC·AUX” button
Push this button to turn the CD player
and AUX on. For details, see pages
146, 149 and 160.
5“FM” button
Push this button to choose an FM sta-
tion. For details, see pages 146 and
149.
6“AM·SAT” button
Push this button to choose an AM or
SAT station. For details, see pages
146 and 149.
7“TUNE·SEEK/TRACK” button
Push either side of this button to step
up or down the frequency, or to ac-
cess a desired track or file. For de-
tails, see pages 149, 151, 154, 161
and 165.
8“PWR·VOL” knob
Push this knob to turn the audio sys-
tem on and off, and turn it to adjust the
volume. For details, see page 146.
Quick reference

AUDIO SYSTEM
145
This section describes some of the basic
features of your audio system. Some in-
formation may not pertain to your system.
Vehicles with smart key system —
Your audio system works when the “EN-
GINE START STOP” switch is in ACCES-
SORY or IGNITION ON mode.
Vehicles without smart key system —
Your audio system works when the engine
switch is in “ACC” or “ON” position.
NOTICE
To prevent the battery from being dis-
charged, do not leave the audio sys-
tem on longer than necessary when
the engine is not running.
CAUTION
For vehicles sold in U.S.A. and
Canada:
 Part 15 of the FCC Rules
FCC Warning:
Changes or modifications in con-
struction not expressly approved by
the party responsible for compliance
could void the user’s authority to op-
erate the equipment.
 Laser products
 Do not take this unit apart or
attempt to make any changes
yourself. This is an intricate
unit that uses a laser pickup to
retrieve information from the
surface of compact discs. The
laser is carefully shielded so
that its rays remain inside the
cabinet. Therefore, never try to
disassemble the player or alter
any of its parts since you may
be exposed to laser rays and
dangerous voltages.
 This product utilizes a laser.
Use of controls or adjustments
or performance of procedures
other than those specified
herein may result in hazardous
radiation exposure.
Using your audio system —
— Some basics

AUDIO SYSTEM
146

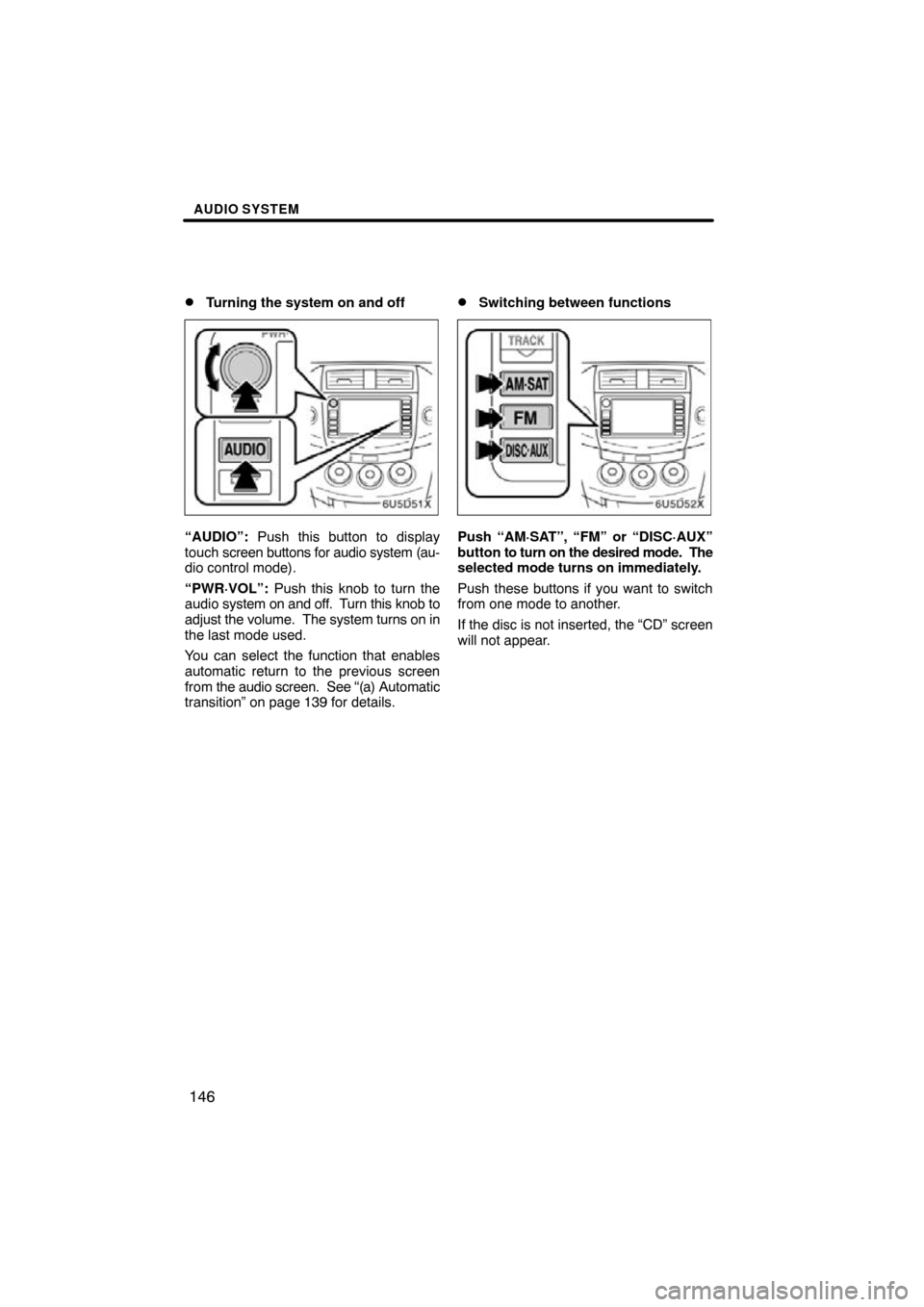

Turning the system on and off
“AUDIO”:
Push this button to display
touch screen buttons for audio system (au-
dio control mode).
“PWR·VOL”: Push this knob to turn the
audio system on and off. Turn this knob to
adjust the volume. The system turns on in
the last mode used.
You can select the function that enables
automatic return to the previous screen
from the audio screen. See “(a) Automatic
transition” on page 139 for details.

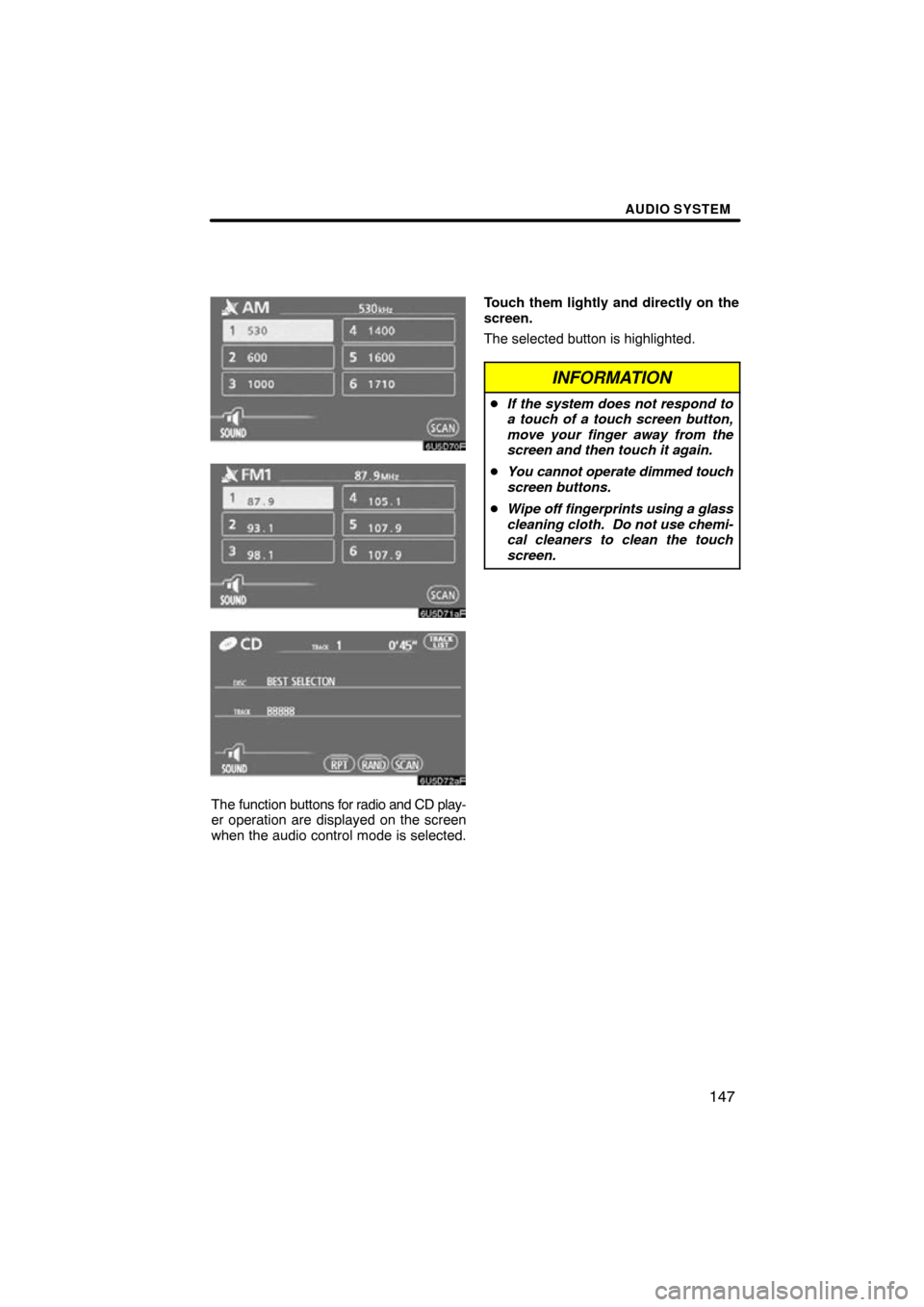

Switching between functions
Push “AM·SAT”, “FM” or “DISC·AUX”
button to turn on the desired mode. The
selected mode turns on immediately.
Push these buttons if you want to switch
from one mode to another.
If the disc is not inserted, the “CD” screen
will not appear.

AUDIO SYSTEM
147
The function buttons for radio and CD play-
er operation are displayed on the screen
when the audio control mode is selected.Touch them lightly and directly on the
screen.
The selected button is highlighted.
INFORMATION

If the system does not respond to
a touch of a touch screen button,
move your finger away from the
screen and then touch it again.
 You cannot operate dimmed touch
screen buttons.
 Wipe off fingerprints using a glass
cleaning cloth. Do not use chemi-
cal cleaners to clean the touch
screen.

AUDIO SYSTEM
148

Tone and balance
How good an audio program sounds to you
is largely determined by the mix of the
treble and bass levels. In fact, different
kinds of music and vocal programs usually
sound better with different levels of treble
and bass.
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to a
stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another.

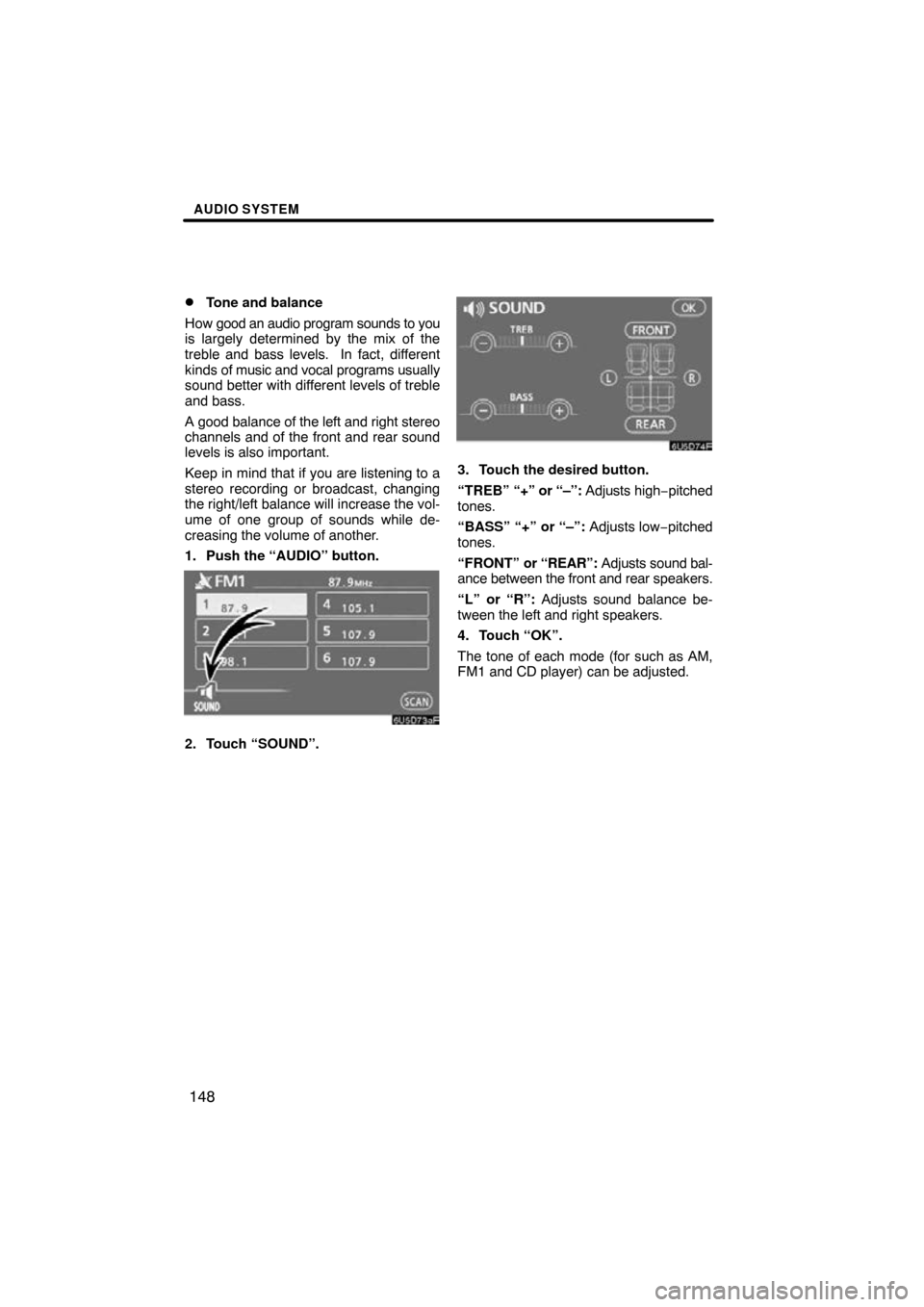

1. Push the “AUDIO” button.
2. Touch “SOUND”.
3. Touch the desired button.
“TREB” “+” or “–”: Adjusts high −pitched
tones.
“BASS” “+” or “–”: Adjusts low− pitched
tones.
“FRONT” or “REAR”: Adjusts sound bal-
ance between the front and rear speakers.
“L” or “R”: Adjusts sound balance be-
tween the left and right speakers.
4. Touch “OK”.
The tone of each mode (for such as AM,
FM1 and CD player) can be adjusted.

AUDIO SYSTEM
149

Your CD player
When you insert a disc, insert it with the la-
bel side up. The CD player will play from
track 1 through to the end of the disc. Then
it will play from track 1 again.
NOTICE
Never try to disassemble or oil any
part of the CD player. Do not insert
anything other than discs into the
slot.
The player is intended for use with 12 cm
(4.7 in.) discs only.
AUX adapter
The sound of portable audio players con-
nected to the AUX adapter can be enjoyed.
Push the “DISC·AUX” button to switch to
AUX mode. For details, refer to the “Own-
er’s Manual”.
Listening to the radio

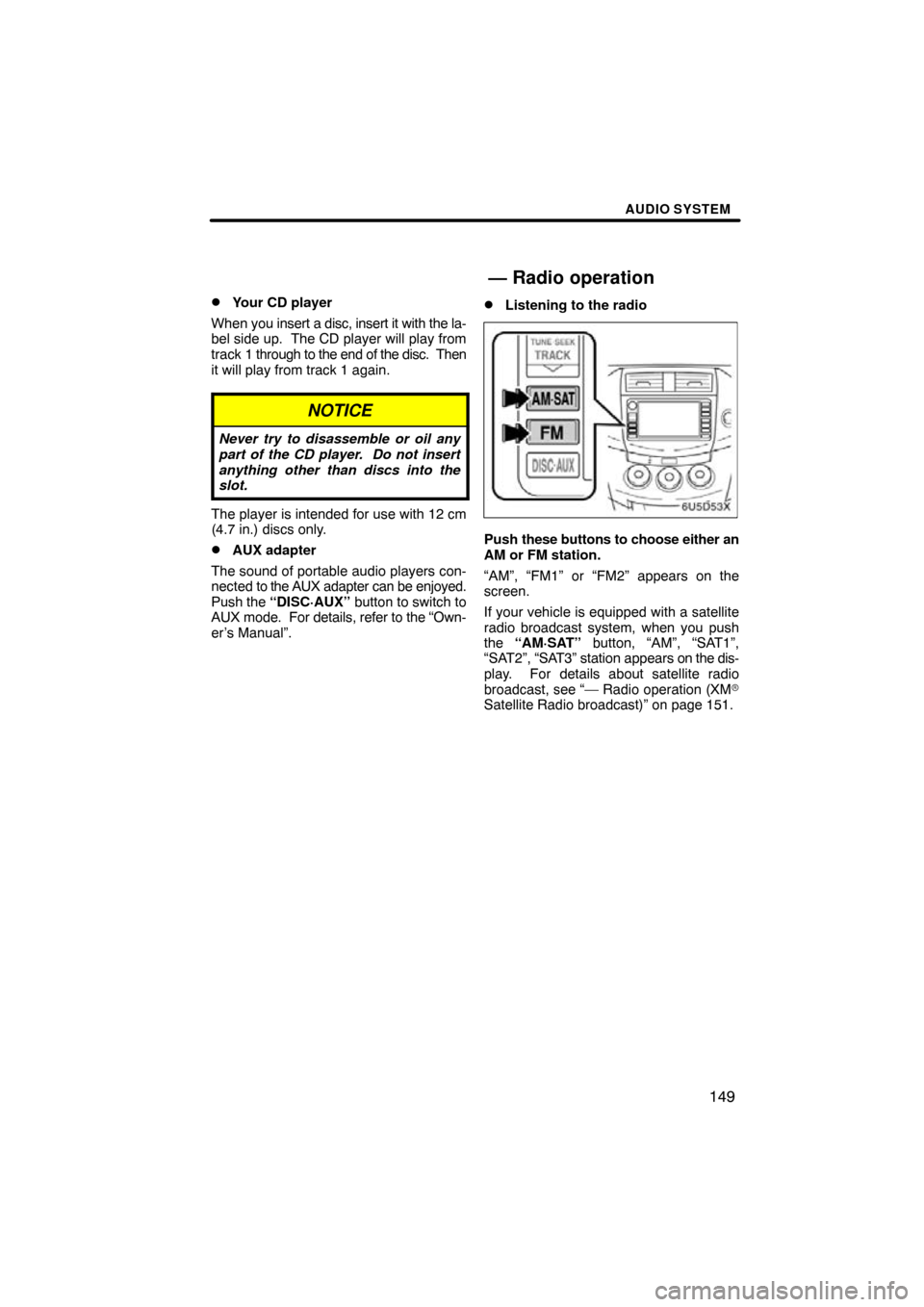

Push these buttons to choose either an
AM or FM station.
“AM”, “FM1” or “FM2” appears on the
screen.
If your vehicle is equipped with a satellite
radio broadcast system, when you push
the “AM·SAT” button, “AM”, “SAT1”,
“SAT2”, “SA T3” station appears on the dis-
play. For details about satellite radio
broadcast, see “— Radio operation (XM
Satellite Radio broadcast)” on page 151.
— Radio operation

AUDIO SYSTEM
150

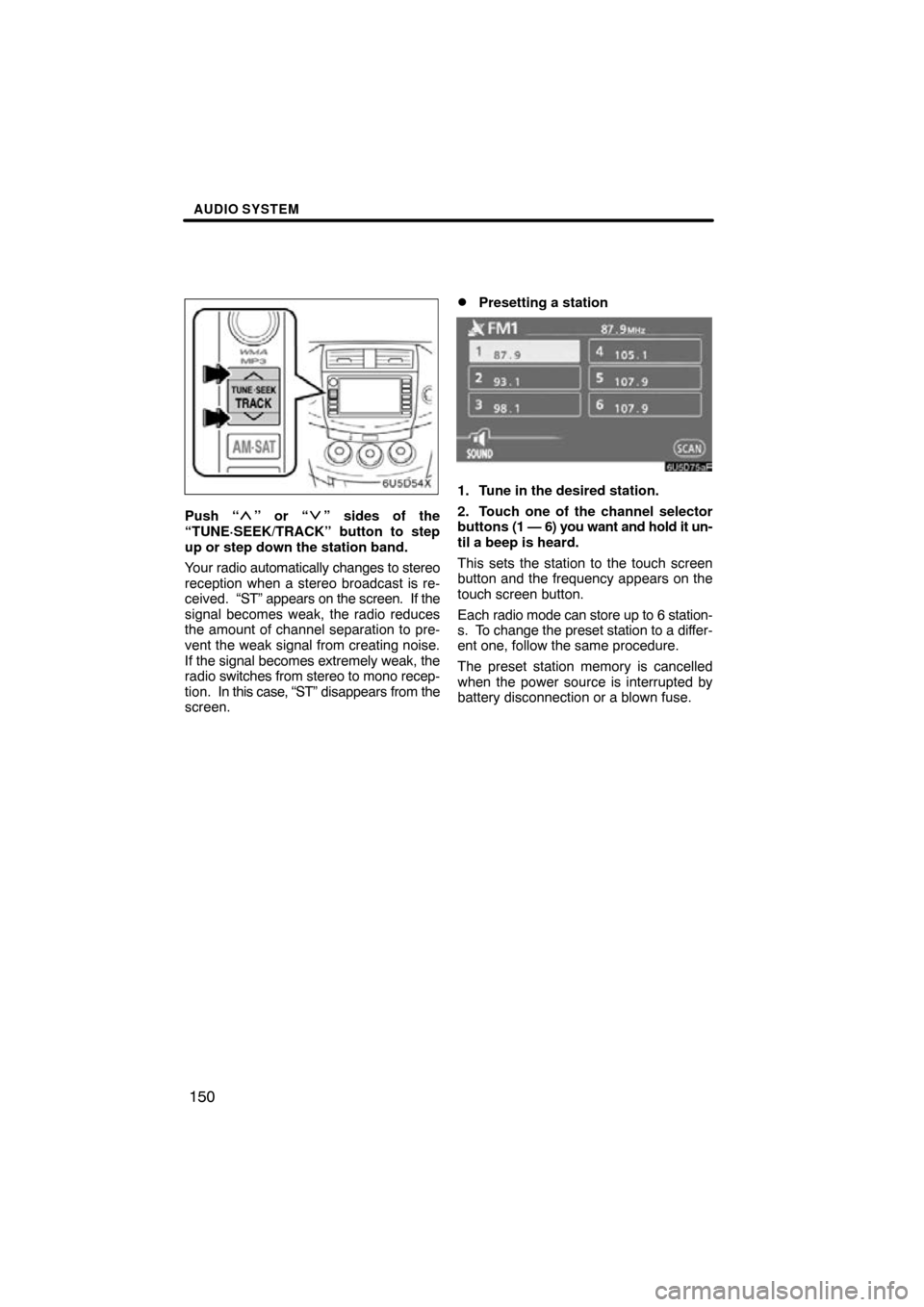

Push “” or “” sides of the
“TUNE·SEEK/TRACK” button to step
up or step down the station band.
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the screen. If the
signal becomes weak, the radio reduces
the amount of channel separation to pre-
vent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion. In this case, “ST” disappears from the
screen.
Presetting a station
1. Tune in the desired station.
2. Touch one of the channel selector
buttons (1 — 6) you want and hold it un-
til a beep is heard.
This sets the station to the touch screen
button and the frequency appears on the
touch screen button.
Each radio mode can store up to 6 station-
s. To change the preset station to a differ-
ent one, follow the same procedure.
The preset station memory is cancelled
when the power source is interrupted by
battery disconnection or a blown fuse.
