dimensions TOYOTA RAV4 2009 XA30 / 3.G Owners Manual

466

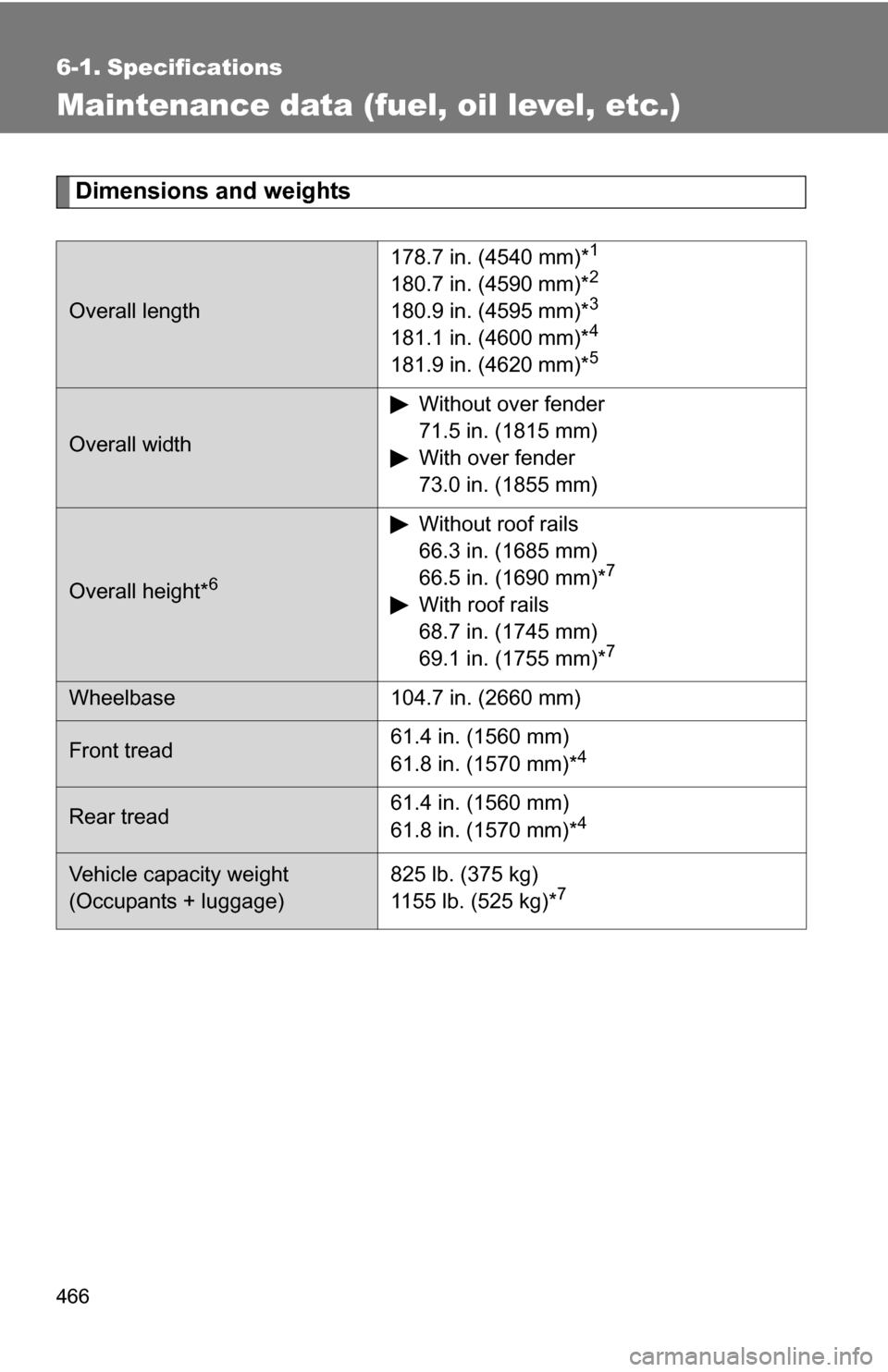

6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length178.7 in. (4540 mm)*
1
180.7 in. (4590 mm)*2
180.9 in. (4595 mm)*3
181.1 in. (4600 mm)*4
181.9 in. (4620 mm)*5
Overall width
Without over fender
71.5 in. (1815 mm)
With over fender
73.0 in. (1855 mm)
Overall height*6
Without roof rails
66.3 in. (1685 mm)
66.5 in. (1690 mm)*
7
With roof rails
68.7 in. (1745 mm)
69.1 in. (1755 mm)*
7
Wheelbase
104.7 in. (2660 mm)
Front tread 61.4 in. (1560 mm)
61.8 in. (1570 mm)*4
Rear tread61.4 in. (1560 mm)
61.8 in. (1570 mm)*4
Vehicle capacity weight
(Occupants + luggage)825 lb. (375 kg)
1155 lb. (525 kg)*7

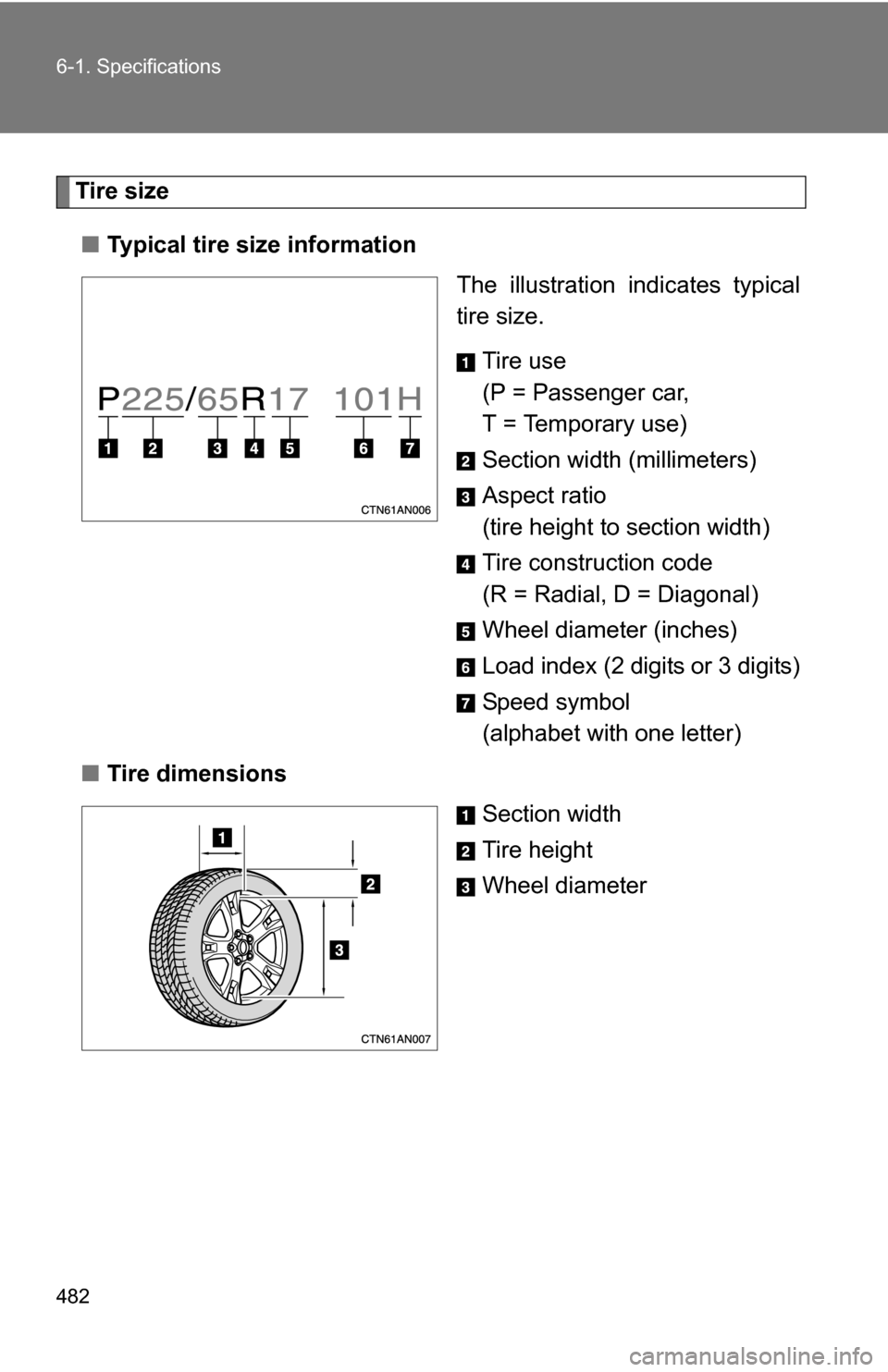

482 6-1. Specifications
Tire size■ Typical tire size information
The illustration indicates typical
tire size.
Tire use
(P = Passenger car,
T = Temporary use)
Section width (millimeters)
Aspect ratio
(tire height to section width)
Tire construction code
(R = Radial, D = Diagonal)
Wheel diameter (inches)
Load index (2 digits or 3 digits)
Speed symbol
(alphabet with one letter)
■ Tire dimensions
Section width
Tire height
Wheel diameter

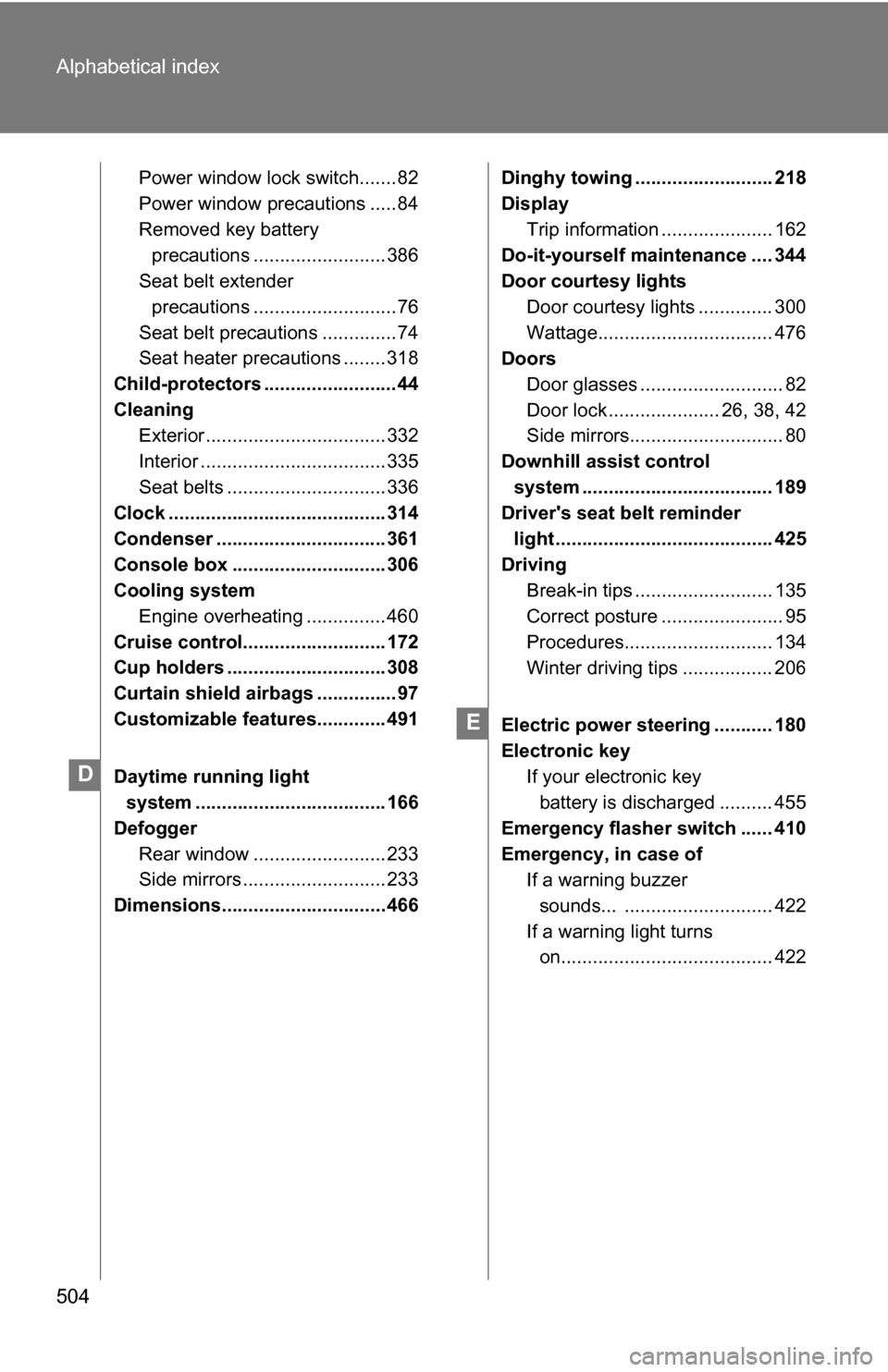

504 Alphabetical index
Power window lock switch.......82
Power window precautions .....84
Removed key battery precautions ......................... 386
Seat belt extender
precautions ...........................76
Seat belt precautions ..............74
Seat heater precautions ........ 318
Child-protectors .........................44
Cleaning Exterior .................................. 332
Interior ................................... 335
Seat belts .............................. 336
Clock ......................................... 314
Condenser ................................ 361
Console box ............................. 306
Cooling system
Engine overheating ............... 460
Cruise control........................... 172
Cup holders .............................. 308
Curtain shield airbags ...............97
Customizable features............. 491
Daytime running light system .................................... 166
Defogger Rear window ......................... 233
Side mirrors ........................... 233
Dimensions............................... 466 Dinghy towing .......................... 218
Display
Trip information ..................... 162
Do-it-yourself maintenance .... 344
Door courtesy lights Door courtesy lights .............. 300
Wattage................................. 476
Doors
Door glasses ........................... 82
Door lock ..................... 26, 38, 42
Side mirrors............................. 80
Downhill assist control system .................................... 189
Driver's seat belt reminder
light ......................................... 425
Driving Break-in tips .......................... 135
Correct posture ....................... 95
Procedures............................ 134
Winter driving tips ................. 206
Electric power steering ........... 180
Electronic key If your electronic key battery is discharged .......... 455
Emergency flasher switch ...... 410
Emergency, in case of If a warning buzzer
sounds... ............................ 422
If a warning light turns on........................................ 422
D
E
