Page 21 of 28
19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Clock
Manual
Air Conditioning system
H-Hour set
M- Minute set
:00- Round off minutes
Automatic
Air Conditioning system
Manual Air Conditioning
Airflow vent
“ ” or “ ” mode uses fresh air only (“ ” indicator “OFF”) to reduce window fogging.
Fan speed
Temperature selector
Air Conditioning ON/OFF
Use for quick cooling. MAX A/C changes air intake to recirculate. It
is not possible to change intake to fresh, or to turn A/C OFF in this
mode.
Rear defogger
Fresh or recirculated cabin air
Light control-Instrument panel
Brightness
control
+
-
With the dial turned fully up, instrument panel lights will not dim when
the headlights are turned ON.
412xxxM2.qxd 7/31/08 1:36 PM Page 19
Page 22 of 28
20
CD PLAYER
To scan tracks on a disc Push “SCAN.” Push again to hold selection.
CD Changer (Type 2)
-To load one disc Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until you hear a beep.
Insert one disc. Wait until the green indicator illuminates and shutter
opens to insert next disc.
To select a file (MP3/WMA only) Turn “TUNE.
FILE.”
To select a folder (MP3/WMA only) Push either side of “TYPE/FOLDER.”
Audio
View CD text
Eject CD
Push to turn
ON/OFF
Push to adjust
tone & balance
Push to skip
up/down folder
Seek station/
CD track select
Station/CD
track scanMode
Load CD(s)
Preset buttons - functions in other
modes indicated above number.
Ty p e 1
Type 2 additional functions
Type 2 (with JBL speakers)
AM/Satellite radio
View genre/Push to
skip up/down folder
FEATURES/OPERATIONS
412xxxM2.qxd 7/31/08 1:36 PM Page 20
Page 23 of 28
21
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn
the audio OFF.
“ ”
-In radio modePush to select a preset station; push and hold to seek
the next strong station.
-In CD mode Push to skip up or down to next/previous track.
By inserting a mini plug into the AUX audio jack, you can listen to musi\
c
from a portable audio device through the vehicle’s speaker system while
in AUX mode.
>>
Steering wheel controls (if equipped)
AUX audio jack
RADIO
To preset stations Tune in the desired station and hold down a preset
button (1-6) until you hear a beep. Push desired preset button (1-6)\
to
select.
To scan stations Push “SCAN.” Push and hold to scan preset stations. Push
again to hold selection.
Volume control
412xxxM2.qxd 7/31/08 1:36 PM Page 21
Page 24 of 28
22
ON/OFF switchRear consolePush
NOTE:Engine switch/“ENGINE START STOP” switch must be in the “ON”
position to be used.
Power outlets-12V DC
Instrument panelInside center console
NOTE: Designed for car accessories. Engine switch/“ENGINE START STOP”
switch must be in the “ACC” or “ON” position to be used.
FEATURES/OPERATIONS
Luggage compartment
Downhill Assist Control system (DAC)
Power outlets-120V AC (if equipped)
DAC helps the vehicle to descend steep hills while maintaining a
low speed without brake pedal operation. Press the “DAC” button
(indicator will blink). Shift into L or R to activate (indicator will\
be solid).
Pressing the button again will turn system off.
Refer to the Owner’s Manual for more details.
412xxxM2.qxd 7/31/08 1:36 PM Page 22
Page 25 of 28
23
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Cruise control
Turning system ON/OFF
Functions
System ON/OFF
Resume2/Increase speed
Set/Decrease speed
Cancel
1
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Refer to the Owner’s Manual for more details.
HAC helps prevent rolling backwards on an incline. To engage, push
further down on brake pedal while at a complete stop until a beep sounds\
and slip indicator illuminates. HAC holds for approximately 2 seconds af\
ter
releasing brake pedal.
Refer to the Owner’s Manual for more details.
Brake
pedal
Hill-start Assist Control (HAC)
(if equipped)
412xxxM2.qxd 7/31/08 1:36 PM Page 23
Page 26 of 28

24
SAFETY AND
EMERGENCY FEATURES
Moving the lever to “LOCK” will allow the door to be opened only f\
rom
the outside.
Doors-Child safety locks
If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This featur\
e
is used to help hold child restraint systems securely.
To find more information about seat belts, and how to install a child
restraint system, refer to the Owner’s Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
If tire pressure becomes critically low on any of the tires (including \
the
spare), indicator light will come on. Correctly adjusting tire inflation
will turn off the light after a few minutes. If the light does not turn \
off,
have the system checked by your Toyota dealer.
Refer to the Owner’s Manual for more details.
Seat belts-Shoulder belt anchor
Push up or squeeze lock
release to lower
Rear door
DownUp
Tire Pressure Monitoring (warning)
System
412xxxM2.qxd 7/31/08 1:36 PM Page 24
Page 27 of 28
25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Spare tire (if equipped) & tools
Tool location
Removing the spare tire
(1) To remove the spare tire cover,* open the back door. Unhook the latchon the bottom of the cover. Remove the cover and close the back door.
(2) To remove the spare tire, turn the wheel nuts counterclockwise with the wheel nut wrench and remove.
Refer to the Owner’s Manual for tire changing and jack positioning
procedures.
* If equipped
Luggage compartment
Inside left side box Luggage compartment
Inside right side box
Jack
Tool bag
(1)
(2)
412xxxM1.qxd 7/31/08 1:40 PM Page 3

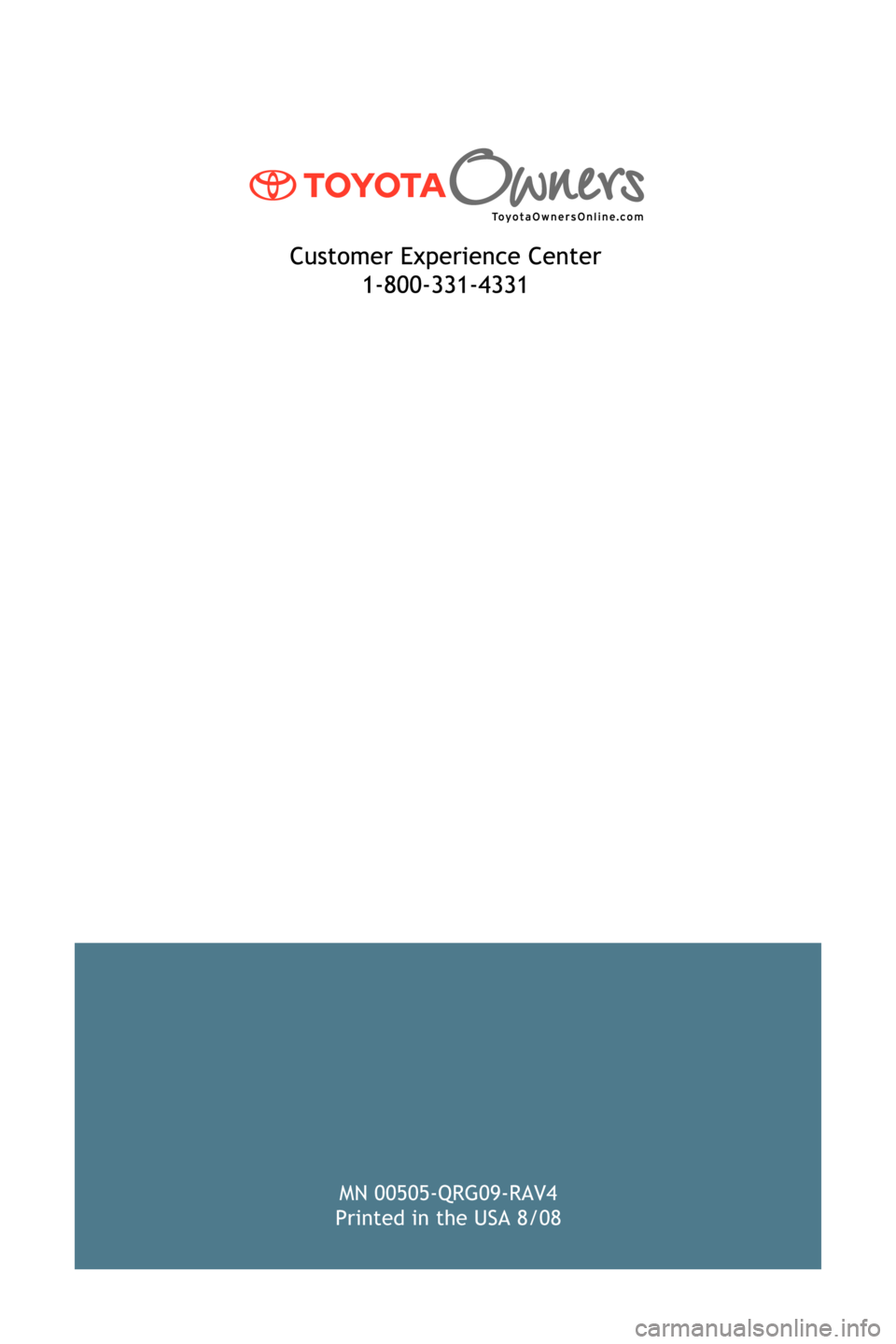

Page 28 of 28
MN 00505-QRG09-RAV4
Printed in the USA 8/08
412xxxM1.qxd 7/31/08 1:40 PM Page 4
