18

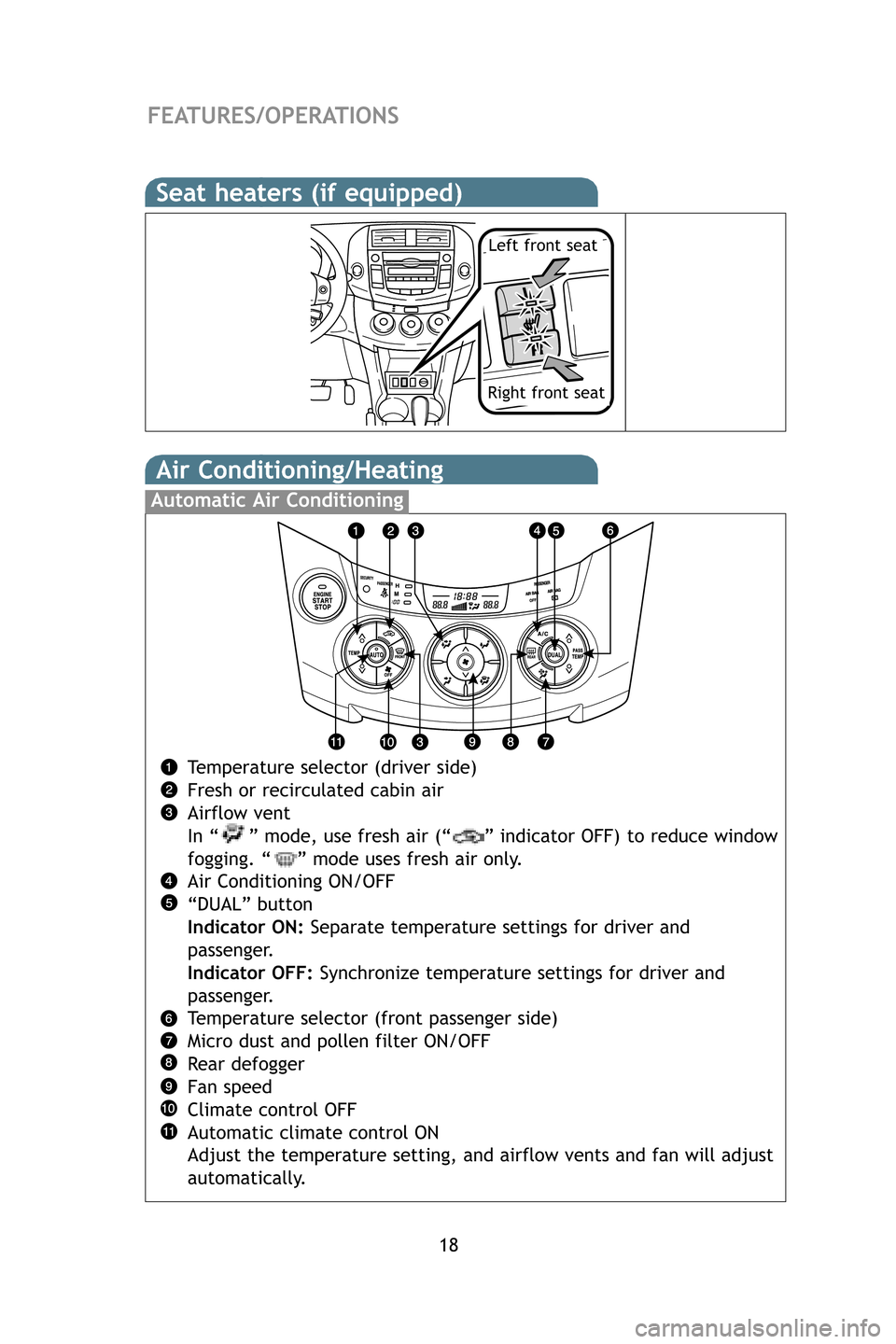

FEATURES/OPERATIONS
Seat heaters (if equipped)
Left front seat
Right front seat
Air Conditioning/Heating
Temperature selector (driver side)
Fresh or recirculated cabin air
Airflow vent
In “ ” mode, use fresh air (“ ” indicator OFF) to reduce window fogging. “ ” mode uses fresh air only.
Air Conditioning ON/OFF
“DUAL” button
Indicator ON: Separate temperature settings for driver and
passenger.
Indicator OFF: Synchronize temperature settings for driver and
passenger.
Temperature selector (front passenger side)
Micro dust and pollen filter ON/OFF
Rear defogger
Fan speed
Climate control OFF
Automatic climate control ON
Adjust the temperature setting, and airflow vents and fan will adjust
automatically.
Automatic Air Conditioning
