power steering TOYOTA RAV4 2009 XA30 / 3.G Quick Reference Guide

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

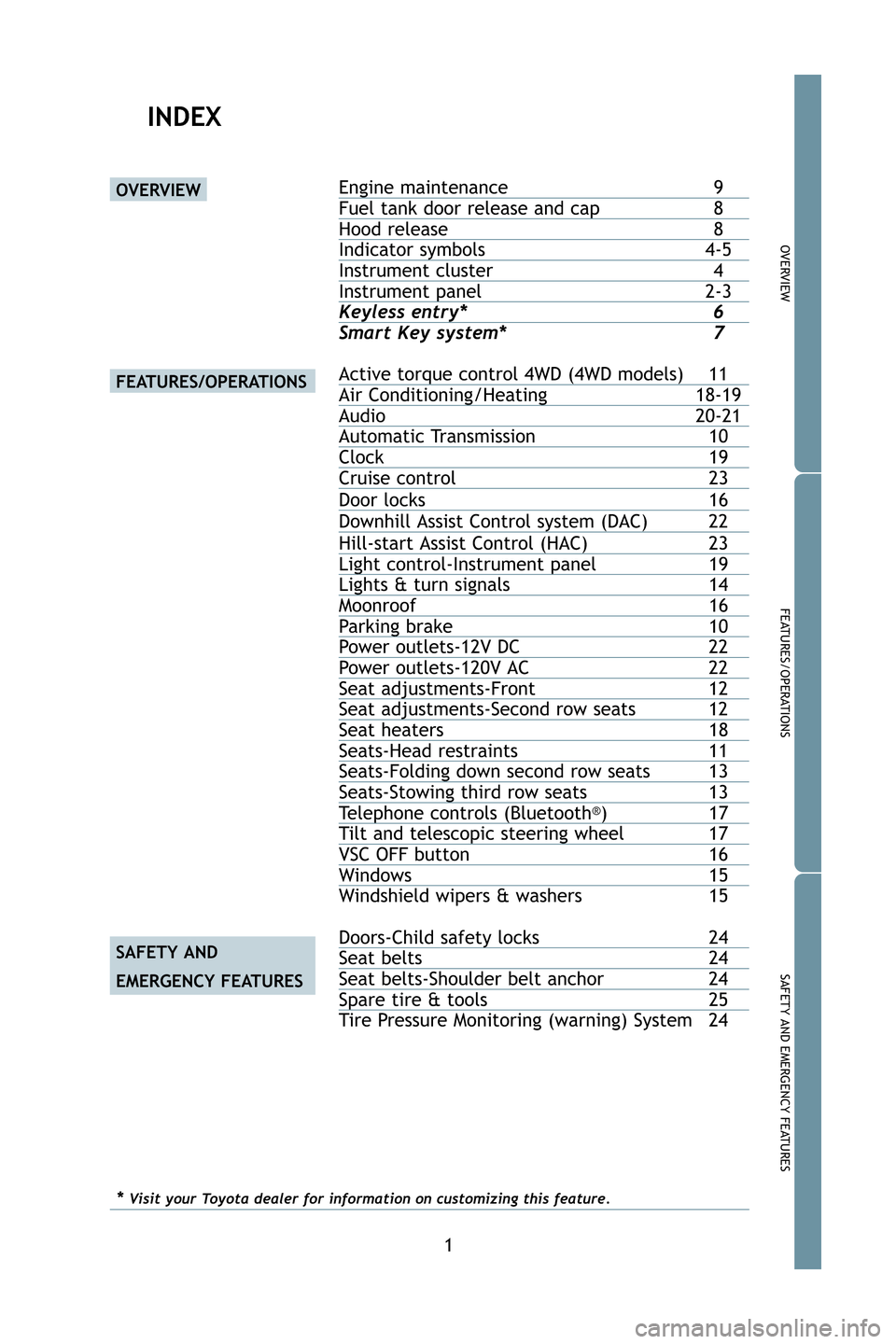

Engine maintenance9
Fuel tank door release and cap8Hood release8Indicator symbols4-5Instrument cluster 4
Instrument panel2-3Keyless entry*6Smart Key system*7
Active torque control 4WD (4WD models) 11Air Conditioning/Heating18-19Audio20-21Automatic Transmission 10Clock 19Cruise control23
Door locks16
Downhill Assist Control system (DAC) 22
Hill-start Assist Control (HAC)23Light control-Instrument panel19Lights & turn signals14Moonroof16Parking brake10Power outlets-12V DC 22Power outlets-120V AC22Seat adjustments-Front12Seat adjustments-Second row seats 12Seat heaters18Seats-Head restraints11Seats-Folding down second row seats 13Seats-Stowing third row seats13Te l e p h o n e controls (Bluetooth®)17Tilt and telescopic steering wheel 17VSC OFF button 16Windows15
Windshield wipers & washers15
Doors-Child safety locks 24Seat belts24Seat belts-Shoulder belt anchor24Spare tire & tools25
Tire Pressure Monitoring (warning) System 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
INDEX
* Visit your Toyota dealer for information on customizing this feature.
412xxxM2.qxd 7/31/08 1:35 PM Page 1

3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

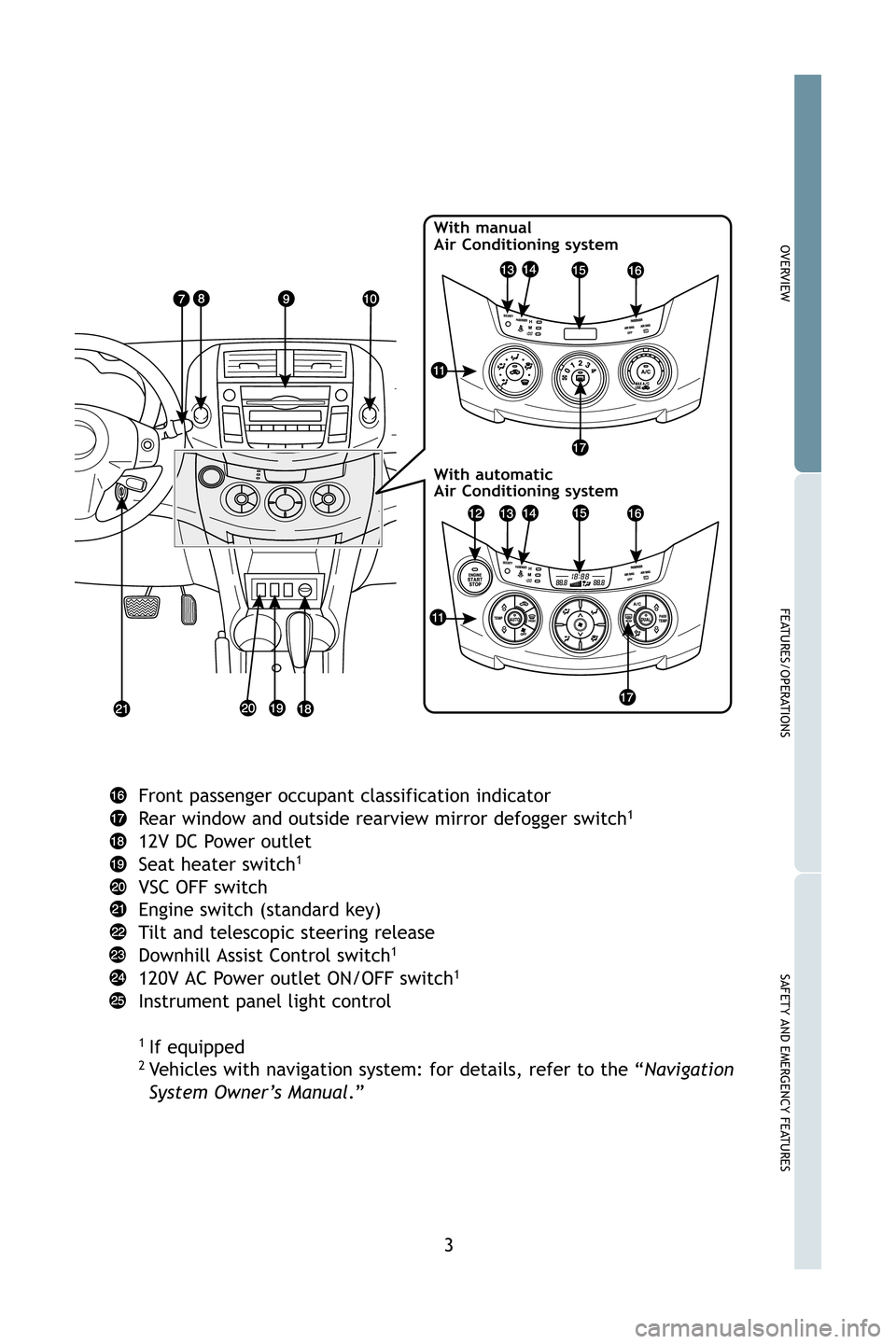

With manual
Air Conditioning system
With automatic
Air Conditioning system
Front passenger occupant classification indicator
Rear window and outside rearview mirror defogger switch1
12V DC Power outlet
Seat heater switch1
VSC OFF switch
Engine switch (standard key)
Tilt and telescopic steering release
Downhill Assist Control switch
1
120V AC Power outlet ON/OFF switch1
Instrument panel light control
1 If equipped2Vehicles with navigation system: for details, refer to the “Navigation
System Owner’s Manual .”
412xxxM2.qxd 7/31/08 1:35 PM Page 3

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

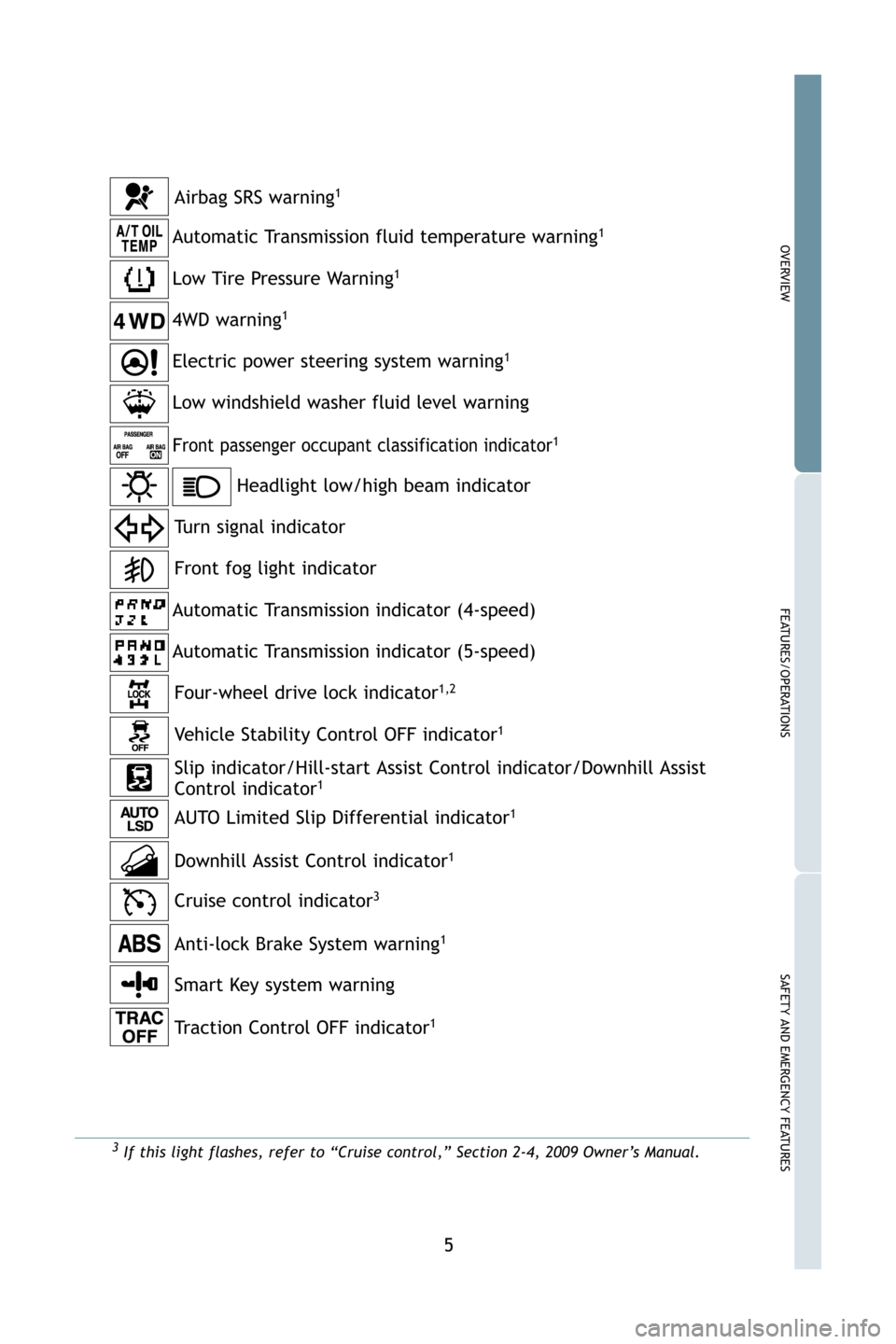

Automatic Transmission indicator (4-speed)
Turn signal indicator
Front fog light indicator
Low windshield washer fluid level warning
Airbag SRS warning1
Headlight low/high beam indicator
Automatic Transmission fluid temperature warning1
Low Tire Pressure Warning1
4WD warning1
Electric power steering system warning1
Four-wheel drive lock indicator1,2
Slip indicator/Hill-start Assist Control indicator/Downhill Assist
Control indicator1
Downhill Assist Control indicator1
AUTO Limited Slip Differential indicator1
Cruise control indicator3
Anti-lock Brake System warning1
Automatic Transmission indicator (5-speed)
3If this light flashes, refer to “Cruise control,” Section 2-4, 200\
9 Owner’s Manual.
Vehicle Stability Control OFF indicator1
Smart Key system warning
Traction Control OFF indicator1
Front passenger occupant classification indicator1
412xxxM2.qxd 7/31/08 1:36 PM Page 5
