4

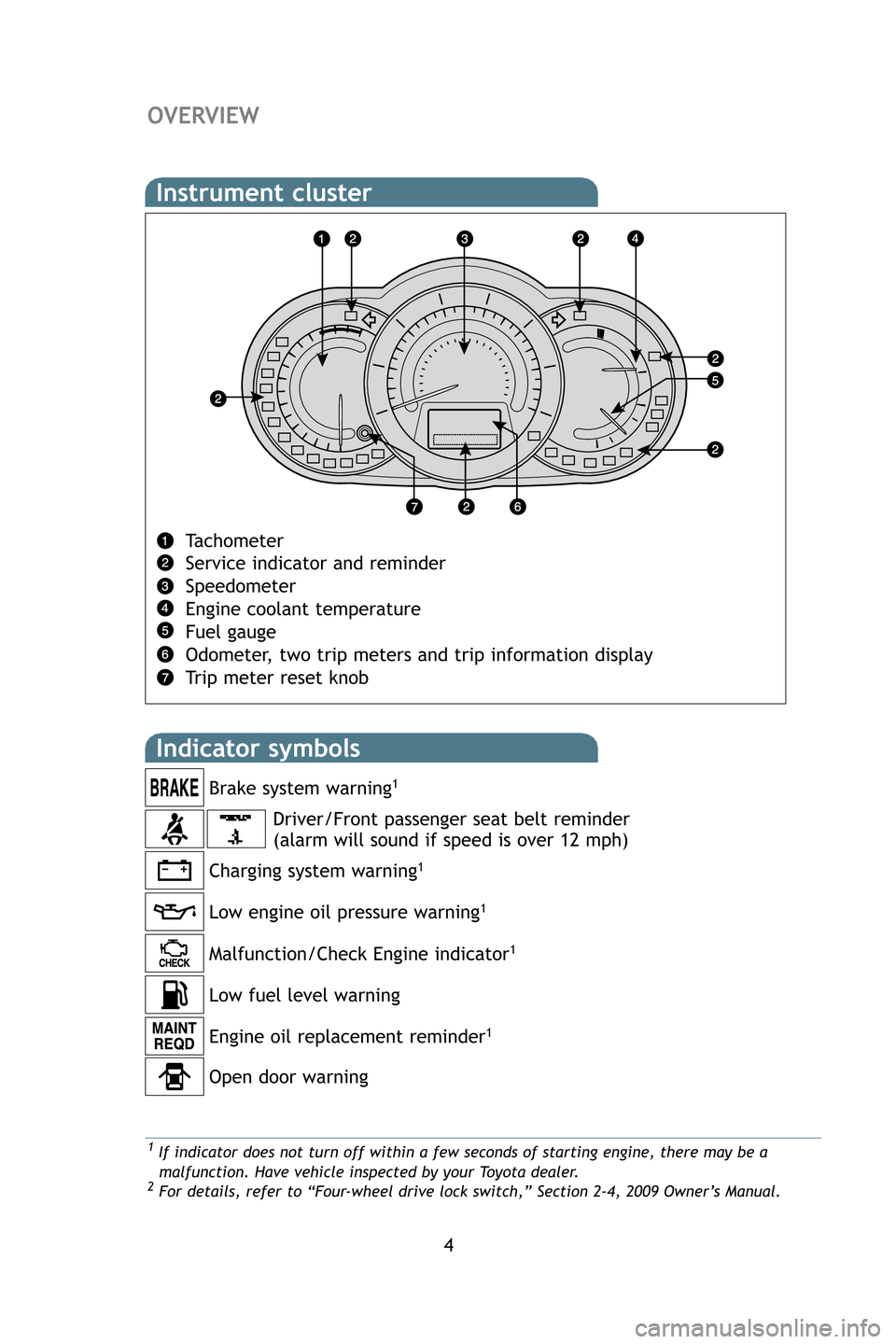

OVERVIEW
Open door warning
Tachometer
Service indicator and reminder
Speedometer
Engine coolant temperature
Fuel gauge
Odometer, two trip meters and trip information display
Trip meter reset knob
Instrument cluster
Charging system warning1
Low engine oil pressure warning1
Brake system warning1
Malfunction/Check Engine indicator1
Engine oil replacement reminder1
Indicator symbols
Driver/Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Low fuel level warning
1If indicator does not turn off within a few seconds of starting engine, \
there may be a malfunction. Have vehicle inspected by your Toyota dealer.
2For details, refer to “Four-wheel drive lock switch,” Section 2-4, 2009 Owner’s Manual.
