AUDIO SYSTEM
Audio system
Quick reference 144
 Using your audio system 145
Some basics 145
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Radio operation 149
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

CD player operation 158
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 Audio remote controls 169
 Audio system operating hints 170
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .

AUDIO SYSTEM
144
Operations such as selecting a preset station and adjusting the sound balance are c\
ar-
ried out on the touch screen. To display the audio screen, push the “AUDIO” button.
1Function menu display screen
To control the radio or CD player,
touch the touch screen buttons. For
details, see page 147.
2“AUDIO” button
Push this button to display the audio
control screen. For details, see page
146.
3“” button
Push this button to insert or eject a
disc. For details, see pages 158 and
160.
4“DISC·AUX” button
Push this button to turn the CD player
and AUX on. For details, see pages
146, 149 and 160.
5“FM” button
Push this button to choose an FM sta-
tion. For details, see pages 146 and
149.
6“AM·SAT” button
Push this button to choose an AM or
SAT station. For details, see pages
146 and 149.
7“TUNE·SEEK/TRACK” button
Push either side of this button to step
up or down the frequency, or to ac-
cess a desired track or file. For de-
tails, see pages 149, 151, 154, 161
and 165.
8“PWR·VOL” knob
Push this knob to turn the audio sys-
tem on and off, and turn it to adjust the
volume. For details, see page 146.
Quick reference

AUDIO SYSTEM
145
This section describes some of the basic
features of your audio system. Some in-
formation may not pertain to your system.
Vehicles with smart key system —
Your audio system works when the “EN-
GINE START STOP” switch is in ACCES-
SORY or IGNITION ON mode.
Vehicles without smart key system —
Your audio system works when the engine
switch is in “ACC” or “ON” position.
NOTICE
To prevent the battery from being dis-
charged, do not leave the audio sys-
tem on longer than necessary when
the engine is not running.
CAUTION
For vehicles sold in U.S.A. and
Canada:
 Part 15 of the FCC Rules
FCC Warning:
Changes or modifications in con-
struction not expressly approved by
the party responsible for compliance
could void the user’s authority to op-
erate the equipment.
 Laser products
 Do not take this unit apart or
attempt to make any changes
yourself. This is an intricate
unit that uses a laser pickup to
retrieve information from the
surface of compact discs. The
laser is carefully shielded so
that its rays remain inside the
cabinet. Therefore, never try to
disassemble the player or alter
any of its parts since you may
be exposed to laser rays and
dangerous voltages.
 This product utilizes a laser.
Use of controls or adjustments
or performance of procedures
other than those specified
herein may result in hazardous
radiation exposure.
Using your audio system —
— Some basics

AUDIO SYSTEM
148

Tone and balance
How good an audio program sounds to you
is largely determined by the mix of the
treble and bass levels. In fact, different
kinds of music and vocal programs usually
sound better with different levels of treble
and bass.
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to a
stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another.
1. Push the “AUDIO” button.
2. Touch “SOUND”.
3. Touch the desired button.
“TREB” “+” or “–”: Adjusts high −pitched
tones.
“BASS” “+” or “–”: Adjusts low− pitched
tones.
“FRONT” or “REAR”: Adjusts sound bal-
ance between the front and rear speakers.
“L” or “R”: Adjusts sound balance be-
tween the left and right speakers.
4. Touch “OK”.
The tone of each mode (for such as AM,
FM1 and CD player) can be adjusted.

AUDIO SYSTEM
149

Your CD player
When you insert a disc, insert it with the la-
bel side up. The CD player will play from
track 1 through to the end of the disc. Then
it will play from track 1 again.
NOTICE
Never try to disassemble or oil any
part of the CD player. Do not insert
anything other than discs into the
slot.
The player is intended for use with 4.7 in.
(12 cm) discs only.
AUX adapter
The sound of portable audio players con-
nected to the AUX adapter can be enjoyed.
Push the “DISC·AUX” button to switch to
AUX mode. For details, refer to the “Own-
er’s Manual”.
Listening to the radio
Push these buttons to choose either an
AM or FM station.
“AM”, “FM1” or “FM2” appears on the
screen.
If your vehicle is equipped with a satellite
radio broadcast system, when you push
the “AM·SAT” button, “AM”, “SAT1”,
“SAT2”, “SA T3” station appears on the dis-
play. For details about satellite radio
broadcast, see “— Radio operation (XM
Satellite Radio broadcast)” on page 151.
— Radio operation

AUDIO SYSTEM
158
The CD player can play audio CDs, CD
text, WMA discs and MP3 discs.
Audio CD, CD text161
. . . . . . . . .
MP3/WMA disc 164
. . . . . . . . . . .
For appropriate discs for this changer, see
“Audio system operating hints” on page
170. (a) Inserting discs
Vehicles with smart key system —
The “ENGINE START STOP” switch must
be set at ACCESSORY or IGNITION ON
mode.
Vehicles without smart key system —
The engine switch must be set at “ACC” or
“ON” position.
1. Push the “” button.
— CD player operation

AUDIO SYSTEM
160
(b) Ejecting discs

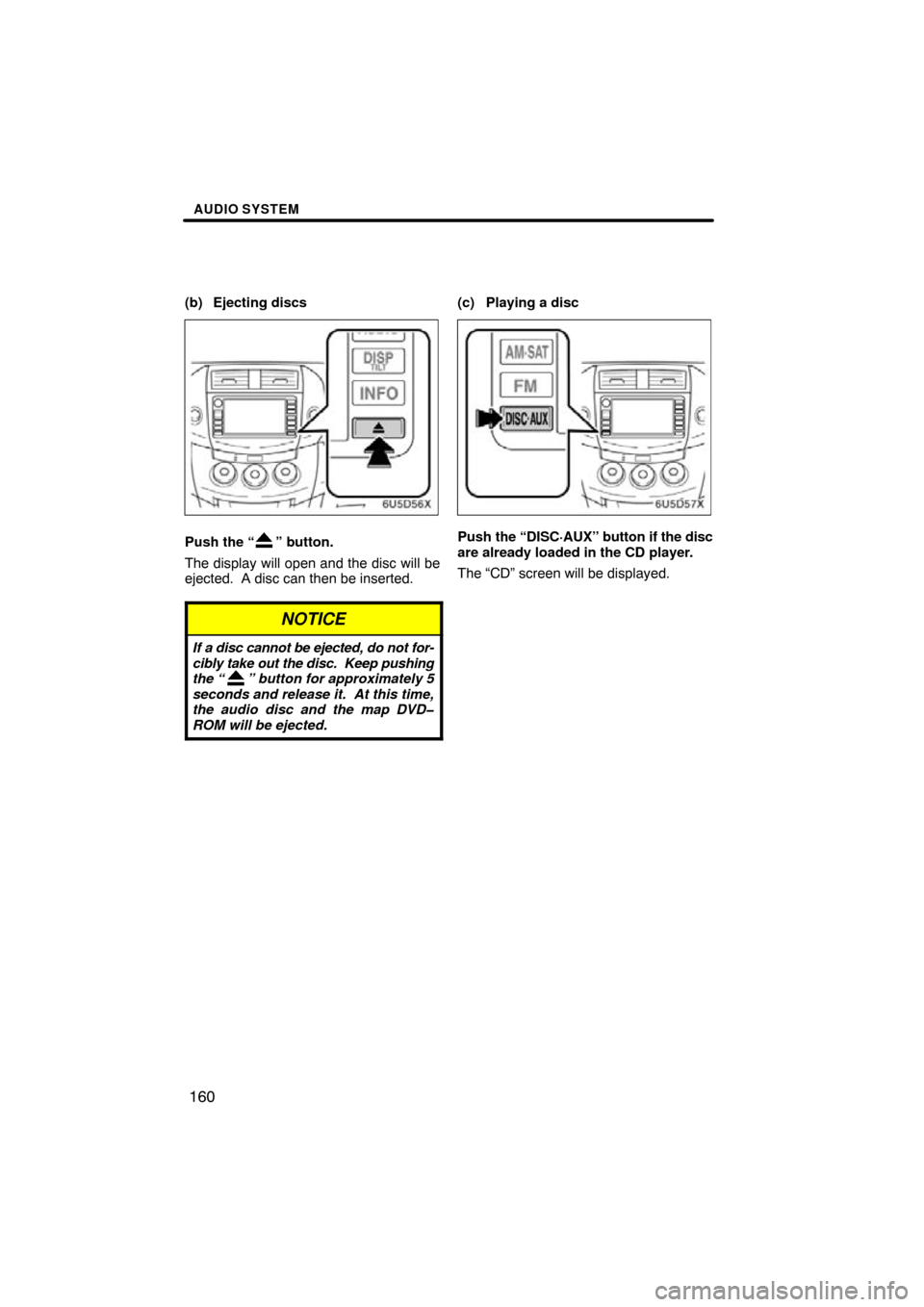

Push the “” button.
The display will open and the disc will be
ejected. A disc can then be inserted.
NOTICE
If a disc cannot be ejected, do not for-
cibly take out the disc. Keep pushing
the “ ” button for approximately 5
seconds and release it. At this time,
the audio disc and the map DVD
ROM will be ejected.
(c) Playing a disc
Push the “DISC·AUX” button if the disc
are already loaded in the CD player.
The “CD” screen will be displayed.

AUDIO SYSTEM
161
(d) Operating an audio CD
Playing an audio CD

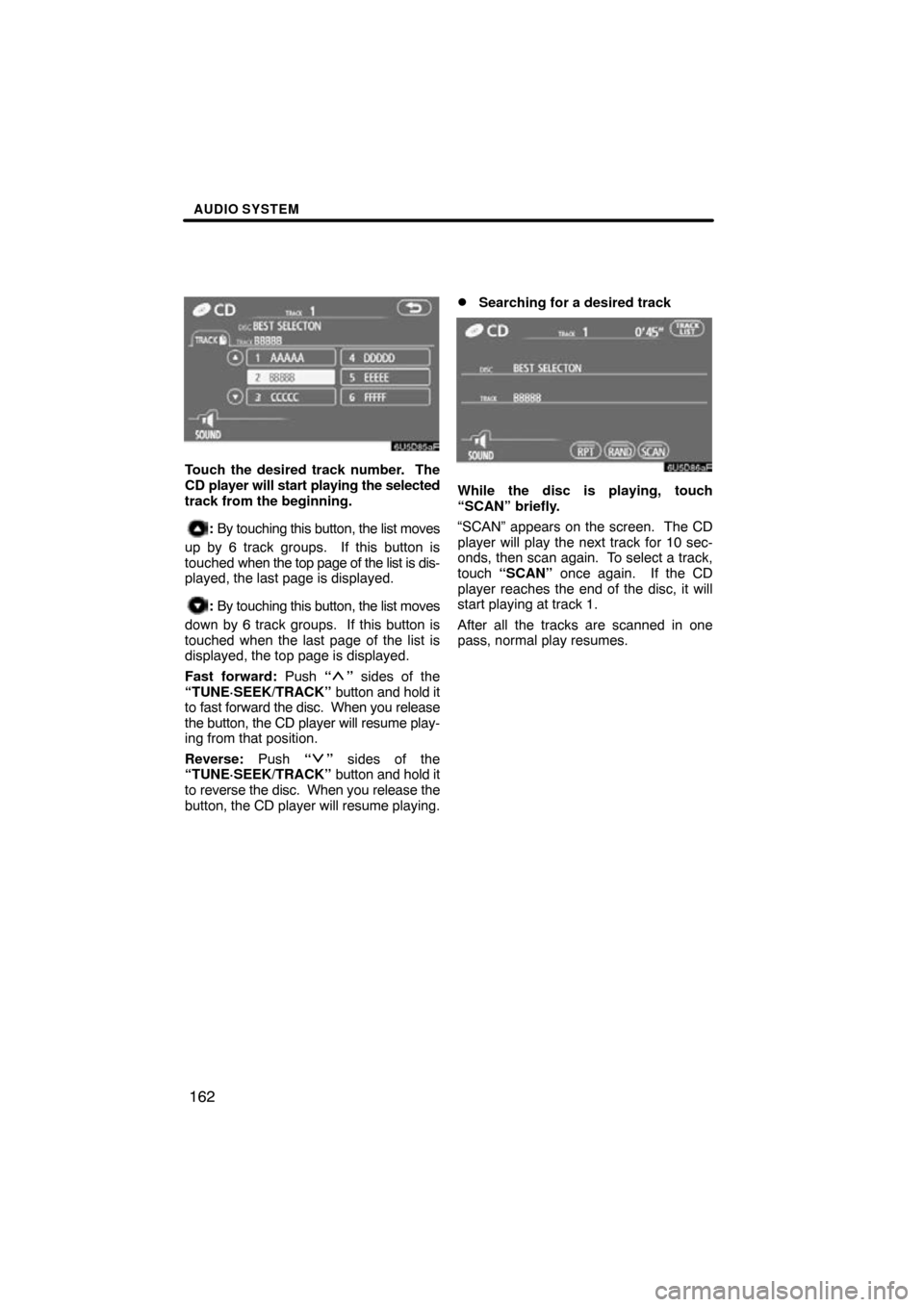

Push the “AUDIO” button to display
this screen.
Selecting a desired track

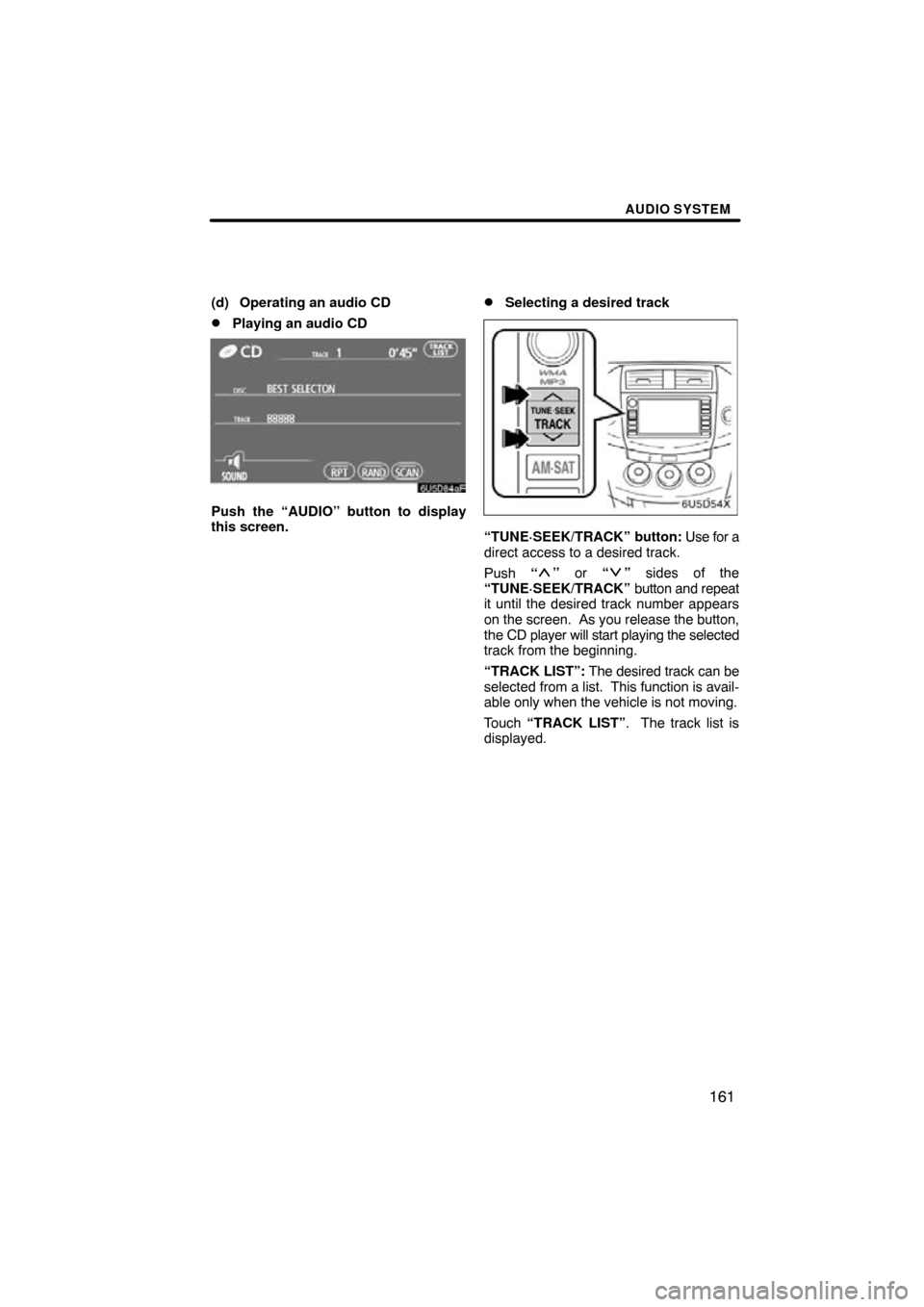

“TUNE·SEEK/TRACK” button: Use for a
direct access to a desired track.
Push “
” or “” sides of the
“TUNE·SEEK/TRACK” button and repeat
it until the desired track number appears
on the screen. As you release the button,
the CD player will start playing the selected
track from the beginning.
“TRACK LIST”: The desired track can be
selected from a list. This function is avail-
able only when the vehicle is not moving.
Touch “TRACK LIST”. The track list is
displayed.

AUDIO SYSTEM
162
Touch the desired track number. The
CD player will start playing the selected
track from the beginning.
: By touching this button, the list moves
up by 6 track groups. If this button is
touched when the top page of the list is dis-
played, the last page is displayed.
: By touching this button, the list moves
down by 6 track groups. If this button is
touched when the last page of the list is
displayed, the top page is displayed.
Fast forward: Push “
” sides of the
“TUNE·SEEK/TRACK” button and hold it
to fast forward the disc. When you release
the button, the CD player will resume play-
ing from that position.
Reverse: Push “
” sides of the
“TUNE·SEEK/TRACK” button and hold it
to reverse the disc. When you release the
button, the CD player will resume playing.
Searching for a desired track
While the disc is playing, touch
“SCAN” briefly.
“SCAN” appears on the screen. The CD
player will play the next track for 10 sec-
onds, then scan again. To select a track,
touch “SCAN” once again. If the CD
player reaches the end of the disc, it will
start playing at track 1.
After all the tracks are scanned in one
pass, normal play resumes.
