display TOYOTA RAV4 2010 XA30 / 3.G Navigation Manual

Table of Contents
Quick guide —
— Overview buttons and guidance screen 5. . . . . . . . . . . .
— Registering home 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
— Registering preset memory points (Quick access) 9 . .
— Operation flow: guiding the route 11 . . . . . . . . . . . . . . . . .
— Setting home as the destination 12 . . . . . . . . . . . . . . . . . .
1 Basic Functions (Basic information before operation)
Display operation 22
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Initial screen 23
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Touch screen operation 25
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Inputting letters and numbers/List screen operation 26
. . . . . . . . . . . .
Function help 29
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Map screen operation 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Current position display 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Screen scroll operation 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switching the screens 34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map scale 37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Foot print map 37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Orientation of the map 39
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Quick
Guide

2 Destination Search
Quick reference (“Destination” screen)42
. . . . . . . . . . . . . . . . . . . . . . .
Destination search 43
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Selecting the region to search 44
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by Home 46
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by Quick access 46
. . . . . . . . . . . . . . . . . . . . . .
Destination search by “Address” 47
. . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “POI” 51
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Phone #” 58
. . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Emergency” 59
. . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Memory” 59
. . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Previous” 60
. . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Map” 61
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Intersection” 61
. . . . . . . . . . . . . . . . . . . . . .
Destination search by “Freeway Ent./Exit” 62
. . . . . . . . . . . . . . . . .
Destination search by “Coordinates” 63
. . . . . . . . . . . . . . . . . . . . . .
Deleting set destinations 64
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starting route guidance 65
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
3 Route Guidance
Route guidance screen 70
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Typical voice guidance prompts 73
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Distance and time to destination 75
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting and deleting destination 76
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Adding destinations 76
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Reordering destinations 76
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting destinations 77
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting route 78
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Search condition 78
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Detour setting 79
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Route preference 81
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Starting route from adjacent road 81
. . . . . . . . . . . . . . . . . . . . . . . . .
Map view 82
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Display POI* icons 82
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Route overview 84
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Route preview 85
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Route trace 86
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .

5
0U5111aX
No.NameFunctionPage
1
Northup or
headingup
symbolThis symbol indicates a map view with
north−up or heading−up. Touching this
symbol changes the map orientation.
39
2Scale indicatorThis figure indicates the map scale.37
3“MAP/VOICE”
buttonPush this button to repeat a voice guid-
ance, cancel one touch scroll, start
guidance, and display the current posi-
tion.
30, 74
4“DEST” buttonPush this button to display the “Destina-
tion” screen.7, 9, 11, 12, 42, 43
5“MENU” buttonPush this button to display the “Menu”
screen.90, 92, 93, 94,96, 110, 189
6“DISP/TILT”
buttonPush this button to display the “Display”
screen.22, 137
Quick guide —
— Overview buttons and guidance screen

6
No.NameFunctionPage
7“INFO” buttonPush this button to display the “Informa-
tion” screen.128, 132, 138,141
8Zoom out buttonTouch this button to reduce the map
scale.37
9“Mark”
Touch this button to register the current
position or the cursor position as a
memory point.
31
10“Route”Touch this button to change the route.76, 78
11“Map View”
Touch this button to browse information
about guidance route, to set the Points
of Interest to be displayed on the
screen, or to record the route.
82, 84, 85, 86
12“\b\b OFF”
Touch this button to obtain a broader
view. Some of the buttons on the screen
are not displayed. They are displayed
again by touching “ON”.
11 4
13Zoom in buttonTouch this button to magnify the map
scale.37
14Foot print map
buttonTouch this button to display the foot print
map and the building information.37
15
Screen
configuration
buttonTouch this button to change the screen
mode.34
16Distance and time
to destinationDisplays the distance, the estimated
travel time to the destination, and the
estimated arrival time at the destination.
75
17XM NavTraffic
markThis mark is displayed when XM  Nav-
Traffic information is received.120
18
“GPS” mark
(Global
Positioning
System)Whenever the vehicle is receiving sig-
nals from the GPS, this mark is dis-
played.
178

7
0U5117X

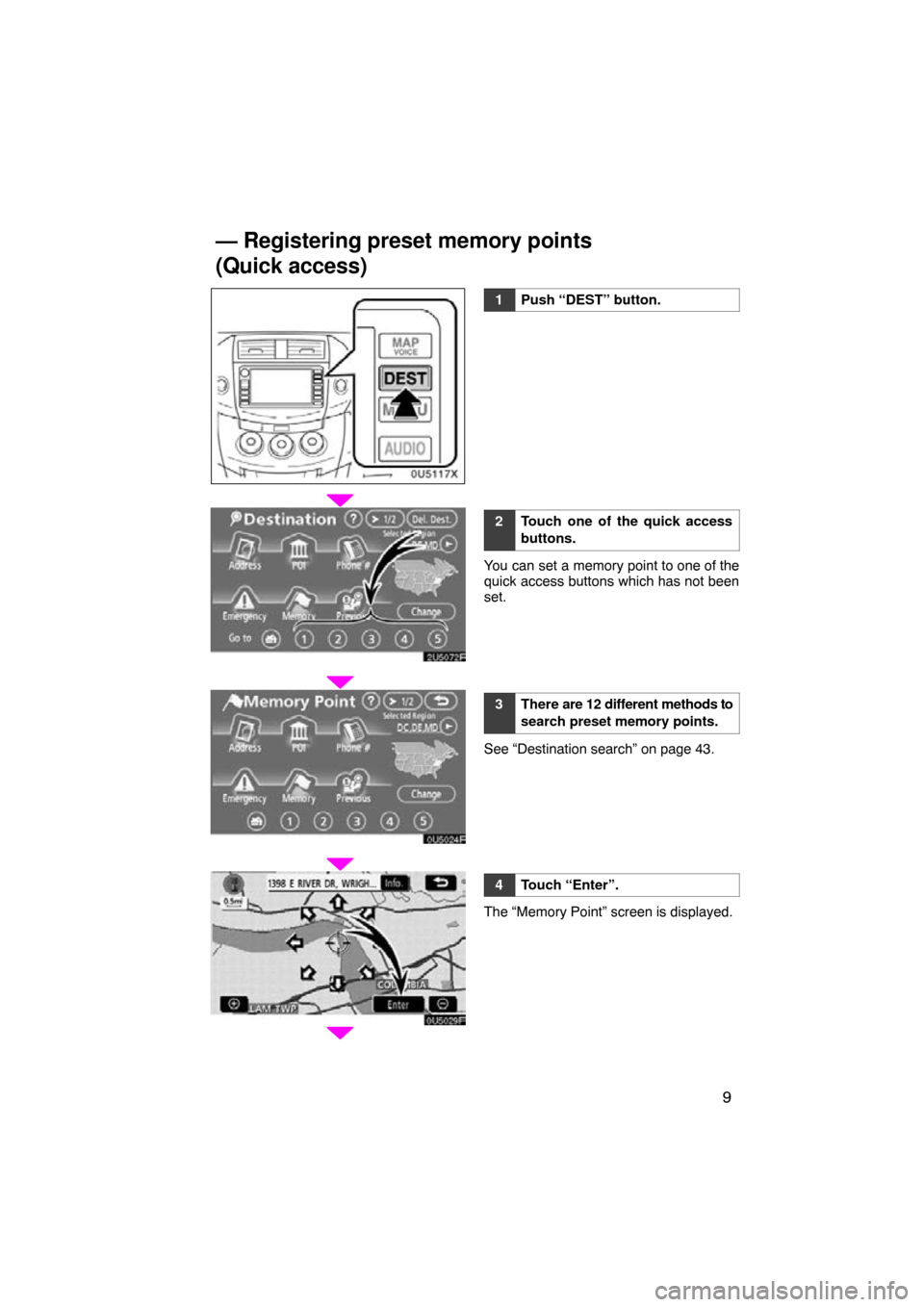

1Push “DEST” button.
2Touch .
If home has not been registered, you can
register it by touching
.
3There are 11 different methods to
search your home.
See “Destination search” on page 43.
4Touch “Enter”.
The “Memory Point” screen is displayed.
— Registering home

9
0U5117X
1Push “DEST” button.
2Touch one of the quick access
buttons.
You can set a memory point to one of the
quick access buttons which has not been
set.
3There are 12 different methods to
search preset memory points.
See “Destination search” on page 43.
4Touch “Enter”.
The “Memory Point” screen is displayed.
— Registering preset memory points
(Quick access)

SECTION 1
BASIC FUNCTIONS
21
BASIC FUNCTIONS
Basic information before operation
Display operation 22
 Initial screen 23
 Touch screen operation 25
 Inputting letters and numbers/List screen operation 26
 Function help 29
 Map screen operation 30
Current position display 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Screen scroll operation 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switching the screens 34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map scale 37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Foot print map 37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
Orientation of the map 39
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
. . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .

BASIC FUNCTIONS
22

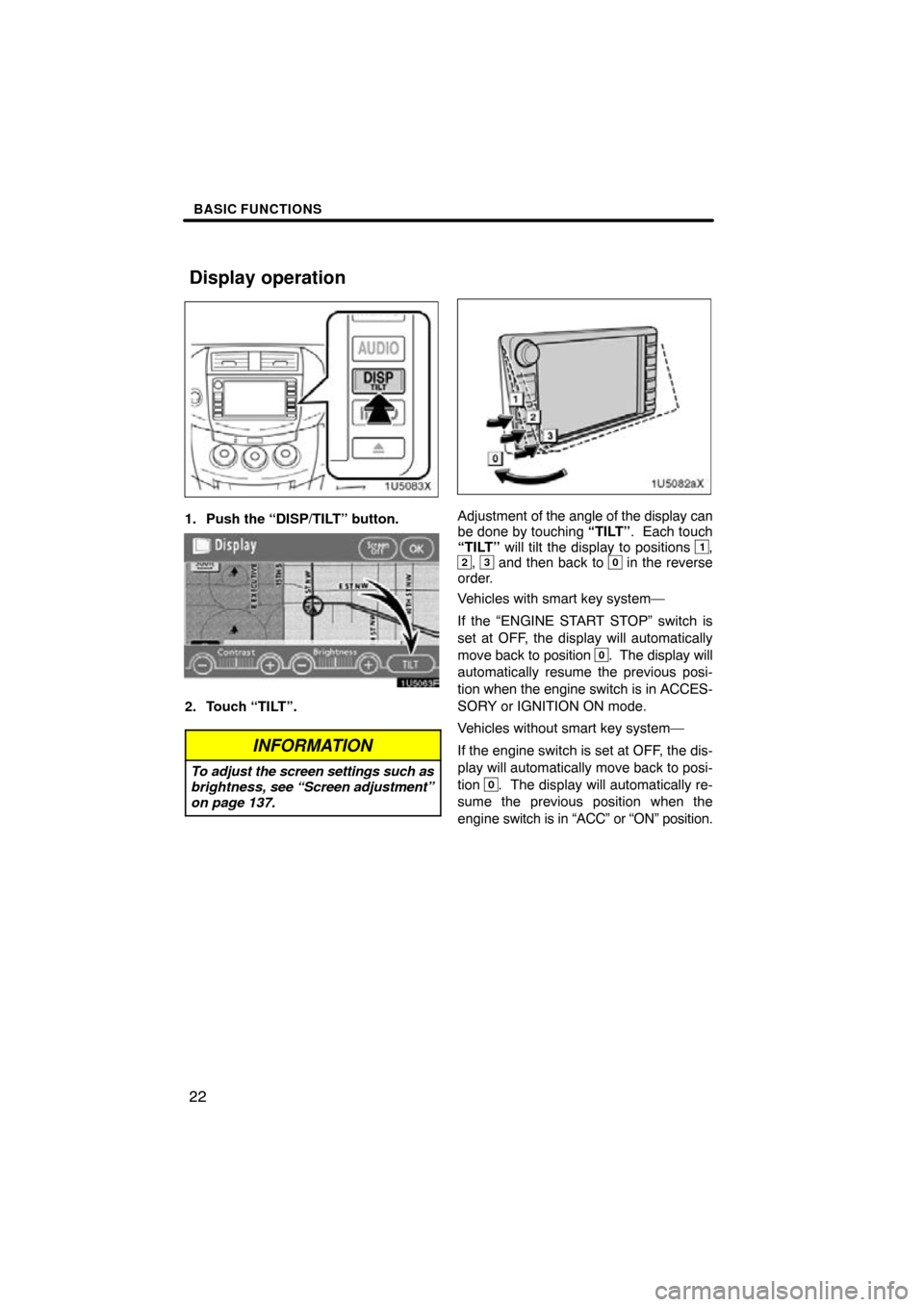

1. Push the “DISP/TILT” button.
2. Touch “TILT”.
INFORMATION
To adjust the screen settings such as
brightness, see “Screen adjustment”
on page 137.
Adjustment of the angle of the display can
be done by touching “TILT”. Each touch
“TILT” will tilt the display to positions
1,2, 3 and then back to 0 in the reverse
order.
Vehicles with smart key system—
If the “ENGINE START STOP” switch is
set at OFF, the display will automatically
move back to position
0. The display will
automatically resume the previous posi-
tion when the engine switch is in ACCES-
SORY or IGNITION ON mode.
Vehicles without smart key system—
If the engine switch is set at OFF, the dis-
play will automatically move back to posi-
tion
0. The display will automatically re-
sume the previous position when the
engine switch is in “ACC” or “ON” position.
Display operation

BASIC FUNCTIONS
23

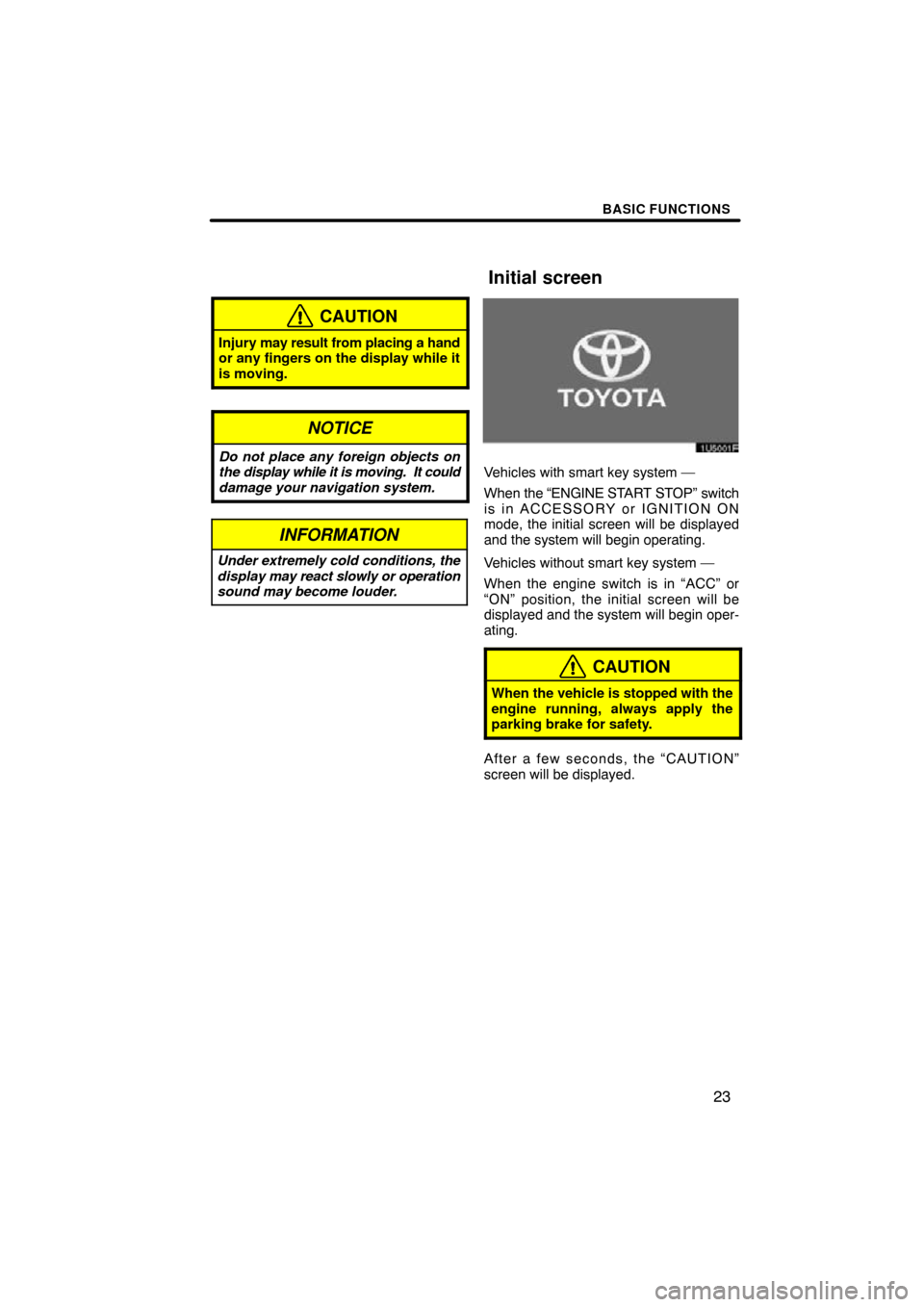

CAUTION
Injury may result from placing a hand
or any fingers on the display while it
is moving.
NOTICE
Do not place any foreign objects on
the display while it is moving. It could
damage your navigation system.
INFORMATION
Under extremely cold conditions, the
display may react slowly or operation
sound may become louder.
Vehicles with smart key system —
When the “ENGINE START STOP” switch
is in ACCESSORY or IGNITION ON
mode, the initial screen will be displayed
and the system will begin operating.
Vehicles without smart key system —
When the engine switch is in “ACC” or
“ON” position, the initial screen will be
displayed and the system will begin oper-
ating.
CAUTION
When the vehicle is stopped with the
engine running, always apply the
parking brake for safety.

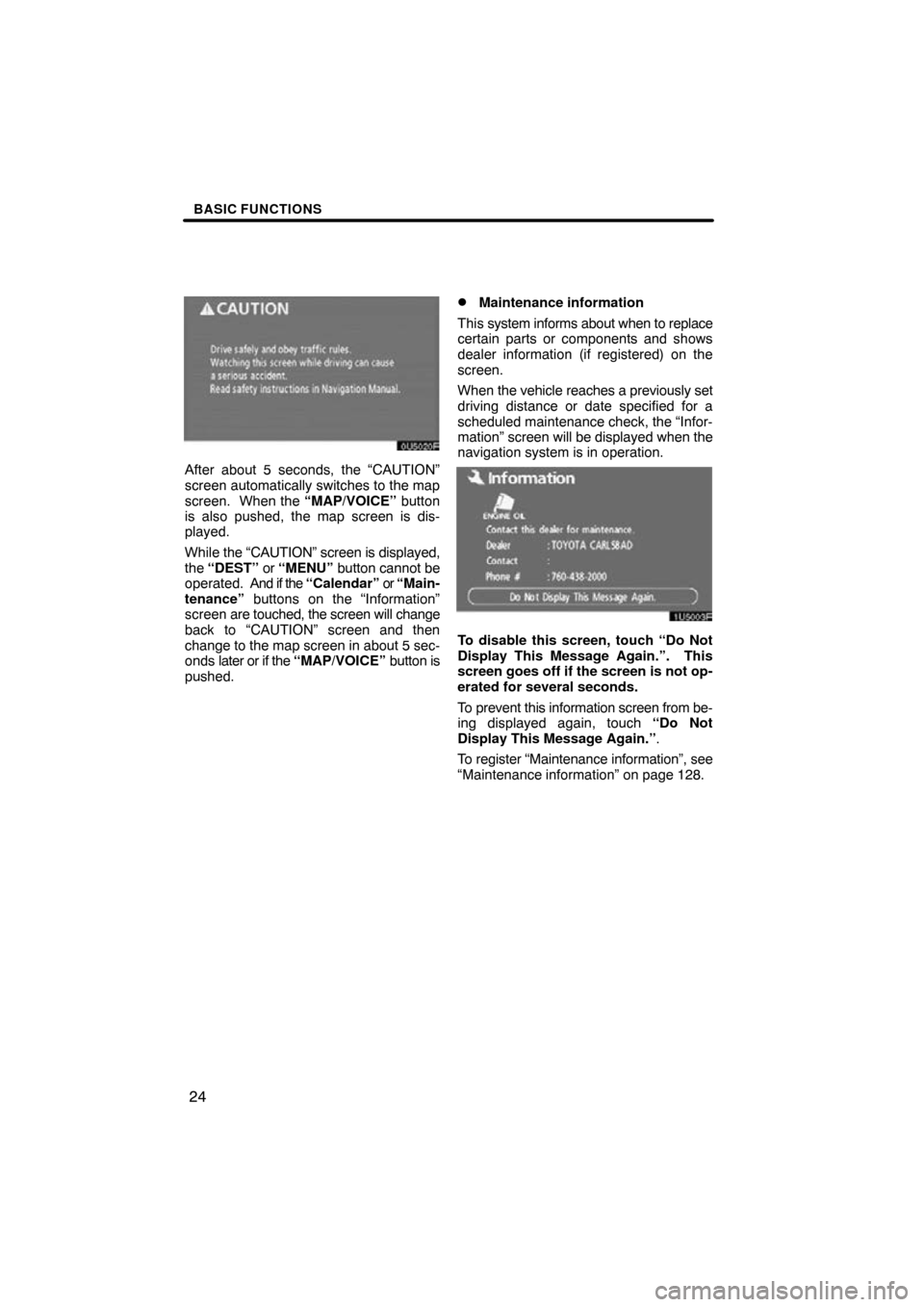

After a few seconds, the “CAUTION”
screen will be displayed.
Initial screen

BASIC FUNCTIONS
24
After about 5 seconds, the “CAUTION”
screen automatically switches to the map
screen. When the “MAP/VOICE” button
is also pushed, the map screen is dis-
played.
While the “ CAUTION” screen is displayed,
the “DEST” or “MENU” button cannot be
operated. And if the “Calendar” or “Main-
tenance” buttons on the “Information”
screen are touched, the screen will change
back to “CAUTION” screen and then
change to the map screen in about 5 sec-
onds later or if the “MAP/VOICE” button is
pushed.
Maintenance information
This system informs about when to replace
certain parts or components and shows
dealer information (if registered) on the
screen.
When the vehicle reaches a previously set
driving distance or date specified for a
scheduled maintenance check, the “Infor-
mation” screen will be displayed when the
navigation system is in operation.
To disable this screen, touch “Do Not
Display This Message Again.”. This
screen goes off if the screen is not op-
erated for several seconds.
To prevent this information screen from be-
ing displayed again, touch “Do Not
Display This Message Again.” .
To register “Maintenance information”, see
“Maintenance information” on page 128.
