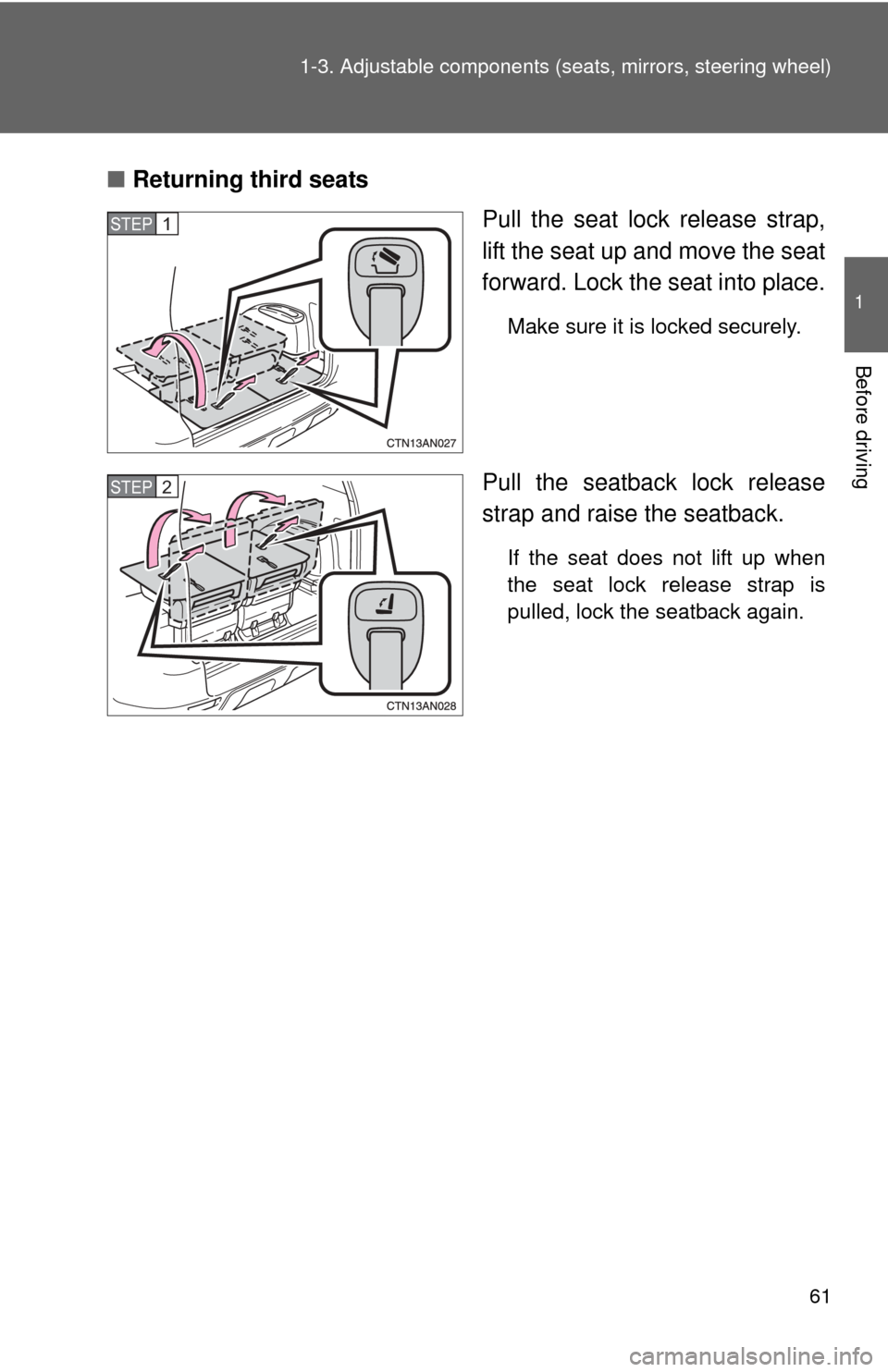

■Returning third seats
Pull the seat lock release strap,
lift the seat up and move the seat
forward. Lock the seat into place.
Make sure it is locked securely.
Pull the seatback lock release
strap and raise the seatback.
If the seat does not lift up when
the seat lock release strap is
pulled, lock the seatback again.
STEP 1
STEP 2

62 1-3. Adjustable components (seats, mirrors, steering wheel)
CAUTION
■Seat adjustment
Observe the following precautions.
Failure to do so may result in death or serious injuries.
●The seat belts provide maximum protection in a frontal or rear collision
when the driver and the front passenger are sitting up straight and well
back in the seats.
If you are reclined, the lap belt may slide past your hips and apply restraint
forces directly to the abdomen or your neck may contact the shoulder belt.
● Be careful not to get your hands or feet pinched in the seat.
● Do not adjust the seat while the vehicle is moving as the seat may unex-
pectedly move and cause the driver to lose control of the vehicle.
● Be careful that the seat does not hit a passenger or luggage.
● Do not put objects under the seats.
Otherwise, the objects may interfere with the seat-lock mechanism or
unexpectedly push up the seat position adjustment lever and the seat may
suddenly move, causing the driver to lose control of the vehicle.
● Avoid reclining the seatback any more than needed.
● Adjust both seat cushions to the same position and align all seatbacks at
the same angle when a person sits in the rear center position.
Otherwise, the person cannot wear the seat belt properly and this may
cause death or serious injuries in a collision.

63
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
CAUTION
■When folding second seats
●Do not fold the second seatback when passengers sit or luggage is placed
on the seat.
● Do not allow passengers to ride on the folded seat or in the luggage com-
partment while driving.
● Make sure that no passengers or luggage are on the rear seats.
● Make sure the seatback is securely locked by pushing forward and rear-
ward on the top of the seatback.
Failure to do so will prevent the seat belt from operating properly.
■ When stowing third seats
●Make sure that no passenger or luggage are on the seats. Then, hold the
seat and slowly move it.
Otherwise, people may be injured or luggage may be damaged if the seat
hits them.
● Make sure the seat is securely locked by pushing forward and rearward on
the top of the seatback or by trying to pull up the edge of the bottom cush-
ion.
Failure to do so will prevent the seat belt from operating properly.
● Make sure the seat belts are not twisted or caught in the seatback and are
arranged in their proper position ready for use.
● Do not stow or return the seats when you are inside the vehicle in order to
prevent pinching your hands or feet in the seat.
Be sure to stow and return the seats from outside the vehicle.

64 1-3. Adjustable components (seats, mirrors, steering wheel)
CAUTION
■After adjusting a seat
●After adjusting the seat position, try sliding it forward and backward to
make sure it is locked in position.
● After adjusting the seatback, push your body adjust the seatback to make
sure it is locked in position.
● Make sure the seat belts are not twisted or caught in the seatback and are
arranged in their proper position and are ready for use.
NOTICE
■Before folding the seats
To prevent damage to the seat belt buckles, stow them before folding the
seatback.

65
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
Head restraints

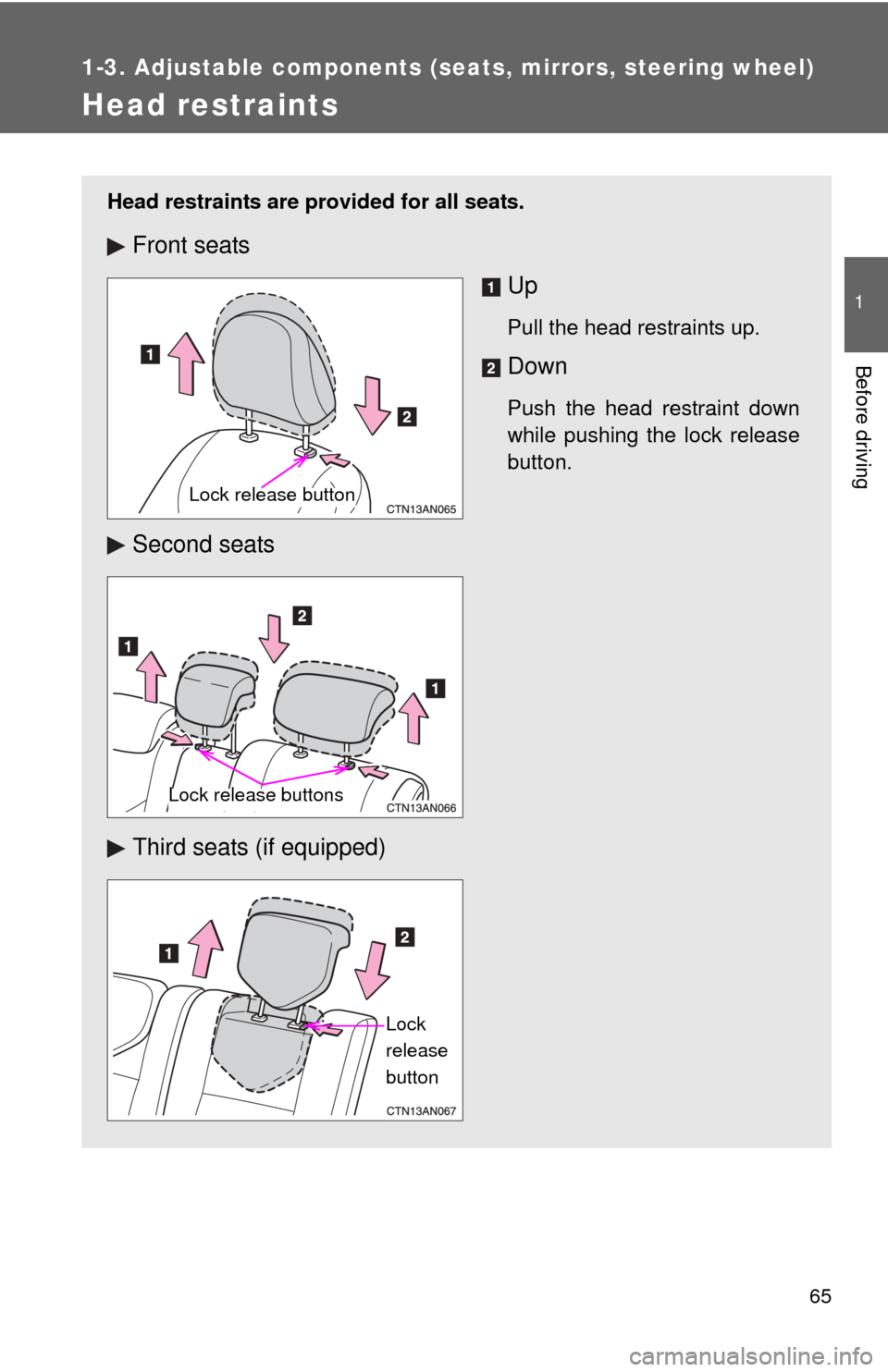

Head restraints are provided for all seats.
Front seatsUp
Pull the head restraints up.
Down
Push the head restraint down
while pushing the lock release
button.
Second seats
Third seats (if equipped)
Lock release button
Lock release buttons
Lock
release
button

66 1-3. Adjustable components (seats, mirrors, steering wheel)

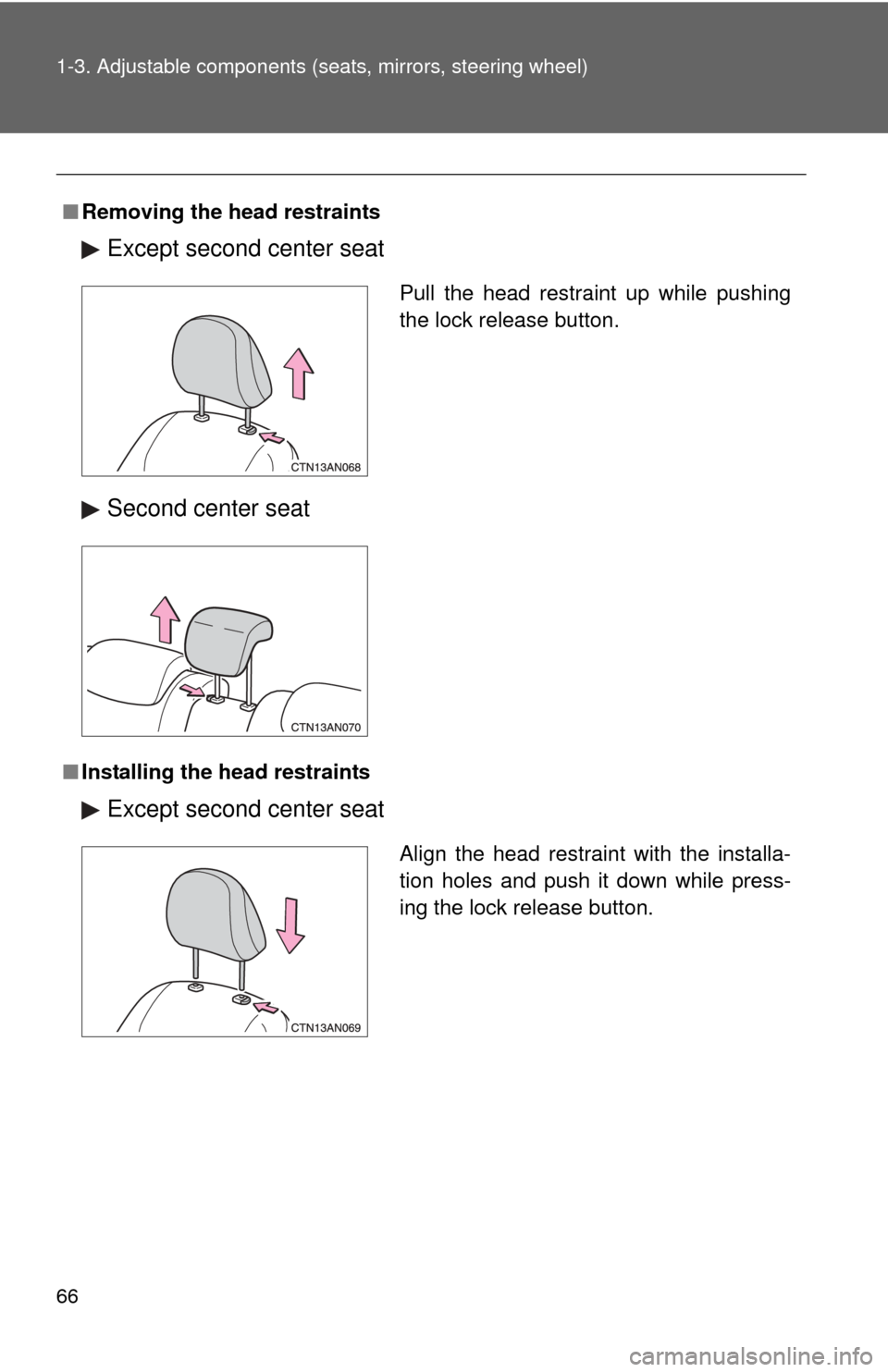

■Removing the head restraints
Except second center seat
Second center seat
■Installing the head restraints
Except second center seat
Pull the head restraint up while pushing
the lock release button.
Align the head restraint with the installa-
tion holes and push it down while press-
ing the lock release button.

67
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
Second center seat
■Adjusting the height of the head restraints
■ Adjusting the rear seat head restraints
Always raise the head restraint one level from the stowed position when
using.
CAUTION
■Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
●Use the head restraints designed for each respective seat.
● Adjust the head restraints to the correct position at all times.
● After adjusting the head restraints, push down on them and make sure
they are locked in position.
● Do not drive with the head restraints removed.

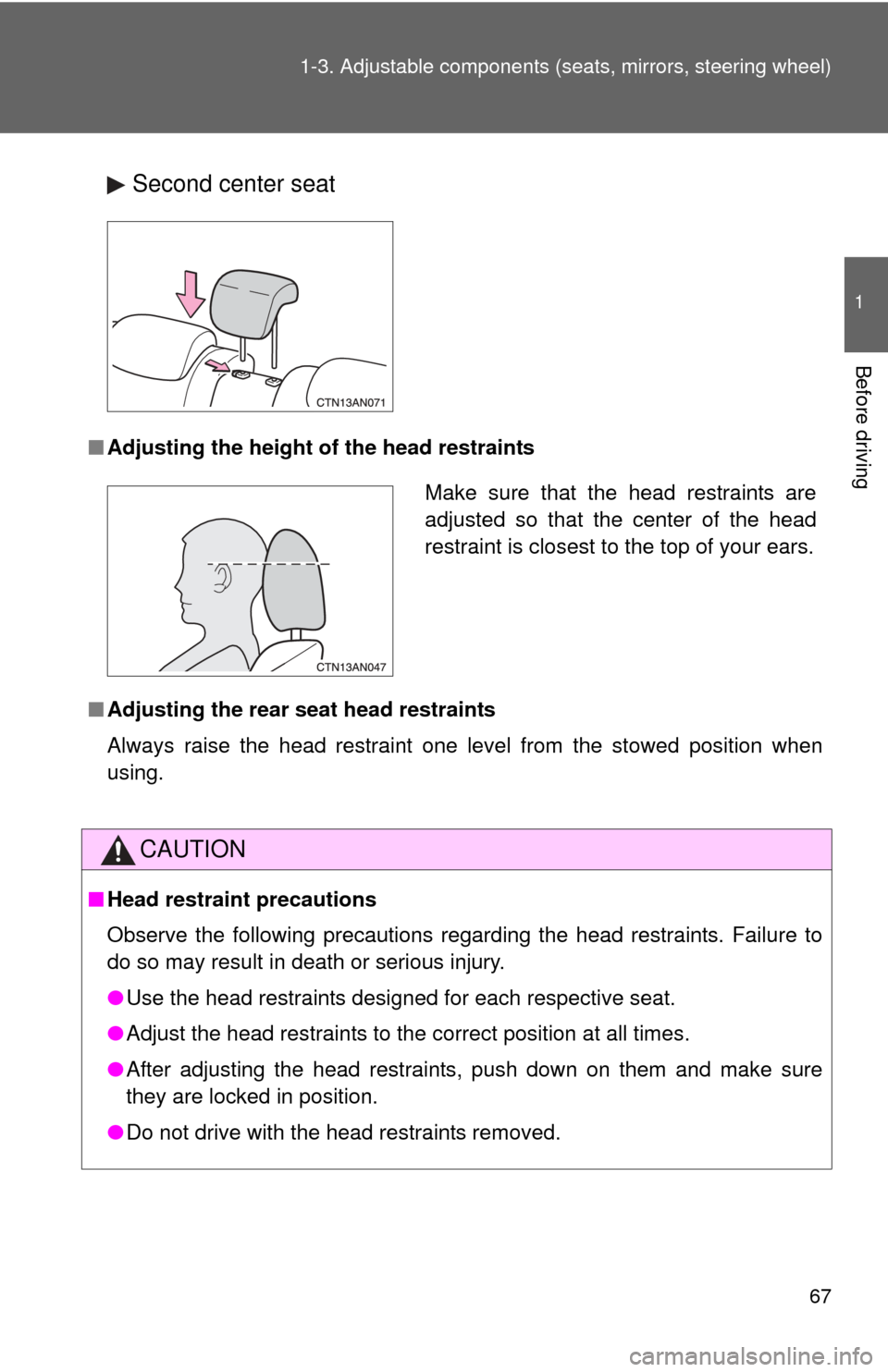

Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.

68
1-3. Adjustable components (seats, mirrors, steering wheel)
Seat belts
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle.
■Correct use of the seat belts
●Extend the shoulder belt so
that it comes fully over the
shoulder, but does not
come into contact with the
neck or slide off the shoul-
der.
● Position the lap belt as low
as possible over the hips.
● Adjust the position of the
seatback. Sit up straight
and well back in the seat.
● Do not twist the seat belt.
■ Fastening and releasing the seat belt
Fastening the belt
Push the tab into the buckle
until a clicking sound is heard.
Releasing the belt
Press the release button.Release button

69
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
Second center seat belt
The second center seat belt is a 3-point type restraint with 2 buckles.
Both seat belt buckles must be co rrectly located and securely latched
for proper operation.
Make sure that the buckle is
securely latched ready for use of
the center seat belt.Matches the tab with hook
end.
Matches the tab with round
end.

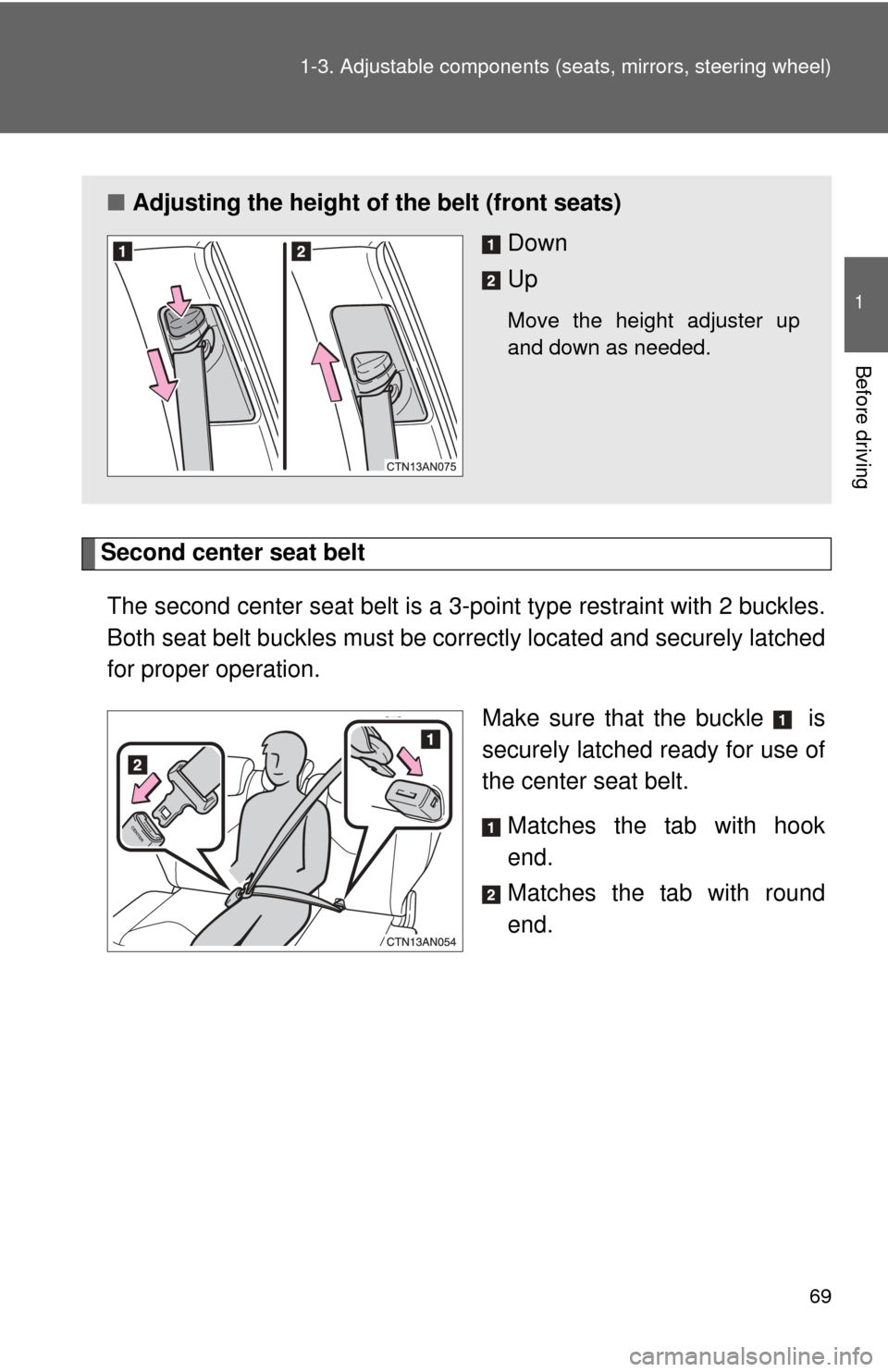

■Adjusting the height of the belt (front seats)
Down
Up
Move the height adjuster up
and down as needed.

70 1-3. Adjustable components (seats, mirrors, steering wheel)

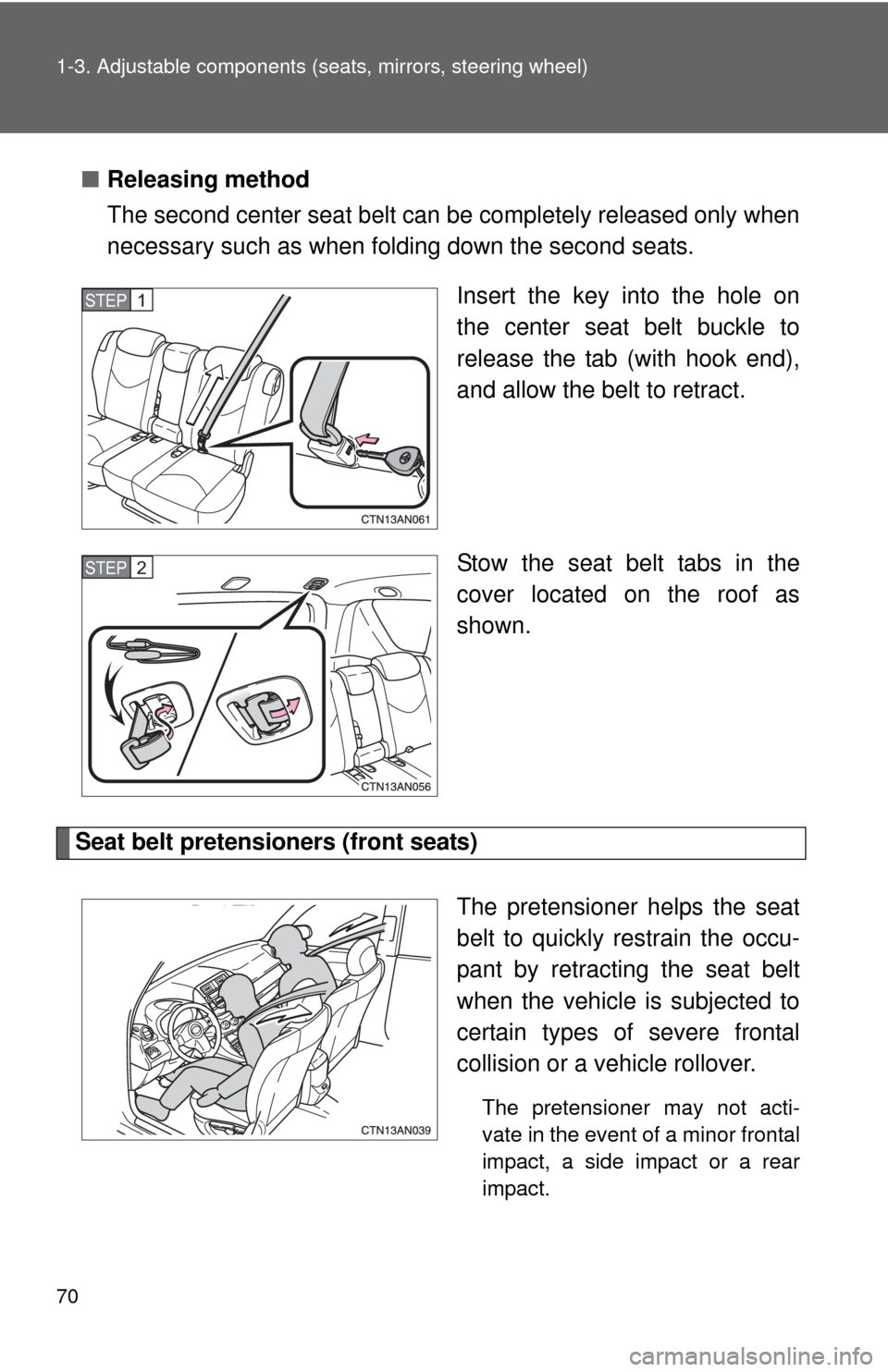

■Releasing method
The second center seat belt can be completely released only when
necessary such as when folding down the second seats.
Insert the key into the hole on
the center seat belt buckle to
release the tab (with hook end),
and allow the belt to retract.
Stow the seat belt tabs in the
cover located on the roof as
shown.
Seat belt pretensioners (front seats)
The pretensioner helps the seat
belt to quickly restrain the occu-
pant by retracting the seat belt
when the vehicle is subjected to
certain types of severe frontal
collision or a vehicle rollover.
The pretensioner may not acti-
vate in the event of a minor frontal
impact, a side impact or a rear
impact.
STEP 1
STEP 2
