fuel cap release TOYOTA RAV4 2010 XA30 / 3.G Owners Manual

198
2-5. Driving information

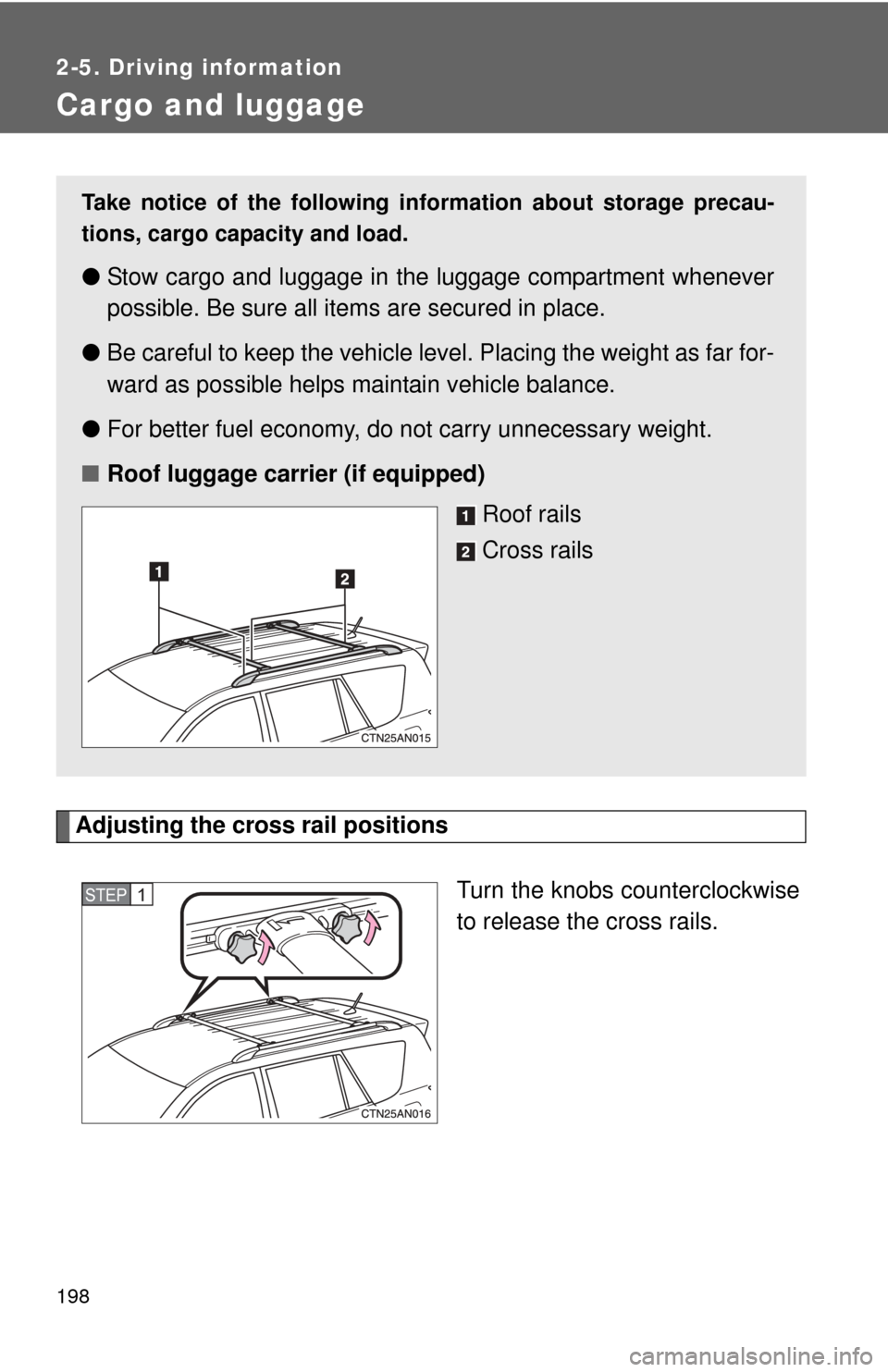

Cargo and luggage
Adjusting the cross rail positionsTurn the knobs counterclockwise
to release the cross rails.
Take notice of the following information about storage precau-
tions, cargo capacity and load.
●Stow cargo and luggage in the luggage compartment whenever
possible. Be sure all item s are secured in place.
● Be careful to keep the vehicle level. Placing the weight as far for-
ward as possible helps maintain vehicle balance.
● For better fuel economy, do no t carry unnecessary weight.
■ Roof luggage carrier (if equipped)
Roof rails
Cross rails
STEP 1

512
GAS STATION INFORMATION
Auxiliary catch leverP. 346Fuel filler doorP. 8 8
Hood release lever P. 3 4 6Fuel filler door opener P. 8 8Tire inflation pressure
P. 472
Fuel tank capacity (Reference) 1 5.9 gal. (60 L, 13.2 Imp. gal.)
Fuel typeUnleaded gasoline with an Octane Rating
of 87 (Research Octane Number 91)
Cold tire inflation
pressure
P. 4 7 2
Engine oil capacity
Drain and refill
(Reference) P. 466
Engine oil typeToyota Genuine Motor Oil or equivalent
Oil grade: P. 466
ILSAC multigrade engine oil
Recommended oil viscosity: SAE 5W-20 or 0W-20 (2.5 L 4-cylinder
[2AR-FE] engine) SAE 5W-30 (3.5 L V6
[2GR-FE] engine)
