OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Engine maintenance9Fuel tank door release and cap 8Hood release 8Indicator symbols 4-5Instrument cluster 4
Instrument panel 2-3Keyless entry* 6Smart Key system* 7
Active torque control 4WD (4WD models) 11Air Conditioning/Heating 18-19Audio 20-21Automatic Transmission 10Clock 19Cruise control 23
Door locks16
Downhill Assist Control system (DAC) 22
Hill-start Assist Control (HAC) 23Light control-Instrument panel19Lights&turnsignals 14Moonroof 16Parking brake 10Power outlets-12V DC 22Power outlets-120V AC 22Seat adjustments-Front 12Seat adjustments-Second row seats 12Seat heaters18
Seats-Head restraints 11Seats-Folding down second row seats 13Seats-Stowing third row seats 13Telephone controls (Bluetooth®)17Tilt and telescopic steering wheel 17VSC OFF button 16Windows 15
Windshield wipers & washers15
Doors-Child safety locks 24Seatbelts 24Seatbelts-Shoulder belt anchor 24Spare tire & tools 25
Tire Pressure Monitoring (warning) System 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
INDEX
*Visit your Toyota dealer for information on customizing this feature.

3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
With manual
Air Conditioning system
With automatic
Air Conditioning system
Front passenger occupant classification indicator
Rear window and outside rearview mirror defogger switch1
12V DC Power outlet
Seat heater switch1
VSC OFF switch
Ignition switch (standard key)
Tilt and telescopic steering release
Downhill Assist Control switch
1
120V AC Power outlet ON/OFF switch1
Instrument panel light control
1If equipped2Vehicles with navigation system: for details, refer to the “Navigation
System Owner’s Manual.”

9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURESEngine coolant reservoir
Engine oil filler cap
Engine oil level dipstick
Windshield and back window washer fluid tank
NOTE: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance.
Please refer to the “Warranty Maintenance Guide.”
6 cylinder (2GR-FE) engine
Engine maintenance
4cylinder(2AR-FE)engine

15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Windows
Driver side
Automatic operation (driver side only)Push the switch completely down
or pull it completely up and release to fully open or close. To stop window
midway, lightly push the switch in the opposite direction.
Window lock switchDeactivates all passenger windows. Driver’s window
remains operable.
NOTE:If the battery is disconnected, the window needs to be
reinitialized. Refer to theOwner’s Manualfor more details.
Up
Down
Windows lock switch

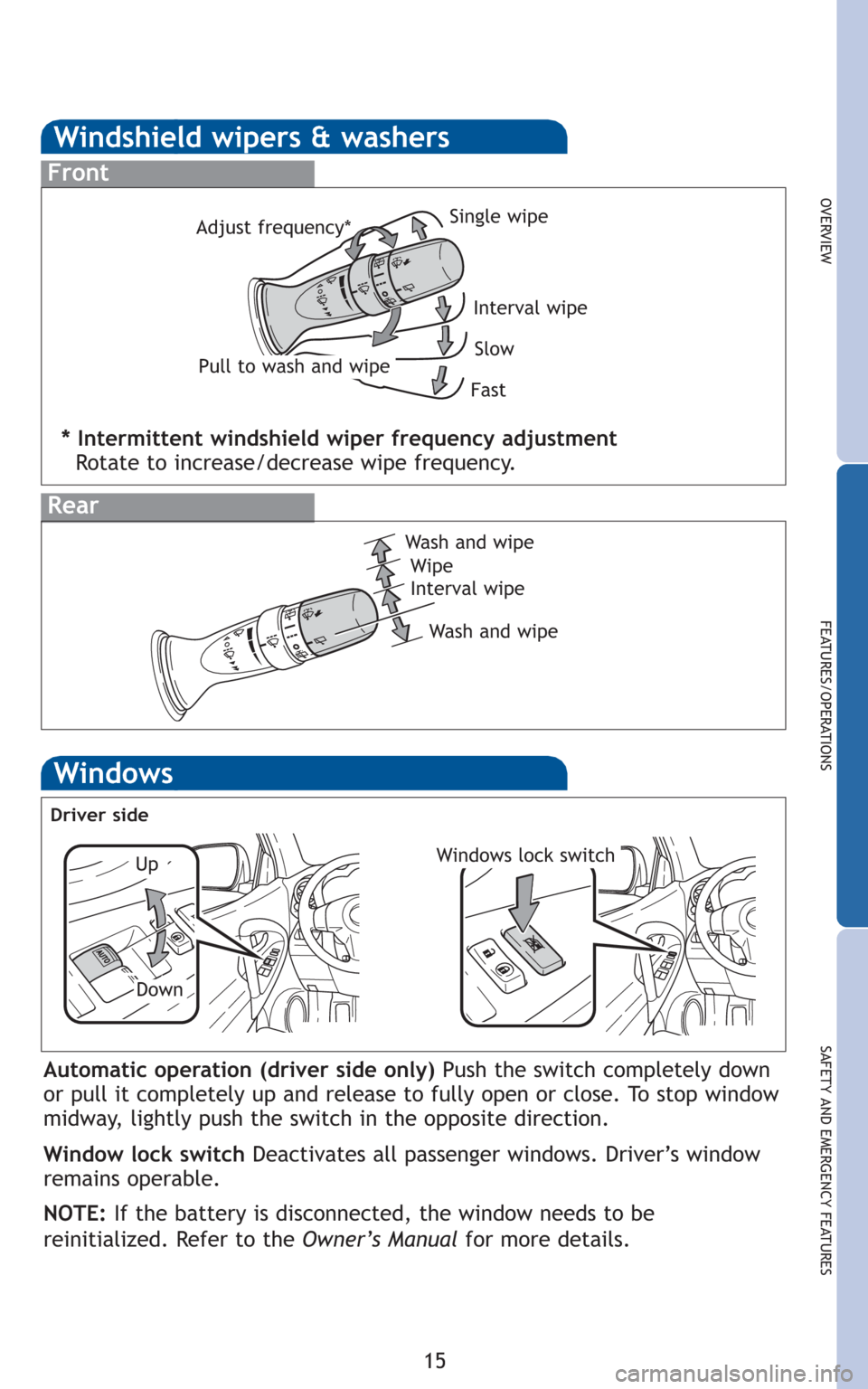

Windshield wipers & washers
Rear
Front
Pull to wash and wipe Adjust frequency*
Interval wipe
Slow
Fast
Wash and wipeWipeInterval wipe
Wash and wipeSingle wipe
* Intermittent windshield wiper frequency adjustment
Rotate to increase/decrease wipe frequency.

18
FEATURES/OPERATIONS
Seat heaters (if equipped)
Left front seat
Right front seat

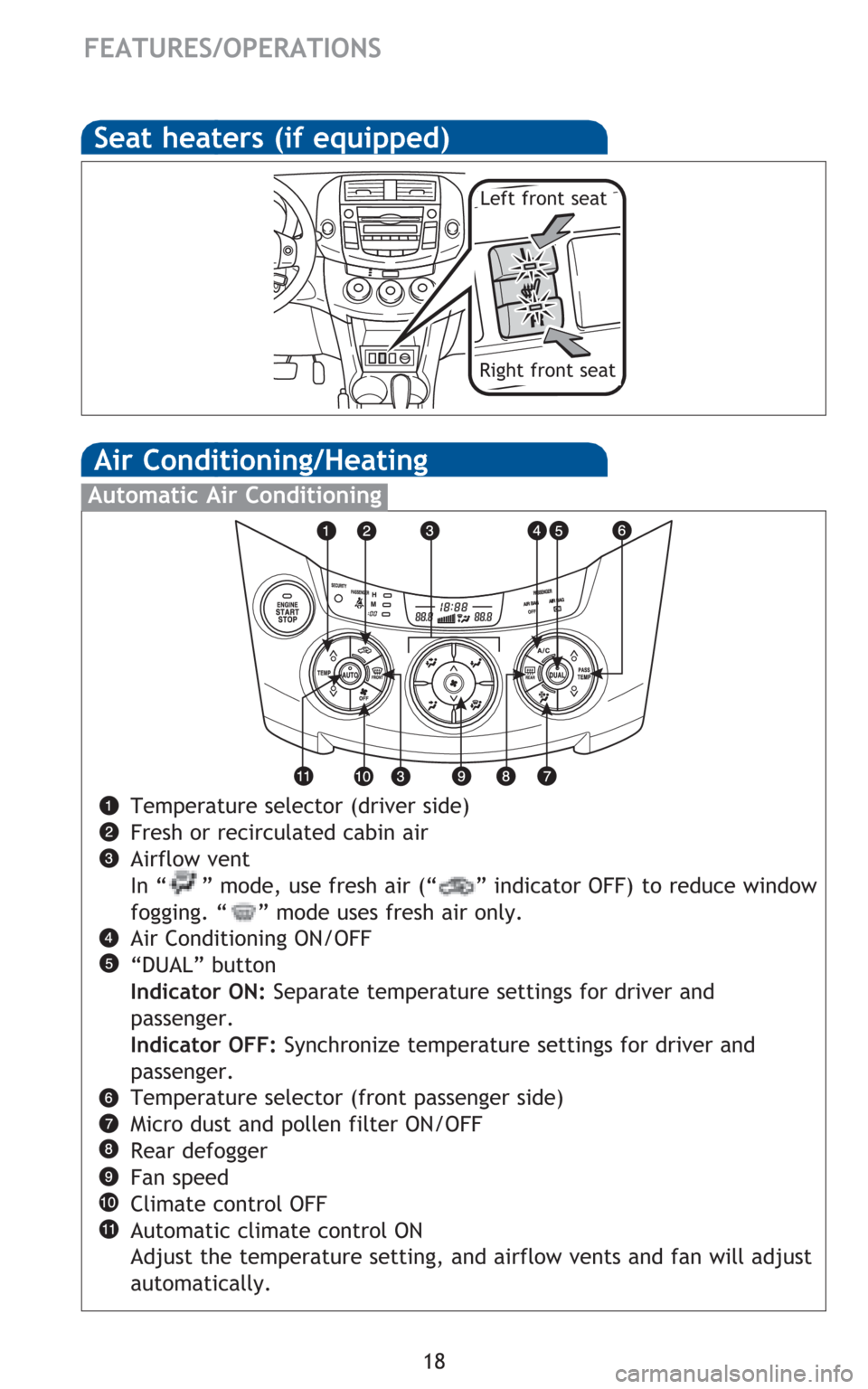

Air Conditioning/Heating
Temperature selector (driver side)
Fresh or recirculated cabin air
Airflow vent
In“”mode, use fresh air (“”indicator OFF) to reduce window
fogging.“”mode uses fresh air only.
Air Conditioning ON/OFF
“DUAL”button
Indicator ON:Separate temperature settings for driver and
passenger.
Indicator OFF:Synchronize temperature settings for driver and
passenger.
Temperature selector (front passenger side)
Micro dust and pollen filter ON/OFF
Rear defogger
Fan speed
Climate control OFF
Automatic climate control ON
Adjust the temperature setting, and airflow vents and fan will adjust
automatically.
Automatic Air Conditioning

19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Clock
Manual
Air Conditioning system
H-Hour set
M-Minute set
:00-Round off minutes
Automatic
Air Conditioning system
Manual Air Conditioning
Airflow vent
“ ” or “ ” mode uses fresh air only (“ ” indicator “OFF”) to
reduce window fogging.
Fan speed
Temperature selector
Air Conditioning ON/OFF
Select for maximum cooling. Air intake will automatically be set to
recirculate.
Rear defogger
Fresh or recirculated cabin air
Light control-Instrument panel
Brightness
control
+
-
With the dial turned fully up, instrument panel lights will not dim when
the headlights are turned ON.
