No.NameFunctionPage
7“INFO” buttonPush this button to display the “Informa-
tion” screen.128, 132, 138,141
8Zoom out buttonTouch this button to reduce the map
scale.37
9“Mark”
Touch this button to register the current
position or the cursor position as a
memory point.
31
10“Route”Touch this button to change the route.76, 78
11“Map View”
Touch this button to browse information
about guidance route, to set the Points
of Interest to be displayed on the
screen, or to record the route.
82, 84, 85, 86
12“\b\b OFF”
Touch this button to obtain a broader
view. Some of the buttons on the screen
are not displayed. They are displayed
again by touching “ON”.
11 4
13Zoom in buttonTouch this button to magnify the map
scale.37
14Foot print map
buttonTouch this button to display the foot print
map and the building information.37
15
Screen
configuration
buttonTouch this button to change the screen
mode.34
16Distance and time
to destinationDisplays the distance, the estimated
travel time to the destination, and the
estimated arrival time at the destination.
75
17XM NavTraffic
markThis mark is displayed when XM  Nav-
Traffic information is received.120
18
“GPS” mark
(Global
Positioning
System)Whenever the vehicle is receiving sig-
nals from the GPS, this mark is dis-
played.
178

12
0U5117X

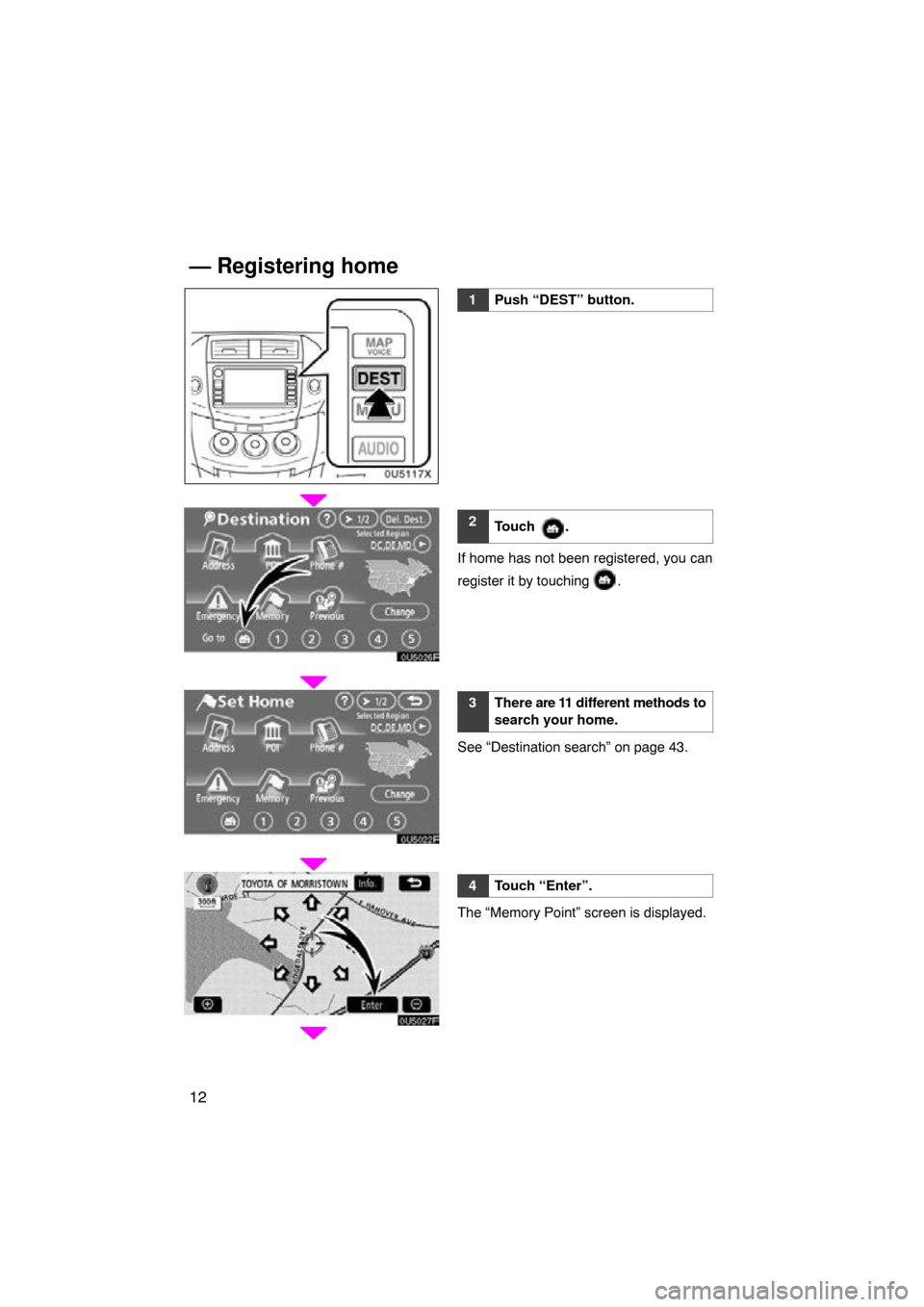

1Push “DEST” button.
2Touch .
If home has not been registered, you can
register it by touching
.
3There are 11 different methods to
search your home.
See “Destination search” on page 43.
4Touch “Enter”.
The “Memory Point” screen is displayed.
— Registering home

13

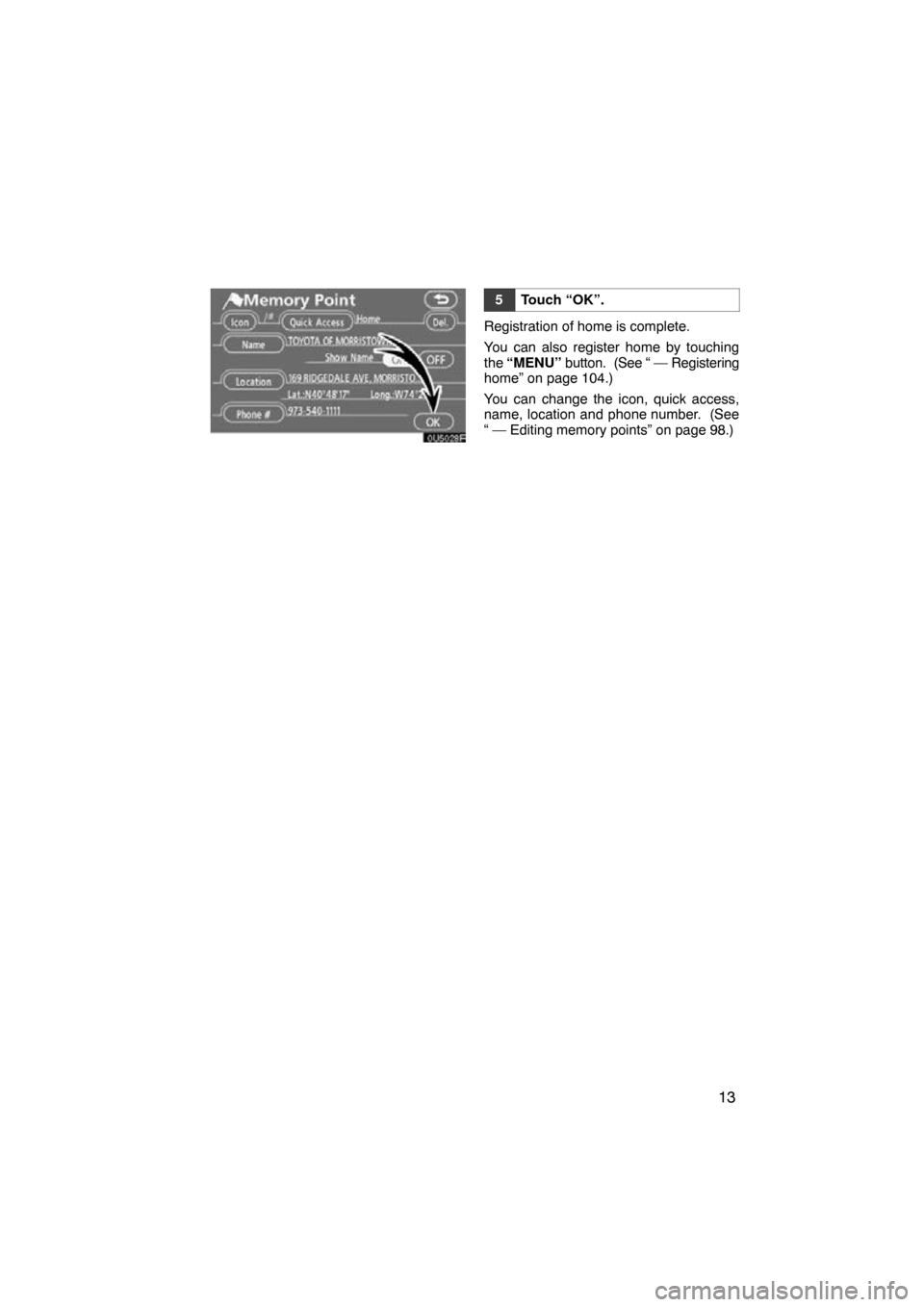

5Touch “OK”.
Registration of home is complete.
You can also register home by touching
the “MENU” button. (See “ — Registering
home” on page 104.)
You can change the icon, quick access,
name, location and phone number. (See
“ — Editing memory points” on page 98.)

14
0U5117X
1Push “DEST” button.
2Touch one of the quick access
buttons.
You can set a memory point to one of the
quick access buttons which has not been
set.
3There are 12 different methods to
search preset memory points.
See “Destination search” on page 43.
4Touch “Enter”.
The “Memory Point” screen is displayed.
— Registering preset memory points
(Quick access)

15

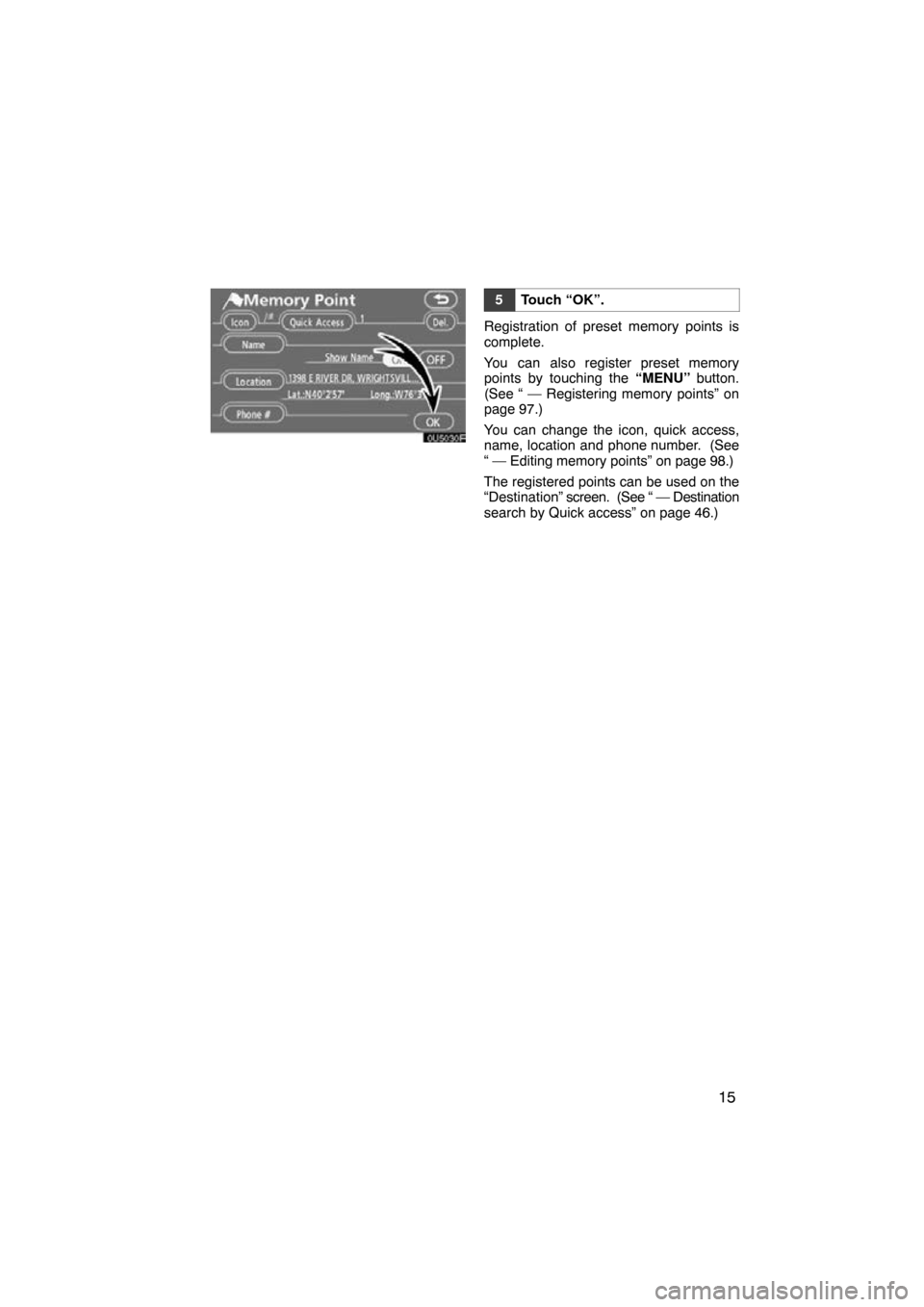

5Touch “OK”.
Registration of preset memory points is
complete.
You can also register preset memory
points by touching the “MENU” button.
(See “ — Registering memory points” on
page 97.)
You can change the icon, quick access,
name, location and phone number. (See
“ — Editing memory points” on page 98.)
The registered points can be used on the
“Destination” screen. (See “ — Destination
search by Quick access” on page 46.)

16
0U5117X

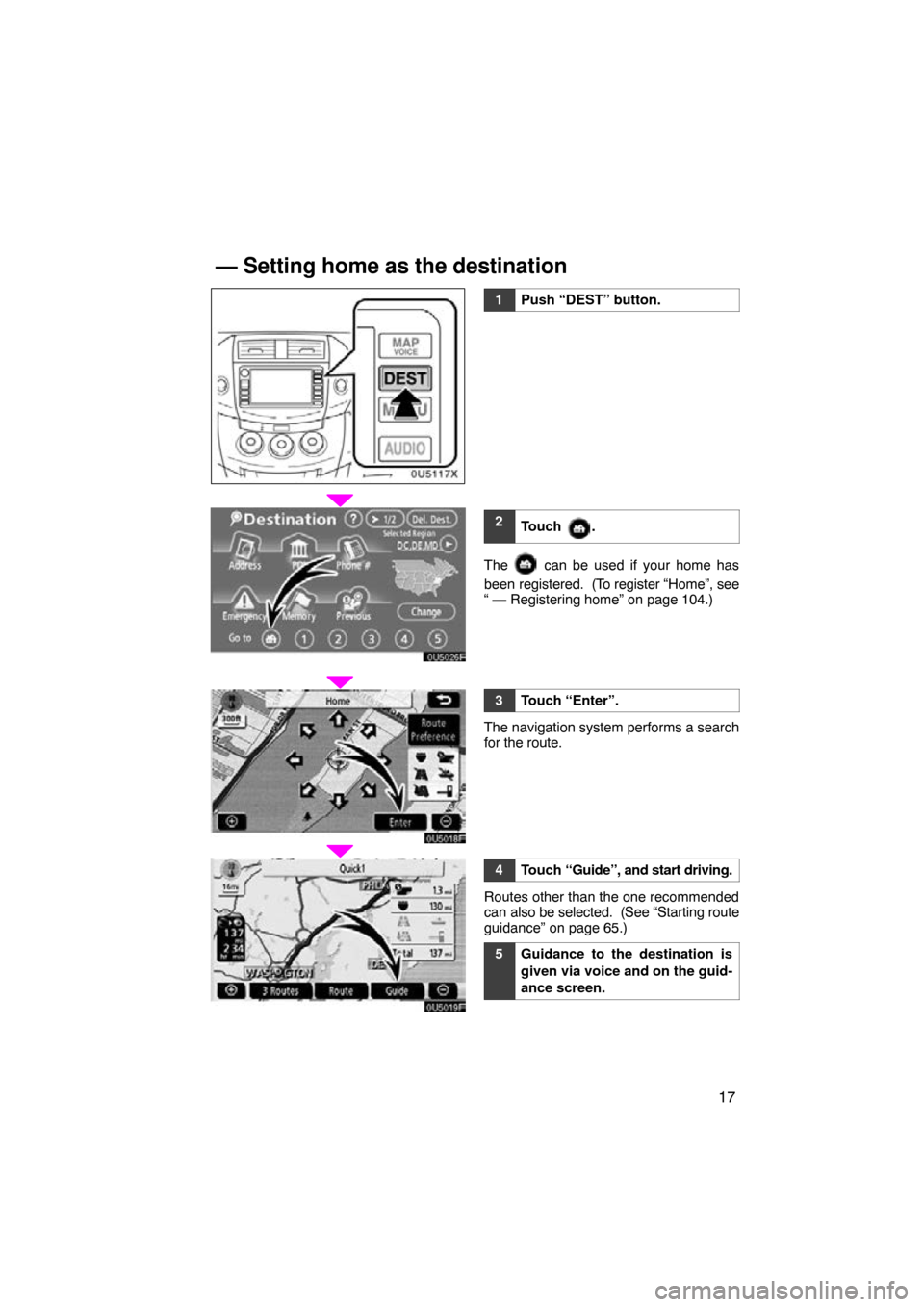

1Push “DEST” button.
2There are 12 different methods to
search destinations.
See “Destination search” on page 43.
3Touch “Enter”.
The navigation system performs a search
for the route.
4Touch “Guide”, and start driving.
Routes other than the one recommended
can also be selected. (See “Starting route
guidance” on page 65.)
5Guidance to the destination is
given via voice and on the guid-
ance screen.
— Operation flow: guiding the route

17
0U5117X
1Push “DEST” button.
2Touch .
The can be used if your home has
been registered. (To register “Home”, see
“ — Registering home” on page 104.)
3Touch “Enter”.
The navigation system performs a search
for the route.
4Touch “Guide”, and start driving.
Routes other than the one recommended
can also be selected. (See “Starting route
guidance” on page 65.)
5Guidance to the destination is
given via voice and on the guid-
ance screen.
— Setting home as the destination

RAV4_Navi_U
