TOYOTA RAV4 2011 XA30 / 3.G Owners Manual

301
3-3. Using the hand
s-free phone system (for cellular phone)
3
Interior features
Inputting a phone number using
STEP2-1:Select “Manual Input” using .
STEP2-2:Input a phone number using .
Input the phone number 1 digit at a time.
STEP2-3:When the entire number has been input, press once again.
Selecting a phone number from outgoing or incoming call history STEP2-1:Select “Call History” using a voice command or
.
STEP2-2:Select “Outgoing” or “Incoming” using a voice com-
mand or .
STEP2-3:Select the data to be re gistered by either of the fol-
lowing methods:
a. Say “Previous” or “Go back” until the desired data is displayed, and select “Confirm” using a
voice command.
b. Select the desired data using .

302 3-3. Using the hands-free phone system (for cellular phone)
Select the name to be registered by either of the following
methods, and select “Confirm” using a voice command or
:
a. Press and say the desired name.
b. Select “Record Name” using , and say the desired name.
Select “Confirm” using a voice command or .
In , selecting “Set Speed Dial (Speed Dial)” instead of “Con-
firm” registers the newly added phone number as a speed dial.
Setting speed dials Select “Set Speed Dial (Spee d Dial)” using a voice command
or .
Select the data to be registered as a speed dial by one of the
following methods:
a. Press , say desired name, and select “Confirm”
using a voice command or
.
STEP 3
STEP 4
STEP 3
STEP 1
STEP 2

303
3-3. Using the hand
s-free phone system (for cellular phone)
3
Interior features
b. Press , and say “List names”. While the desired
name is being read aloud, press , and select “Con-
firm” using a voice command or .
c. Select the desired data using .
Select the desired preset butt on, and register the data into
speed dial by either of the following methods:
a. Press the desired pres et button, and select “Confirm” using
a voice command or .
b. Press and hold the desired preset button.
Changing a registered name
Select “Change Name” using a voice command or .
Select the name to be changed by one of the following meth-
ods.
a. Press , say desired name, and select “Confirm”using a voice command or
.
STEP 3
STEP 1
STEP 2

304 3-3. Using the hands-free phone system (for cellular phone)
b. Press , and say “List names”. While the desired
name is being read aloud, press , and select “Con-
firm” using a voice command or .
c. Select the desired name using .
Press or select “Record Name” using , and say
a new name.
Select “Confirm” using a voice command or .
Deleting registered data
Select “Delete Entry” using a voice command or .
Pattern A Select the data to be deleted by either of the following meth-
ods, and select “Confirm” us ing a voice command or :
a. Press , and say the name of the desired phone number to be deleted.
STEP 3
STEP 4
STEP 1
STEP 2

305
3-3. Using the hand
s-free phone system (for cellular phone)
3
Interior features
b. Press , say “List phones”. While the name of the
desired phone number is being read aloud, press .
Pattern B
Select the data to be deleted using .
Deleting speed dials Select “Delete Speed Dial (Del Spd Dial)” using a voice com-
mand or .
Press the preset button in which the desired speed dial is reg-
istered, and select “Confirm” using a voice command or
.
Listing the registered dataSelecting “List names” using a voice command causes a list of the
registered data to be read aloud.
When listing is complete, the system returns to “Phonebook”.
Pressing while the desired data is being read aloud selects
the data, and the following function will be available.
• Dialing: “Dial”
• Changing a registered name: “Change Name”
• Deleting an entry: “Delete Entry”
• Setting a speed dial: “Set Speed Dial (Speed Dial)”
STEP 2
STEP 1
STEP 2

306 3-3. Using the hands-free phone system (for cellular phone)
■Limitation of number of digits
A phone number that exceeds 24 digits cannot be registered.

307
3
Interior features

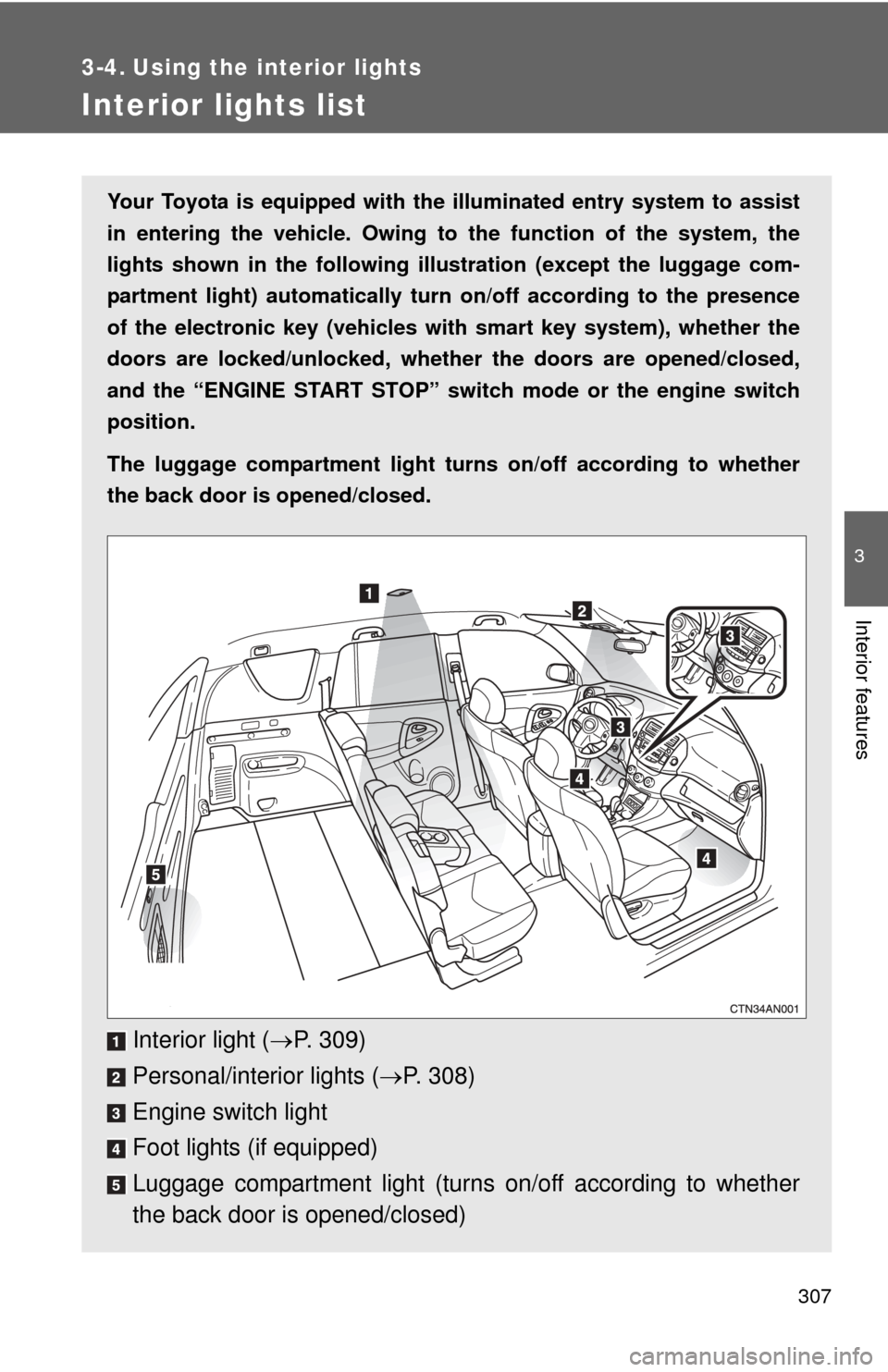

3-4. Using the interior lights
Interior lights list
Your Toyota is equipped with the illuminated entry system to assist
in entering the vehicle. Owing to the function of the system, the
lights shown in the following illu stration (except the luggage com-
partment light) automatically turn on/off according to the presence
of the electronic key (vehicles wit h smart key system), whether the
doors are locked/unlocked, whethe r the doors are opened/closed,
and the “ENGINE START STOP” switch mode or the engine switch
position.
The luggage compartment light tu rns on/off according to whether
the back door is opened/closed.
Interior light ( P. 309)
Personal/interior lights ( P. 308)
Engine switch light
Foot lights (if equipped)
Luggage compartment light (turns on/off according to whether
the back door is opened/closed)

308 3-4. Using the interior lights
Personal/interior light main switchType A Door position
The personal lights and interior
light come on when a door is
opened. They go off when the
doors are closed.
Off
The personal lights and interior
light can be individually turned on
or off.
Type B
Personal/interior lights
Type A On/off
Personal/interior light main switch and personal/interior lights

309
3-4. Using the interior lights
3
Interior features
Type B
On/off
Interior light
Door position
Off
On
Luggage compartment lightOn
Off
Personal/interior lights and interior light and luggage compartment light

310 3-4. Using the interior lights
■To prevent battery discharge (excl uding luggage compartment light)
If the lights remain on when a door is not fully closed and the personal/inte-
rior light main switch is in door position, the lights will go off automatically
after 20 minutes.
■ Customization that can be co nfigured at Toyota dealer
Settings (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features P. 500)
Luggage compartment light
