Before driving
1-3. Adjustable components (seats, mirrors, steering wheel)
Front seats
Manual seat
Seat position adjustment
lever
Seatback angle adjustment
lever
Vertical height adjustment
lever (driver’s side only)

50 1-3. Adjustable components (seats, mirrors, steering wheel)
Power seat (driver’s side only)
Seat position adjustment
switch
Seatback angle adjustment
switch
Seat cushion (front) angle
adjustment switch
Vertical height adjustment
switch
Seat lumbar support adjust-
ment switch

53
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
■Active head restraints
Even small forces applied to the seatback may cause the head restraint to
move. Pushing up a locked head restraint forcibly may appear the head
restraint inner structure. These do not indicate problems.
CAUTION
■Seat adjustment
●Be careful that the seat does not hit passengers or luggage.
● Do not recline the seat more than necessary when the vehicle is in motion
to reduce the risk of sliding under the lap belt.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
● Manual seat only: After adjusting the seat, make sure that the seat is
locked in position.
Inner
structure During
rear-end
collision

54
1-3. Adjustable components (seats, mirrors, steering wheel)
Rear seats

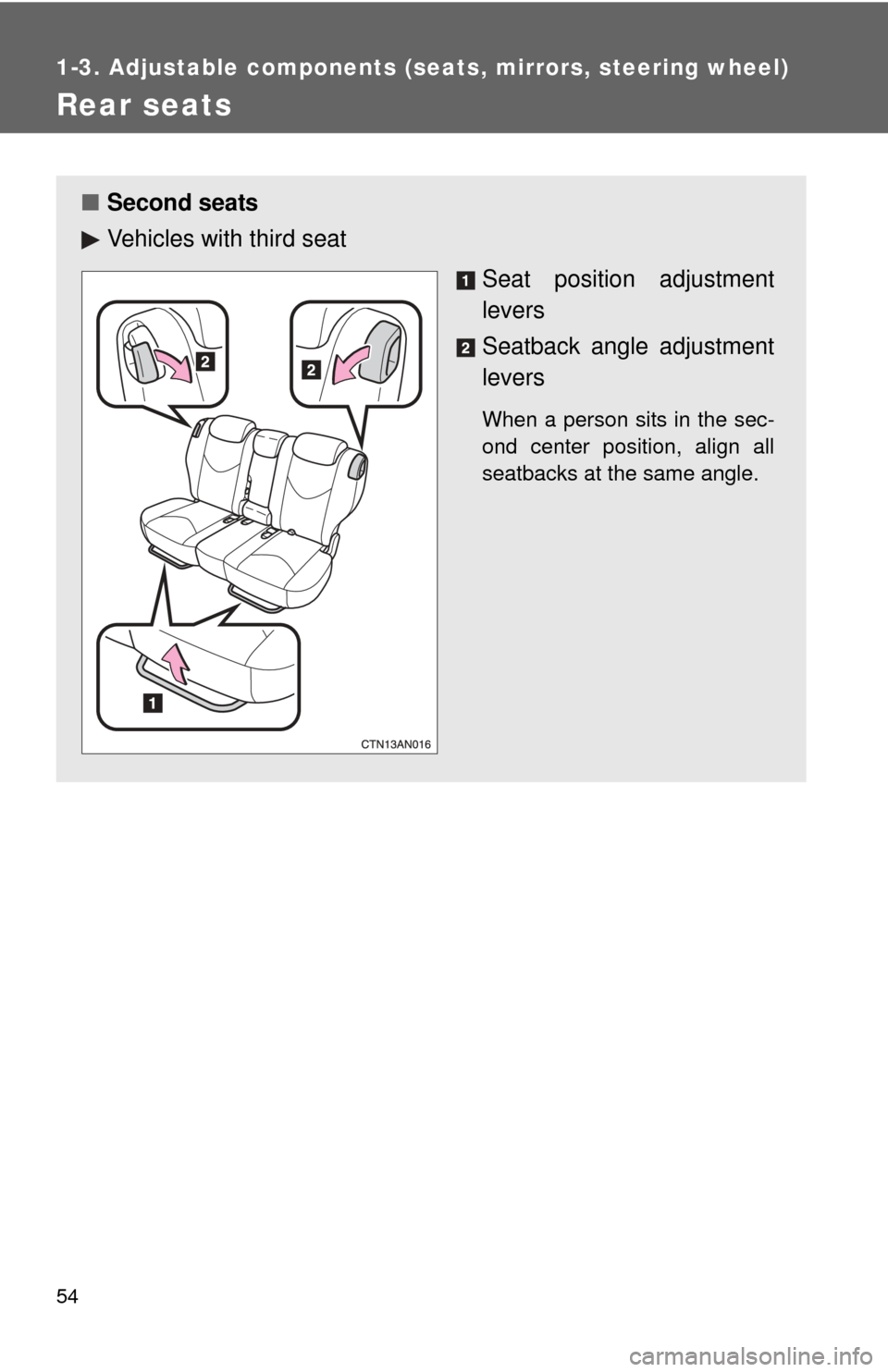

■Second seats
Vehicles with third seat
Seat position adjustment
levers
Seatback angle adjustment
levers
When a person sits in the sec-
ond center position, align all
seatbacks at the same angle.

55
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving

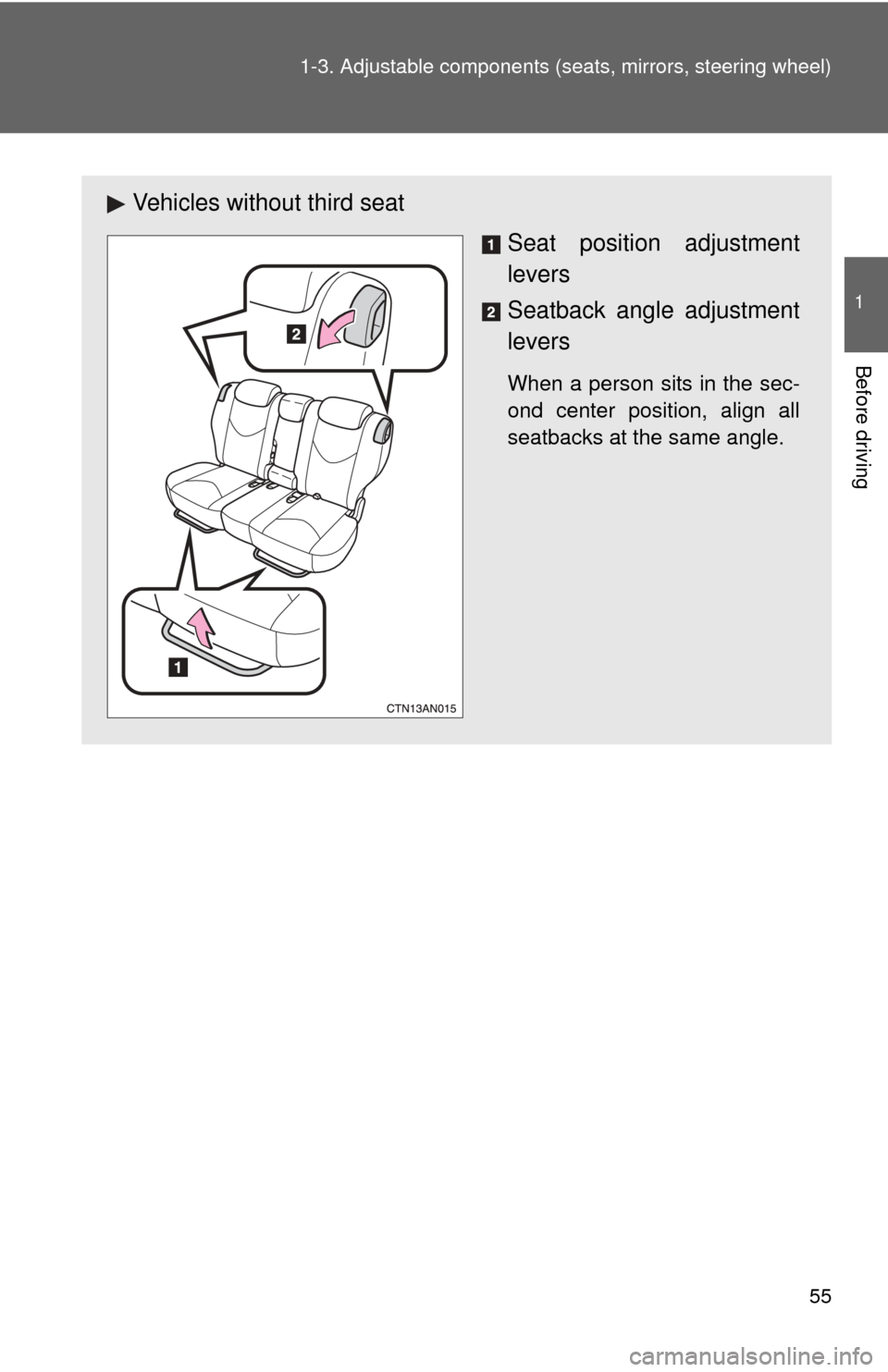

Vehicles without third seat
Seat position adjustment
levers
Seatback angle adjustment
levers
When a person sits in the sec-
ond center position, align all
seatbacks at the same angle.

56 1-3. Adjustable components (seats, mirrors, steering wheel)
Moving a second seats for third seats entry (vehicles with third seats)
■Getting in the vehicl e (right side only)
Pull the lever forward and fold
down the seatback. The seat will
slide forward.
After passengers are in, lift up the
seatback and return the seat to
the original position.

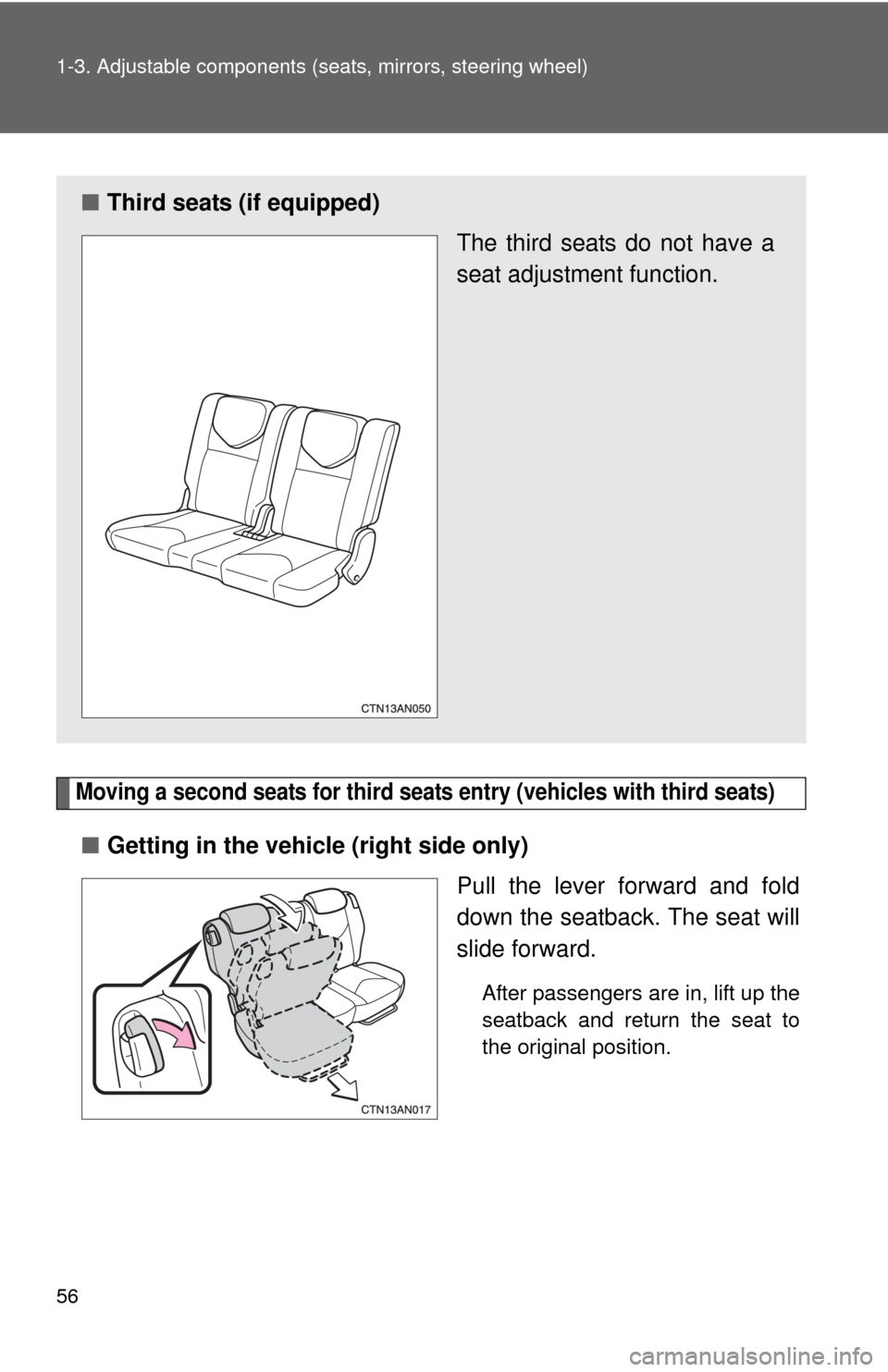

■Third seats (if equipped)
The third seats do not have a
seat adjustment function.

58 1-3. Adjustable components (seats, mirrors, steering wheel)

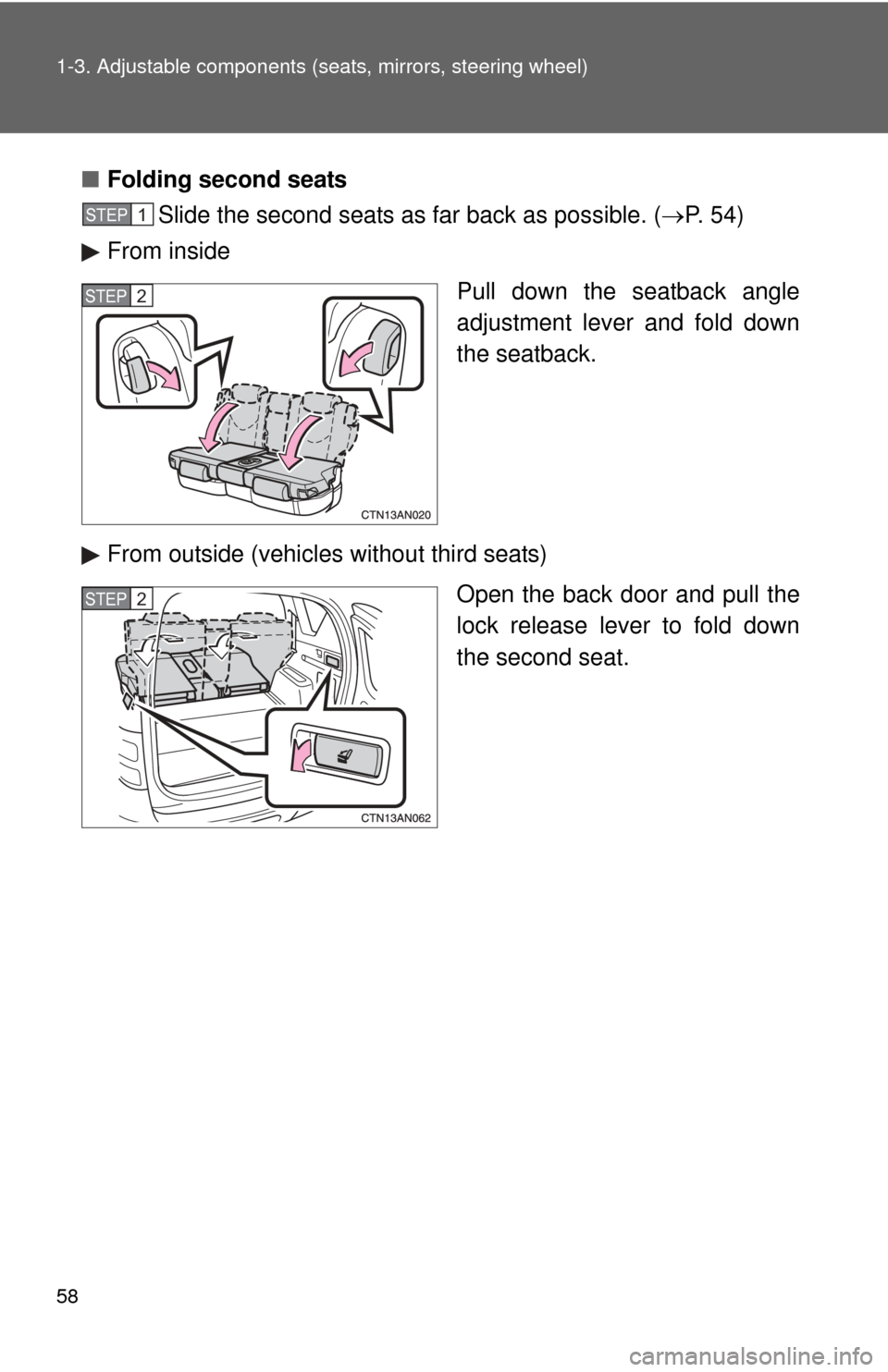

■Folding second seats
Slide the second seats as far back as possible. ( P. 54)
From inside
Pull down the seatback angle
adjustment lever and fold down
the seatback.
From outside (vehicles without third seats) Open the back door and pull the
lock release lever to fold down
the second seat.
STEP 1
STEP 2
STEP 2

62 1-3. Adjustable components (seats, mirrors, steering wheel)
CAUTION
■Seat adjustment
Observe the following precautions.
Failure to do so may result in death or serious injuries.
●The seat belts provide maximum protection in a frontal or rear collision
when the driver and the front passenger are sitting up straight and well
back in the seats.
If you are reclined, the lap belt may slide past your hips and apply restraint
forces directly to the abdomen or your neck may contact the shoulder belt.
● Be careful not to get your hands or feet pinched in the seat.
● Do not adjust the seat while the vehicle is moving as the seat may unex-
pectedly move and cause the driver to lose control of the vehicle.
● Be careful that the seat does not hit a passenger or luggage.
● Do not put objects under the seats.
Otherwise, the objects may interfere with the seat-lock mechanism or
unexpectedly push up the seat position adjustment lever and the seat may
suddenly move, causing the driver to lose control of the vehicle.
● Avoid reclining the seatback any more than needed.
● Adjust both seat cushions to the same position and align all seatbacks at
the same angle when a person sits in the rear center position.
Otherwise, the person cannot wear the seat belt properly and this may
cause death or serious injuries in a collision.

76
1-3. Adjustable components (seats, mirrors, steering wheel)
Steering wheel
CAUTION
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and an accident,
resulting in death or serious injury.
■ After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an
accident and resulting in death or serious injury.
The steering wheel can be adjust ed to a comfortable position.

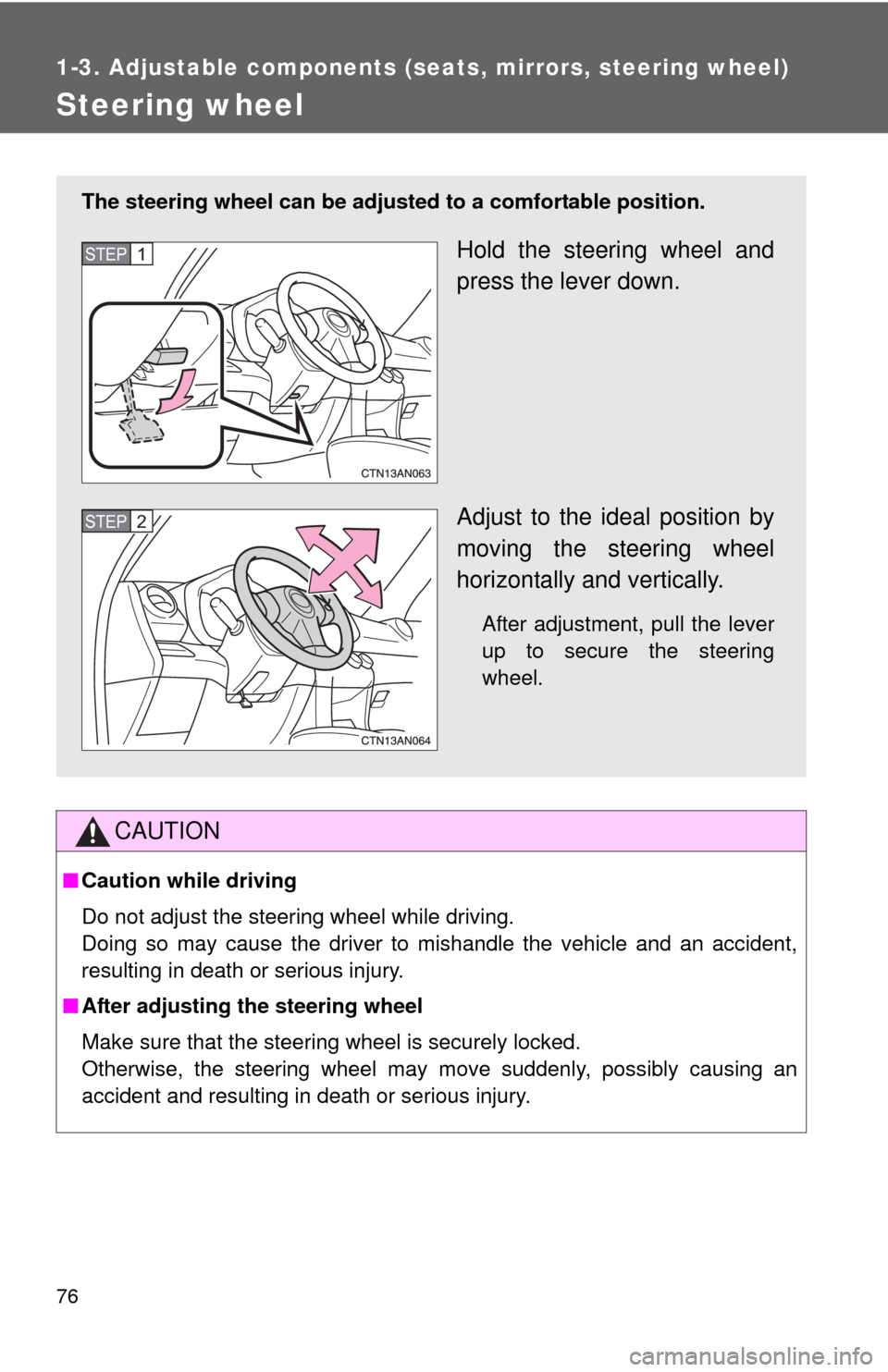

Hold the steering wheel and
press the lever down.
Adjust to the ideal position by
moving the steering wheel
horizontally and vertically.
After adjustment, pull the lever
up to secure the steering
wheel.
STEP 1
STEP 2

97
1-7. Safety information
1
Before driving
CAUTION
■
While driving
●Do not adjust the position of the driver's seat while driving.
Doing so could cause the driver to lose control of the vehicle.
● Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint, increasing the risk of
death or serious injury to the driver or passenger.
● Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an acci-
dent. The adjustment mechanism may also be damaged.
■ Adjusting the seat position
●Take care when adjusting the seat position to ensure that other passen-
gers are not injured by the moving seat.
● Do not put your hands under the seat or near the moving parts to avoid
injury.
Fingers or hands may become jammed in the seat mechanism.
