radio TOYOTA RAV4 2011 XA30 / 3.G Quick Reference Guide

7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

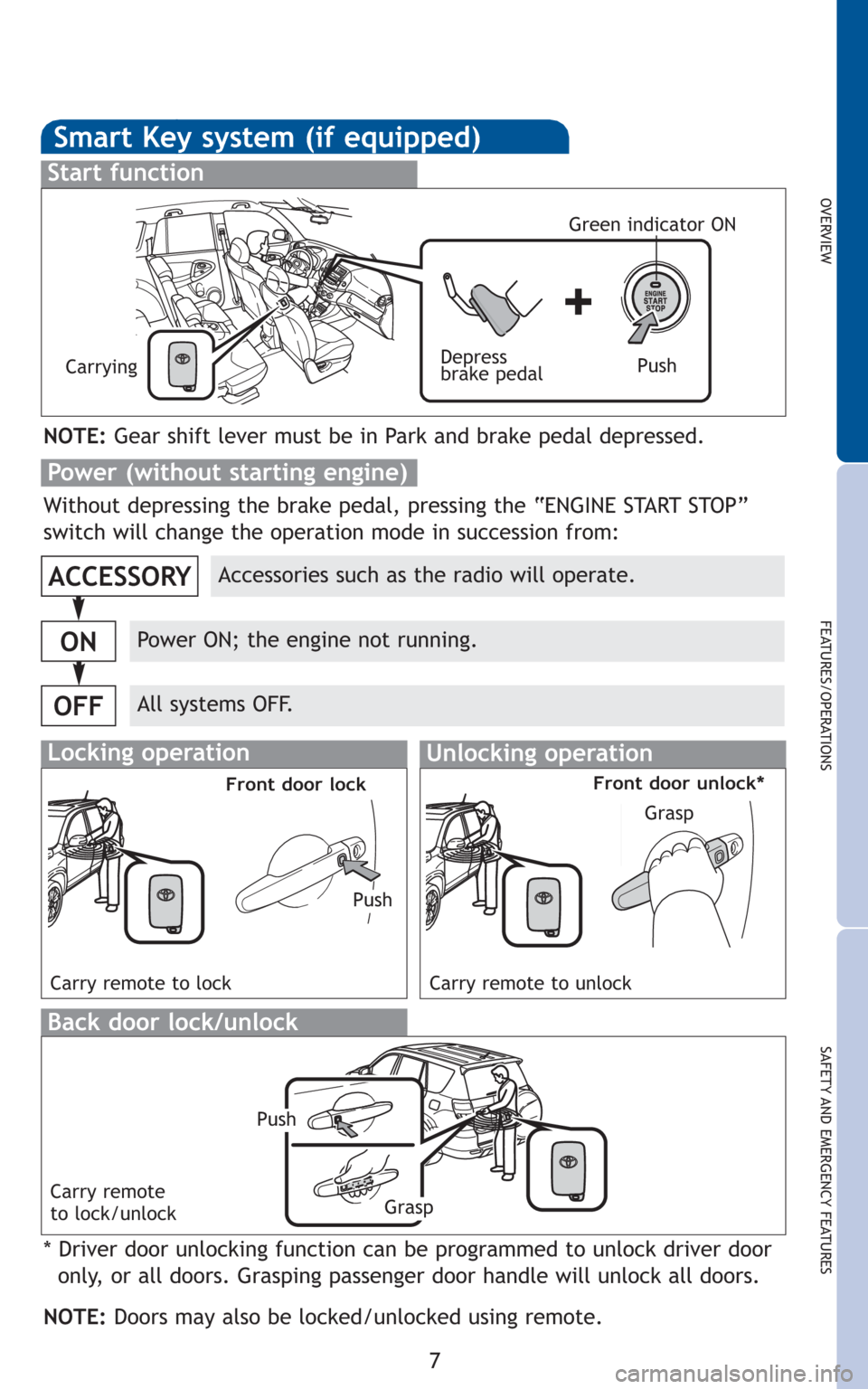

Smart Key system (if equipped)
Start function
NOTE:Gear shift lever must be in Park and brake pedal depressed.
Push Depress
brake pedal Carrying
Green indicator ON
Without depressing the brake pedal, pressing the “ENGINE START STOP”
switch will change the operation mode in succession from:
* Driver door unlocking function can be programmed to unlock driver door
only, or all doors. Grasping passenger door handle will unlock all doors.
NOTE:Doors may also be locked/unlocked using remote.
Power (without starting engine)
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF.
ACCESSORY
ON
OFF
Back door lock/unlock
Locking operationUnlocking operation
Carry remote to lockCarry remote to unlock
Front door lockFront door unlock*
Push
Grasp
Push
Grasp Carry remote
to lock/unlock

20

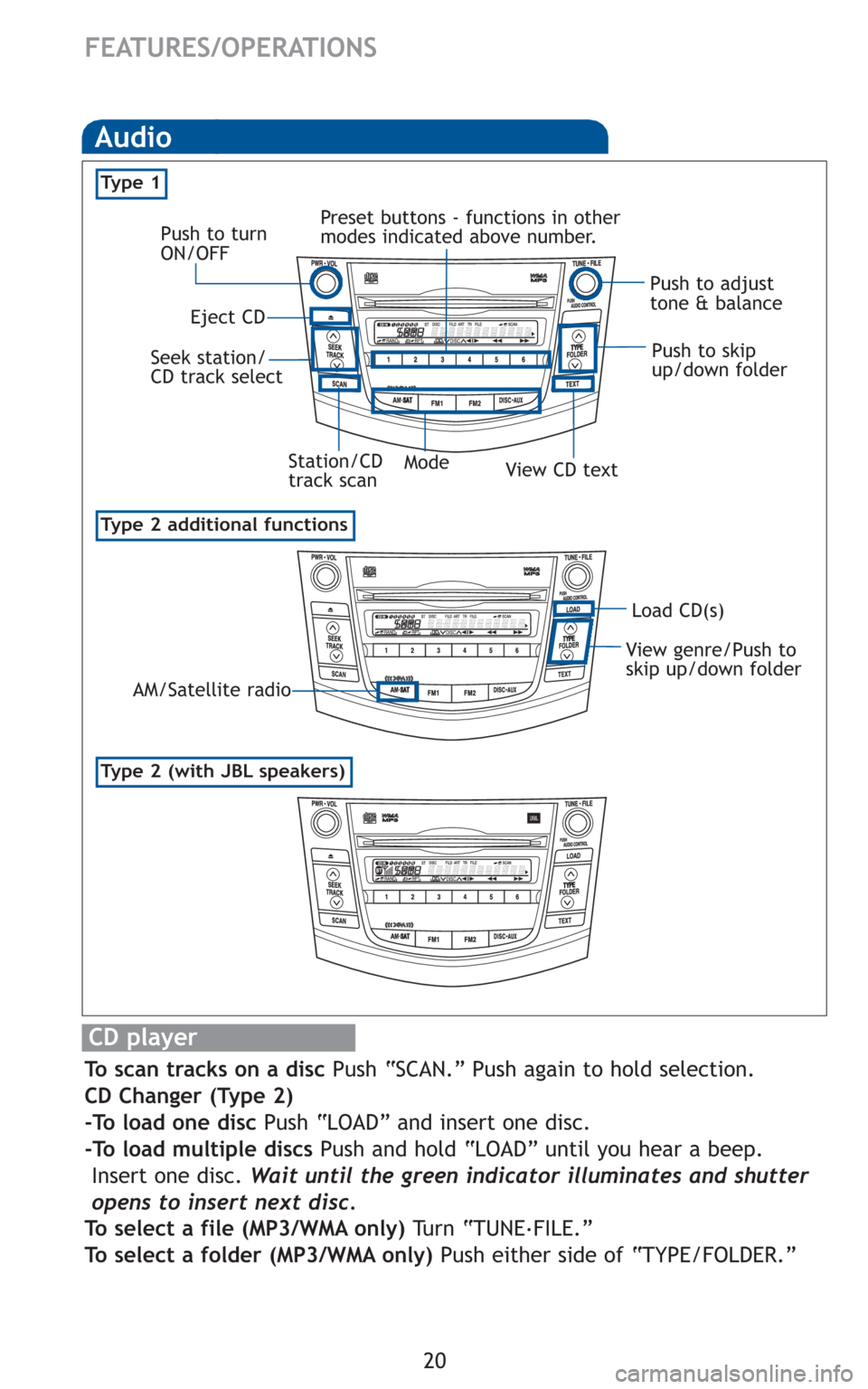

CD player
To scan tracks on a disc Push “SCAN.” Push again to hold selection.
CD Changer (Type 2)
-To load one disc Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until you hear a beep.
Insert one disc. Wait until the green indicator illuminates and shutter
opens to insert next disc.
To select a file (MP3/WMA only) Tu r n “ T U N E.
FILE.”
To select a folder (MP3/WMA only) Push either side of “TYPE/FOLDER.”
Audio
View CD text Eject CD Push to turn
ON/OFF
Push to adjust
tone & balance
Push to skip
up/down folder Seek station/
CD track select
Station/CD
track scanMode
Load CD(s) Preset buttons - functions in other
modes indicated above number.
Ty p e 1
Type 2 additional functions
Type 2 (with JBL speakers)
AM/Satellite radio
View genre/Push to
skip up/down folder
FEATURES/OPERATIONS

21
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn
the audio OFF.
“ ”
Use to search within the selected audio medium (radio, CD, iPod
®, etc.).
By inserting a mini plug into the AUX port, you can listen to music from a
portable audio device through the vehicle’s speaker system while in AUX
mode.>>
Steering wheel controls (if equipped)
Auxiliary (AUX) port
Radio
To preset stations Tune in the desired station and hold down a preset
button (1-6) until you hear a beep. Push desired preset button (1-6) to
select.
To scan stations Push “SCAN.” Push and hold to scan preset stations. Push
again to hold selection.
Volume control
