Page 541 of 544

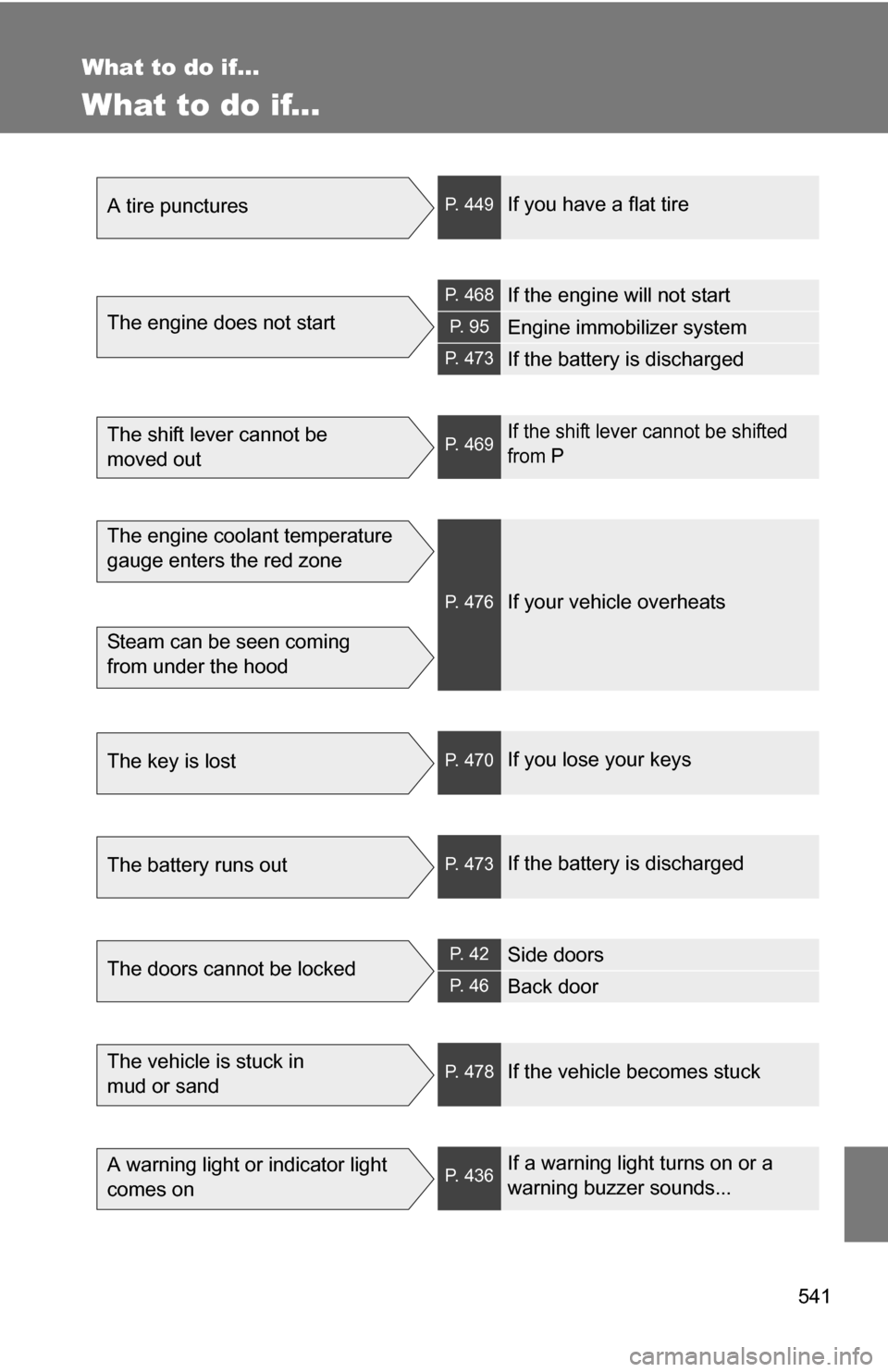

541
What to do if...
What to do if...
A tire puncturesP. 449If you have a flat tire
The engine does not start
P. 468If the engine will not start
P. 9 5Engine immobilizer system
P. 473If the battery is discharged
The shift lever cannot be
moved outP. 469If the shift lever cannot be shifted
from P
The engine coolant temperature
gauge enters the red zone
Steam can be seen coming
from under the hood
P. 476If your vehicle overheats
The key is lostP. 470If you lose your keys
The battery runs outP. 473If the battery is discharged
The doors cannot be lockedP. 4 2Side doors
P. 4 6Back door
The vehicle is stuck in
mud or sandP. 478If the vehicle becomes stuck
A warning light or indicator light
comes onP. 436If a warning light turns on or a
warning buzzer sounds...
Page 542 of 544

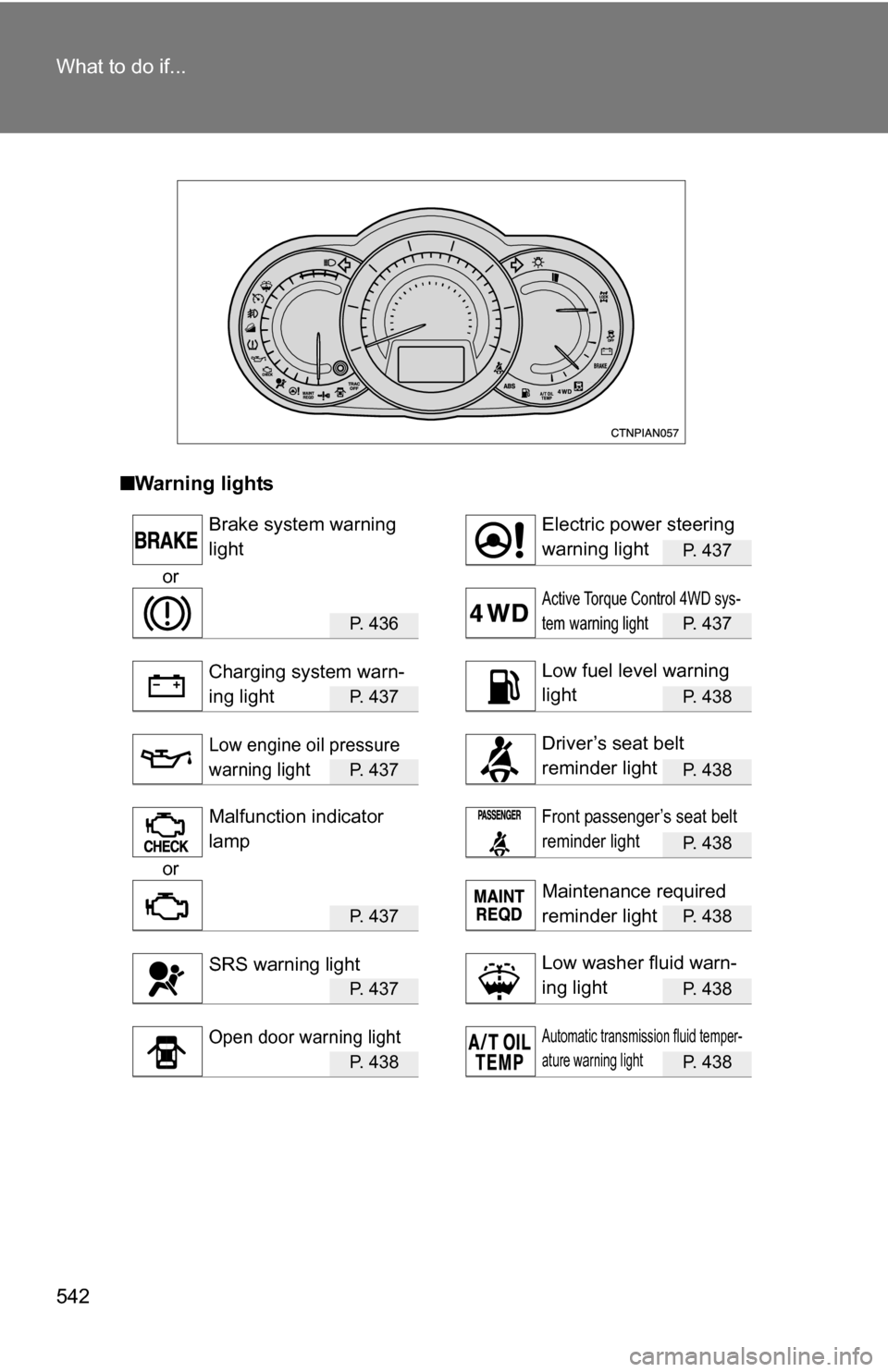

542 What to do if...
■Warning lights
P. 437
or
P. 4 3 6P. 437
P. 4 3 7P. 438
P. 4 3 7P. 438
P. 438
or
P. 4 3 7P. 438
P. 4 3 7P. 438
P. 4 3 8P. 438
Brake system warning
lightElectric power steering
warning light
Active Torque Control 4WD sys-
tem warning light
Charging system warn-
ing lightLow fuel level warning
light
Low engine oil pressure
warning lightDriver’s seat belt
reminder light
Malfunction indicator
lampFront passenger’s seat belt
reminder light
Maintenance required
reminder light
SRS warning lightLow washer fluid warn-
ing light
Open door warning lightAutomatic transmission fluid temper-
ature warning light
Page 543 of 544
543
What to do if...
P. 438
or
P. 4 3 7P. 442
P. 4 3 7P. 437
*: The light flashes to indicate a malfunction.
“ABS” warning lightTire pressure warning
light
Smart key system warn-
ing light
Cruise control indicator
light*Slip indicator light
Page 544 of 544
544
GAS STATION INFORMATION
Auxiliary catch leverP. 363Fuel filler doorP. 9 1
Hood release lever P. 3 6 3Fuel filler door opener P. 9 1Tire inflation pressure
P. 494
Fuel tank capacity
(Reference) 15.9 gal. (60 L, 13.2 Imp. gal.)
Fuel typeUnleaded gasoline with an Octane Rating
of 87 (Research Octane Number 91)
Cold tire inflation
pressure
P. 4 9 4
Engine oil capacity
(Drain and refill
reference) P. 488
Engine oil typeToyota Genuine Motor Oil or equivalent
Oil grade: P. 488
ILSAC multigrade engine oil
Recommended oil viscosity:
SAE 5W-20 or 0W-20 (2.5 L 4-cylinder
[2AR-FE] engine) SAE 5W-30 (3.5 L V6
[2GR-FE] engine)
