This vehicle is equipped with an event data recorder (EDR). The main pur-
pose of an EDR is to record, in certain crash or near crash-like situations,
such as an air bag deployment or hitting a road obstacle, data that will assist
in understanding how a vehicle’s systems performed. The EDR is designed to
record data related to vehicle dynamics and safety systems for a short period
of time, typically 30 seconds or less.
The EDR in this vehicle is designed to record such data as:• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were buckled/fas- tened;
• How far (if at all) the driver was depressing the accelerator and/or brake pedal; and,
• How fast the vehicle was traveling.
These data can help provide a better understanding of the circumstances in
which crashes and injuries occur.
NOTE: EDR data are recorded by your vehicle only if a nontrivial crash situa-
tion occurs; no data are recorded by the EDR under normal driving conditions
and no personal data (e.g., name, gender, age, and crash location) are
recorded. However, other parties, such as law enforcement, could combine
the EDR data with the type of personally identifying data routinely acquired
during a crash investigation.
To read data recorded by an EDR, special equipment is required, and access
to the vehicle or the EDR is needed. In addition to the vehicle manufacturer,
other parties, such as law enforcement, that have the special equipment, can
read the information if they have access to the vehicle or the EDR.
Event data recorder

12
RAV4_OM_OM42809U_(U)
●Disclosure of the EDR data
Toyota will not disclose the data recorded in an EDR to a third party except
when:
• An agreement from the vehicle’s owner (or the lessee for a leased vehi- cle) is obtained
• In response to an official request by the police, a court of law or a govern- ment agency
• For use by Toyota in a lawsuit
However, if necessary, Toyota may:
• Use the data for research on vehicle safety performance
• Disclose the data to a third party for research purposes without disclosing information about the specific vehicle or vehicle owner
The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by your Toyota dealer
before you scrap your vehicle.
Special handling may apply,
See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Your vehicle has components that may contain perchlorate. These compo-
nents may include airbag, seat belt pretensioners, and wireless remote con-
trol batteries.
Scrapping of your Toyota
Perchlorate Material

RAV4_OM_OM42809U_(U)
13
CAUTION
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that
distracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
■ General precaution regard ing children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows, the moon roof, or other features of the vehicle. In addition,
heat build-up or extremely cold temperatures inside the vehicle can be fatal
to children.

14
RAV4_OM_OM42809U_(U)
Reading this manual
CAUTION:
Explains something that, if not obeyed, could cause death or
serious injury to people.
NOTICE:
Explains something that, if not obeyed, could cause damage to
or a malfunction in the vehicle or its equipment.
Indicates operating or working procedures. Follow the steps
in numerical order.
Indicates the action (push-
ing, turning, etc.) used to
operate switches and other
devices.
Indicates the outcome of an
operation (e.g. a lid opens).
Indicates the component or
position being explained.
Means “Do not”, “Do not do
this”, or “Do not let this hap-
pen”.
123

15
RAV4_OM_OM42809U_(U)
How to search
■Searching by name• Alphabetical index .......P. 609
■Searching by installation
position• Pictorial index ................P. 16
■Searching by symptom or
sound• What to do if...
(Troubleshooting) ........P. 604
■Searching by title• Table of contents .............P. 2

16Pictorial index
RAV4_OM_OM42809U_(U)

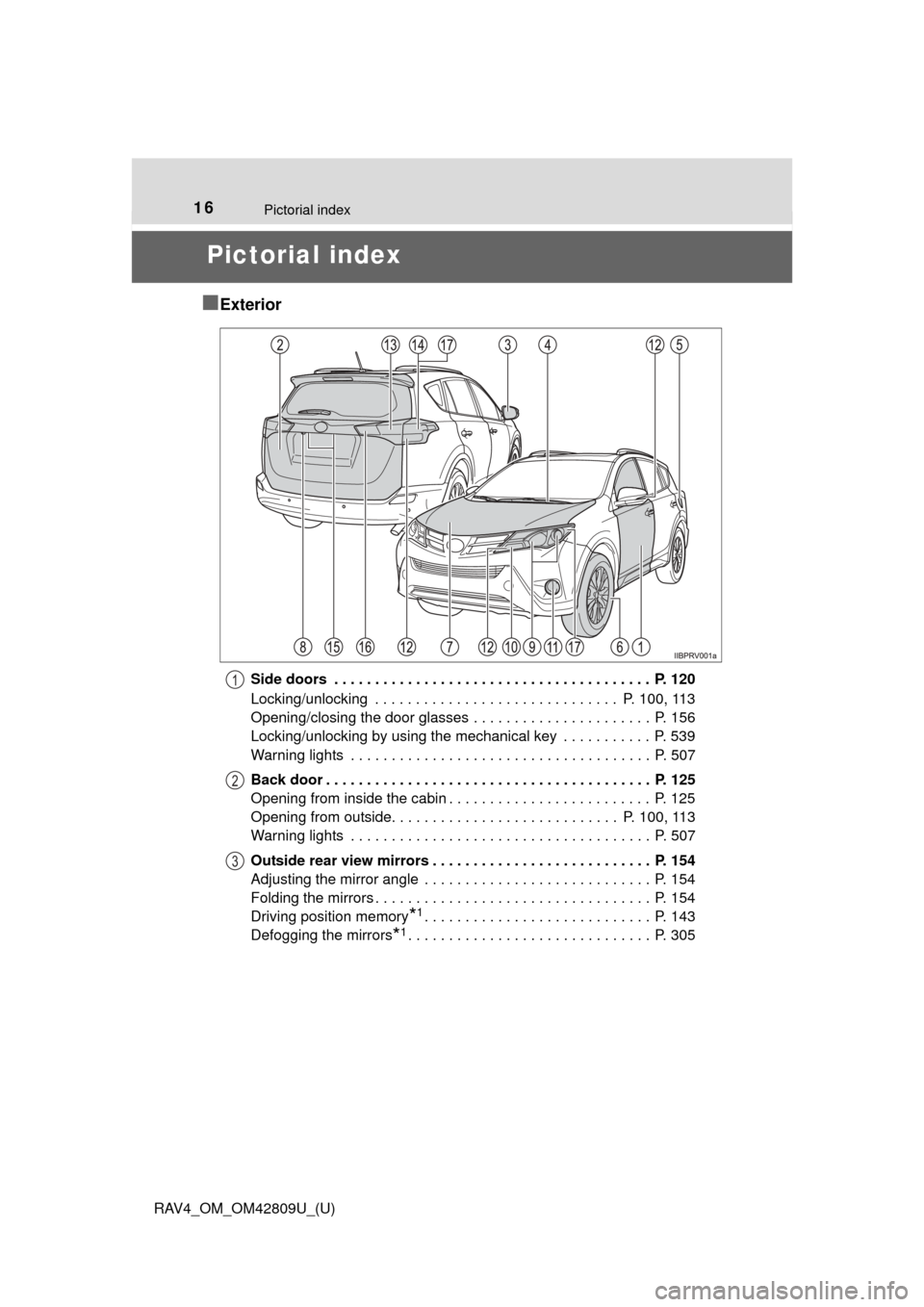

Pictorial index
■Exterior
Side doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 120
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 100, 113
Opening/closing the door glasses . . . . . . . . . . . . . . . . . . . . . . P. 156
Locking/unlocking by using the mechanical key . . . . . . . . . . . P. 539
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 507
Back door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 125
Opening from inside the cabin . . . . . . . . . . . . . . . . . . . . . . . . . P. 125
Opening from outside. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 100, 113
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 507
Outside rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 154
Adjusting the mirror angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 154
Folding the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 154
Driving position memory
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 143
Defogging the mirrors
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 305
1
2
3

17Pictorial index
RAV4_OM_OM42809U_(U)Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 229
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 276
To prevent freezing (windshield wiper de-icer)
*1. . . . . . . . . . . P. 307
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 237
Refueling method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 237
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 554
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 443
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . P. 561
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 276
Checking/rotation/tire pressure warning system . . . . . . . . . P. 443
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 519
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 425
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 425
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 555
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 546
Camera
*1, 2
Headlights/daytime running lights . . . . . . . . . . . . . . . . . . . . P. 217
Parking lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 217
Fog lights
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 228
Turn signal lights
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 214
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 217
Stop/tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 217
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 217
Back-up lights
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 207
Side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 217
4
5
6
7
8
Light bulbs of the exterior lights for driving
(Replacing method: P. 476, Watts: P. 562)
*1: If equipped
*2: For vehicles with a Display Audio system, refer to “Display Audio System Owner’s Manual”.
9
10
11
12
13
14
15
16
17

18Pictorial index
RAV4_OM_OM42809U_(U)

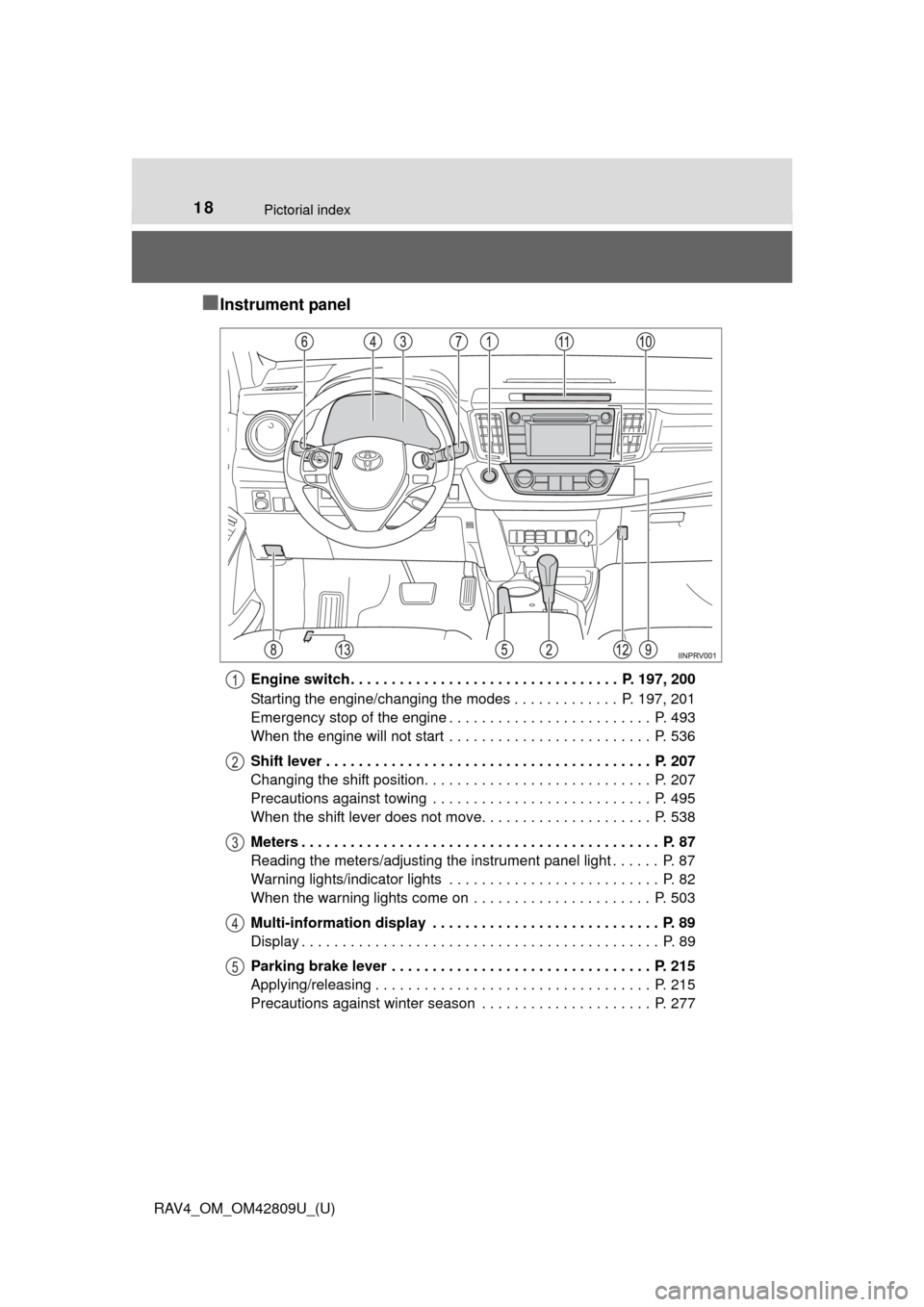

■Instrument panel
Engine switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 197, 200
Starting the engine/changing the modes . . . . . . . . . . . . . P. 197, 201
Emergency stop of the engine . . . . . . . . . . . . . . . . . . . . . . . . . P. 493
When the engine will not start . . . . . . . . . . . . . . . . . . . . . . . . . P. 536
Shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 207
Changing the shift position. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 207
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 495
When the shift lever does not move. . . . . . . . . . . . . . . . . . . . . P. 538
Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 87
Reading the meters/adjusting the instrument panel light . . . . . . P. 87
Warning lights/indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . P. 82
When the warning lights come on . . . . . . . . . . . . . . . . . . . . . . P. 503
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 89
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 89
Parking brake lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 215
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 215
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 2771
2
3
4
5

19Pictorial index
RAV4_OM_OM42809U_(U)Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 214
Headlight switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 217
Headlights/parking lights/tail lights/daytime running lights . . . . P. 217
Fog lights
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 228
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . P. 229
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 229
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 442
Hood lock release lever. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 425
Manual air conditioning system
*1 . . . . . . . . . . . . . . . . . . . . P. 288
Automatic air conditioning system
*1 . . . . . . . . . . . . . . . . . P. 295
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 288, 295
Rear window defogger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 305
Audio system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 308
Audio system
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 308
Display Audio system
*1, 2
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 396
Power back door main switch
*1. . . . . . . . . . . . . . . . . . . . . . P. 127
Fuel filler door opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 239
*1: If equipped
*2: For vehicles with a Display Audio system, refer to “Display Audio System Owner’s Manual”.
6
7
8
9
10
11
12
13

20Pictorial index
RAV4_OM_OM42809U_(U)

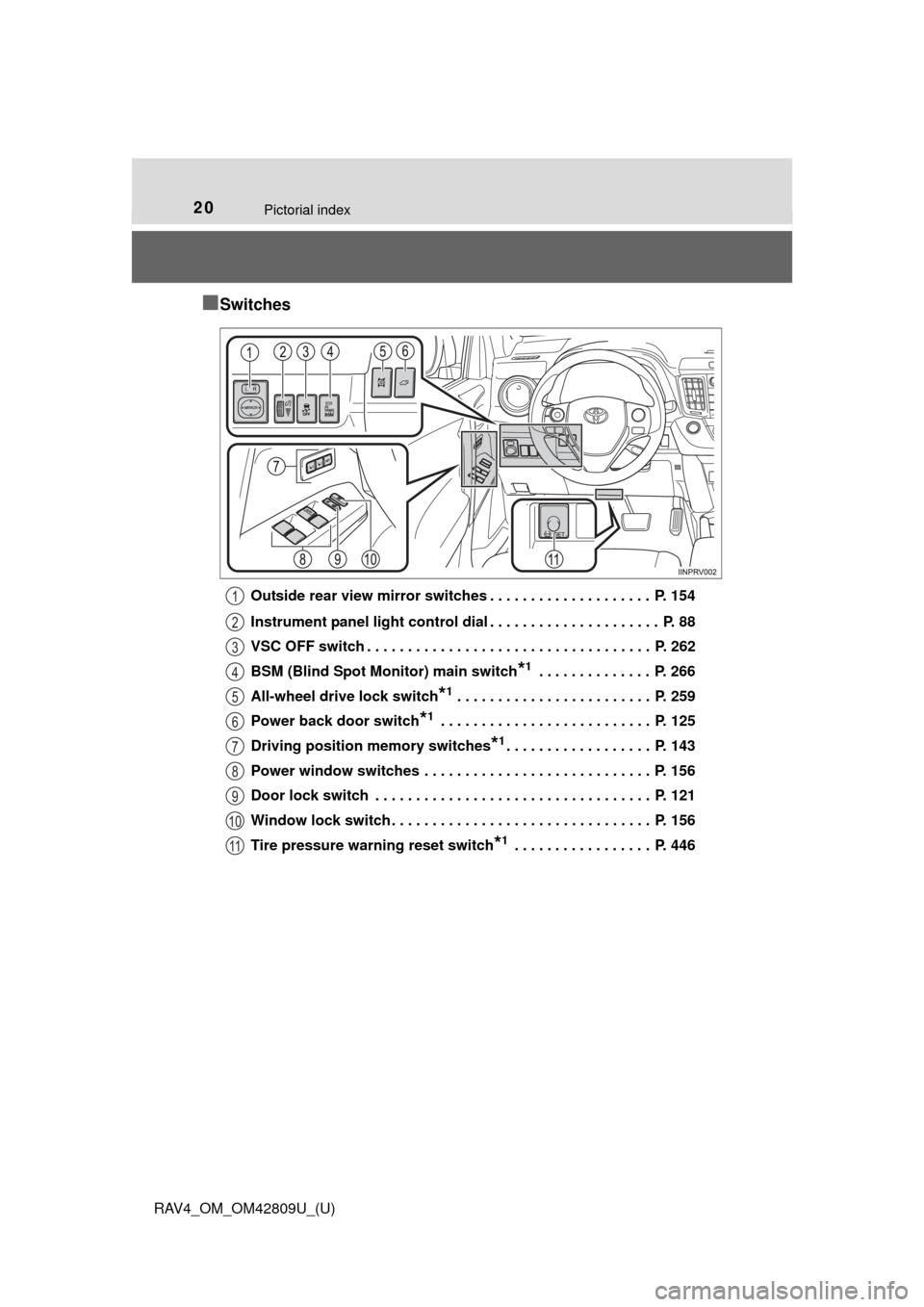

■Switches
Outside rear view mirror switches . . . . . . . . . . . . . . . . . . . . P. 154
Instrument panel light control dial . . . . . . . . . . . . . . . . . . . . . P. 88
VSC OFF switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 262
BSM (Blind Spot Monitor) main switch
*1 . . . . . . . . . . . . . . P. 266
All-wheel drive lock switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . P. 259
Power back door switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . P. 125
Driving position memory switches
*1. . . . . . . . . . . . . . . . . . P. 143
Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 156
Door lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 121
Window lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 156
Tire pressure warning reset switch
*1 . . . . . . . . . . . . . . . . . P. 446
1
2
3
4
5
6
7
8
9
10
11
