TOYOTA RAV4 2013 XA40 / 4.G Owners Manual

RAV4_OM_OM42809U_(U)
4716-3. Do-it-yourself maintenance
6
Maintenance and care

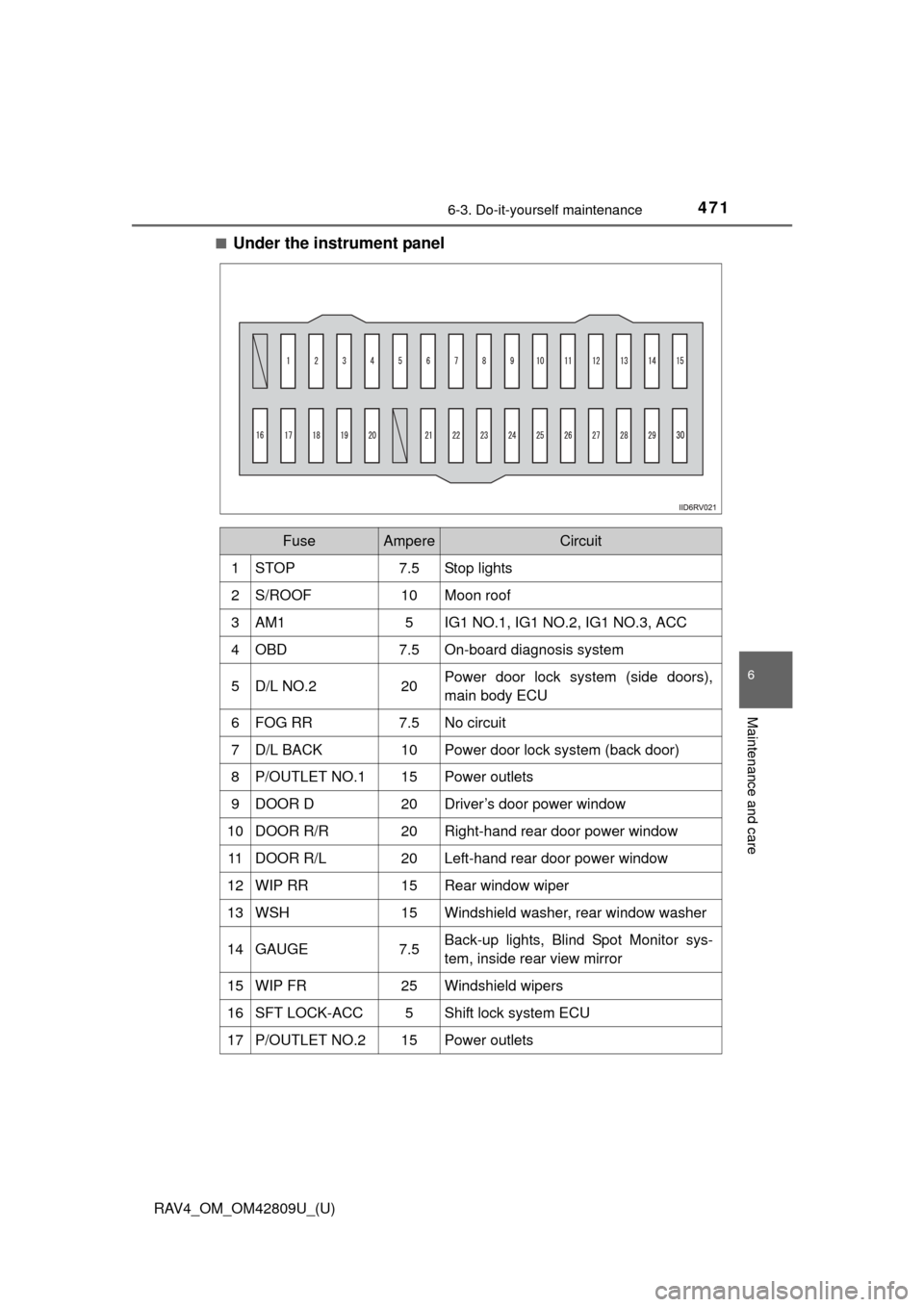

■Under the instrument panel
FuseAmpereCircuit
1STOP7.5Stop lights
2S/ROOF10Moon roof
3AM15IG1 NO.1, IG1 NO.2, IG1 NO.3, ACC
4OBD7.5On-board diagnosis system
5D/L NO.220Power door lock system (side doors),
main body ECU
6FOG RR7.5No circuit
7D/L BACK10Power door lock system (back door)
8P/OUTLET NO.115Power outlets
9DOOR D20Driver’s door power window
10DOOR R/R20Right-hand rear door power window
11DOOR R/L20Left-hand rear door power window
12WIP RR15Rear window wiper
13WSH15Windshield washer, rear window washer
14GAUGE7.5Back-up lights, Blind Spot Monitor sys-
tem, inside rear view mirror
15WIP FR25Windshield wipers
16SFT LOCK-ACC5Shift lock system ECU
17P/OUTLET NO.215Power outlets

472
RAV4_OM_OM42809U_(U)
6-3. Do-it-yourself maintenance

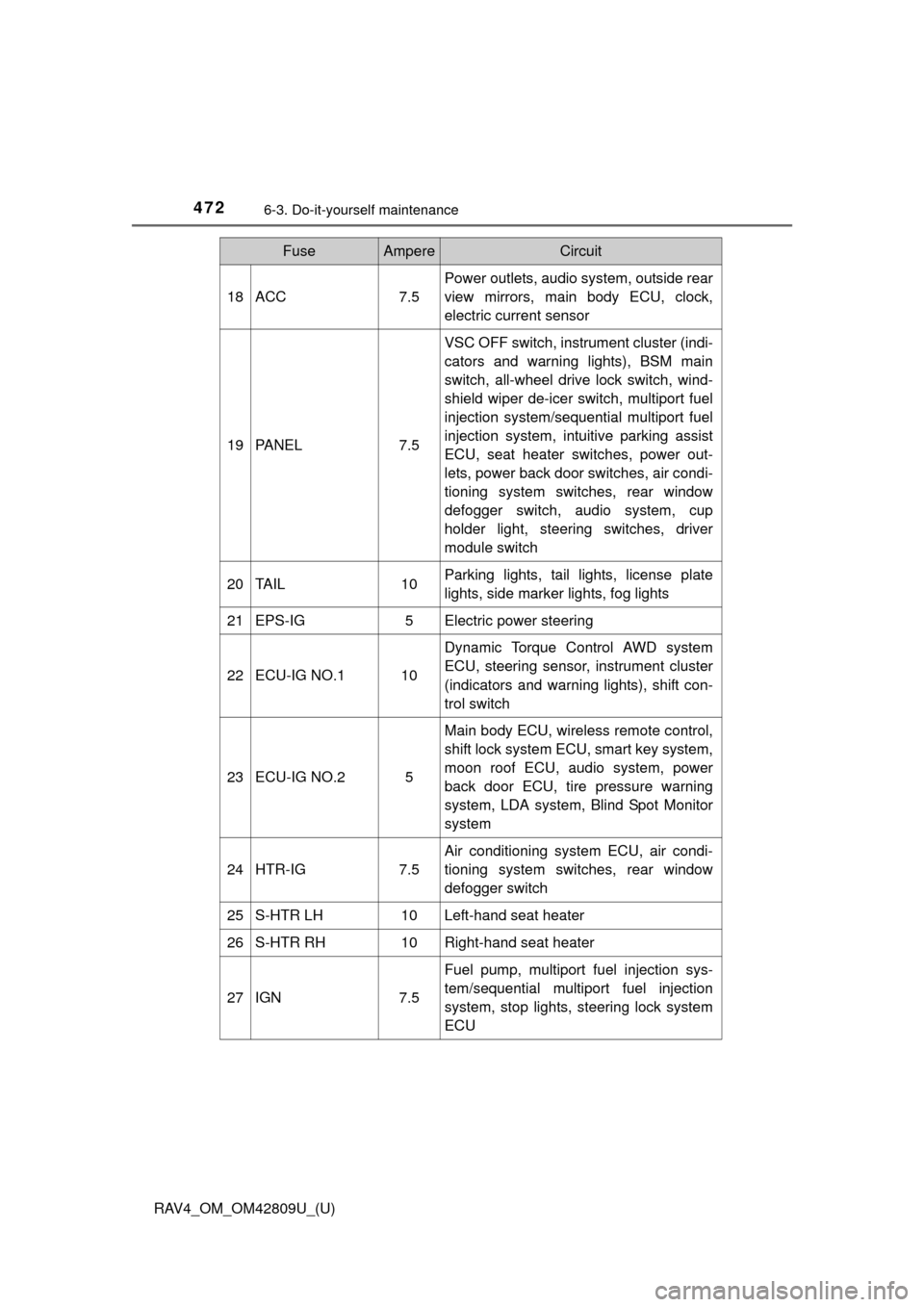

18ACC7.5
Power outlets, audio system, outside rear
view mirrors, main body ECU, clock,
electric current sensor
19PA N E L7.5
VSC OFF switch, instrument cluster (indi-
cators and warning lights), BSM main
switch, all-wheel drive lock switch, wind-
shield wiper de-icer switch, multiport fuel
injection system/sequential multiport fuel
injection system, intuitive parking assist
ECU, seat heater switches, power out-
lets, power back door switches, air condi-
tioning system switches, rear window
defogger switch, audio system, cup
holder light, steering switches, driver
module switch
20TA I L10Parking lights, tail lights, license plate
lights, side marker lights, fog lights
21EPS-IG5Electric power steering
22ECU-IG NO.110
Dynamic Torque Control AWD system
ECU, steering sensor, instrument cluster
(indicators and warning lights), shift con-
trol switch
23ECU-IG NO.25
Main body ECU, wireless remote control,
shift lock system ECU, smart key system,
moon roof ECU, audio system, power
back door ECU, tire pressure warning
system, LDA system, Blind Spot Monitor
system
24HTR-IG7.5
Air conditioning system ECU, air condi-
tioning system switches, rear window
defogger switch
25S-HTR LH10Left-hand seat heater
26S-HTR RH10Right-hand seat heater
27IGN7.5
Fuel pump, multiport fuel injection sys-
tem/sequential multiport fuel injection
system, stop lights, steering lock system
ECU
FuseAmpereCircuit

RAV4_OM_OM42809U_(U)
4736-3. Do-it-yourself maintenance
6
Maintenance and care

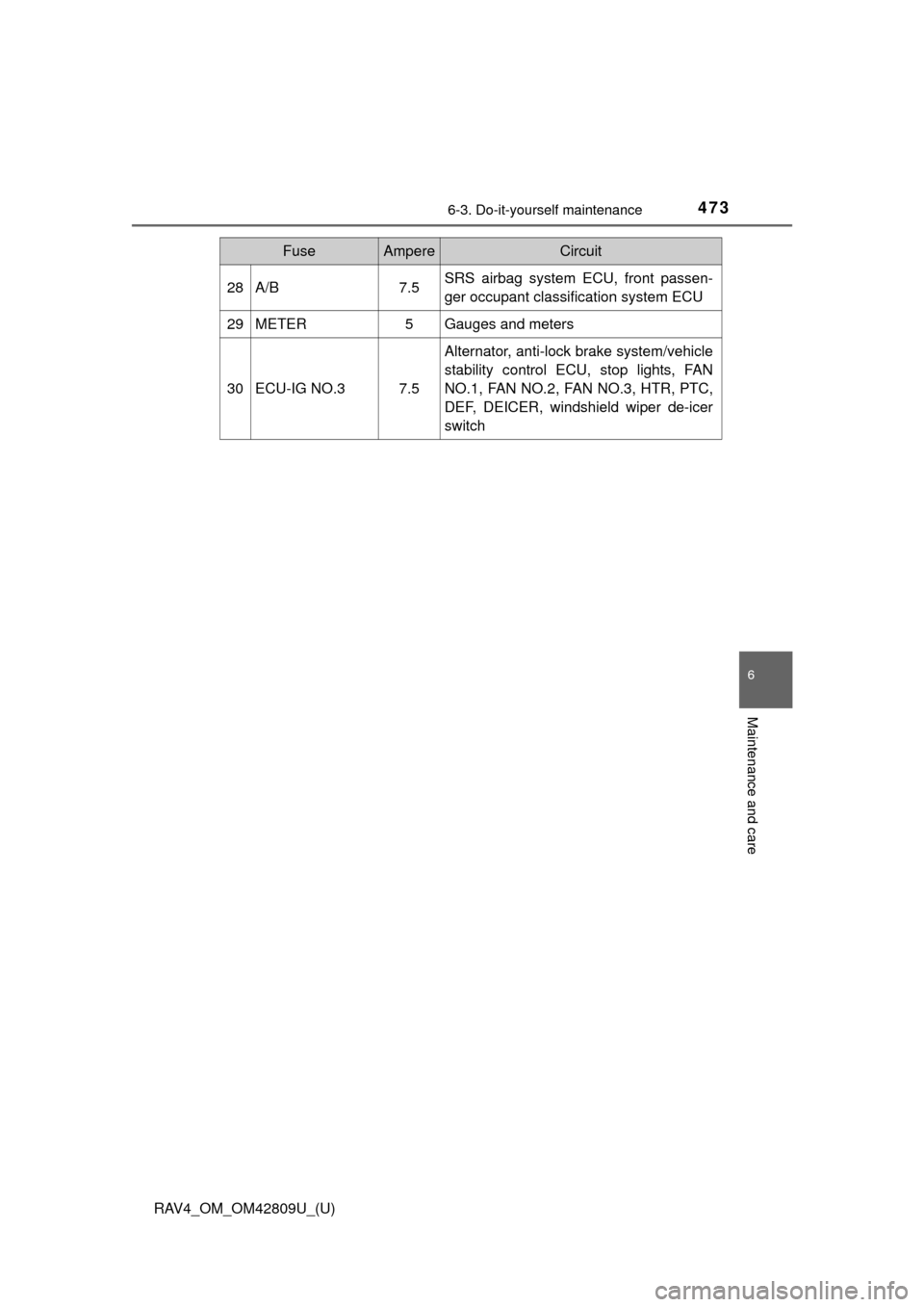

28A/B7.5SRS airbag system ECU, front passen-
ger occupant classification system ECU
29METER5Gauges and meters
30ECU-IG NO.37.5
Alternator, anti-lock brake system/vehicle
stability control ECU, stop lights, FAN
NO.1, FAN NO.2, FAN NO.3, HTR, PTC,
DEF, DEICER, windshield wiper de-icer
switch
FuseAmpereCircuit

474
RAV4_OM_OM42809U_(U)
6-3. Do-it-yourself maintenance

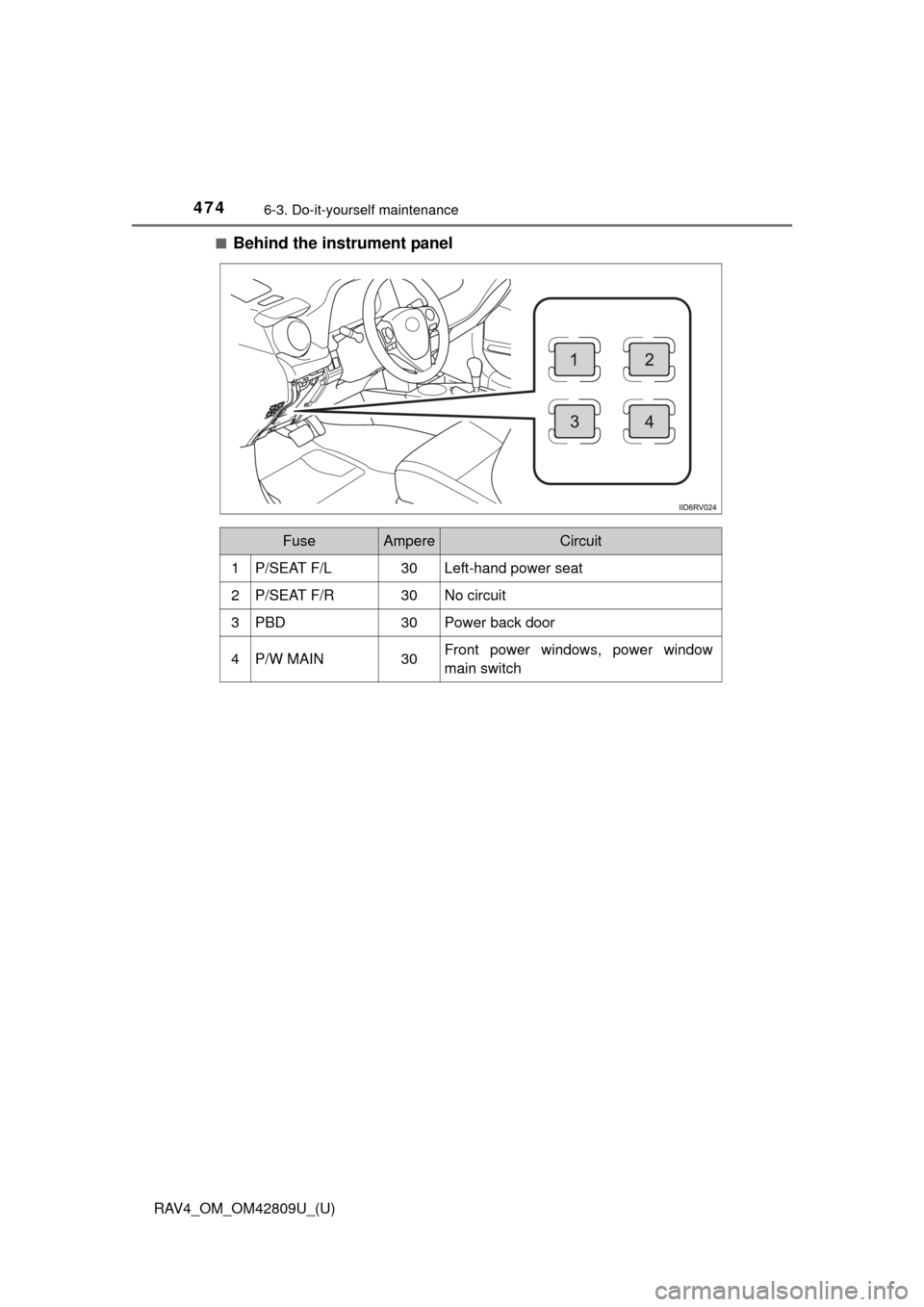

■Behind the instrument panel
FuseAmpereCircuit
1P/SEAT F/L30Left-hand power seat
2P/SEAT F/R30No circuit
3PBD30Power back door
4P/W MAIN30Front power windows, power window
main switch

RAV4_OM_OM42809U_(U)
4756-3. Do-it-yourself maintenance
6
Maintenance and care
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( P. 476)
● If the replaced fuse blows again, have the vehicle inspected by your Toyota
dealer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
●Never use a fuse of a higher amperage rating than that indicated, or use\
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer as soon as possible.

476
RAV4_OM_OM42809U_(U)
6-3. Do-it-yourself maintenance

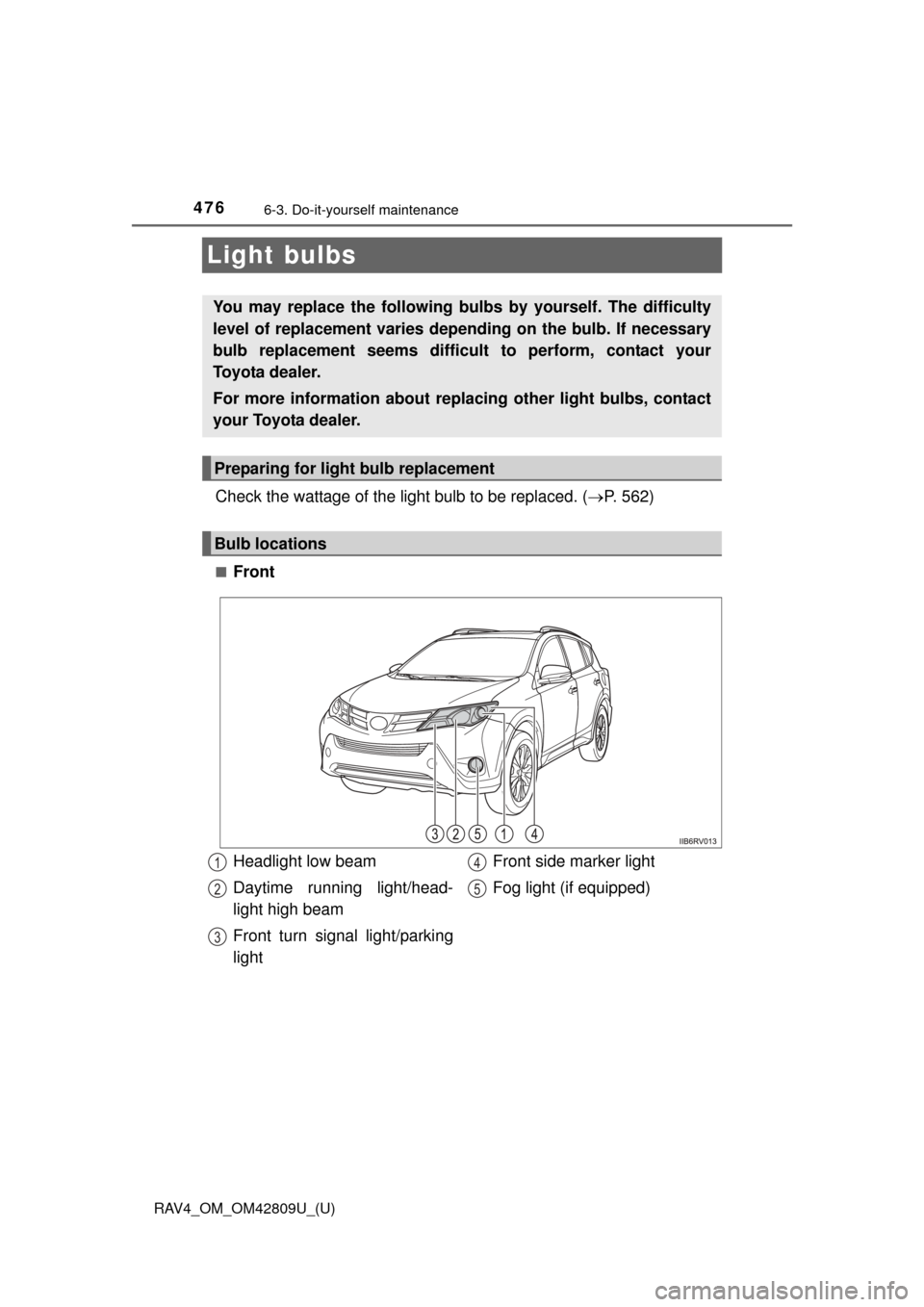

Light bulbs
Check the wattage of the light bulb to be replaced. (P. 562)
■Front
You may replace the following bulbs by yourself. The difficulty
level of replacement varies de pending on the bulb. If necessary
bulb replacement seems difficul t to perform, contact your
Toyota dealer.
For more information about repl acing other light bulbs, contact
your Toyota dealer.
Preparing for light bulb replacement
Bulb locations
Headlight low beam
Daytime running light/head-
light high beam
Front turn signal light/parking
light Front side marker light
Fog light (if equipped)1
2
3
4
5

RAV4_OM_OM42809U_(U)
4776-3. Do-it-yourself maintenance
6
Maintenance and care

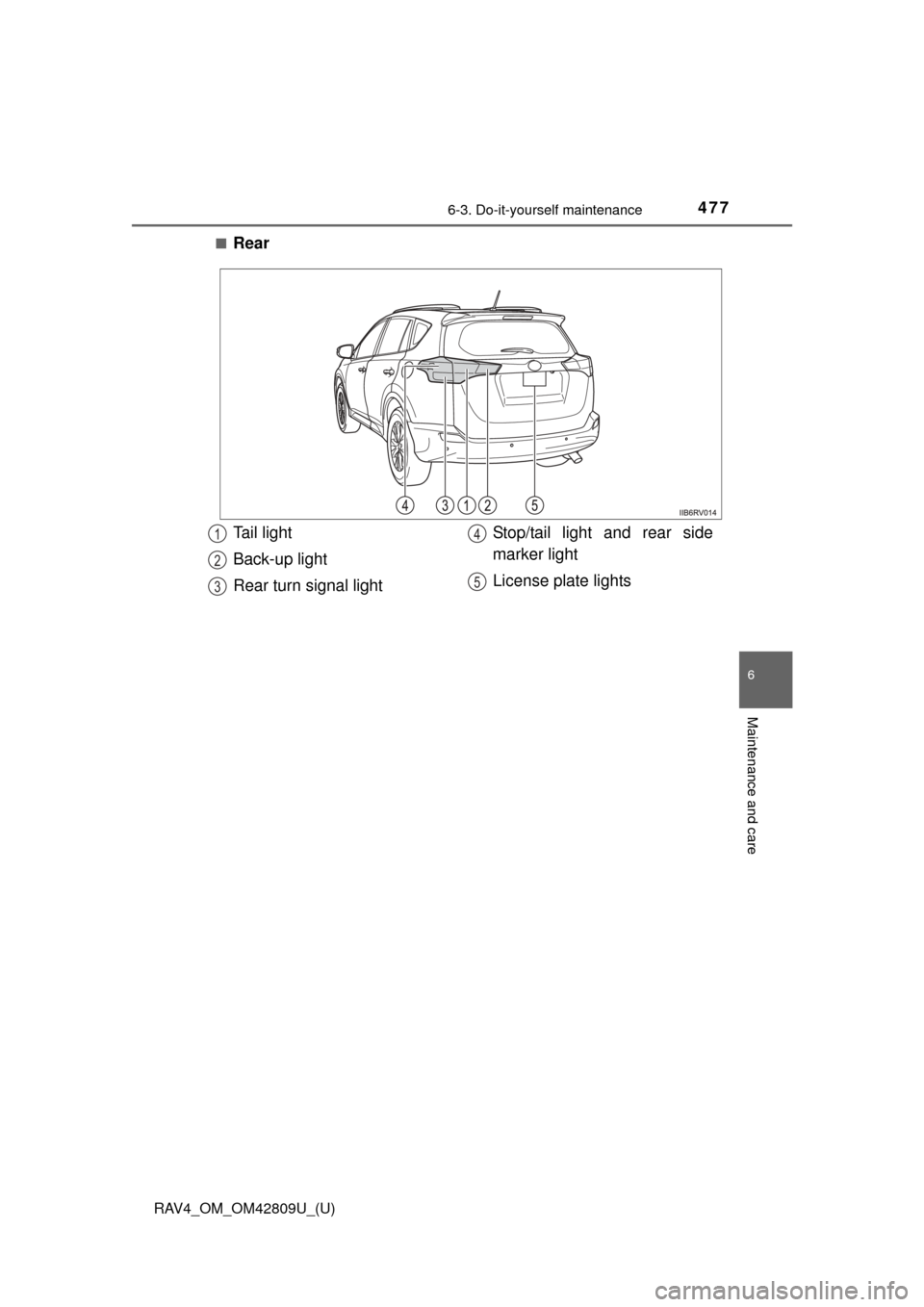

■Rear
Tail light
Back-up light
Rear turn signal lightStop/tail light and rear side
marker light
License plate lights1
2
3
4
5

478
RAV4_OM_OM42809U_(U)
6-3. Do-it-yourself maintenance

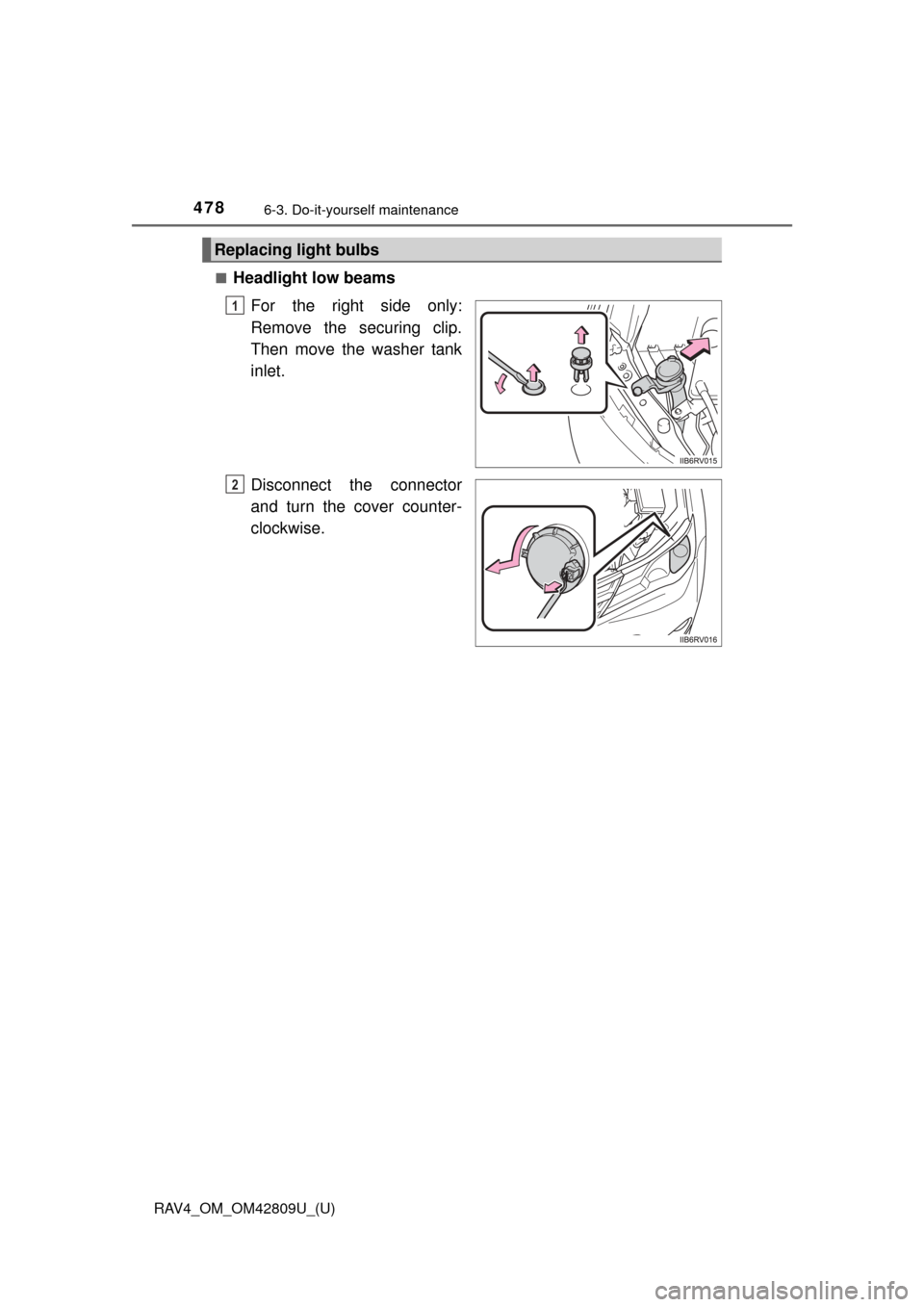

■Headlight low beamsFor the right side only:
Remove the securing clip.
Then move the washer tank
inlet.
Disconnect the connector
and turn the cover counter-
clockwise.
Replacing light bulbs
1
2

RAV4_OM_OM42809U_(U)
4796-3. Do-it-yourself maintenance
6
Maintenance and care

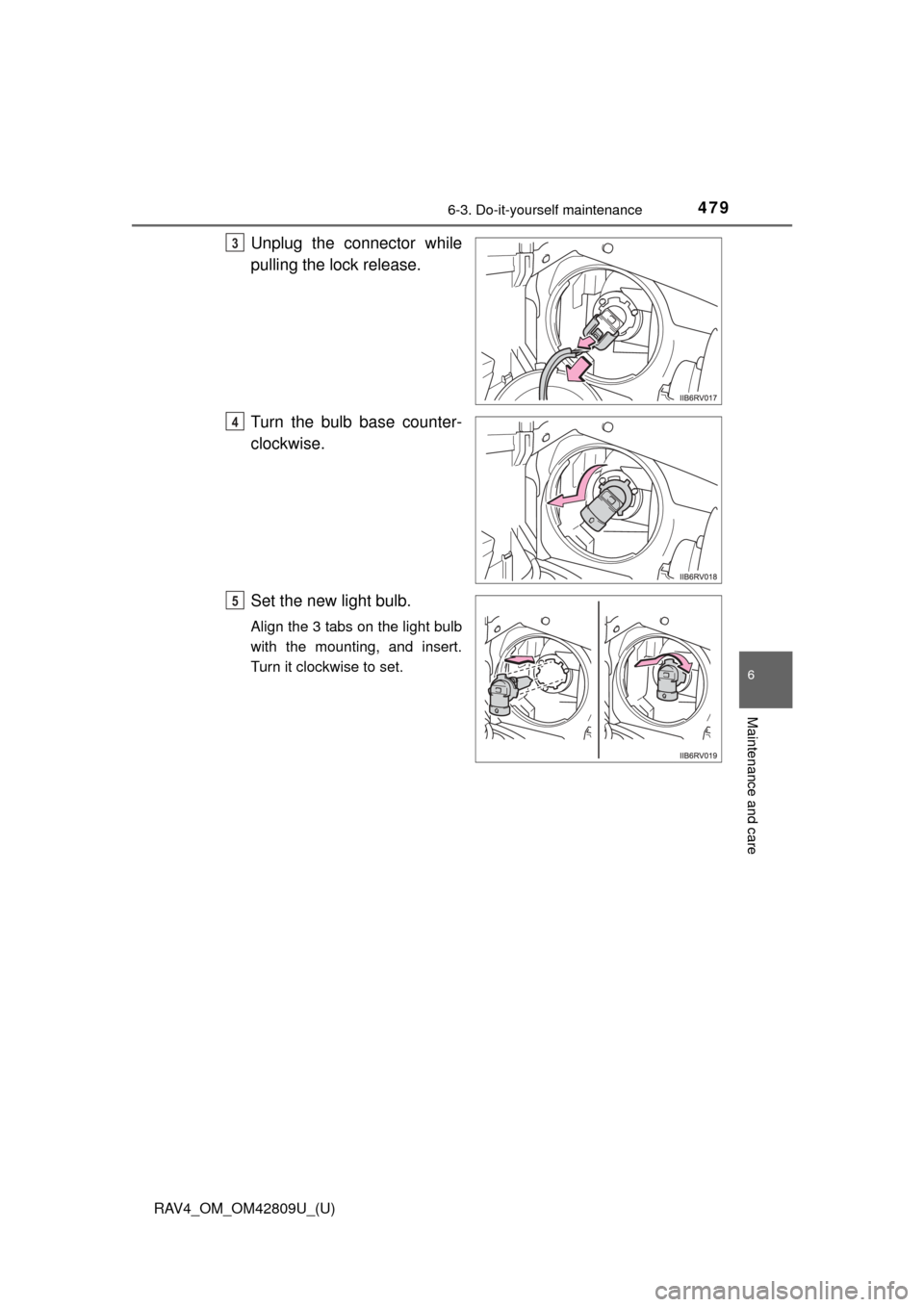

Unplug the connector while
pulling the lock release.
Turn the bulb base counter-
clockwise.
Set the new light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn it clockwise to set.
3
4
5

480
RAV4_OM_OM42809U_(U)
6-3. Do-it-yourself maintenance

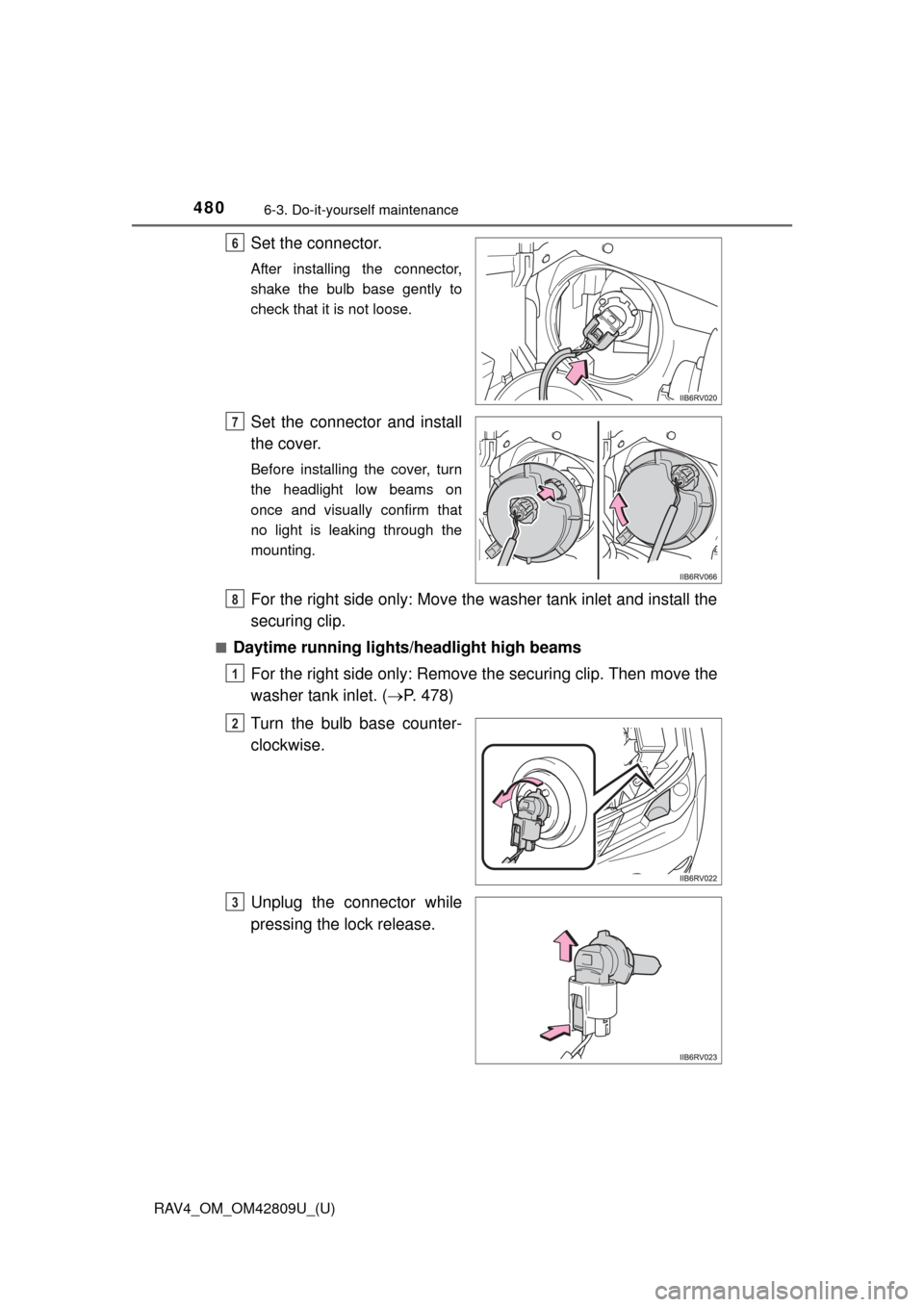

Set the connector.
After installing the connector,
shake the bulb base gently to
check that it is not loose.
Set the connector and install
the cover.
Before installing the cover, turn
the headlight low beams on
once and visually confirm that
no light is leaking through the
mounting.
For the right side only: Move the washer tank inlet and install the
securing clip.
■Daytime running lights/headlight high beamsFor the right side only: Remove the securing clip. Then move the
washer tank inlet. ( P. 478)
Turn the bulb base counter-
clockwise.
Unplug the connector while
pressing the lock release.
6
7
8
1
2
3
