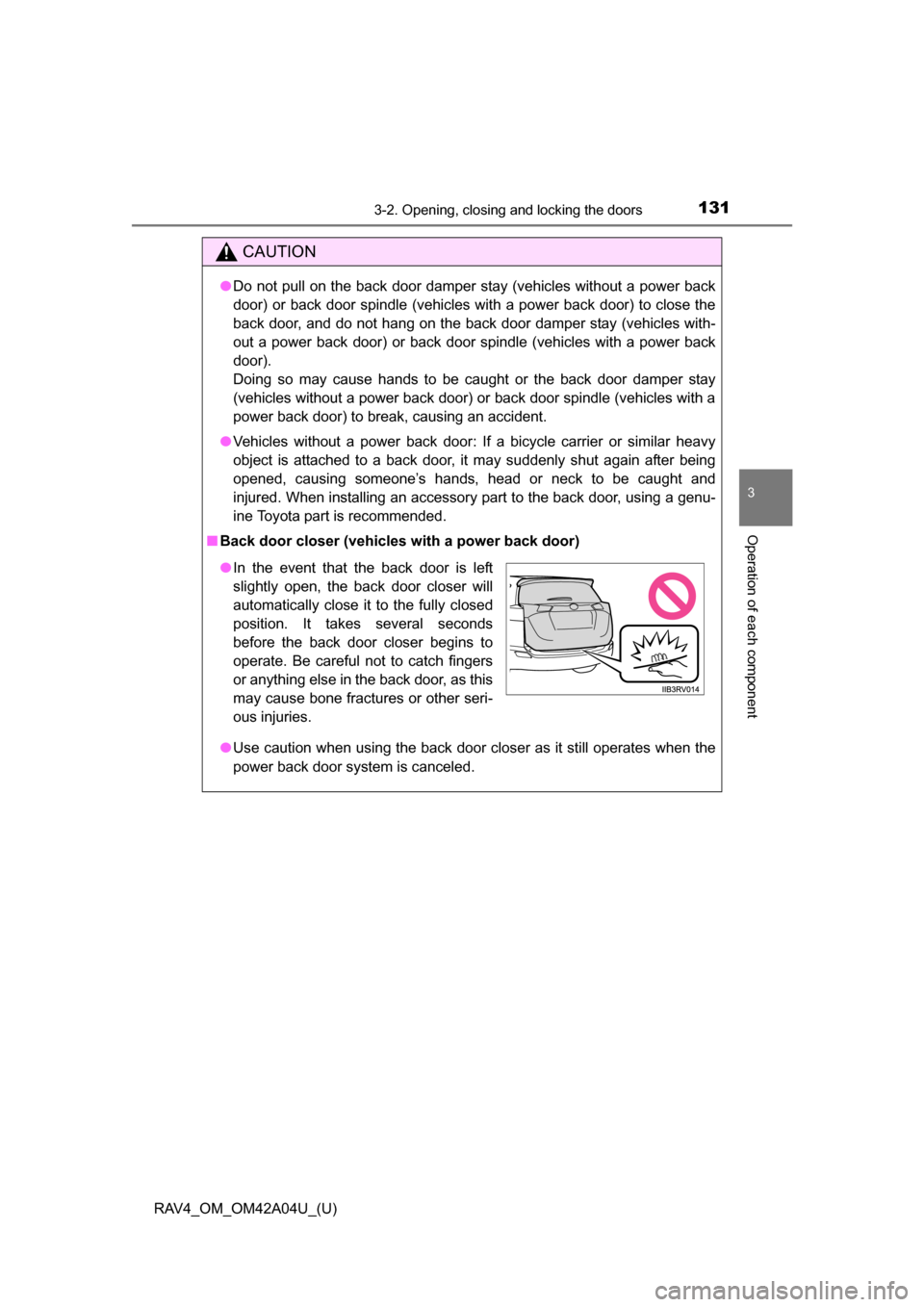

1313-2. Opening, closing and locking the doors
3
Operation of each component
CAUTION
●Do not pull on the back door damper stay (vehicles without a power back
door) or back door spindle (vehicles with a power back door) to close the
back door, and do not hang on the back door damper stay (vehicles with-
out a power back door) or back door spindle (vehicles with a power back
door).
Doing so may cause hands to be caught or the back door damper stay
(vehicles without a power back door) or back door spindle (vehicles with a
power back door) to break, causing an accident.
● Vehicles without a power back door: If a bicycle carrier or similar heavy
object is attached to a back door, it may suddenly shut again after being
opened, causing someone’s hands, head or neck to be caught and
injured. When installing an accessory part to the back door, using a genu-
ine Toyota part is recommended.
■ Back door closer (vehicles with a power back door)
●Use caution when using the back door closer as it still operates when the
power back door system is canceled.
●In the event that the back door is left
slightly open, the back door closer will
automatically close it to the fully closed
position. It takes several seconds
before the back door closer begins to
operate. Be careful not to catch fingers
or anything else in the back door, as this
may cause bone fractures or other seri-
ous injuries.

132
RAV4_OM_OM42A04U_(U)

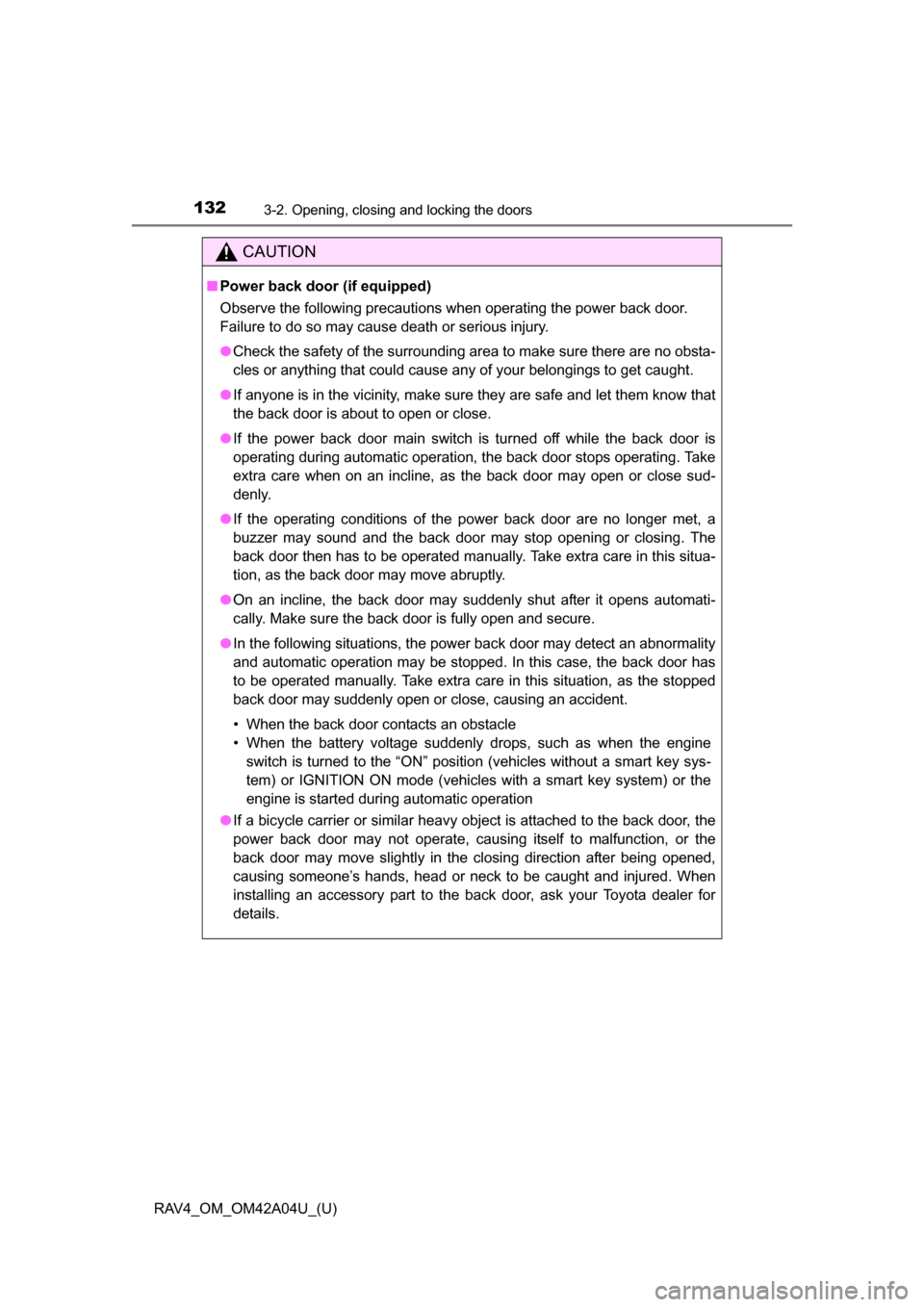

3-2. Opening, closing and locking the doors
CAUTION
■Power back door (if equipped)
Observe the following precautions when operating the power back door.
Failure to do so may cause death or serious injury.
●Check the safety of the surrounding area to make sure there are no obsta-
cles or anything that could cause any of your belongings to get caught.
● If anyone is in the vicinity, make sure they are safe and let them know that
the back door is about to open or close.
● If the power back door main switch is turned off while the back door is
operating during automatic operation, the back door stops operating. Take
extra care when on an incline, as the back door may open or close sud-
denly.
● If the operating conditions of the power back door are no longer met, a
buzzer may sound and the back door may stop opening or closing. The
back door then has to be operated manually. Take extra care in this situa-
tion, as the back door may move abruptly.
● On an incline, the back door may suddenly shut after it opens automati-
cally. Make sure the back door is fully open and secure.
● In the following situations, the power back door may detect an abnormality
and automatic operation may be stopped. In this case, the back door has
to be operated manually. Take extra care in this situation, as the stopped
back door may suddenly open or close, causing an accident.
• When the back door contacts an obstacle
• When the battery voltage suddenly drops, such as when the engine
switch is turned to the “ON” position (vehicles without a smart key sys-
tem) or IGNITION ON mode (vehicles with a smart key system) or the
engine is started during automatic operation
● If a bicycle carrier or similar heavy object is attached to the back door, the
power back door may not operate, causing itself to malfunction, or the
back door may move slightly in the closing direction after being opened,
causing someone’s hands, head or neck to be caught and injured. When
installing an accessory part to the back door, ask your Toyota dealer for
details.

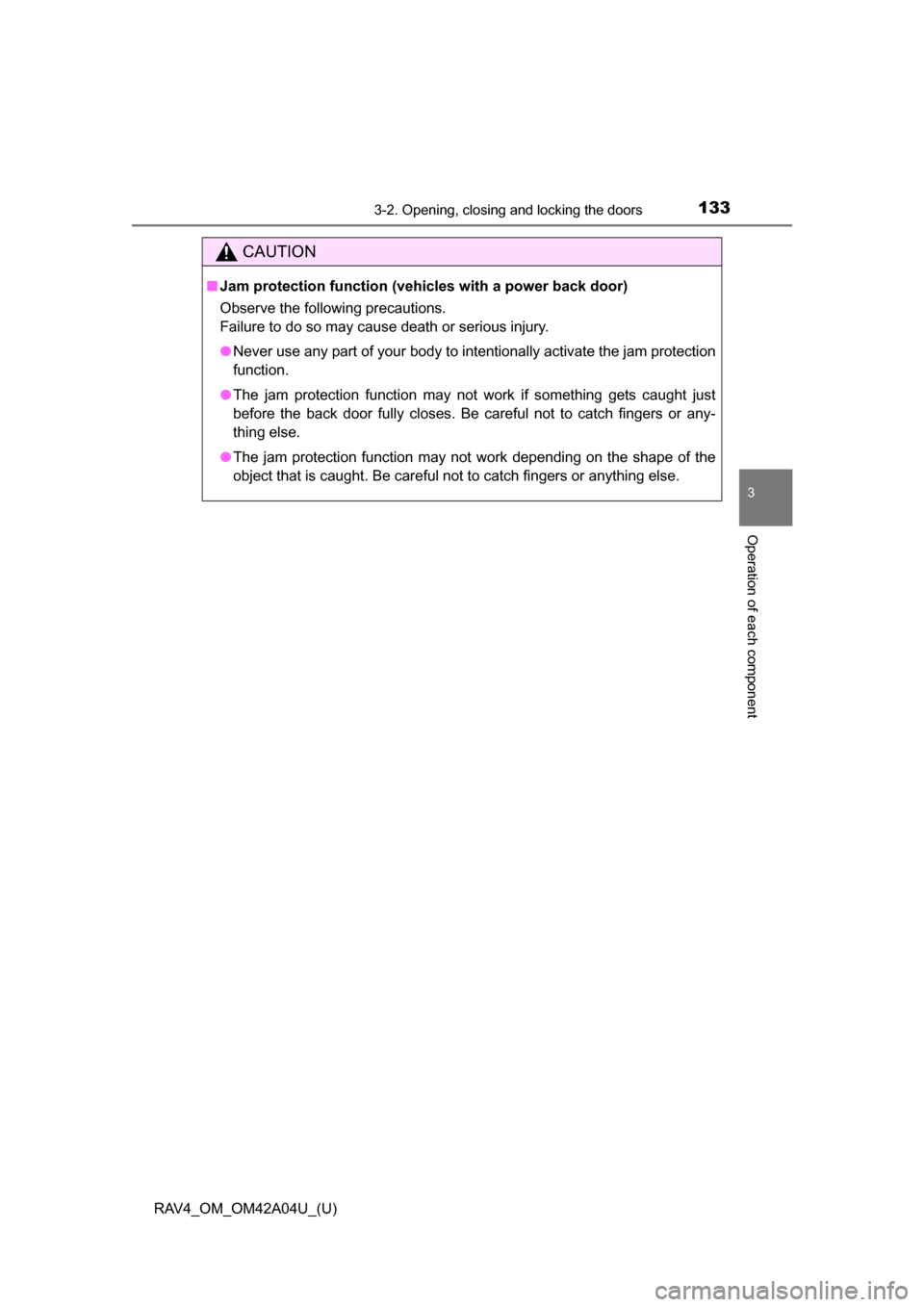

RAV4_OM_OM42A04U_(U)
1333-2. Opening, closing and locking the doors
3
Operation of each component
CAUTION
■Jam protection function (vehicles with a power back door)
Observe the following precautions.
Failure to do so may cause death or serious injury.
●Never use any part of your body to intentionally activate the jam protection
function.
● The jam protection function may not work if something gets caught just
before the back door fully closes. Be careful not to catch fingers or any-
thing else.
● The jam protection function may not work depending on the shape of the
object that is caught. Be careful not to catch fingers or anything else.\

134

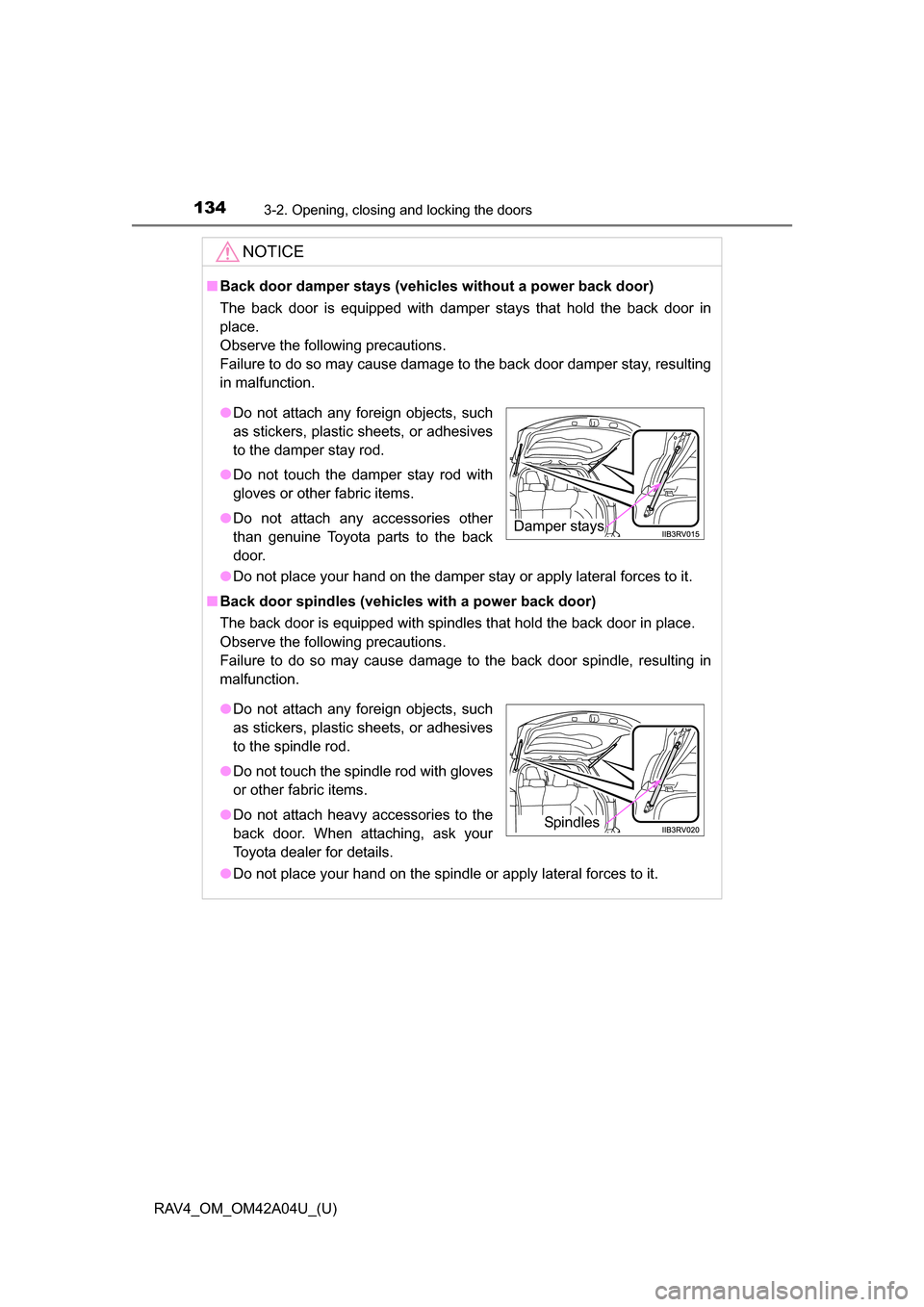

RAV4_OM_OM42A04U_(U)
3-2. Opening, closing and locking the doors
NOTICE
■Back door damper stays (vehicl es without a power back door)
The back door is equipped with damper stays that hold the back door in
place.
Observe the following precautions.
Failure to do so may cause damage to the back door damper stay, resulting
in malfunction.
● Do not place your hand on the damper stay or apply lateral forces to it.
■ Back door spindles (vehicl es with a power back door)
The back door is equipped with spindles that hold the back door in place\
.
Observe the following precautions.
Failure to do so may cause damage to the back door spindle, resulting in
malfunction.
● Do not place your hand on the spindle or apply lateral forces to it.
●Do not attach any foreign objects, such
as stickers, plastic sheets, or adhesives
to the damper stay rod.
● Do not touch the damper stay rod with
gloves or other fabric items.
● Do not attach any accessories other
than genuine Toyota parts to the back
door.
Damper stays
●Do not attach any foreign objects, such
as stickers, plastic sheets, or adhesives
to the spindle rod.
● Do not touch the spindle rod with gloves
or other fabric items.
● Do not attach heavy accessories to the
back door. When attaching, ask your
Toyota dealer for details.
Spindles

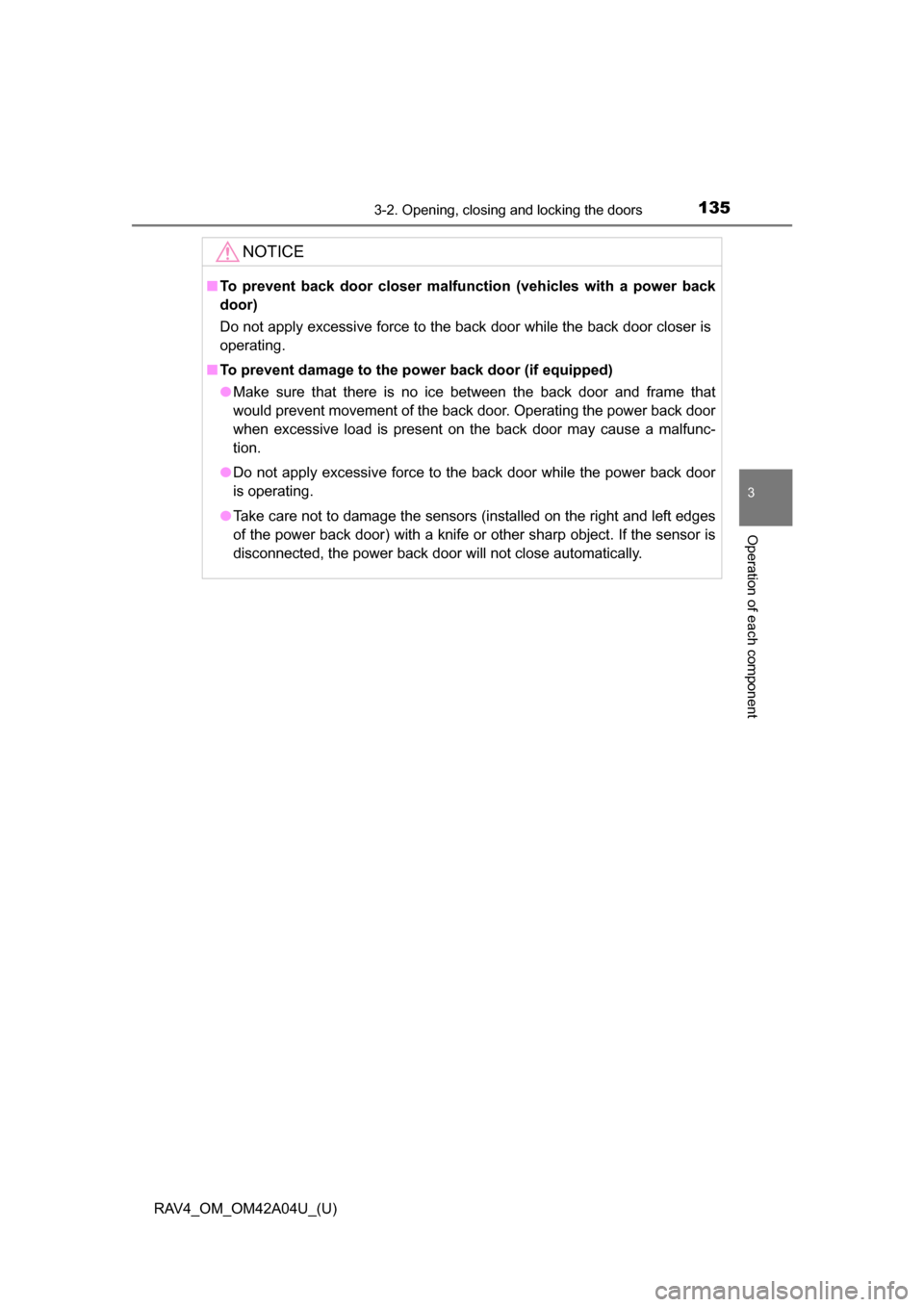

RAV4_OM_OM42A04U_(U)
1353-2. Opening, closing and locking the doors
3
Operation of each component
NOTICE
■To prevent back door closer malfun ction (vehicles with a power back
door)
Do not apply excessive force to the back door while the back door closer is
operating.
■ To prevent damage to the po wer back door (if equipped)
● Make sure that there is no ice between the back door and frame that
would prevent movement of the back door. Operating the power back door
when excessive load is present on the back door may cause a malfunc-
tion.
● Do not apply excessive force to the back door while the power back door
is operating.
● Take care not to damage the sensors (installed on the right and left edges
of the power back door) with a knife or other sharp object. If the sensor is
disconnected, the power back door will not close automatically.

136

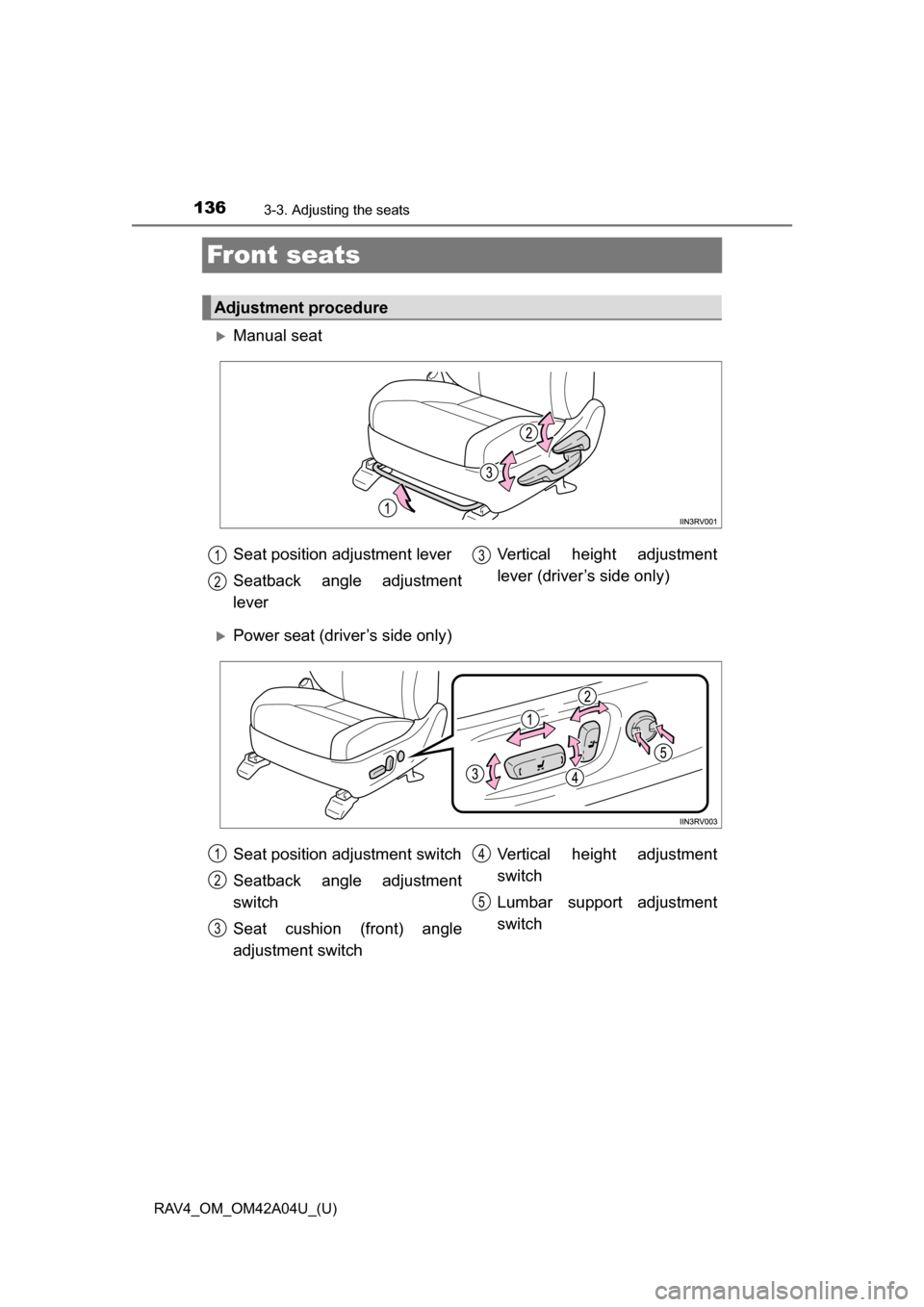

RAV4_OM_OM42A04U_(U)
3-3. Adjusting the seats
Front seats
Manual seat
Power seat (driver’s side only)
Adjustment procedure
Seat position adjustment lever
Seatback angle adjustment
lever Vertical height adjustment
lever (driver’s side only)1
2
3
Seat position adjustment switch
Seatback angle adjustment
switch
Seat cushion (front) angle
adjustment switchVertical height adjustment
switch
Lumbar support adjustment
switch1
2
3
4
5

RAV4_OM_OM42A04U_(U)
1373-3. Adjusting the seats
3
Operation of each component
CAUTION
■When adjusting the seat position
●Take care when adjusting the seat position to ensure that other passen-
gers are not injured by the moving seat.
● Do not put your hands under the seat or near the moving parts to avoid
injury.
Fingers or hands may become jammed in the seat mechanism.
■ Seat adjustment
●To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen, or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.
● After adjusting the seat, make sure that the seat is locked in position.
(manual seat only)

138
RAV4_OM_OM42A04U_(U)
3-3. Adjusting the seats

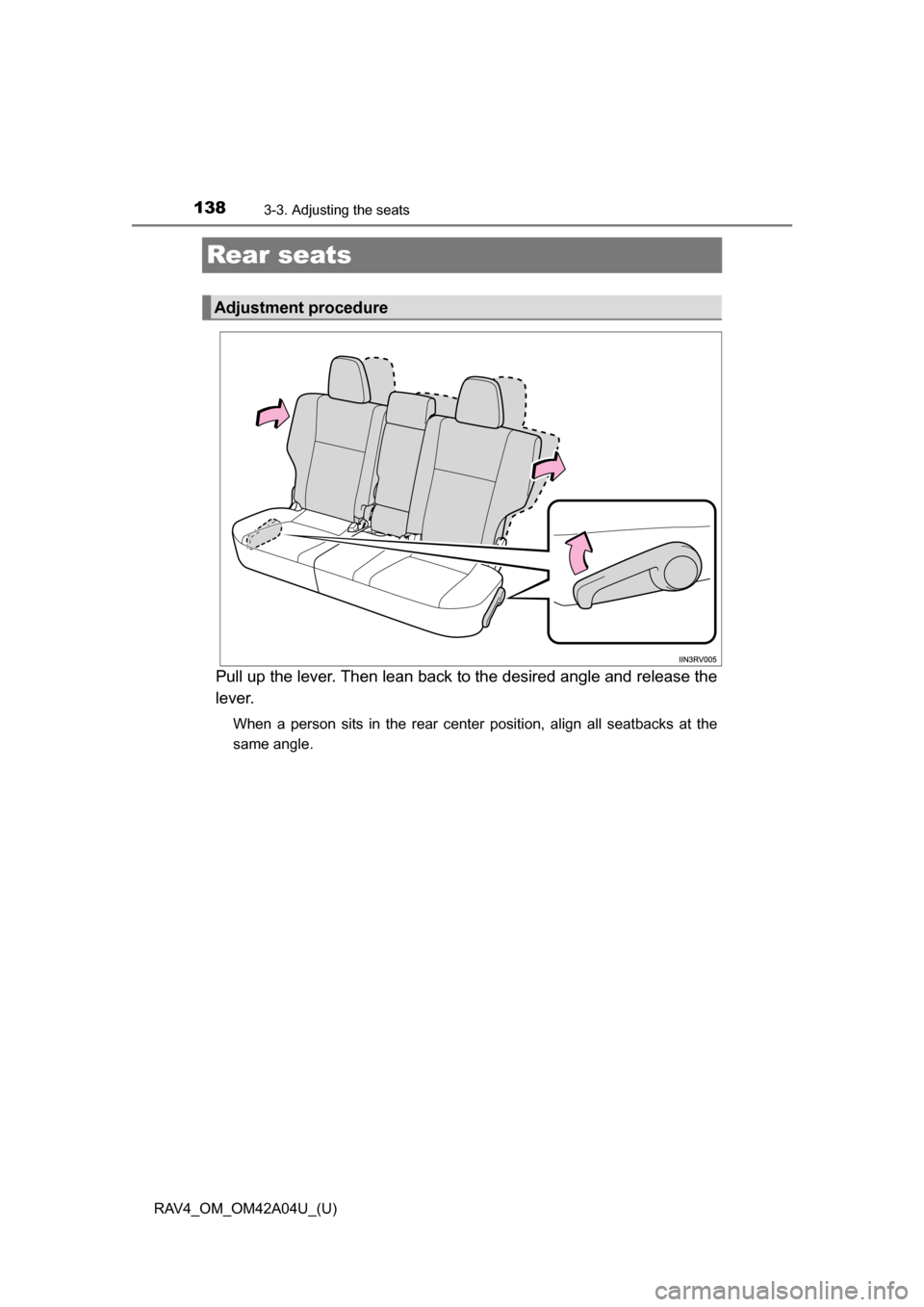

Rear seats
Pull up the lever. Then lean back to the desired angle and release the
lever.
When a person sits in the rear center position, align all seatbacks at the
same angle.
Adjustment procedure

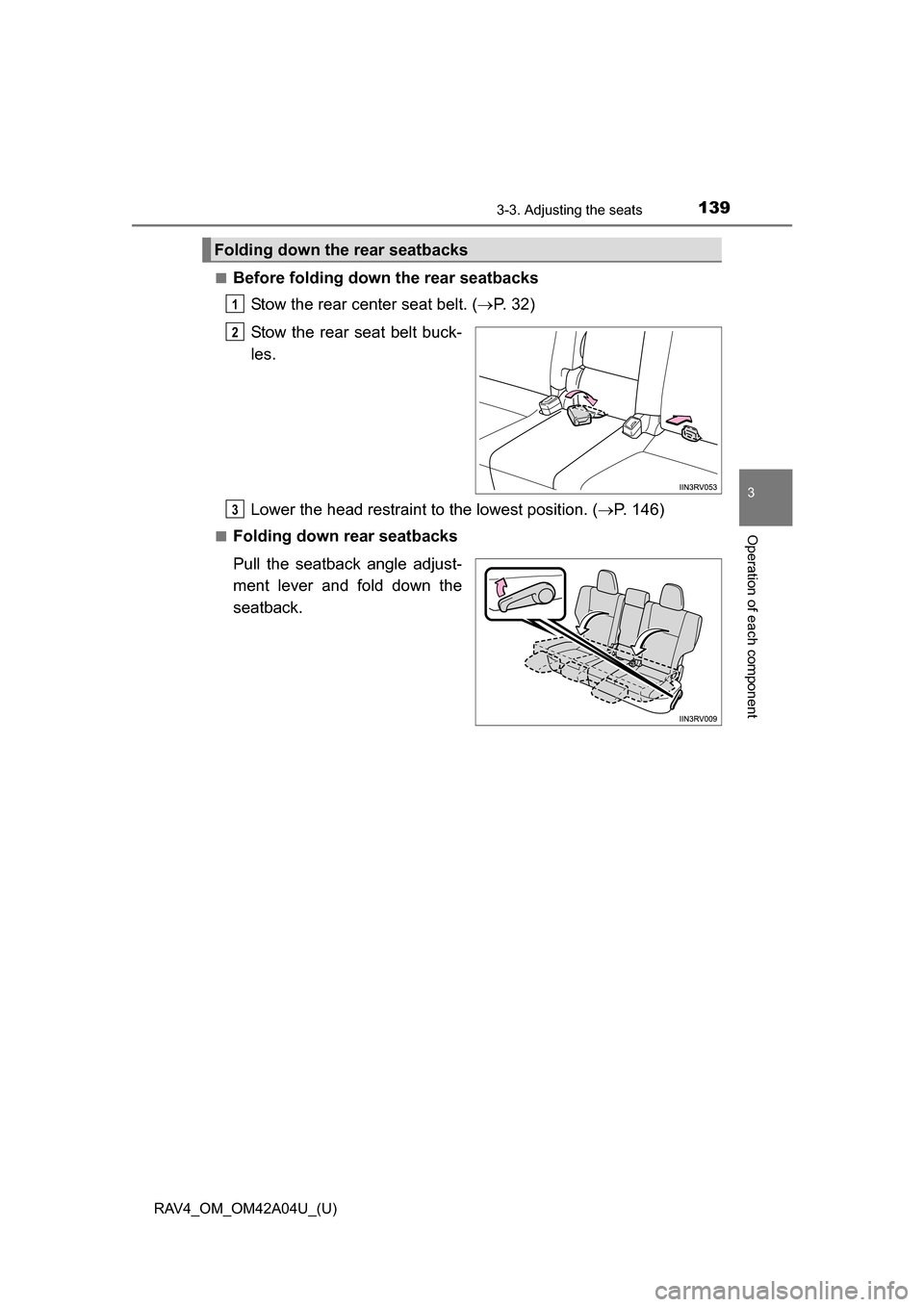

RAV4_OM_OM42A04U_(U)
1393-3. Adjusting the seats
3
Operation of each component
■Before folding down the rear seatbacksStow the rear center seat belt. ( P. 3 2 )
Stow the rear seat belt buck-
les.
Lower the head restraint to the lowest position. (P. 146)
■Folding down rear seatbacks
Pull the seatback angle adjust-
ment lever and fold down the
seatback.
Folding down the rear seatbacks
1
2
3

140

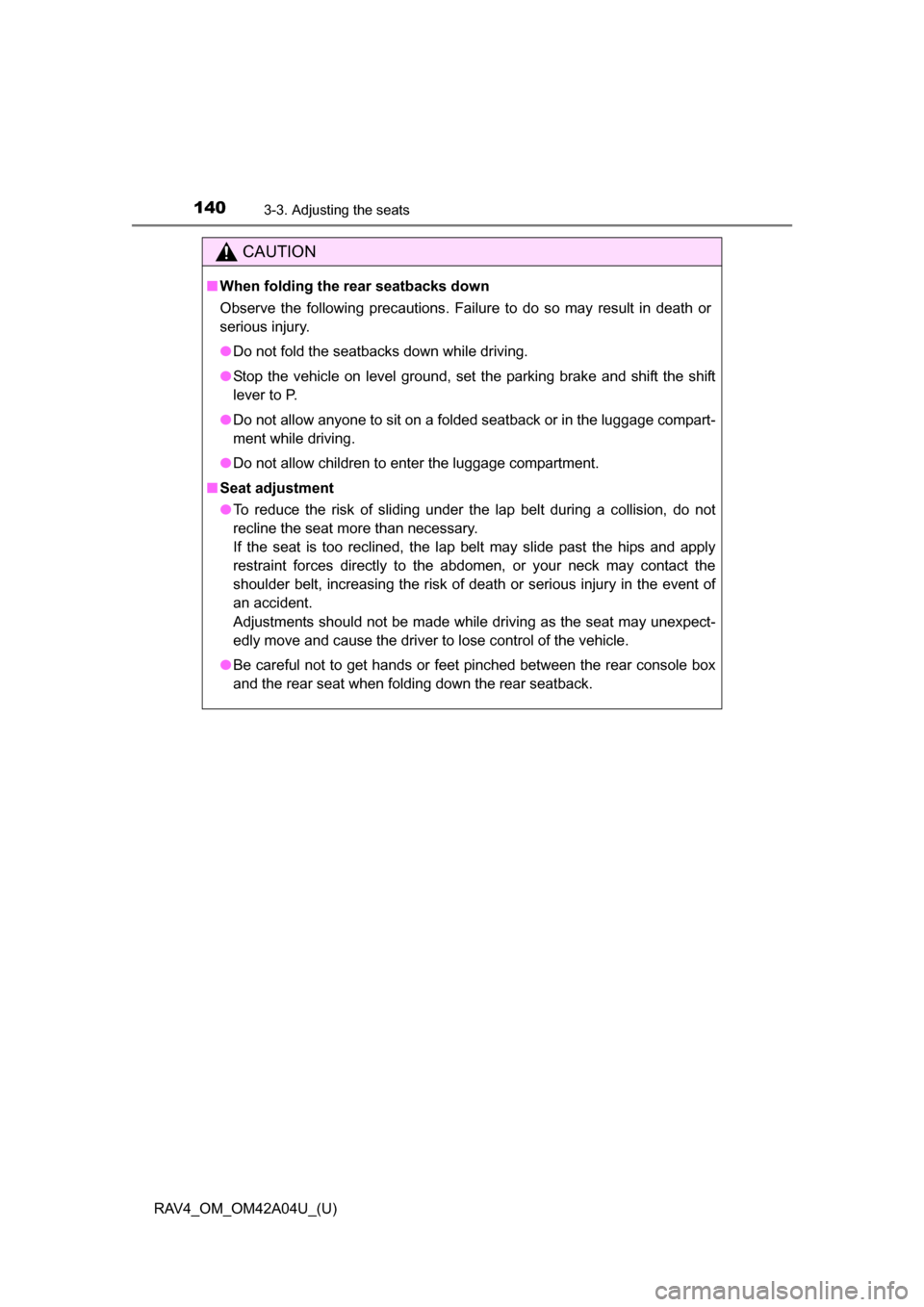

RAV4_OM_OM42A04U_(U)
3-3. Adjusting the seats
CAUTION
■When folding the rear seatbacks down
Observe the following precautions. Failure to do so may result in death or
serious injury.
●Do not fold the seatbacks down while driving.
● Stop the vehicle on level ground, set the parking brake and shift the shift
lever to P.
● Do not allow anyone to sit on a folded seatback or in the luggage compart-
ment while driving.
● Do not allow children to enter the luggage compartment.
■ Seat adjustment
●To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen, or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.
● Be careful not to get hands or feet pinched between the rear console box\
and the rear seat when folding down the rear seatback.
