Page 261 of 732

RAV4_OM_OM42A04U_(U)
2614-5. Using the driving support systems
4
Driving

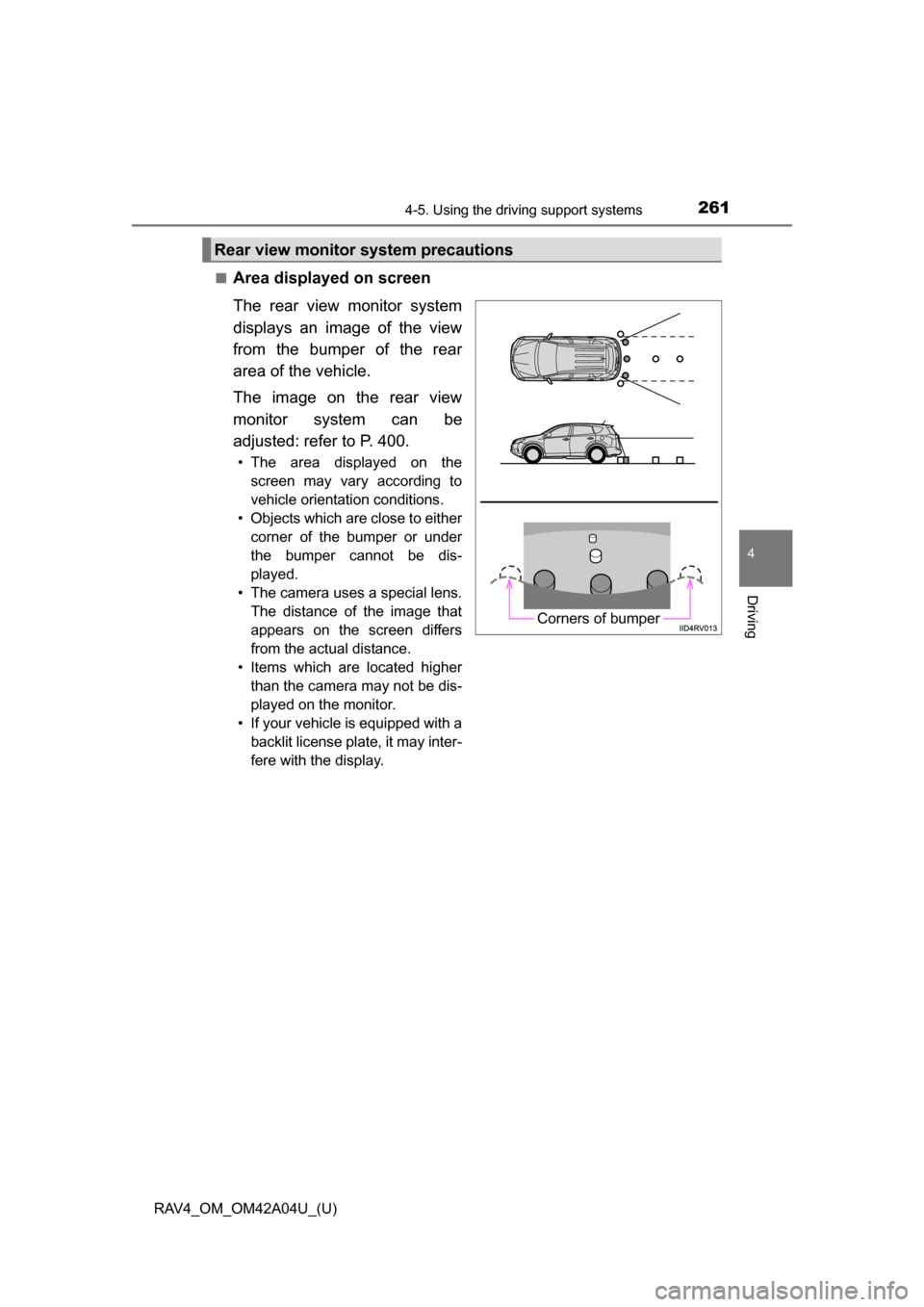

■Area displayed on screen
The rear view monitor system
displays an image of the view
from the bumper of the rear
area of the vehicle.
The image on the rear view
monitor system can be
adjusted: refer to P. 400.
• The area displayed on thescreen may vary according to
vehicle orientation conditions.
• Objects which are close to either corner of the bumper or under
the bumper cannot be dis-
played.
• The camera uses a special lens. The distance of the image that
appears on the screen differs
from the actual distance.
• Items which are located higher than the camera may not be dis-
played on the monitor.
• If your vehicle is equipped with a backlit license plate, it may inter-
fere with the display.
Rear view monitor system precautions
Corners of bumper
Page 262 of 732

262
RAV4_OM_OM42A04U_(U)
4-5. Using the driving support systems

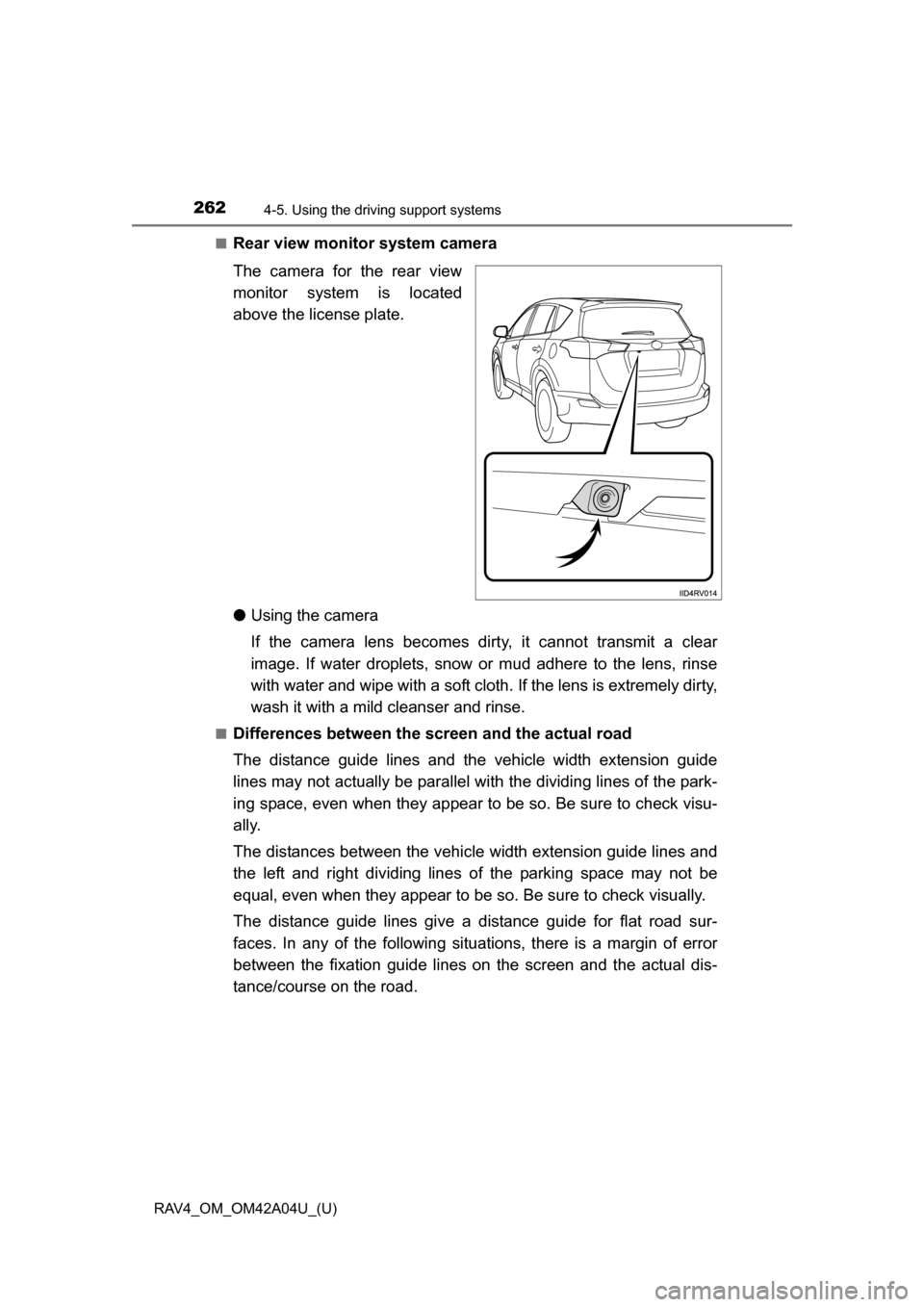

■Rear view monitor system camera
The camera for the rear view
monitor system is located
above the license plate.
●Using the camera
If the camera lens becomes dirt y, it cannot transmit a clear
image. If water droplets, snow or mud adhere to the lens, rinse
with water and wipe with a soft cloth. If the lens is extremely dirty,
wash it with a mild cleanser and rinse.
■Differences between the screen and the actual road
The distance guide lines and the vehicle width extension guide
lines may not actually be parallel wi th the dividing lines of the park-
ing space, even when they appear to be so. Be sure to check visu-
ally.
The distances between the vehicle width extension guide lines and
the left and right dividing lines of the parking space may not be
equal, even when they appear to be so. Be sure to check visually.
The distance guide lines give a distance guide for flat road sur-
faces. In any of the following situations, there is a margin of error
between the fixation guide lines on the screen and the actual dis-
tance/course on the road.
Page 263 of 732

RAV4_OM_OM42A04U_(U)
2634-5. Using the driving support systems
4
Driving

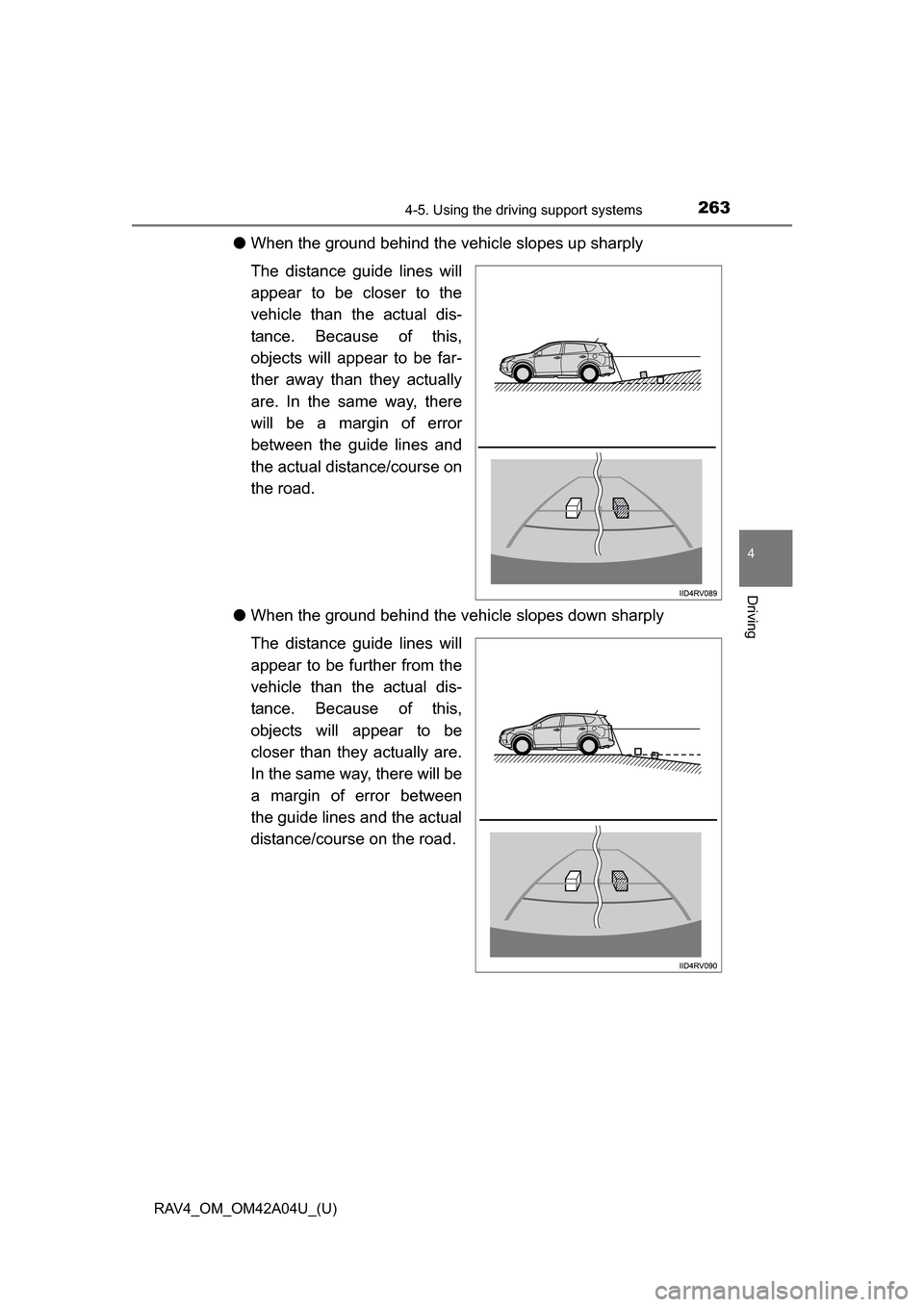

●When the ground behind the vehicle slopes up sharply
The distance guide lines will
appear to be closer to the
vehicle than the actual dis-
tance. Because of this,
objects will appear to be far-
ther away than they actually
are. In the same way, there
will be a margin of error
between the guide lines and
the actual dist ance/course on
the road.
● When the ground behind the vehi cle slopes down sharply
The distance guide lines will
appear to be further from the
vehicle than the actual dis-
tance. Because of this,
objects will appear to be
closer than they actually are.
In the same way, there will be
a margin of error between
the guide lines and the actual
distance/course on the road.

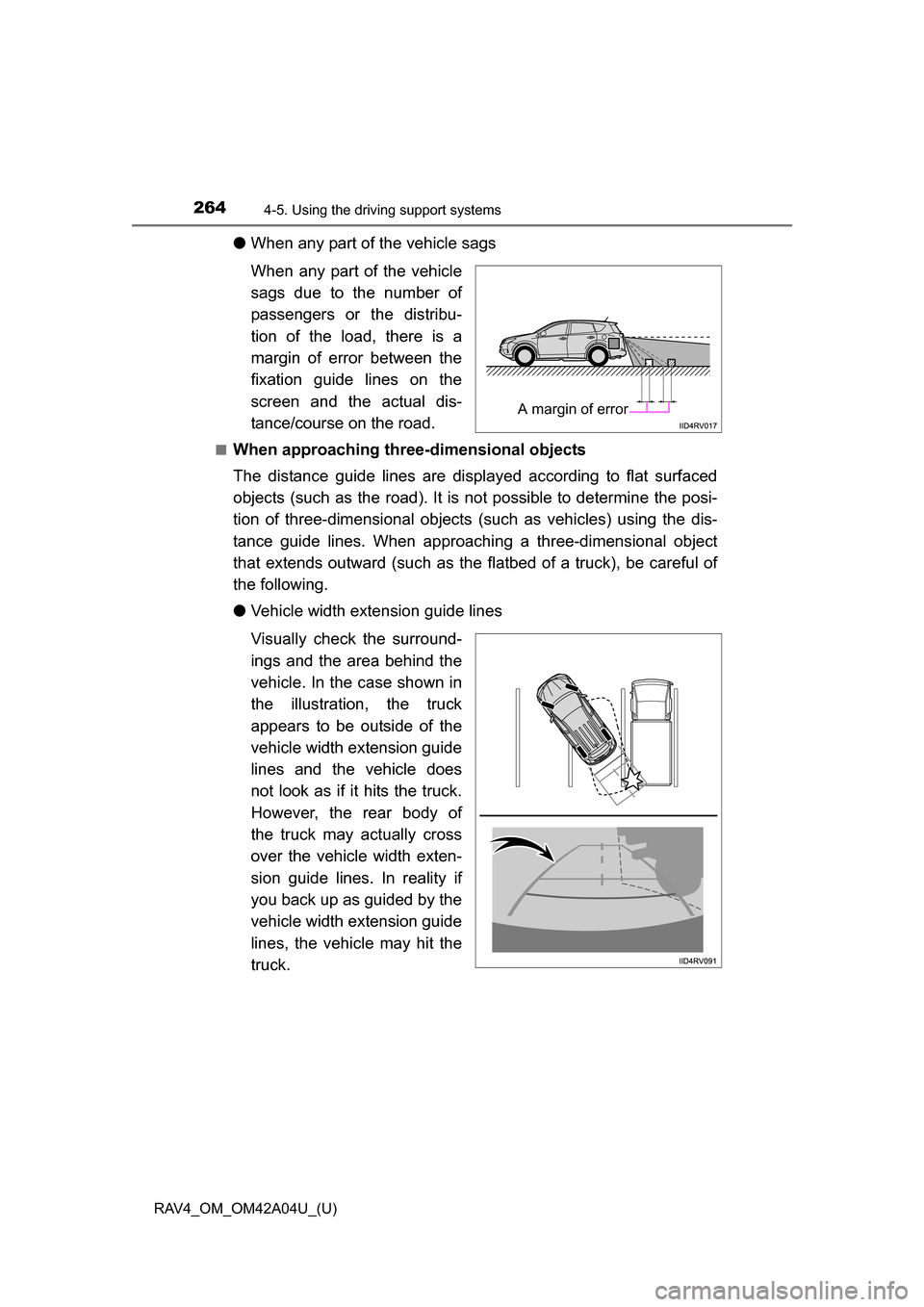

Page 264 of 732

264
RAV4_OM_OM42A04U_(U)
4-5. Using the driving support systems
●When any part of the vehicle sags
When any part of the vehicle
sags due to the number of
passengers or the distribu-
tion of the load, there is a
margin of error between the
fixation guide lines on the
screen and the actual dis-
tance/course on the road.
■When approaching thre e-dimensional objects
The distance guide lines are displa yed according to flat surfaced
objects (such as the road). It is not possible to determine the posi-
tion of three-dimensional objects (such as vehicles) using the dis-
tance guide lines. When approachi ng a three-dimensional object
that extends outward (such as the flatbed of a truck), be careful of
the following.
● Vehicle width extension guide lines
Visually check the surround-
ings and the area behind the
vehicle. In the case shown in
the illustration , the truck
appears to be outside of the
vehicle width extension guide
lines and the vehicle does
not look as if it hits the truck.
However, the rear body of
the truck may actually cross
over the vehicle width exten-
sion guide lines. In reality if
you back up as guided by the
vehicle width extension guide
lines, the vehicle may hit the
truck.
A margin of error
Page 265 of 732

RAV4_OM_OM42A04U_(U)
2654-5. Using the driving support systems
4
Driving

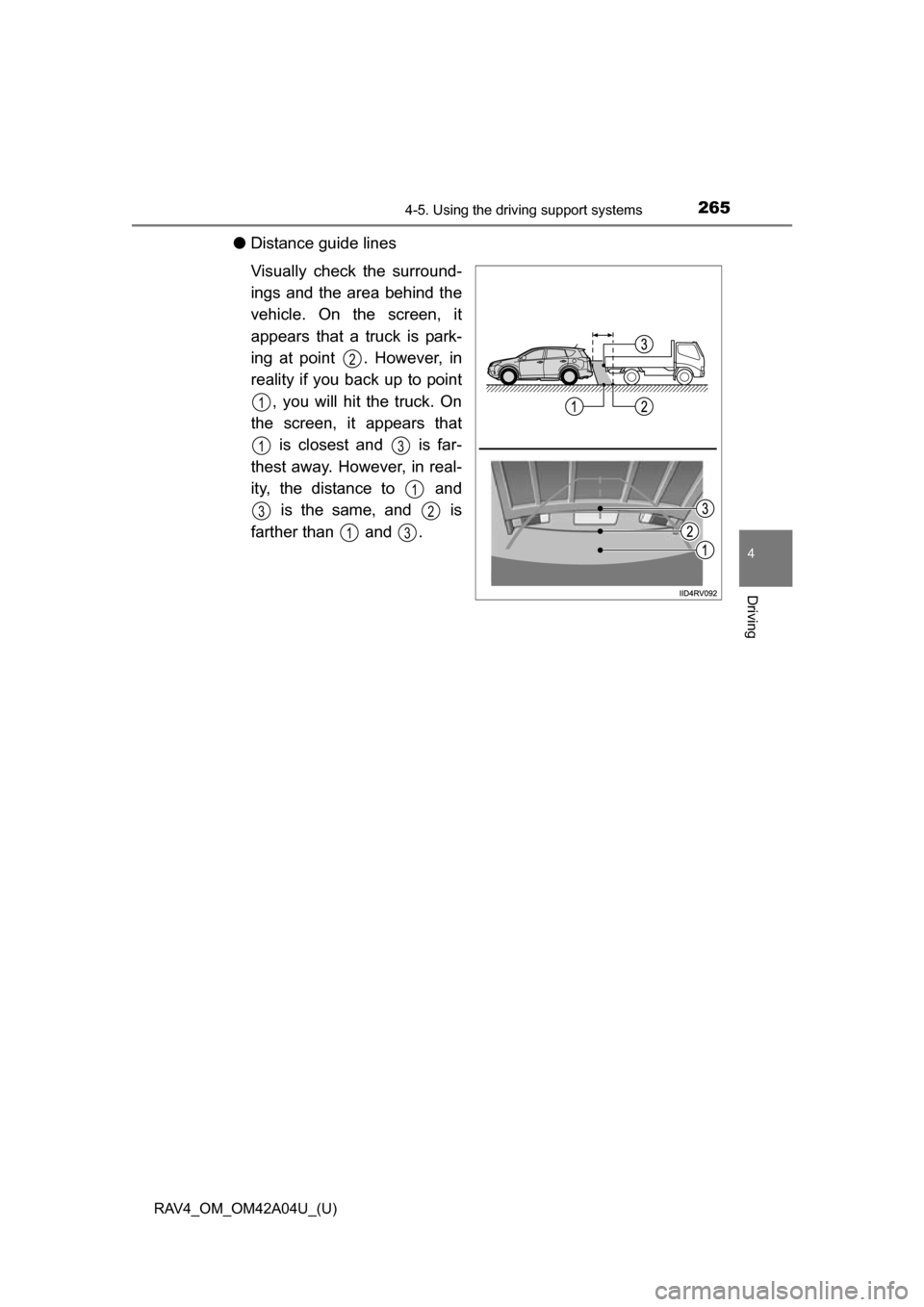

●Distance guide lines
Visually check the surround-
ings and the area behind the
vehicle. On the screen, it
appears that a truck is park-
ing at point . However, in
reality if you back up to point
, you will hit the truck. On
the screen, it appears that is closest and is far-
thest away. However, in real-
ity, the distance to and is the same, and is
farther than and .
2
1
13
1
32
13
Page 266 of 732

266
RAV4_OM_OM42A04U_(U)
4-5. Using the driving support systems

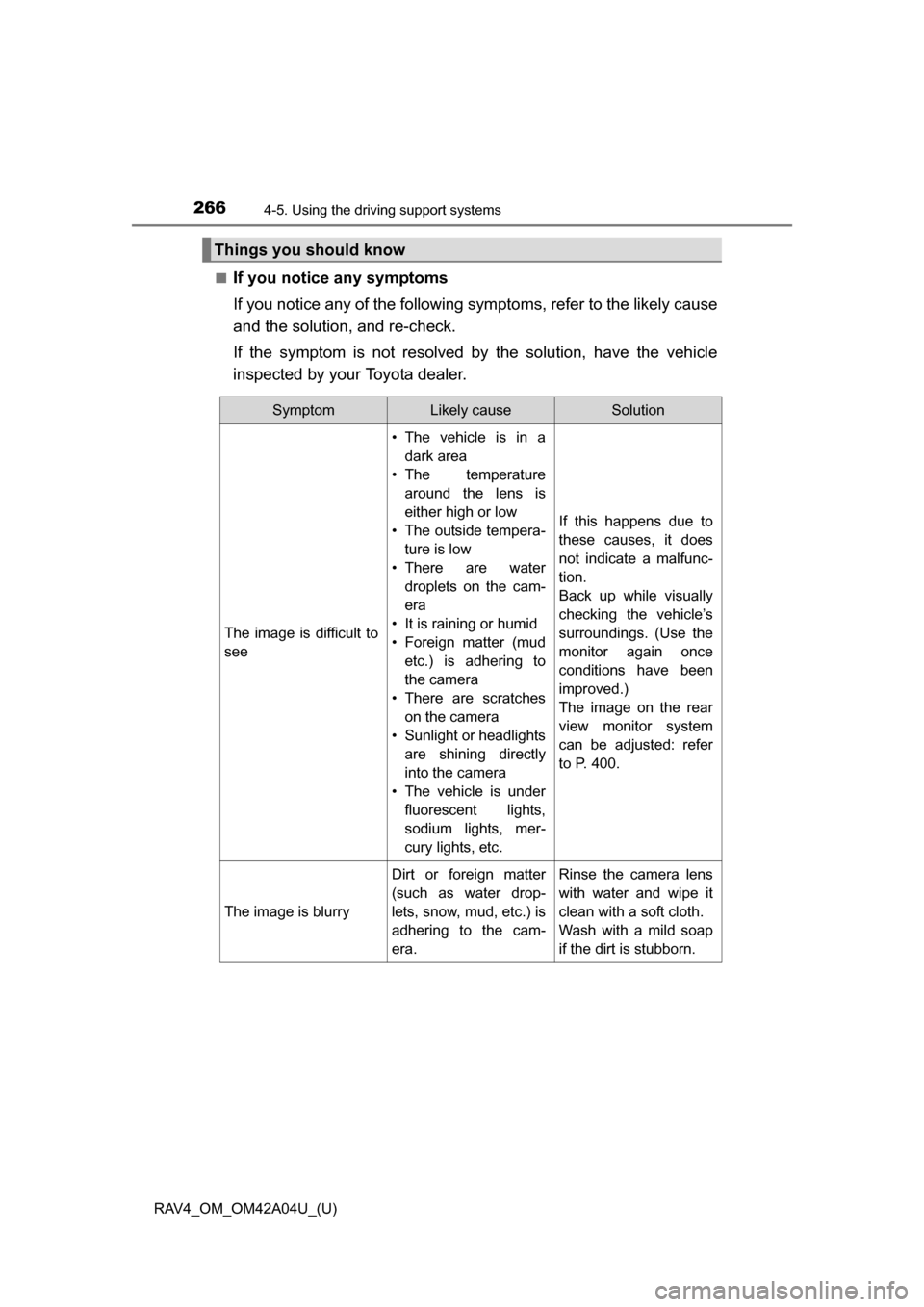

■If you notice any symptoms
If you notice any of the following symptoms, refer to the likely cause
and the solution, and re-check.
If the symptom is not resolved by the solution, have the vehicle
inspected by your Toyota dealer.
Things you should know
SymptomLikely causeSolution
The image is difficult to
see
• The vehicle is in a dark area
• The temperature around the lens is
either high or low
• The outside tempera- ture is low
• There are water droplets on the cam-
era
• It is raining or humid
• Foreign matter (mud etc.) is adhering to
the camera
• There are scratches on the camera
• Sunlight or headlights are shining directly
into the camera
• The vehicle is under fluorescent lights,
sodium lights, mer-
cury lights, etc.
If this happens due to
these causes, it does
not indicate a malfunc-
tion.
Back up while visually
checking the vehicle’s
surroundings. (Use the
monitor again once
conditions have been
improved.)
The image on the rear
view monitor system
can be adjusted: refer
to P. 400.
The image is blurry
Dirt or foreign matter
(such as water drop-
lets, snow, mud, etc.) is
adhering to the cam-
era.Rinse the camera lens
with water and wipe it
clean with a soft cloth.
Wash with a mild soap
if the dirt is stubborn.

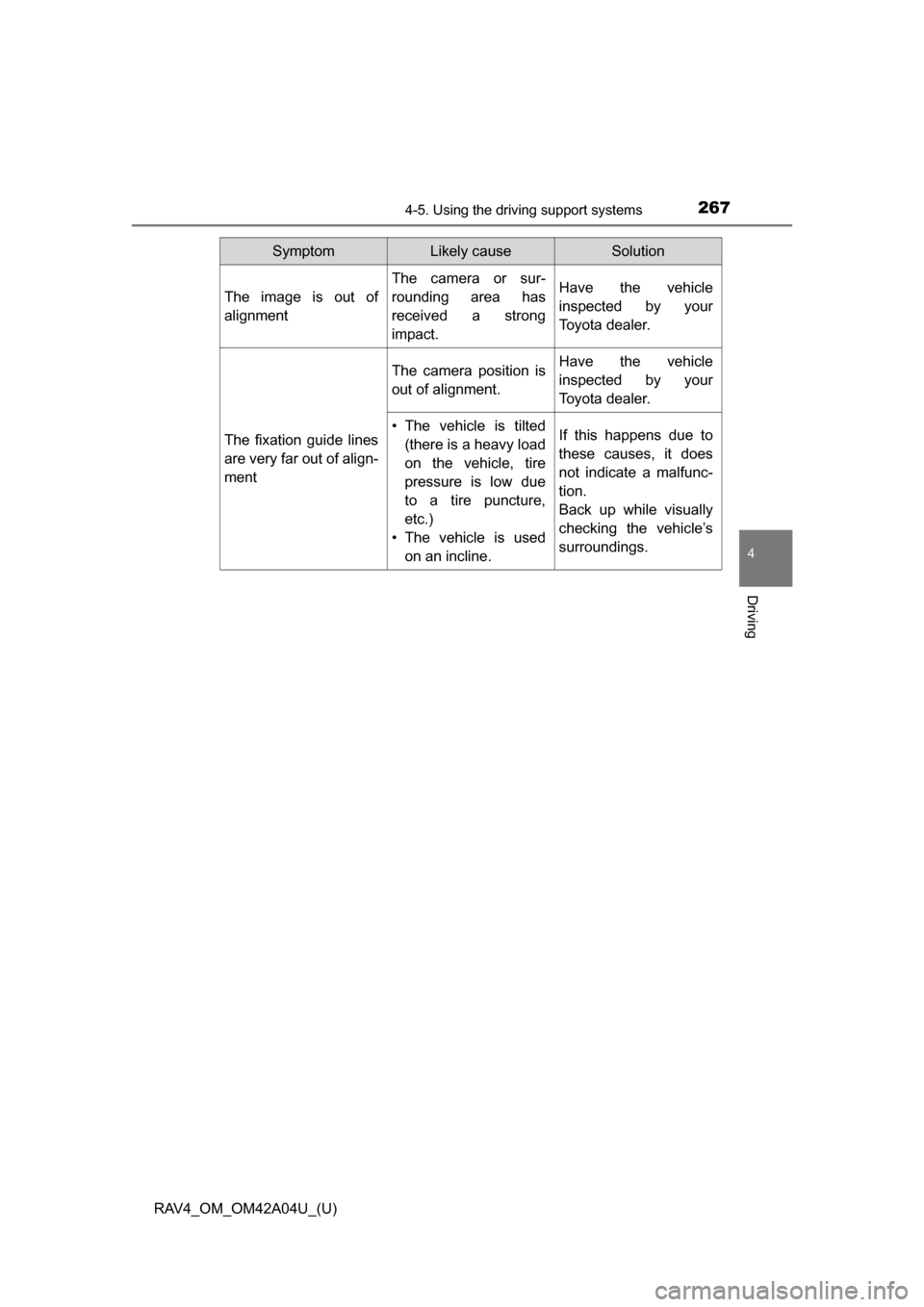

Page 267 of 732

RAV4_OM_OM42A04U_(U)
2674-5. Using the driving support systems
4
Driving
The image is out of
alignment
The camera or sur-
rounding area has
received a strong
impact.Have the vehicle
inspected by your
Toyota dealer.
The fixation guide lines
are very far out of align-
ment
The camera position is
out of alignment.Have the vehicle
inspected by your
Toyota dealer.
• The vehicle is tilted(there is a heavy load
on the vehicle, tire
pressure is low due
to a tire puncture,
etc.)
• The vehicle is used on an incline.If this happens due to
these causes, it does
not indicate a malfunc-
tion.
Back up while visually
checking the vehicle’s
surroundings.
SymptomLikely causeSolution
Page 268 of 732

268
RAV4_OM_OM42A04U_(U)
4-5. Using the driving support systems

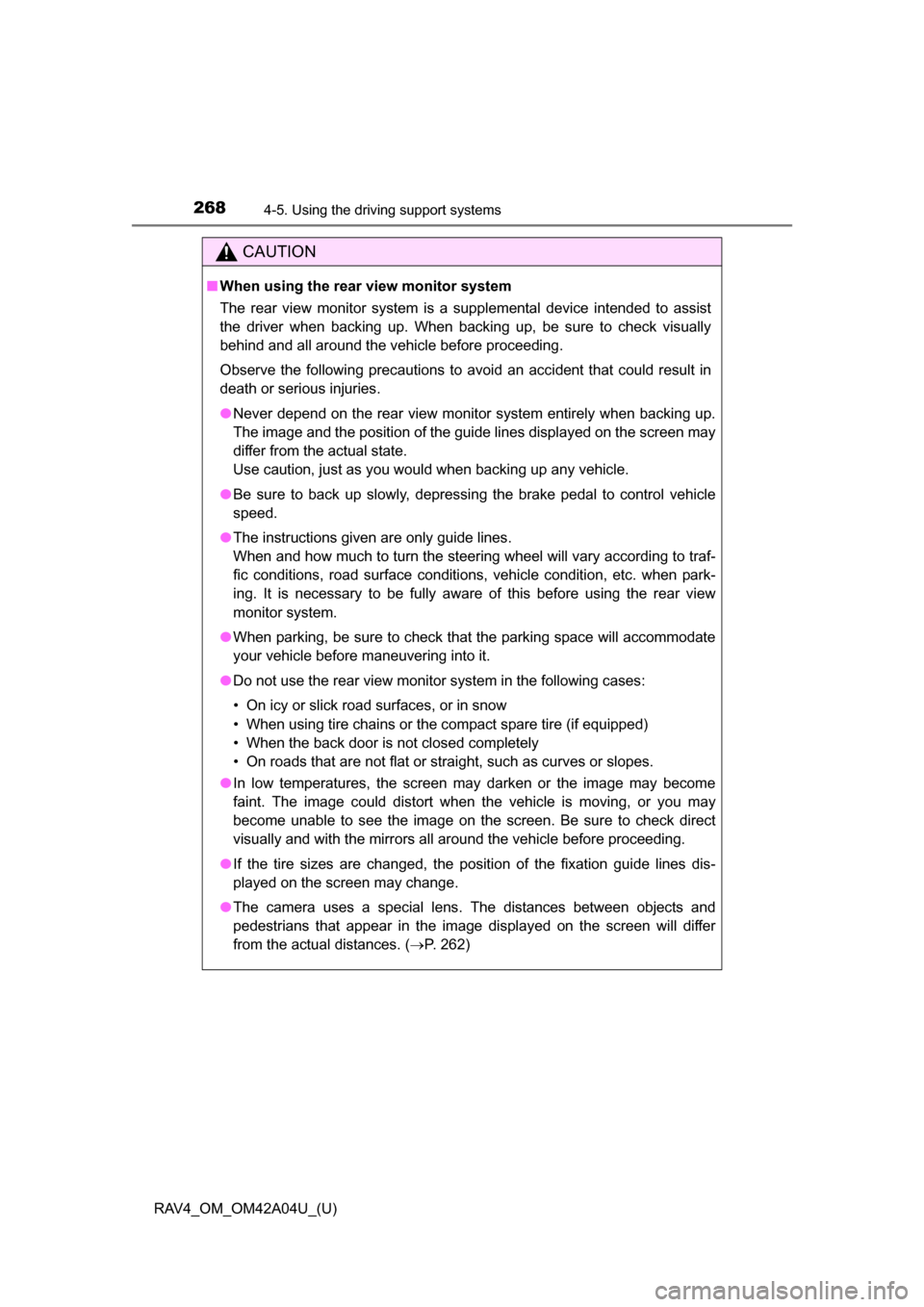

CAUTION
■When using the rear view monitor system
The rear view monitor system is a supplemental device intended to assist
the driver when backing up. When backing up, be sure to check visually
behind and all around the vehicle before proceeding.
Observe the following precautions to avoid an accident that could result in
death or serious injuries.
● Never depend on the rear view monitor system entirely when backing up.
The image and the position of the guide lines displayed on the screen may
differ from the actual state.
Use caution, just as you would when backing up any vehicle.
● Be sure to back up slowly, depressing the brake pedal to control vehicle
speed.
● The instructions given are only guide lines.
When and how much to turn the steering wheel will vary according to traf-
fic conditions, road surface conditions, vehicle condition, etc. when park-
ing. It is necessary to be fully aware of this before using the rear view
monitor system.
● When parking, be sure to check that the parking space will accommodate
your vehicle before maneuvering into it.
● Do not use the rear view monitor system in the following cases:
• On icy or slick road surfaces, or in snow
• When using tire chains or the compact spare tire (if equipped)
• When the back door is not closed completely
• On roads that are not flat or straight, such as curves or slopes.
● In low temperatures, the screen may darken or the image may become
faint. The image could distort when the vehicle is moving, or you may
become unable to see the image on the screen. Be sure to check direct
visually and with the mirrors all around the vehicle before proceeding.
● If the tire sizes are changed, the position of the fixation guide lines dis-
played on the screen may change.
● The camera uses a special lens. The distances between objects and
pedestrians that appear in the image displayed on the screen will differ
from the actual distances. ( P. 262)
Page 269 of 732

RAV4_OM_OM42A04U_(U)
2694-5. Using the driving support systems
4
Driving

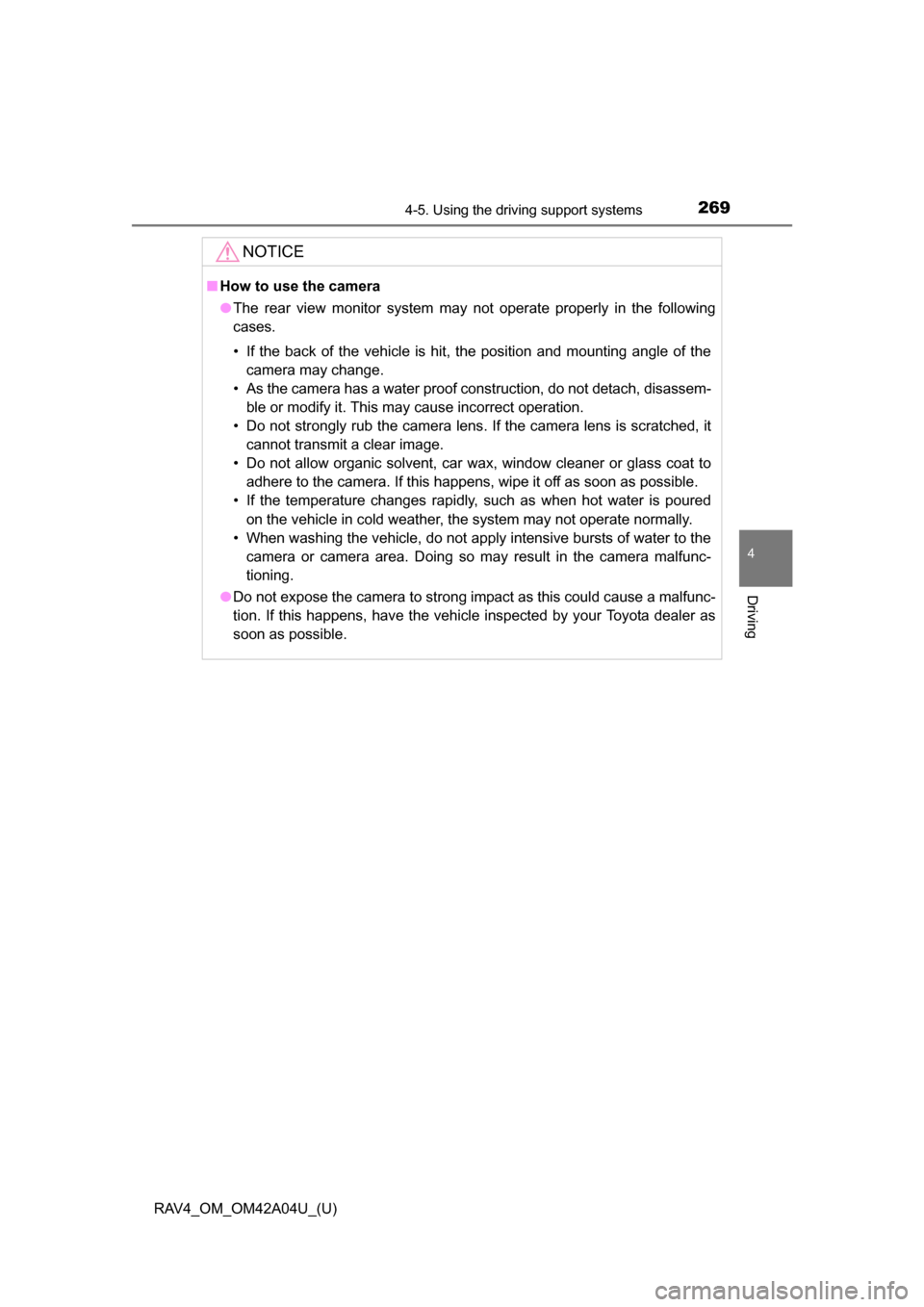

NOTICE
■How to use the camera
●The rear view monitor system may not operate properly in the following
cases.
• If the back of the vehicle is hit, the position and mounting angle of the
camera may change.
• As the camera has a water proof construction, do not detach, disassem- ble or modify it. This may cause incorrect operation.
• Do not strongly rub the camera lens. If the camera lens is scratched, it cannot transmit a clear image.
• Do not allow organic solvent, car wax, window cleaner or glass coat to adhere to the camera. If this happens, wipe it off as soon as possible.
• If the temperature changes rapidly, such as when hot water is poured on the vehicle in cold weather, the system may not operate normally.
• When washing the vehicle, do not apply intensive bursts of water to the camera or camera area. Doing so may result in the camera malfunc-
tioning.
● Do not expose the camera to strong impact as this could cause a malfunc-
tion. If this happens, have the vehicle inspected by your Toyota dealer as
soon as possible.
Page 270 of 732

270
RAV4_OM_OM42A04U_(U)
4-5. Using the driving support systems

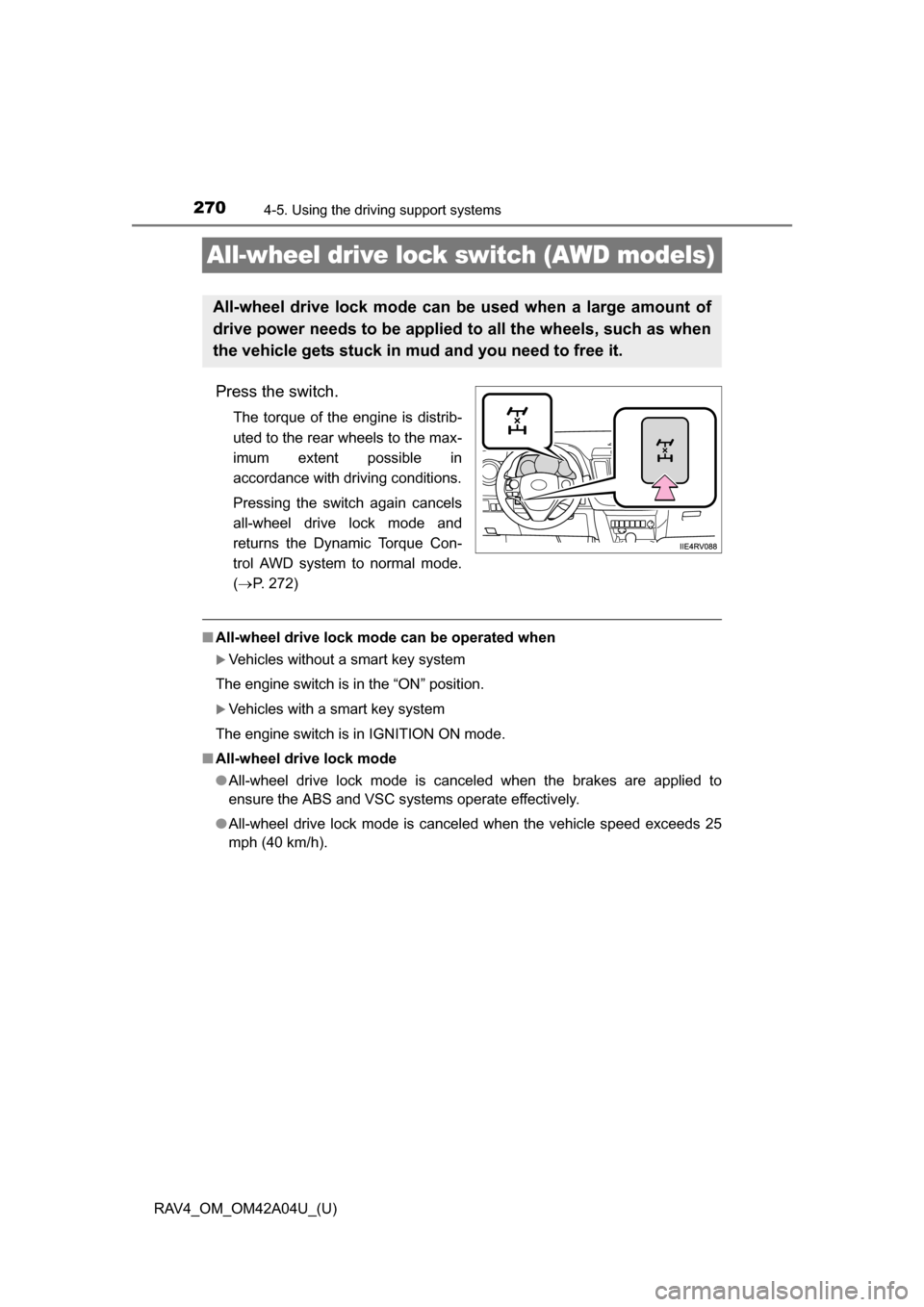

All-wheel drive lock switch (AWD models)
Press the switch.
The torque of the engine is distrib-
uted to the rear wheels to the max-
imum extent possible in
accordance with driving conditions.
Pressing the switch again cancels
all-wheel drive lock mode and
returns the Dynamic Torque Con-
trol AWD system to normal mode.
( P. 272)
■All-wheel drive lock mode can be operated when
Vehicles without a smart key system
The engine switch is in the “ON” position.
Vehicles with a smart key system
The engine switch is in IGNITION ON mode.
■ All-wheel drive lock mode
●All-wheel drive lock mode is canceled when the brakes are applied to
ensure the ABS and VSC systems operate effectively.
● All-wheel drive lock mode is cancel ed when the vehicle speed exceeds 25
mph (40 km/h).
All-wheel drive lock mode can be used when a large amount of
drive power needs to be applied to all the wheels, such as when
the vehicle gets stuck in mud and you need to free it.
