TOYOTA RAV4 2014 XA40 / 4.G Owners Manual

RAV4_OM_OM42A04U_(U)

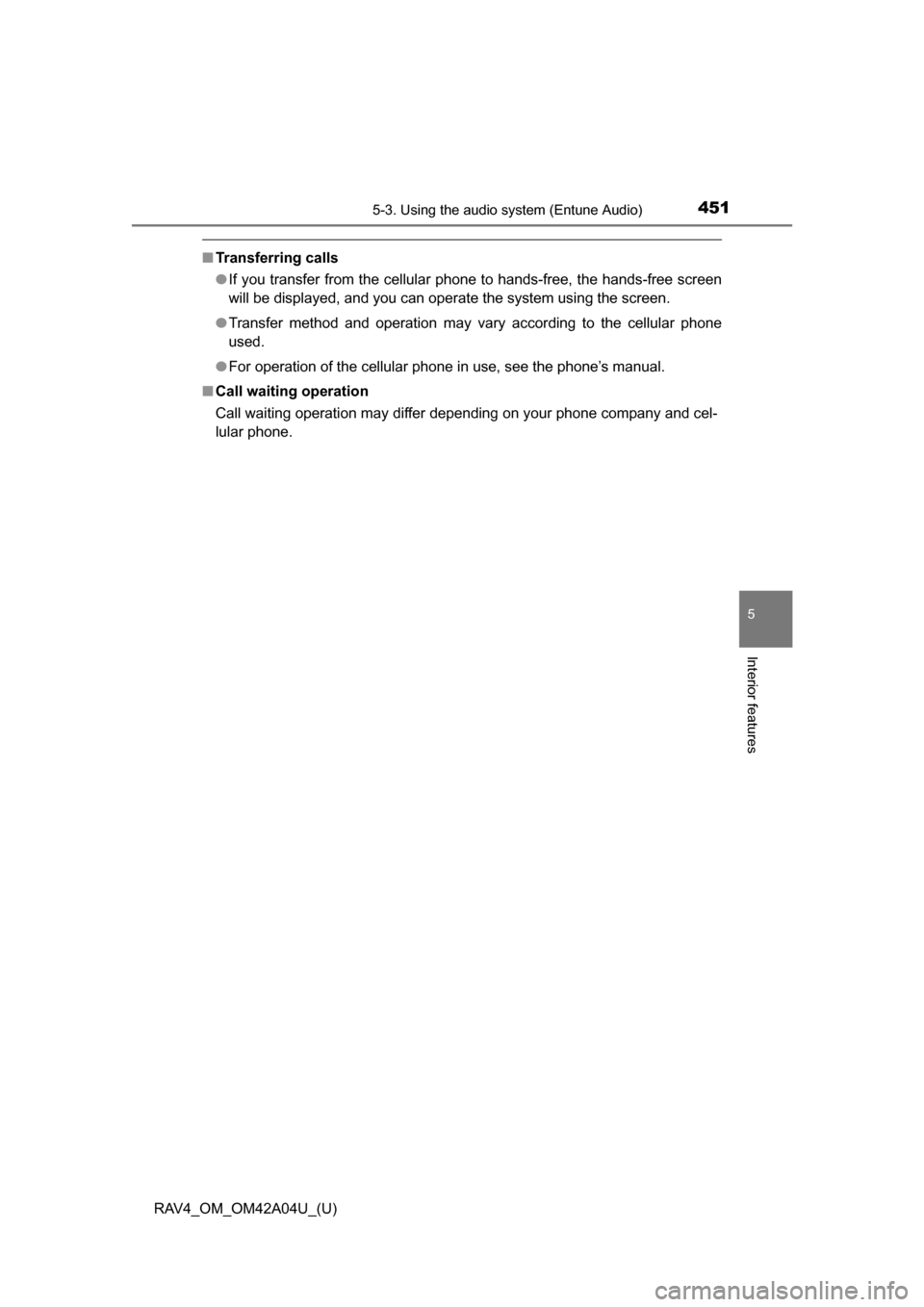

4515-3. Using the audio system (Entune Audio)
5
Interior features
■Transferring calls
●If you transfer from the cellular phone to hands-free, the hands-free screen
will be displayed, and you can operate the system using the screen.
● Transfer method and operation may vary according to the cellular phone
used.
● For operation of the cellular phone in use, see the phone’s manual.
■ Call waiting operation
Call waiting operation may differ depending on your phone company and cel-
lular phone.

452
RAV4_OM_OM42A04U_(U)
5-3. Using the audio system (Entune Audio)

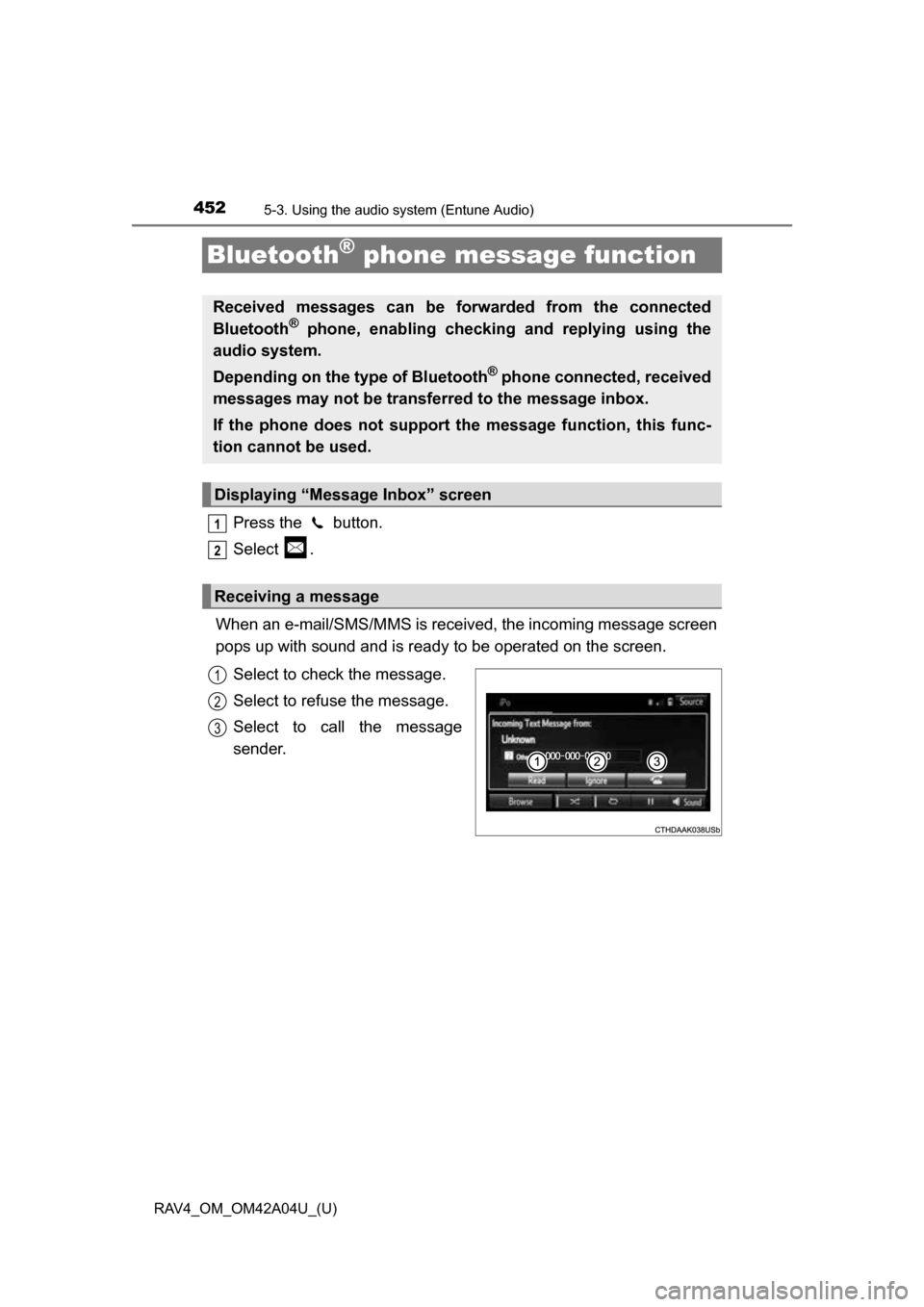

Bluetooth® phone message function
Press the button.
Select .
When an e-mail/SMS/MMS is received, the incoming message screen
pops up with sound and is ready to be operated on the screen. Select to check the message.
Select to refuse the message.
Select to call the message
sender.
Received messages can be forwarded from the connected
Bluetooth® phone, enabling checking and replying using the
audio system.
Depending on the type of Bluetooth
® phone connected, received
messages may not be transf erred to the message inbox.
If the phone does not support the message function, this func-
tion cannot be used.
Displaying “Message Inbox” screen
Receiving a message
1
2
1
2
3

RAV4_OM_OM42A04U_(U)

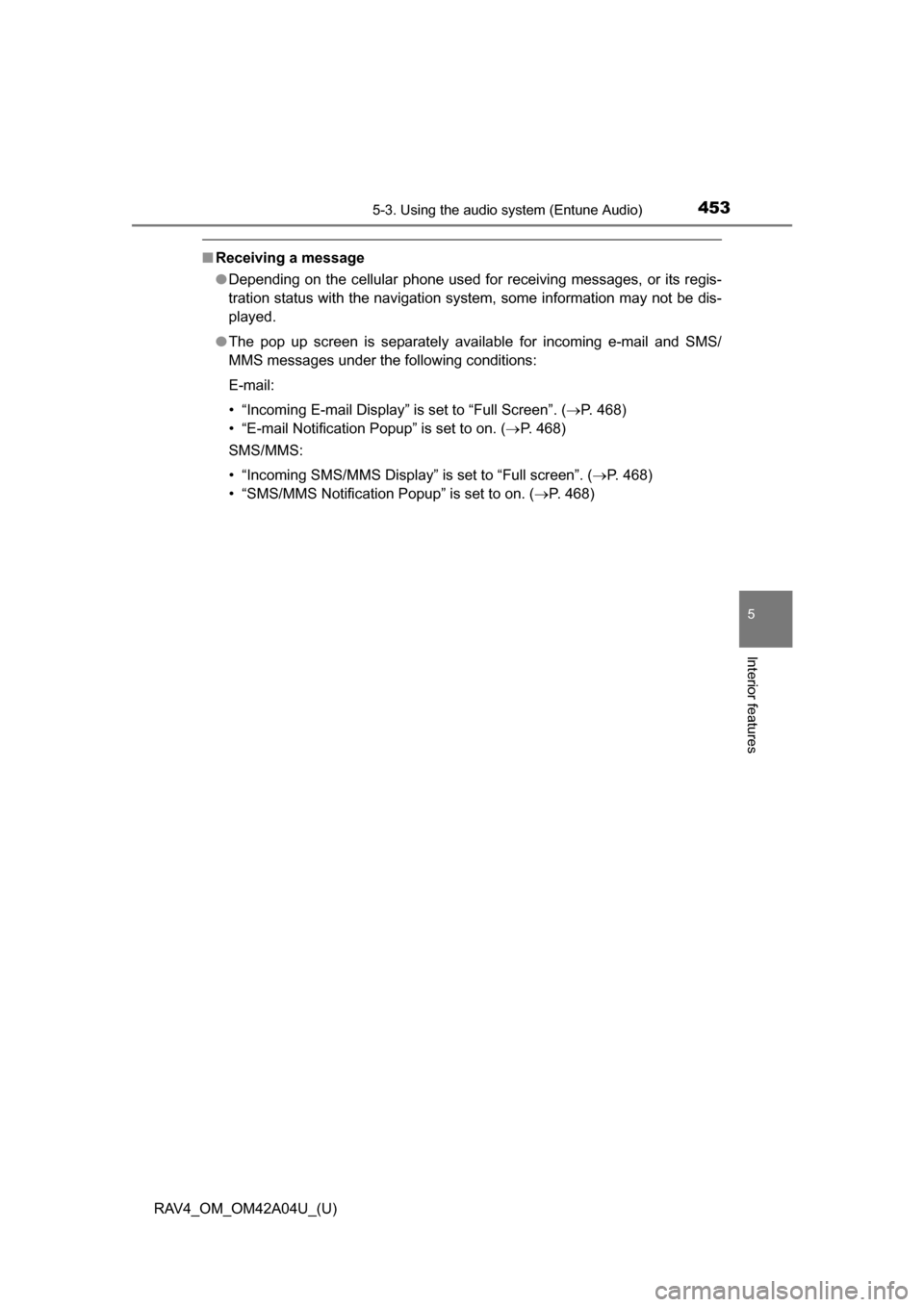

4535-3. Using the audio system (Entune Audio)
5
Interior features
■Receiving a message
●Depending on the cellular phone used for receiving messages, or its regis-
tration status with the navigation system, some information may not be dis-
played.
● The pop up screen is separately available for incoming e-mail and SMS/
MMS messages under the following conditions:
E-mail:
• “Incoming E-mail Display” is set to “Full Screen”. ( P. 468)
• “E-mail Notification Popup” is set to on. ( P. 468)
SMS/MMS:
• “Incoming SMS/MMS Display” is set to “Full screen”. (P. 468)
• “SMS/MMS Notification Popup” is set to on. ( P. 468)

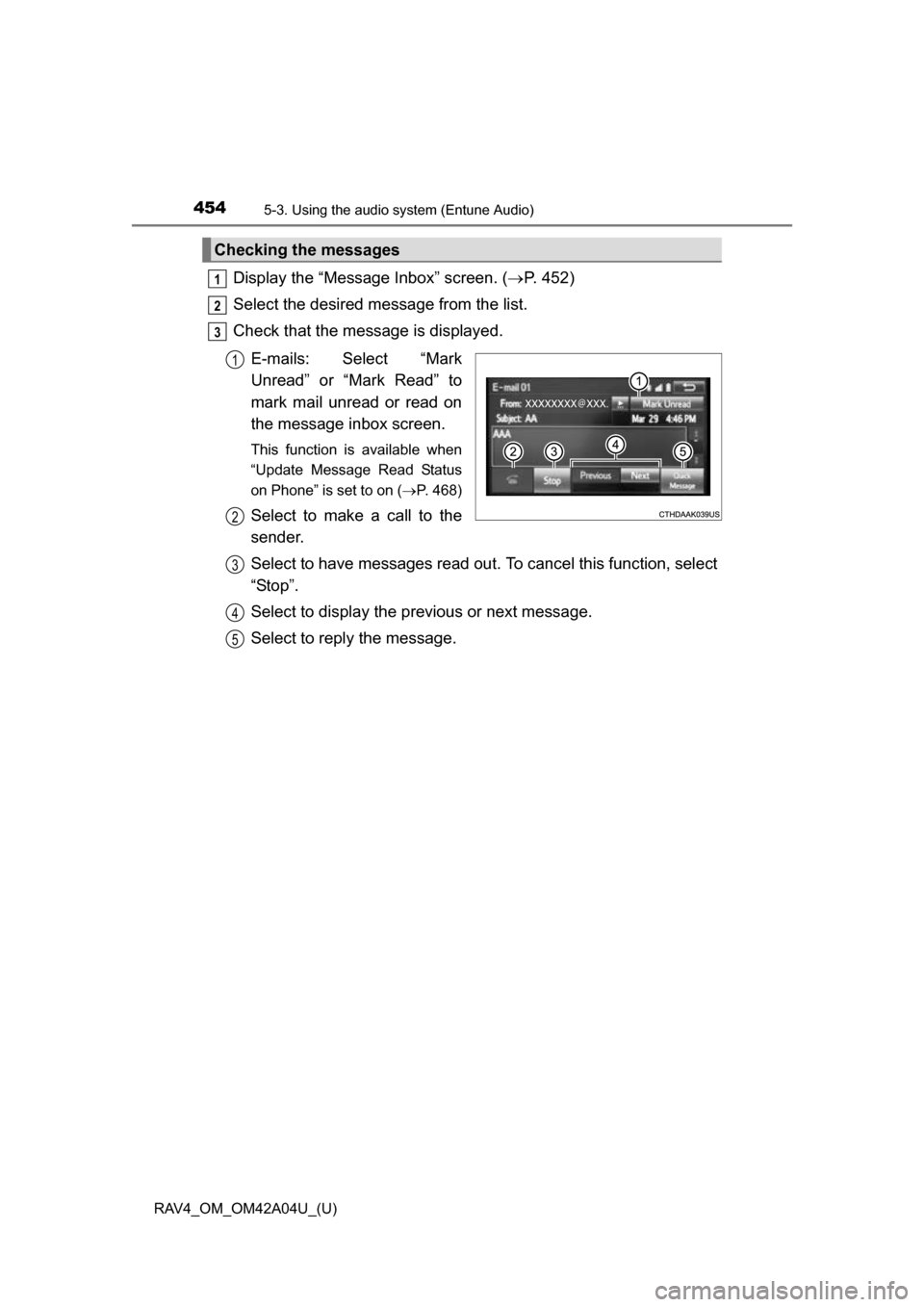

454
RAV4_OM_OM42A04U_(U)
5-3. Using the audio system (Entune Audio)
Display the “Message Inbox” screen. ( P. 452)
Select the desired message from the list.
Check that the message is displayed.
E-mails: Select “Mark
Unread” or “Mark Read” to
mark mail unread or read on
the message inbox screen.
This function is available when
“Update Message Read Status
on Phone” is set to on ( P. 468)
Select to make a call to the
sender.
Select to have messages read out. To cancel this function, select
“Stop”.
Select to display the previous or next message.
Select to reply the message.
Checking the messages
1
2
3
1
2
3
4
5

RAV4_OM_OM42A04U_(U)

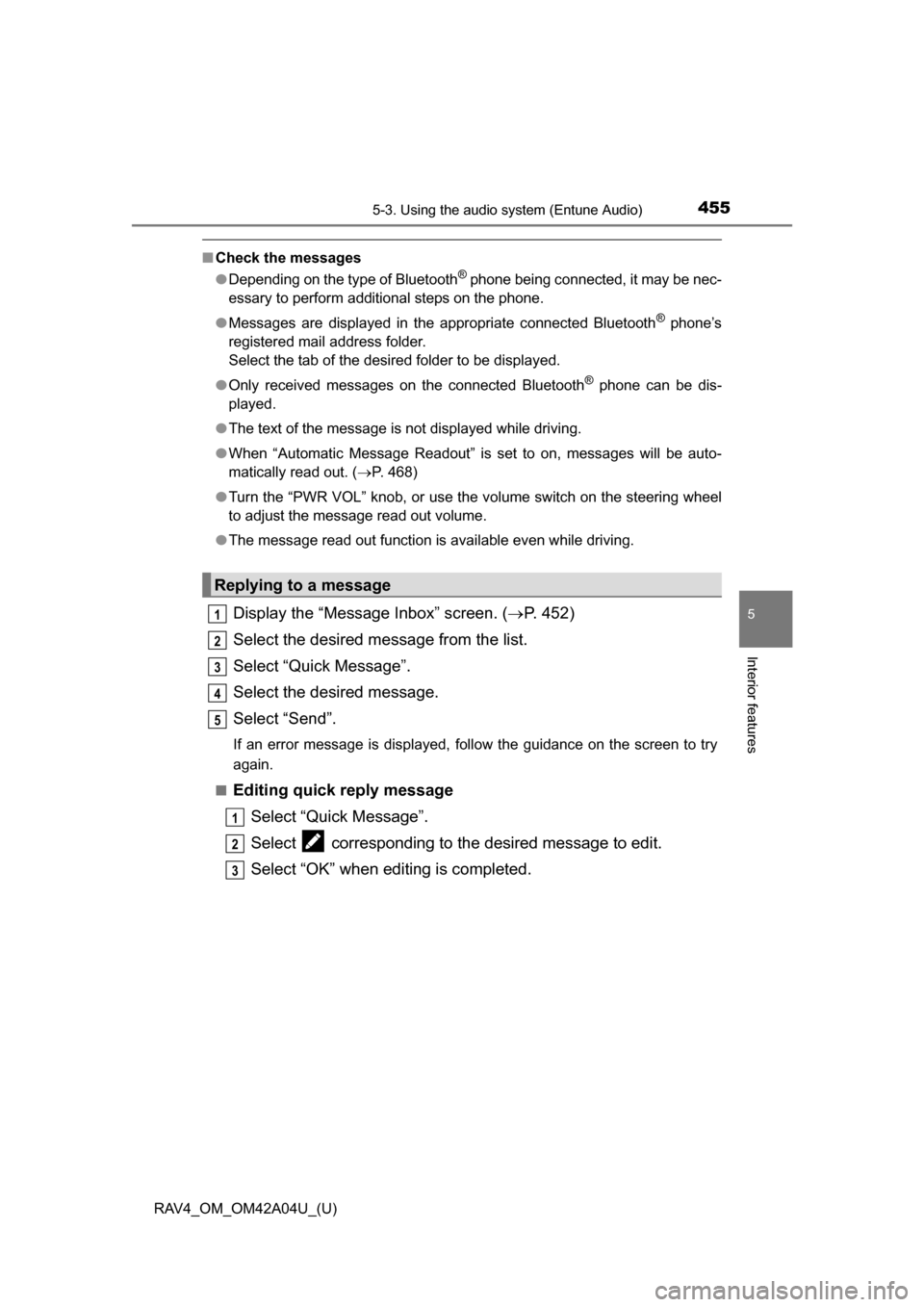

4555-3. Using the audio system (Entune Audio)
5
Interior features
■Check the messages
●Depending on the type of Bluetooth
® phone being connected, it may be nec-
essary to perform additional steps on the phone.
● Messages are displayed in the appropriate connected Bluetooth
® phone’s
registered mail address folder.
Select the tab of the desired folder to be displayed.
● Only received messages on the connected Bluetooth
® phone can be dis-
played.
● The text of the message is not displayed while driving.
● When “Automatic Message Readout” is set to on, messages will be auto-
matically read out. ( P. 468)
● Turn the “PWR VOL” knob, or use the volume switch on the steering wheel
to adjust the message read out volume.
● The message read out function is available even while driving.
Display the “Message Inbox” screen. ( P. 452)
Select the desired message from the list.
Select “Quick Message”.
Select the desired message.
Select “Send”.
If an error message is displayed, follow the guidance on the screen to try
again.
■
Editing quick reply message Select “Quick Message”.
Select corresponding to the desired message to edit.
Select “OK” when editing is completed.
Replying to a message
1
2
3
4
5
1
2
3

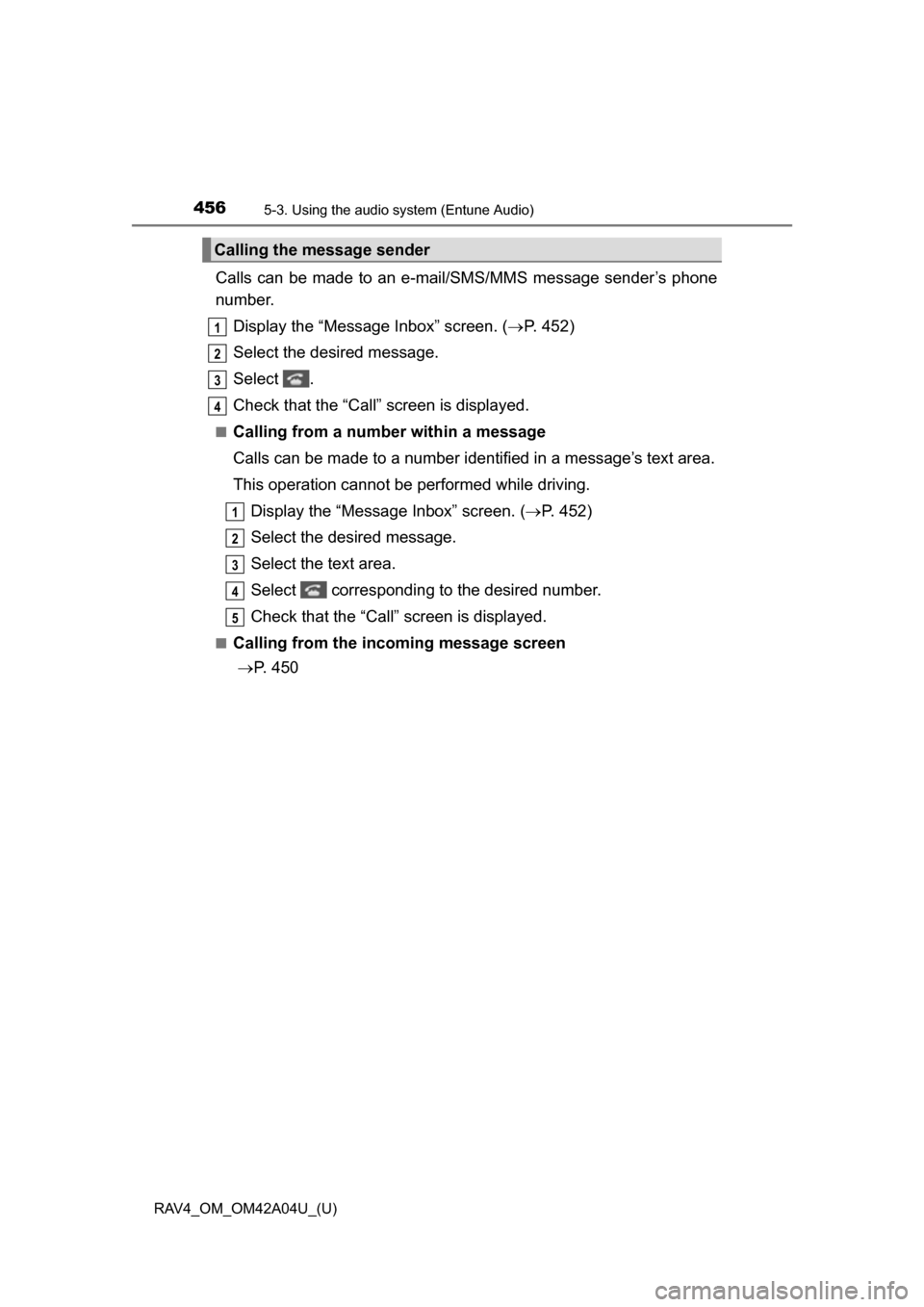

456
RAV4_OM_OM42A04U_(U)
5-3. Using the audio system (Entune Audio)
Calls can be made to an e-mail/SMS/MMS message sender’s phone
number.
Display the “Message Inbox” screen. ( P. 452)
Select the desired message.
Select .
Check that the “Call” screen is displayed.
■Calling from a number within a message
Calls can be made to a number identified in a message’s text area.
This operation cannot be performed while driving.
Display the “Message Inbox” screen. ( P. 452)
Select the desired message.
Select the text area.
Select corresponding to the desired number.
Check that the “Call” screen is displayed.
■Calling from the incoming message screen  P. 450
Calling the message sender
1
2
3
4
1
2
3
4
5

457
RAV4_OM_OM42A04U_(U)
5-3. Using the audio system (Entune Audio)
5
Interior features

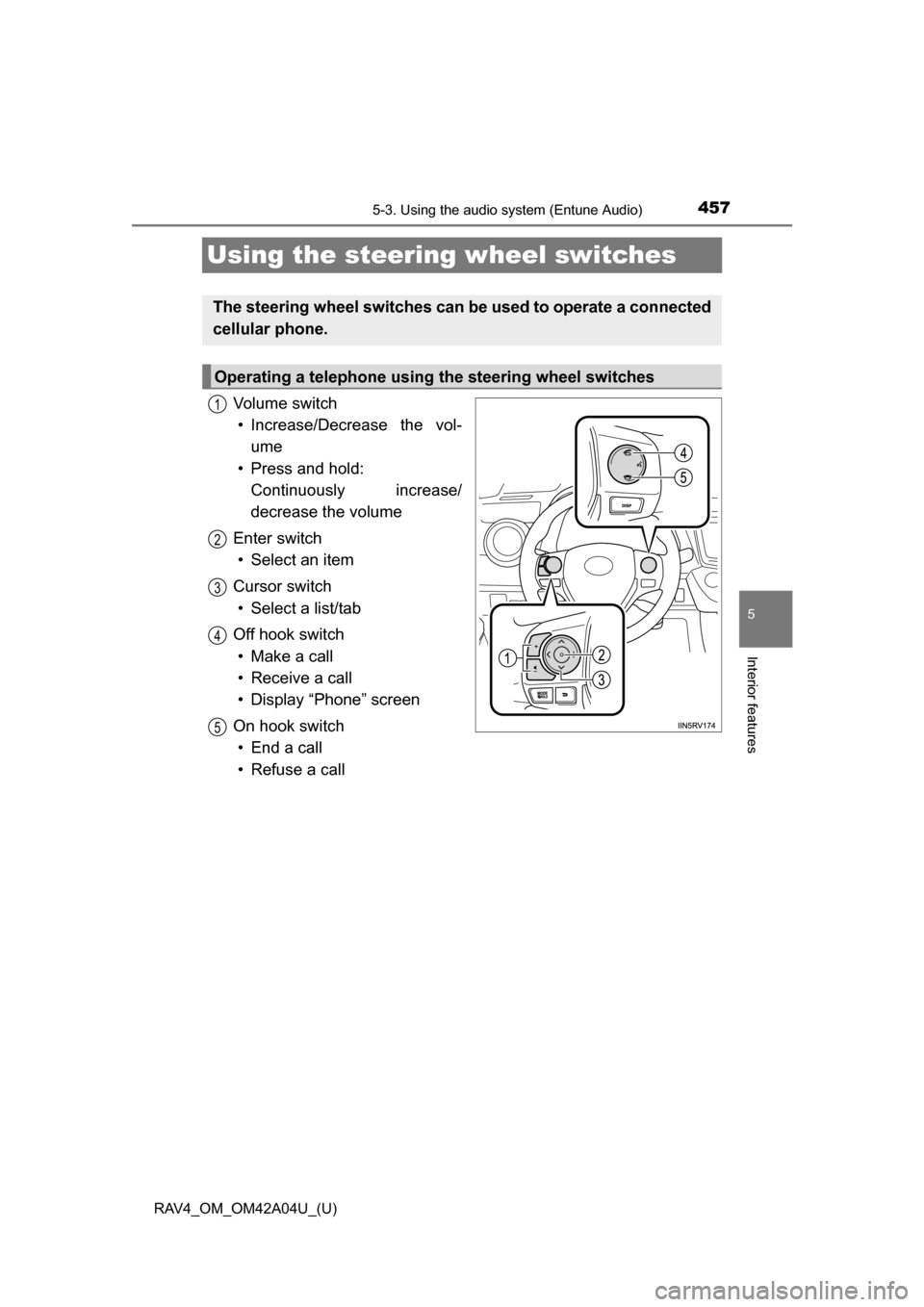

Using the steering wheel switches
Vo l u m e s w i t c h• Increase/Decrease the vol-
ume
• Press and hold: Continuously increase/
decrease the volume
Enter switch • Select an item
Cursor switch • Select a list/tab
Off hook switch • Make a call
• Receive a call
• Display “Phone” screen
On hook switch • End a call
• Refuse a call
The steering wheel switches can be used to operate a connected
cellular phone.
Operating a telephone using the steering wheel switches
1
2
3
4
5

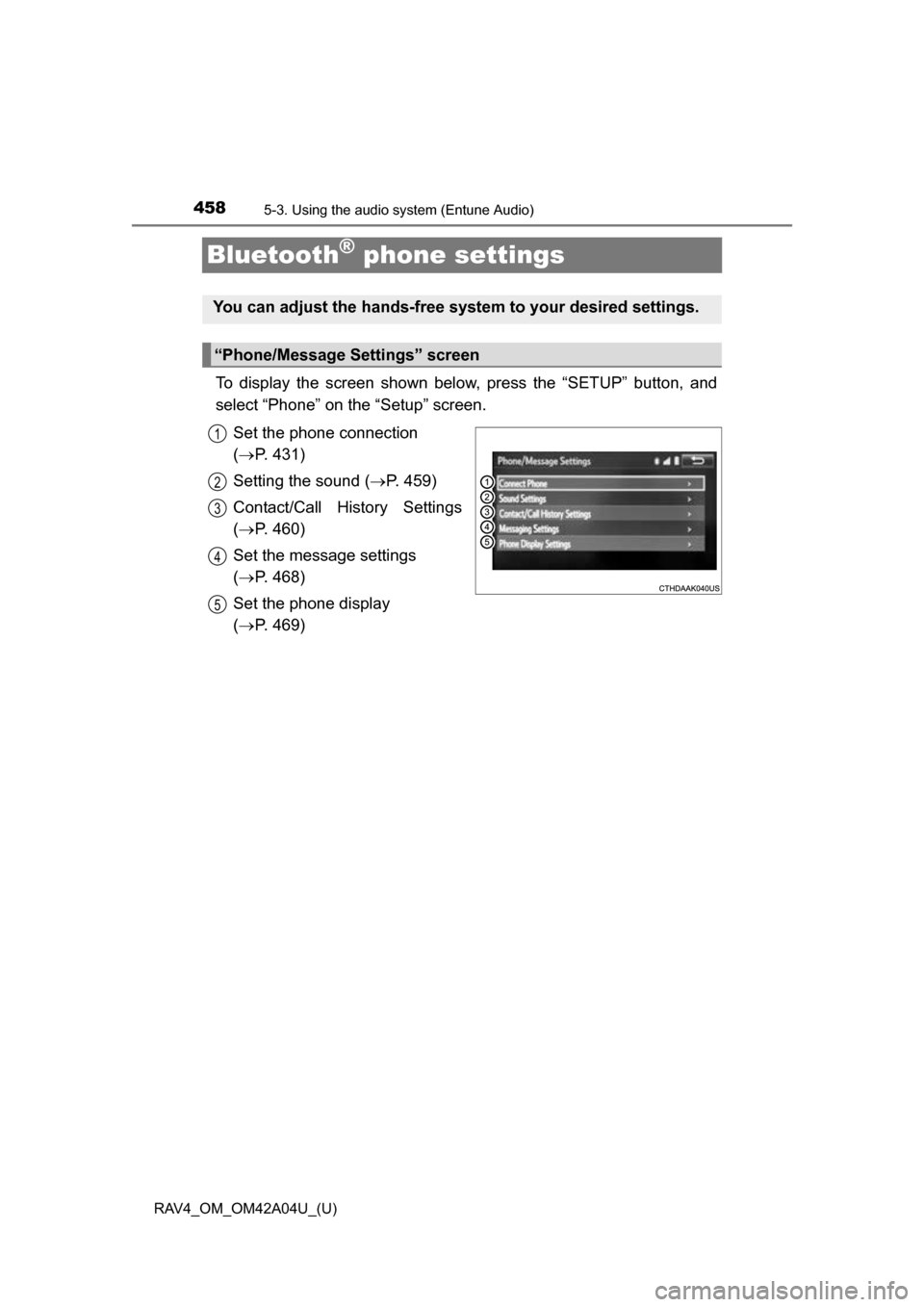

458
RAV4_OM_OM42A04U_(U)
5-3. Using the audio system (Entune Audio)
Bluetooth® phone settings
To display the screen shown below, press the “SETUP” button, and
select “Phone” on the “Setup” screen.
Set the phone connection
( P. 431)
Setting the sound ( P. 459)
Contact/Call History Settings
(  P. 460)
Set the message settings
(  P. 468)
Set the phone display
(  P. 469)
You can adjust the hands-free system to your desired settings.
“Phone/Message Settings” screen
1
2
13
14
5

RAV4_OM_OM42A04U_(U)

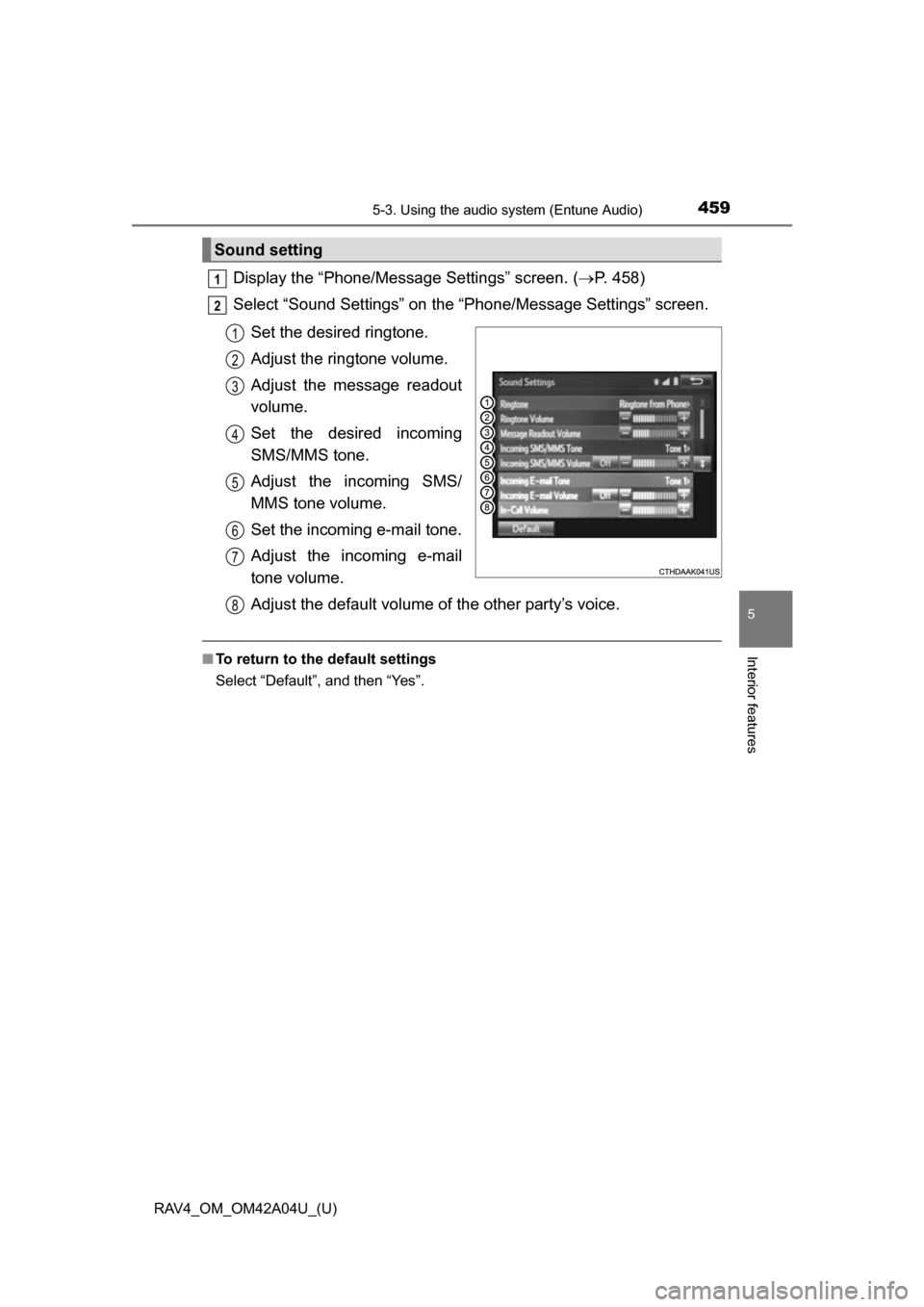

4595-3. Using the audio system (Entune Audio)
5
Interior features
Display the “Phone/Message Settings” screen. (P. 458)
Select “Sound Settings” on the “Phone/Message Settings” screen.
Set the desired ringtone.
Adjust the ringtone volume.
Adjust the message readout
volume.
Set the desired incoming
SMS/MMS tone.
Adjust the incoming SMS/
MMS tone volume.
Set the incoming e-mail tone.
Adjust the incoming e-mail
tone volume.
Adjust the default volume of the other party’s voice.
■To return to the default settings
Select “Default”, and then “Yes”.
Sound setting
1
2
1
2
13
4
5
6
7
8

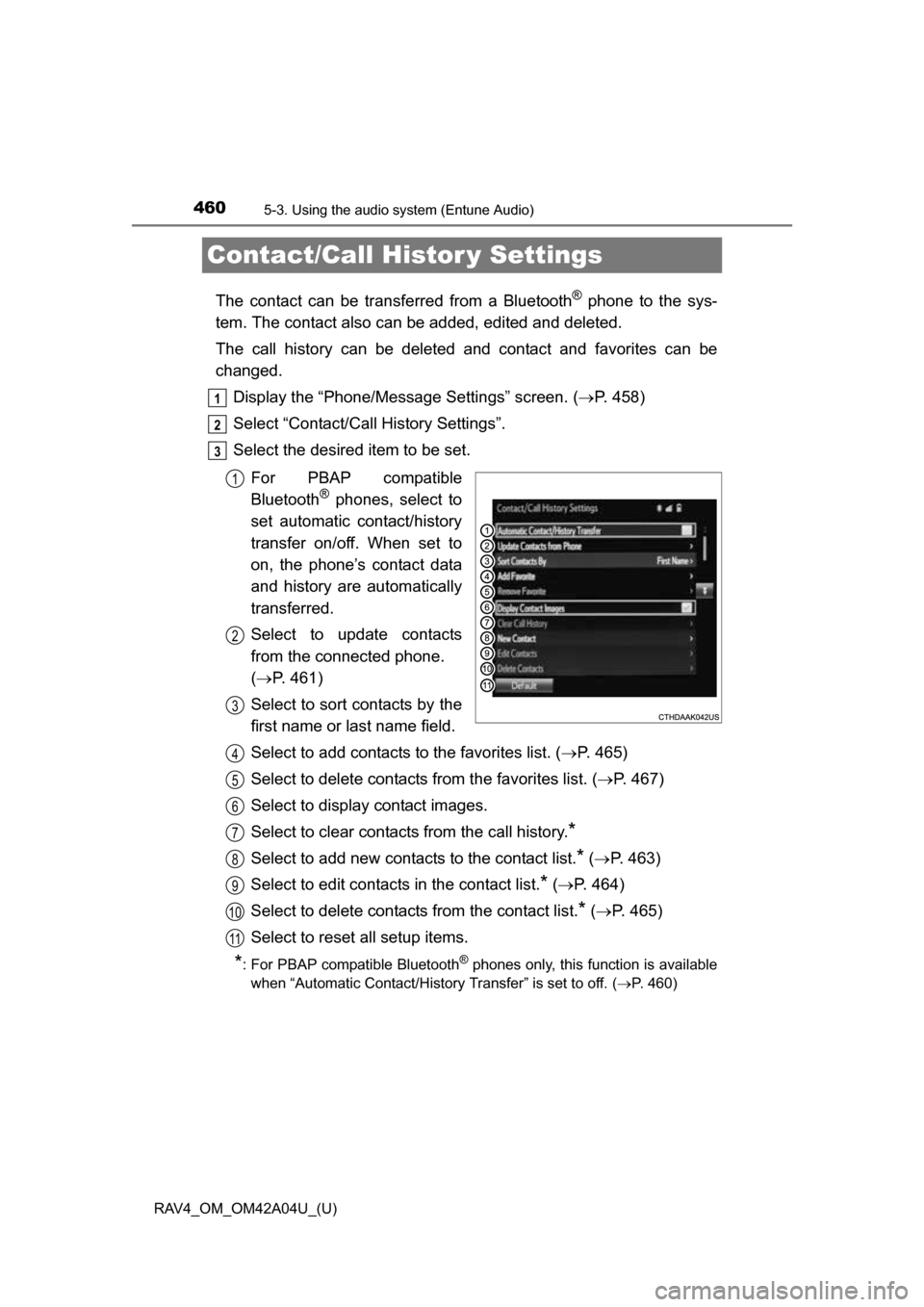

460
RAV4_OM_OM42A04U_(U)
5-3. Using the audio system (Entune Audio)
Contact/Call Histor y Settings
The contact can be trans ferred from a Bluetooth® phone to the sys-
tem. The contact also c an be added, edited and deleted.
The call history can be deleted and contact and favorites can be
changed. Display the “Phone/Message Settings” screen. ( P. 458)
Select “Contact/Call History Settings”.
Select the desired item to be set.
For PBAP compatible
Bluetooth
® phones, select to
set automatic contact/history
transfer on/off. When set to
on, the phone’s contact data
and history are automatically
transferred.
Select to update contacts
from the connected phone.
(  P. 461)
Select to sort contacts by the
first name or last name field.
Select to add contacts to the favorites list. ( P. 465)
Select to delete contacts from the favorites list. ( P. 467)
Select to display contact images.
Select to clear contacts from the call history.
*
Select to add new contacts to the contact list.* (  P. 463)
Select to edit contacts in the contact list.
* (  P. 464)
Select to delete contacts from the contact list.
* (  P. 465)
Select to reset all setup items.
*: For PBAP compatible Bluetooth® phones only, this function is available
when “Automatic Contact/History Transfer” is set to off.
( P. 460)
1
2
3
1
2
3
4
5
6
7
8
9
10
11
