5015-5. Using the storage features
5
Interior features

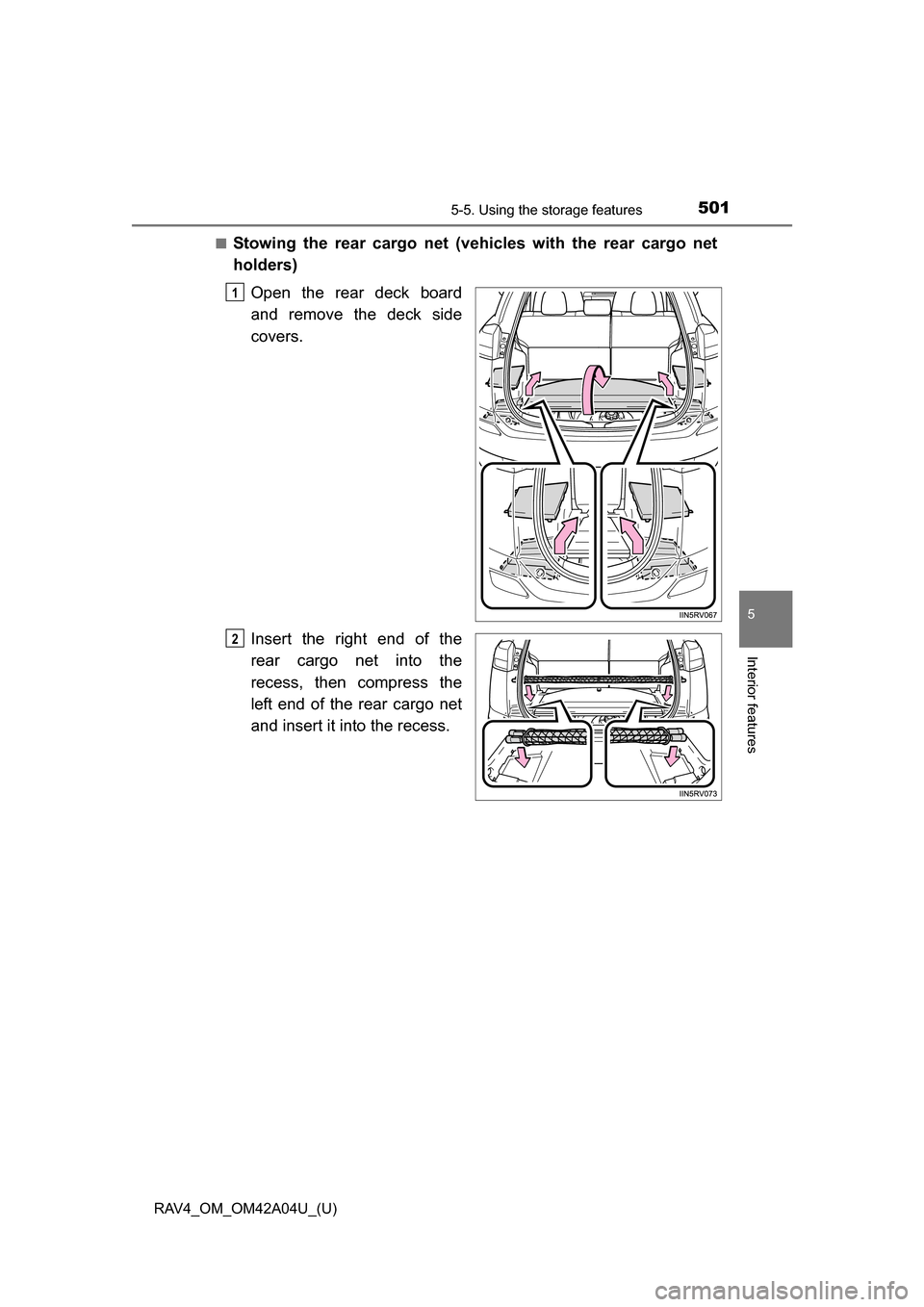

■Stowing the rear cargo net (vehicles with the rear cargo net
holders)Open the rear deck board
and remove the deck side
covers.
Insert the right end of the
rear cargo net into the
recess, then compress the
left end of the rear cargo net
and insert it into the recess.
1
2

502
RAV4_OM_OM42A04U_(U)
5-5. Using the storage features

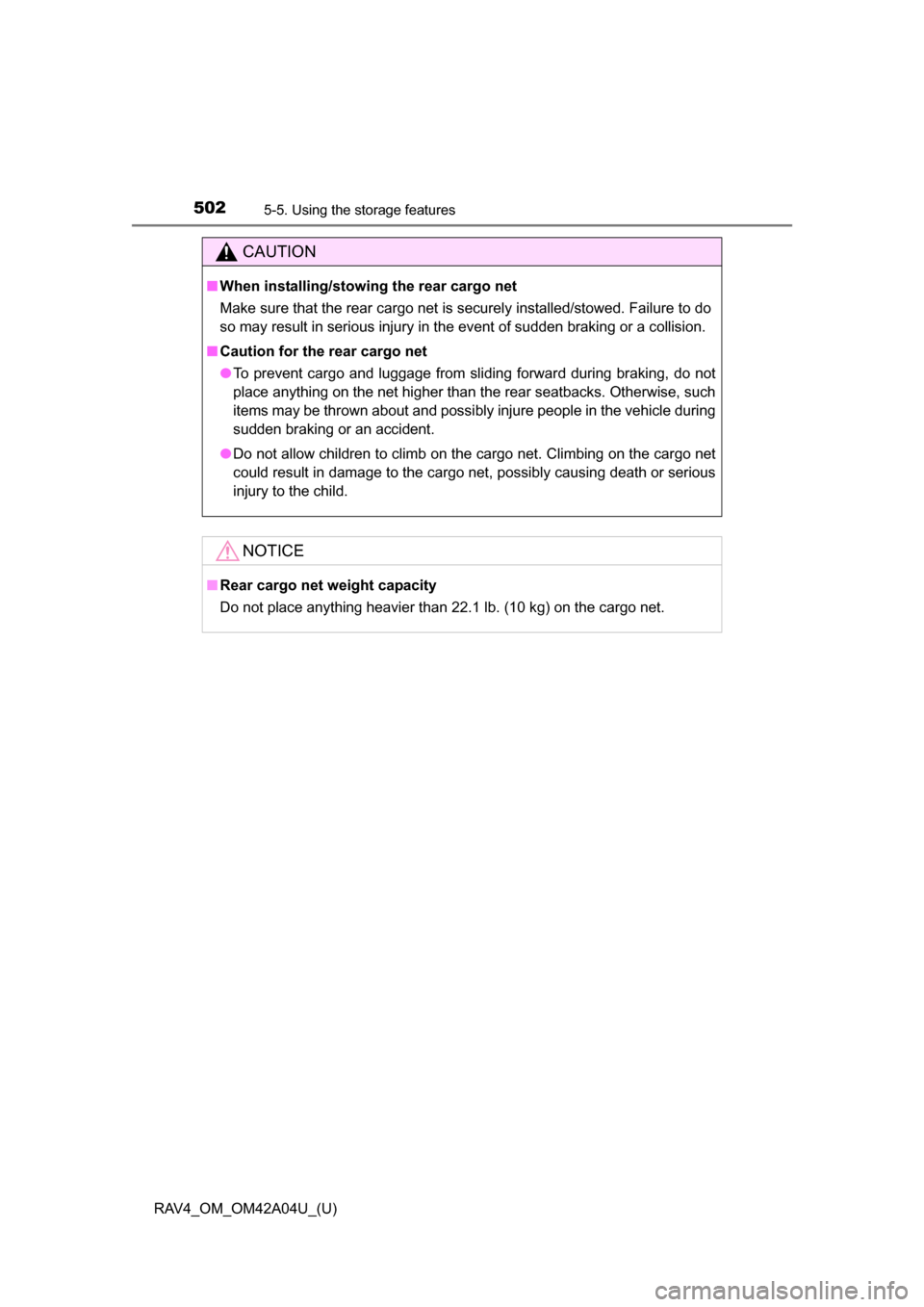

CAUTION
■When installing/stowing the rear cargo net
Make sure that the rear cargo net is securely installed/stowed. Failure to do
so may result in serious injury in the event of sudden braking or a collision.
■ Caution for the rear cargo net
●To prevent cargo and luggage from sliding forward during braking, do not
place anything on the net higher than the rear seatbacks. Otherwise, such
items may be thrown about and possibly injure people in the vehicle during
sudden braking or an accident.
● Do not allow children to climb on the cargo net. Climbing on the cargo net
could result in damage to the cargo net, possibly causing death or serious
injury to the child.
NOTICE
■Rear cargo net weight capacity
Do not place anything heavier than 22.1 lb. (10 kg) on the cargo net.

503
RAV4_OM_OM42A04U_(U)
5-6. Other interior features
5
Interior features

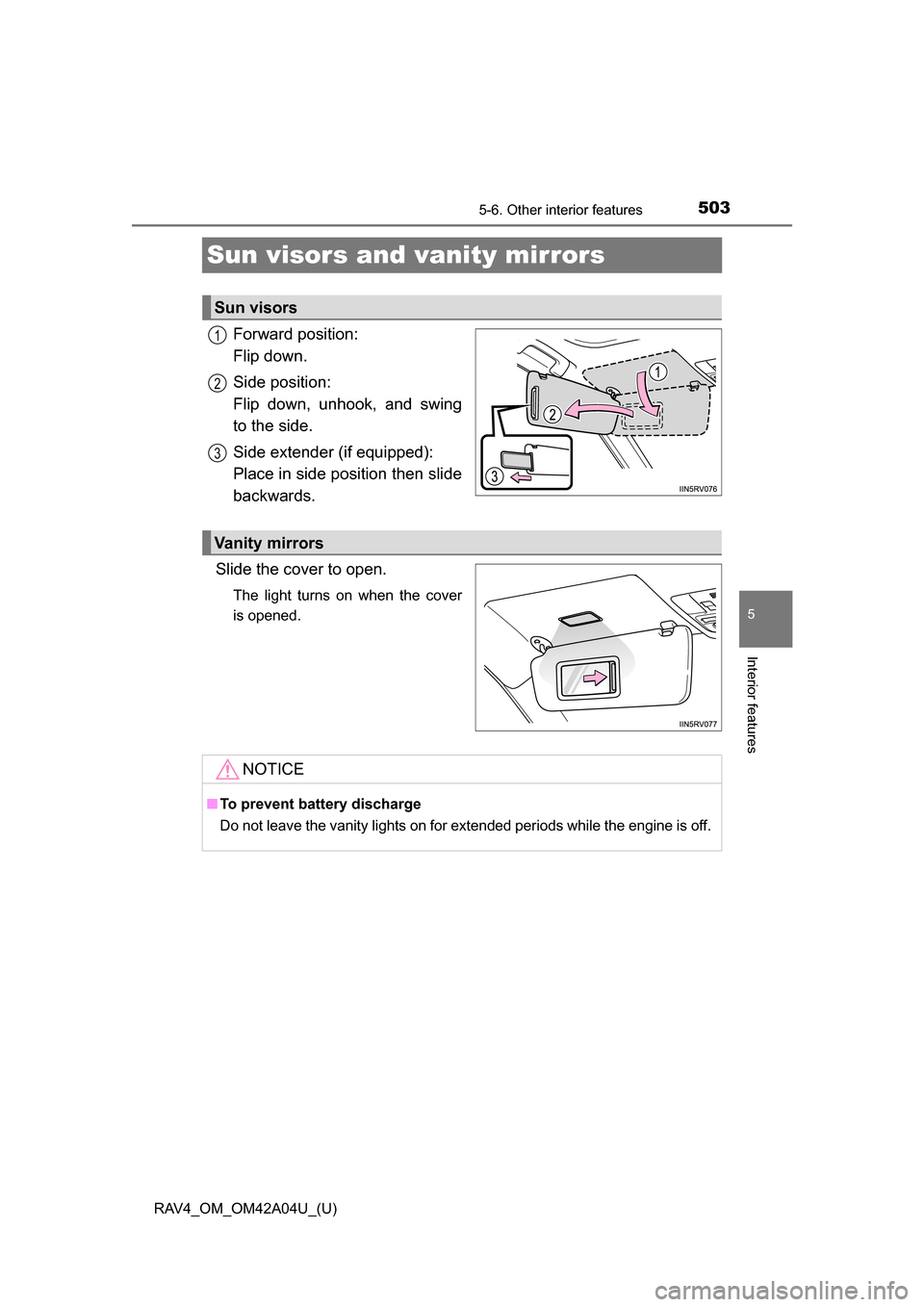

Sun visors and vanity mirrors
Forward position:
Flip down.
Side position:
Flip down, unhook, and swing
to the side.
Side extender (if equipped):
Place in side position then slide
backwards.
Slide the cover to open.
The light turns on when the cover
is opened.
Sun visors
1
2
3
Vanity mirrors
NOTICE
■ To prevent battery discharge
Do not leave the vanity lights on for extended periods while the engine is off.

504
RAV4_OM_OM42A04U_(U)
5-6. Other interior features

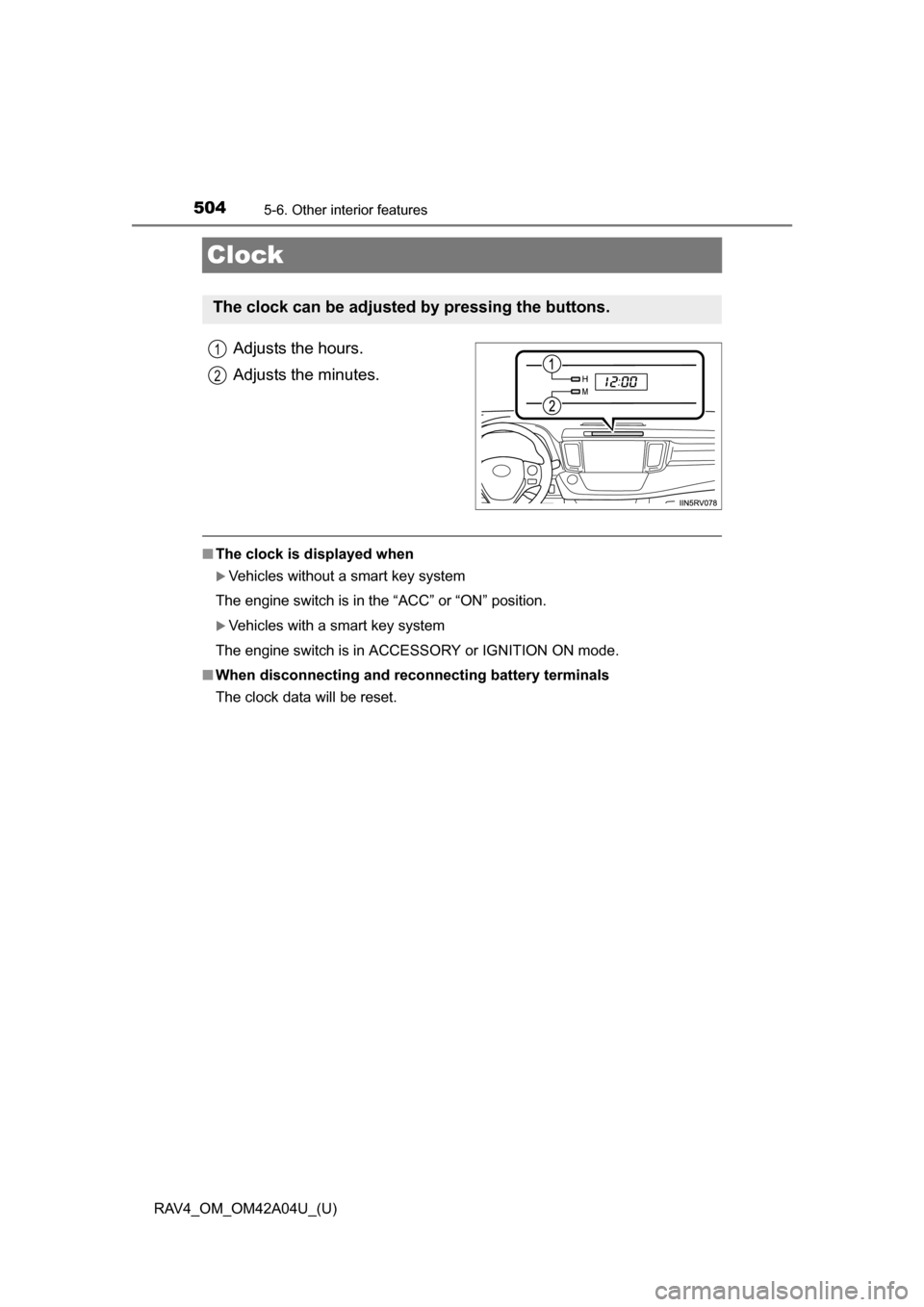

Clock
Adjusts the hours.
Adjusts the minutes.
■The clock is displayed when
Vehicles without a smart key system
The engine switch is in the “ACC” or “ON” position.
Vehicles with a smart key system
The engine switch is in ACCESSORY or IGNITION ON mode.
■ When disconnecting and reco nnecting battery terminals
The clock data will be reset.
The clock can be adjusted by pressing the buttons.
1
2

505
RAV4_OM_OM42A04U_(U)
5-6. Other interior features
5
Interior features

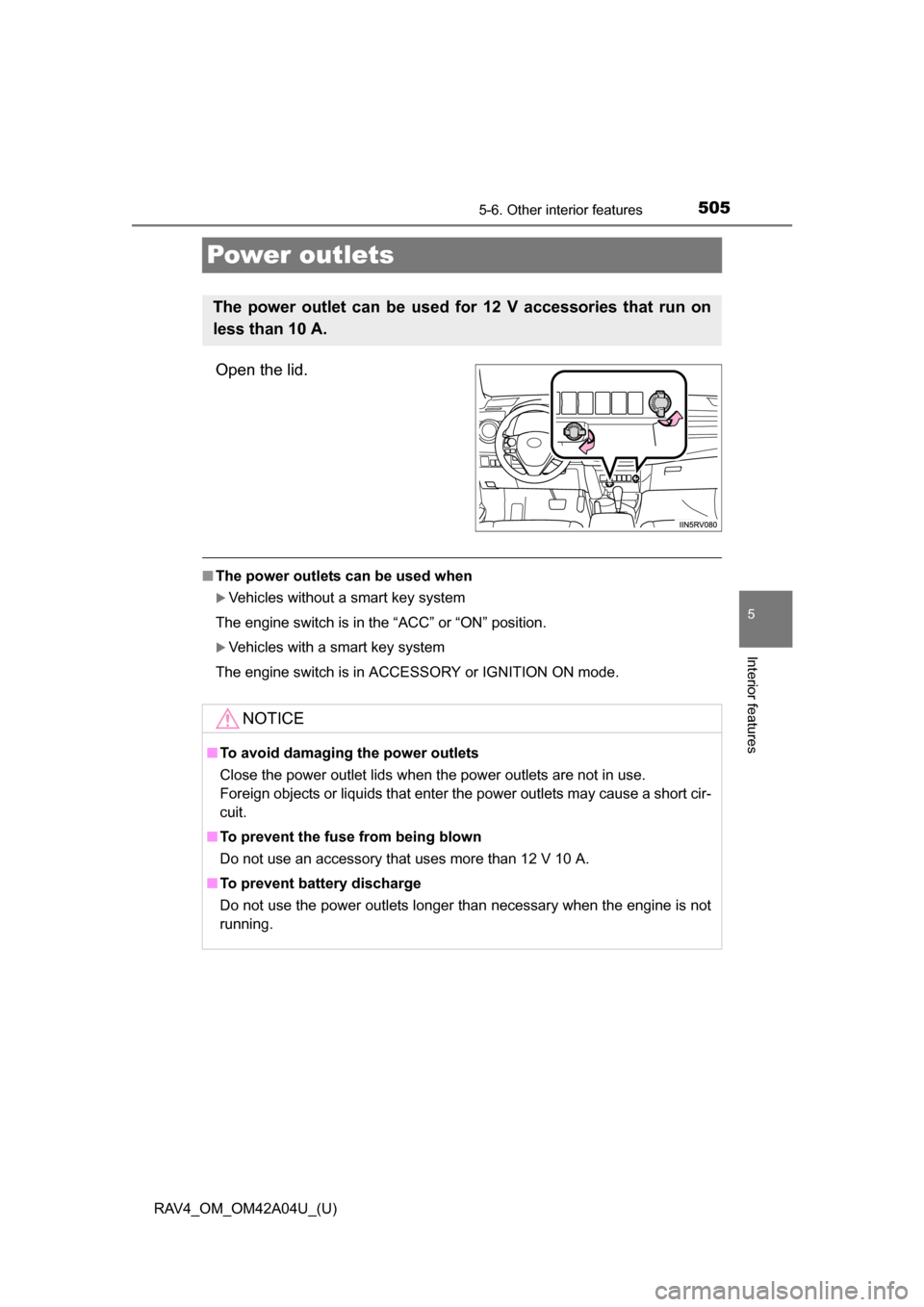

Power outlets
Open the lid.
■The power outlets can be used when
Vehicles without a smart key system
The engine switch is in the “ACC” or “ON” position.
Vehicles with a smart key system
The engine switch is in ACCESSORY or IGNITION ON mode.
The power outlet can be used for 12 V accessories that run on
less than 10 A.
NOTICE
■ To avoid damaging the power outlets
Close the power outlet lids when the power outlets are not in use.
Foreign objects or liquids that enter the power outlets may cause a short cir-
cuit.
■ To prevent the fuse from being blown
Do not use an accessory that uses more than 12 V 10 A.
■ To prevent battery discharge
Do not use the power outlets longer than necessary when the engine is not
running.

506
RAV4_OM_OM42A04U_(U)
5-6. Other interior features

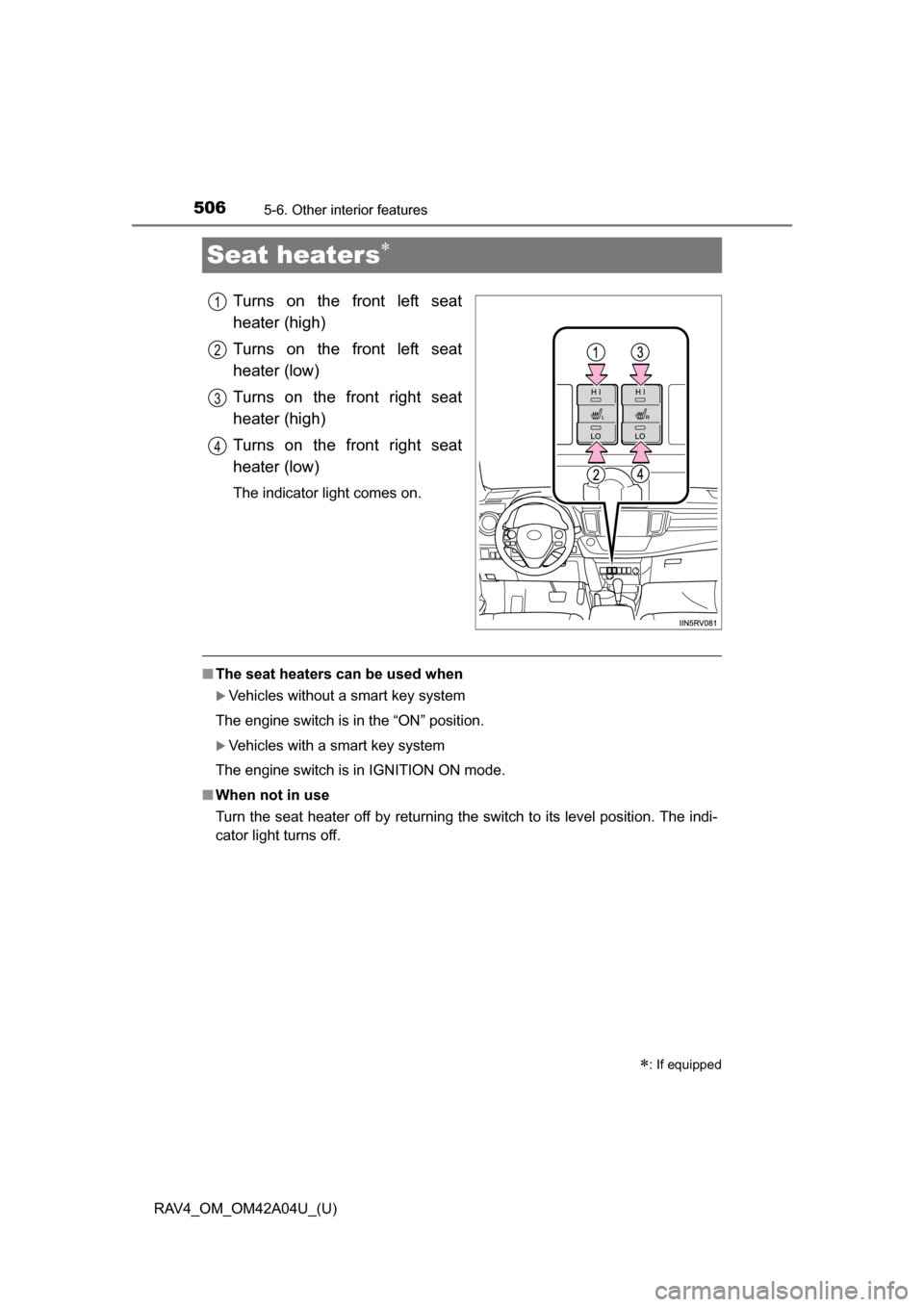

Seat heaters
Turns on the front left seat
heater (high)
Turns on the front left seat
heater (low)
Turns on the front right seat
heater (high)
Turns on the front right seat
heater (low)
The indicator light comes on.
■The seat heaters can be used when
Vehicles without a smart key system
The engine switch is in the “ON” position.
Vehicles with a smart key system
The engine switch is in IGNITION ON mode.
■ When not in use
Turn the seat heater off by returning the switch to its level position. The indi-
cator light turns off.
: If equipped
1
2
3
4

RAV4_OM_OM42A04U_(U)
5075-6. Other interior features
5
Interior features

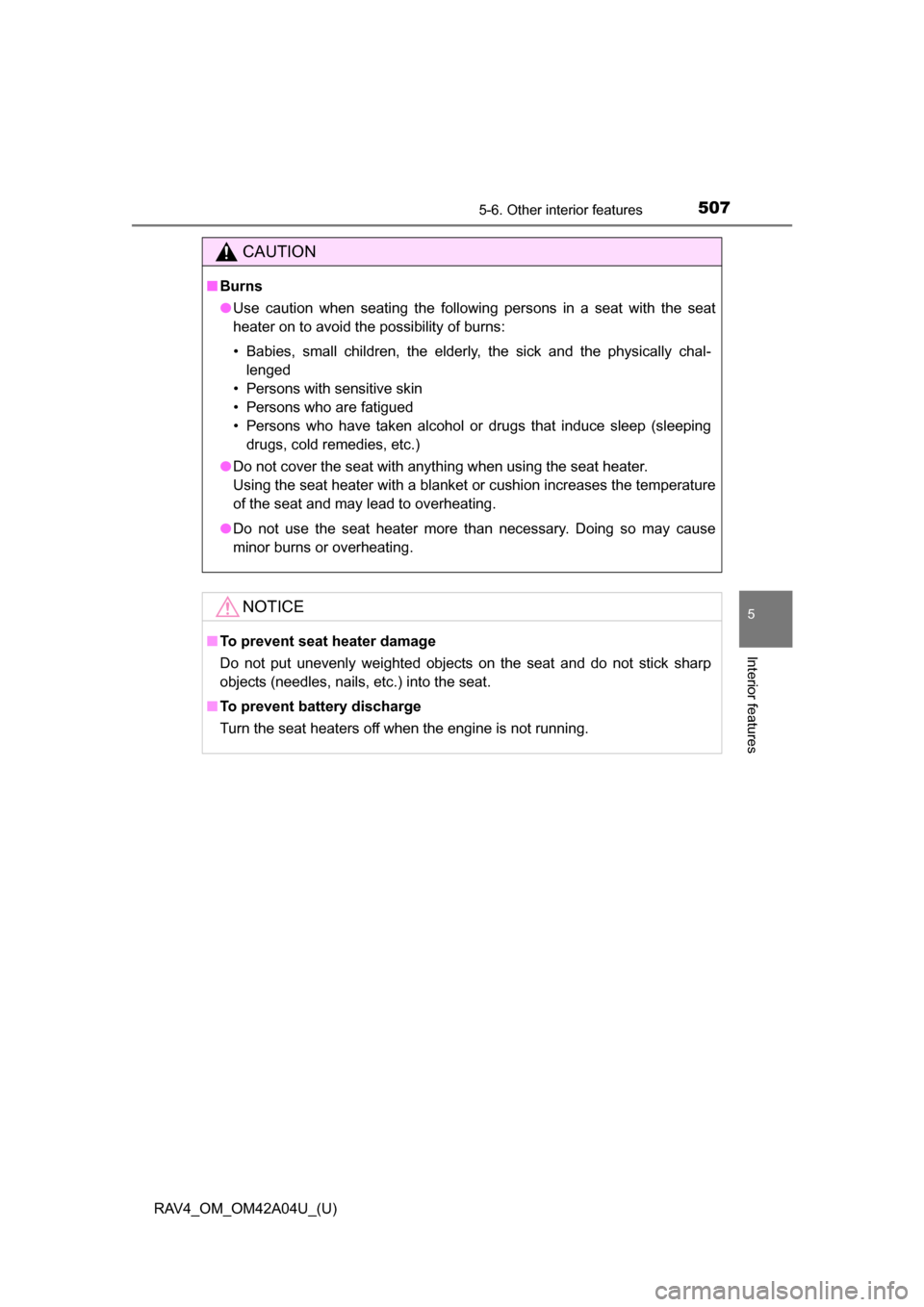

CAUTION
■Burns
●Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the physically chal-
lenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping drugs, cold remedies, etc.)
● Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
● Do not use the seat heater more than necessary. Doing so may cause
minor burns or overheating.
NOTICE
■To prevent seat heater damage
Do not put unevenly weighted objects on the seat and do not stick sharp
objects (needles, nails, etc.) into the seat.
■ To prevent battery discharge
Turn the seat heaters off when the engine is not running.

508
RAV4_OM_OM42A04U_(U)
5-6. Other interior features

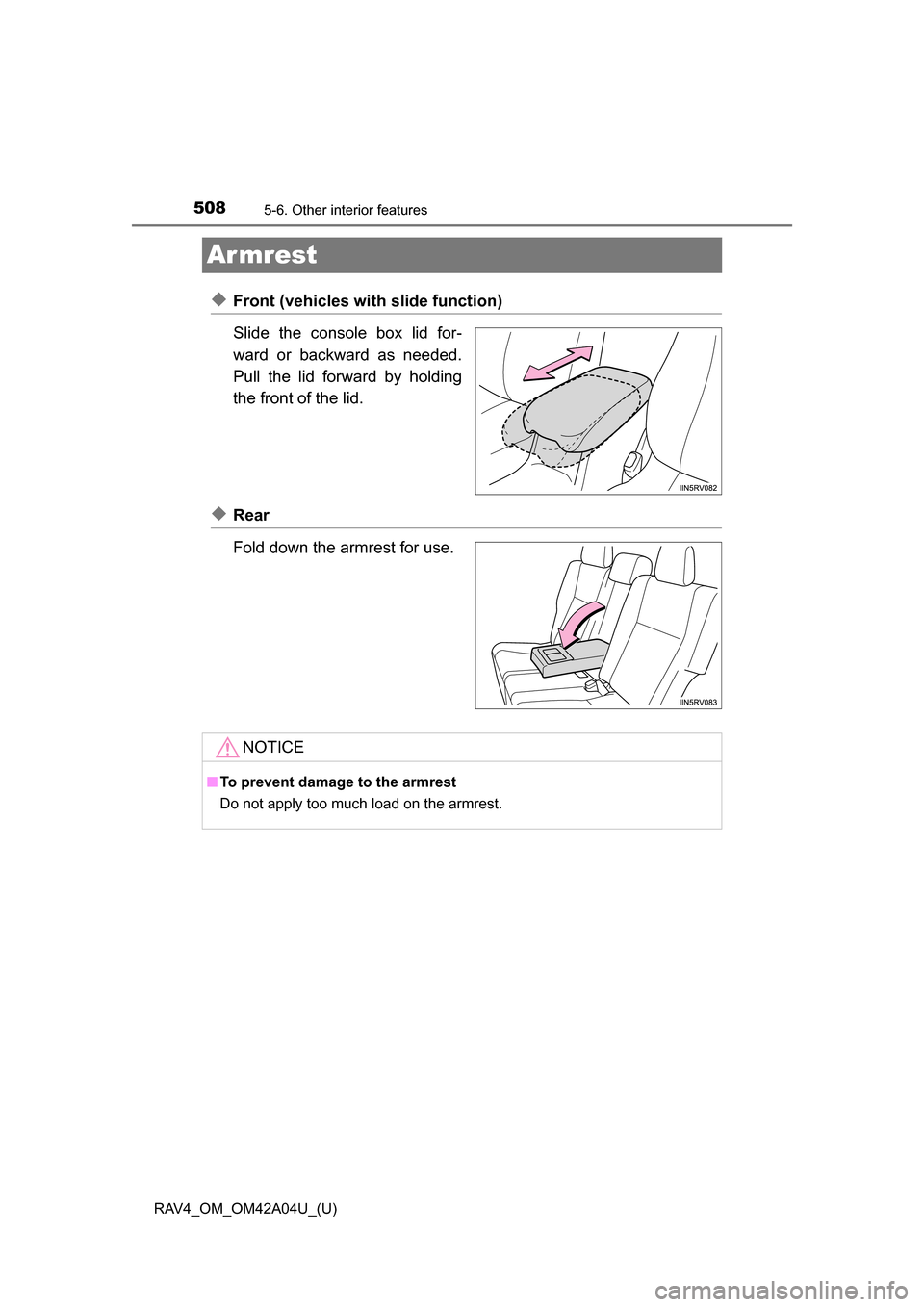

Ar mrest
◆Front (vehicles with slide function)
Slide the console box lid for-
ward or backward as needed.
Pull the lid forward by holding
the front of the lid.
◆Rear
Fold down the armrest for use.
NOTICE
■To prevent damage to the armrest
Do not apply too much load on the armrest.

509
RAV4_OM_OM42A04U_(U)
5-6. Other interior features
5
Interior features

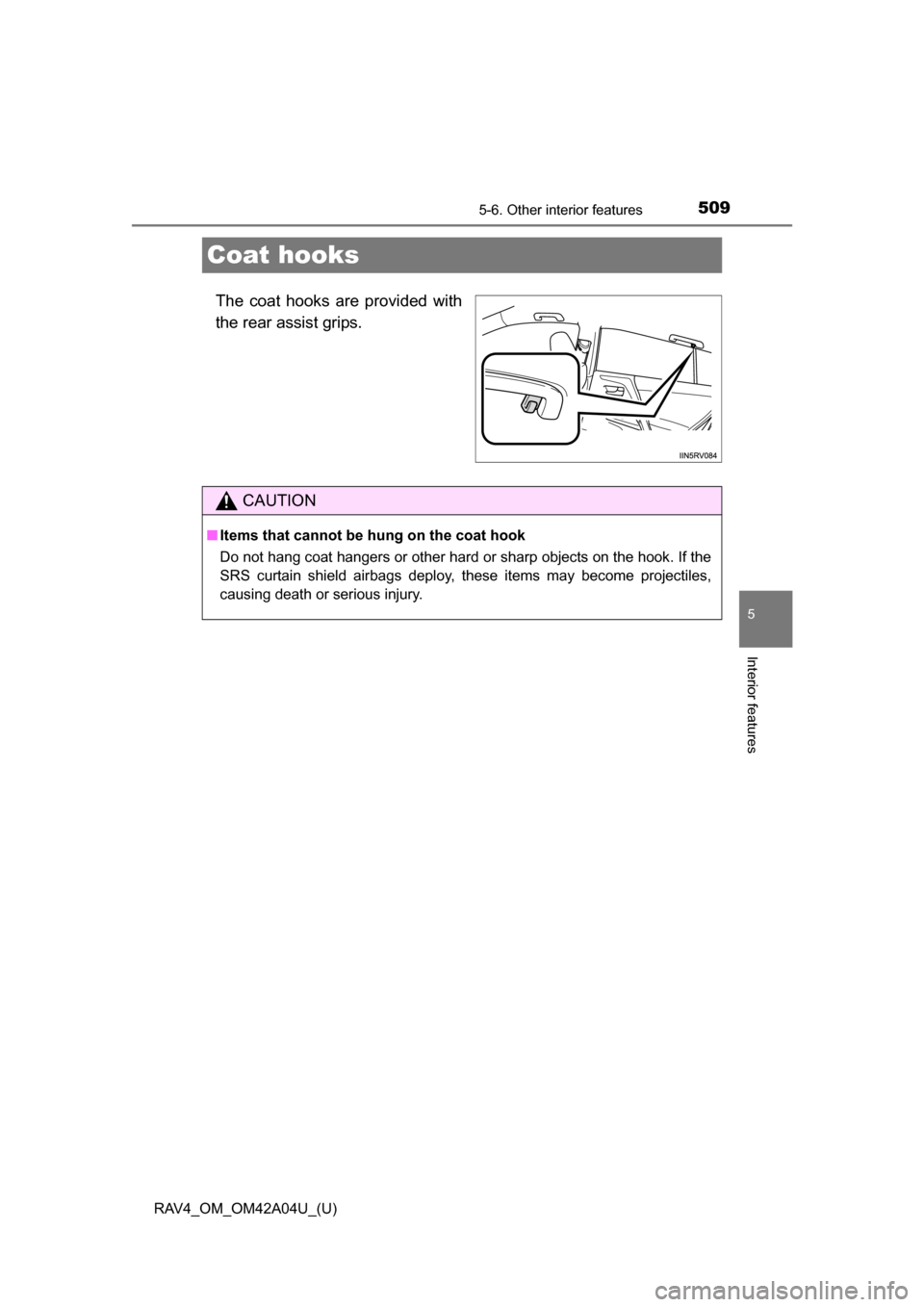

Coat hooks
The coat hooks are provided with
the rear assist grips.
CAUTION
■Items that cannot be hung on the coat hook
Do not hang coat hangers or other hard or sharp objects on the hook. If the
SRS curtain shield airbags deploy, these items may become projectiles,
causing death or serious injury.

510
RAV4_OM_OM42A04U_(U)
5-6. Other interior features

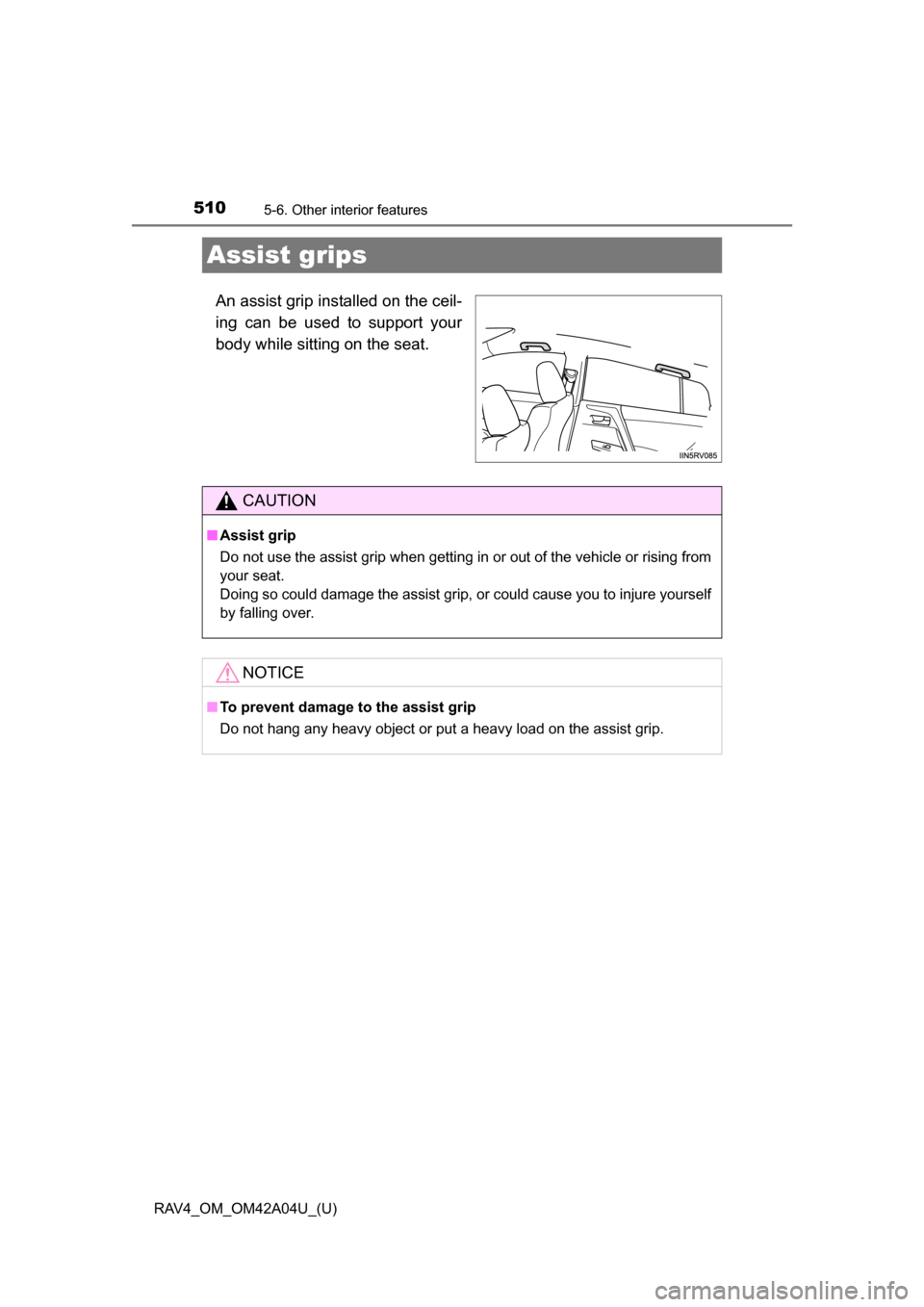

Assist grips
An assist grip installed on the ceil-
ing can be used to support your
body while sitting on the seat.
CAUTION
■Assist grip
Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.
Doing so could damage the assist grip, or could cause you to injure yourself
by falling over.
NOTICE
■To prevent damage to the assist grip
Do not hang any heavy object or put a heavy load on the assist grip.
