For safety and security

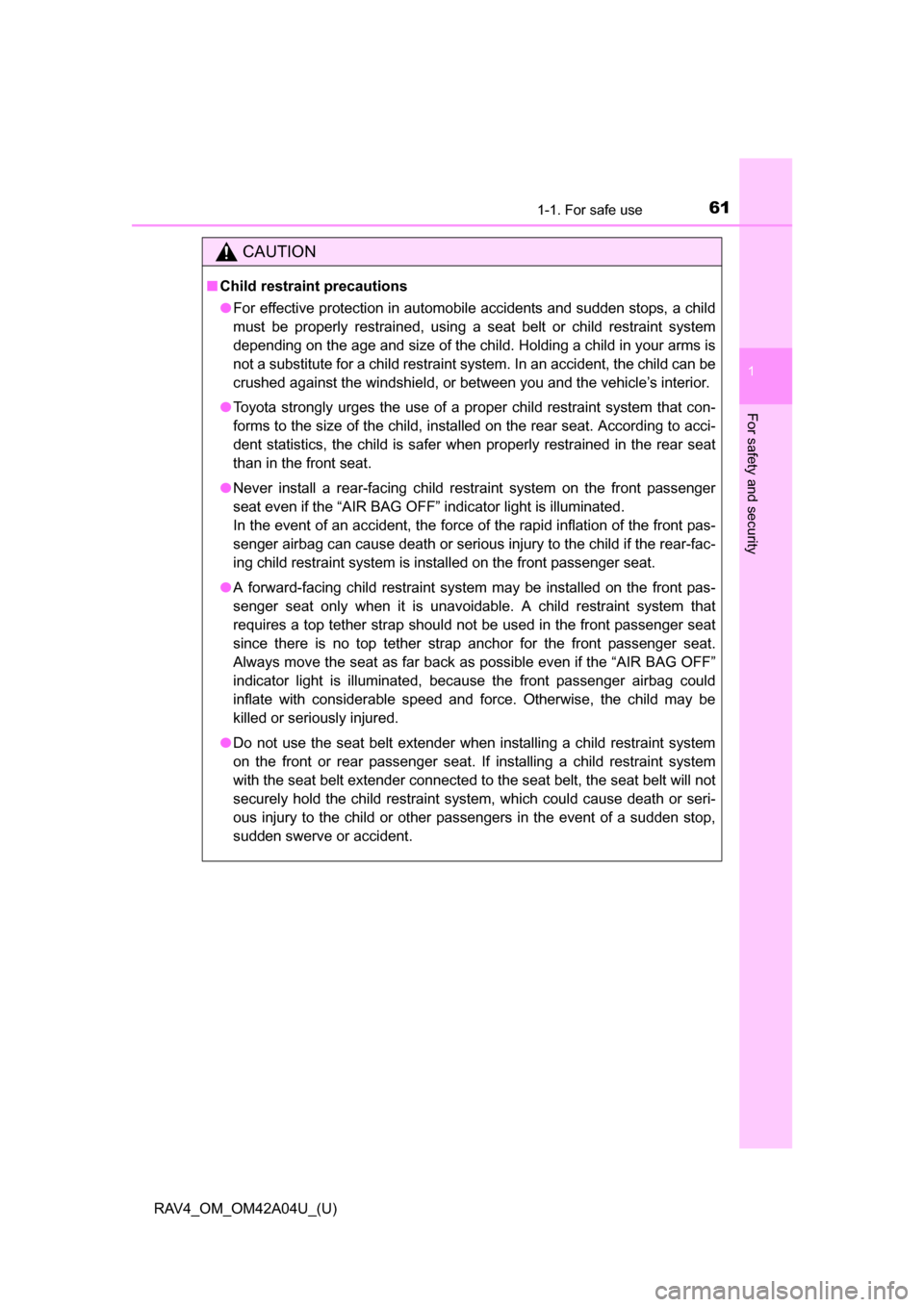

CAUTION
■Child restraint precautions
●For effective protection in automobile accidents and sudden stops, a child
must be properly restrained, using a seat belt or child restraint system
depending on the age and size of the child. Holding a child in your arms is
not a substitute for a child restraint system. In an accident, the child can be
crushed against the windshield, or between you and the vehicle’s interior.
● Toyota strongly urges the use of a proper child restraint system that con-
forms to the size of the child, installed on the rear seat. According to acci-
dent statistics, the child is safer when properly restrained in the rear seat
than in the front seat.
● Never install a rear-facing child restraint system on the front passenger
seat even if the “AIR BAG OFF” indicator light is illuminated.
In the event of an accident, the force of the rapid inflation of the front pas-
senger airbag can cause death or serious injury to the child if the rear-fac-
ing child restraint system is installed on the front passenger seat.
● A forward-facing child restraint system may be installed on the front pas-
senger seat only when it is unavoidable. A child restraint system that
requires a top tether strap should not be used in the front passenger seat
since there is no top tether strap anchor for the front passenger seat.
Always move the seat as far back as possible even if the “AIR BAG OFF”
indicator light is illuminated, because the front passenger airbag could
inflate with considerable speed and force. Otherwise, the child may be
killed or seriously injured.
● Do not use the seat belt extender when installing a child restraint system
on the front or rear passenger seat. If installing a child restraint system
with the seat belt extender connected to the seat belt, the seat belt will not
securely hold the child restraint system, which could cause death or seri-
ous injury to the child or other passengers in the event of a sudden stop,
sudden swerve or accident.

621-1. For safe use
RAV4_OM_OM42A04U_(U)

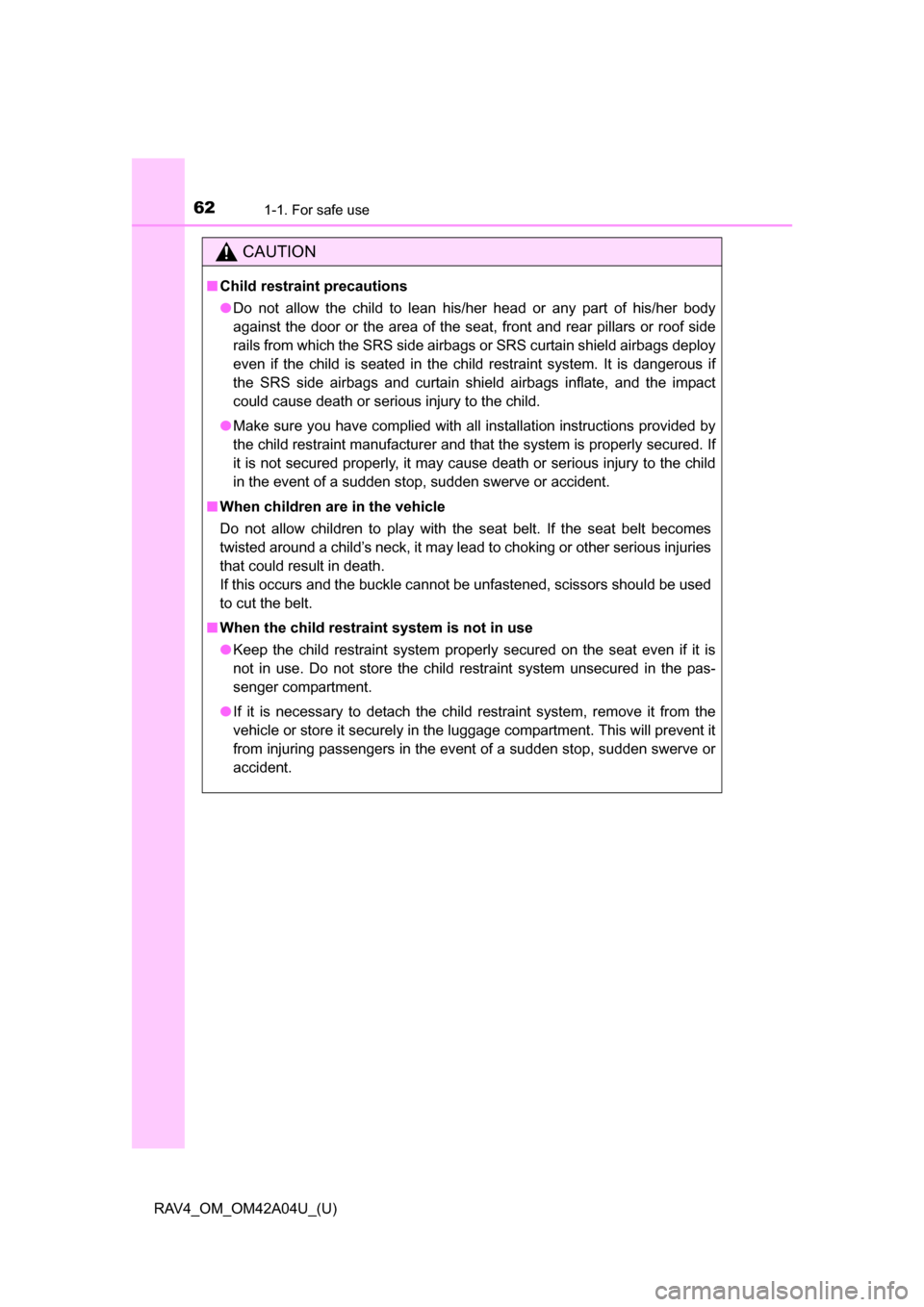

CAUTION
■Child restraint precautions
●Do not allow the child to lean his/her head or any part of his/her body
against the door or the area of the seat, front and rear pillars or roof side
rails from which the SRS side airbags or SRS curtain shield airbags deploy
even if the child is seated in the child restraint system. It is dangerous if
the SRS side airbags and curtain shield airbags inflate, and the impact
could cause death or serious injury to the child.
● Make sure you have complied with all installation instructions provided by
the child restraint manufacturer and that the system is properly secured. If
it is not secured properly, it may cause death or serious injury to the child
in the event of a sudden stop, sudden swerve or accident.
■ When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
■ When the child restraint system is not in use
●Keep the child restraint system properly secured on the seat even if it is
not in use. Do not store the child restraint system unsecured in the pas-
senger compartment.
● If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the luggage compartment. This will prevent it
from injuring passengers in the event of a sudden stop, sudden swerve or
accident.

631-1. For safe use
RAV4_OM_OM42A04U_(U)
1
For safety and security

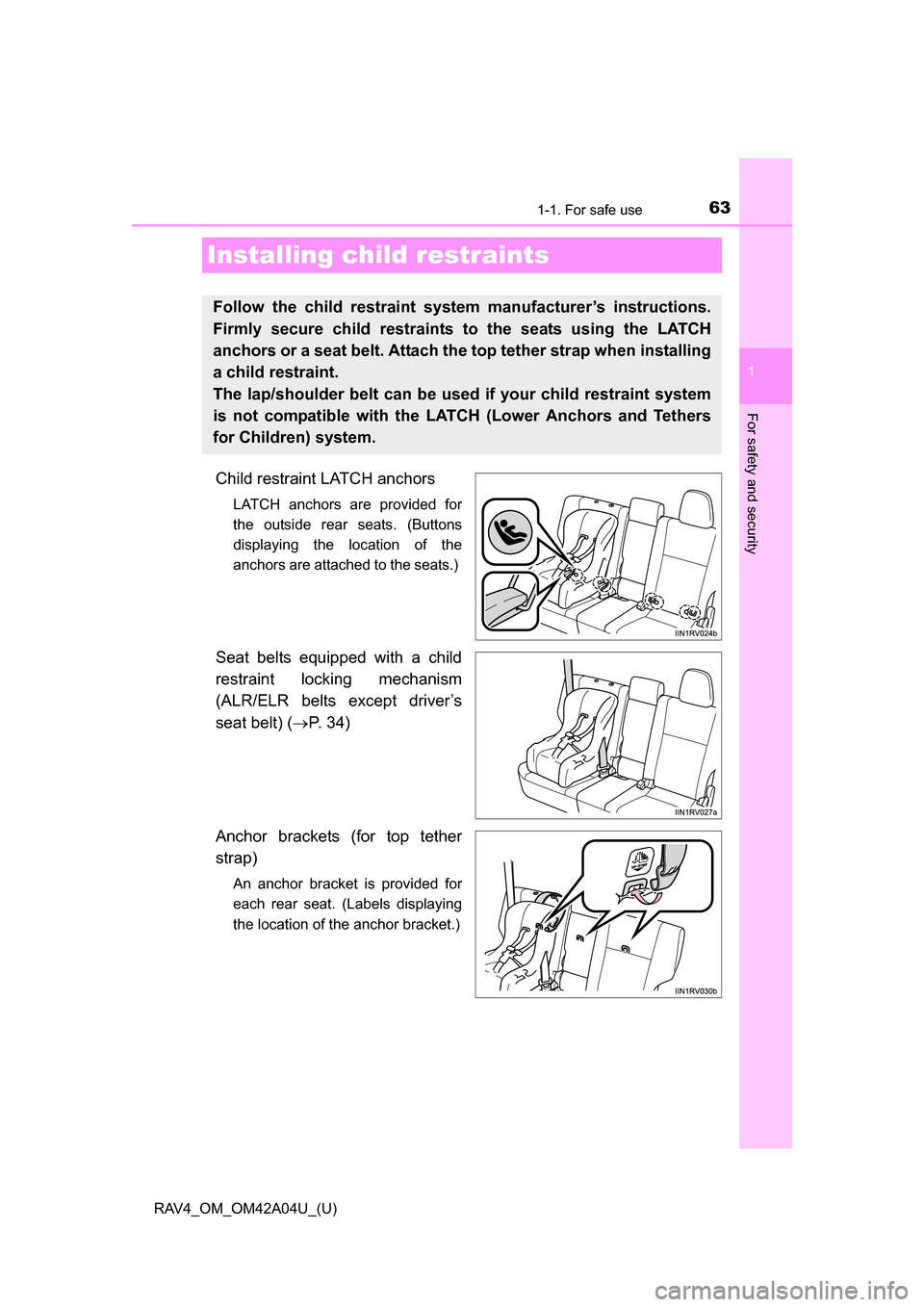

Installing child restraints
Child restraint LATCH anchors
LATCH anchors are provided for
the outside rear seats. (Buttons
displaying the location of the
anchors are attached to the seats.)
Seat belts equipped with a child
restraint locking mechanism
(ALR/ELR belts except driver’s
seat belt) (P. 34)
Anchor brackets (for top tether
strap)
An anchor bracket is provided for
each rear seat. (Labels displaying
the location of the anchor bracket.)
Follow the child restraint system manufacturer’s instructions.
Firmly secure child restraints to the seats using the LATCH
anchors or a seat belt. Attach the top tether strap when installing
a child restraint.
The lap/shoulder belt can be used if your child restraint system
is not compatible with the LATCH (Lower Anchors and Tethers
for Children) system.

641-1. For safe use
RAV4_OM_OM42A04U_(U)

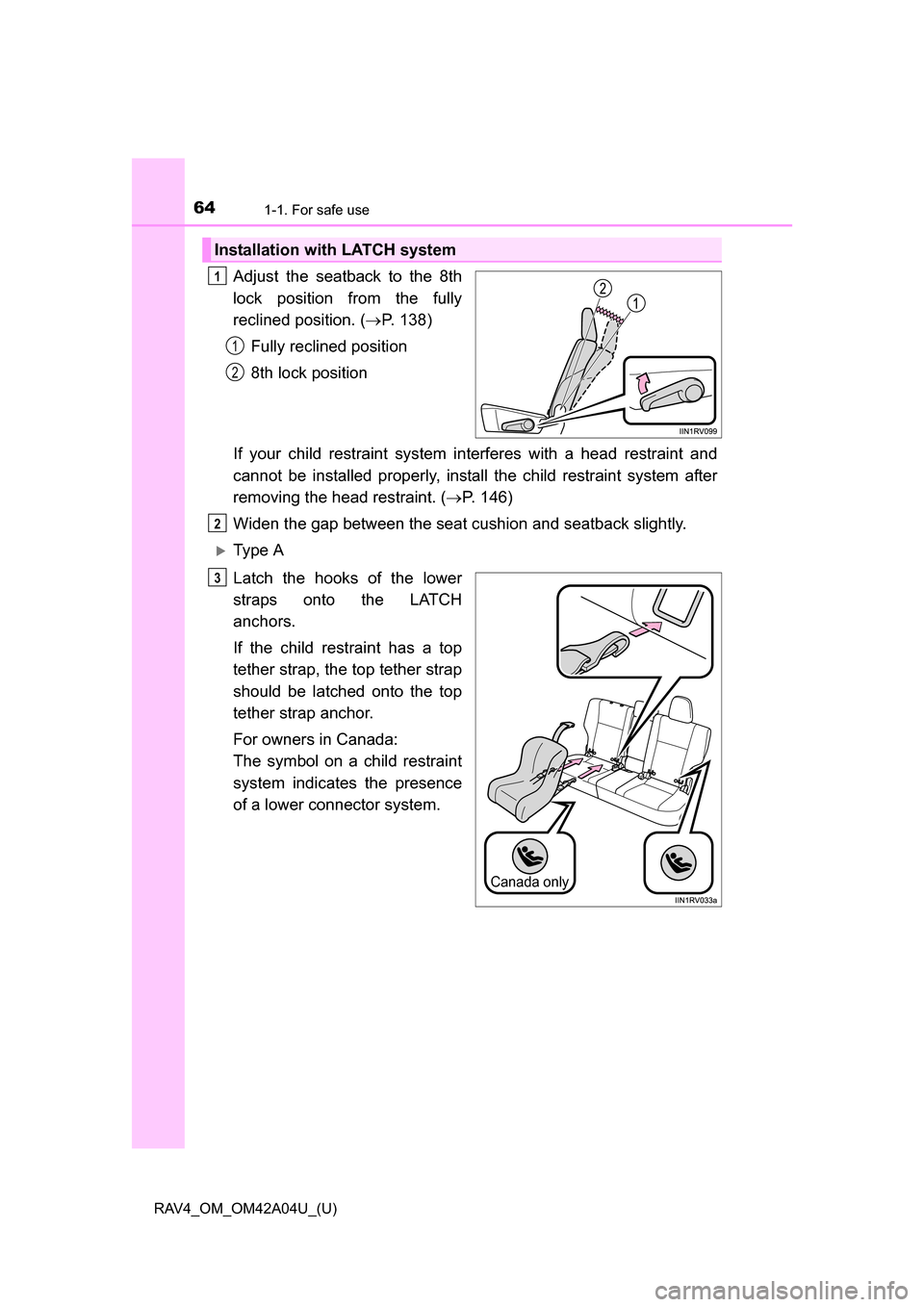

Adjust the seatback to the 8th
lock position from the fully
reclined position. (P. 138)
Fully reclined position
8th lock position
If your child restraint system in terferes with a head restraint and
cannot be installed properly, install the child restraint system after
removing the head restraint. ( P. 146)
Widen the gap between the seat cu shion and seatback slightly.
Ty p e A
Latch the hooks of the lower
straps onto the LATCH
anchors.
If the child restraint has a top
tether strap, the top tether strap
should be latched onto the top
tether strap anchor.
For owners in Canada:
The symbol on a child restraint
system indicates the presence
of a lower connector system.
Installation with LATCH system
1
1
2
2
Canada only
3

651-1. For safe use
RAV4_OM_OM42A04U_(U)
1
For safety and security

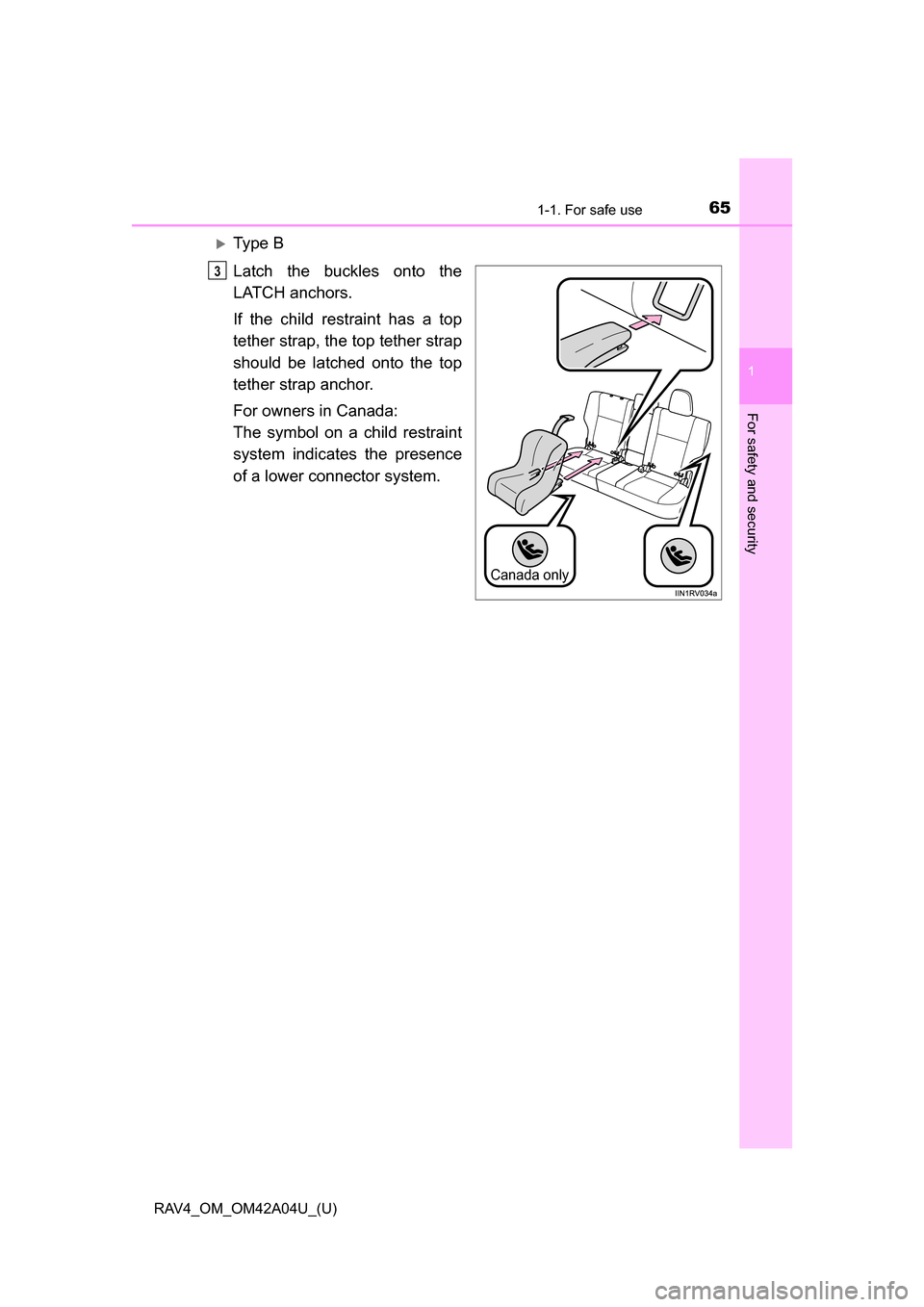

Ty p e B
Latch the buckles onto the
LATCH anchors.
If the child restraint has a top
tether strap, the top tether strap
should be latched onto the top
tether strap anchor.
For owners in Canada:
The symbol on a child restraint
system indicates the presence
of a lower connector system.
Canada only
3

661-1. For safe use
RAV4_OM_OM42A04U_(U)■

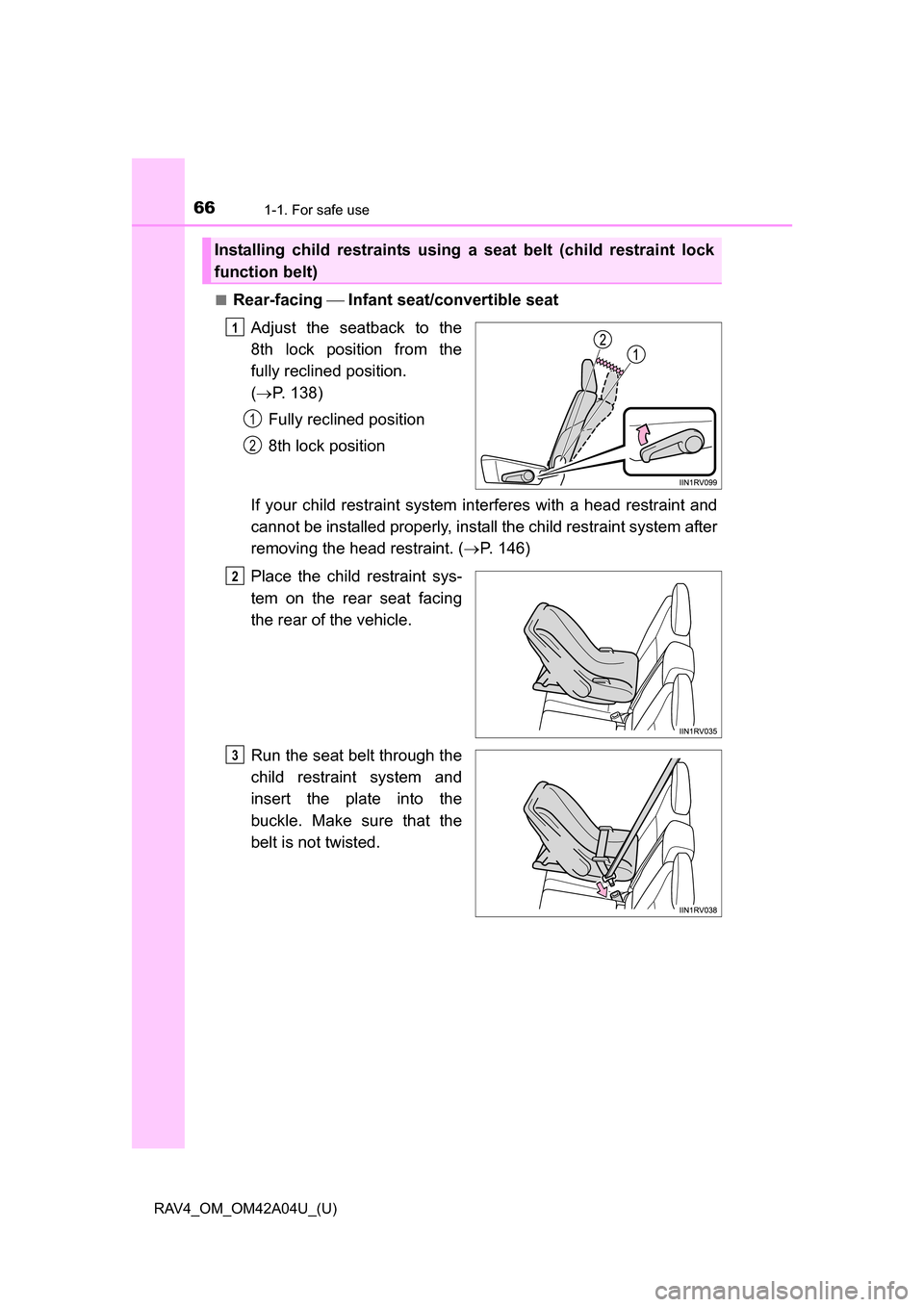

Rear-facing
 Infant seat/convertible seat
Adjust the seatback to the
8th lock position from the
fully reclined position.
(  P. 138)
Fully reclined position
8th lock position
If your child restraint system interferes with a head restraint and
cannot be installed properly, install the child restraint system after
removing the head restraint. ( P. 146)
Place the child restraint sys-
tem on the rear seat facing
the rear of the vehicle.
Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Installing child restraints using a seat belt (child restraint lock
function belt)
1
1
2
2
3

671-1. For safe use
RAV4_OM_OM42A04U_(U)
1
For safety and security

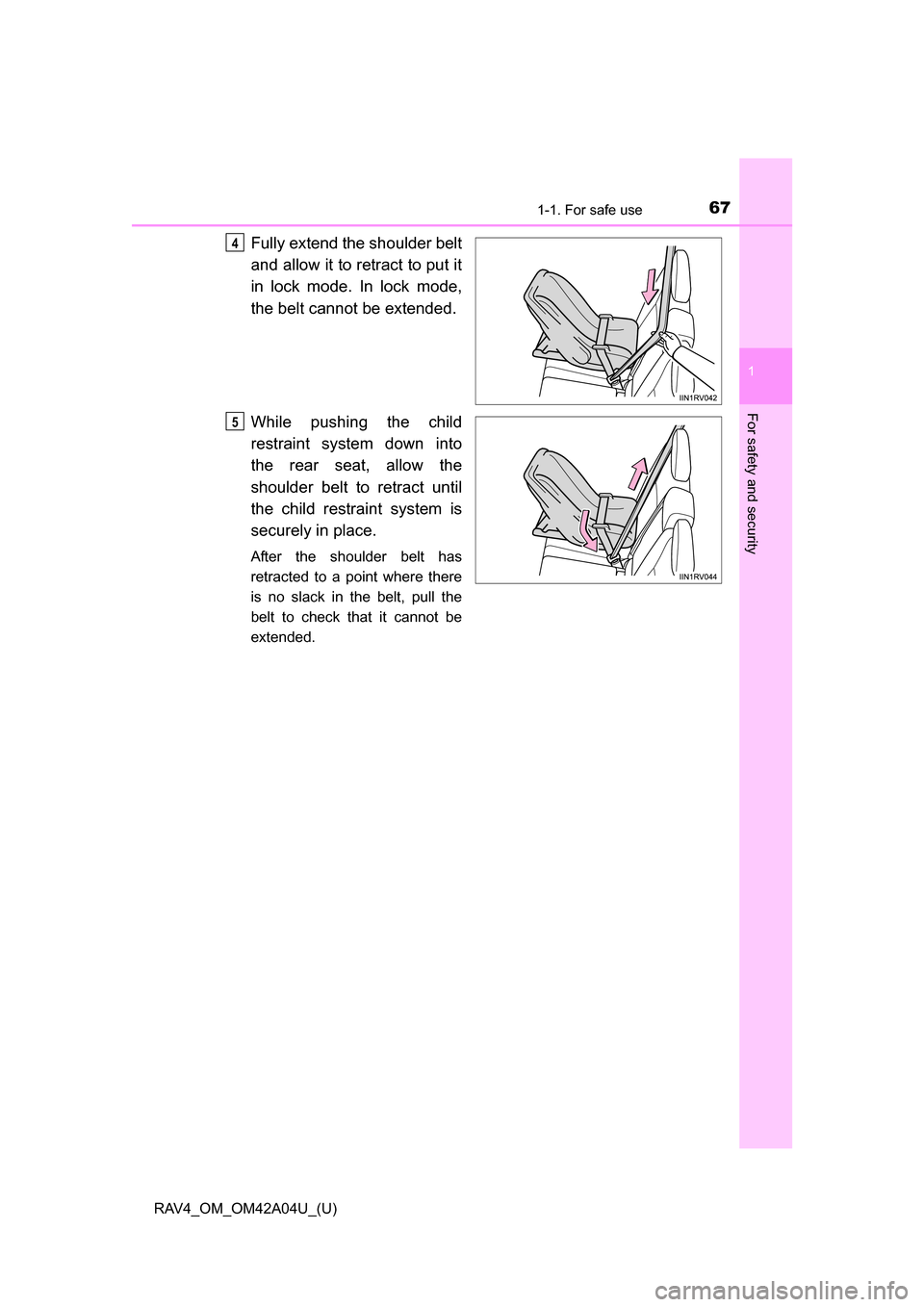

Fully extend the shoulder belt
and allow it to retract to put it
in lock mode. In lock mode,
the belt cannot be extended.
While pushing the child
restraint system down into
the rear seat, allow the
shoulder belt to retract until
the child restraint system is
securely in place.
After the shoulder belt has
retracted to a point where there
is no slack in the belt, pull the
belt to check that it cannot be
extended.
4
5

681-1. For safe use
RAV4_OM_OM42A04U_(U)■

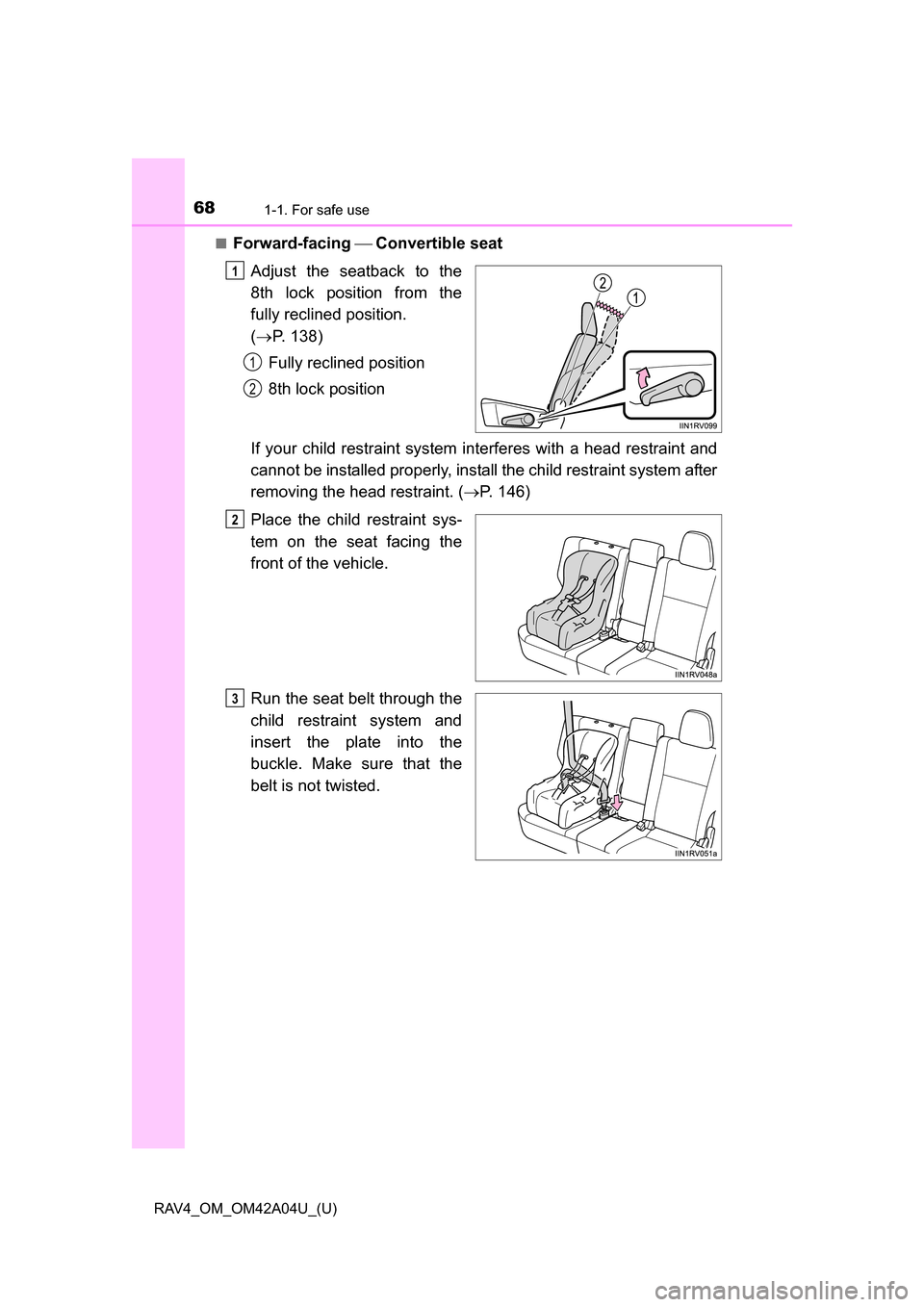

Forward-facing
Convertible seat
Adjust the seatback to the
8th lock position from the
fully reclined position.
(  P. 138)
Fully reclined position
8th lock position
If your child restraint system interferes with a head restraint and
cannot be installed properly, install the child restraint system after
removing the head restraint. ( P. 146)
Place the child restraint sys-
tem on the seat facing the
front of the vehicle.
Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
1
1
2
2
3

691-1. For safe use
RAV4_OM_OM42A04U_(U)
1
For safety and security

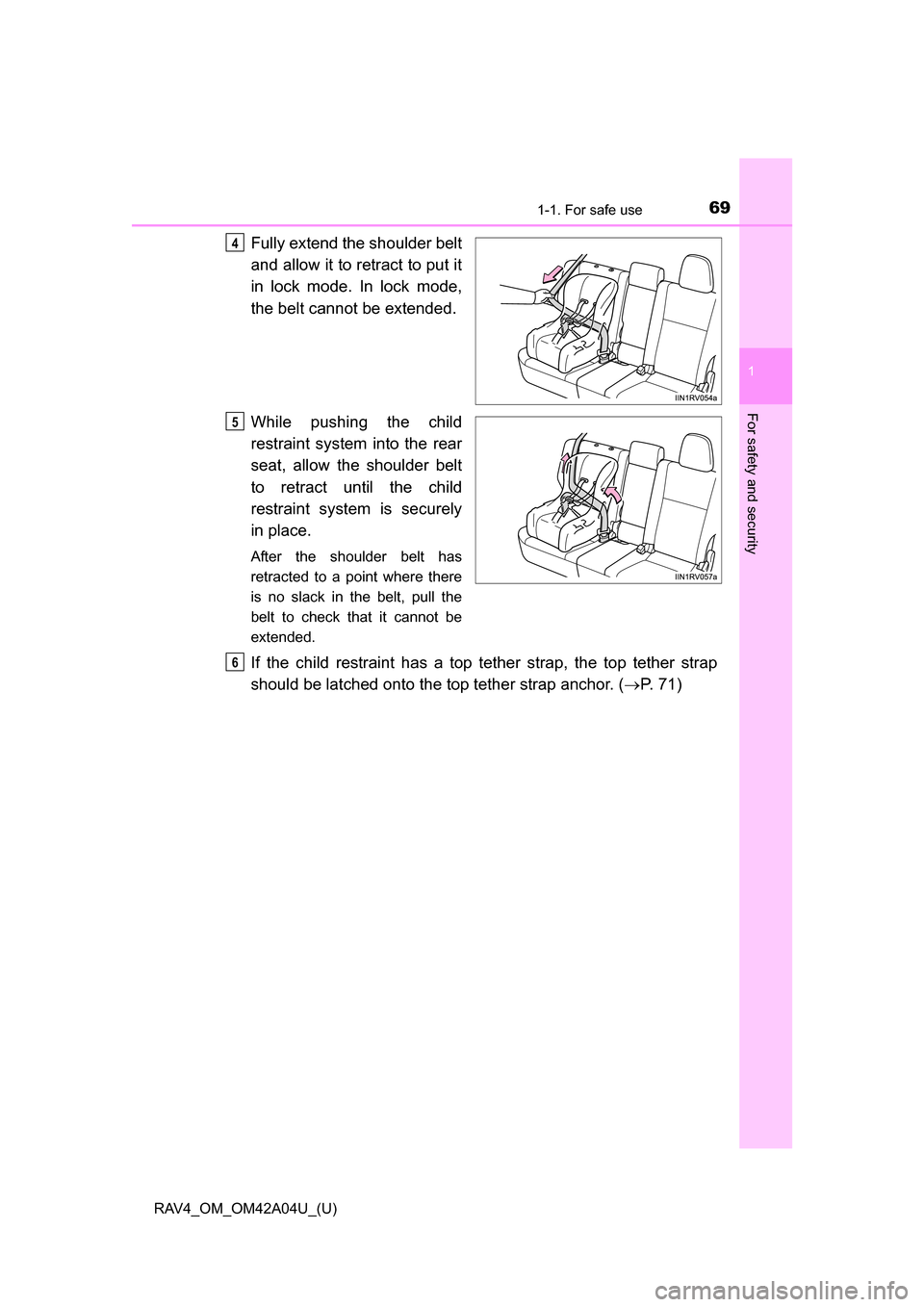

Fully extend the shoulder belt
and allow it to retract to put it
in lock mode. In lock mode,
the belt cannot be extended.
While pushing the child
restraint system into the rear
seat, allow the shoulder belt
to retract until the child
restraint system is securely
in place.
After the shoulder belt has
retracted to a point where there
is no slack in the belt, pull the
belt to check that it cannot be
extended.
If the child restraint has a top tether strap, the top tether strap
should be latched onto the top tether strap anchor. (P. 71)
4
5
6

701-1. For safe use
RAV4_OM_OM42A04U_(U)■

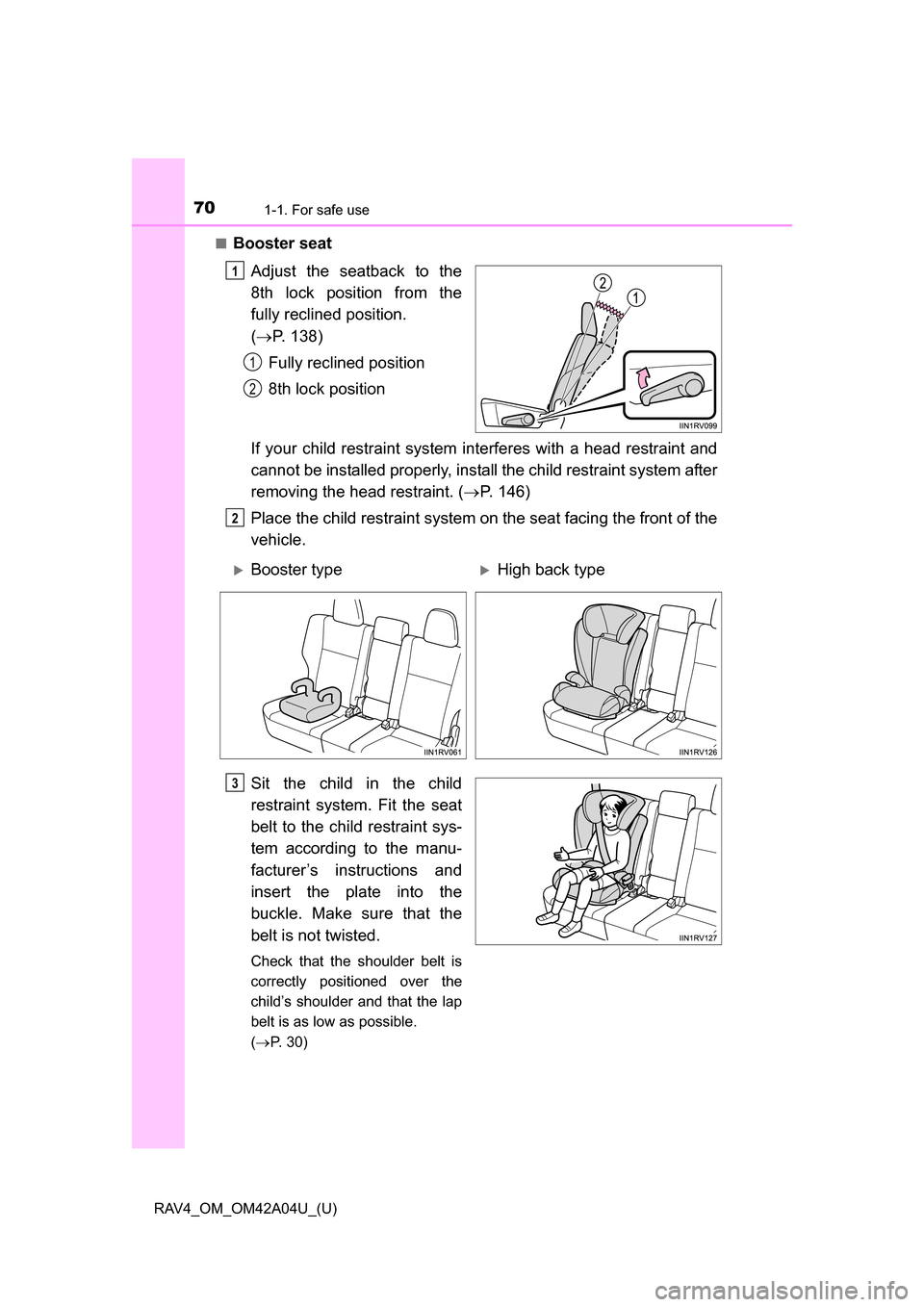

Booster seat
Adjust the seatback to the
8th lock position from the
fully reclined position.
( P. 138)
Fully reclined position
8th lock position
If your child restraint system interferes with a head restraint and
cannot be installed properly, install the child restraint system after
removing the head restraint. ( P. 146)
Place the child restraint system on the seat facing the front of the
vehicle.
Sit the child in the child
restraint system. Fit the seat
belt to the child restraint sys-
tem according to the manu-
facturer’s instructions and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Check that the shoulder belt is
correctly positioned over the
child’s shoulder and that the lap
belt is as low as possible.
(  P. 30)
1
1
2
2
Booster typeHigh back type
3
