Seek station/
CD track select
OVERVIEWFEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
19
18

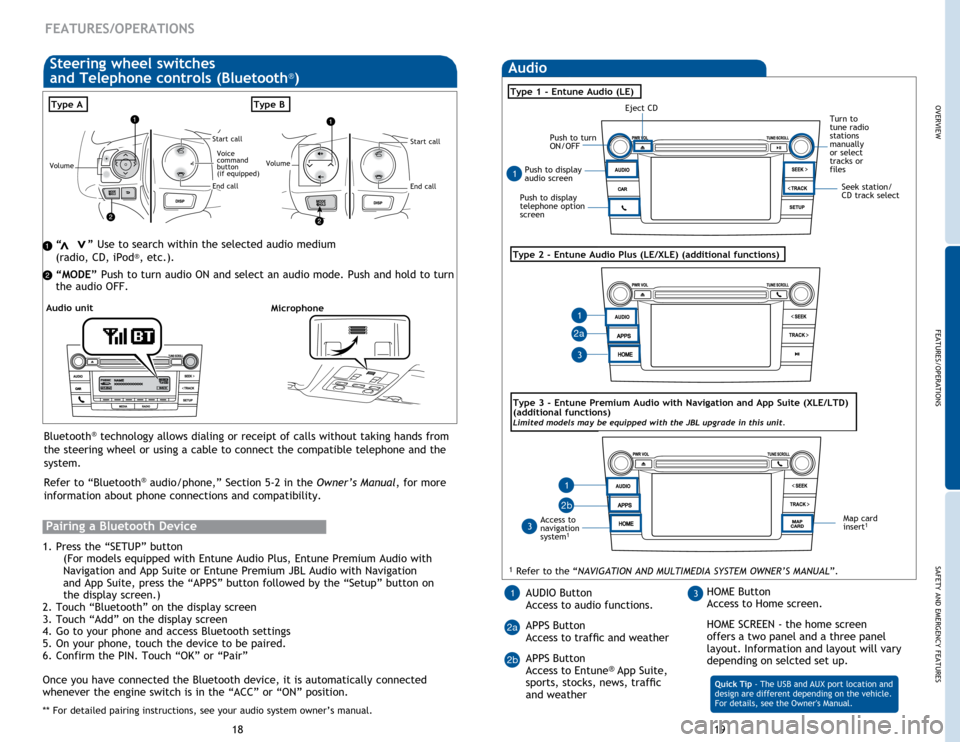

Audio
“ ” Use to search within the selected audio medium
(radio, CD, iPod®, etc.).
“MODE” Push to turn audio ON and select an audio mode. Push and hold to turn
the audio OFF.>
>
FEATURES/OPERATIONS
Eject CD
Push to turn
ON/OFFTurn to
tune radio
stations
manually
or select
tracks or
files
Type 1 - Entune Audio (LE)
Access to
navigation
system
1
Type 2 - Entune Audio Plus (LE/XLE) (additional functions)
Type 3 - Entune Premium Audio with Navigation and App Suite (XLE/LTD)
(additional functions)
Limited models may be equipped with the JBL upgrade in this unit.
Type AType B
Pairing a Bluetooth Device
1. Press the “SETUP” button
(For models equipped with Entune Audio Plus, Entune Premium Audio with
Navigation and App Suite or Entune Premium JBL Audio with Navigation
and App Suite, press the “APPS” button followed by the “Setup” button on
the display screen.)
2. Touch “Bluetooth” on the display screen
3. Touch “Add” on the display screen
4. Go to your phone and access Bluetooth settings
5. On your phone, touch the device to be paired.
6. Confirm the PIN. Touch “OK” or “Pair”
Once you have connected the Bluetooth device, it is automatically connected
whenever the engine switch is in the “ACC” or “ON” position.
** For detailed pairing instructions, see your audio system owner’s manual.
1 Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
Bluetooth® technology allows dialing or receipt of calls without taking hands from
the steering wheel or using a cable to connect the compatible telephone and the
system.
Refer to “Bluetooth
® audio/phone,” Section 5-2 in the Owner’s Manual, for more
information about phone connections and compatibility.
MicrophoneAudio unit
Steering wheel switches
and Telephone controls (Bluetooth®)
Volume
End call
Start call
Voice
command
button
(if equipped)Volume
End call
Start call
Map card
insert1
AUDIO Button
Access to audio functions.
APPS Button
Access to traffic and weather
APPS Button
Access to Entune
® App Suite,
sports, stocks, news, traffic
and weather Quick Tip - The USB and AUX port location and
design are different depending on the vehicle.
For details, see the Owner's Manual.
13HOME Button
Access to Home screen.
HOME SCREEN - the home screen
offers a two panel and a three panel
layout. Information and layout will vary
depending on selcted set up.
1
1
1
3
3
2a
2a 2b
Push to display
telephone option
screen
2b

21
20

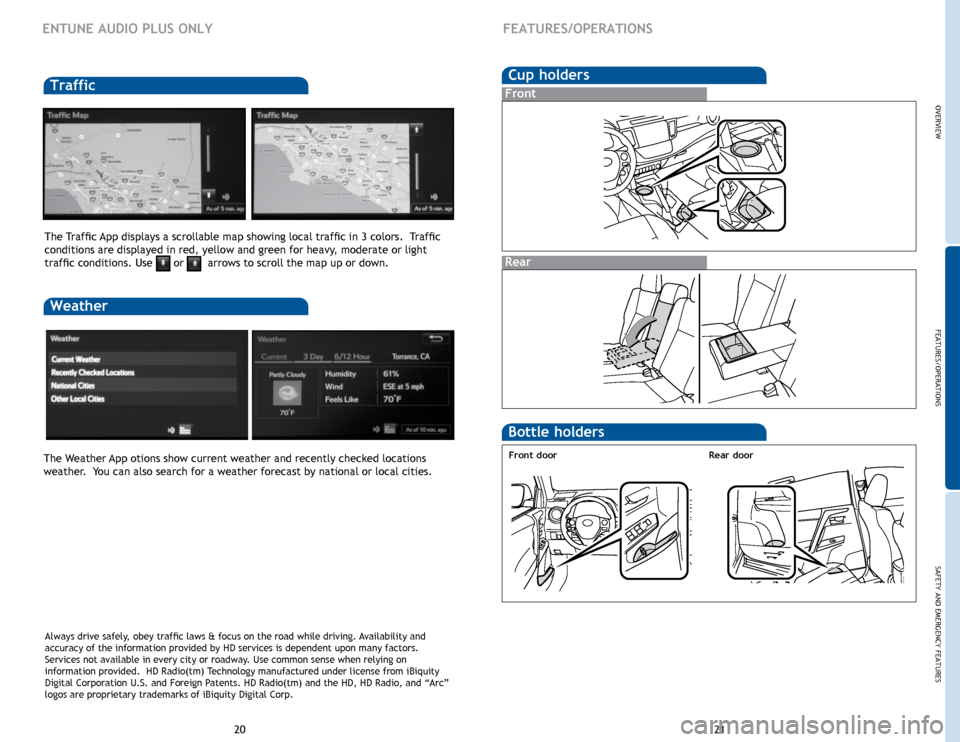

Traffic
The Weather App otions show current weather and recently checked locations
weather. You can also search for a weather forecast by national or local cities. The Traffic App displays a scrollable map showing local traffic in 3 colors. Traffic
conditions are displayed in red, yellow and green for heavy, moderate or light
traffic conditions. Use
or arrows to scroll the map up or down.
Weather
Always drive safely, obey traffic laws & focus on the road while driving. Availability and
accuracy of the information provided by HD services is dependent upon ma\
ny factors.
Services not available in every city or roadway. Use common sense when relying on
information provided. HD Radio(tm) Technology manufactured under license from iBiquity
Digital Corporation U.S. and Foreign Patents. HD Radio(tm) and the HD, HD Radio, and “Arc”
logos are proprietary trademarks of iBiquity Digital Corp.
ENTUNE AUDIO PLUS ONLY
Rear
Cup holders
Front
Bottle holders
Front doorRear door
FEATURES/OPERATIONS
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
23
22
FEATURES/OPERATIONS

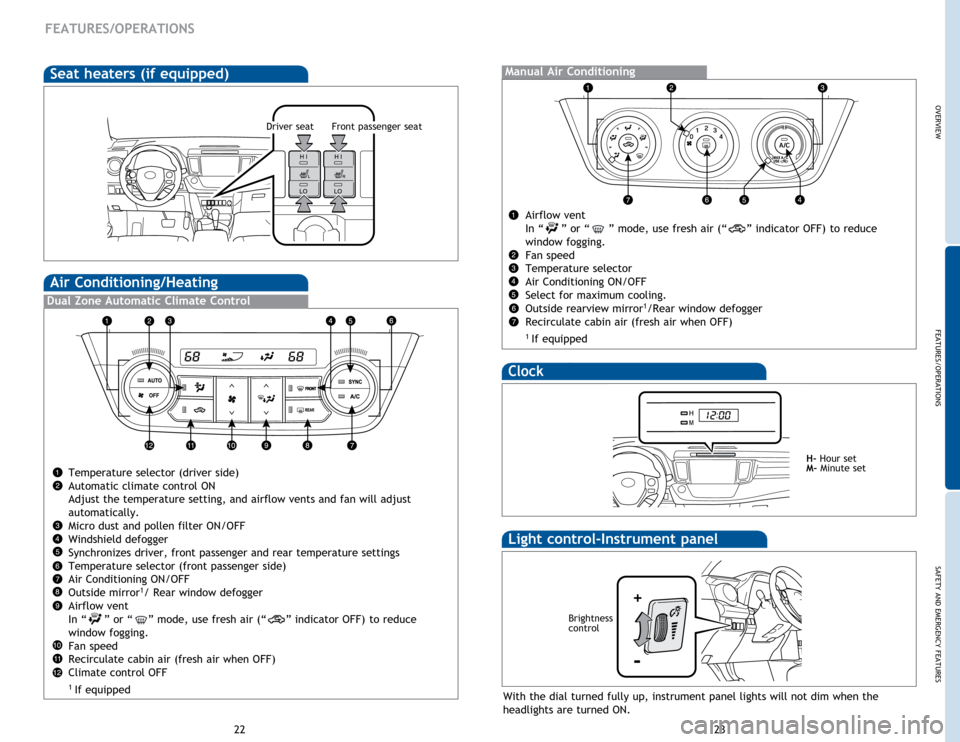

Seat heaters (if equipped)
Driver seat
Air Conditioning/Heating
Temperature selector (driver side)
Automatic climate control ON
Adjust the temperature setting, and airflow vents and fan will adjust
automatically.
Micro dust and pollen filter ON/OFF
Windshield defogger
Synchronizes driver, front passenger and rear temperature settings
Temperature selector (front passenger side)
Air Conditioning ON/OFF
Outside mirror
1/ Rear window defogger
Airflow vent
In “
” or “” mode, use fresh air (“” indicator OFF) to reduce
window fogging.
Fan speed
Recirculate cabin air (fresh air when OFF)
Climate control OFF
1 If equipped
Dual Zone Automatic Climate Control
Clock
H- Hour set
M- Minute set
Manual Air Conditioning
Airflow vent
In “
” or “ ” mode, use fresh air (“” indicator OFF) to reduce
window fogging.
Fan speed
Temperature selector
Air Conditioning ON/OFF
Select for maximum cooling.
Outside rearview mirror
1/Rear window defogger
Recirculate cabin air (fresh air when OFF)
1 If equipped
Light control-Instrument panel
Brightness
control
+
-
With the dial turned fully up, instrument panel lights will not dim when the
headlights are turned ON.
Front passenger seat

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
25
24
Power outlets-12V DC
NOTE: Designed for car accessories. Engine switch must be in the “ACC” or “ON”
position to be used.
FEATURES/OPERATIONS
The VSC OFF button is used to switch between modes related to the TRAC, VSC
and Auto LSD functions (2WD models.)
Refer to Section 4-5 of the Owner’s Manual for more information.
VSC OFF button
Vehicle Stability Control (VSC) OFF button
Cruise control
Turning system ON/OFF
Functions
System ON/OFF
Resume2 /Increase speed
Set/Decrease speed
Cancel
1
1 The set speed may also be cancelled by depressing
the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Refer to the Owner’s Manual for more details.
Multi-Information Display
Push “DISP” to scroll through the following information screens:
(1) Odometer
(2) Trip meters “A” and “B”
(3) Current fuel consumption
(4) Average fuel consumption
(5) Average vehicle speed
(6) Driving range

27
26
FEATURES/OPERATIONS

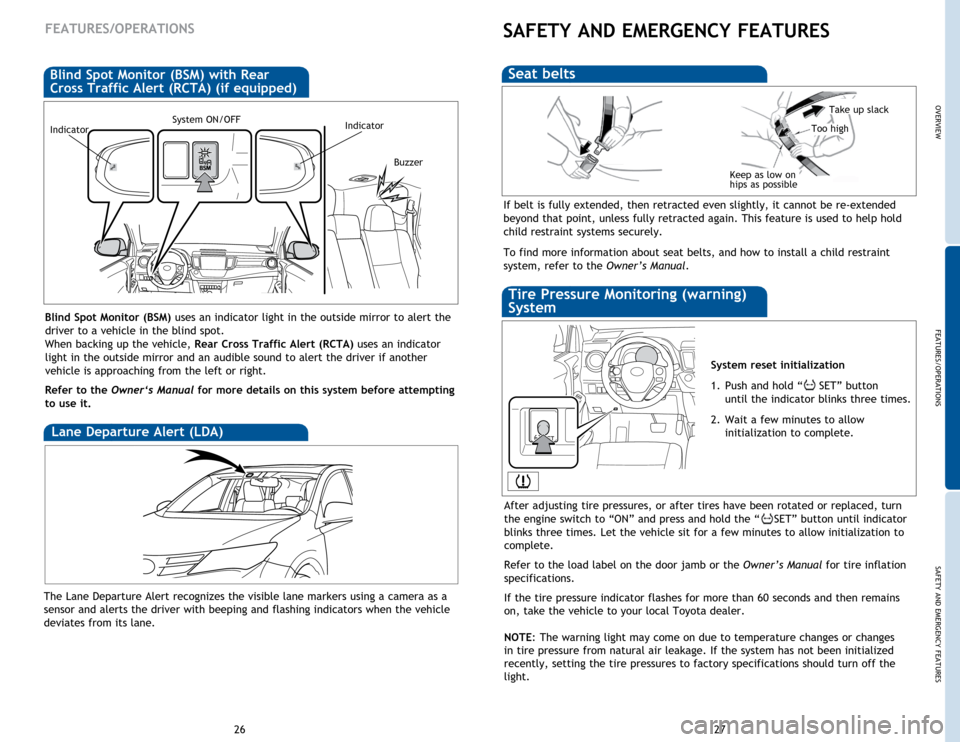

Blind Spot Monitor (BSM) uses an indicator light in the outside mirror to alert the
driver to a vehicle in the blind spot.
When backing up the vehicle, Rear Cross Traffic Alert (RCTA) uses an indicator
light in the outside mirror and an audible sound to alert the driver if another
vehicle is approaching from the left or right.
Refer to the Owner‘s Manual for more details on this system before attempting
to use it.
Buzzer
System ON/OFF
Indicator
Indicator
Blind Spot Monitor (BSM) with Rear
Cross Traffic Alert (RCTA) (if equipped)
The Lane Departure Alert recognizes the visible lane markers using a camera as a
sensor and alerts the driver with beeping and flashing indicators when the vehicle
deviates from its lane.
Lane Departure Alert (LDA)
SAFETY AND EMERGENCY FEATURES
If belt is fully extended, then retracted even slightly, it cannot be re-extended
beyond that point, unless fully retracted again. This feature is used to help hold
child restraint systems securely.
To find more information about seat belts, and how to install a child restraint
system, refer to the Owner’s Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
System reset initialization
1. Push and hold “
SET” button
until the indicator blinks three times.
2. Wait a few minutes to allow
initialization to complete.
Tire Pressure Monitoring (warning)
System
After adjusting tire pressures, or after tires have been rotated or replaced, turn
the engine switch to “ON” and press and hold the “
SET” button until indicator
blinks three times. Let the vehicle sit for a few minutes to allow initialization to
complete.
Refer to the load label on the door jamb or the Owner’s Manual for tire inflation
specifications.
If the tire pressure indicator flashes for more than 60 seconds and then remains
on, take the vehicle to your local Toyota dealer.
NOTE: The warning light may come on due to temperature changes or changes
in tire pressure from natural air leakage. If the system has not been initialized
recently, setting the tire pressures to factory specifications should turn off the
light.
OVERVIEWFEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
29
28

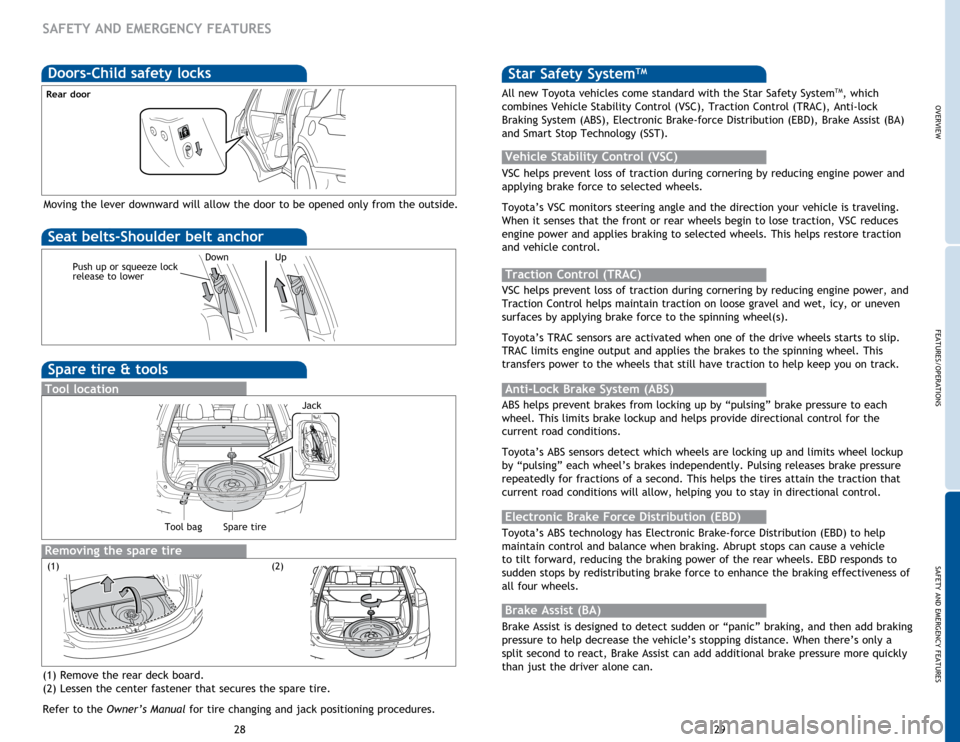

Moving the lever downward will allow the door to be opened only from the outside.
Doors-Child safety locks
Seat belts-Shoulder belt anchor
Push up or squeeze lock
release to lower
Rear door
DownUp
Spare tire & tools
Tool location
Removing the spare tire
(1) Remove the rear deck board.
(2) Lessen the center fastener that secures the spare tire.
Refer to the Owner’s Manual for tire changing and jack positioning procedures.
Jack
Tool bag
(1)(2)
Spare tire
Star Safety SystemTM
VSC helps prevent loss of traction during cornering by reducing engine power and
applying brake force to selected wheels.
Toyota’s VSC monitors steering angle and the direction your vehicle is traveling.
When it senses that the front or rear wheels begin to lose traction, VSC reduces
engine power and applies braking to selected wheels. This helps restore traction
and vehicle control.
Vehicle Stability Control (VSC)
Anti-Lock Brake System (ABS)
ABS helps prevent brakes from locking up by “pulsing” brake pressure to each
wheel. This limits brake lockup and helps provide directional control for the
current road conditions.
Toyota’s ABS sensors detect which wheels are locking up and limits wheel lockup
by “pulsing” each wheel’s brakes independently. Pulsing releases brake pressure
repeatedly for fractions of a second. This helps the tires attain the traction that
current road conditions will allow, helping you to stay in directional control.
Brake Assist (BA)
Brake Assist is designed to detect sudden or “panic” braking, and then add braking
pressure to help decrease the vehicle’s stopping distance. When there’s only a
split second to react, Brake Assist can add additional brake pressure more quickly
than just the driver alone can. VSC helps prevent loss of traction during cornering by reducing engine power, and
Traction Control helps maintain traction on loose gravel and wet, icy, or uneven
surfaces by applying brake force to the spinning wheel(s).
Toyota’s TRAC sensors are activated when one of the drive wheels starts to slip.
TRAC limits engine output and applies the brakes to the spinning wheel. This
transfers power to the wheels that still have traction to help keep you on track.
Traction Control (TRAC)
Electronic Brake Force Distribution (EBD)
Toyota’s ABS technology has Electronic Brake-force Distribution (EBD) to help
maintain control and balance when braking. Abrupt stops can cause a vehicle
to tilt forward, reducing the braking power of the rear wheels. EBD responds to
sudden stops by redistributing brake force to enhance the braking effectiveness of
all four wheels.
SAFETY AND EMERGENCY FEATURES
All new Toyota vehicles come standard with the Star Safety SystemTM, which
combines Vehicle Stability Control (VSC), Traction Control (TRAC), Anti-lock
Braking System (ABS), Electronic Brake-force Distribution (EBD), Brake Assist (BA)
and Smart Stop Technology (SST).

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
31
30
There are two types of Toyota floor mats: carpeted and all-weather. Each vehicle
has model-specific floor mats. Installation is easy.
To keep your floor mat properly positioned, follow these steps:
•
Only use floor mats designed for your specific model.
• Use only one floor mat at a time, using the retaining hooks to keep the mat in
place.
• Install floor mats right side up.

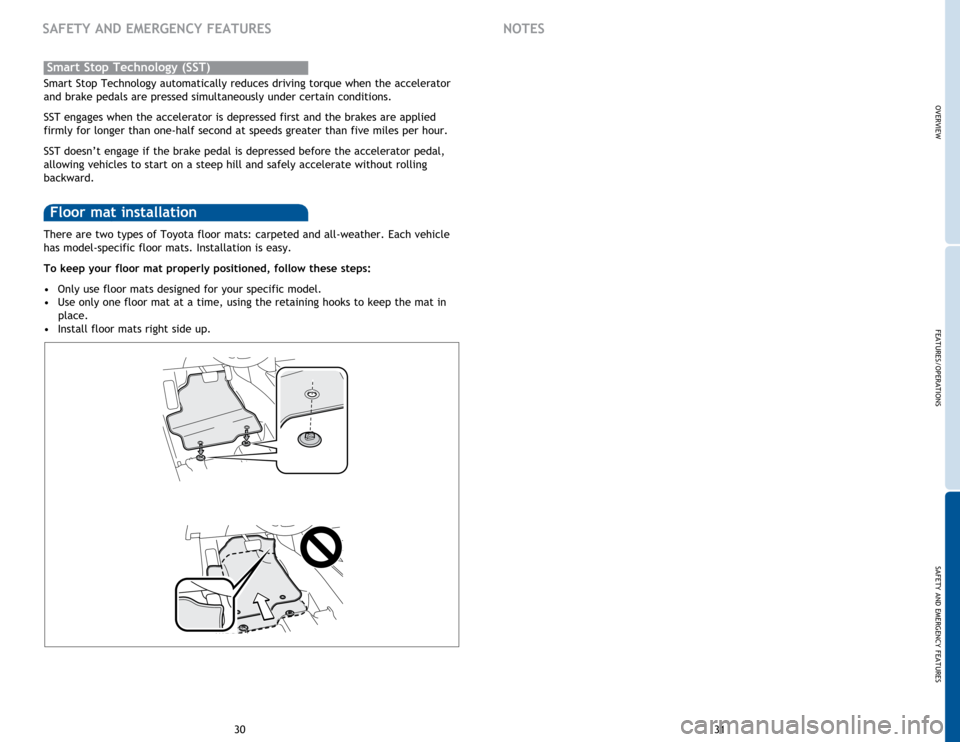

Floor mat installation
Smart Stop Technology automatically reduces driving torque when the accelerator
and brake pedals are pressed simultaneously under certain conditions.
SST engages when the accelerator is depressed first and the brakes are applied
firmly for longer than one-half second at speeds greater than five miles per hour.
SST doesn’t engage if the brake pedal is depressed before the accelerator pedal,
allowing vehicles to start on a steep hill and safely accelerate without rolling
backward.
Smart Stop Technology (SST)
SAFETY AND EMERGENCY FEATURES NOTES

33
32
NOTES NOTES
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

34
MN 00505-QRG14-RAV4
Printed in the USA 12/13
