5916-3. Do-it-yourself maintenance
6
Maintenance and care
■Front side maker lightsTurn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3

592
RAV4_OM_OM42A78U_(U)
6-3. Do-it-yourself maintenance
■Fog lights (if equipped)To allow enough working
space, turn the steering
wheel to the opposite side of
the bulb to be replaced.
Turn the steering wheel to the
left when replacing the right side
light bulb, and turn the steering
wheel to the right when replac-
ing the left side light bulb.
Remove the fender liner clip
and open the fender liner.
Unplug the connector while
pressing the lock release.
Turn the bulb base counter-
clockwise.
1
2
3
4

RAV4_OM_OM42A78U_(U)
5936-3. Do-it-yourself maintenance
6
Maintenance and care
Set the new light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn it clockwise to set.
Set the connector.
After installing the connector,
shake the bulb base gently to
check that it is not loose, turn
the fog lights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
Reinstall the fender liner and
install the clip.
Insert the clip and turn to lock.
5
6
7

594
RAV4_OM_OM42A78U_(U)
6-3. Do-it-yourself maintenance

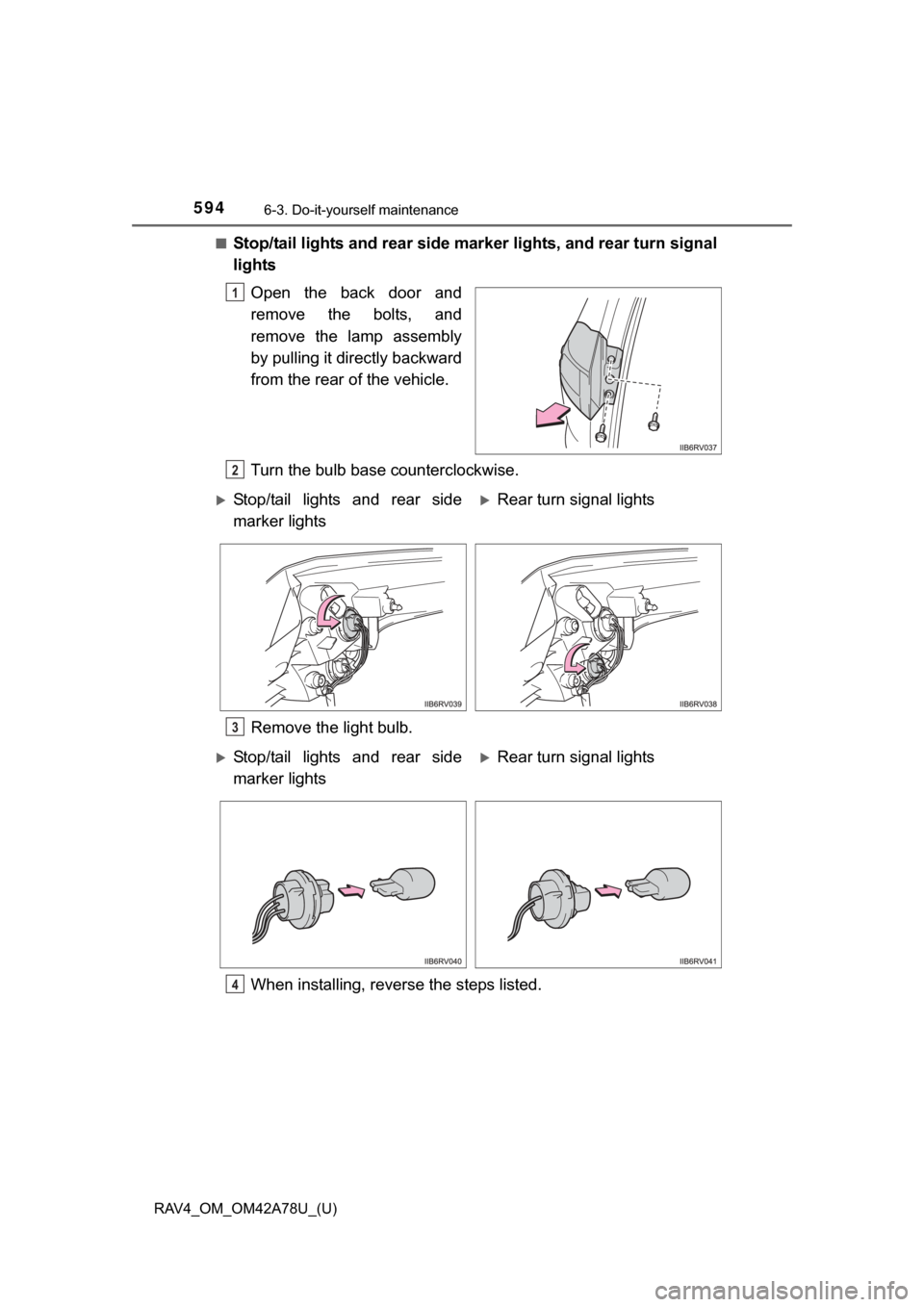

■Stop/tail lights and rear side marker lights, and rear turn signal
lights
Open the back door and
remove the bolts, and
remove the lamp assembly
by pulling it directly backward
from the rear of the vehicle.
Turn the bulb base counterclockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
Stop/tail lights and rear side
marker lightsRear turn signal lights
3
Stop/tail lights and rear side
marker lightsRear turn signal lights
4

RAV4_OM_OM42A78U_(U)
5956-3. Do-it-yourself maintenance
6
Maintenance and care

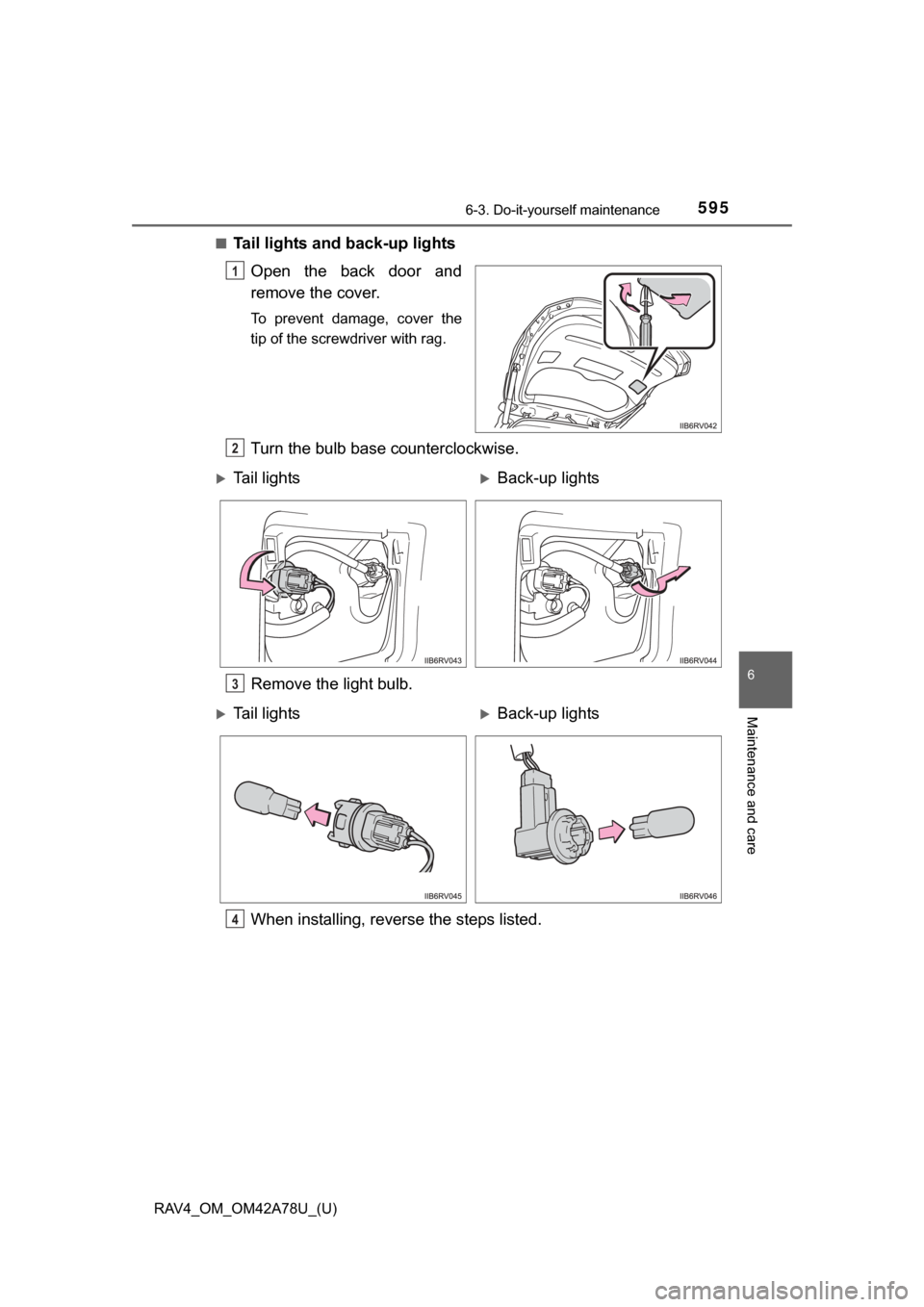

■Tail lights and back-up lightsOpen the back door and
remove the cover.
To prevent damage, cover the
tip of the screwdriver with rag.
Turn the bulb base counterclockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
Tail lightsBack-up lights
3
Tail lightsBack-up lights
4

596
RAV4_OM_OM42A78U_(U)
6-3. Do-it-yourself maintenance

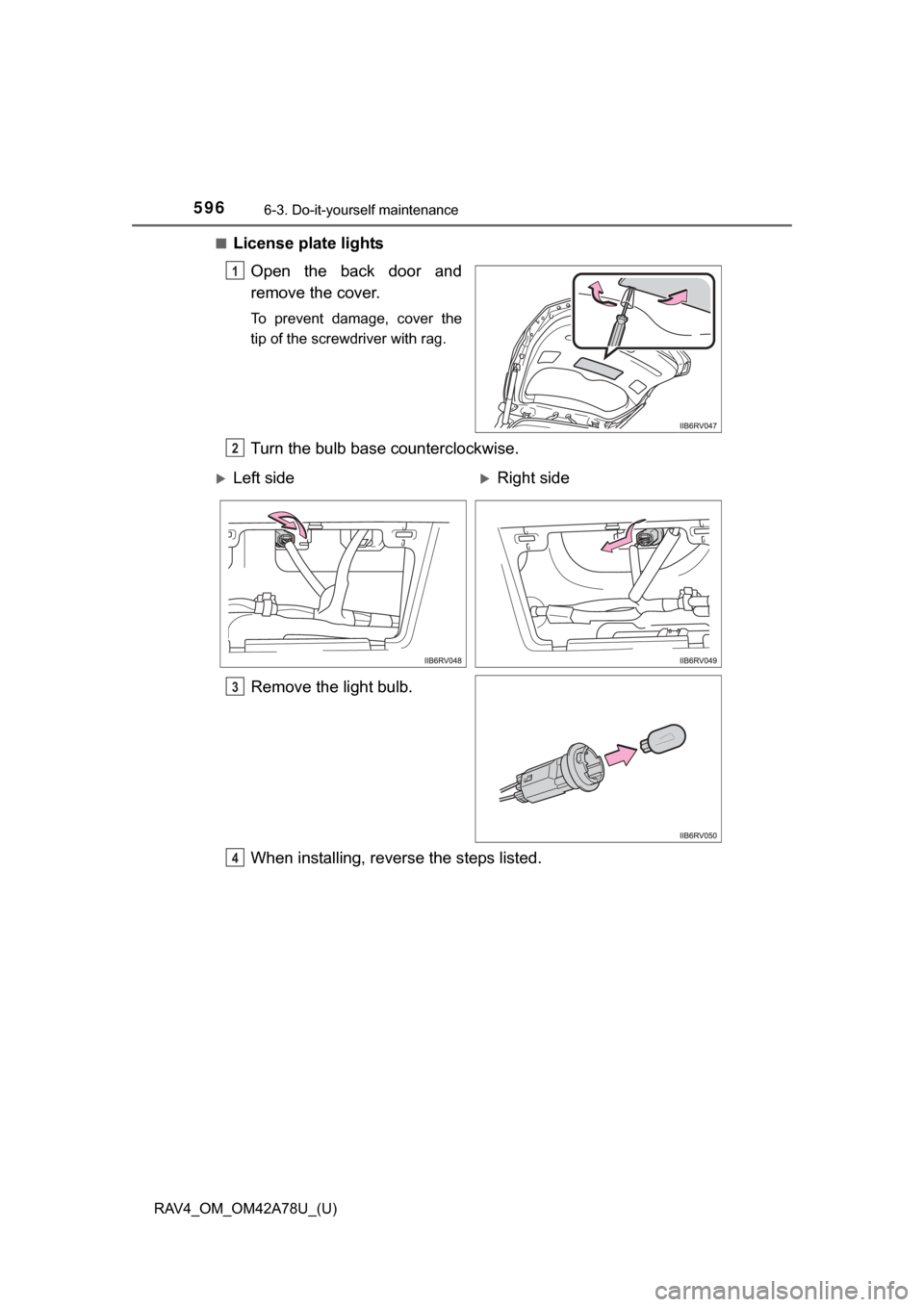

■License plate lightsOpen the back door and
remove the cover.
To prevent damage, cover the
tip of the screwdriver with rag.
Turn the bulb base counterclockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
Left sideRight side
3
4

RAV4_OM_OM42A78U_(U)
5976-3. Do-it-yourself maintenance
6
Maintenance and care
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.
● Side turn signal lights (if equipped)
● High mounted stoplight

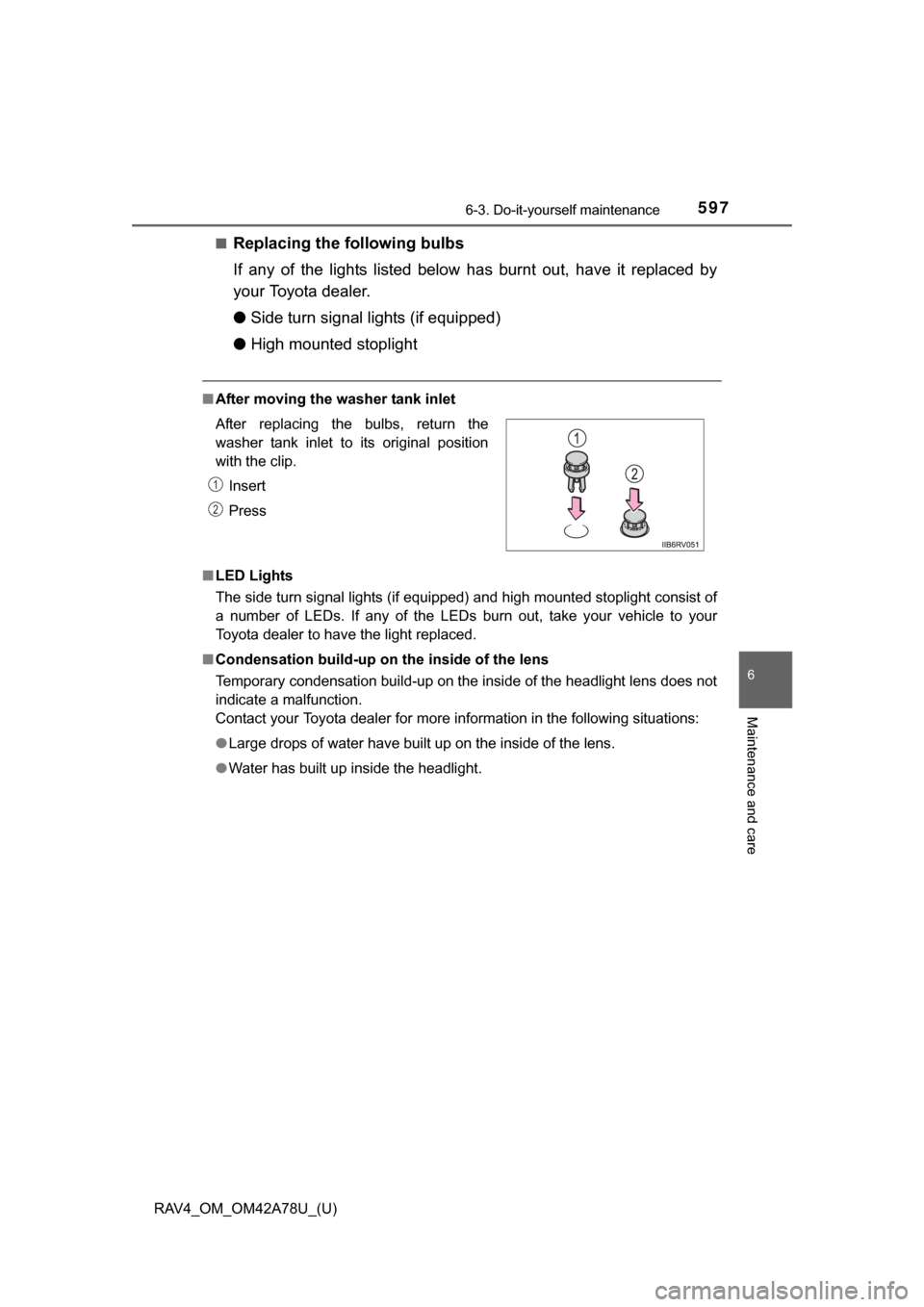

■After moving the washer tank inlet
■ LED Lights
The side turn signal lights (if equipped) and high mounted stoplight consist of
a number of LEDs. If any of the LEDs burn out, take your vehicle to your
Toyota dealer to have the light replaced.
■ Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction.
Contact your Toyota dealer for more information in the following situations:
●Large drops of water have built up on the inside of the lens.
● Water has built up inside the headlight.
After replacing the bulbs, return the
washer tank inlet to its original position
with the clip.
Insert
Press
1
2

598
RAV4_OM_OM42A78U_(U)
6-3. Do-it-yourself maintenance
CAUTION
■Replacing light bulbs
● Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
● Do not attempt to repair or disassemble light bulbs, connectors, electric
circuits or component parts.
Doing so may result in death or serious injury due to electric shock.
■ To prevent damage or fire
● Make sure bulbs are fully seated and locked.
● Check the wattage of the bulb before installing to prevent heat damage.

599
RAV4_OM_OM42A78U_(U)
7When trouble arises
7-1. Essential informationEmergency flashers .......... 600
If your vehicle has to be stopped in an
emergency ...................... 601
7-2. Steps to take in an emergency If your vehicle needs to be towed ..................... 603
If you think something is wrong ......... 609
Fuel pump shut off system ............................ 610
If a warning light turns on or a warning buzzer
sounds ............................ 611
If you have a flat tire.......... 627
If the engine will not start ..................... 643
If the shift lever cannot be shifted from P............. 645
If the electronic key does not operate properly
(vehicles with a
smart key system) ........... 646
If the vehicle battery is discharged ................... 649
If your vehicle overheats ... 653
If the vehicle becomes stuck ............................... 656

600
RAV4_OM_OM42A78U_(U)
7-1. Essential information

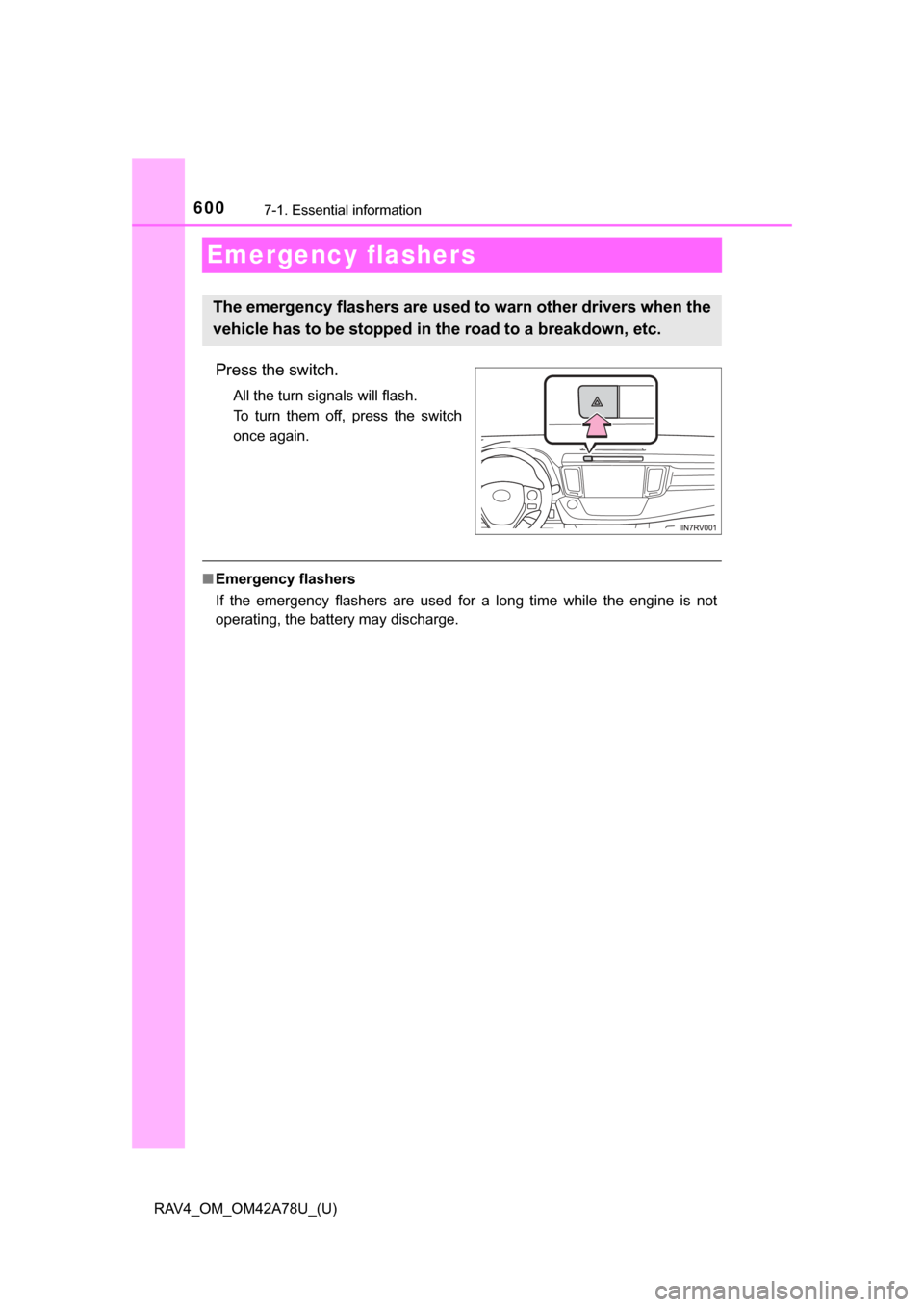

Emergency flashers
