TOYOTA RAV4 2015 XA40 / 4.G Manual Online

RAV4_OM_OM42A78U_(U)
812. Instrument cluster
2
Instrument cluster

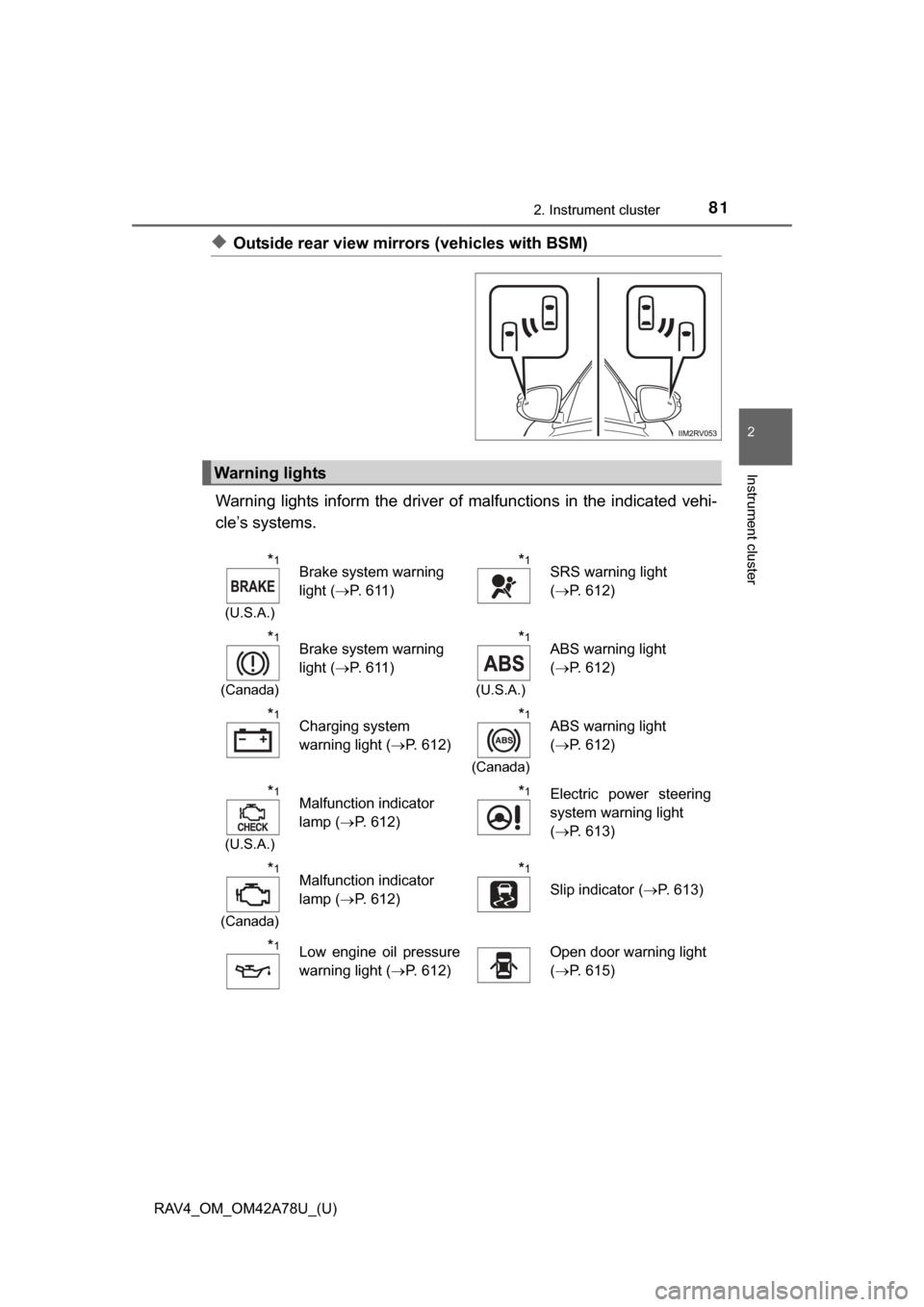

◆Outside rear view mirrors (vehicles with BSM)
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1
(U.S.A.)
Brake system warning
light ( P. 611)*1SRS warning light
(P. 612)
*1
(Canada)
Brake system warning
light ( P. 611)*1
(U.S.A.)
ABS warning light
(P. 612)
*1Charging system
warning light ( P. 612)*1
(Canada)
ABS warning light
(P. 612)
*1
(U.S.A.)
Malfunction indicator
lamp ( P. 612)*1Electric power steering
system warning light
(P. 613)
*1
(Canada)
Malfunction indicator
lamp ( P. 612)*1
Slip indicator ( P. 613)
*1Low engine oil pressure
warning light (P. 612)Open door warning light
(P. 615)

82
RAV4_OM_OM42A78U_(U)
2. Instrument cluster
*1: These lights turn on when the engine switch is turned to the “ON” position(vehicles without a smart key system) or IGNITION ON mode (vehicles with
a smart key system), to indicate that a system check is being performed.
They will turn off after the engine is started, or after a few seconds. There
may be a malfunction in a system if the lights do not come on, or turn off.
Have the vehicle inspected by your Toyota dealer.
*2: The light flashes to indicate a malfunction.
*3: The light comes on to indicate that the intuitive parking assist sensor is dirtyor covered with ice.

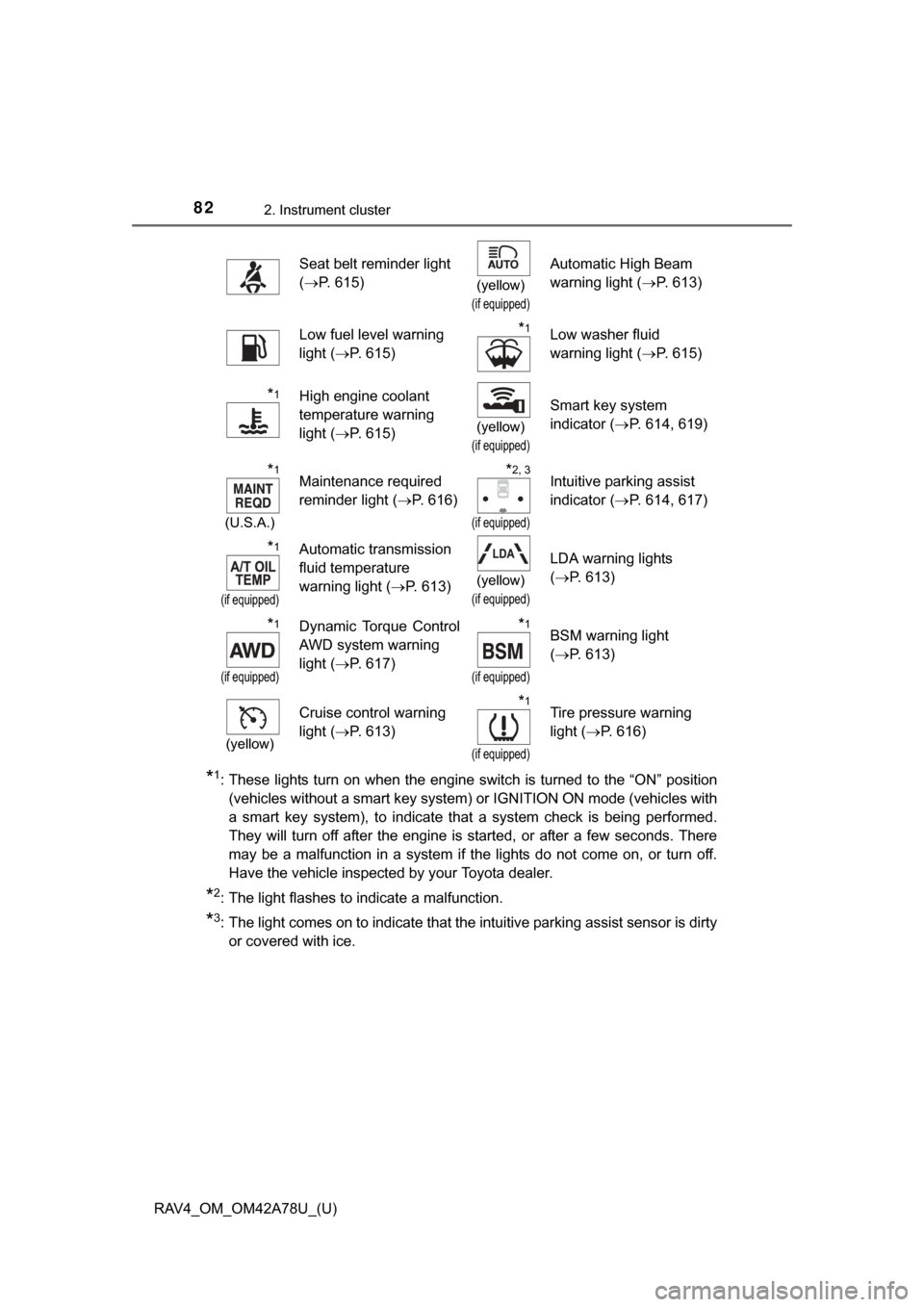

Seat belt reminder light
(P. 615)
(yellow)
(if equipped)
Automatic High Beam
warning light ( P. 613)
Low fuel level warning
light ( P. 615)*1Low washer fluid
warning light ( P. 615)
*1High engine coolant
temperature warning
light ( P. 615)
(yellow)
(if equipped)
Smart key system
indicator ( P. 614, 619)
*1
(U.S.A.)
Maintenance required
reminder light ( P. 616)*2, 3
(if equipped)
Intuitive parking assist
indicator (P. 614, 617)
*1
(if equipped)
Automatic transmission
fluid temperature
warning light ( P. 613)
(yellow)
(if equipped)
LDA warning lights
(P. 613)
*1
(if equipped)
Dynamic Torque Control
AWD system warning
light ( P. 617)*1
(if equipped)
BSM warning light
(P. 613)
(yellow)
Cruise control warning
light ( P. 613)*1
(if equipped)
Tire pressure warning
light (P. 616)

RAV4_OM_OM42A78U_(U)
832. Instrument cluster
2
Instrument cluster

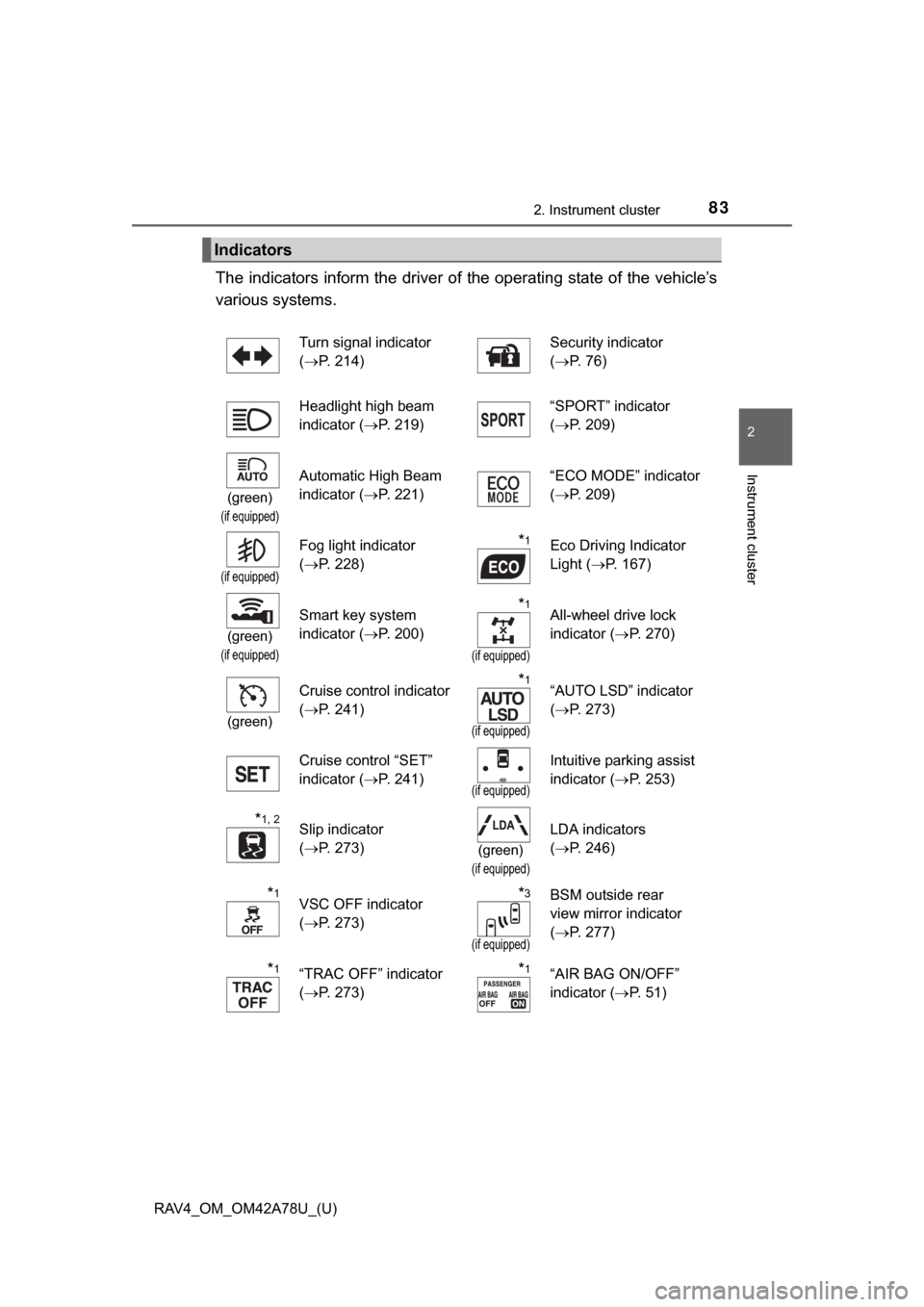

The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
( P. 214) Security indicator
(
P. 76)
Headlight high beam
indicator ( P. 219) “SPORT” indicator
(
P. 209)
(green)
(if equipped)
Automatic High Beam
indicator ( P. 221) “ECO MODE” indicator
(
P. 209)
(if equipped)
Fog light indicator
(P. 228)*1Eco Driving Indicator
Light ( P. 167)
(green)
(if equipped)
Smart key system
indicator ( P. 200)*1
(if equipped)
All-wheel drive lock
indicator (P. 270)
(green)
Cruise control indicator
(P. 241)*1
(if equipped)
“AUTO LSD” indicator
(P. 273)
Cruise control “SET”
indicator ( P. 241)
(if equipped)
Intuitive parking assist
indicator (P. 253)
*1, 2Slip indicator
(P. 273)
(green)
(if equipped)
LDA indicators
(P. 246)
*1VSC OFF indicator
(P. 273)*3
(if equipped)
BSM outside rear
view mirror indicator
(P. 277)
*1“TRAC OFF” indicator
(P. 273)*1“AIR BAG ON/OFF”
indicator ( P. 5 1 )

84
RAV4_OM_OM42A78U_(U)
2. Instrument cluster
*1: These lights turn on when the engine switch is turned to the “ON” position(vehicles without a smart key system) or IGNITION ON mode (vehicles with
a smart key system), to indicate that a system check is being performed.
They will turn off after the engine is started, or after a few seconds. There
may be a malfunction in a system if the lights do not come on, or turn off.
Have the vehicle inspected by your Toyota dealer.
*2: The light flashes to indicate that the system is operating.
*3: In order to confirm operation, the BS M outside rear view mirror indicators
illuminate in the following situations:
• When the engine switch is turned to the “ON” position (vehicles without a smart key system) or IGNITION ON mode (vehicles with a smart key sys-
tem) while the BSM main switch is set to ON.
• When the BSM main switch is set to ON while the engine switch is in the “ON” position (vehicles without a smart key system) or IGNITION ON
mode (vehicles with a smart key system).
If the system is functioning correctly, the BSM outside rear view mirror indi-
cators will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not
turn off, there may be a malfunction with the system. If this occurs, have the
vehicle inspected by your Toyota dealer.
CAUTION
■ If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by your Toyota dealer immedi-
ately if this occurs.
NOTICE
■ To prevent damage to the engine and its components
The engine may be overheating if the high engine coolant temperature
warning light flashes or turns on. In this case, immediately stop the vehicle
in a safe place, and check the engine after it has cooled completely.
(P. 653)

85
RAV4_OM_OM42A78U_(U)
2. Instrument cluster
2
Instrument cluster

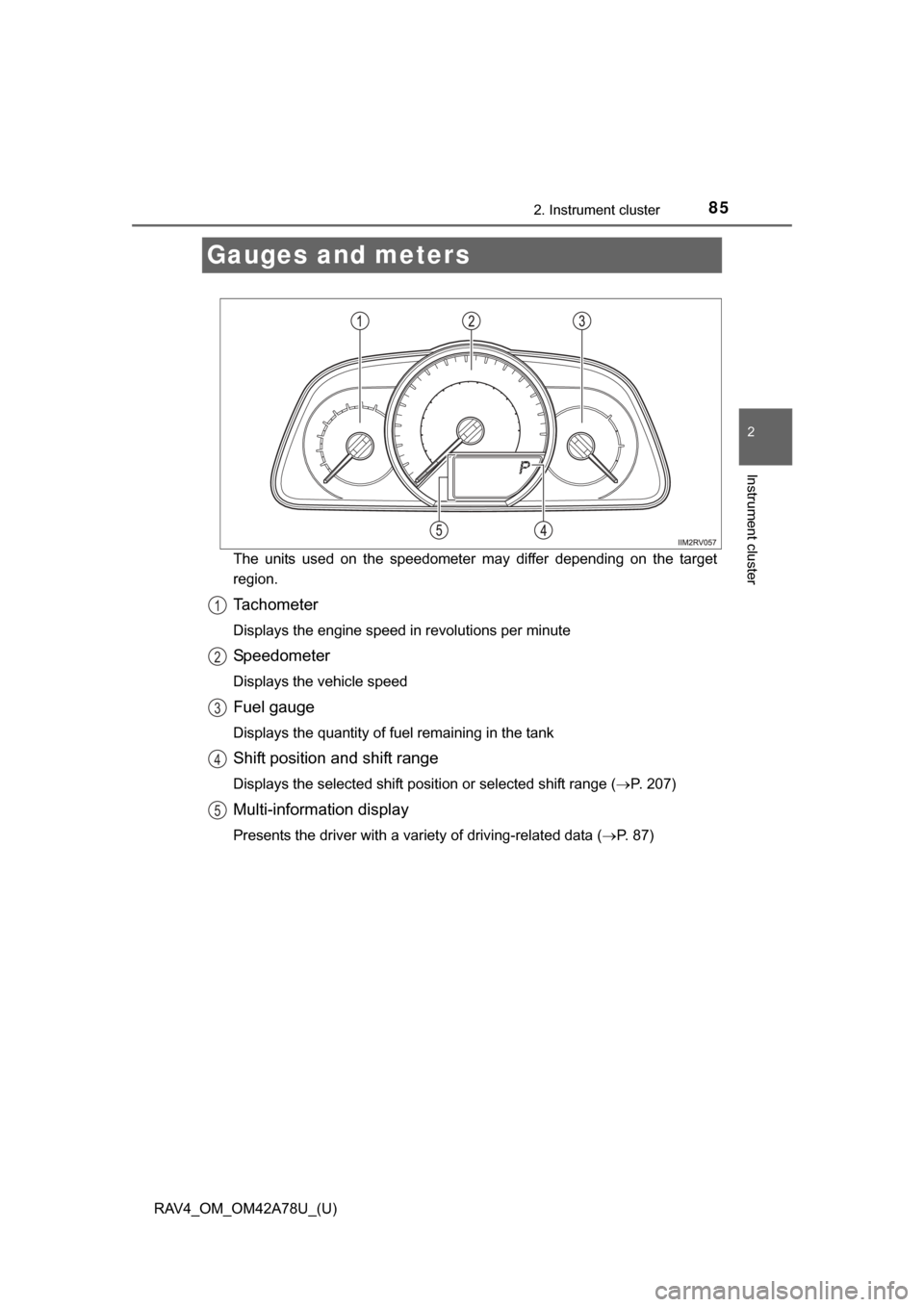

Gauges and meters
The units used on the speedometer may differ depending on the target
region.
Tachometer
Displays the engine speed in revolutions per minute
Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fuel remaining in the tank
Shift position and shift range
Displays the selected shift position or selected shift range (P. 207)
Multi-information display
Presents the driver with a variety of driving-related data ( P. 87)
1
2
3
4
5

86
RAV4_OM_OM42A78U_(U)
2. Instrument cluster

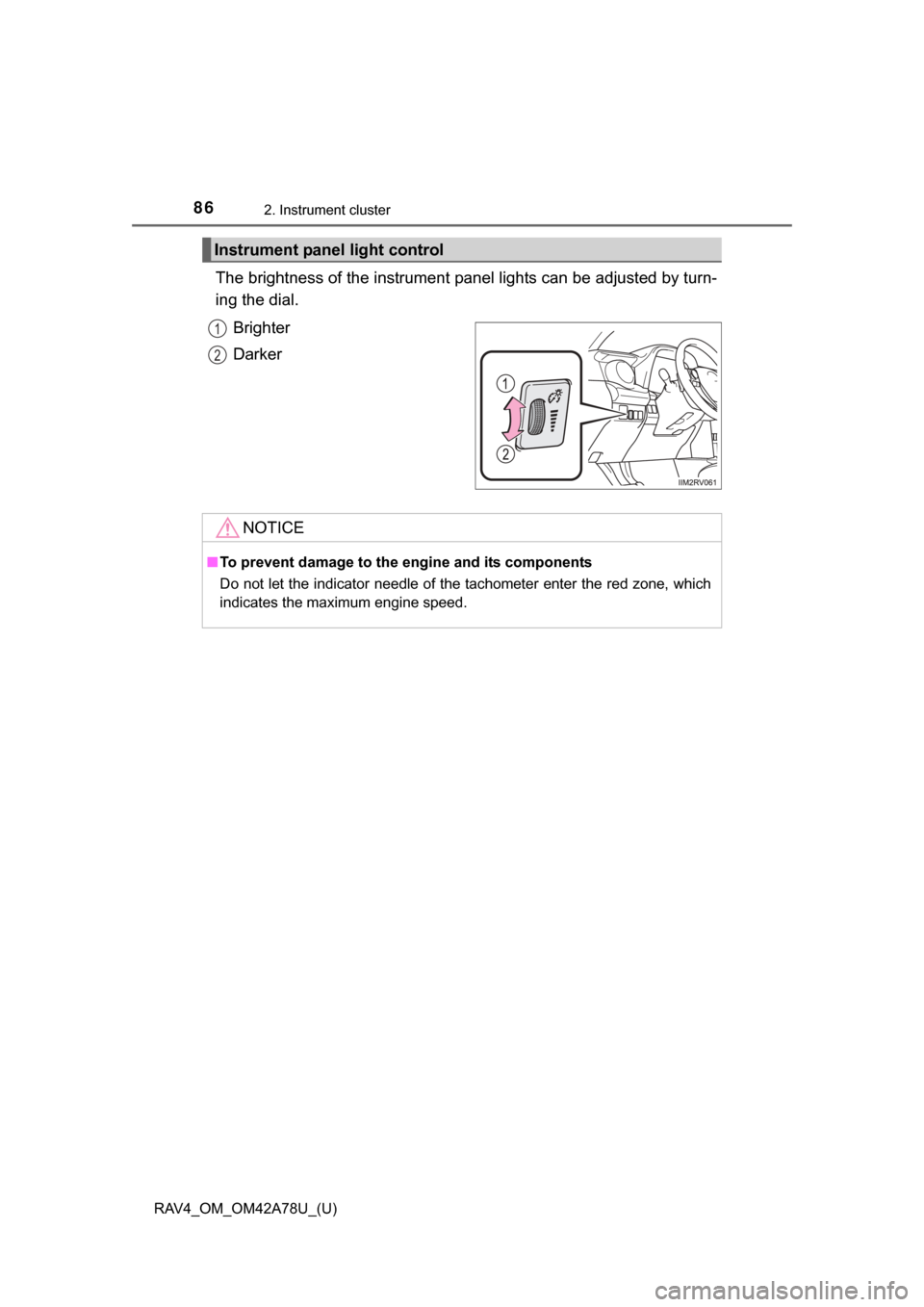

The brightness of the instrument panel lights can be adjusted by turn-
ing the dial.
Brighter
Darker
Instrument panel light control
1
2
NOTICE
■To prevent damage to the engine and its components
Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.

87
RAV4_OM_OM42A78U_(U)
2. Instrument cluster
2
Instrument cluster
Multi-infor mation display
The multi-information display presents the driver with a variety of driv-
ing-related data including the current outside air temperature.
● Outside temperature display
Indicates the outside temperature.
The temperature range that can be
displayed is from -40 F (-40C) to
122F (50 C).
● Engine coolant temperature
gauge
Displays the engine coolant tem-
perature.
●Shift position and shift range
Displays the selected shift position
or selected shift range ( P. 207)
●Trip information ( P. 8 8 )
Displays odometer, trip meter, driv-
ing range, fuel consumption and
other cruising related information.
Display contents

88
RAV4_OM_OM42A78U_(U)
2. Instrument cluster

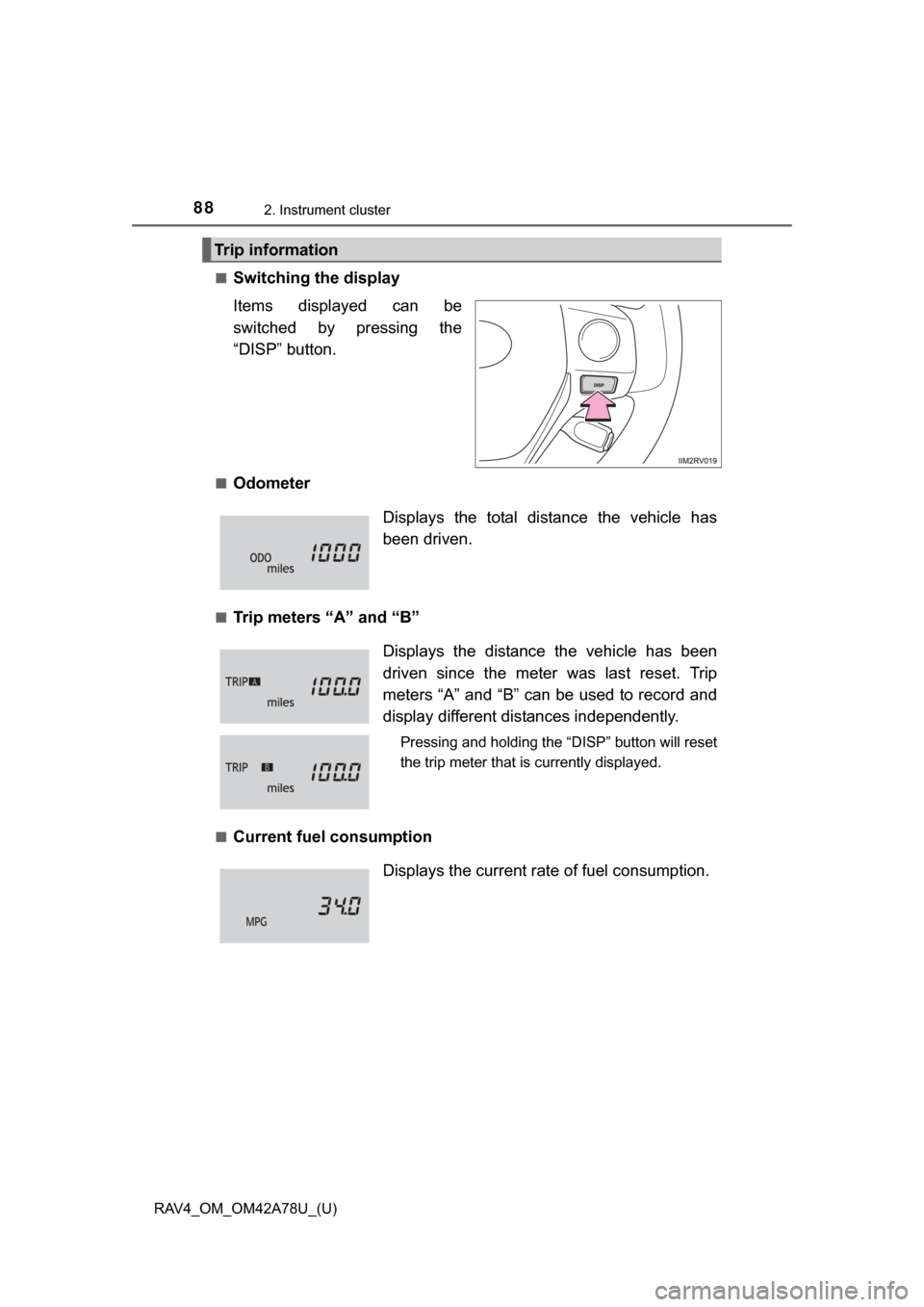

■Switching the display
Items displayed can be
switched by pressing the
“DISP” button.
■Odometer
■Trip meters “A” and “B”
■Current fuel consumption
Trip information
Displays the total distance the vehicle has
been driven.
Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters “A” and “B” can be used to record and
display different distances independently.
Pressing and holding the “DISP” button will reset
the trip meter that is currently displayed.
Displays the current rate of fuel consumption.

RAV4_OM_OM42A78U_(U)
892. Instrument cluster
2
Instrument cluster

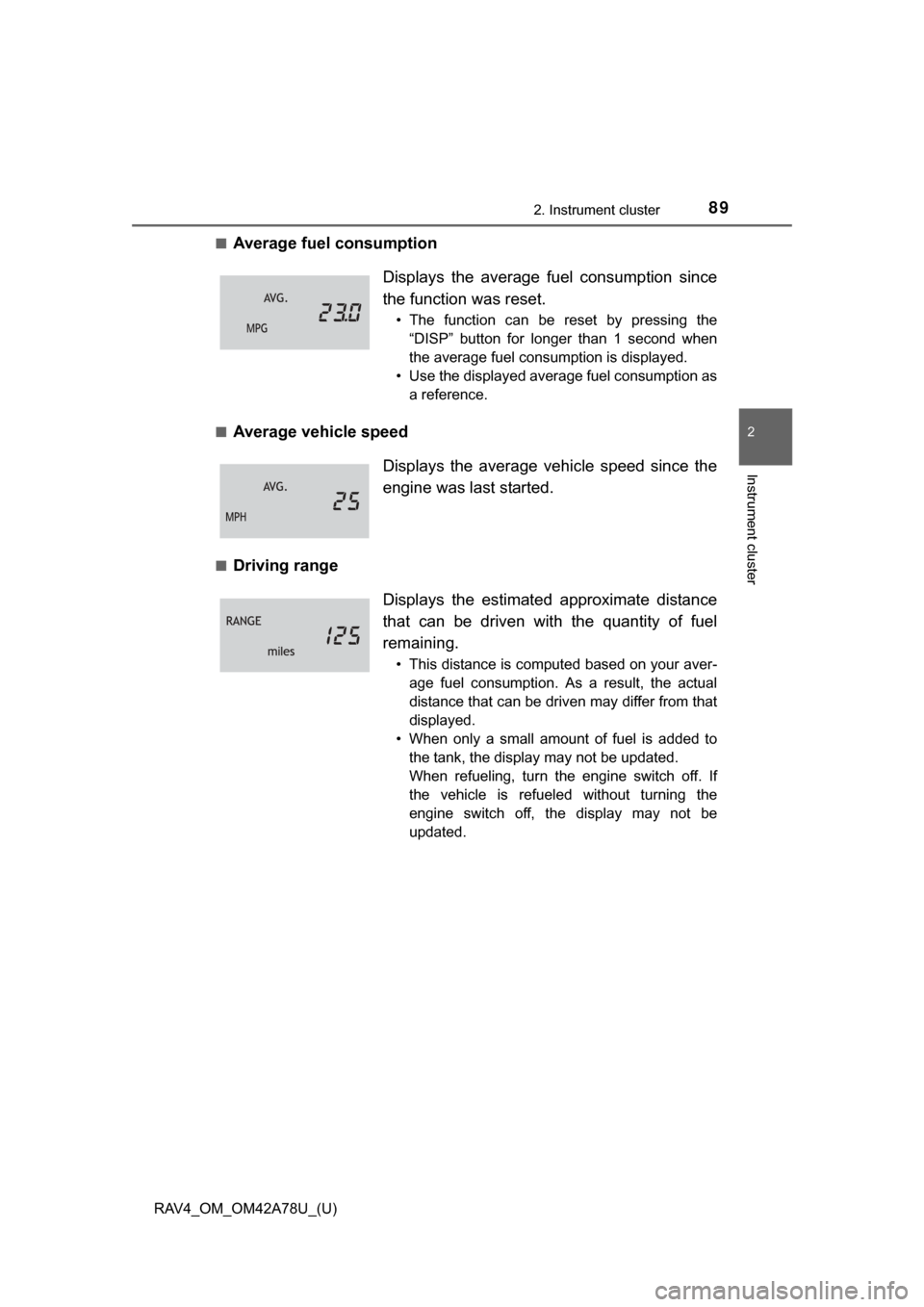

■Average fuel consumption
■Average vehicle speed
■Driving range Displays the average fuel consumption since
the function was reset.
• The function can be reset by pressing the
“DISP” button for longer than 1 second when
the average fuel consumption is displayed.
• Use the displayed average fuel consumption as a reference.
Displays the average vehicle speed since the
engine was last started.
Displays the estimat ed approximate distance
that can be driven with the quantity of fuel
remaining.
• This distance is computed based on your aver- age fuel consumption. As a result, the actual
distance that can be driven may differ from that
displayed.
• When only a small amount of fuel is added to the tank, the display may not be updated.
When refueling, turn the engine switch off. If
the vehicle is refueled without turning the
engine switch off, the display may not be
updated.

90
RAV4_OM_OM42A78U_(U)
2. Instrument cluster
Eco Driving Indicator Light can be activated or deactivated.While the odometer is being
displayed, press and hold the
“DISP” button to display the
Eco Driving Indicator Light cus-
tomization screen.
Press the “DISP” button to set Eco Driving Indicator Light to on or
off.
Press and hold the “DISP” button to complete the setting.
Eco Driving Indicator Light customization
1
2
3
