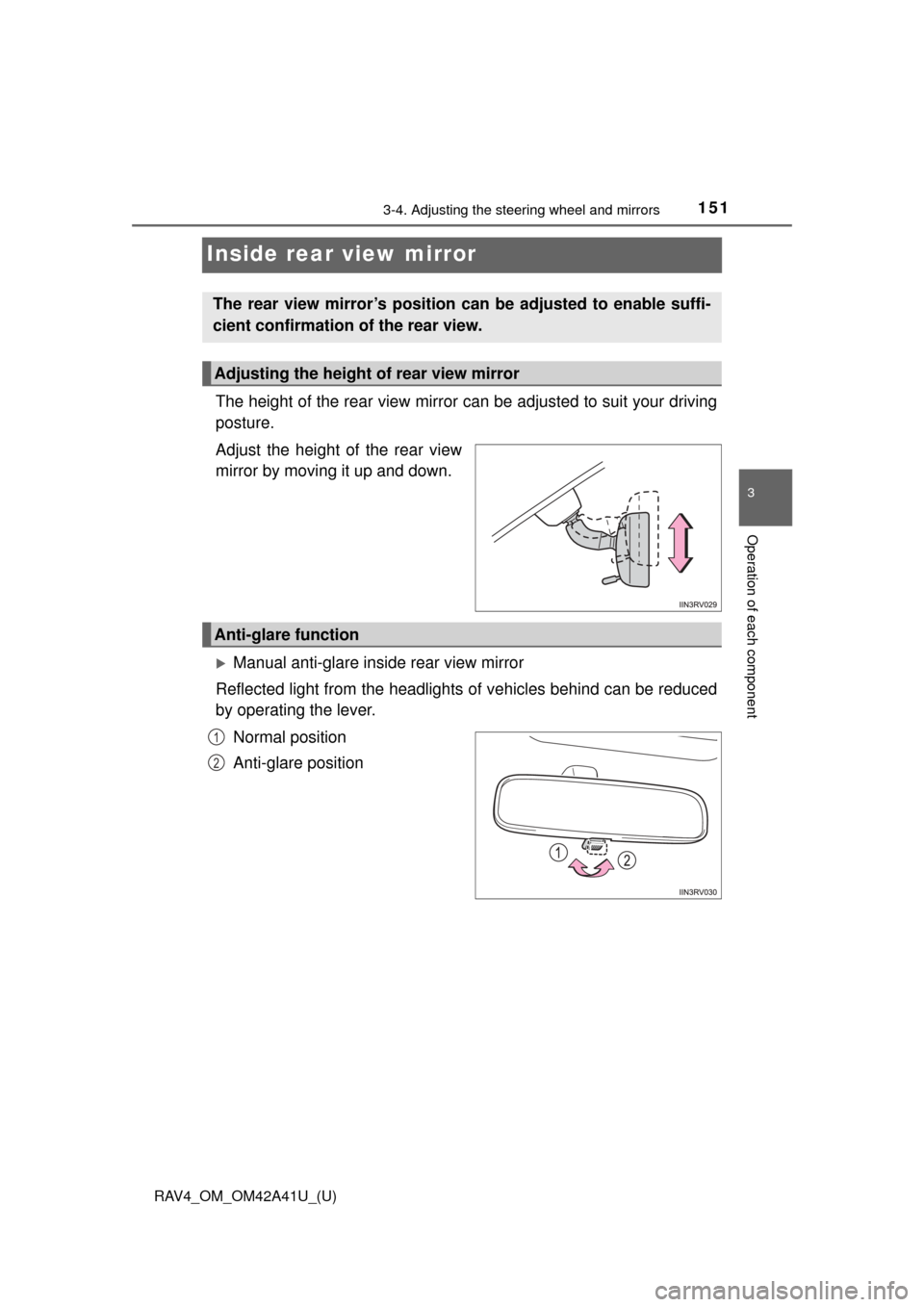

Inside rear view mirror
The height of the rear view mirror can be adjusted to suit your driving
posture.
Adjust the height of the rear view
mirror by moving it up and down.
Manual anti-glare inside rear view mirror
Reflected light from the headlights of vehicles behind can be reduced
by operating the lever.
Normal position
Anti-glare position
The rear view mirror’s position can be adjusted to enable suffi-
cient confirmation of the rear view.
Adjusting the height of rear view mirror
Anti-glare function
1
2

1523-4. Adjusting the steering wheel and mirrors
RAV4_OM_OM42A41U_(U)

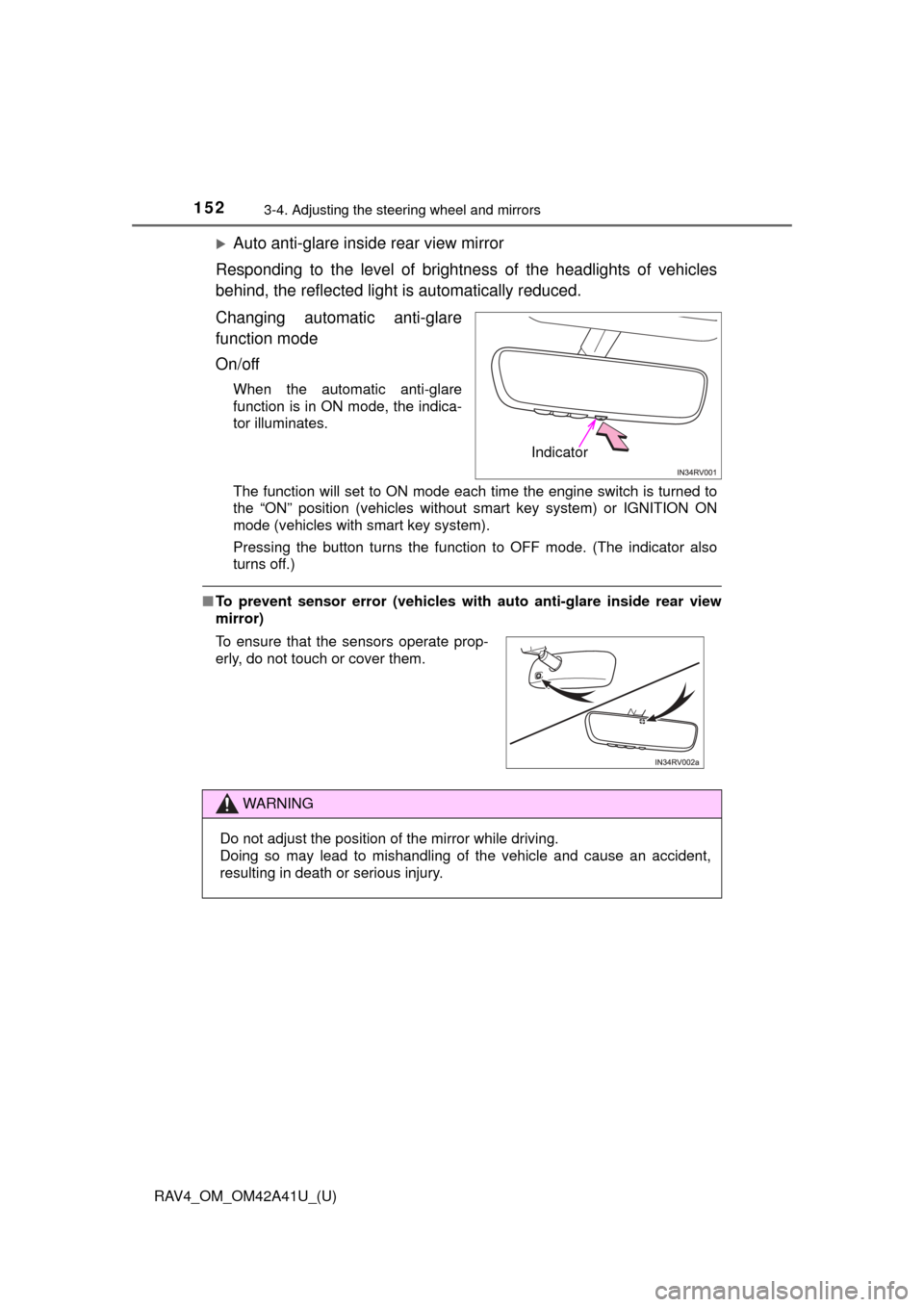

Auto anti-glare inside rear view mirror
Responding to the level of brightne ss of the headlights of vehicles
behind, the reflected light is automatically reduced.
Changing automatic anti-glare
function mode
On/off
When the automatic anti-glare
function is in ON mode, the indica-
tor illuminates.
The function will set to ON mode each time the engine switch is turned to
the “ON” position (vehicles without smart key system) or IGNITION ON
mode (vehicles with smart key system).
Pressing the button turns the function to OFF mode. (The indicator also
turns off.)
■ To prevent sensor error (vehicles with auto anti-glare inside rear view
mirror)
Indicator
To ensure that the sensors operate prop-
erly, do not touch or cover them.
WARNING
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident,
resulting in death or serious injury.

1533-4. Adjusting the steering wheel and mirrors
3
Operation of each component
RAV4_OM_OM42A41U_(U)

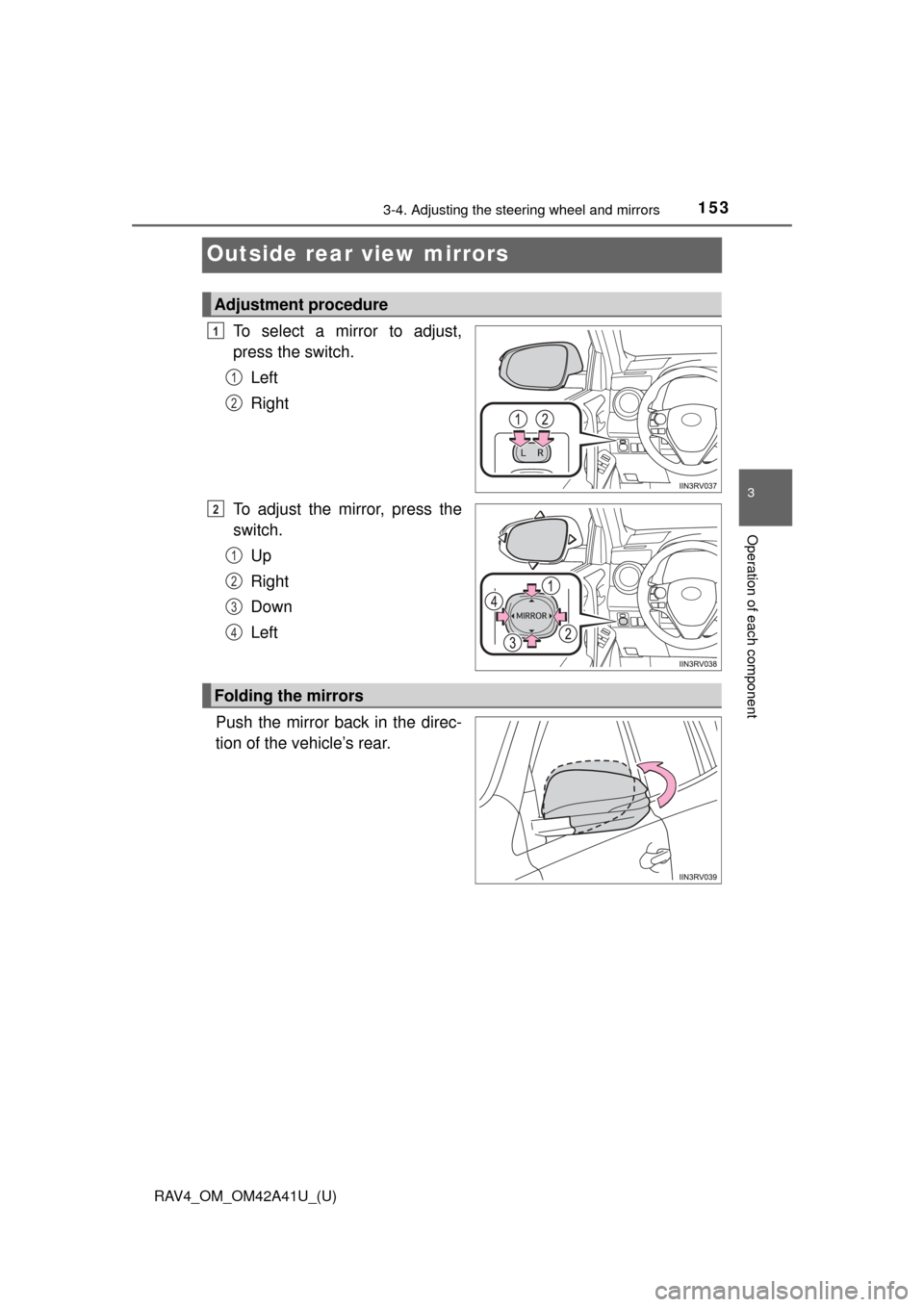

Outside rear view mirrors
To select a mirror to adjust,
press the switch.Left
Right
To adjust the mirror, press the
switch. Up
Right
Down
Left
Push the mirror back in the direc-
tion of the vehicle’s rear.
Adjustment procedure
1
1
2
2
1
2
3
4
Folding the mirrors

1543-4. Adjusting the steering wheel and mirrors
RAV4_OM_OM42A41U_(U)
The Blind Spot Mirrors increase
the view of surrounding area to
assist the driver when checking
surrounding area before chang-
ing lanes.Blind Spot Mirror field of view
(range of the solid line)
Main mirror field of view
(range of the dotted line)
■Mirror angle can be adjusted when
Vehicles without smart key system
The engine switch is in the “ACC” or “ON” position.
Vehicles with smart key system
The engine switch is in ACCESSORY or IGNITION ON mode.
■ When the mirrors are fogg ed up (vehicles with outside rear view mirror
defoggers)
The outside rear view mirrors can be cleared using the mirror defoggers. Turn
on the rear window defogger to turn on the outside rear view mirror defog-
gers. ( →P. 486, 493)

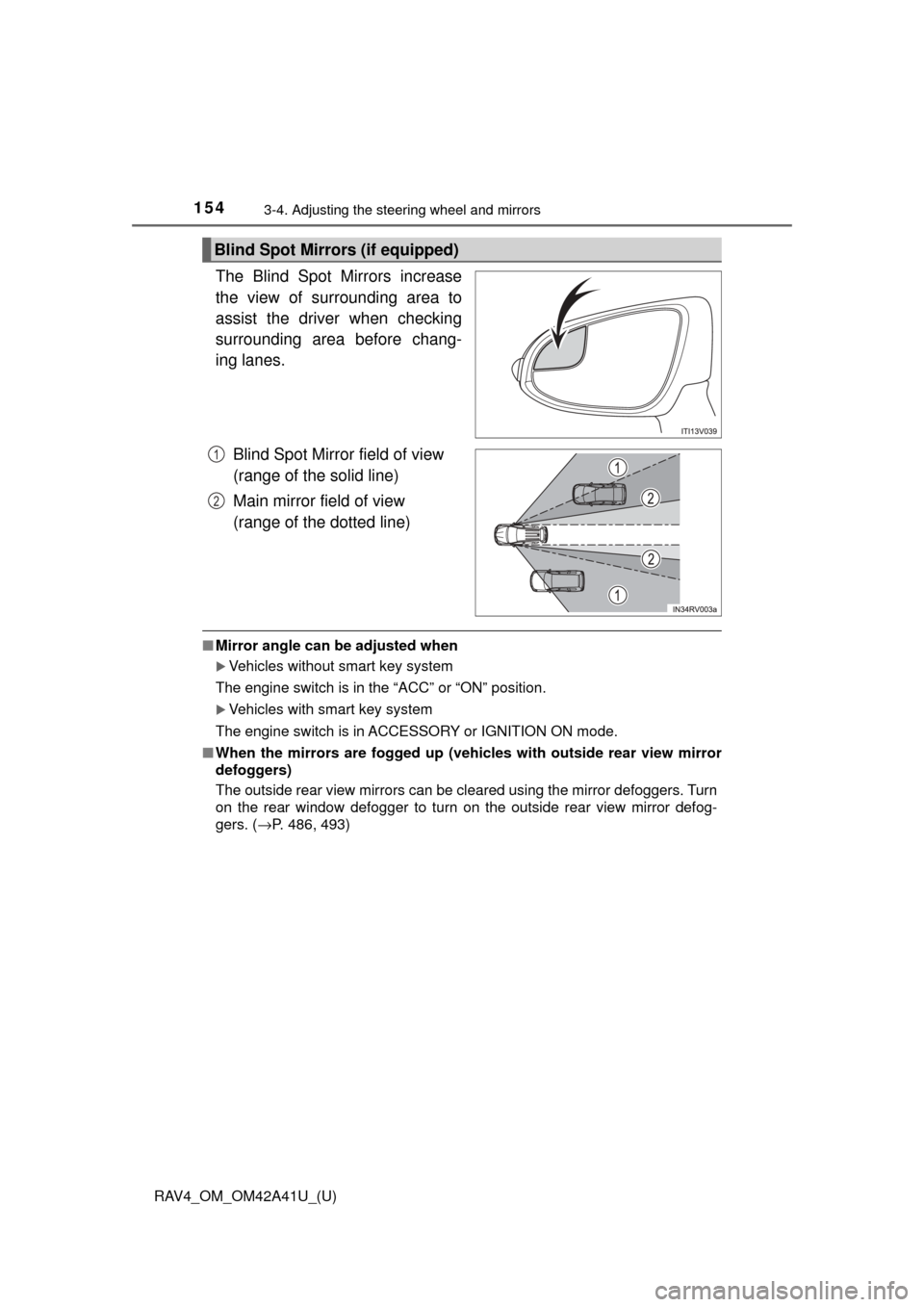

Blind Spot Mirrors (if equipped)
1
2

1553-4. Adjusting the steering wheel and mirrors
3
Operation of each component
RAV4_OM_OM42A41U_(U)
WARNING
■Important points while driving
Observe the following precautions while driving.
Failure to do so may result in loss of control of the vehicle and cause an
accident, resulting in death or serious injury.
● Do not adjust the mirrors while driving.
● Do not drive with the mirrors folded.
● Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
■ When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your
hand caught by the moving mirror.
■ When the mirror defoggers are oper ating (vehicles with outside rear
view mirror defoggers)
Do not touch the rear view mirror surfaces, as they can become very hot
and burn you.

156
RAV4_OM_OM42A41U_(U)
3-5. Opening, closing the windows and moon roof

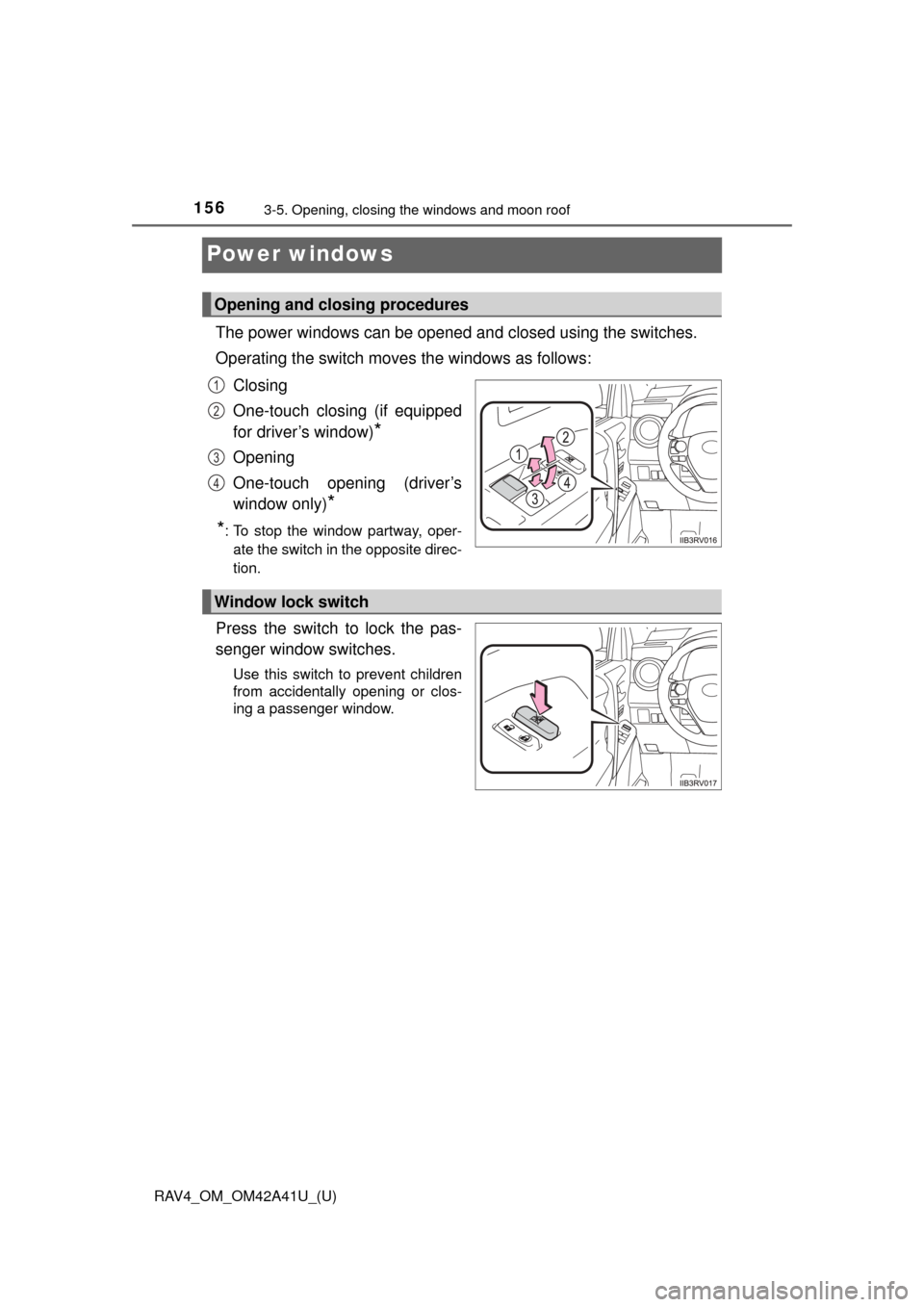

Power windows
The power windows can be opened and closed using the switches.
Operating the switch moves the windows as follows:
Closing
One-touch closing (if equipped
for driver’s window)
*
Opening
One-touch opening (driver’s
window only)
*
*
: To stop the window partway, oper- ate the switch in the opposite direc-
tion.
Press the switch to lock the pas-
senger window switches.
Use this switch to prevent children
from accidentally opening or clos-
ing a passenger window.
Opening and closing procedures
1
2
3
4
Window lock switch

RAV4_OM_OM42A41U_(U)
1573-5. Opening, closing the windows and moon roof
3
Operation of each component
■The power windows can be operated when
Vehicles without smart key system
The engine switch is in the “ON” position.
Vehicles with smart key system
The engine switch is in IGNITION ON mode.
■ Operating the power windows a fter turning the engine off
Vehicles without smart key system
The power windows can be operated for approximately 45 seconds after the
engine switch is turned to the “ACC” or “LOCK” position. They cannot, how-
ever, be operated once either front door is opened.
Vehicles with smart key system
The power windows can be operated for approximately 45 seconds after the
engine switch is turned to ACCESSORY mode or turned off. They cannot,
however, be operated once either front door is opened.
■ Jam protection function (if equipped for driver’s window)
If an object becomes jammed between the window and the window frame
while the window is closing, window movement is stopped and the window is
opened slightly.
■ Catch protection function (if equipped for driver’s window)
If an object becomes caught between the door and window while the window
is opening, window movement is stopped.

158
RAV4_OM_OM42A41U_(U)
3-5. Opening, closing the windows and moon roof
■When opening and closing the power window can not be done (if
equipped for driver’s window)
When the jam protection function or catch protection function operates
unusually or the window can not be fully opened and closed, perform the fol-
lowing operations with the power window switch of the driver’s door.
●Stop the vehicle, with the engine switch in “ON” position (vehicles without
smart key system) or IGNITION ON mode (vehicles with smart key system),
continually operate the power window switch in the one-touch closing posi-
tion within 4 seconds after the jam protection function or catch protection
function was activated. Otherwise, by continually operating the power win-
dow switch in the one-touch opening position, the window can be opened
and closed.
● If the window can not be opened and closed even when performing the
above operations, implement the following procedure for function initializa-
tion.
Turn the engine switch to “ON” position (vehicles without smart ke\
y sys-
tem) or IGNITION ON mode (vehicles with smart key system).
Pull and hold the power window switch in the one-touch closing position
and completely close the window.
Release the power window switch for a moment, resume pulling the
switch in the one-touch closing direction, and hold it there for approxi-
mately 6 seconds or more.
Press and hold the power window switch in the one-touch opening posi-
tion and after the window is completely opened, continue holding the
switch for a further 1 second or more.
Release the power window switch for a moment, resume pushing the
switch in the one-touch opening direction, and hold it there for approxi-
mately 4 seconds or more.
Pull and hold the power window switch in the one-touch closing position,
once more, and after the window is completely closed, continue holding
the switch for a further 1 second or more.
If you release the switch while the window is moving, start again from t\
he
beginning.
If the window reverses and can not be closed or completely open, have the
vehicle inspected by your Toyota dealer.
1
2
3
4
5
6

RAV4_OM_OM42A41U_(U)
1593-5. Opening, closing the windows and moon roof
3
Operation of each component
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■Closing the windows
● The driver is responsible for all the power window operations, including the
operation for the passengers. In order to prevent accidental operation,
especially by a child, do not let a child operate the power windows. It is
possible for children and other passengers to have body parts caught in
the power window. Also, when riding with a child, it is recommended to use
the window lock switch. ( →P. 156)
● Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
● When exiting the vehicle, turn the engine switch to the “LOCK” position
(vehicles without smart key system) or off (vehicles with smart key sys-
tem), carry the key and exit the vehicle along with the child. There may be
accidental operation, due to mischief, etc., that may possibly lead to an
accident.
■ Jam protection function (if equipped for driver’s window)
● Never use any part of your body to intentionally activate the jam protection
function.
● The jam protection function may not work if something gets jammed just
before the window is fully closed. Be careful not to get any part of your
body caught in the window.
■ Catch protection function (if equipped for driver’s window)
● Never use any part of your body or clothing to intentionally activate the
catch protection function.
● The catch protection function may not work if something gets caught just
before the window is fully opened. Be careful not to get any part of your
body or clothing caught in the window.

160
RAV4_OM_OM42A41U_(U)
3-5. Opening, closing the windows and moon roof

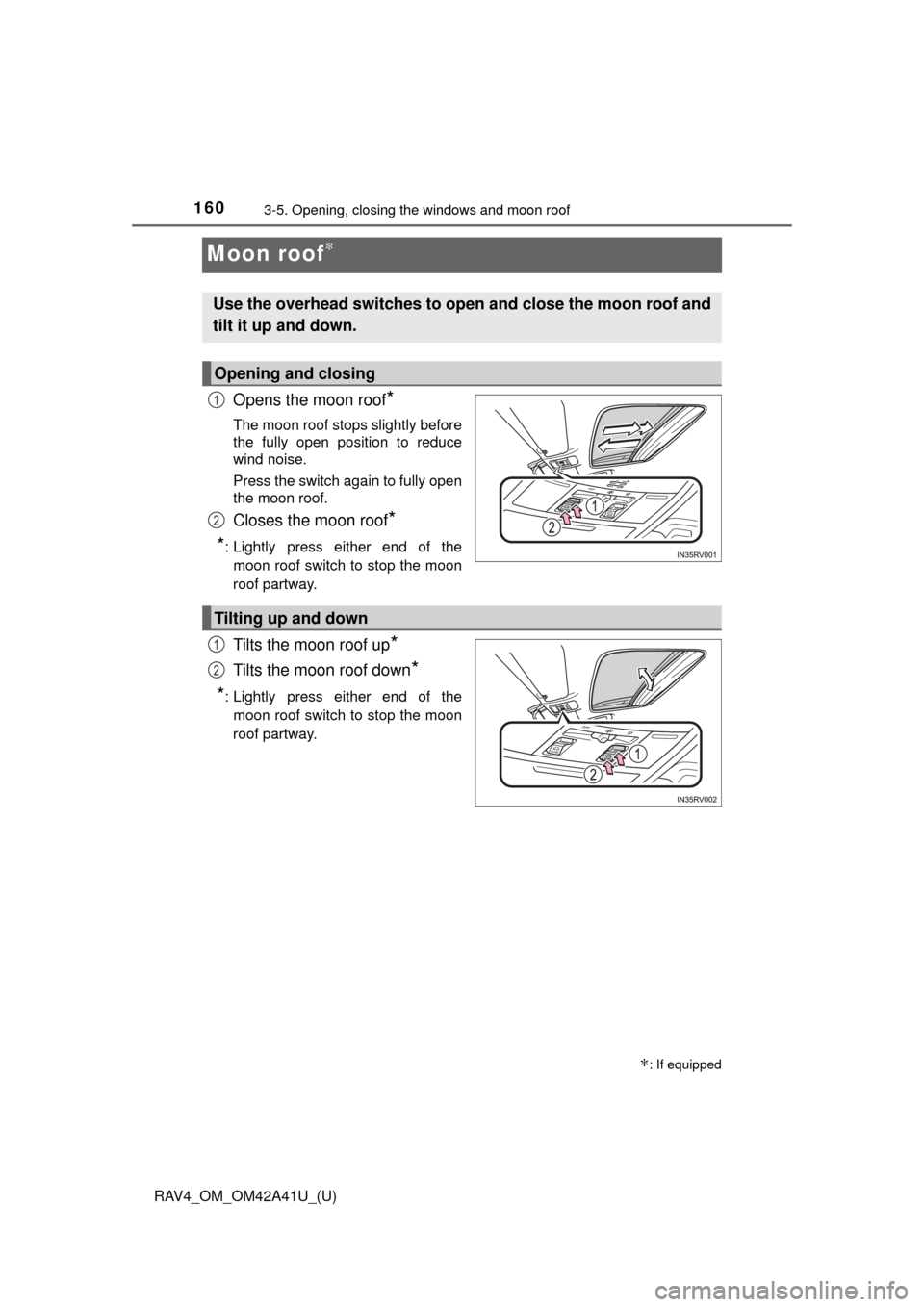

Moon roof∗
Opens the moon roof*
The moon roof stops slightly before
the fully open position to reduce
wind noise.
Press the switch again to fully open
the moon roof.
Closes the moon roof*
*
: Lightly press either end of the moon roof switch to stop the moon
roof partway.
Tilts the moon roof up*
Tilts the moon roof down*
*
: Lightly press either end of the moon roof switch to stop the moon
roof partway.
∗: If equipped
Use the overhead switches to ope n and close the moon roof and
tilt it up and down.
Opening and closing
1
2
Tilting up and down
1
