TOYOTA RAV4 2016 XA40 / 4.G Owners Manual

700
RAV4_OM_OM42A41U_(U)
9-2. Customization
■Smart key system*1 (→ P. 111, 117, 130)
*1: If equipped
*2: Settings that can be changed by electronic key ( →P. 11 5 )
■
Wireless remote control ( →P. 102, 111, 117)
*: If equipped
■
Moon roof* ( → P. 162)
*: If equipped
FunctionDefault settingCustomized
setting
Smart key systemOnOff——O
Select doors to unlock*2Driver’s doorAll the doorsO—O
Number of consecutive door
lock operations2 timesAs many as desired——O
123
FunctionDefault settingCustomized setting
Wireless remote controlOnOff——O
Opening operation of power
back door
*
Press and holdPress twice——O
123
FunctionDefault settingCustomized
setting
Moon roof open reminder
functionOnOff——O
123

RAV4_OM_OM42A41U_(U)
7019-2. Customization
9
Vehicle specifications
■Intuitive parking assist*1, 2 (→P. 277)
*1: If equipped
*2: Vehicles with 8 sensor type only
■
Automatic light control system ( →P. 212)
*: If equipped
■
Lights (→ P. 212)
*: U.S.A. only
FunctionDefault settingCustomized
setting
Detection distance of the front
center sensor Far Near O—O
Detection distance of the rear
center sensor Far Near O
—O
Buzzer volume Level 3 Level 1 to 5 O
—O
Display setting All sensors
displayed Display off O
—O
123
FunctionDefault settingCustomized
setting
Light sensor sensitivity*Standard-2 to 2O—O
Time elapsed before the
headlights automatically turn
off after the doors are closed30
seconds
Off
O—O60 seconds
90 seconds
Automatic High Beam*OnOff——O
123
FunctionDefault settingCustomized
setting
Daytime running lights*OnOffO—O
123

702
RAV4_OM_OM42A41U_(U)
9-2. Customization
■Turn signal lever (→P. 210)
*: Except for vehicles with monochrome multi-information display
■
Automatic air conditioning system* ( → P. 490)
*: If equipped
■
Seat belt reminder ( →P. 619)
FunctionDefault settingCustomized
setting
Time of flashing of the lane
change signal flashers3
Off
——O
4*
5
6*
7
123
FunctionDefault settingCustomized
setting
A/C Auto switch operationOnOffO—O
Switching between outside air
and recirculated air mode
linked to “AUTO” switch oper-
ation
OnOff——O
123
FunctionDefault settingCustomized setting
Vehicle speed linked seat belt
reminder buzzerOnOff——O
123

RAV4_OM_OM42A41U_(U)
7039-2. Customization
9
Vehicle specifications
■Illumination (→P. 501)
*: If equipped
■Vehicle customization
●When the Speed linked door locking function and shift position linked door
locking function are both on, the door lock operates as follows.
• When shifting the shift lever to any position other than P, all the doors will
be locked.
• If the vehicle is started with all the doors locked, the Speed linked door locking function would not operate.
• If the vehicle is started with any door unlocked, the Speed linked door
locking function will operate.
● When the smart key system (if equipped) is off, the selecting doors to unlock
cannot be customized.
● When the doors remain closed after unlocking the doors and the automatic
door lock function activates, the signals will be generated in accordance
with the operation signal (buzzers) and the operation signal (emergency
flashers) settings.
FunctionDefault settingCustomized
setting
Interior lights illumination con-
trol
*OnOff——O
Time elapsed before the inte-
rior lights turn off15 seconds
Off
O*—O
7.5
seconds
30
seconds
Operation after the engine
switch is turned to the “LOCK”
position (vehicles without
smart key system) or engine
switch is turned off (vehicles
with smart key system)
OnOff——O
Operation when the doors are
unlockedOnOff——O
Operation when you approach
the vehicle with the electronic
key on your person (vehicles
with smart key system)
OnOff——O
123

704
RAV4_OM_OM42A41U_(U)
9-2. Customization
WARNING
■During customization
As the engine needs to be running during customization, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may
collect and enter the vehicle. This may lead to death or a serious health
hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while cus-
tomizing features.

705
RAV4_OM_OM42A41U_(U)
9-3. Initialization
9
Vehicle specifications

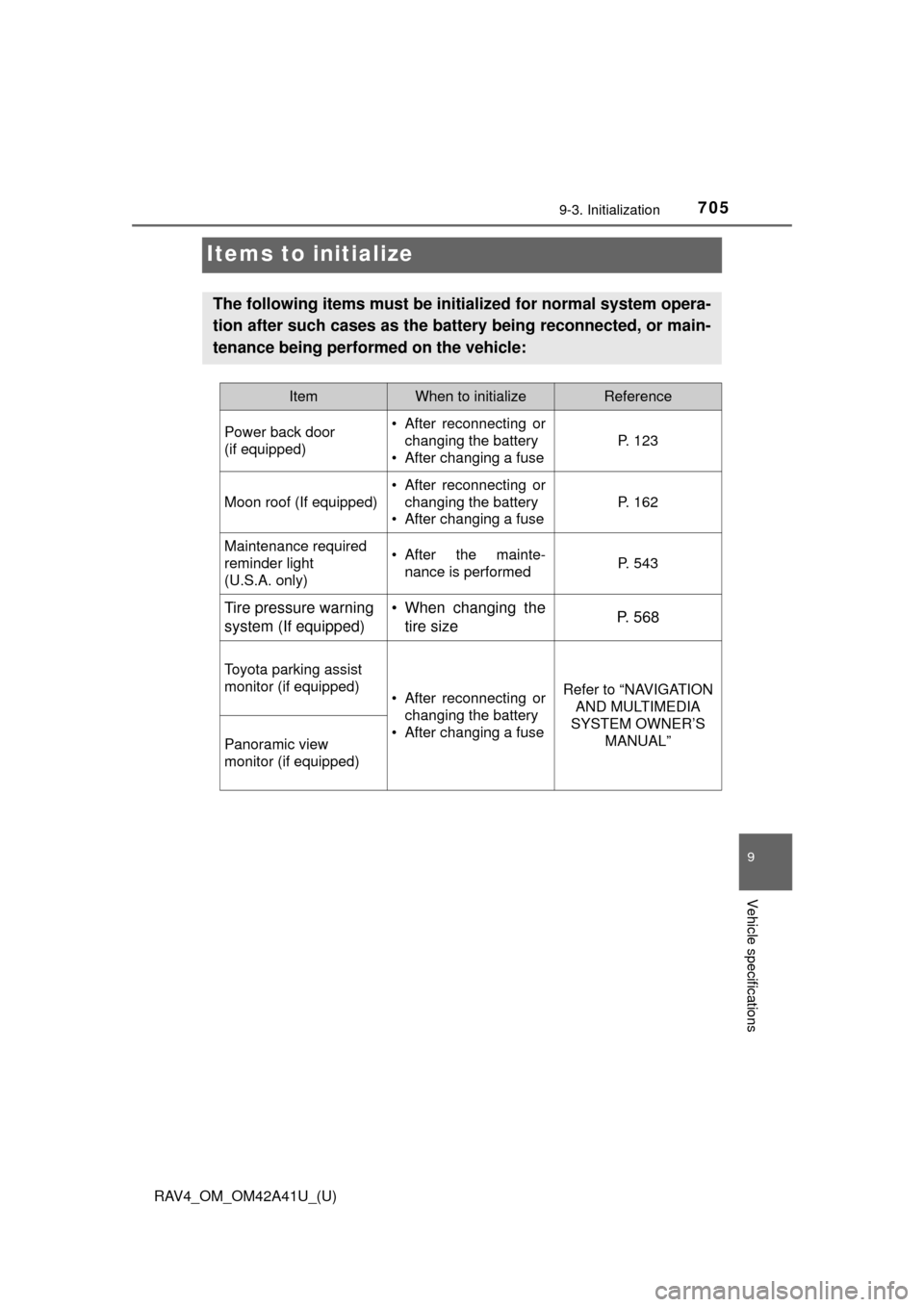

Items to initialize
The following items must be initialized for normal system opera-
tion after such cases as the battery being reconnected, or main-
tenance being performed on the vehicle:
ItemWhen to initializeReference
Power back door
(if equipped)• After reconnecting or changing the battery
• After changing a fuse
P. 123
Moon roof (If equipped)
• After reconnecting or changing the battery
• After changing a fuse
P. 162
Maintenance required
reminder light
(U.S.A. only)• After the mainte-
nance is performedP. 543
Tire pressure warning
system (If equipped)• When changing the
tire sizeP. 5 6 8
Toyota parking assist
monitor (if equipped)
• After reconnecting or changing the battery
• After changing a fuseRefer to “NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”
Panoramic view
monitor (if equipped)

706
RAV4_OM_OM42A41U_(U)
9-3. Initialization

707
RAV4_OM_OM42A41U_(U)
For owners10
Reporting safety defects for U.S. owners........................ 708
Seat belt instructions for Canadian owners
(in French) ............................... 709
SRS airbag instructions for Canadian owners
(in French) ............................... 711

708
RAV4_OM_OM42A41U_(U)

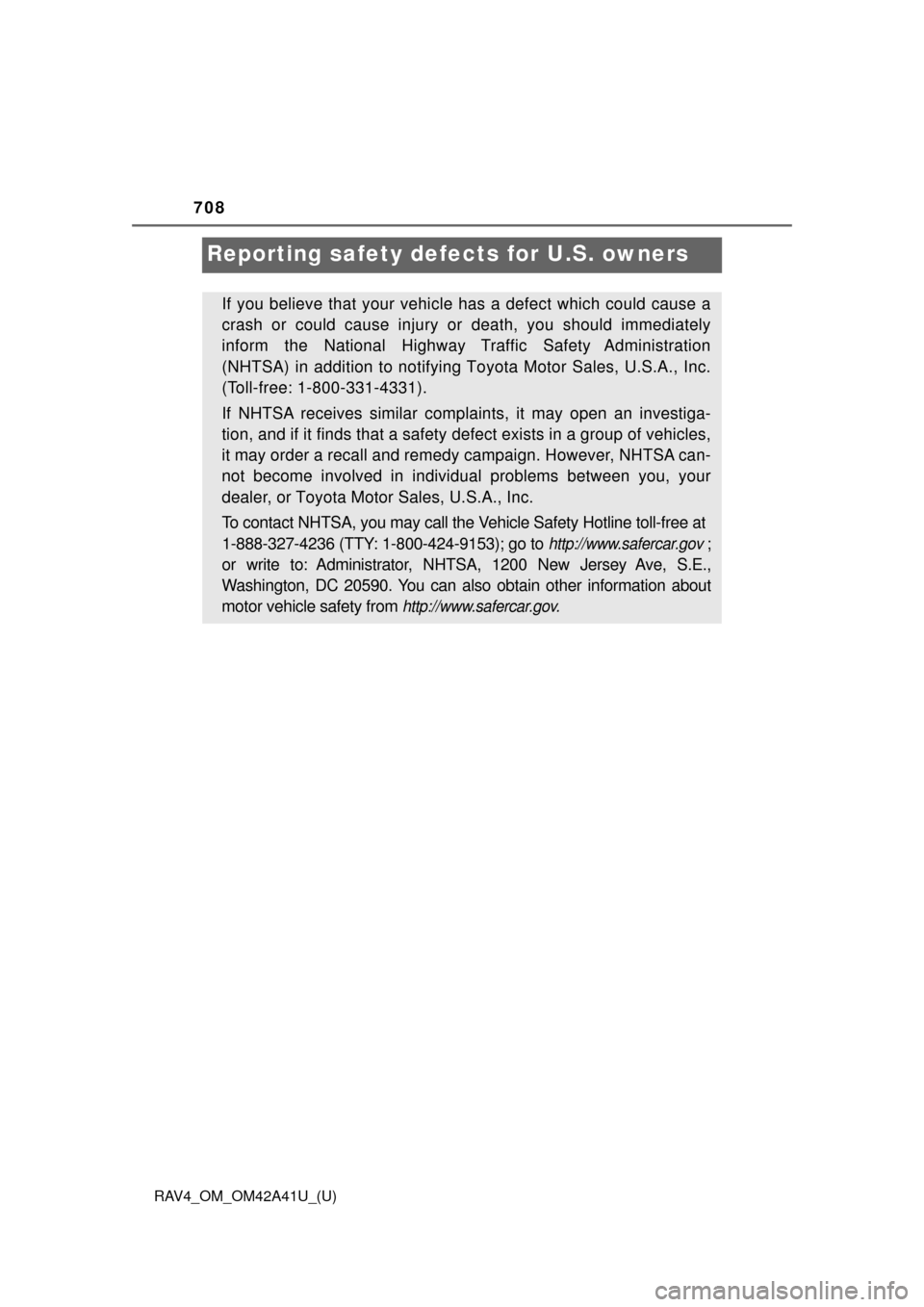

Reporting safety defects for U.S. owners
If you believe that your vehicl e has a defect which could cause a
crash or could cause injury or death, you should immediately
inform the National Highway Traffic Safety Administration
(NHTSA) in addition to notifying To yota Motor Sales, U.S.A., Inc.
(Toll-free: 1-800-331-4331).
If NHTSA receives similar comp laints, it may open an investiga-
tion, and if it finds that a safety defect exists in a group of vehicles,
it may order a recall and remedy campaign. However, NHTSA can-
not become involved in individual problems between you, your
dealer, or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov ;
or write to: Administrator, NHTSA, 1200 New Jersey Ave, S.E.,
Washington, DC 20590. You can also obtain other information about
motor vehicle safety from
http://www.safercar.gov.

709
RAV4_OM_OM42A41U_(U)
10
For owners
Seat belt instructions for Canadian owners
(in French)
● Tirez sur la ceinture épaulière
jusqu’à ce qu’elle recouvre
entièrement l’épaule; elle ne
doit cependant pas toucher le
cou ni glisser de l’épaule.
● Placez la ceinture abdominale
le plus bas possible sur les
hanches.
● Réglez la position du dossier. Tenez-vous assis bien au fond du
siège, le dos droit.
● Ne vrillez pas la ceinture de sécurité.
The following is a French explan ation of seat belt instructions
extracted from the seat be lt section in this manual.
See the seat belt secti on for more detailed seat belt instructions in
English.
Utilisation adéquate des ceintures de sécurité
AVERTISSEMENT
■ Lorsque vous utilisez la ceintur e de sécurité centrale arrière
●N’utilisez pas la ceinture de sécurité du
siège central arrière si l’une des
boucles est retirée. Attacher une seule
boucle pourrait occasionner des bles-
sures graves, voire mortelles, en cas de
freinage ou de dérapage brusques, ou
d’accident.
