wiper fluid TOYOTA RAV4 2016 XA40 / 4.G Owners Manual

17Pictorial index
RAV4_OM_OM42A41U_(U)Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 210
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 212
Headlights/parking lights/tail lights/daytime running lights . . . . P. 212
Fog lights
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 220
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . P. 221
Rear window wiper and washer switch . . . . . . . . . . . . . . . . P. 225
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 221, 225
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 564
Warning light/warning message . . . . . . . . . . . . . . . . . . . . P. 618, 635
Hood lock release lever. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 551
Manual air conditioning system
*1 . . . . . . . . . . . . . . . . . . . . P. 484
Automatic air conditioning system
*1 . . . . . . . . . . . . . . . . . P. 490
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 484, 490
Rear window defogger . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 486, 493
Audio system
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 326
Entune Audio
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 326, 389
Entune Audio Plus/Entune Premium Audio
with Navigation
*1, 2
Fuel filler door opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 230
*1: If equipped
*2: Refer to “NAVIGATION AND MULT IMEDIA SYSTEM OWNER’S MANUAL”.
6
7
8
9
10
11

RAV4_OM_OM42A41U_(U)
2234-3. Operating the lights and wipers
4
Driving
If equipped, wiper intervals can be adjusted when intermittent opera-
tion is selected.Increases the intermittent wind-
shield wiper frequency
Decreases the intermittent
windshield wiper frequency
Washer/wiper dual operation
The wipers will automatically oper-
ate a couple of times after the
washer squirts.
■The windshield wipers and washer can be operated when
Vehicles without smart key system
The engine switch is in the “ON” position.
Vehicles with smart key system
The engine switch is in IGNITION ON mode.
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
washer fluid reservoir.
5
6
7

224
RAV4_OM_OM42A41U_(U)
4-3. Operating the lights and wipers
WARNING
■Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes
warm. The fluid may freeze on the windshield and cause low visibility. This
may lead to an accident, resulting in death or serious injury.
NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■ When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
■ When a nozzle becomes blocked
In this case, contact your Toyota dealer.
Do not try to clear it with a pin or other object. The nozzle will be damaged.
■ To prevent battery discharge
Do not leave the wipers on longer than necessary when the engine is off.

RAV4_OM_OM42A41U_(U)
2274-3. Operating the lights and wipers
4
Driving
■The rear window wiper and w asher can be operated when
Vehicles without smart key system
The engine switch is in the “ON” position.
Vehicles with smart key system
The engine switch is in IGNITION ON mode.
■ If no washer fluid sprays
Check that the washer nozzle is not blocked if there is washer fluid in the
washer fluid reservoir.
NOTICE
■When the rear window is dry
Do not use the wiper, as it may damage the rear window.
■ When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.

315
RAV4_OM_OM42A41U_(U)
4-6. Driving tips
4
Driving
Winter driving tips
●Use fluids that are appropriate to the prevailing outside tempera-
tures. • Engine oil
• Engine coolant
• Washer fluid
● Have a service technician ins pect the condition of the battery.
● Have the vehicle fitted with four snow tires or purchase a set of tire
chains for the front tires.
Ensure that all tires are the same size and brand, and that chains match
the size of the tires.
Perform the following accordin g to the driving conditions:
● Do not try to forcibly open a window or move a wiper that is frozen.
Pour warm water over the frozen area to melt the ice. Wipe away
the water immediately to prevent it from freezing.
● To ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents in
front of the windshield.
● Check for and remove any excess ice or snow that may have accu-
mulated on the exterior lights, vehicle’s roof, chassis, around the
tires or on the brakes.
● Remove any snow or mud from the bottom of your shoes before
getting in the vehicle.
Carry out the necessary preparations and inspections before
driving the vehicle in winter. Al ways drive the vehicle in a man-
ner appropriate to the prevailing weather conditions.
Preparation for winter
Before driving the vehicle

RAV4_OM_OM42A41U_(U)

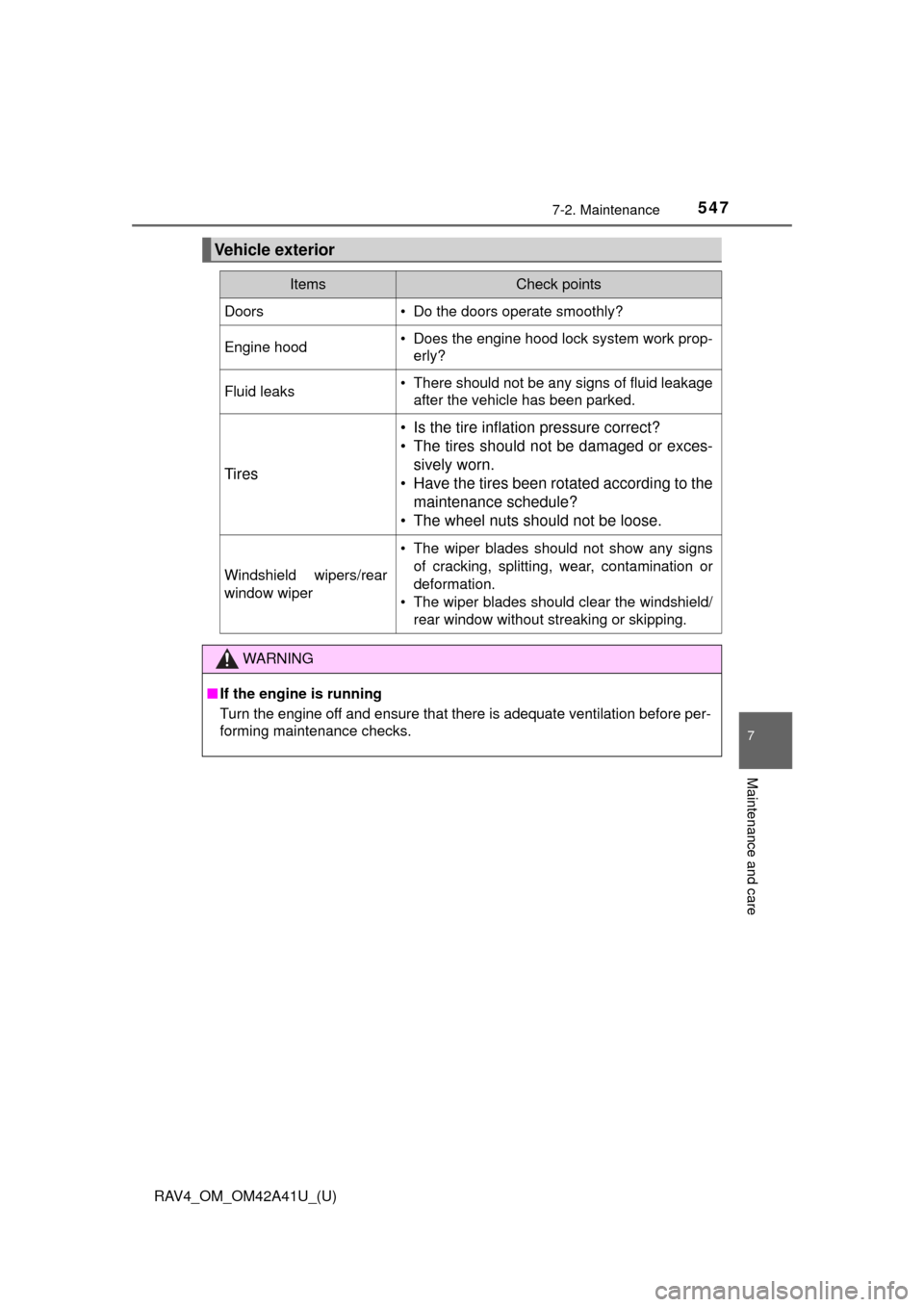

5477-2. Maintenance
7
Maintenance and care
Vehicle exterior
ItemsCheck points
Doors• Do the doors operate smoothly?
Engine hood• Does the engine hood lock system work prop-erly?
Fluid leaks• There should not be any signs of fluid leakageafter the vehicle has been parked.
Tires
• Is the tire inflation pressure correct?
• The tires should not be damaged or exces-
sively worn.
• Have the tires been rotated according to the maintenance schedule?
• The wheel nuts should not be loose.
Windshield wipers/rear
window wiper
• The wiper blades should not show any signs
of cracking, splitting, wear, contamination or
deformation.
• The wiper blades should clear the windshield/ rear window without streaking or skipping.
WARNING
■If the engine is running
Turn the engine off and ensure that there is adequate ventilation before per-
forming maintenance checks.

738Alphabetical index
RAV4_OM_OM42A41U_(U)
USB port ........................... 354, 394
Utility vehicle precautions ...... 319
Vanity lights ............................. 519Vanity lights .......................... 519
Wattage ................................ 678
Vanity mirrors .......................... 519
Vehicle data recordings .............. 9
Vehicle identification number ................................... 671
Vehicle Stability Control (VSC) ...................................... 297
Voice command system
*....... 478
VSC (Vehicle Stability Control) .................................. 297
Warning buzzers ...................... 615 Brake system ....... ................. 615
Downshifting ......................... 208
Key reminder ................ 131, 637
Open back door .................... 616
Open door ............................. 616
Open moon roof .................... 162
Pre-collision braking ............. 238
Seat belt reminder ................ 616
Warning lights.......................... 615 ABS....................................... 616
Automatic transmission fluid temperature ................ 617
Brake system ....... ................. 615
Charging system ................... 615
Electric power steering ......... 616 Low engine oil pressure........ 615
Low fuel level ........................ 617
Maintenance required
reminder light ..................... 617
Malfunction indicator lamp .... 615
Open door............................. 616
Pre-Collision System ............ 618
Seat belt reminder light......... 616
Slip indicator ......................... 616
SRS ...................................... 616
Tire pressure ........................ 619
Warning messages.................. 626
Washer ..................................... 221 Checking............................... 564
Preparing and checking
before winter ...................... 315
Switch ................................... 221
Washing and waxing ............... 536
Weights Cargo capacity...................... 670
Load limits ............................ 180
Weights................................. 670
Wheels ...................................... 580
Replacing wheels ................. 580
Size....................................... 677
Window glasses ...................... 156
Window lock switch ................ 156
Windows................................... 156 Power windows..................... 156
Rear window defogger ..................... 486, 493
Windshield wiper de-icer ............................ 486, 493
Windshield wipers ................... 221 Intermittent windshield wipers ................................. 221
