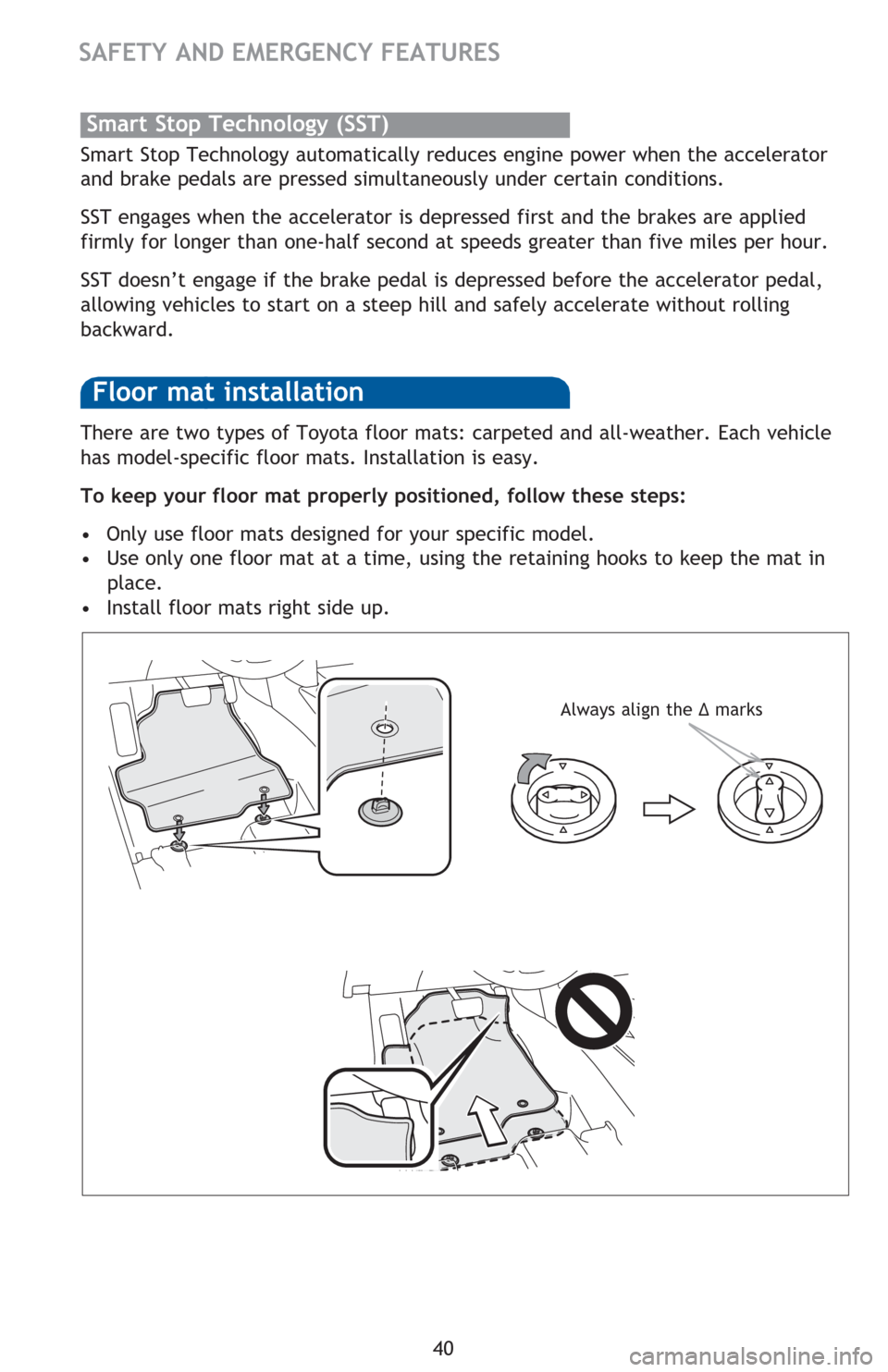

stop start TOYOTA RAV4 2016 XA40 / 4.G Quick Reference Guide

40 There are two types of Toyota floor mats: carpeted and all-weather. Each vehicle
has model-specific floor mats. Installation is easy.
7RNHHS\RXUIORRUPDWSURSHUO\SRVLWLRQHGIROORZWKHVHVWHSV
• Only use floor mats designed for your specific model.
• Use only one floor mat at a time, using the retaining hooks to keep the mat in
place.
• Install floor mats right side up.
)ORRUPDWLQVWDOODWLRQ
6PDUW6WRS7HFKQRORJ\667
6$)(7<$1'(0(5*(1&<)($785(6
Always align the ¨ marks
Smart Stop Technology automatically reduces engine power when the accelerator
and brake pedals are pressed simultaneously under certain conditions.
SST engages when the accelerator is depressed first and the brakes are applied
firmly for longer than one-half second at speeds greater than five miles per hour.
SST doesn’t engage if the brake pedal is depressed before the accelerator pedal,
allowing vehicles to start on a steep hill and safely accelerate without rolling
backward.
