TOYOTA RAV4 2018 Accessories, Audio & Navigation (in English)

211
3. PANORAMIC VIEW MONITOR
RAV4_RAV4 HV_Navi+MM_OM0R014U_(U)
17.05.30 10:01
PERIPHERAL MONITORING SYSTEM
6

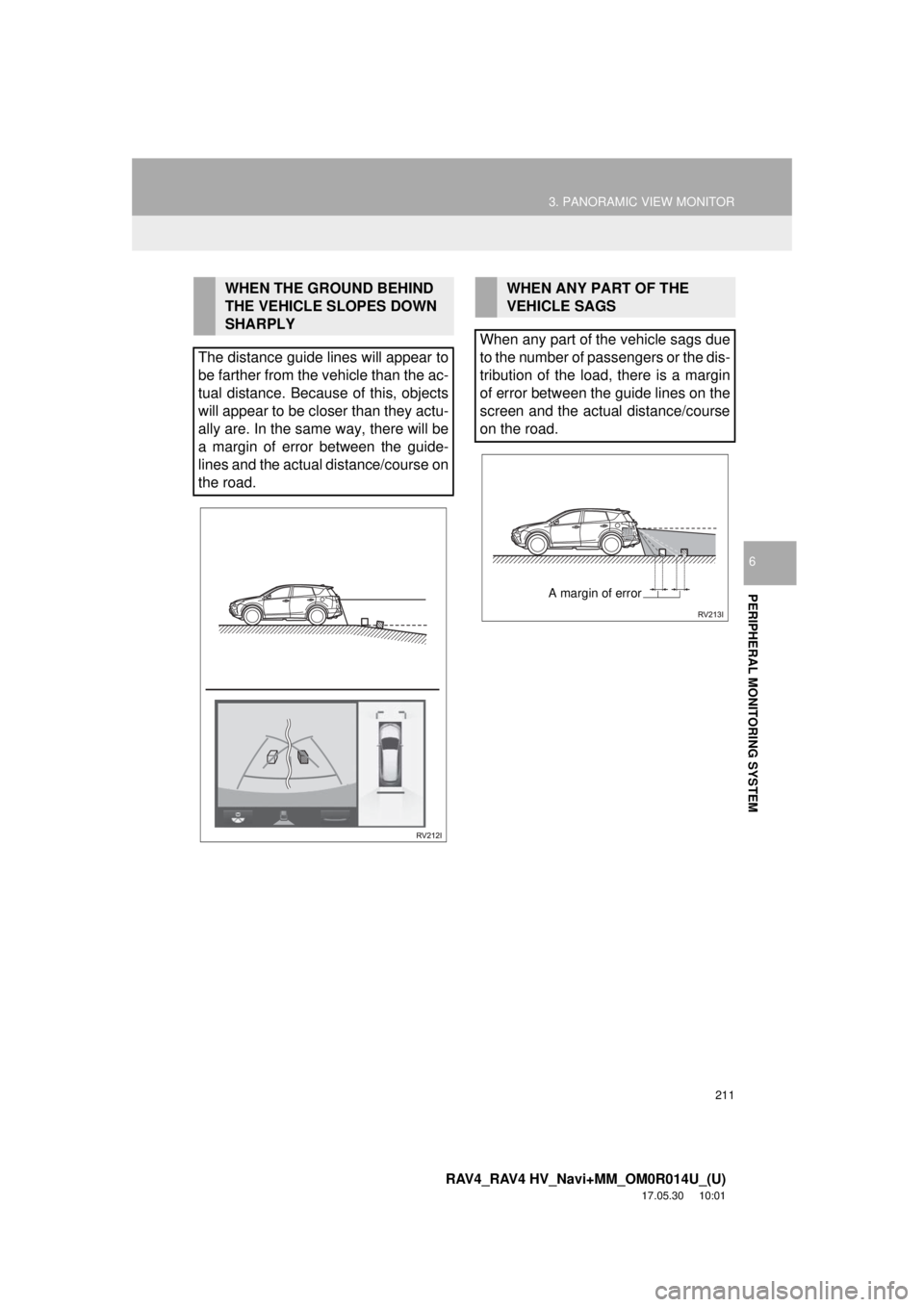

WHEN THE GROUND BEHIND
THE VEHICLE SLOPES DOWN
SHARPLY
The distance guide lines will appear to
be farther from the vehicle than the ac-
tual distance. Because of this, objects
will appear to be closer than they actu-
ally are. In the same way, there will be
a margin of error between the guide-
lines and the actual distance/course on
the road.WHEN ANY PART OF THE
VEHICLE SAGS
When any part of the vehicle sags due
to the number of passengers or the dis-
tribution of the load, there is a margin
of error between the guide lines on the
screen and the actual distance/course
on the road.
A margin of error

212
3. PANORAMIC VIEW MONITOR
RAV4_RAV4 HV_Navi+MM_OM0R014U_(U)
17.05.30 10:01
Estimated course line

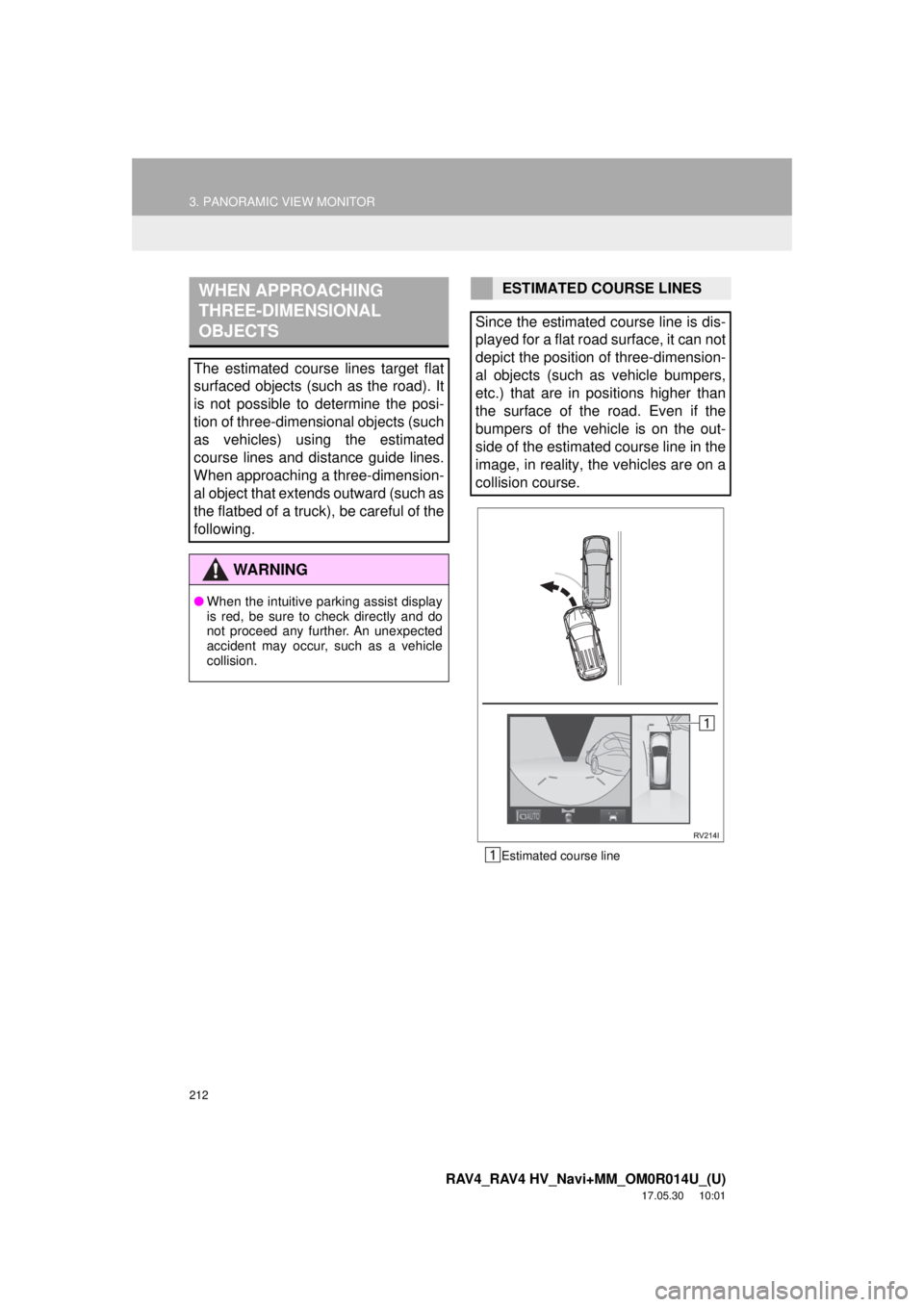

WHEN APPROACHING
THREE-DIMENSIONAL
OBJECTS
The estimated course lines target flat
surfaced objects (such as the road). It
is not possible to determine the posi-
tion of three-dimensional objects (such
as vehicles) using the estimated
course lines and distance guide lines.
When approaching a three-dimension-
al object that extends outward (such as
the flatbed of a truck), be careful of the
following.
WA R N I N G
●When the intuitive parking assist display
is red, be sure to check directly and do
not proceed any further. An unexpected
accident may occur, such as a vehicle
collision.
ESTIMATED COURSE LINES
Since the estimated course line is dis-
played for a flat road surface, it can not
depict the position of three-dimension-
al objects (such as vehicle bumpers,
etc.) that are in positions higher than
the surface of the road. Even if the
bumpers of the vehicle is on the out-
side of the estimated course line in the
image, in reality, the vehicles are on a
collision course.

213
3. PANORAMIC VIEW MONITOR
RAV4_RAV4 HV_Navi+MM_OM0R014U_(U)
17.05.30 10:01
PERIPHERAL MONITORING SYSTEM
6

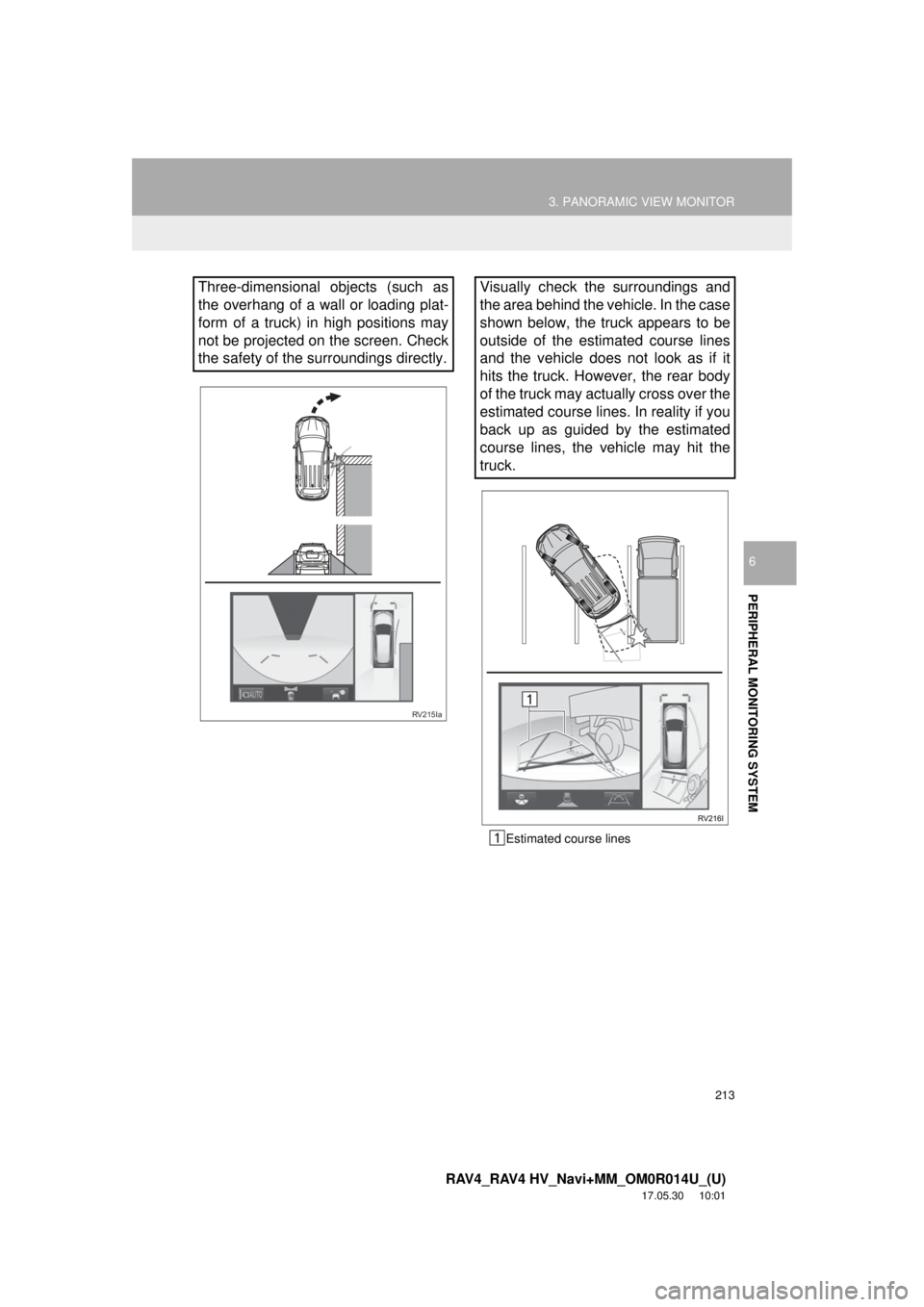

Estimated course lines
Three-dimensional objects (such as
the overhang of a wall or loading plat-
form of a truck) in high positions may
not be projected on the screen. Check
the safety of the surroundings directly.
RV215Ia
Visually check the surroundings and
the area behind the vehicle. In the case
shown below, the truck appears to be
outside of the estimated course lines
and the vehicle does not look as if it
hits the truck. However, the rear body
of the truck may actually cross over the
estimated course lines. In reality if you
back up as guided by the estimated
course lines, the vehicle may hit the
truck.

214
3. PANORAMIC VIEW MONITOR
RAV4_RAV4 HV_Navi+MM_OM0R014U_(U)
17.05.30 10:01

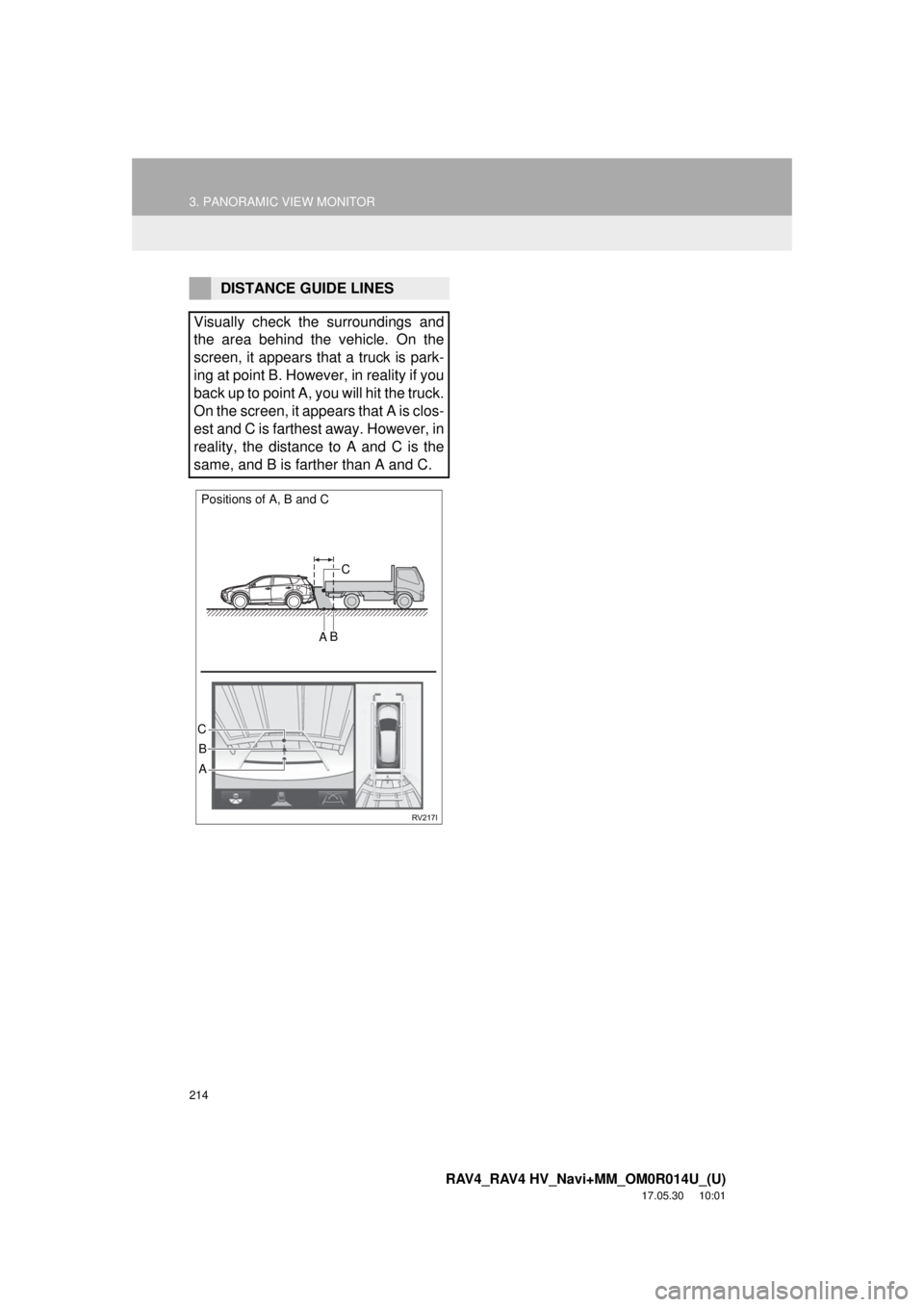

DISTANCE GUIDE LINES
Visually check the surroundings and
the area behind the vehicle. On the
screen, it appears that a truck is park-
ing at point B. However, in reality if you
back up to point A, you will hit the truck.
On the screen, it appears that A is clos-
est and C is farthest away. However, in
reality, the distance to A and C is the
same, and B is farther than A and C.
Positions of A, B and C
C
A B
B
A
C

215
3. PANORAMIC VIEW MONITOR
RAV4_RAV4 HV_Navi+MM_OM0R014U_(U)
17.05.30 10:01
PERIPHERAL MONITORING SYSTEM
6

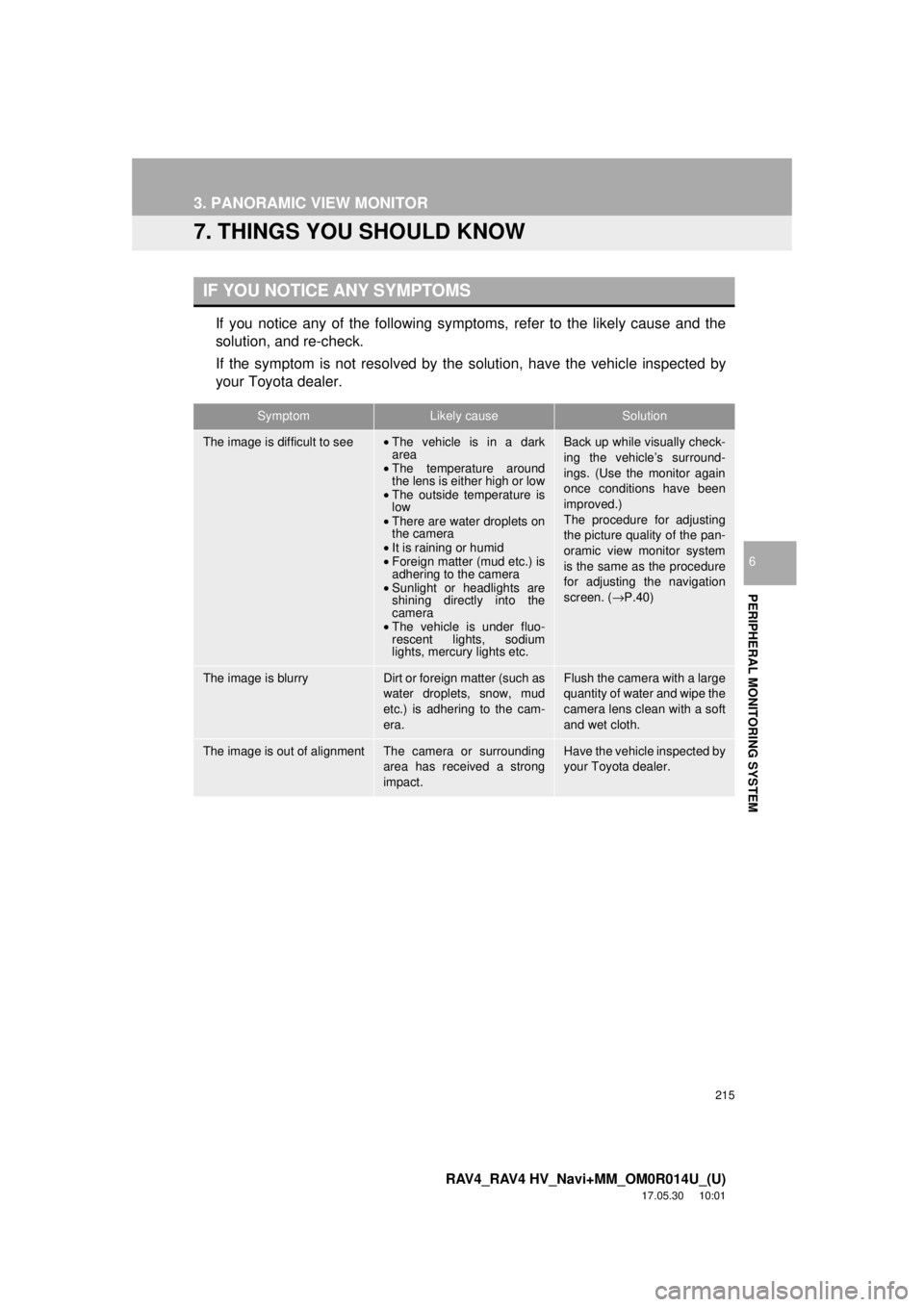

7. THINGS YOU SHOULD KNOW
If you notice any of the following symptoms, refer to the likely cause and the
solution, and re-check.
If the symptom is not resolved by the solution, have the vehicle inspected by
your Toyota dealer.
IF YOU NOTICE ANY SYMPTOMS
SymptomLikely causeSolution
The image is difficult to see•The vehicle is in a dark
area
• The temperature around
the lens is either high or low
• The outside temperature is
low
• There are water droplets on
the camera
• It is raining or humid
• Foreign matter (mud etc.) is
adhering to the camera
• Sunlight or headlights are
shining directly into the
camera
• The vehicle is under fluo-
rescent lights, sodium
lights, mercury lights etc.Back up while visually check-
ing the vehicle’s surround-
ings. (Use the monitor again
once conditions have been
improved.)
The procedure for adjusting
the picture quality of the pan-
oramic view monitor system
is the same as the procedure
for adjusting the navigation
screen. ( →P.40)
The image is blurryDirt or foreign matter (such as
water droplets, snow, mud
etc.) is adhering to the cam-
era.Flush the camera with a large
quantity of water and wipe the
camera lens clean with a soft
and wet cloth.
The image is out of alignmentThe camera or surrounding
area has received a strong
impact.Have the vehicle inspected by
your Toyota dealer.

216
3. PANORAMIC VIEW MONITOR
RAV4_RAV4 HV_Navi+MM_OM0R014U_(U)
17.05.30 10:01

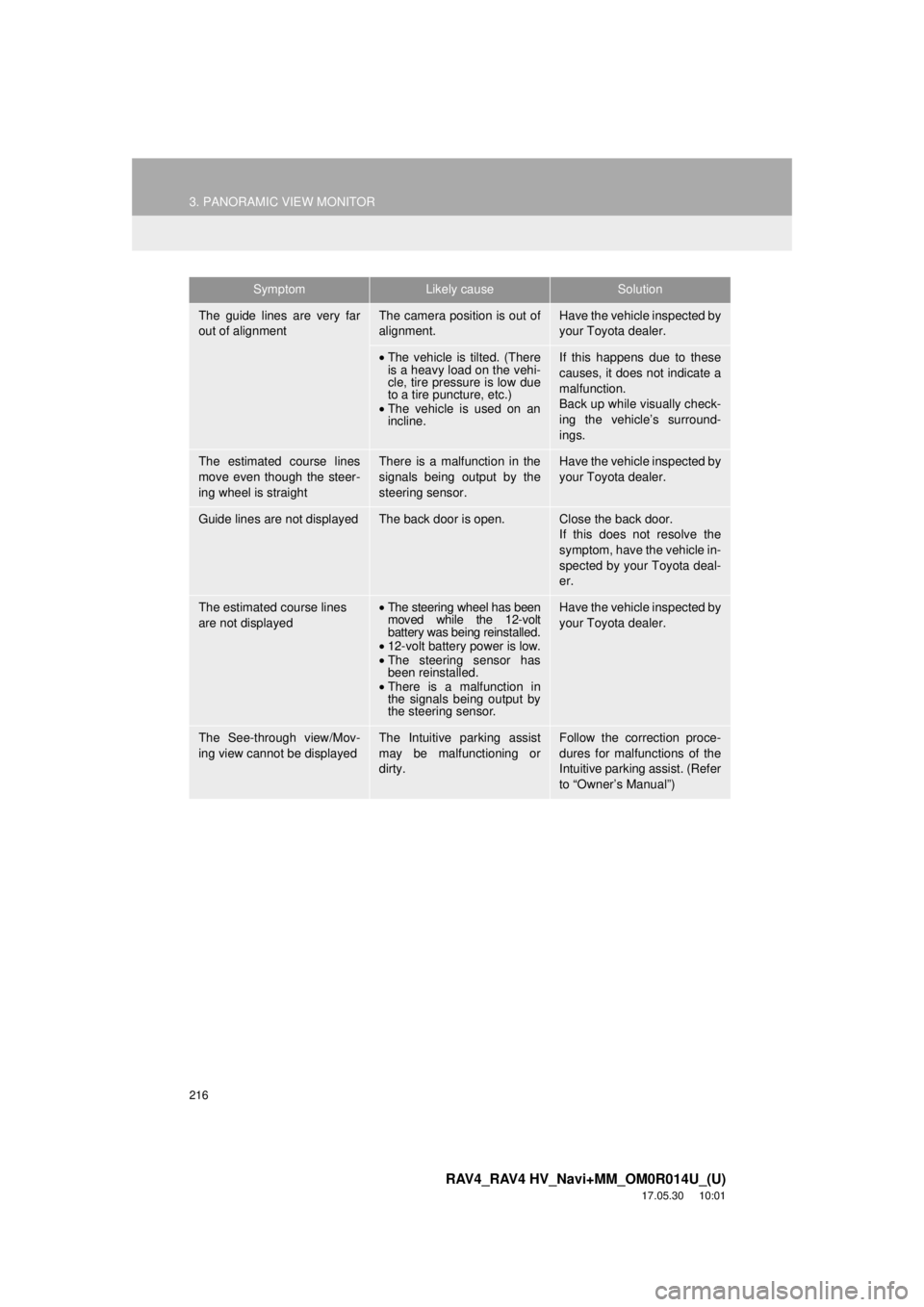

The guide lines are very far
out of alignmentThe camera position is out of
alignment.Have the vehicle inspected by
your Toyota dealer.
•The vehicle is tilted. (There
is a heavy load on the vehi-
cle, tire pressure is low due
to a tire puncture, etc.)
• The vehicle is used on an
incline.If this happens due to these
causes, it does not indicate a
malfunction.
Back up while visually check-
ing the vehicle’s surround-
ings.
The estimated course lines
move even though the steer-
ing wheel is straightThere is a malfunction in the
signals being output by the
steering sensor.Have the vehicle inspected by
your Toyota dealer.
Guide lines are not displayedThe back door is open.Close the back door.
If this does not resolve the
symptom, have the vehicle in-
spected by your Toyota deal-
er.
The estimated course lines
are not displayed•The steering wheel has been
moved while the 12-volt
battery was being reinstalled.
• 12-volt battery power is low.
• The steering sensor has
been reinstalled.
• There is a malfunction in
the signals being output by
the steering sensor.Have the vehicle inspected by
your Toyota dealer.
The See-through view/Mov-
ing view cannot be displayedThe Intuitive parking assist
may be malfunctioning or
dirty.Follow the correction proce-
dures for malfunctions of the
Intuitive parking assist. (Refer
to “Owner’s Manual”)
SymptomLikely causeSolution

217
3. PANORAMIC VIEW MONITOR
RAV4_RAV4 HV_Navi+MM_OM0R014U_(U)
17.05.30 10:01
PERIPHERAL MONITORING SYSTEM
6

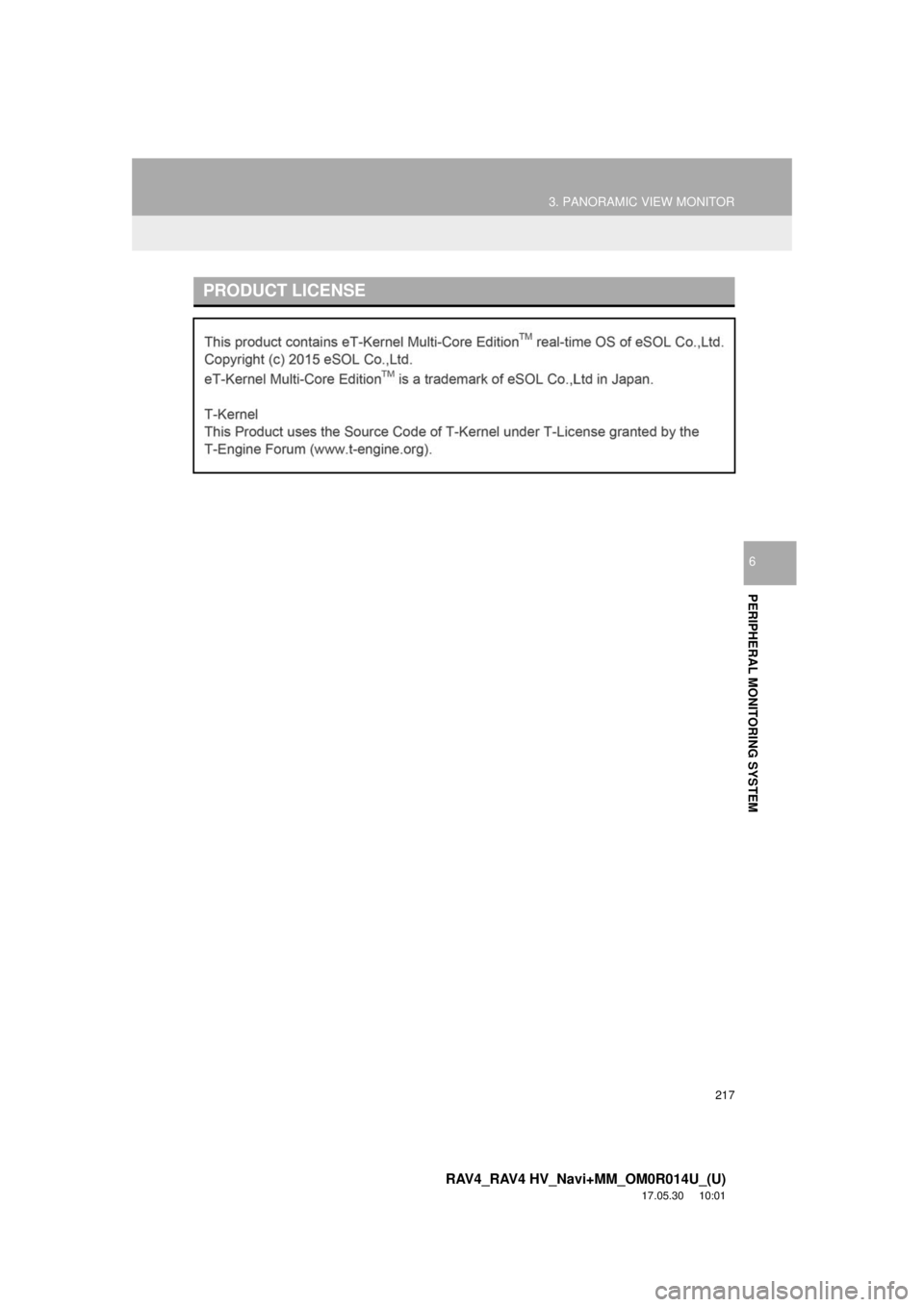

PRODUCT LICENSE

218
3. PANORAMIC VIEW MONITOR
RAV4_RAV4 HV_Navi+MM_OM0R014U_(U)
17.05.30 10:01

7
219
RAV4_RAV4 HV_Navi+MM_OM0R014U_(U)
17.05.30 10:01
1
2
3
4
5
6
7
8
9

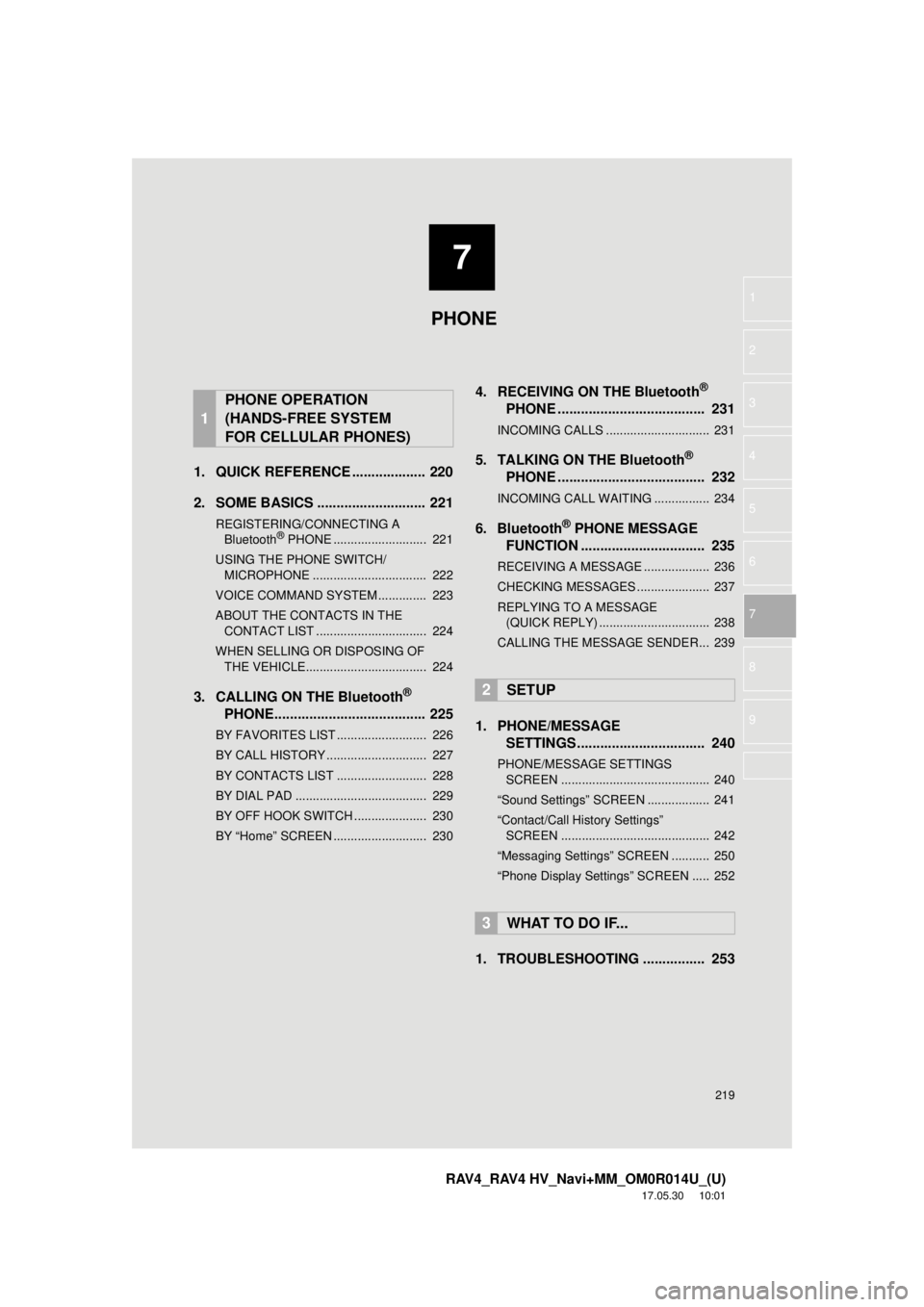

1. QUICK REFERENCE ................... 220
2. SOME BASICS ............................ 221
REGISTERING/CONNECTING A Bluetooth® PHONE ........................... 221
USING THE PHONE SWITCH/ MICROPHONE ................................. 222
VOICE COMMAND SYSTEM .............. 223
ABOUT THE CONTACTS IN THE CONTACT LIST ................................ 224
WHEN SELLING OR DISPOSING OF THE VEHICLE................................... 224
3. CALLING ON THE Bluetooth®
PHO N

E....................................... 225
BY FAVORITES LIST .......................... 226
BY CALL HISTORY ............................. 227
BY CONTACTS LIST .......................... 228
BY DIAL PAD ...................................... 229
BY OFF HOOK SWITCH ..................... 230
BY “Home” SCREEN ........................... 230
4. RECEIVING ON THE Bluetooth®
PHONE .

..................................... 231
INCOMING CALLS .............................. 231
5. TALKING ON THE Bluetooth®
PHONE .

..................................... 232
INCOMING CALL WAITING ................ 234
6. Bluetooth® PHONE MESSAGE
FUNCTION ...... ....................... ... 235
RECEIVING A MESSAGE ................... 236
CHECKING MESSAGES ..................... 237
REPLYING TO A MESSAGE
(QUICK REPLY) ................................ 238
CALLING THE MESSAGE SENDER... 239
1. PHONE/MESSAGE SETTINGS ................................. 240
PHONE/MESSAGE SETTINGS
SCREEN ........................................... 240
“Sound Settings” SCREEN .................. 241
“Contact/Call History Settings” SCREEN ........................................... 242
“Messaging Settings” SCREEN ........... 250
“Phone Display Settings” SCREEN ..... 252
1. TROUBLESHOOTING ................ 253
1
PHONE OPERATION
(HANDS-FREE SYSTEM
FOR CELLULAR PHONES)
2SETUP
3WHAT TO DO IF...
PHONE

220
RAV4_RAV4 HV_Navi+MM_OM0R014U_(U)
17.05.30 10:01
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)

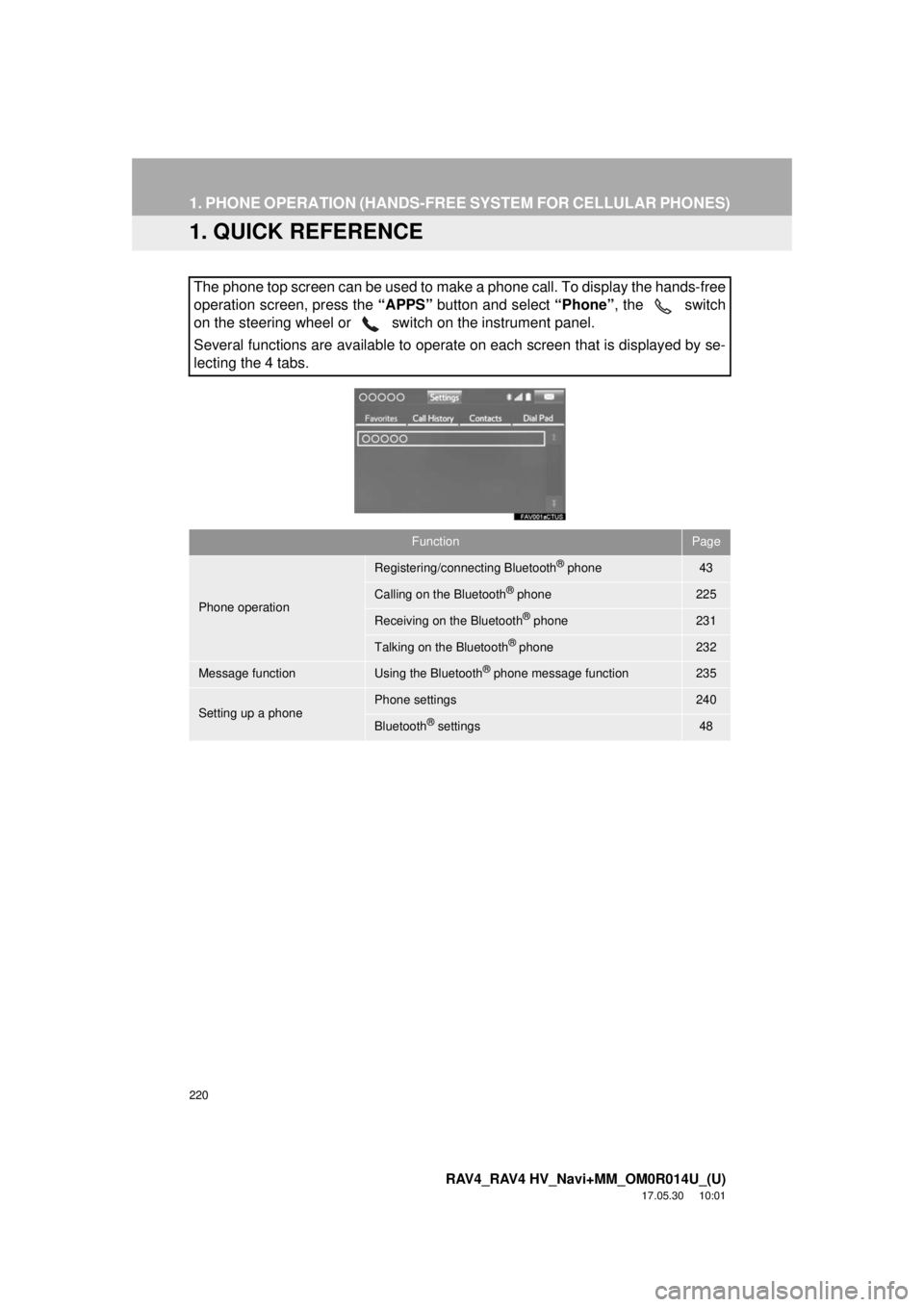

1. QUICK REFERENCE
The phone top screen can be used to make a phone call. To display the hands-free
operation screen, press the “APPS” button and select “Phone” , the switch
on the steering wheel or switch on the instrument panel.
Several functions are available to operate on each screen that is displayed by se-
lecting the 4 tabs.
FunctionPage
Phone operation
Registering/connecting Bluetooth® phone43
Calling on the Bluetooth® phone225
Receiving on the Bluetooth® phone231
Talking on the Bluetooth® phone232
Message functionUsing the Bluetooth® phone message function235
Setting up a phonePhone settings240
Bluetooth® settings48
