TOYOTA RAV4 2018 (in English) Owner's Manual

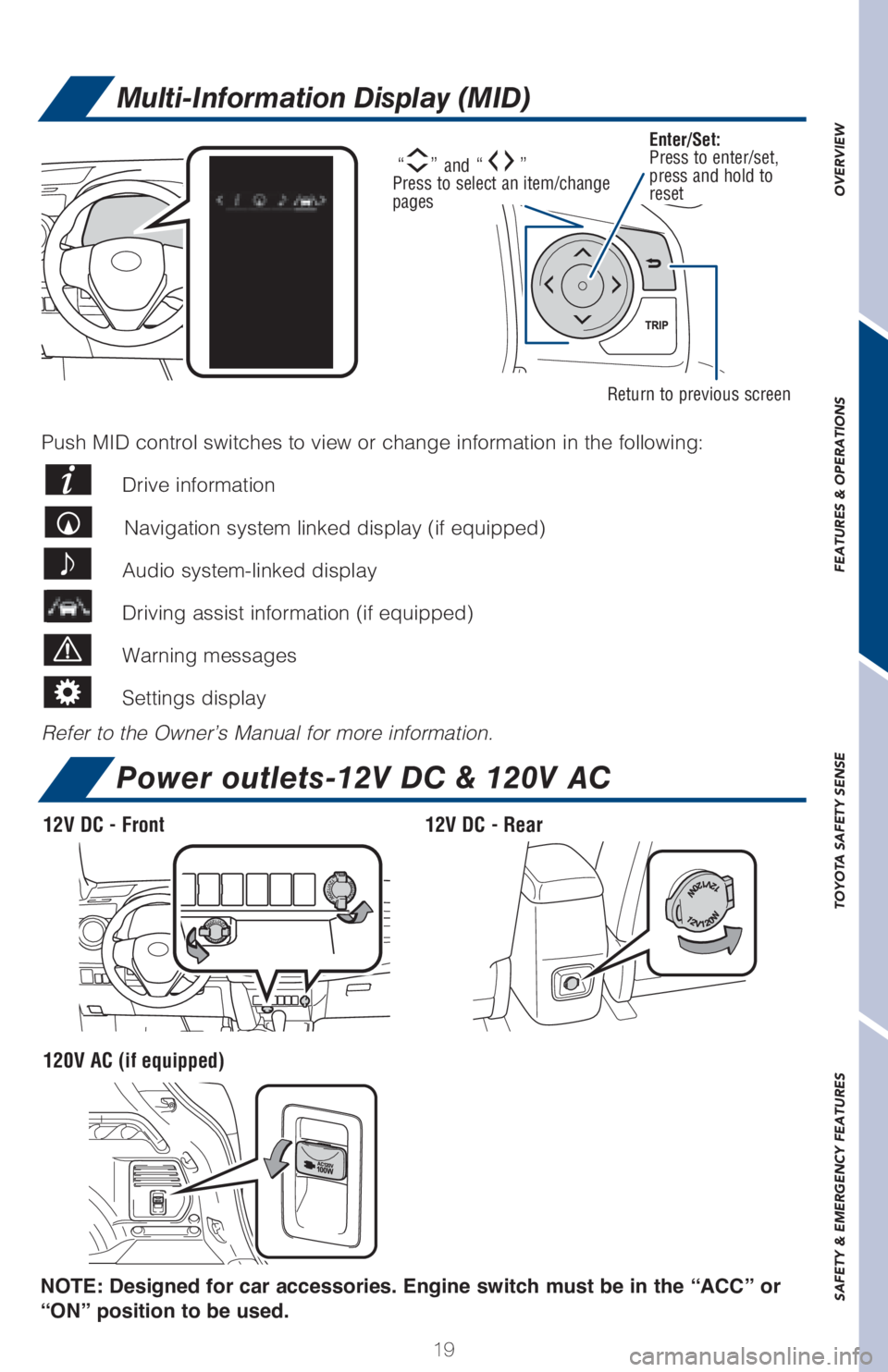

Push MID control switches to view or change information in the following:
Drive information
Navigation system linked display (if equipped)
Audio system-linked display
Driving assist information (if equipped)
Warning messages
Settings display
19
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Refer to the Owner’s Manual for more information.
NOTE: Designed for car accessories. Engine switch must be in the “ACC” or
“ON” position to be used.
Power outlets-12V DC & 120V AC
12V DC - Front12V DC - Rear
120V AC (if equipped)
Multi-Information Display (MID)
Enter/Set:
Press to enter/set,
press and hold to
reset
Return to previous screen
“” and “” Press to select an item/change
pages

See-through view switch Moving view switchRotation pause switch Rotation pause switch
20
FEATURES & OPERATIONS

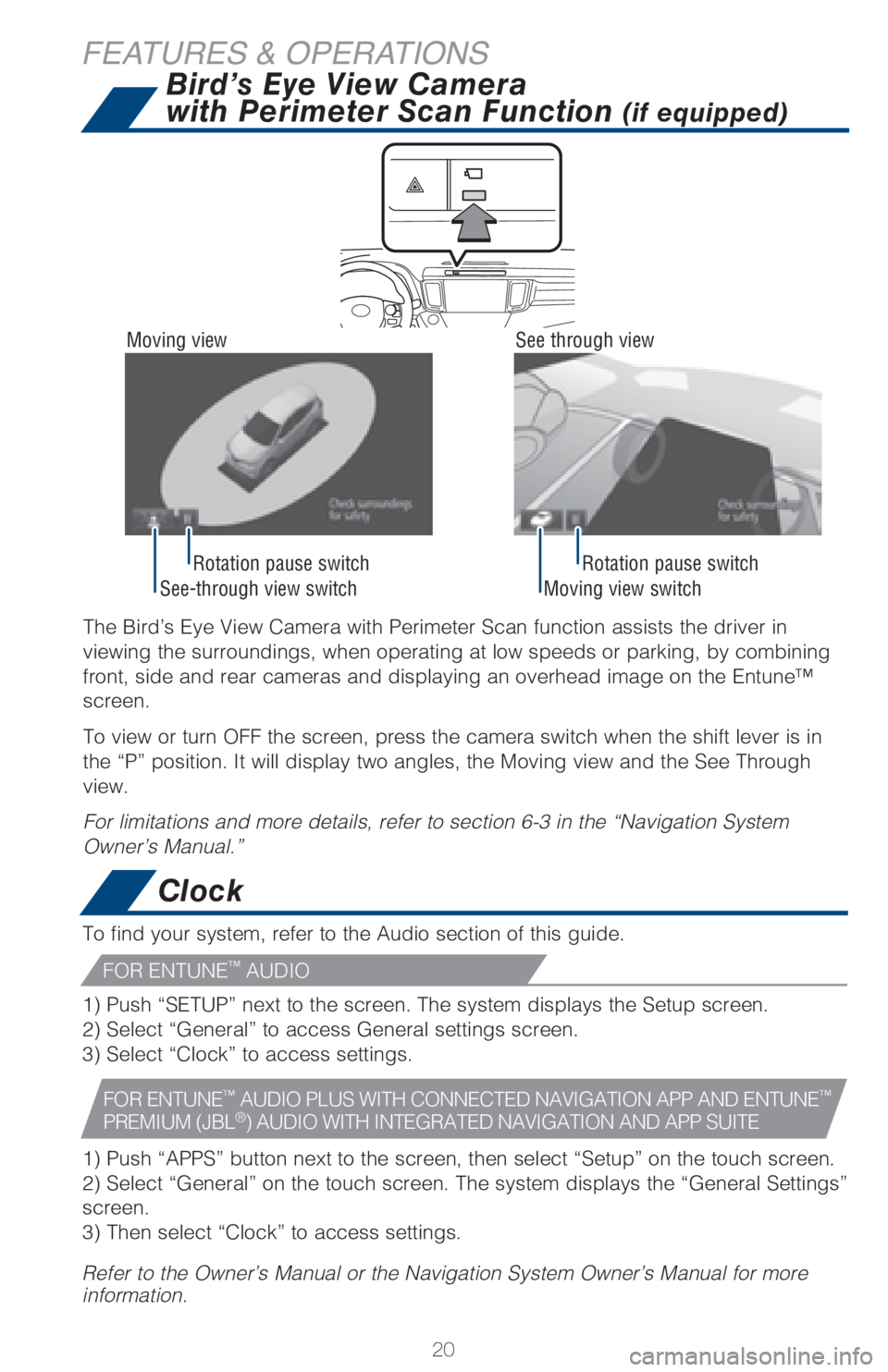

The Bird’s Eye View Camera with Perimeter Scan function assists the driver in
viewing the surroundings, when operating at low speeds or parking, by combining
front, side and rear cameras and displaying an overhead image on the Entune™
screen.
To view or turn OFF the screen, press the camera switch when the shift lever is in
the “P” position. It will display two angles, the Moving view and the See Through
view.
For limitations and more details, refer to section 6-3 in the “Navigation System
Owner’s Manual.”
Moving viewSee through view
Refer to the Owner’s Manual or the Navigation System Owner’s Manual for more
information.
Bird’s Eye View Camera
with Perimeter Scan Function
(if equipped)
1) Push “SETUP” next to the screen. The system displays the Setup screen.
2) Select “General” to access General settings screen.
3) Select “Clock” to access settings. To find your system, refer to the Audio section of this guide.
1) Push “APPS” button next to the screen, then select “Setup” on the touch screen.
2) Select “General” on the touch screen. The system displays the “General Settings”
screen.
3) Then select “Clock” to access settings.
FOR ENTUNE™ AUDIO
Clock
FOR ENTUNE™ AUDIO PLUS WITH CONNECTED NAVIGATION APP AND ENTUNE™
PREMIUM (JBL®) AUDIO WITH INTEGRATED NAVIGATION AND APP SUITE

21
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

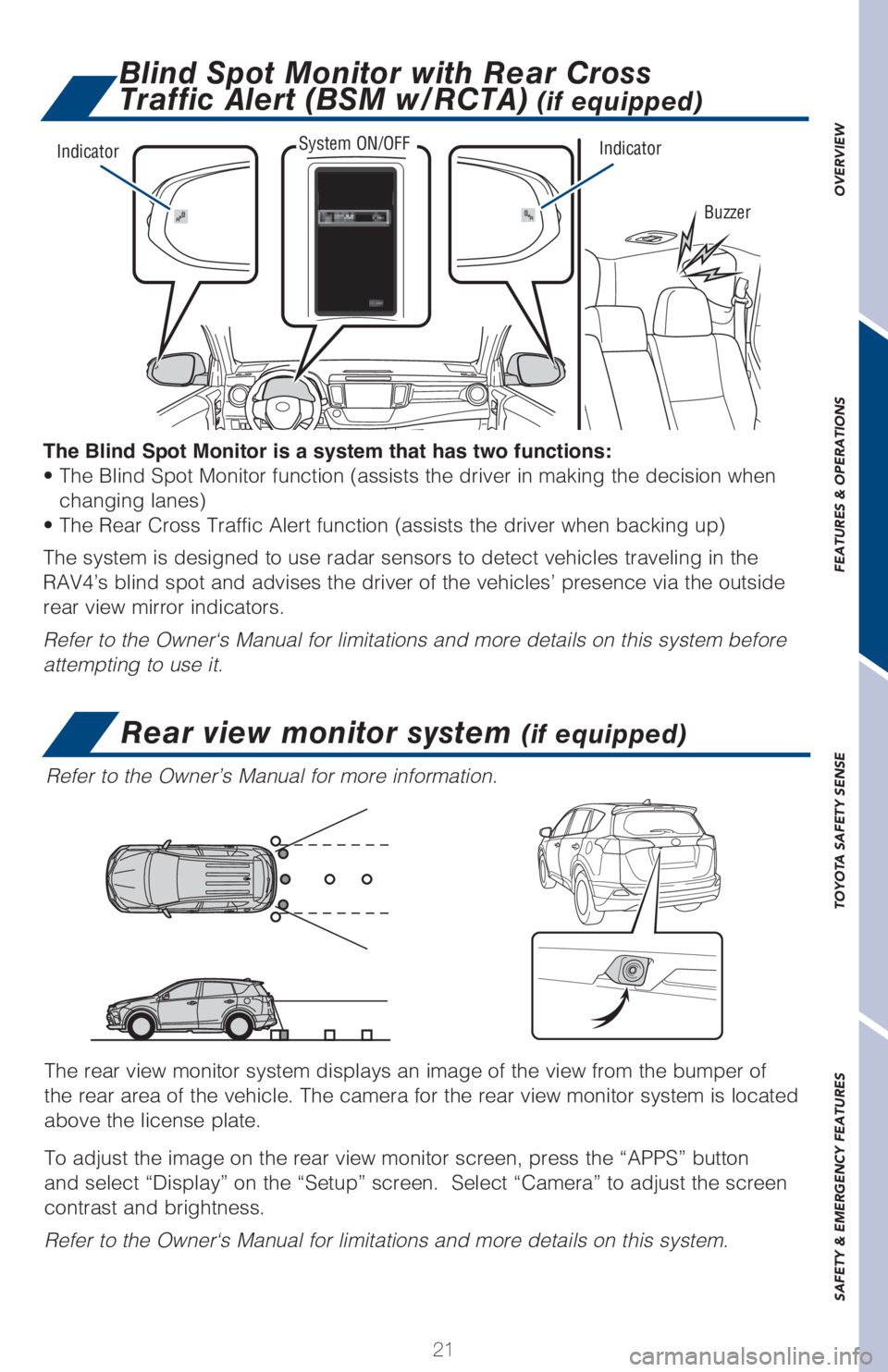

The Blind Spot Monitor is a system that has two functions:
• The Blind Spot Monitor function (assists the driver in making the decision when
changing lanes)
• The Rear Cross Traffic Alert function (assists the driver when backing up)
The system is designed to use radar sensors to detect vehicles traveling in the
RAV4’s blind spot and advises the driver of the vehicles’ presence via the outside
rear view mirror indicators.
Refer to the Owner‘s Manual for limitations and more details on this system before
attempting to use it.
Rear view monitor system (if equipped)
The rear view monitor system displays an image of the view from the bumper of
the rear area of the vehicle. The camera for the rear view monitor system is located
above the license plate.
To adjust the image on the rear view monitor screen, press the “APPS” button
and select “Display” on the “Setup” screen. Select “Camera” to adjust the screen
contrast and brightness.
Refer to the Owner‘s Manual for limitations and more details on this system.
Refer to the Owner’s Manual for more information.
Blind Spot Monitor with Rear Cross
Traffic Alert (BSM w/RCTA)
(if equipped)
Buzzer
System ON/OFF
IndicatorIndicator

22
FEATURES & OPERATIONS
All-Wheel Drive Lock (AWD models)
Push the switch to ensure that the engine torque is applied to the four wheels.
NOTE: Should ONLY be used when wheel spinning occurs on loose or
unpaved surfaces.
Refer to the Owner’s Manual for more details.

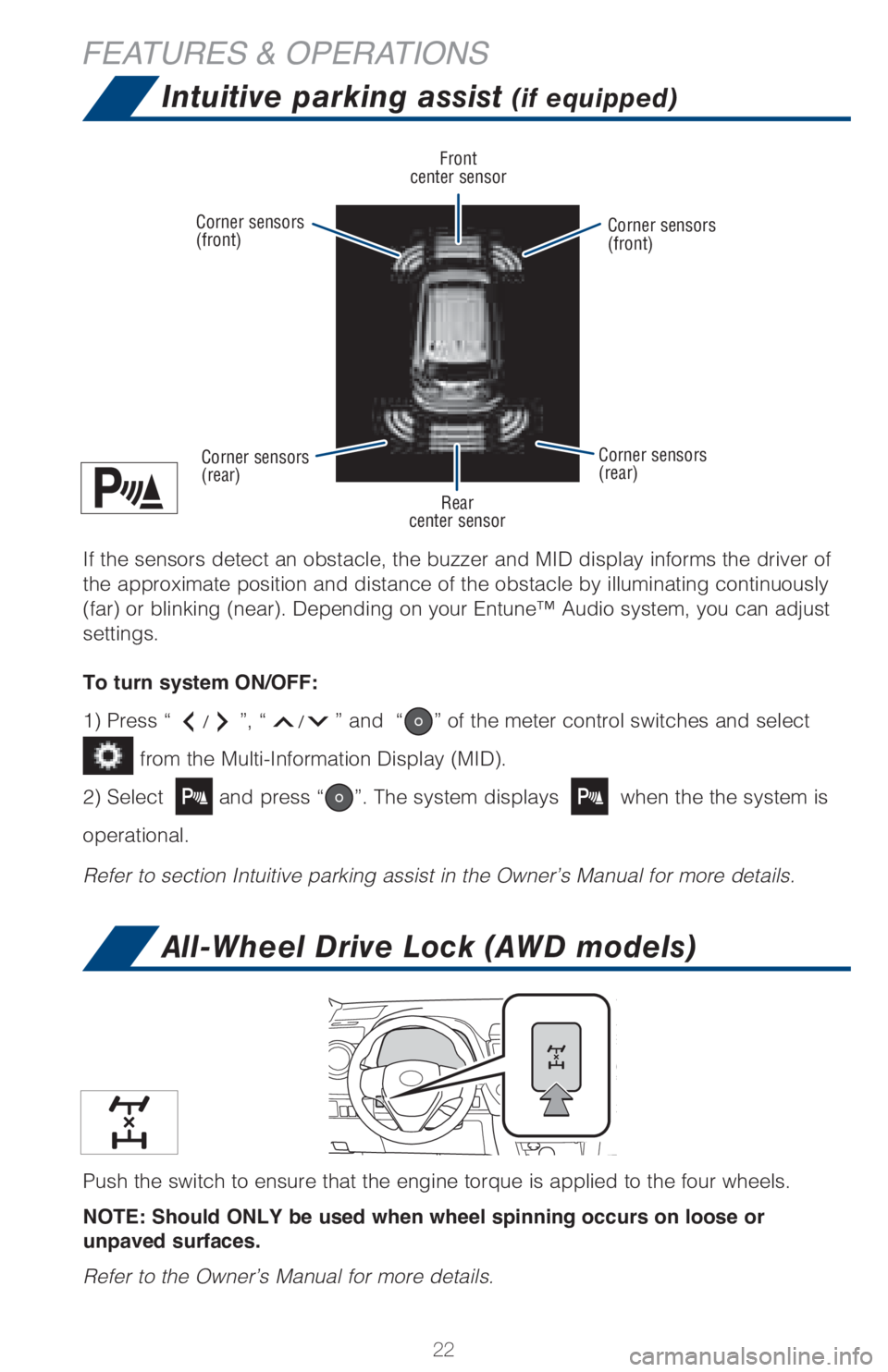

Intuitive parking assist (if equipped)
If the sensors detect an obstacle, the buzzer and MID display informs the driver of
the approximate position and distance of the obstacle by illuminating continuously
(far) or blinking (near). Depending on your Entune™ Audio system, you can adjust
settings.
To turn system ON/OFF:
1) Press “
/”, “/” and “” of the meter control switches and select
from the Multi-Information Display (MID).
2) Select
and press “”. The system displays when the the system is
operational.
Refer to section Intuitive parking assist in the Owner’s Manual for more details.
Front
center sensor
Rear
center sensor Corner sensors
(front)Corner sensors
(front)
Corner sensors
(rear)Corner sensors
(rear)

23
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

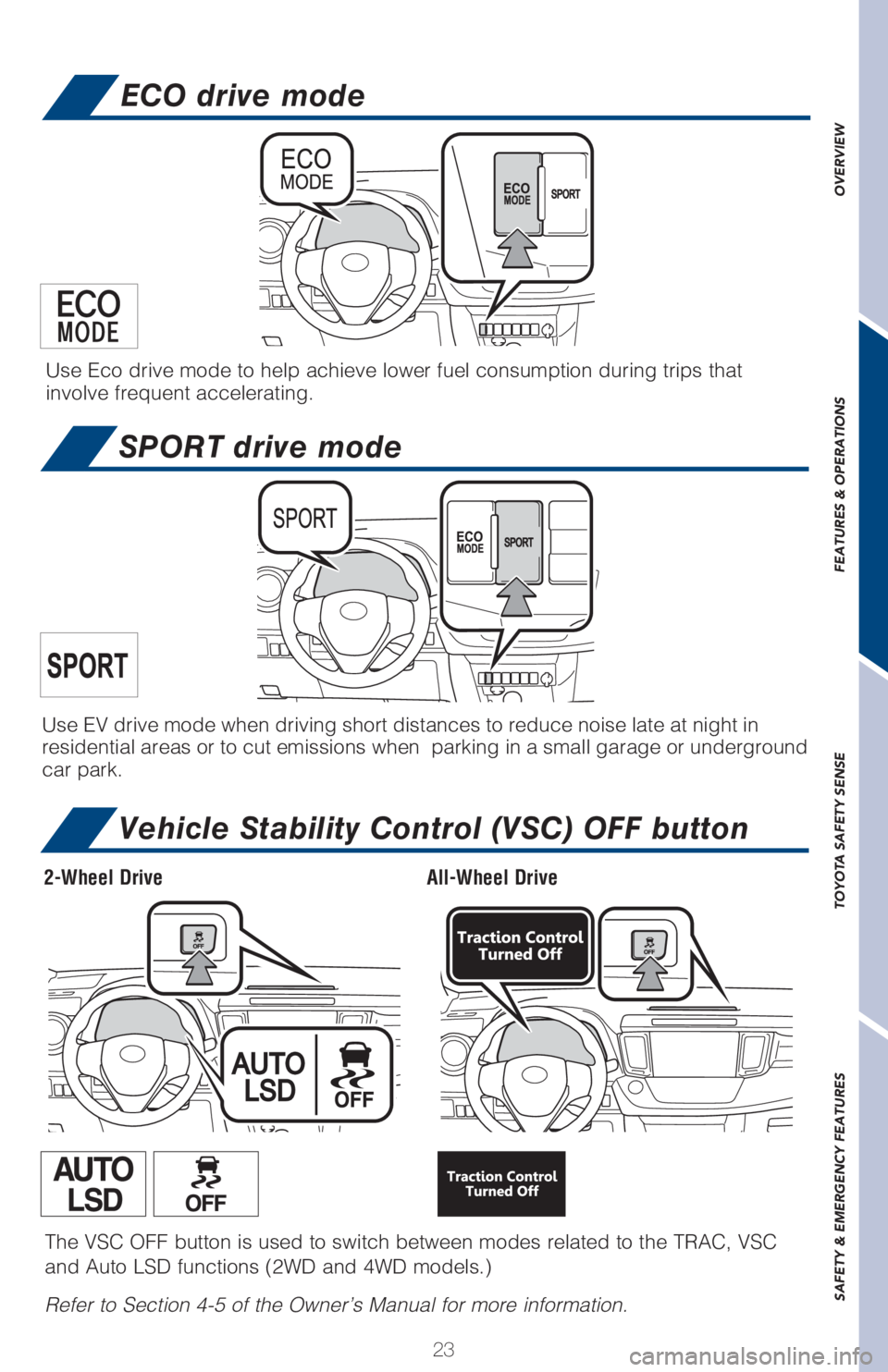

Vehicle Stability Control (VSC) OFF button
The VSC OFF button is used to switch between modes related to the TRAC, VSC
and Auto LSD functions (2WD and 4WD models.)
Refer to Section 4-5 of the Owner’s Manual for more information.
Use EV drive mode when driving short distances to reduce noise late at night in
residential areas or to cut emissions when parking in a small garage or underground
car park.
SPORT drive mode
ECO drive mode
Use Eco drive mode to help achieve lower fuel consumption during trips that
involve frequent accelerating.
2-Wheel DriveAll-Wheel Drive

24
FEATURES & OPERATIONS

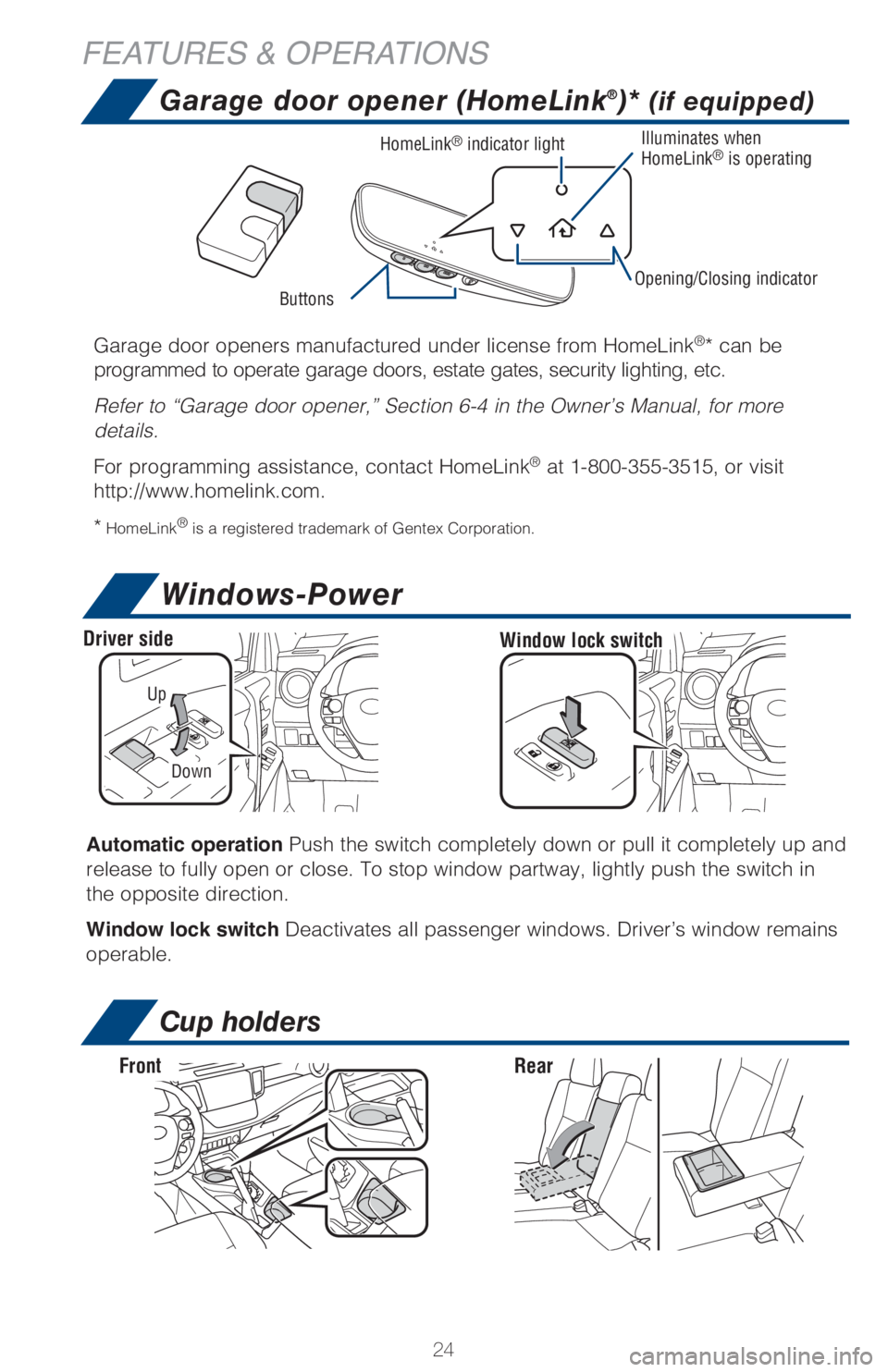

Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc.
Refer to “Garage door opener,” Section 6-4 in the Owner’s Manual, for more
details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com.
*
HomeLink® is a registered trademark of Gentex Corporation.
Automatic operation Push the switch completely down or pull it completely up and
release to fully open or close. To stop window partway, lightly push the switch in
the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
Garage door opener (HomeLink®)* (if equipped)
Windows-Power
Cup holders
Driver side
FrontRear
Up
Down
Window lock switch
Opening/Closing indicatorIlluminates when
HomeLink
® is operating
ButtonsHomeLink® indicator light

25
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

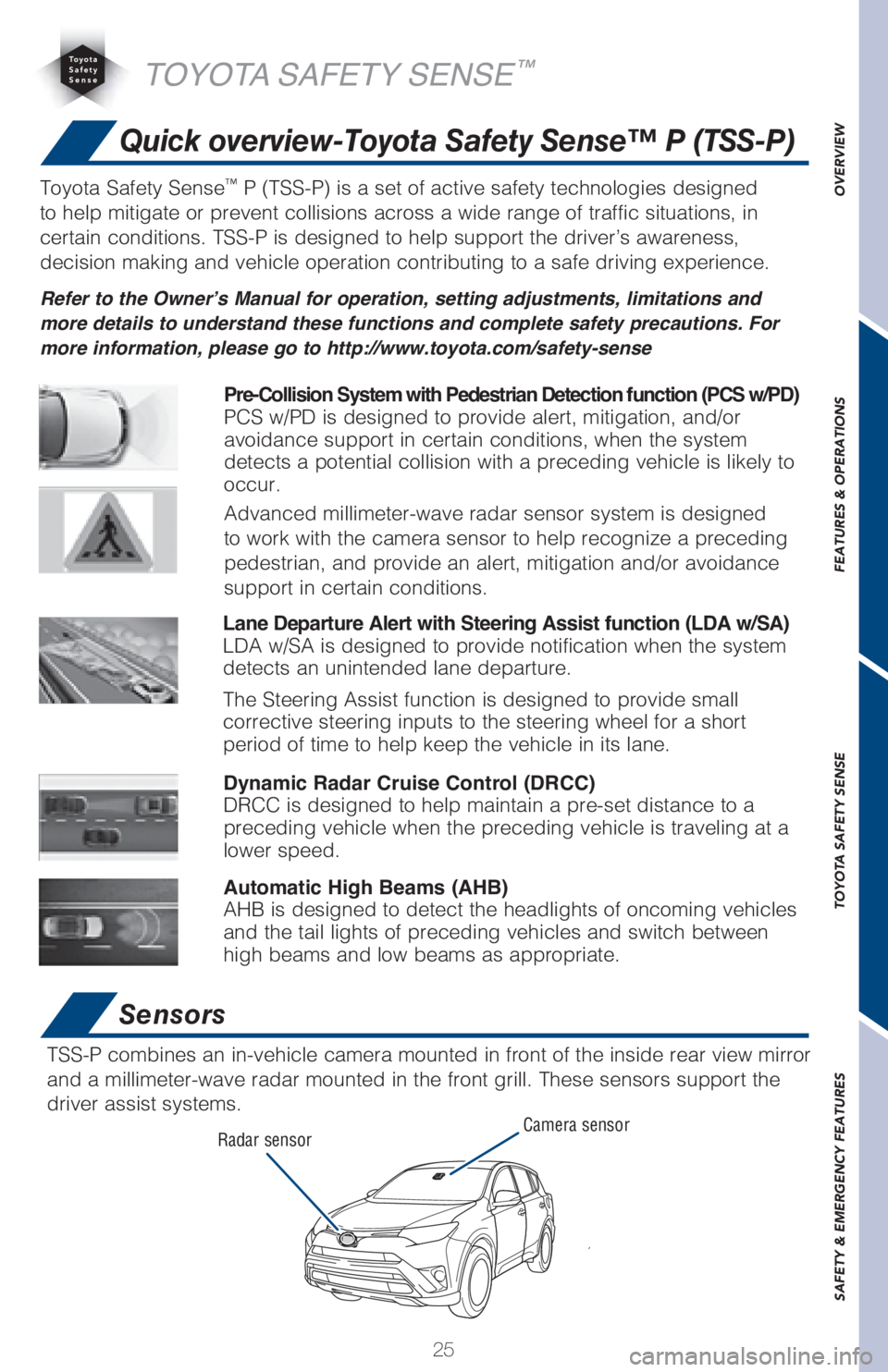

Quick overview-Toyota Safety Sense™ P (TSS-P)
Sensors
TSS-P combines an in-vehicle camera mounted in front of the inside rear view mirror
and a millimeter-wave radar mounted in the front grill. These sensors support the
driver assist systems.
Camera sensor
Radar sensor
TOYOTA SAFETY SENSE™
Toyota Safety Sense™ P (TSS-P) is a set of active safety technologies designed
to help mitigate or prevent collisions across a wide range of traffic situations, in
certain conditions. TSS-P is designed to help support the driver’s awareness,
decision making and vehicle operation contributing to a safe driving experience.
5HIHUWRWKH2ZQHU

26

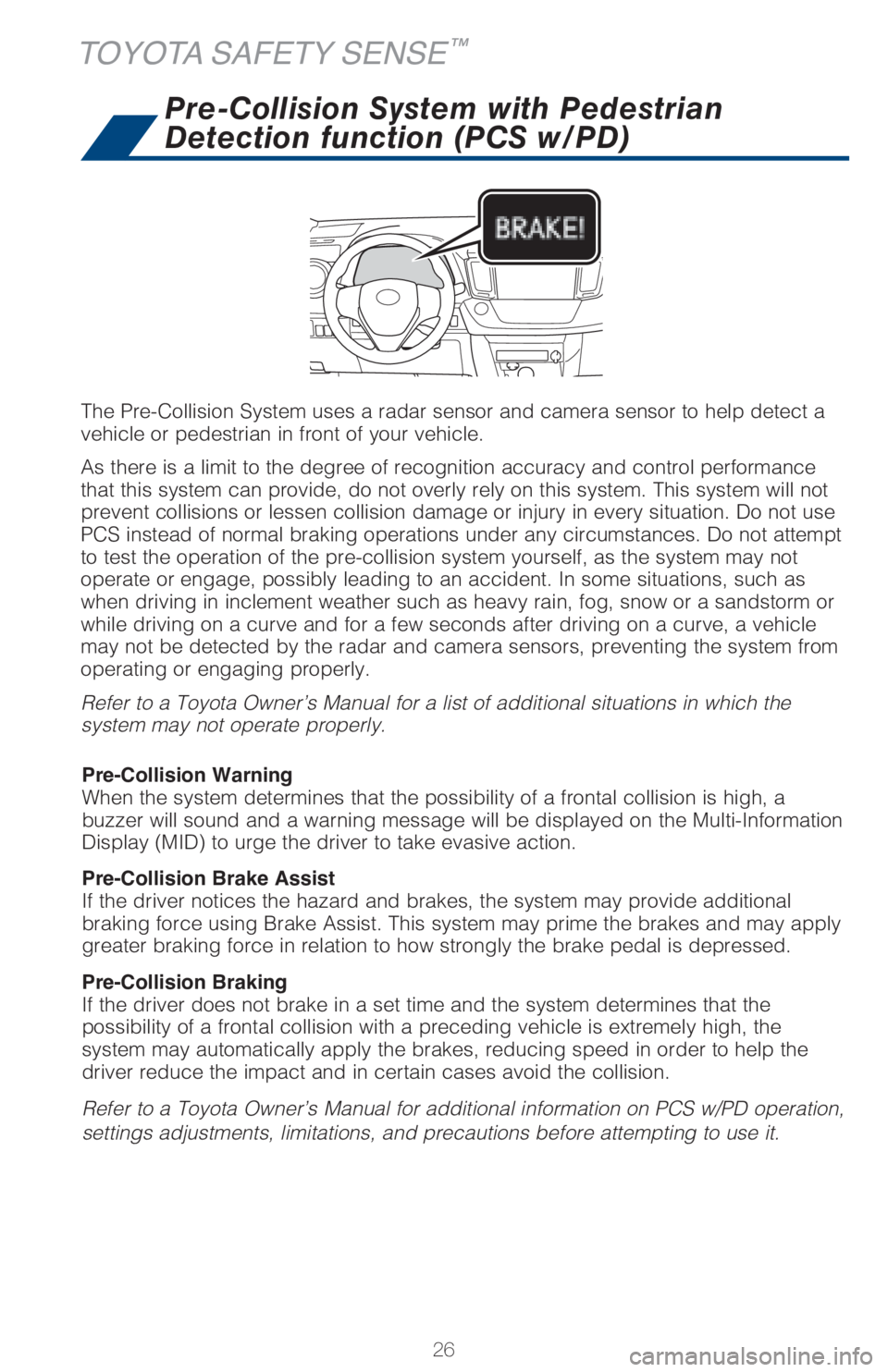

The Pre-Collision System uses a radar sensor and camera sensor to help detect a
vehicle or pedestrian in front of your vehicle.
As there is a limit to the degree of recognition accuracy and control performance
that this system can provide, do not overly rely on this system. This system will not
prevent collisions or lessen collision damage or injury in every situation. Do not use
PCS instead of normal braking operations under any circumstances. Do not attempt
to test the operation of the pre-collision system yourself, as the system may not
operate or engage, possibly leading to an accident. In some situations, such as
when driving in inclement weather such as heavy rain, fog, snow or a sandstorm or
while driving on a curve and for a few seconds after driving on a curve, a vehicle
may not be detected by the radar and camera sensors, preventing the system from
operating or engaging properly.
Refer to a Toyota Owner’s Manual for a list of additional situations in which the
system may not operate properly.
Refer to a Toyota Owner’s Manual for additional information on PCS w/PD operation,
settings adjustments, limitations, and precautions before attempting to use it. Pre-Collision Warning
When the system determines that the possibility of a frontal collision is high, a
buzzer will sound and a warning message will be displayed on the Multi-Information
Display (MID) to urge the driver to take evasive action.
Pre-Collision Brake Assist
If the driver notices the hazard and brakes, the system may provide additional
braking force using Brake Assist. This system may prime the brakes and may apply
greater braking force in relation to how strongly the brake pedal is depressed.
Pre-Collision Braking
If the driver does not brake in a set time and the system determines that the
possibility of a frontal collision with a preceding vehicle is extremely high, the
system may automatically apply the brakes, reducing speed in order to help the
driver reduce the impact and in certain cases avoid the collision.
Pre-Collision System with Pedestrian
Detection function (PCS w/PD)
TOYOTA SAFETY SENSE™

27
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

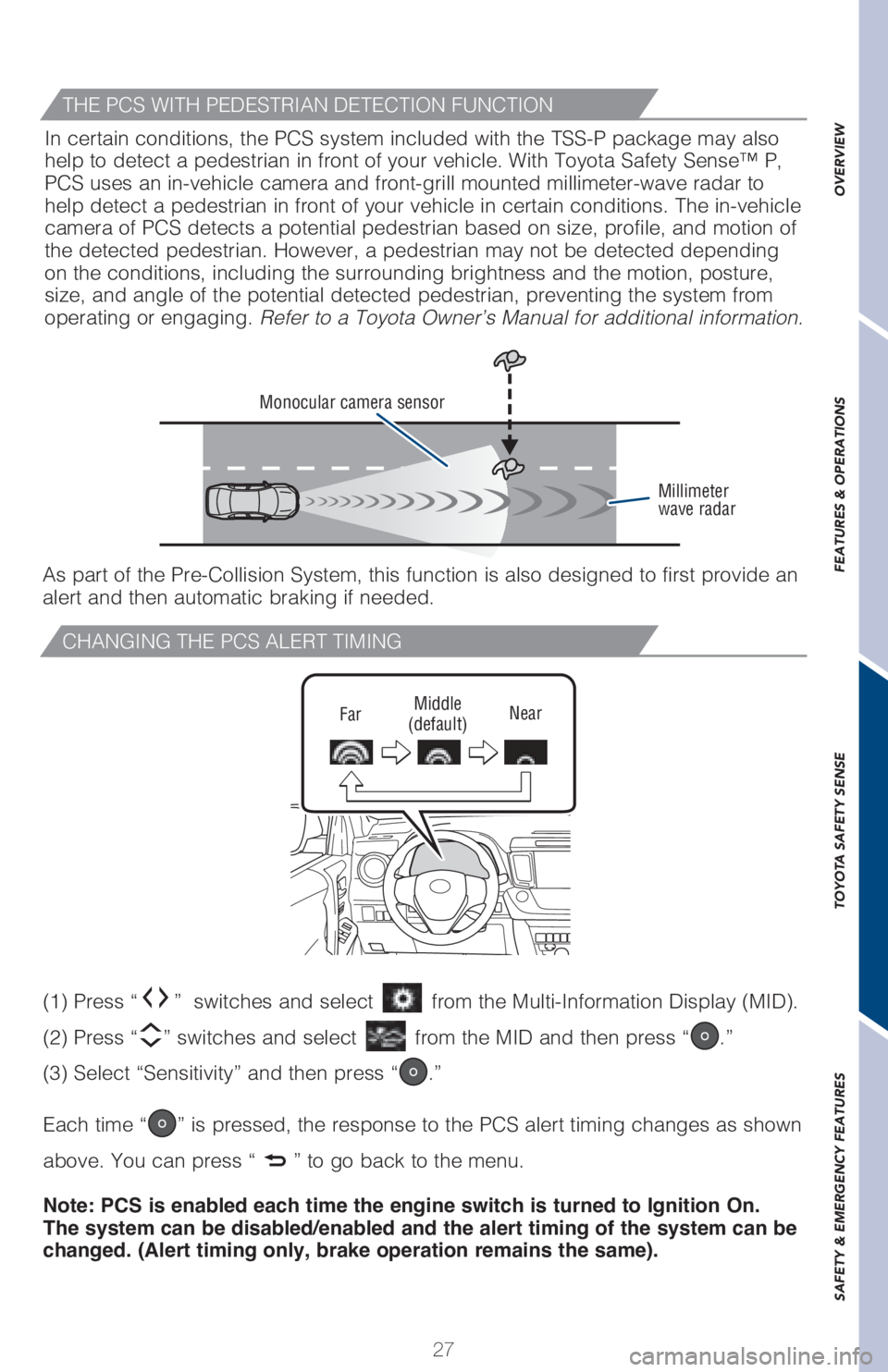

CHANGING THE PCS ALERT TIMING
FarMiddle
(default)Near
(1) Press “” switches and select from the Multi-Information Display (MID).
(2) Press “
” switches and select from the MID and then press “.”
(3) Select “Sensitivity” and then press “
.”
Each time “
” is pressed, the response to the PCS alert timing changes as shown
above. You can press “
” to go back to the menu.
Note: PCS is enabled each time the engine switch is turned to Ignition On.
The system can be disabled/enabled and the alert timing of the system can be
changed. (Alert timing only, brake operation remains the same).
Monocular camera sensor
Millimeter
wave radar
As part of the Pre-Collision System, this function is also designed to first provide an
alert and then automatic braking if needed.In certain conditions, the PCS system included with the TSS-P package may also
help to detect a pedestrian in front of your vehicle. With Toyota Safety Sense™ P,
PCS uses an in-vehicle camera and front-grill mounted millimeter-wave radar to
help detect a pedestrian in front of your vehicle in certain conditions. The in-vehicle
camera of PCS detects a potential pedestrian based on size, profile, and motion of
the detected pedestrian. However, a pedestrian may not be detected depending
on the conditions, including the surrounding brightness and the motion, posture,
size, and angle of the potential detected pedestrian, preventing the system from
operating or engaging. Refer to a Toyota Owner’s Manual for additional information.
THE PCS WITH PEDESTRIAN DETECTION FUNCTION

28
TOYOTA SAFETY SENSE™
LDA in TSS-P uses an in-vehicle camera designed to detect visible white and yellow
lane markers in front of the vehicle and the vehicle’s position on the road. If the
system determines that the vehicle is starting to unintentionally deviate from its lane,
the system alerts the driver with an audio and visual alert. When the alerts occur, the
driver must check the surrounding road situation and carefully operate the steering
wheel to move the vehicle back to the center part of their lane.
LDA is designed to function at speeds of approximately 32 MPH or higher on
relatively straight roadways.
In addition to the alert function, LDA w/SA also features a steering assist
function. When enabled, if the system determines that the vehicle is on a path to
unintentionally depart from its lane, the system may provide small corrective steering
inputs to the steering wheel for a short period of time to help keep the vehicle in its
lane.
Lane Departure Alert with
Steering Assist function (LDA w/SA)
DISABLING THE PRE-COLLISION SYSTEM (PCS)
(1) Press “” switches and select from the Multi-Information Display (MID).
(2) Press “
” switches and select the setting function from the MID and then
press “
”. The setting screen is displayed.
(3) Select
and then press “.” The Pre-Collision System will be disabled.
Press again to enable. You can press “
” to go back to the menu.
Note: The system is enabled each time the engine switch is turned to Ignition
On.
