812. Instrument cluster
2
Instrument cluster
The indicators inform the driver of the operating state of the vehicle’s
various systems.

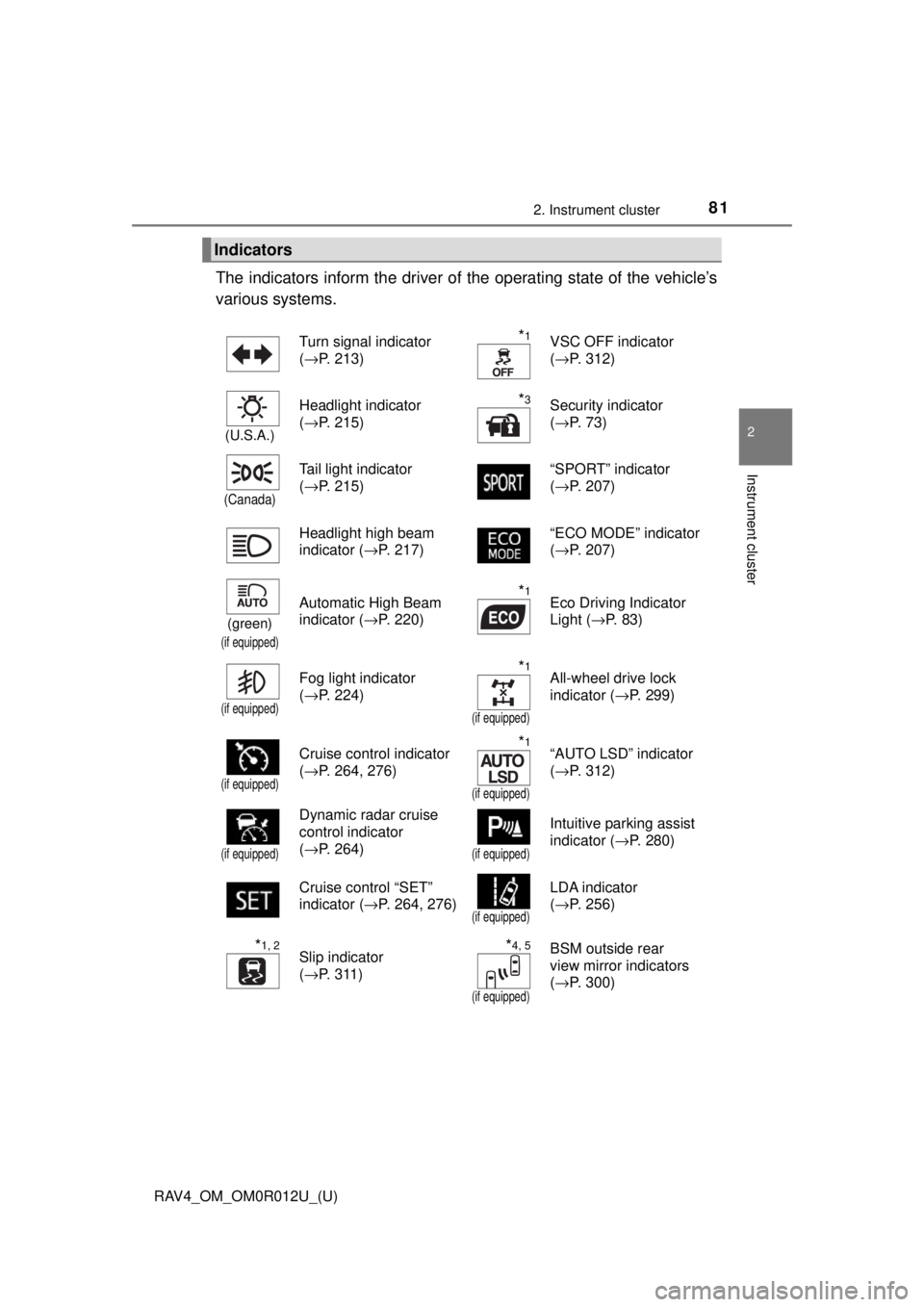

Indicators
Turn signal indicator
( →P. 213)*1VSC OFF indicator
(→P. 312)
(U.S.A.)
Headlight indicator
(→P. 215)*3Security indicator
(→P. 73)
(Canada)
Tail light indicator
(→P. 215) “SPORT” indicator
(
→P. 207)
Headlight high beam
indicator ( →P. 217) “ECO MODE” indicator
(
→P. 207)
(green)
(if equipped)
Automatic High Beam
indicator ( →P. 220)*1Eco Driving Indicator
Light (→P. 83)
(if equipped)
Fog light indicator
(→P. 224)*1
(if equipped)
All-wheel drive lock
indicator ( →P. 299)
(if equipped)
Cruise control indicator
(→P. 264, 276)*1
(if equipped)
“AUTO LSD” indicator
(→P. 312)
(if equipped)
Dynamic radar cruise
control indicator
(→P. 264)
(if equipped)
Intuitive parking assist
indicator ( →P. 280)
Cruise control “SET”
indicator ( →P. 264, 276)
(if equipped)
LDA indicator
(→P. 256)
*1, 2Slip indicator
(→P. 311)*4, 5
(if equipped)
BSM outside rear
view mirror indicators
(→P. 300)

82
RAV4_OM_OM0R012U_(U)
2. Instrument cluster
*1: These lights turn on when the engine switch is turned to the “ON” position(vehicles without smart key system) or IGNITION ON mode (vehicles with
smart key system), to indicate that a system check is being performed.
They will turn off after the engine is started, or after a few seconds. There
may be a malfunction in a system if the lights do not come on, or turn off.
Have the vehicle inspected by your Toyota dealer.
*2: The light flashes to indicate that the system is operating.
*3: This light illuminates on the center panel.
*4: In order to confirm operation, the BS M outside rear view mirror indicators
illuminate in the following situations:
• When the engine switch is turned to the “ON” position (vehicles without smart key system) or IGNITION ON mode (vehicles with smart key sys-
tem) while the system is set to on.
• When the system is set to on while the engine switch is in the “ON” posi- tion (vehicles without smart key system) or IGNITION ON mode (vehicles
with smart key system).
If the system is functioning correctly, the BSM outside rear view mirror indi-
cators will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not
turn off, there may be a malfunction with the system. If this occurs, have the
vehicle inspected by your Toyota dealer.
*5: This light illuminates on the outside rear view mirrors.
*6: The light turns on when the system is off.
*7: When the outside temperature is approximately 37° F (3°C) or lower, the
indicator will flash for approximately 10 seconds, then stay on.
(if equipped)

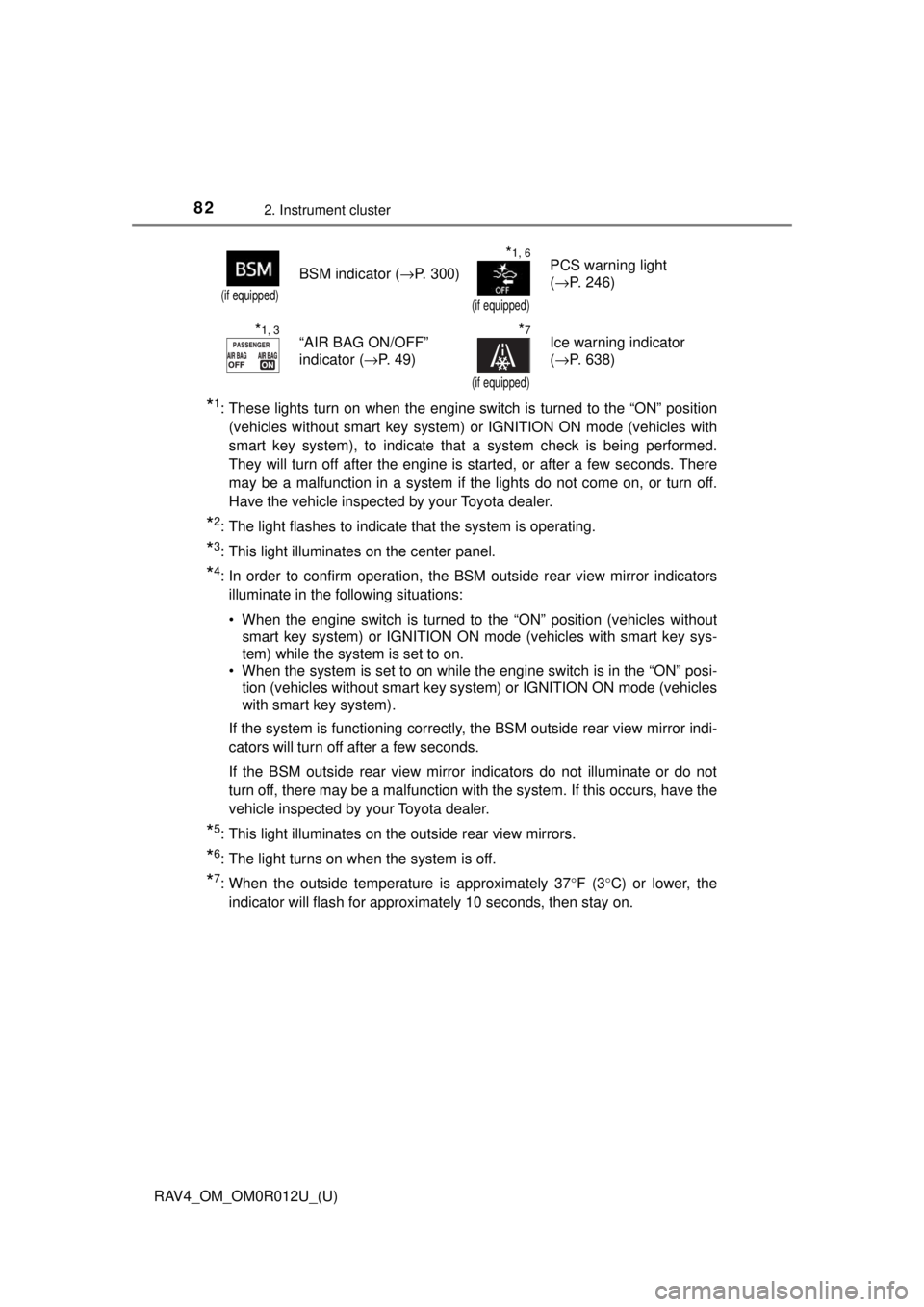

BSM indicator ( →P. 300)
*1, 6
(if equipped)
PCS warning light
(→P. 246)
*1, 3“AIR BAG ON/OFF”
indicator ( →P. 4 9 )*7
(if equipped)
Ice warning indicator
(→P. 638)

RAV4_OM_OM0R012U_(U)
832. Instrument cluster
2
Instrument cluster

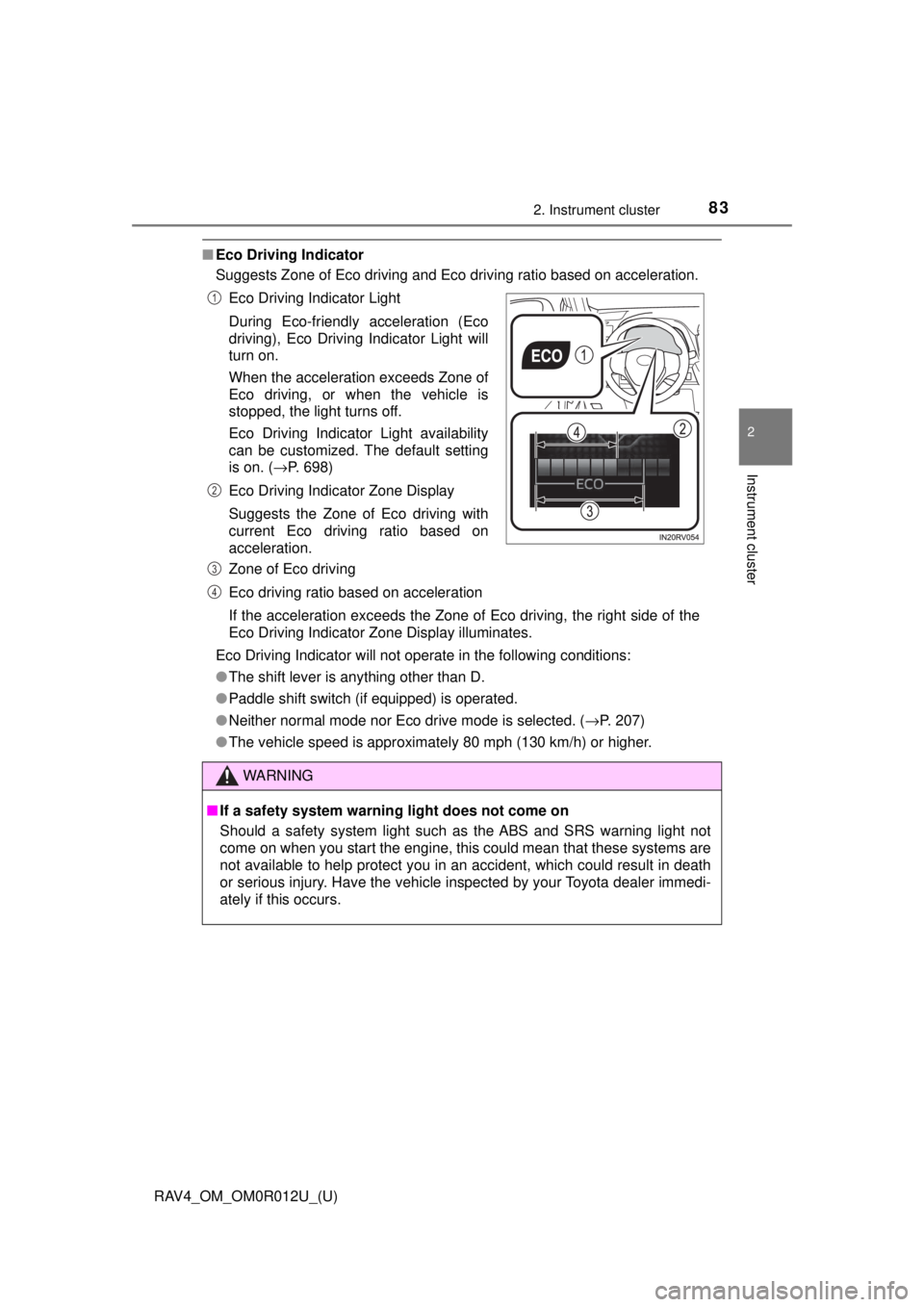

■Eco Driving Indicator
Suggests Zone of Eco driving and Eco driving ratio based on acceleration.
Eco Driving Indicator will not operate in the following conditions:
● The shift lever is anything other than D.
● Paddle shift switch (if equipped) is operated.
● Neither normal mode nor Eco drive mode is selected. ( →P. 207)
● The vehicle speed is approximately 80 mph (130 km/h) or higher. Eco Driving Indicator Light
During Eco-friendly acceleration (Eco
driving), Eco Driving Indicator Light will
turn on.
When the acceleration exceeds Zone of
Eco driving, or when the vehicle is
stopped, the light turns off.
Eco Driving Indicator Light availability
can be customized. The default setting
is on. ( →P. 698)
Eco Driving Indicator Zone Display
Suggests the Zone of Eco driving with
current Eco driving ratio based on
acceleration.

Zone of Eco driving
Eco driving ratio based on acceleration
If the acceleration exceeds the Zone of Eco driving, the right side of the
Eco Driving Indicator Zone Display illuminates.
WARNING
■ If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by your Toyota dealer immedi-
ately if this occurs.
1
2
3
4

84
RAV4_OM_OM0R012U_(U)
2. Instrument cluster

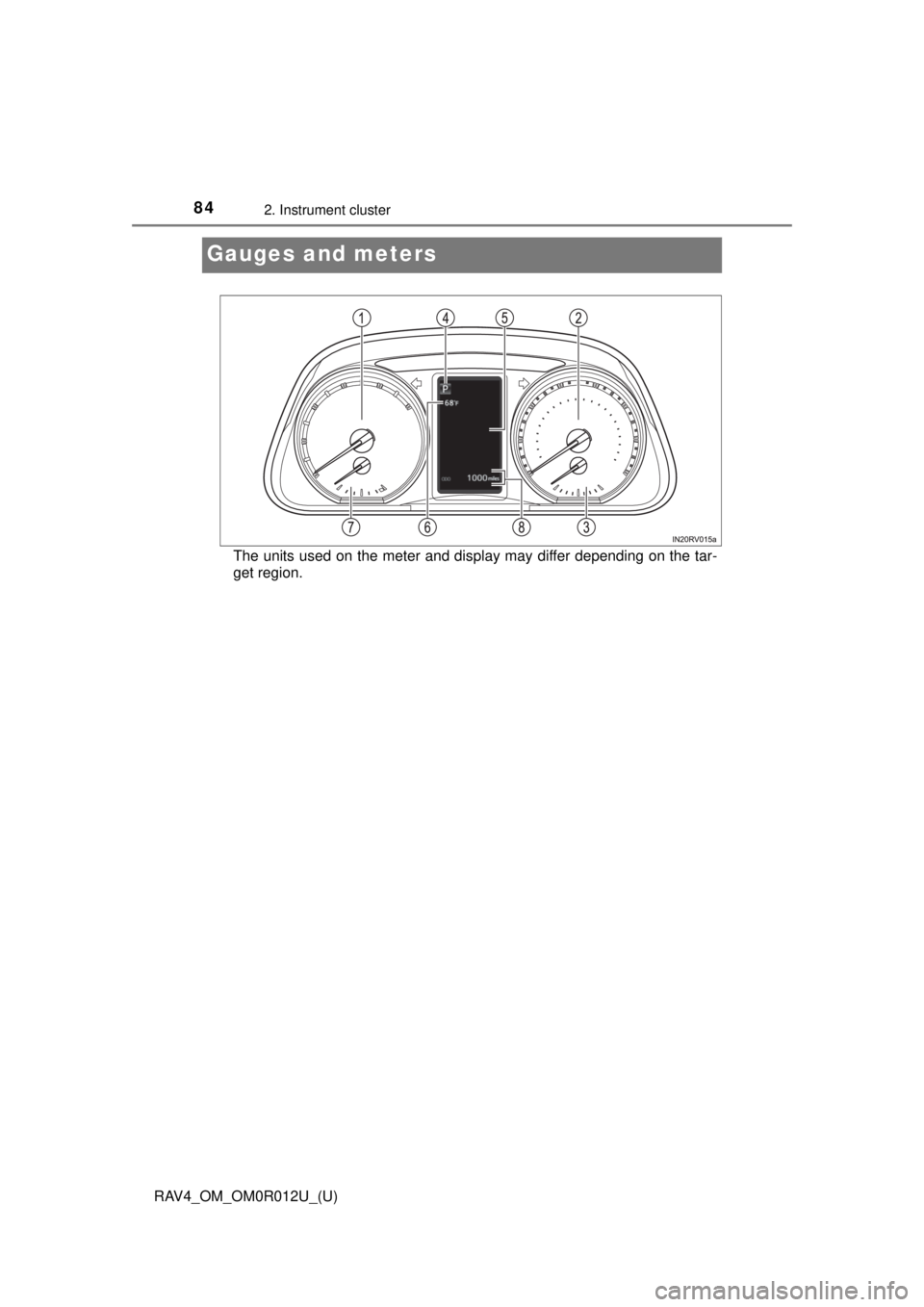

Gauges and meters
The units used on the meter and display may differ depending on the tar-
get region.

RAV4_OM_OM0R012U_(U)
852. Instrument cluster
2
Instrument cluster
Tachometer
Displays the engine speed in revolutions per minute
Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fuel remaining in the tank
Shift position and shift range
Displays the selected shift position or selected shift range (→P. 205)
Multi-information display
Presents the driver with a variety of driving-related data (→P. 88)
Outside temperature display
→P. 8 7
Engine coolant temperature gauge
Displays the engine coolant temperature
Odometer and trip meter
Odometer:
Displays the total distance that the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters “A” and “B” can be used to record and display different
distances independently.
1
2
3
4
5
6
7
8

86
RAV4_OM_OM0R012U_(U)
2. Instrument cluster
Switches the items of the odome-
ter and trip meter display by
pressing the “TRIP” switch.
When the trip meter is displayed,
pressing and holding the “TRIP”
switch will reset the trip meter.
The brightness of the instrument panel lights can be adjusted by turn-
ing the dial.
Brighter
Darker
Changing the odometer and trip meter display
Instrument panel light control
1
2

RAV4_OM_OM0R012U_(U)
872. Instrument cluster
2
Instrument cluster
■The meters and display illuminate when
Vehicles without smart key system
The engine switch is in the “ON” position.
Vehicles with smart key system
The engine switch is in IGNITION ON mode.
■ Outside temperature display
●In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 12 mph [20 km/h])
• When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
● When “--” is displayed, the system may be malfunctioning.
Take your vehicle to your Toyota dealer.
● The temperature range that can be displayed is from -40° F (-40°C) to 122° F
(50° C).
WARNING
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the display monitor may
respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This l ag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.
NOTICE
■ To prevent damage to the engine and its components
● Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● The engine may be overheating if the engine coolant temperature gauge is
in the red zone (“H”). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. ( →P. 666)

88
RAV4_OM_OM0R012U_(U)
2. Instrument cluster

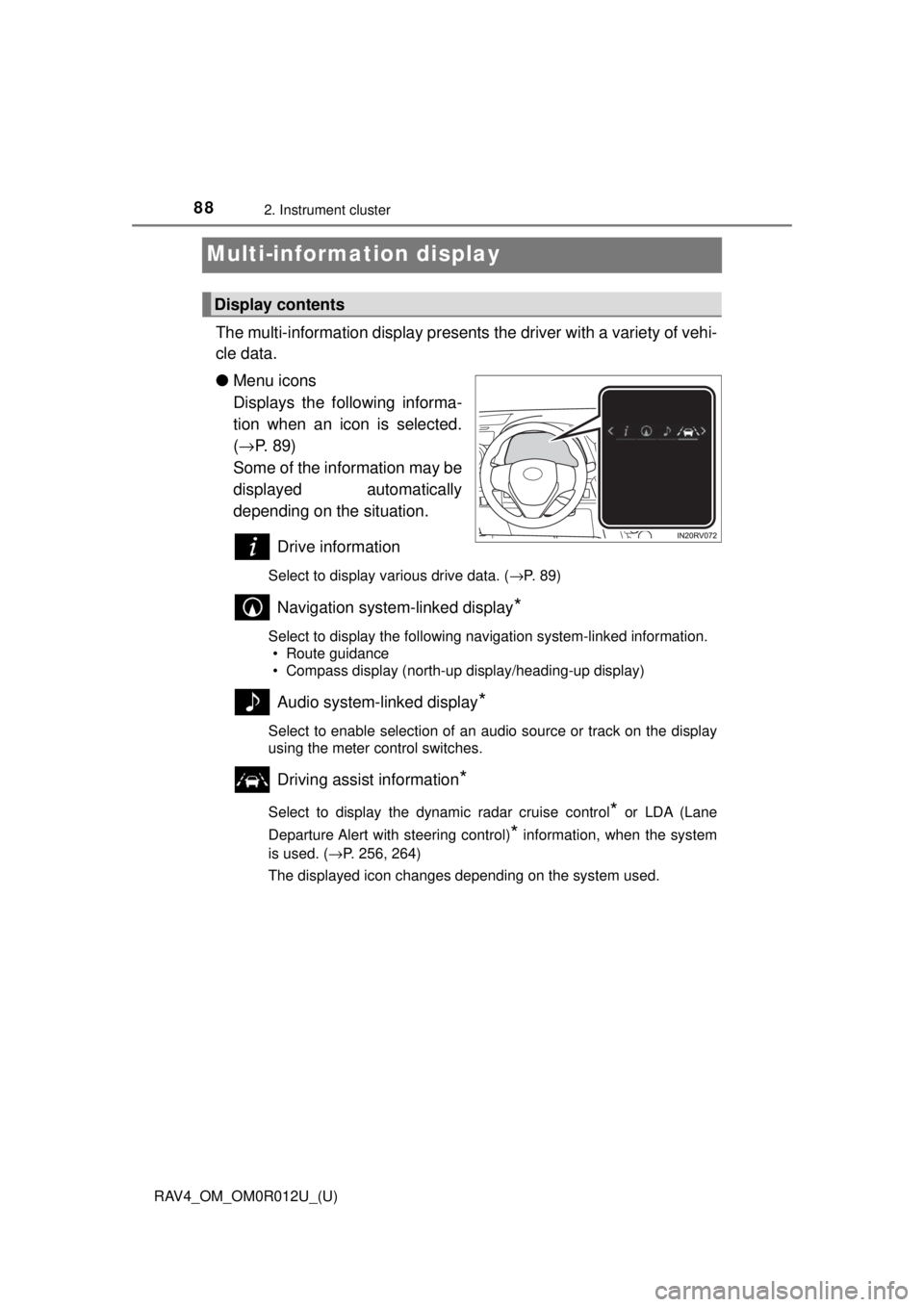

Multi-information display
The multi-information display presents the driver with a variety of vehi-
cle data.
● Menu icons
Displays the following informa-
tion when an icon is selected.
(→ P. 89)
Some of the information may be
displayed automatically
depending on the situation.
Drive information
Select to display various drive data. ( →P. 89)
Navigation system-linked display*
Select to display the following navigation system-linked information.
• Route guidance
• Compass display (north-up display/heading-up display)
Audio system-linked display*
Select to enable selection of an audio source or track on the display
using the meter control switches.
Driving assist information*
Select to display the dynamic radar cruise control* or LDA (Lane
Departure Alert with steering control)
* information, when the system
is used. ( →P. 256, 264)
The displayed icon changes depending on the system used.
Display contents

RAV4_OM_OM0R012U_(U)
892. Instrument cluster
2
Instrument cluster
Warning message display
Select to display warning messages and measures to be taken if a
malfunction is detected. (→P. 629)
Settings display
Select to change the system settings and meter display settings.
(→P. 91)
*: If equipped

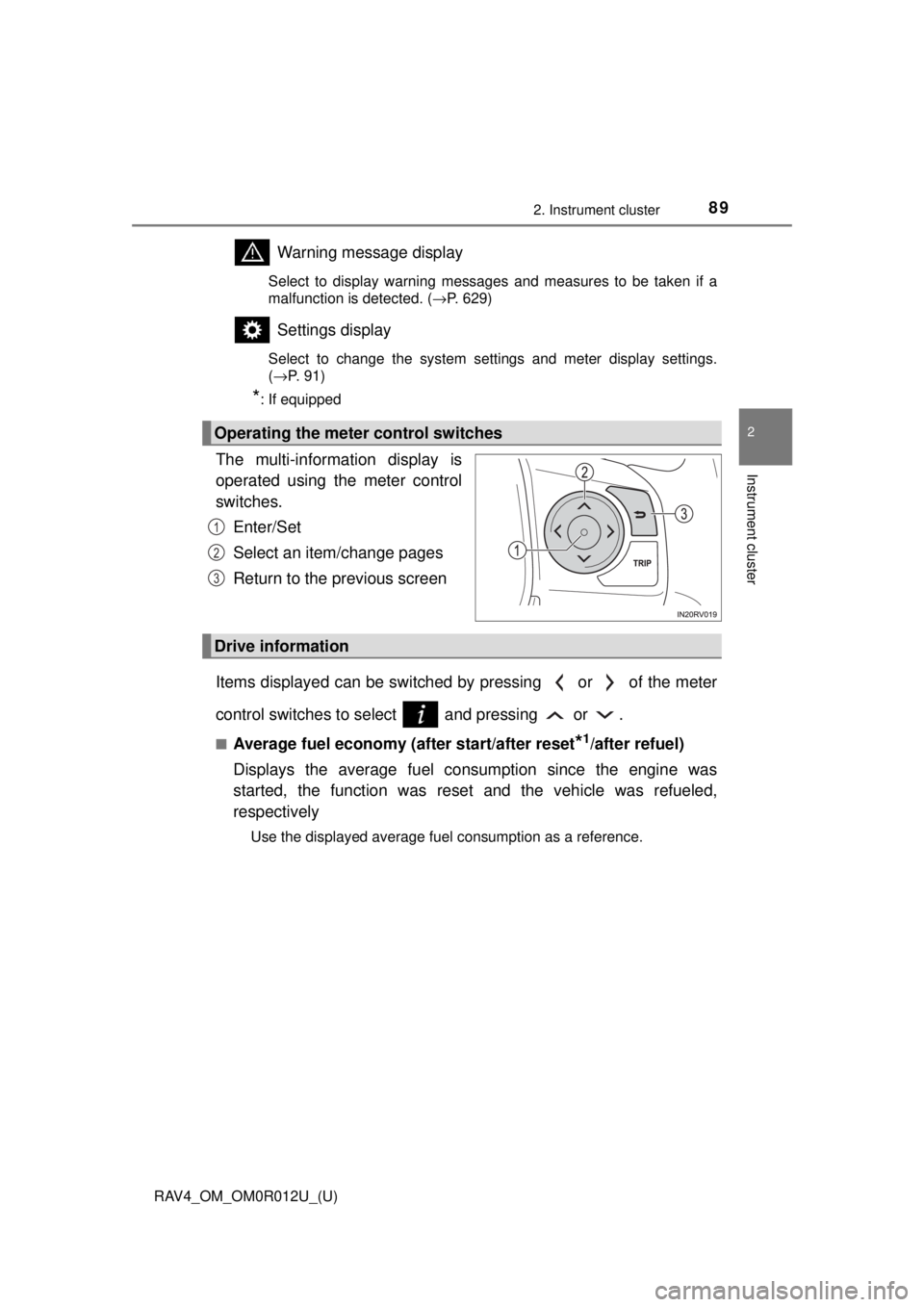

The multi-information display is
operated using the meter control
switches.
Enter/Set
Select an item/change pages
Return to the previous screen
Items displayed can be switched by pressing or of the meter
control switches to select and pressing or .
■Average fuel economy (after start/after reset*1/after refuel)
Displays the average fuel co nsumption since the engine was
started, the function was rese t and the vehicle was refueled,
respectively
Use the displayed average fuel consumption as a reference.
Operating the meter control switches
1
2
3
Drive information

90
RAV4_OM_OM0R012U_(U)
2. Instrument cluster
■Average speed (after start/after reset*1/after refuel)
Displays the average vehicle speed since the engine was started,
the function was reset and the v ehicle was refueled, respectively
■Range (after refuel)
Displays the estimated maximum distance that can be driven with
the quantity of fuel remaining
• This distance is computed base d on your average fuel consump-
tion. As a result, the actual dist ance that can be driven may differ
from that displayed.
• When only a small amount of fuel is added to the tank, the dis- play may not be updated.
When refueling, turn the engine switch off. If the vehicle is refu-
eled without turning the engine switch off, the display may not be
updated.
■Eco Driving Indicator Zone Display
→ P. 8 3
■Dynamic Torque Control AWD system display*2
→P. 9 0
■LDA (Lane Departure Alert with steering control) vehicle sway
warning
*2
→P. 2 5 7
■Display off
A blank screen is displayed
*1: The function can be reset by pressing and holding the of the meter
control switches when the reset item is displayed.
*2: If equipped
