39Maintenance Log
MAINTENANCE LOG
MAINTENANCE
15,000 miles or 18 months

Add Toyota EFI Tank Additive or equivalent
(Hawaii, Puerto Rico, Saipan and
American Samoa only)
Check installation of driver’s floor mat Inspect and adjust all fluid levels1
NOTE: If 0W-16 oil WAS NOT used at the last oil change, replace engine oil and oil filter.2
Inspect the following:

_
Ball joints and dust covers _
Radiator and condenser

_
Brake lines and hoses _
Rear differential oil (4WD)

_
Cabin air filter _
Steering gear

_
Drive shaft boots _
Steering linkage and boots

_
Engine coolant
5 _
Transfer case oil (4WD)

_
Exhaust pipes and mountings





Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect engine air filterReplace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:6
Replace engine oil and oil filter2
Replace rear differential oil (4WD)Replace transfer case oil (4WD)Tighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Replace engine oil and oil filter2
1
Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2 Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3 Perform these service items only if you drive primarily under the conditions indicated. 4 Includes operating on roads which road salt has been applied.5

Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.6 Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Dealer Service verification:
D
ate:
Mileage:
inspect wiper blades re-torque propeller shaft bolt (4WD)rotate tires
visually inspect brake linings/drums
and brake pads/discs
NOTE: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow
from the air conditioner and heater or if the windows fog easily when you use the “Fresh”
mode. Consult your dealer if any of these conditions occur.
122400_18-TCS-12626 MY20 WMG RAV4 GUTS_R1.indd 398/22/19 5:06 PM

41Maintenance Log
MAINTENANCE LOG
MAINTENANCE
30,000 miles or 36 months

Add Toyota EFI Tank Additive or equivalent (Hawaii, Puerto Rico, Saipan and American Samoa only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Re-torque propeller shaft bolt (4WD)
Replace cabin air filter
Replace engine air filter
Replace engine oil and oil filter2
Replace transfer case oil (4WD)
Rotate tires
Inspect the following:
_
Automatic transmission fluid cooler
hoses and connections

_
Automatic transmission for
signs of leakage

_
Ball joints and dust covers

_
Brake lines and hoses

_
Brake linings/drums and
brake pads/discs
5

_
Drive shaft boots
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:
7
Replace rear differential oil (4WD)
Tighten nuts and bolts on chassis and body



_
Engine coolant6

_
Exhaust pipes and mountings

_
Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses

_
Fuel tank cap gasket

_
Radiator and condenser

_
Rear differential oil (4WD)

_
Steering gear

_
Steering linkage and boots
1 Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2 Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3 Perform these service items only if you drive primarily under the conditions indicated. 4 Includes operating on roads which road salt has been applied.5 Inspect thickness measurement and disc runout.6

Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.7 Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Dealer Service verification:
D
ate:
Mileage:
122400_18-TCS-12626 MY20 WMG RAV4 GUTS_R1.indd 418/22/19 5:07 PM

43Maintenance Log
MAINTENANCE LOG
MAINTENANCE
1 Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2 Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3 Perform these service items only if you drive primarily under the conditions indicated. 4 Includes operating on roads which road salt has been applied.5

Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.6 Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Dealer Service verification:
D
ate:
Mileage:
45,000 miles or 18 months

Add Toyota EFI Tank Additive or equivalent
(Hawaii, Puerto Rico, Saipan and
American Samoa only)
Check installation of driver’s floor mat Inspect and adjust all fluid levels1
NOTE: If 0W-16 oil WAS NOT used at the last oil change, replace engine oil and oil filter.2
Inspect the following:

_
Ball joints and dust covers _
Radiator and condenser

_
Brake lines and hoses _
Rear differential oil (4WD)

_
Cabin air filter _
Steering gear

_
Drive shaft boots _
Steering linkage and boots

_
Engine coolant
5 _ Transfer case oil (4WD)

_
Exhaust pipes and mountings





Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect engine air filterReplace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:6
Replace engine oil and oil filter2
Replace rear differential oil (4WD)Replace transfer case oil (4WD)Tighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Replace engine oil and oil filter2
Inspect wiper blades Re-torque propeller shaft bolt (4WD)Rotate tires Visually inspect brake linings/drums
and brake pads/discs
NOTE: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow
from the air conditioner and heater or if the windows fog easily when you use the “Fresh”
mode. Consult your dealer if any of these conditions occur.
122400_18-TCS-12626 MY20 WMG RAV4 GUTS_R1.indd 438/22/19 5:41 PM

45Maintenance Log
MAINTENANCE LOG
MAINTENANCE
60,000 miles or 72 months
Add Toyota EFI Tank Additive or equivalent (Hawaii, Puerto Rico, Saipan and American Samoa only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Re-torque propeller shaft bolt (4WD)
Replace cabin air filter
Replace engine air filter
Replace engine oil and oil filter2
Replace transfer case oil (4WD)
Rotate tires
Inspect the following:
_
Automatic transmission fluid cooler
hoses and connections
_ Automatic transmission for signs of leakage _
Ball joints and dust covers
_ Brake lines and hoses _ Brake linings/drums and brake pads/discs 5
_ Drive belts 6 _ Drive shaft boots _
Engine coolant7
_Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:8
Replace automatic transmission fluid
Replace rear differential oil (4WD)
Tighten nuts and bolts on chassis and body
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Replace automatic transmission fluid
1
Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2 Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3 Perform these service items only if you drive primarily under the conditions indicated. 4 Includes operating on roads which road salt has been applied. 5 Inspect thickness measurement and disc runout. 6 Initial inspection at 60,000 miles/ 72 months. Inspect every 15,000 miles/18 months thereafter. 7 Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.8 Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
_
Exhaust pipes and mountings
_ Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
_ Fuel tank cap gasket
_ Radiator and condenser
_
Rear differential oil (4WD)
_ Steering gear
_
Steering linkage and boots
Dealer Service verification:
D
ate:
Mileage:
122400_18-TCS-12626 MY20 WMG RAV4 GUTS_R1.indd 458/22/19 5:08 PM

47Maintenance Log
75,000 miles or 90 months

Add Toyota EFI Tank Additive or equivalent
(Hawaii, Puerto Rico, Saipan and
American Samoa only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
NOTE: If 0W-16 oil WAS NOT used at the last oil change, replace engine oil and oil filter.2
Inspect the following:

_
Ball joints and dust covers _
Exhaust pipes and mountings

_
Brake lines and hoses _
Radiator and condenser

_
Cabin air filter _
Rear differential oil (4WD)

_
Drive belts _
Steering gear

_
Drive shaft boots
_ Steering linkage and boots


_
Engine coolant5 _ Transfer case oil (4WD)





Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect engine air filter
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:6
Replace engine oil and oil filter2
Replace rear differential oil (4WD)
Replace transfer case oil (4WD)
Tighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Replace engine oil and oil filter2
Inspect wiper blades
Re-torque propeller shaft bolt (4WD)
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
NOTE: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow
from the air conditioner and heater or if the windows fog easily when you use the “Fresh”
mode. Consult your dealer if any of these conditions occur.
Dealer Service verification:
D
ate:
Mileage:
MAINTENANCE LOG
MAINTENANCE
1 Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2 Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3 Perform these service items only if you drive primarily under the conditions indicated. 4 Includes operating on roads which road salt has been applied.5

Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.6 Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
122400_18-TCS-12626 MY20 WMG RAV4 GUTS_R1.indd 478/22/19 5:08 PM

49Maintenance Log
MAINTENANCE LOG
MAINTENANCE
1 Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2 Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3 Perform these service items only if you drive primarily under the conditions indicated. 4 Includes operating on roads which road salt has been applied.5 Inspect thickness measurement and disc runout.6 Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.7 Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Dealer Service verification:
D
ate:
Mileage:
90,000 miles or 108 months
Add Toyota EFI Tank Additive or equivalent (Hawaii, Puerto Rico, Saipan and American Samoa only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Re-torque propeller shaft bolt (4WD)
Replace cabin air filter
Replace engine air filter
Replace engine oil and oil filter2
Replace transfer case oil (4WD)
Rotate tires
Inspect the following:
_ Automatic transmission fluid cooler
hoses and connections
_ Automatic transmission for signs of leakage
_
Ball joints and dust covers
_ Brake lines and hoses
_ Brake linings/drums and brake pads/discs5
_ Drive belts
_ Drive shaft boots
_
Engine coolant6
_Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:7
Replace rear differential oil (4WD)
Tighten nuts and bolts on chassis and body

_
Exhaust pipes and mountings
_ Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
_ Fuel tank cap gasket
_ Radiator and condenser
_
Rear differential oil (4WD)
_ Steering gear
_
Steering linkage and boots
122400_18-TCS-12626 MY20 WMG RAV4 GUTS_R1.indd 498/22/19 5:09 PM

51Maintenance Log
1 Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2 Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3 Perform these service items only if you drive primarily under the conditions indicated. 4 Includes operating on roads which road salt has been applied.5 Initial replacement at 100,000 miles/120 months. Replace every 50,000 miles/60 months thereafter. Refer to “Engine
Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.
6
Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.7 Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
NOTE: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow
from the air conditioner and heater or if the windows fog easily when you use the “Fresh”
mode. Consult your dealer if any of these conditions occur.

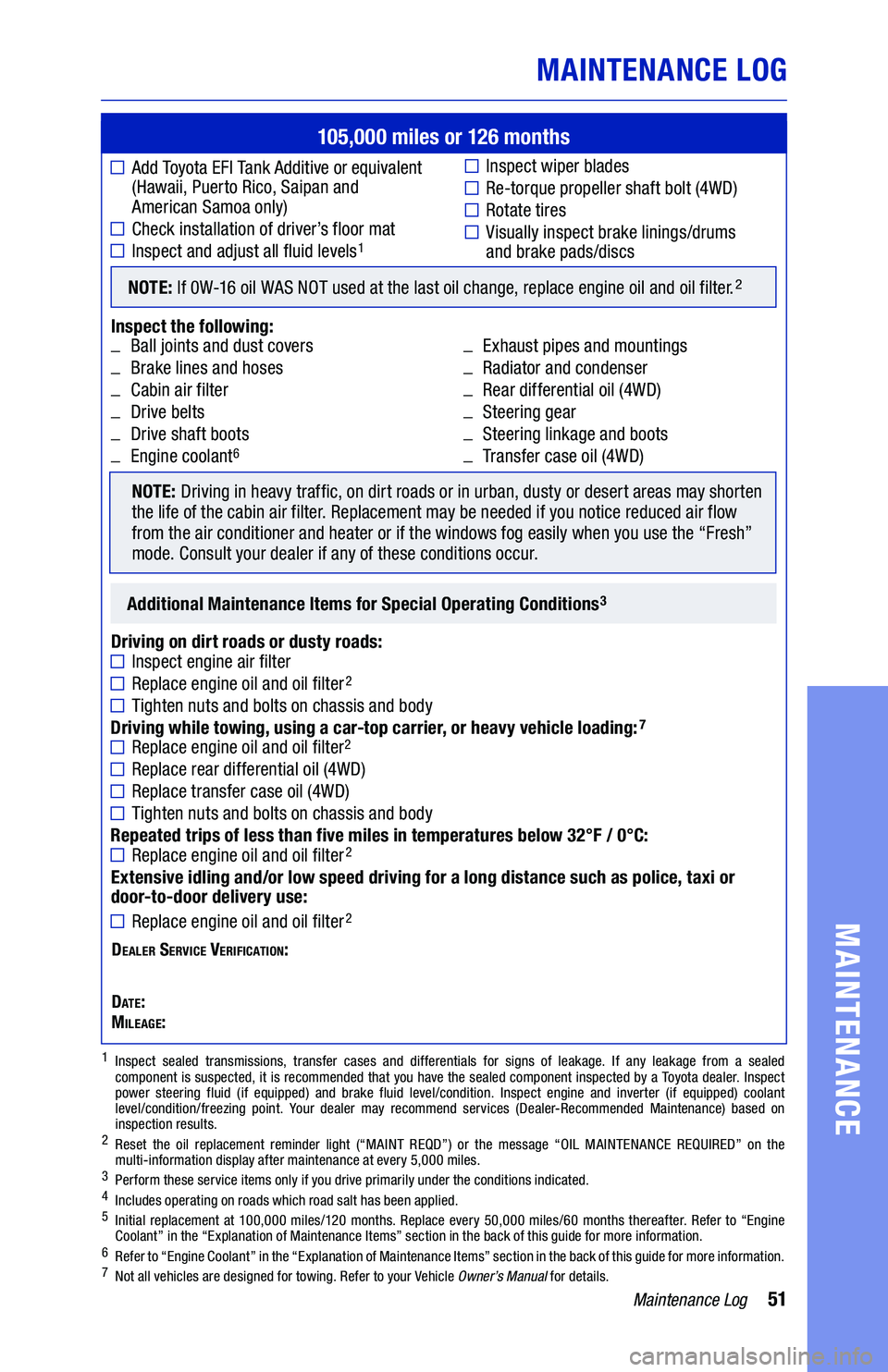

105,000 miles or 126 months

Add Toyota EFI Tank Additive or equivalent
(Hawaii, Puerto Rico, Saipan and
American Samoa only)
Check installation of driver’s floor matInspect and adjust all fluid levels1
NOTE : If 0W-16 oil WAS NOT used at the last oil change, replace engine oil and oil filter.2
Inspect the following:

_
Ball joints and dust covers _
Exhaust pipes and mountings

_
Brake lines and hoses _
Radiator and condenser

_
Cabin air filter _
Rear differential oil (4WD)

_
Drive belts _
Steering gear

_
Drive shaft boots
_ Steering linkage and boots

_
Engine coolant6 _ Transfer case oil (4WD)





Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect engine air filterReplace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:7
Replace engine oil and oil filter2
Replace rear differential oil (4WD)Replace transfer case oil (4WD)Tighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Replace engine oil and oil filter2
Inspect wiper blades Re-torque propeller shaft bolt (4WD)Rotate tires Visually inspect brake linings/drums
and brake pads/discs
MAINTENANCE LOG
MAINTENANCE
Dealer Service verification:
D
ate:
Mileage:
122400_18-TCS-12626 MY20 WMG RAV4 GUTS_R1.indd 518/22/19 5:09 PM

53Maintenance Log
MAINTENANCE LOG
MAINTENANCE
120,000 miles or 144 months

Add Toyota EFI Tank Additive or equivalent (Hawaii, Puerto Rico, Saipan and American Samoa only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Re-torque propeller shaft bolt (4WD)
Replace cabin air filter
Replace engine air filter
Replace engine oil and oil filter2
Replace spark plugs5
Replace transfer case oil (4WD)
Rotate tires
Inspect the following:
_
Automatic transmission fluid cooler
hoses and connections

_
Automatic transmission for signs of leakage

_
Ball joints and dust covers

_
Brake lines and hoses

_
Brake linings/drums and brake pads/discs
6

_
Drive belts

_
Drive shaft boots

_
Engine coolant
7

Addit ional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:9
Replace automatic transmission fluid
Replace rear differential oil (4WD)
Tighten nuts and bolts on chassis and body
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Replace automatic transmission fluid

1
Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2 Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3 Perform these service items only if you drive primarily under the conditions indicated. 4 Includes operating on roads which road salt has been applied.5 Maintenance services of spark plugs are required under the terms of the Emissions Control Warranty.6 Inspect thickness measurement and disc runout.7

Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.8
Replace the vacuum pump vane and the vacuum pump vane caps with new ones and never reuse the vacuum pump
vane and the vacuum pump vane caps.
9
Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.

_
Exhaust pipes and mountings

_
F uel lines and connections, fuel tank band
and fuel tank vapor vent system hoses

_
Fuel tank cap gasket

_
Radiator and condenser

_
Rear differential oil (4WD)

_
Steering gear

_
Steering linkage and boots

_
Vacuum pump for brake booster
8
Dealer Service verification:
D
ate:
Mileage:
122400_18-TCS-12626 MY20 WMG RAV4 GUTS_R1.indd 538/22/19 5:09 PM
