TOYOTA RAV4 2021 (in English) Owner's Manual

19

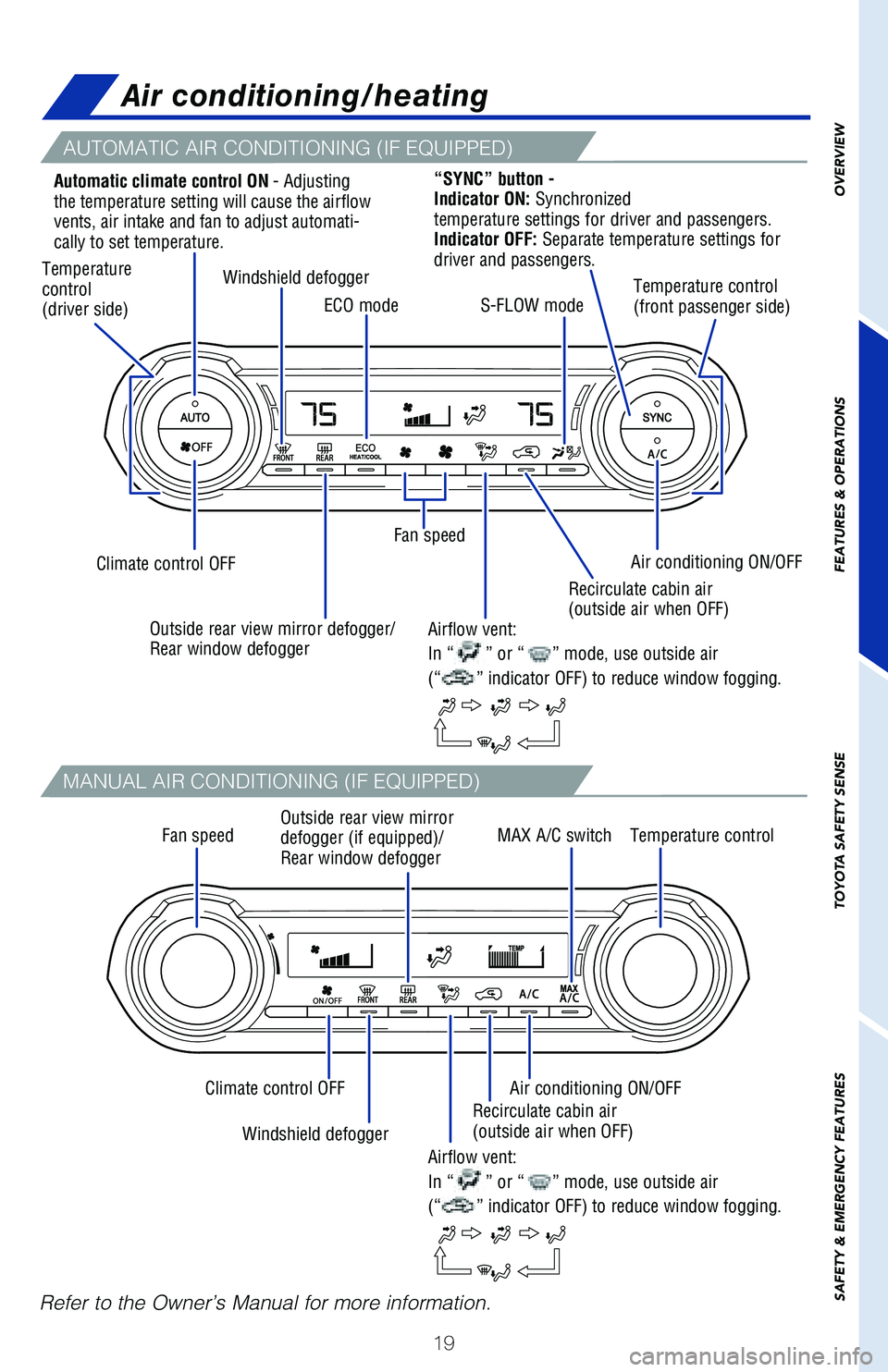

AUTOMATIC AIR CONDITIONING (IF EQUIPPED)
MANUAL AIR CONDITIONING (IF EQUIPPED)
Air conditioning/heating
Automatic climate control ON - Adjusting
the temperature setting will cause the airflow
vents, air intake and fan to adjust automati-
cally to set temperature.OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Temperature
control
(driver side) Windshield defogger
Windshield defogger Temperature control
(front passenger side)
Temperature control
MAX A/C switch Air conditioning ON/OFF
Air conditioning ON/OFF
Fan speed
Fan speed
Climate control OFF
Climate control OFF Recirculate cabin air
(outside air when OFF)
Recirculate cabin air
(outside air when OFF) S-FLOW mode
ECO mode
Outside rear view mirror defogger/
Rear window defogger Outside rear view mirror
defogger (if equipped)/
Rear window defogger
Airflow vent:
In “
” or “” mode, use outside air
(“
” indicator OFF) to reduce window fogging.
Airflow vent:
In “
” or “” mode, use outside air
(“
” indicator OFF) to reduce window fogging.
Refer to the Owner’s Manual for more information.
“SYNC” button -
Indicator ON: Synchronized
temperature settings for driver and pas sengers.
Indicator OFF: Separate temperature settings for
driver and passengers.

20
FEATURES & OPERATIONS

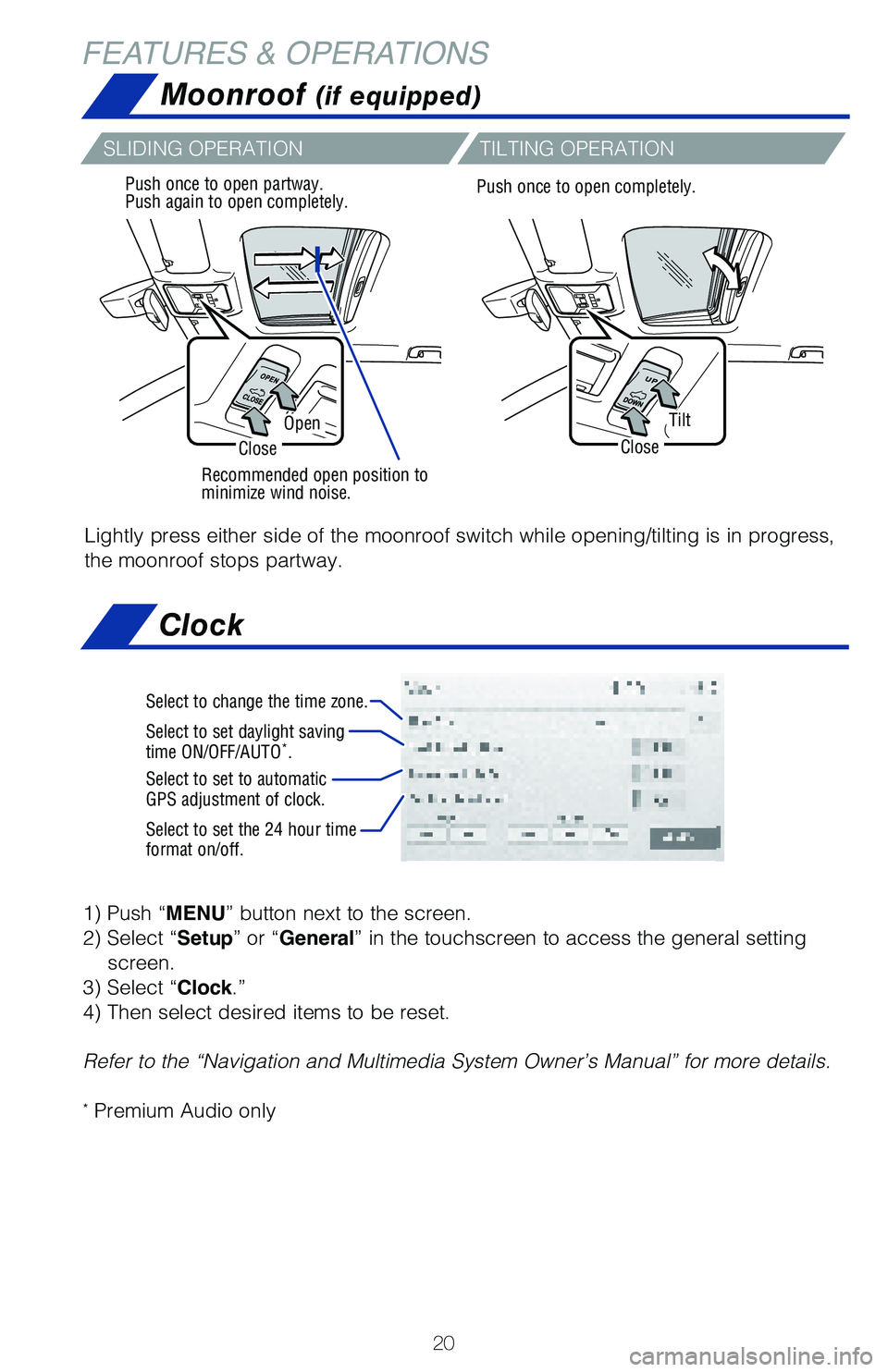

Moonroof (if equipped)
Recommended open position to
minimize wind noise.
Push once to open partway.
Push again to open completely.
SLIDING OPERATION
TILTING OPERATION
Lightly press either side of the moonroof switch while opening/tilting i\
s in progress,
the moonroof stops partway.
Push once to open completely.
Tilt
Close
Open
Close
Clock
1) Push “MENU” button next to the screen.
2) Select “Setup” or “General” in the touchscreen to access the general setting screen.
3) Select “Clock.”
4) Then select desired items to be reset.
Refer to the “Navigation and Multimedia System Owner’s Manual” \
for more details.
* Premium Audio only
Select to change the time zone.
Select to set daylight saving
time ON/OFF/AUTO*.
Select to set to automatic
GPS adjustment of clock.
Select to set the 24 hour time
format on/off.

21

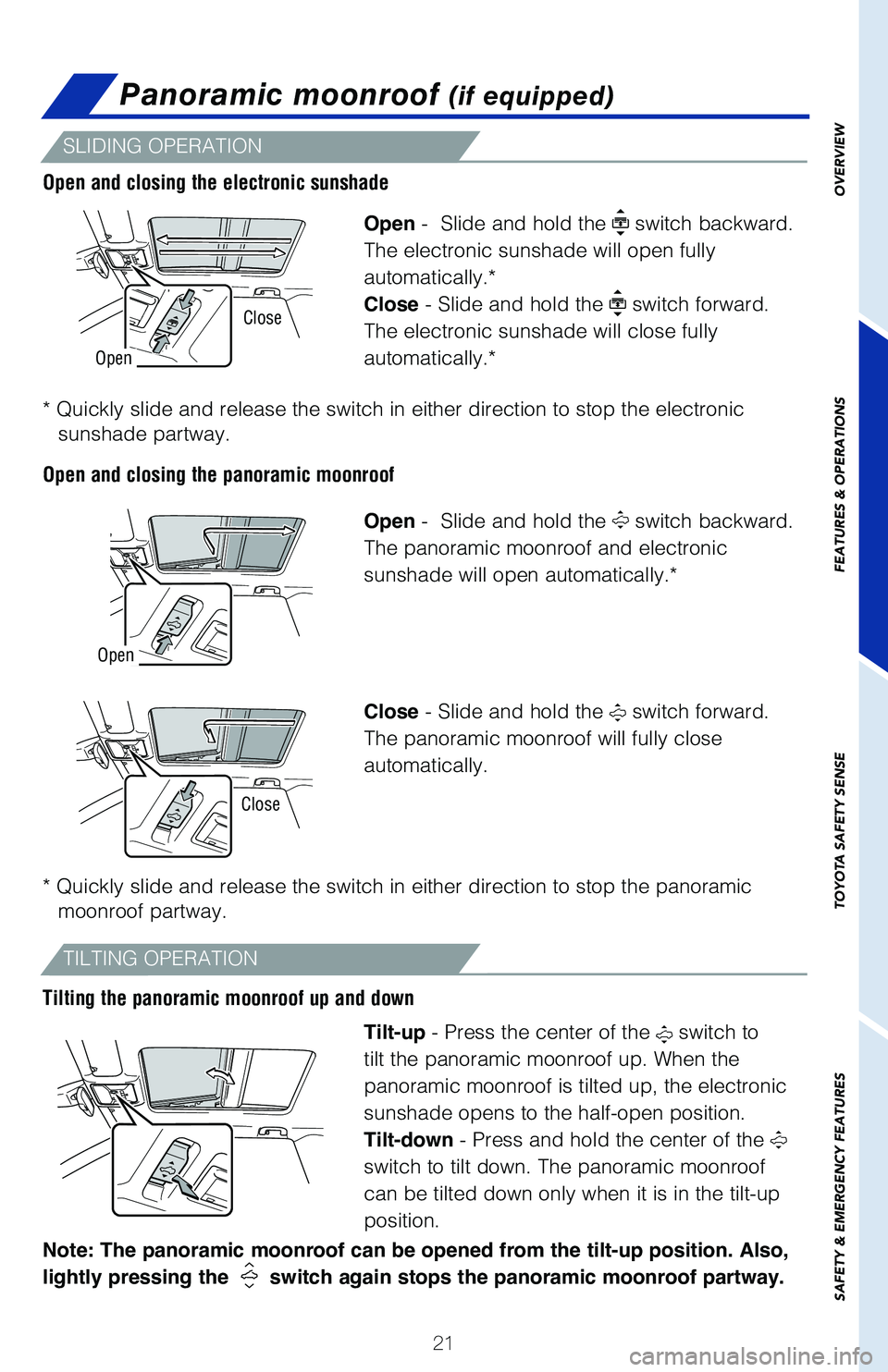

SLIDING OPERATION
TILTING OPERATION
Open - Slide and hold the switch backward.
The electronic sunshade will open fully
automatically.*
Close - Slide and hold the
switch forward.
The electronic sunshade will close fully
automatically.*
Open - Slide and hold the switch backward.
The panoramic moonroof and electronic
sunshade will open automatically.*
Close - Slide and hold the switch forward.
The panoramic moonroof will fully close
automatically.
Tilt-up - Press the center of the switch to
tilt the panoramic moonroof up. When the
panoramic moonroof is tilted up, the electronic
sunshade opens to the half-open position.
Tilt-down - Press and hold the center of the

switch to tilt down. The panoramic moonroof
can be tilted down only when it is in the tilt-up
position.
Note: The panoramic moonroof can be opened from the tilt-up position. Also,
lightly pressing the
switch again stops the panoramic moonroof partway.
* Quickly slide and release the switch in either direction to stop the e\
lectronic sunshade partway.
* Quickly slide and release the switch in either direction to stop the p\
anoramic moonroof partway.
Open and closing the electronic sunshade
Open and closing the panoramic moonroof
Tilting the panoramic moonroof up and down
Open
Open
Close
Close
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Panoramic moonroof (if equipped)

22

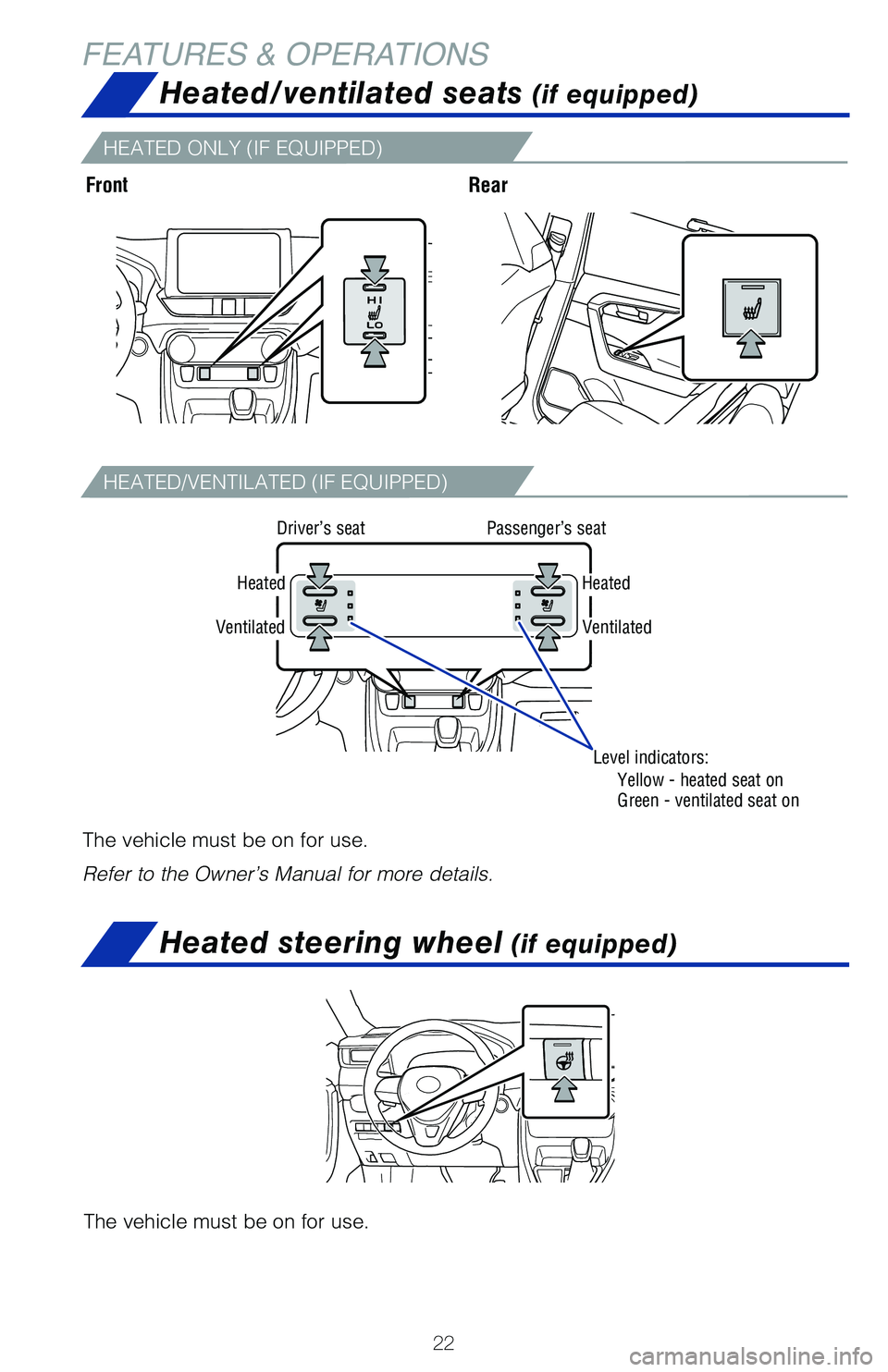

FEATURES & OPERATIONSHeated/ventilated seats
(if equipped)
FrontRear
The vehicle must be on for use.
Refer to the Owner’s Manual for more details.
Yellow - heated seat on
Green - ventilated seat on
Level indicators:
HEATED/VENTILATED (IF EQUIPPED)
HEATED ONLY (IF EQUIPPED)
Driver’s seat
HeatedHeated
VentilatedVentilated
Passenger’s seat
The vehicle must be on for use.
Heated steering wheel (if equipped)

23

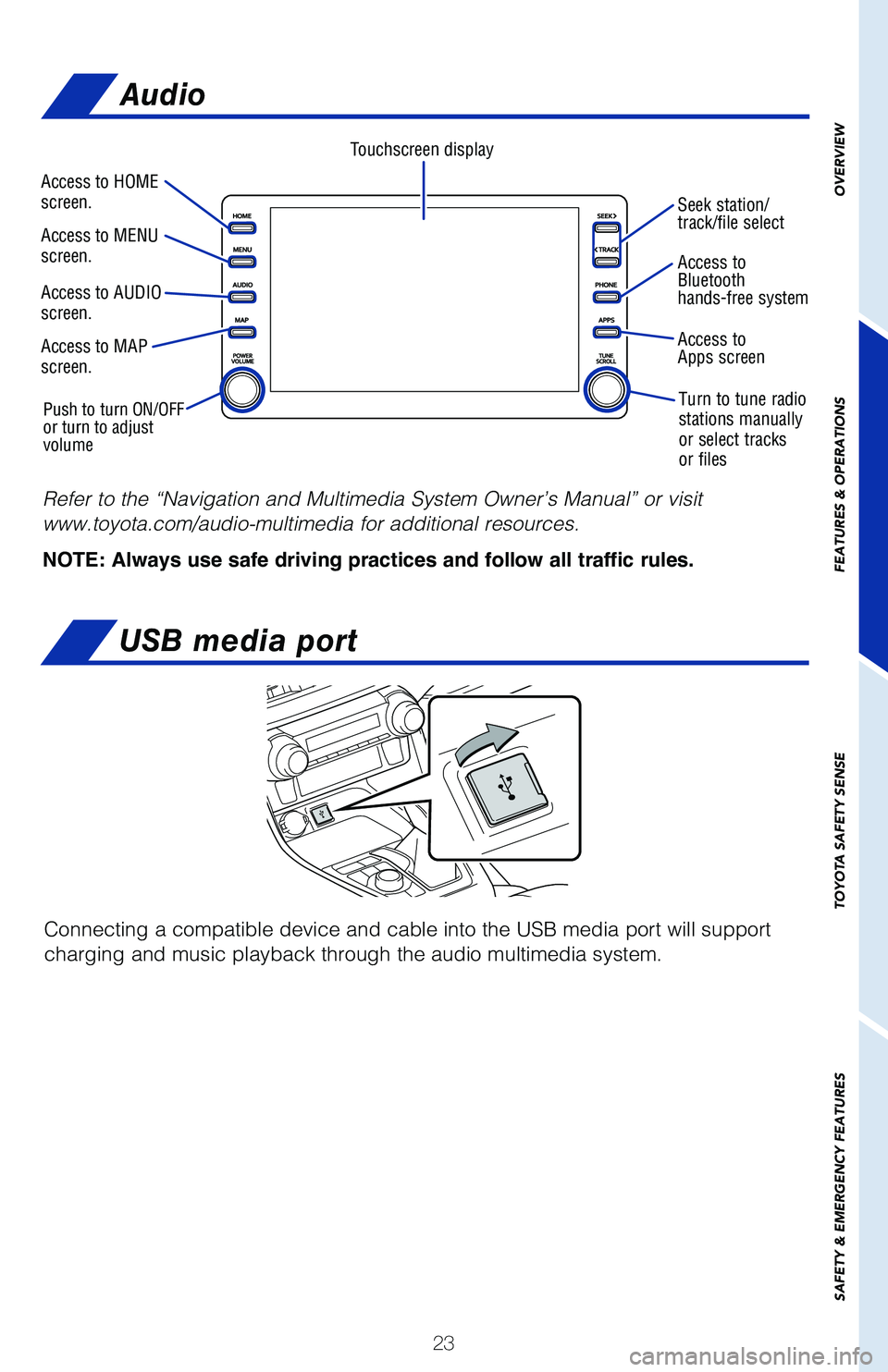

Touchscreen display
Turn to tune radio
stations manually
or select tracks
or files
Access to MENU
screen. Access to HOME
screen.
Access to AUDIO
screen.
Access to MAP
screen.
Audio
Push to turn ON/OFF
or turn to adjust
volume
Access to
Bluetooth
hands-free system Seek station/
track/file select
Access to
Apps screen
Refer to the “Navigation and Multimedia System Owner’s Manual” \
or visit
www.toyota.com/audio-multimedia for additional resources.
NOTE: Always use safe driving practices and follow all traffic rules.
USB media port
Connecting a compatible device and cable into the USB media port will su\
pport
charging and music playback through the audio multimedia system.
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

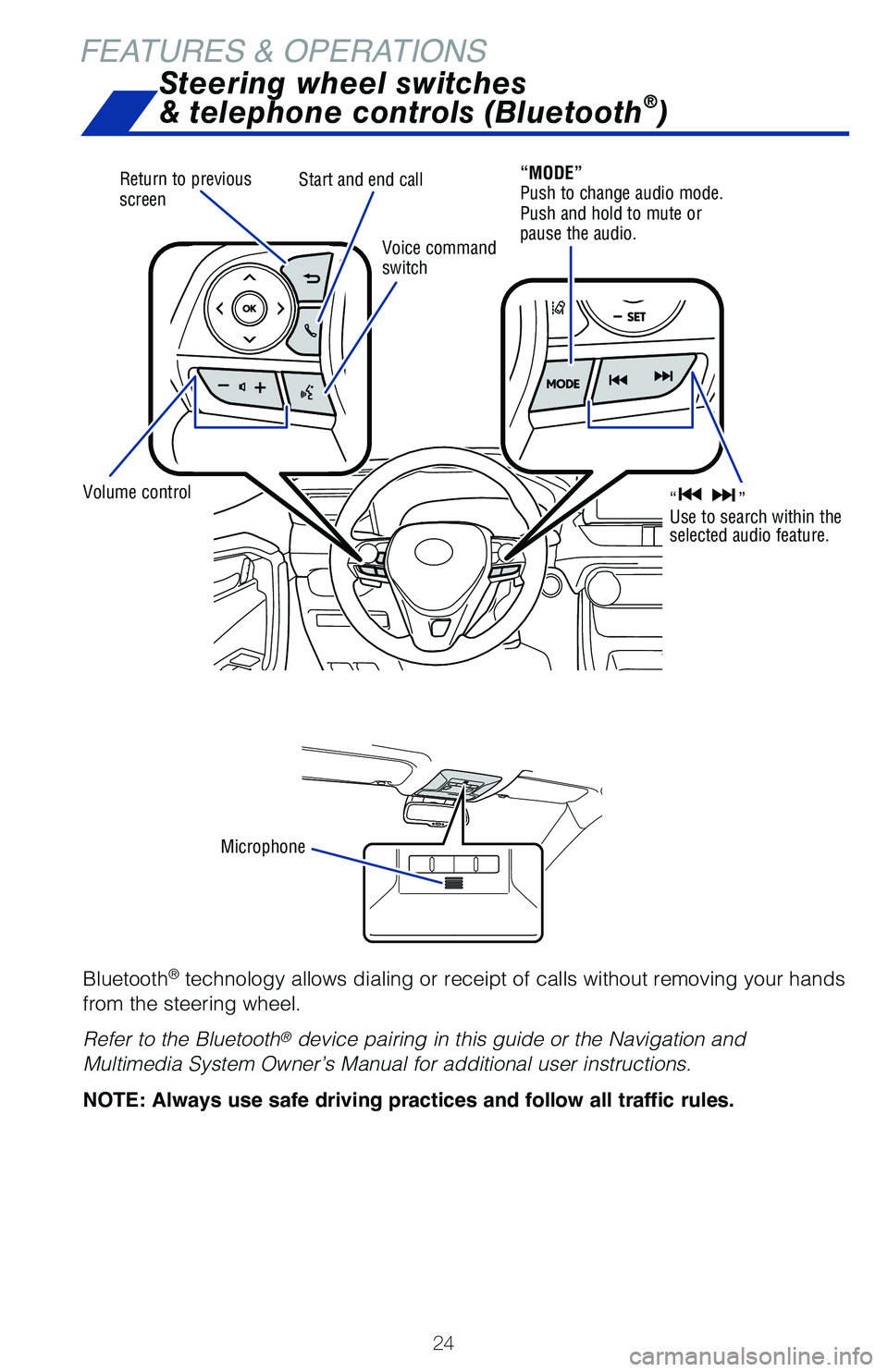

24
Microphone
FEATURES & OPERATIONS
Bluetooth® technology allows dialing or receipt of calls without removing your han\
ds
from the steering wheel.
Refer to the Bluetooth
® device pairing in this guide or the Navigation and
Multimedia System Owner’s Manual for additional user instructions.
NOTE: Always use safe driving practices and follow all traffic rules.
Return to previous
screen
Volume control
Voice command
switch
Start and end call
“MODE”
Push to change audio mode.
Push and hold to mute or
pause the audio.
“ ”
Use to search within the
selected audio feature.
Steering wheel switches
& telephone controls (Bluetooth®)

25
Refer to the Owner’s Manual for more information.

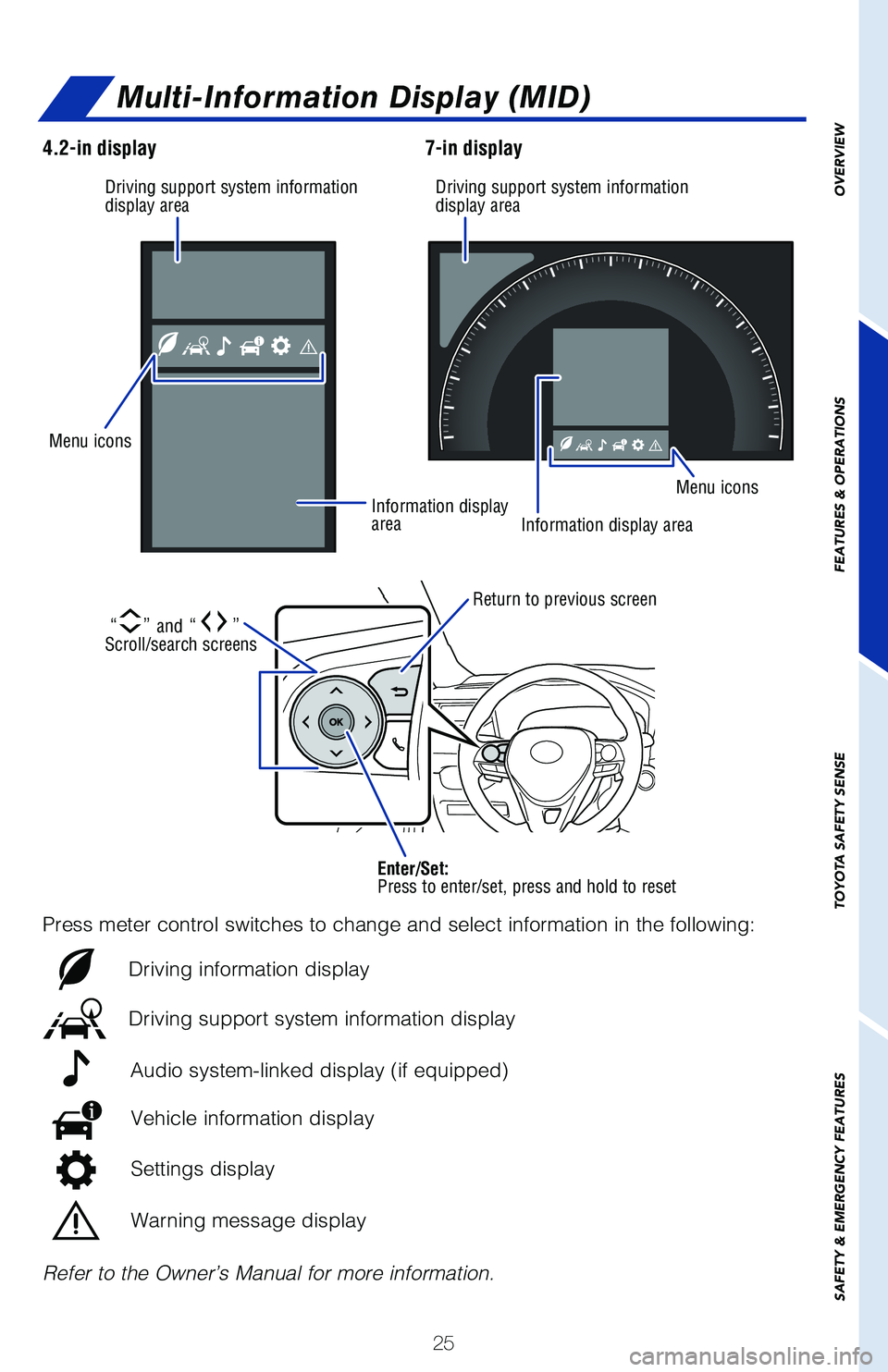

Driving support system information
display areaDriving support system information
display area
Information display area
Information display
area
4.2-in display
7-in display
Press meter control switches to change and select information in the fol\
lowing: Driving support system information display Driving information display
Vehicle information display
Audio system-linked display (if equipped)
Settings display
Warning message display
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Multi-Information Display (MID)
Enter/Set:
Press to enter/set, press and hold to reset Return to
previous screen

“” and “” Scroll/search screens
Menu icons
Menu icons

26
FEATURES & OPERATIONS
The vehicle must be in the “ACC” or “ON” position (without Smart Key) /
“ACCESSORY” or ”IGNITION ON” mode (with Smart Key) for use.
The vehicle must be on for use.

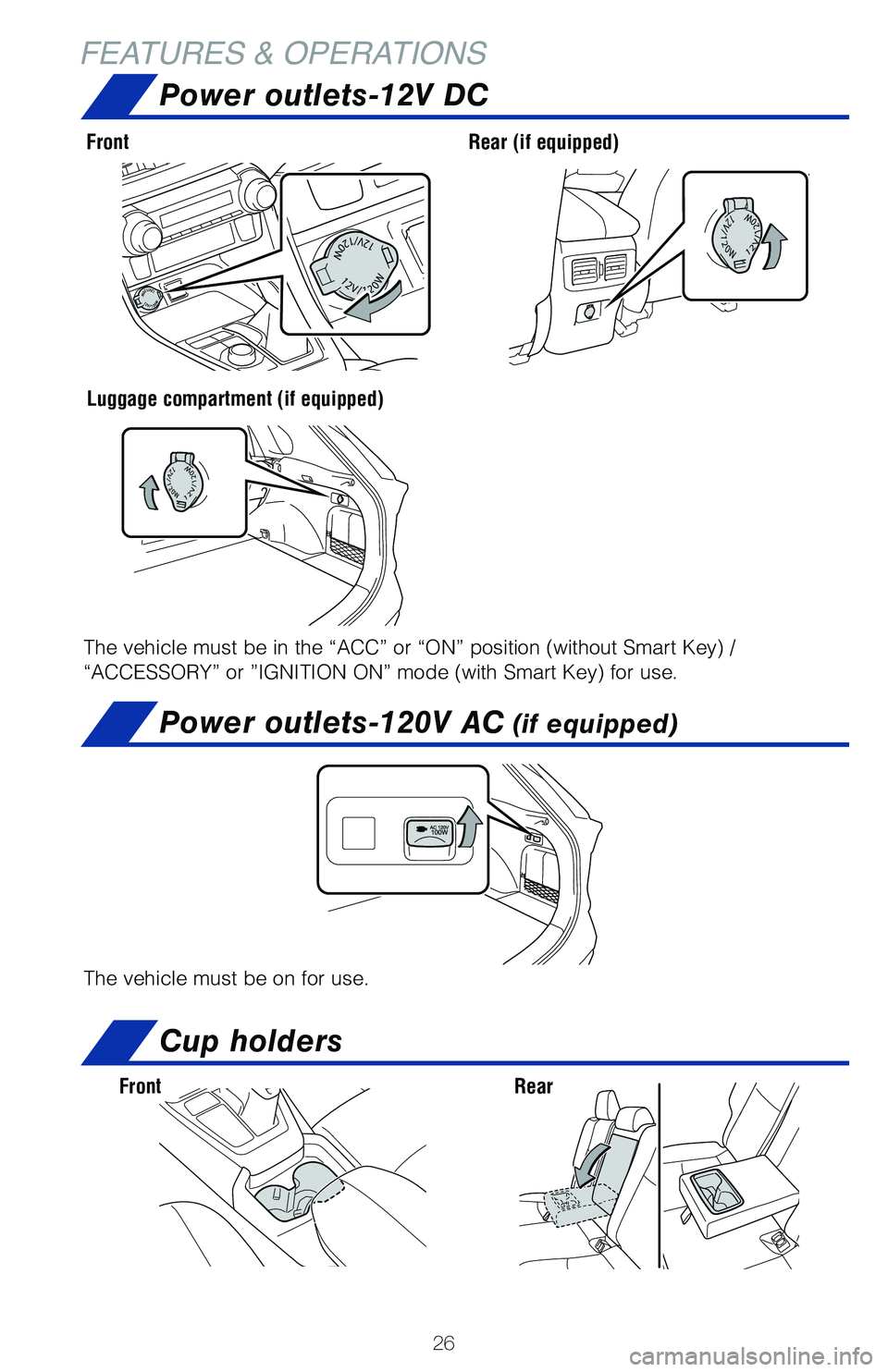

Power outlets-12V DC
Power outlets-120V AC (if equipped)
FrontRear (if equipped)
Luggage compartment (if equipped)
Cup holders
FrontRear

27
FrontRear
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Power switchCharge areaOperation indicator light

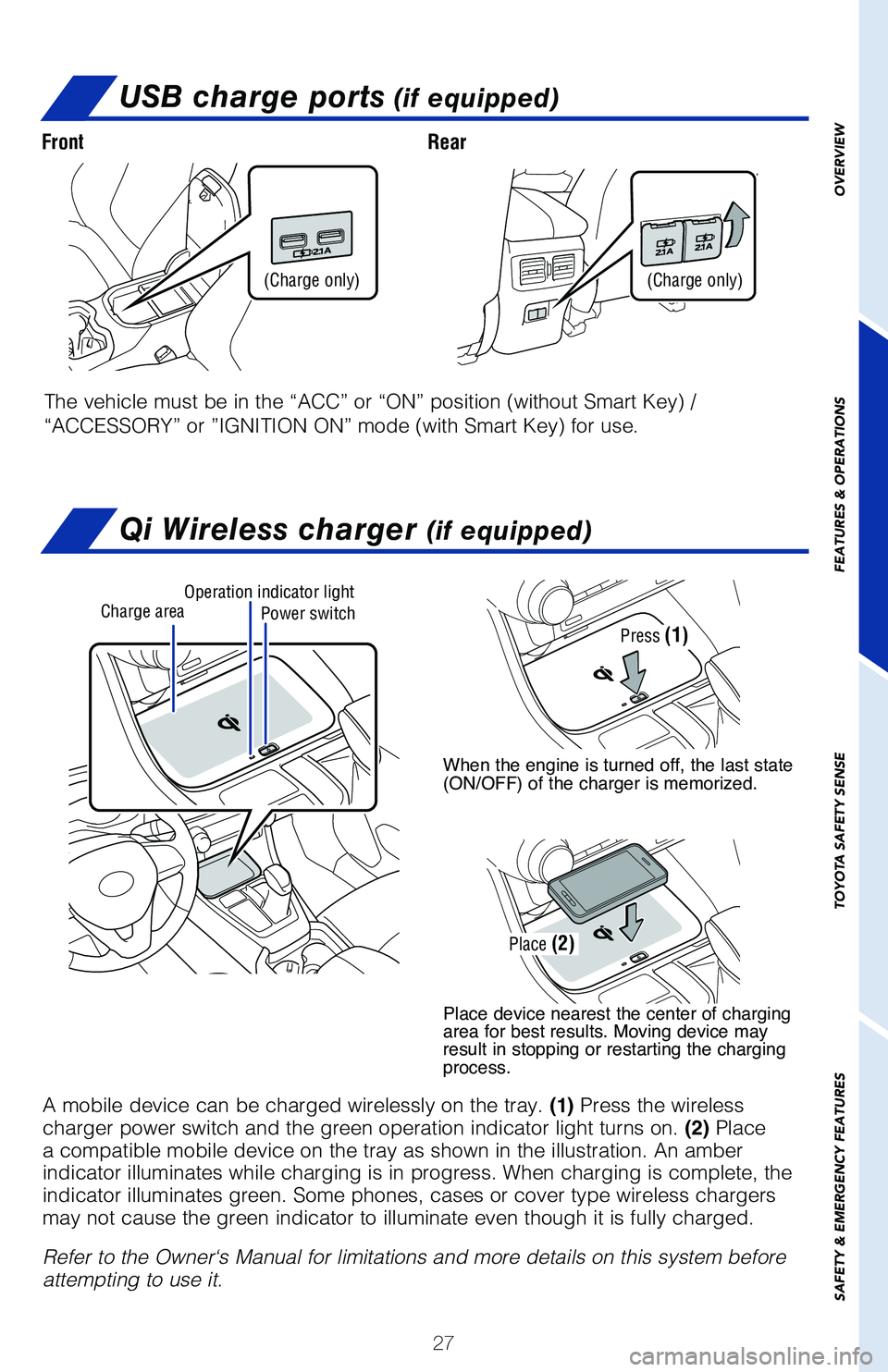

Qi Wireless charger (if equipped)
A mobile device can be charged wirelessly on the tray. (1) Press the wireless
charger power switch and the green operation indicator light turns on. (2) Place
a compatible mobile device on the tray as shown in the illustration. An \
amber
indicator illuminates while charging is in progress. When charging is complete, the
indicator illuminates green. Some phones, cases or cover type wireless c\
hargers
may not cause the green indicator to illuminate even though it is fully \
charged.
Refer to the Owner‘s Manual for limitations and more details on this \
system before
attempting to use it.
Press (1)
When the engine is turned off, the last state
(ON/OFF) of the charger is memorized.
Place device nearest the center of charging
area for best results. Moving device may
result in stopping or restarting the charging
process.
Place (2)
USB charge ports (if equipped)
The vehicle must be in the “ACC” or “ON” position (without Smart Key) /
“ACCESSORY” or ”IGNITION ON” mode (with Smart Key) for use.
(Charge only) (Charge only)

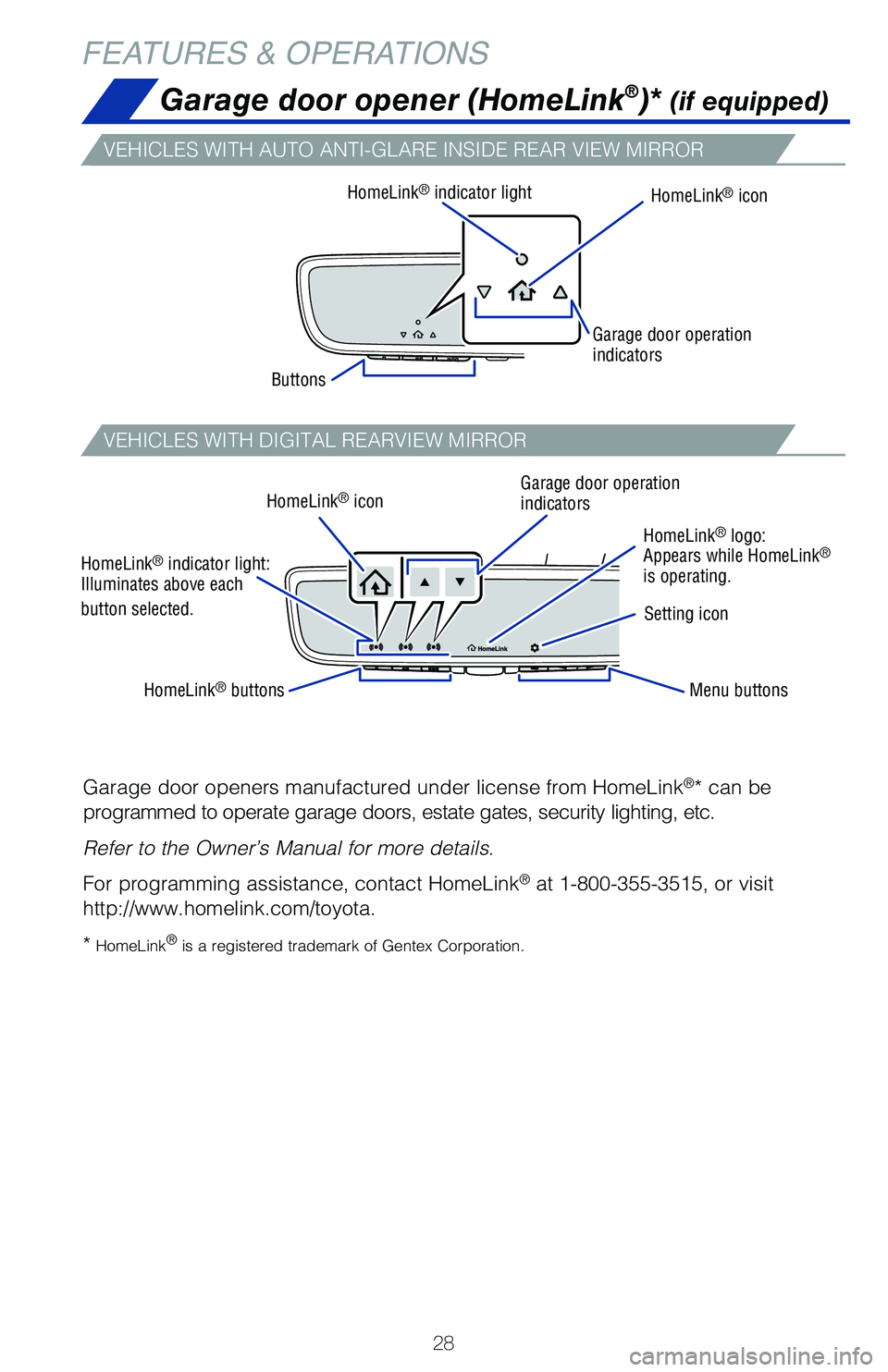

28
FEATURES & OPERATIONS
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc\
.
Refer to the Owner’s Manual for more details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com/toyota.
*
HomeLink® is a registered trademark of Gentex Corporation.
Garage door opener (HomeLink®)* (if equipped)
Garage door operation
indicators HomeLink
® icon
Buttons HomeLink® indicator light
HomeLink® icon
Setting icon
Garage door operation
indicators
HomeLink
® logo:
Appears while HomeLink®
is operating.
HomeLink® indicator light:
Illuminates above each
button selected.
HomeLink® buttons Menu buttons
VEHICLES WITH AUTO ANTI-GLARE INSIDE REAR VIEW MIRROR
VEHICLES WITH DIGITAL REARVIEW MIRROR
