display TOYOTA RAV4 2023 Owners Manual

5108-2. Customization
detailed settings, press and
hold and display the set-
ting screen.
The method of performing detailed
setting differs for each screen.
Please refer to the advice sentence
displayed on the screen.
To go back to the previous screen
or exit the customize mode, press
.
■When customizing using the
navigation/multimedia system
or multi-information display
Stop the vehicle i n a safe place,
apply the parking brake, and shift
the shift lever to P. Also, to prevent
battery discharge, leave the engine
running while custo mizing the fea-
tures.
Some function settings are changed simultaneously with other fu nc-
tions being customized. Contact y our Toyota dealer for further
details.
Vehicles with navigation system or multimedia system: Settings
that can be changed using the navigation system or multimedia s ys-
tem
Settings that can be changed using the multi-information displa y
Settings that can be changed by your Toyota dealer
Definition of symbols: O = Available, – =Not available
■Alarm*( P.71)
*: For Canada
WARNING
■During customization
As the engine needs to be operat-
ing during customization, ensure
that the vehicle is parked in a
place with adequate ventilation. In
a closed area such as a garage,
exhaust gases in cluding harmful
carbon monoxide (CO) may col-
lect and enter the vehicle. This
may lead to death or a serious
health hazard.
NOTICE
■During customization
To prevent battery discharge,
ensure that the engine is running
while customizing features.
Customizable Features
FunctionDefault settingCustomized setting
Activates the alarm when the
doors are unlocked using the
mechanical key
OnOff––O
A
B
C
ABC

5118-2. Customization
8
Vehicle specifications

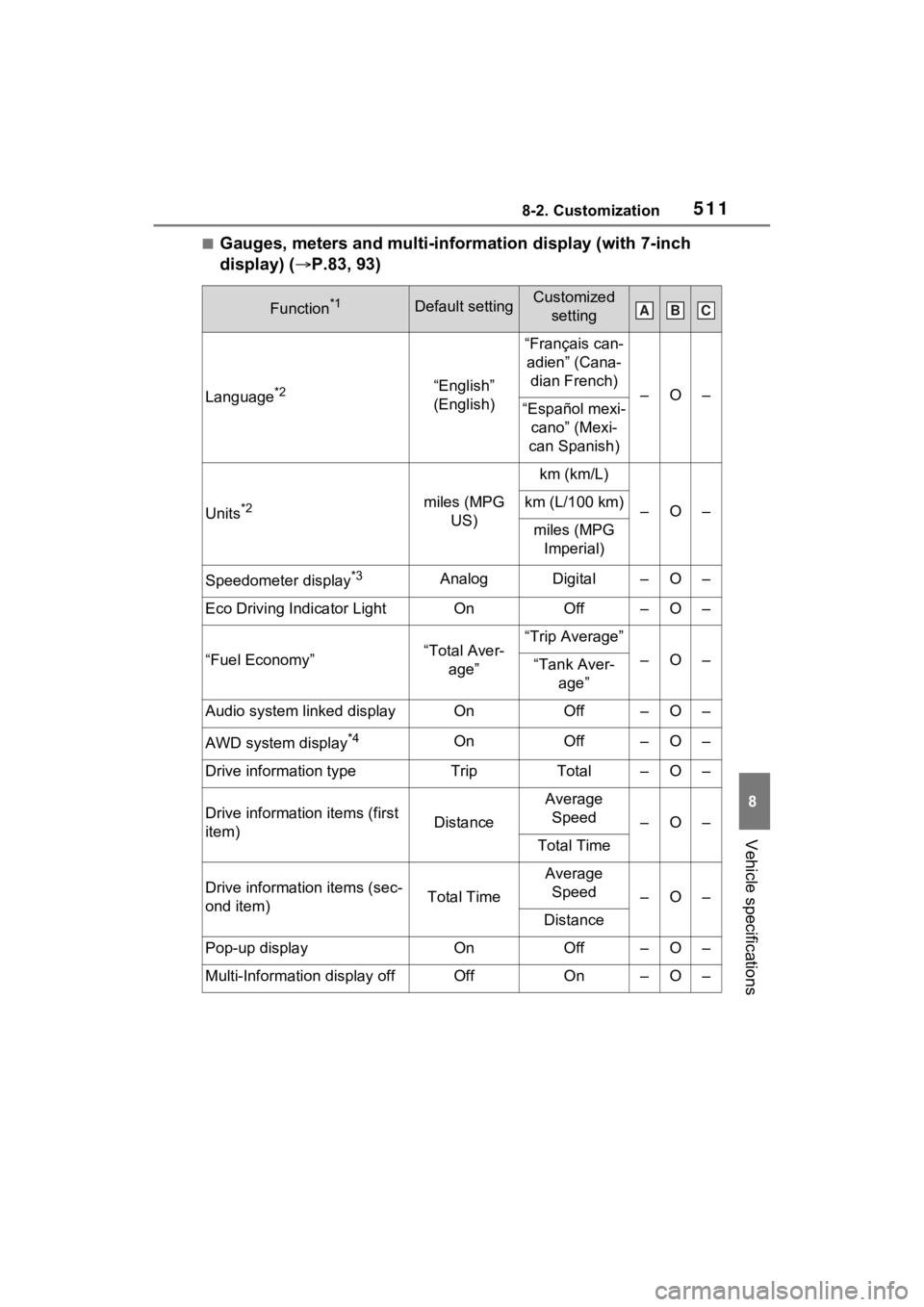

■Gauges, meters and multi-information display (with 7-inch
display) (P.83, 93)
Function*1Default settingCustomized
setting
Language*2“English”
(English)
“Français can-adien” (Cana- dian French)
–O–“Español mexi- cano” (Mexi-
can Spanish)
Units*2miles (MPG US)
km (km/L)
–O–km (L/100 km)
miles (MPG Imperial)
Speedometer display*3AnalogDigital–O–
Eco Driving Indicator LightOnOff–O–
“Fuel Economy”“Total Aver- age”“Trip Average”
–O–“Tank Aver- age”
Audio system linked displayOnOff–O–
AWD system display*4OnOff–O–
Drive information typeTripTotal–O–
Drive informatio n items (first
item)Distance
Average Speed
–O–
Total Time
Drive information items (sec-
ond item)Total Time
Average Speed
–O–
Distance
Pop-up displayOnOff–O–
Multi-Information display offOffOn–O–
ABC

5128-2. Customization
*1: For details about each function: P.98
*2: The default setting varies according to country.
*3: Vehicles with 7-inch display only
*4: AWD models

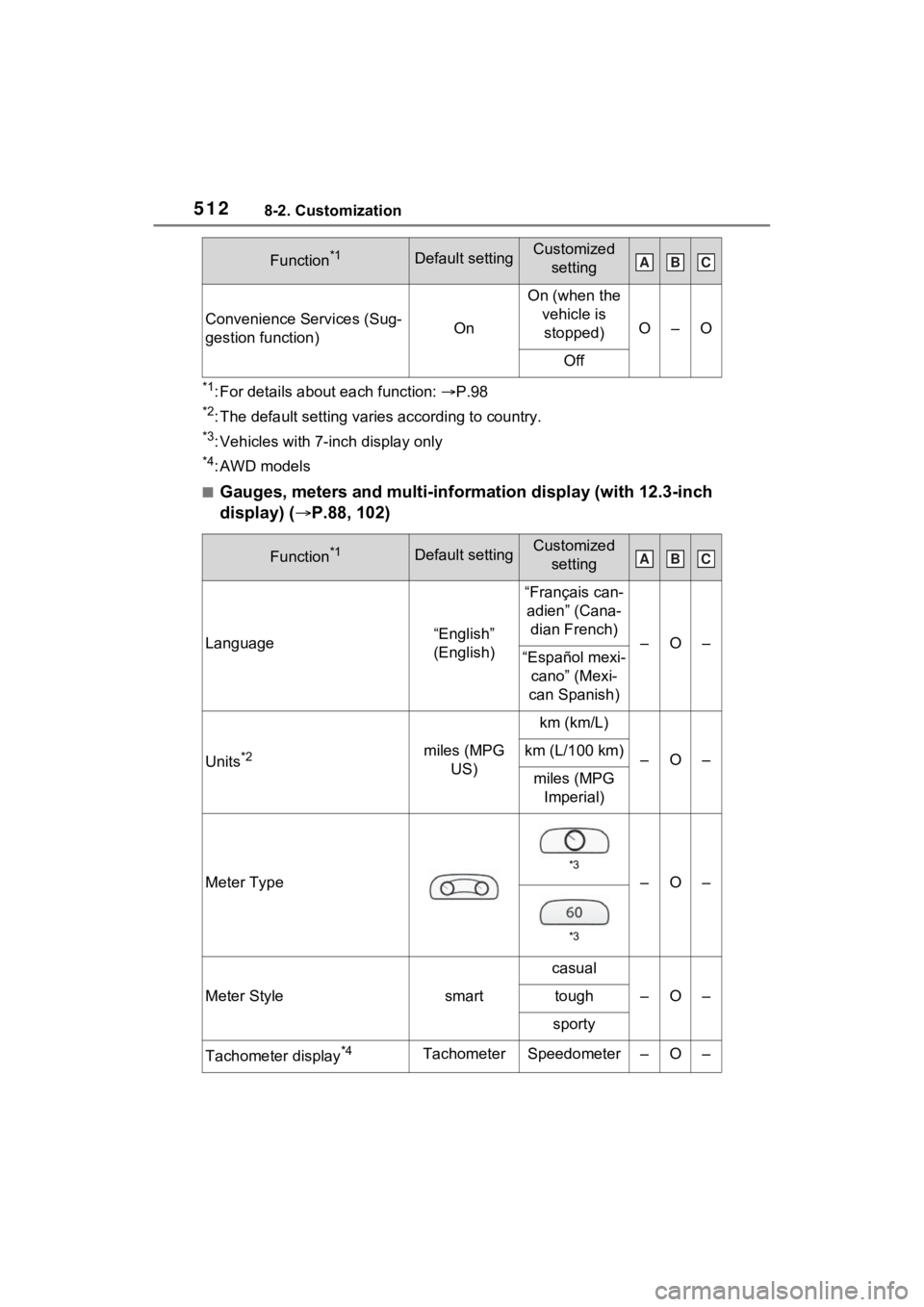

■Gauges, meters and multi-information display (with 12.3-inch
display) ( P.88, 102)
Convenience Services (Sug-
gestion function)On
On (when the
vehicle is stopped)
O–O
Off
Function*1Default settingCustomized setting
Language“English”
(English)
“Français can-adien” (Cana- dian French)
–O–“Español mexi- cano” (Mexi-
can Spanish)
Units*2miles (MPG US)
km (km/L)
–O–km (L/100 km)
miles (MPG Imperial)
Meter Type
*3
–O–
*3
Meter Stylesmart
casual
–O–tough
sporty
Tachometer display*4TachometerSpeedometer–O–
Function*1Default settingCustomized settingABC
ABC

5138-2. Customization
8
Vehicle specifications
*1: For details about each function: P.107
*2: The default setting varies according to country.
*3: The on/off operation of the widget can be changed.
*4: The setting may not be changed depending on currently selected meter
type.
Eco Driving IndicatorOnOff–O–
Fuel Economy
The average
fuel economy after startingThe average
fuel economy
since the func- tion was reset
–O–
Drive informatio n items (first
item)Distance
Average Speed
–O–
Total Time
Drive information items (sec-
ond item)Total Time
Average Speed
–O–
Distance
TRIP A information itemsDistance
Average Speed
–O–
Total time
TRIP B information itemsAverage SpeedDistance–O–Total time
Pop-up displayOnOff–O–
Convenience Services (Sug-
gestion function)On
On (when the vehicle is stopped)
O–O
Off
Function*1Default settingCustomized settingABC

5198-2. Customization
8
Vehicle specifications

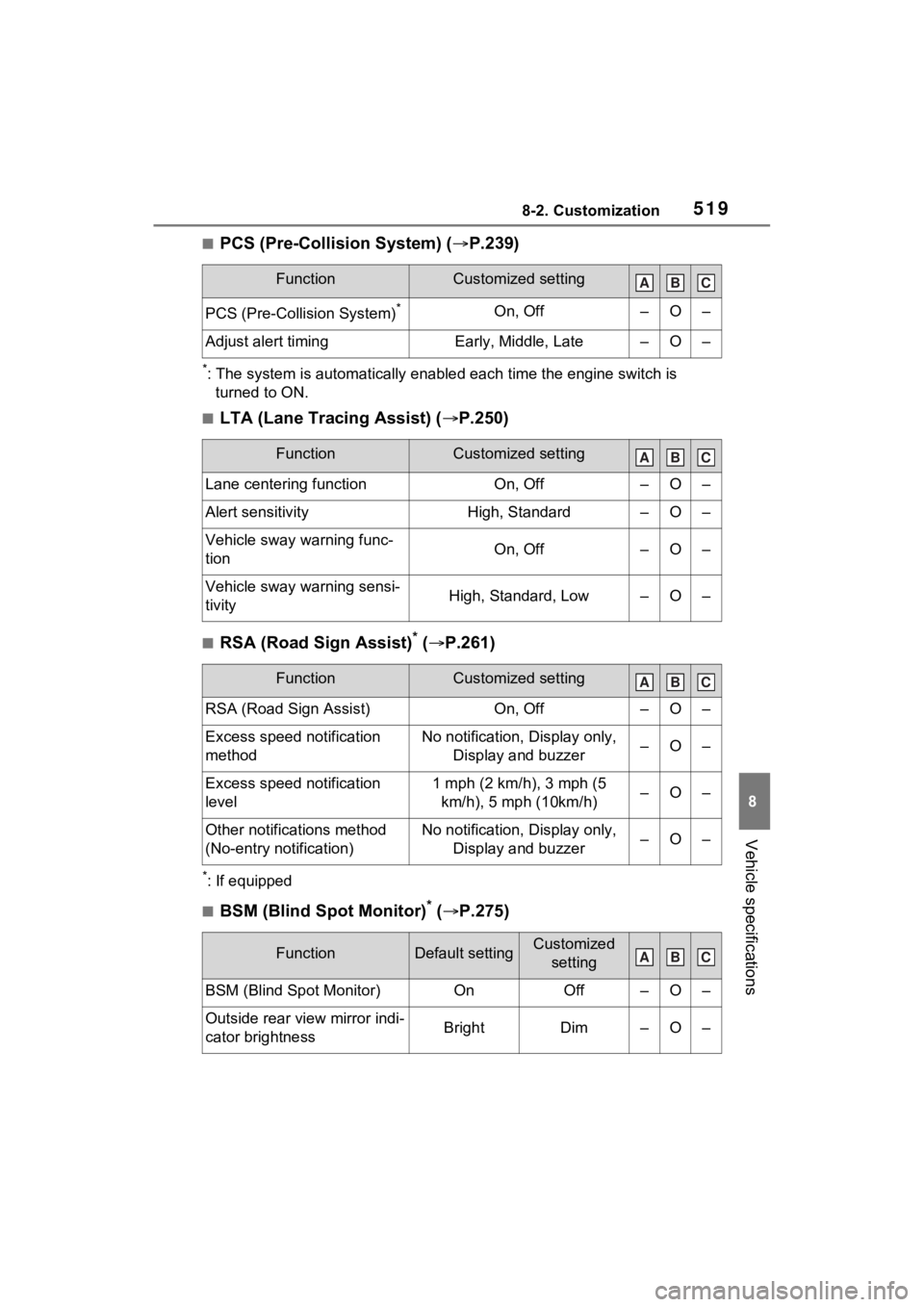

■PCS (Pre-Collision System) (P.239)
*: The system is automatically enabl ed each time the engine switch is
turned to ON.
■LTA (Lane Tracing Assist) ( P.250)
■RSA (Road Sign Assist)* ( P.261)
*: If equipped
■BSM (Blind Spot Monitor)* ( P.275)
FunctionCustomized setting
PCS (Pre-Collision System)*On, Off–O–
Adjust alert timingEarly, Middle, Late–O–
FunctionCustomized setting
Lane centering functionOn, Off–O–
Alert sensitivityHigh, Standard–O–
Vehicle sway warning func-
tionOn, Off–O–
Vehicle sway warning sensi-
tivityHigh, Standard, Low–O–
FunctionCustomized setting
RSA (Road Sign Assist)On, Off–O–
Excess speed notification
methodNo notification, Display only,
Display and buzzer–O–
Excess speed notification
level1 mph (2 km/h), 3 mph (5 km/h), 5 mph (10km/h)–O–
Other notifications method
(No-entry notification)No notification, Display only, Display and buzzer–O–
FunctionDefault settingCustomized setting
BSM (Blind Spot Monitor)OnOff–O–
Outside rear view mirror indi-
cator brightnessBrightDim–O–
ABC
ABC
ABC
ABC

542What to do if... (Troubleshooting)
Did anyone inside the vehicle
open a door during setting the
alarm?
The sensor detects it and the
alarm sounds. ( P.71)
To stop the alarm, turn the engine
switch to ON or start the engine.
 Is the message displayed on
the multi-information display?
Check the message on the
multi-information display.
( P.459)
 When a warning light turns on
or a warning message is dis-
played, refer to P.449, 459.
 Stop the vehicle in a safe
place and replace the flat tire
with the spare tire. ( P.463)
Try the procedure for when
the vehicle becomes stuck in
mud, dirt, or snow. ( P.482)
An alarm is activated and
the horn sounds (if
equipped)
A warning buzzer sounds
when leaving the vehicle
A warning light turns on
or a warning message is
displayed
When a problem has
occurred
If you have a flat tire
The vehicle becomes
stuck

Alphabetical Index545
Checking .............................. 400
Preparing and checking before
winter.................................. 325
Warning light ........................ 450
Cooling system ...................... 400 Engine overheating .............. 480
Cruise control Dynamic radar cruise control with full-speed range .......... 264
Cup holders ............................ 351
Current fuel economy ...... 95, 105
Curtain shield airbags ............. 33
Customizable features ........... 509
D
Daytime running light system220 Replacing light bulbs ............ 432
Deck board .............................. 354
Defogger Outside rear view mirrors ... 333, 340
Rear window ................ 333, 340
Windshield.................... 333, 340
Differential .............................. 491
Digital Rear-view Mirror ......... 156
Dimensions ............................. 486
Dinghy towing ........................ 201
Display BSM (Blind Spot Monitor)..... 276
Consumption screen ............ 111
Drive information .................... 97
Driving information ......... 95, 106
Dynamic radar cruise control with full-speed range .......... 264
Intuitive parking assist .......... 280
LTA (Lane-Tracing Assist) ... 255
Multi-informatio n display 93, 102
RCTA (Rear Cross Traffic Alert) function............................... 289
Warning messages .............. 459
Do-it-yourself maintenance . 388, 393 Door lock
Back door .............................125
Side doors ............................119
Smart key system .................139
Wireless remote control........116
Doors Automatic door locking and unlocking system ................124
Back door .............................125
Door glasses ........................167
Door lock ..............................119
Open door warning buzzer ...124
Outside rear view mirrors .....165
Rear door child-protectors ....124
Side doors ............................119
Downhill assist control system ...............................................316
Drive information ......................97
Driver’s seat belt reminder light ...............................................455
Driver’s seat position memory ...............................................147Driving position memory .......147
Memory recall function .........149
Drive-Start Control (DSC) Sudden start restraint control184
Driving Break-in tips .........................180
Correct posture .......................27
Driving mode select switch ...310
Procedures ...........................179
Winter drive tips....................325
Driving informatio n display ...95,
106
Driving mode select switch ...310
Driving position memory .......147 Memory recall function .........149
Driving support system informa- tion display......................97, 106
DSC (Drive-Start Control) Sudden start restraint control184

Alphabetical Index549
Keyless entry................ 116, 139
Mechanical key .................... 118
Replacing the battery ........... 425
Warning buzzer .................... 140
Wireless remote control key . 116
Knee airbags ............................. 33
L
Lane Tracing Assist (LTA) ..... 250 Operation ............................. 250
Warning messages .............. 260
Language (multi-information dis- play) ............................... 100, 511
LATCH anchors ........................ 59
Lever Auxiliary catch lever ............. 395
Hood lock release lever........ 395
Shift lever ............................. 209
Turn signal lever................... 212
Wiper lever ................... 226, 229
License plate lights Light switch .......................... 219
Replacing light bulbs ............ 432
Light bulbs Replacing ............................. 432
Wattage ................................ 496
Lights Automatic High Beam system........................................... 222
Fog light switch .................... 226
Front interior lights ............... 349
Headlight switch ................... 219
Interior lights......................... 349
Personal lights...................... 349
Rear interior light .................. 349
Replacing light bulbs ............ 432
Turn signal lever................... 212
Vanity lights .......................... 359
Wattage ................................ 496
LTA (Lane Tracing Assist) ..... 250 Operation ............................. 250 Warning messages
...............260
Luggage compartment light 128, 132
Luggage cover ........................356
M
Maintenance Do-it-yourself maintenance ..393
General maintenance ...........389
Maintenance data .................486
Maintenance requirements ...387
Malfunction indicator lamp ....450
Manual air conditioning system ...............................................332Air conditioning filter .............420
Menu icons ................................95
Meter Clock ................................83, 88
Indicators ................................76
Instrument panel light control87, 93
Meter control switches....94, 103
Meters ..............................83, 88
Multi-information display.93, 102
Settings ..........................98, 510
Units .............................100, 511
Warning lights.......................449
Warning messages ......102, 110, 459
Meter control switches.....94, 103
Mirrors Digital Rear-view Mirror ........156
Inside rear view mirror ..........154
Outside rear view mirror defog-gers ............................333, 340
Outside rear view mirrors .....165
Vanity mirrors ..... ..................359
Moon roof Door lock linked moon roof oper-ation....................................170
Jam protection function ........170
Operation..............................170

550Alphabetical Index
Warning message ................ 171
Mud & Sand mode .................. 312
Multi-information display Audio system-linked display ... 97
Changing the disp lay...... 94, 104
Convenience Services (Sugges- tion function)....................... 102
Display contents ............. 93, 102
Driving information display ... 95, 106
Driving support system informa- tion display ................... 97, 106
Dynamic radar cruise control with full-speed range .......... 264
Eco Driving Indicator ...... 96, 105
Intuitive parking assist-sensor ........................................... 280
Language ..................... 100, 511
LTA (Lane-Tracing Assist) ... 255
Menu icons ............................. 95
Meter control switches ... 94, 103
Navigation system-linked display ............................................. 97
PCS (Pre-Collision System) . 239
Pop-up display ............. 100, 511
Settings .......................... 98, 510
Tire pressure ........................ 408
Units ............................. 100, 511
Vehicle information display .... 97
Warning message display .... 102
Warning messages .............. 459
Multi-terrain Select ................. 312
N
Navigation system-linked display ................................................. 97
Noise from under vehicle .......... 6
Normal mode .................. 310, 313
O
Odometer ............................ 83, 92 Odometer and trip meter display
“ODO TRIP” switch ...........86, 92
Display items ....................86, 92
“ODO TRIP” switch ............86, 92
Oil Engine oil..............................488
Rear differential oil ...............491
Transfer oil ...................490, 491
Opener Back door .....................128, 130
Fuel filler door.......................232
Hood .....................................395
Outer foot lights Replacing light bulbs ............432
Wattage ................................496
Outside rear view mirrors ......165 Adjusting and folding ............165
BSM (Blind Spot M onitor) .....275
Outside rear view mirror defog- gers ............................333, 340
RCTA (Rear Cross Traffic Alert) function ...............................289
Outside temperatur e ..........88, 91
Outside temperature display ...86
Overheating.............................480
P
Panic mode .............................117
Panoramic moon roof Jam protection function ........174
Operation..............................173
Warning message . ...............175
Parking assist sens ors (intuitive
parking assist) ......................280
Parking brake Operation..............................213
Parking brake engaged warning buzzer.................................216
Warning light ........................454
Warning message . ...............215
Parking lights Light switch...........................219

554Alphabetical Index
Rear window and outside rear view mirror defoggers switch................................... 333, 340
Rear window wipe r and washer
switch ................................. 229
Seat heater switches .... 346, 347
Seat ventilator switches ....... 347
Snow mode switch ............... 315
Stop & Start cancel switch ... 305
Tire pressure warning reset switch ......................... 410, 411
Vehicle-to-vehicle distance switch ................................. 264
VSC OFF switch................... 320
Window lock switch .............. 169
Windshield defogger switch 333, 340
Windshield wipers and washer switch ................................. 226
Wireless charger switch ....... 362
T
Tachometer ......................... 83, 88
Tail lights Light switch .......................... 219
Replacing light bulbs ............ 432
Theft deterrent system Alarm ...................................... 71
Engine immobilizer system .... 70
Tire inflati on pressure
Maintenance data................. 492
Tire inflation pressure display function............................... 408
Warning light ........................ 455
Tire information ...................... 499 Glossary ............................... 503
Size ...................................... 501
Tire identification number ..... 500
Tire section names ............... 501
Tire pressure warning system Function ............................... 408
Initializing ............................. 410 Installing tire p
ressure warning
valves and transmitters ......409
Registering ID codes ............413
Warning light ........................455
Tires .........................................405 Chains ..................................327
Checking ..............................405
Glossary ...............................503
If you have a flat tire .............463
Inflation pressure ..................416
Information ......... ..................499
Replacing .............................463
Rotating tires ........................407
Size ......................................492
Snow tires.............................325
Spare tire ..............................463
Tire identification number .....500
Tire inflation pressure display function ...............................408
Tire pressure warning system ...........................................408
Uniform Tire Qua lity Grading 502
Warning light ........................455
Tools ........................................464
Top tether strap ........................61
Total load capacity .........185, 188
Towing Dinghy towing .......................201
Emergency towing ................445
Towing eyelet ...............445, 464
Trailer sway control ..............319
Trailer towing ........................189
Toyota Safety Sense 2.5 ........234 Automatic High Be am ...........222
Dynamic radar cruise control with full-speed range ..........264
LTA (Lane Traci ng Assist) ....250
PCS (Pre-Collisio n System) .239
RSA (Road Sign Assist) .......261
TRAC (Traction Control) ........319
Traction Control (TRAC) ........319
Trailer sway contro l................319
