TOYOTA RAV4 EV 2012 1.G Warranty And Maintenance Guide

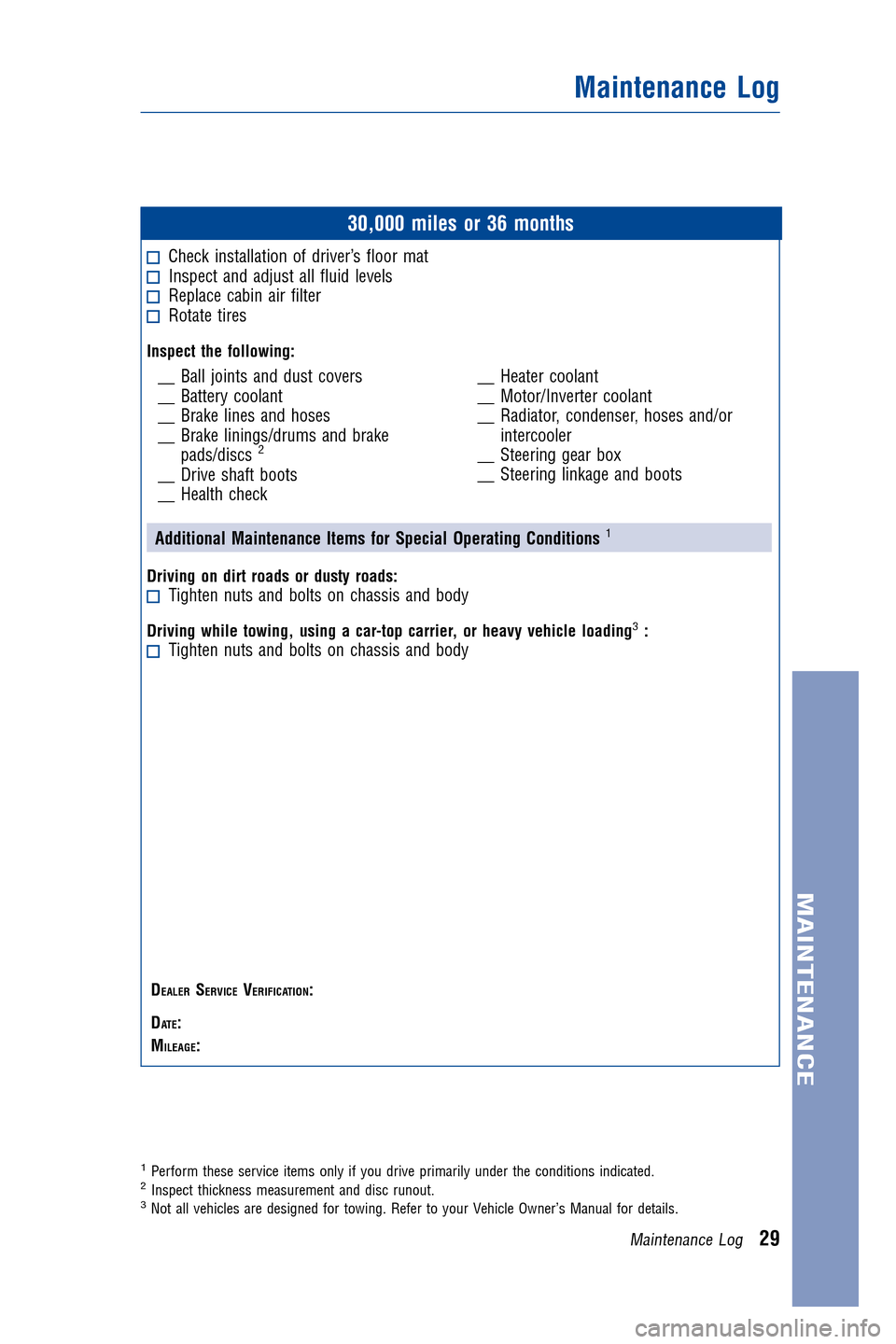

30,000 miles or 36 months
Check installation of driver’s floor matInspect and adjust all fluid levelsReplace cabin air filterRotate tires
Inspect the following:
__ Ball joints and dust covers
__ Battery coolant
__ Brake lines and hoses
__ Brake linings/drums and brakepads/discs
2
__ Drive shaft boots
__ Health check __ Heater coolant
__ Motor/Inverter coolant
__ Radiator, condenser, hoses and/or
intercooler
__ Steering gear box
__ Steering linkage and boots
Additional Maintenance Items for Special Operating Conditions
1
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading3:Tighten nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Perform these service items only if you drive primarily under the conditions indicated.2Inspect thickness measurement and disc runout.3Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Maintenance Log
MAINTENANCE
Maintenance Log29

35,000 miles or 42 months
Check installation of driver’s floor matInspect and adjust all fluid levelsRotate tiresVisually inspect brake linings/drums and
brake pads/discs
Inspect the following:__ Battery coolant
__ Health check
__ Motor/Inverter coolant
Additional Maintenance Items for
Special Operating Conditions
1
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect steering linkage and bootsTighten nuts and bolts on chassis and
body
Driving while towing, using a car-top
carrier, or heavy vehicle loading2:Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
40,000 miles or 48 months
Check installation of driver’s floor matInspect and adjust all fluid levelsReplace battery coolant3
Replace motor/inverter coolant4
Rotate tiresVisually inspect brake linings/drums and
brake pads/discs
Inspect the following:__ Battery coolant
__ Health check
__ Motor/Inverter coolant
Additional Maintenance Items for
Special Operating Conditions
1
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect steering linkage and bootsTighten nuts and bolts on chassis and
body
Driving while towing, using a car-top
carrier, or heavy vehicle loading2:Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
30Maintenance Log

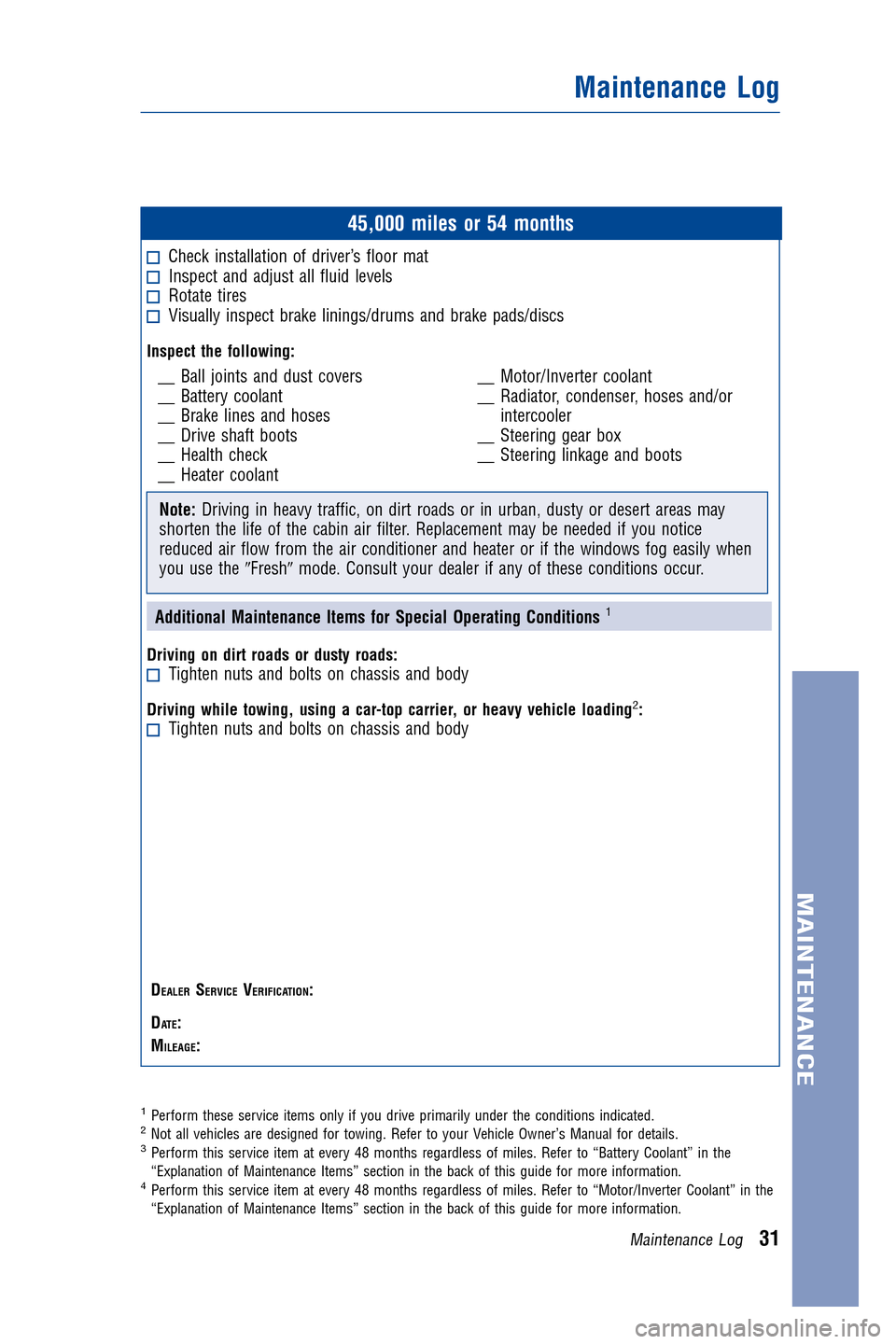

45,000 miles or 54 months
Check installation of driver’s floor matInspect and adjust all fluid levelsRotate tiresVisually inspect brake linings/drums and brake pads/discs
Inspect the following:
__ Ball joints and dust covers
__ Battery coolant
__ Brake lines and hoses
__ Drive shaft boots
__ Health check
__ Heater coolant__ Motor/Inverter coolant
__ Radiator, condenser, hoses and/or
intercooler
__ Steering gear box
__ Steering linkage and boots
Note: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may
shorten the life of the cabin air filter. Replacement may be needed if you notice
reduced air flow from the air conditioner and heater or if the windows fog easily when
you use the Freshmode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions
1
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading2:Tighten nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Perform these service items only if you drive primarily under the conditions indicated.2Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.3Perform this service item at every 48 months regardless of miles. Refer to “Battery Coolant” in the
“Explanation of Maintenance Items” section in the back of this guide for more information.
4Perform this service item at every 48 months regardless of miles. Refer to “Motor/Inverter Coolant” in the
“Explanation of Maintenance Items” section in the back of this guide for more information.
Maintenance Log
MAINTENANCE
Maintenance Log31

50,000 miles or 60 months
Check installation of driver’s floor matInspect and adjust all fluid levelsRotate tiresVisually inspect brake linings/drums and
brake pads/discs
Inspect the following:__ Battery coolant
__ Health check
__ Motor/Inverter coolant
Additional Maintenance Items for
Special Operating Conditions
1
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect steering linkage and bootsTighten nuts and bolts on chassis and
body
Driving while towing, using a car-top
carrier, or heavy vehicle loading3:Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
55,000 miles or 66 months
Check installation of driver’s floor matInspect and adjust all fluid levelsRotate tiresVisually inspect brake linings/drums and
brake pads/discs
Inspect the following:__ Battery coolant
__ Health check
__ Motor/Inverter coolant
Additional Maintenance Items for
Special Operating Conditions
1
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect steering linkage and bootsTighten nuts and bolts on chassis and
body
Driving while towing, using a car-top
carrier, or heavy vehicle loading3:Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
32Maintenance Log

60,000 miles or 72 months
Check installation of driver’s floor matInspect and adjust all fluid levelsReplace cabin air filterRotate tires
Inspect the following:
__ Ball joints and dust covers
__ Battery coolant
__ Brake lines and hoses
__ Brake linings/drums and brakepads/discs
2
__ Drive shaft boots
__ Health check __ Heater coolant
__ Motor/Inverter coolant
__ Radiator, condenser, hoses and/or
intercooler
__ Steering gear box
__ Steering linkage and boots
Additional Maintenance Items for Special Operating Conditions
1
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading3:Tighten nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Perform these service items only if you drive primarily under the conditions indicated.2Inspect thickness measurement and disc runout.3Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Maintenance Log
MAINTENANCE
Maintenance Log33

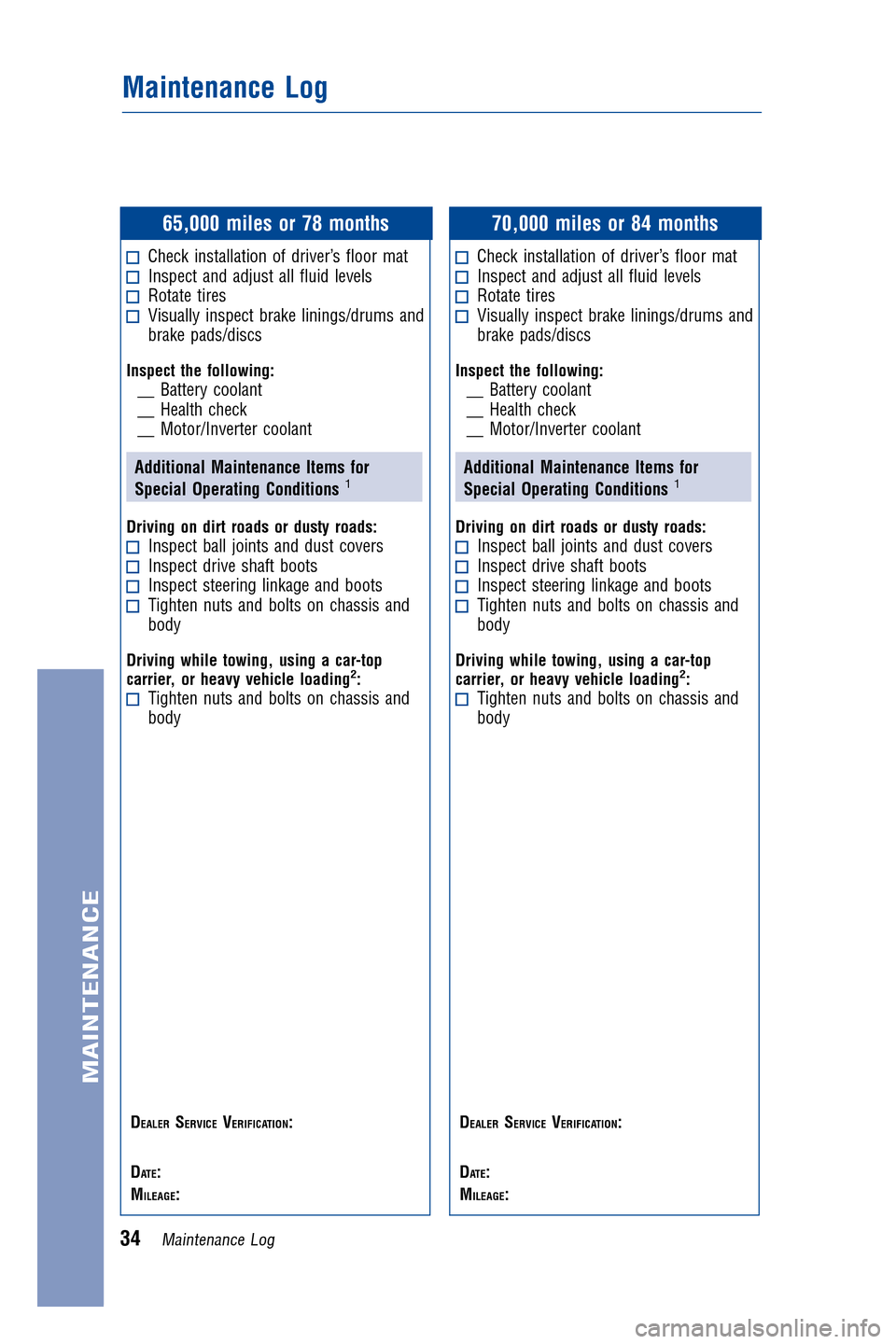

65,000 miles or 78 months
Check installation of driver’s floor matInspect and adjust all fluid levelsRotate tiresVisually inspect brake linings/drums and
brake pads/discs
Inspect the following:__ Battery coolant
__ Health check
__ Motor/Inverter coolant
Additional Maintenance Items for
Special Operating Conditions
1
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect steering linkage and bootsTighten nuts and bolts on chassis and
body
Driving while towing, using a car-top
carrier, or heavy vehicle loading2:Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
70,000 miles or 84 months
Check installation of driver’s floor matInspect and adjust all fluid levelsRotate tiresVisually inspect brake linings/drums and
brake pads/discs
Inspect the following:__ Battery coolant
__ Health check
__ Motor/Inverter coolant
Additional Maintenance Items for
Special Operating Conditions
1
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect steering linkage and bootsTighten nuts and bolts on chassis and
body
Driving while towing, using a car-top
carrier, or heavy vehicle loading2:Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
34Maintenance Log

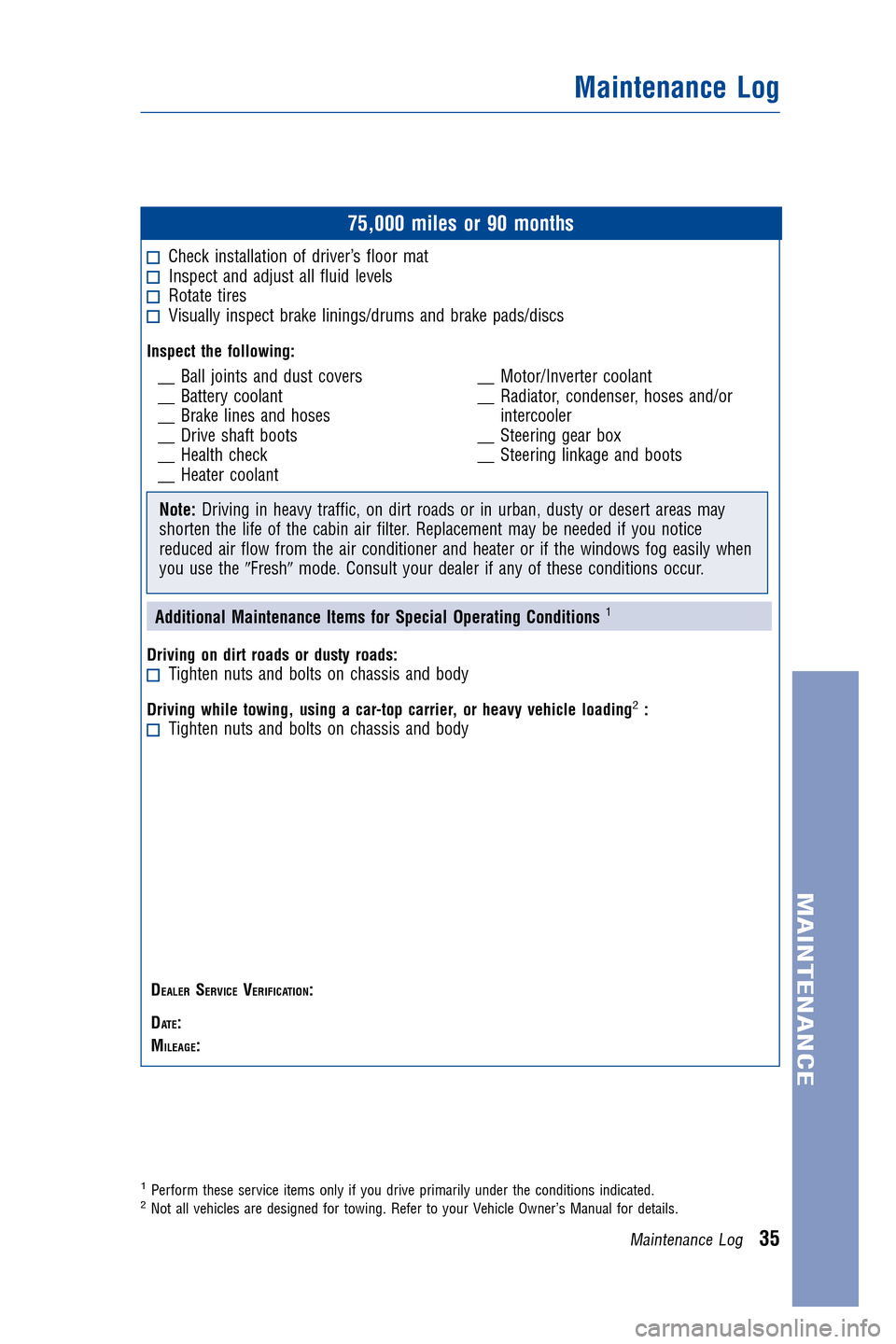

75,000 miles or 90 months
Check installation of driver’s floor matInspect and adjust all fluid levelsRotate tiresVisually inspect brake linings/drums and brake pads/discs
Inspect the following:
__ Ball joints and dust covers
__ Battery coolant
__ Brake lines and hoses
__ Drive shaft boots
__ Health check
__ Heater coolant__ Motor/Inverter coolant
__ Radiator, condenser, hoses and/or
intercooler
__ Steering gear box
__ Steering linkage and boots
Note: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may
shorten the life of the cabin air filter. Replacement may be needed if you notice
reduced air flow from the air conditioner and heater or if the windows fog easily when
you use the Freshmode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions
1
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading2:Tighten nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Perform these service items only if you drive primarily under the conditions indicated.2Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Maintenance Log
MAINTENANCE
Maintenance Log35

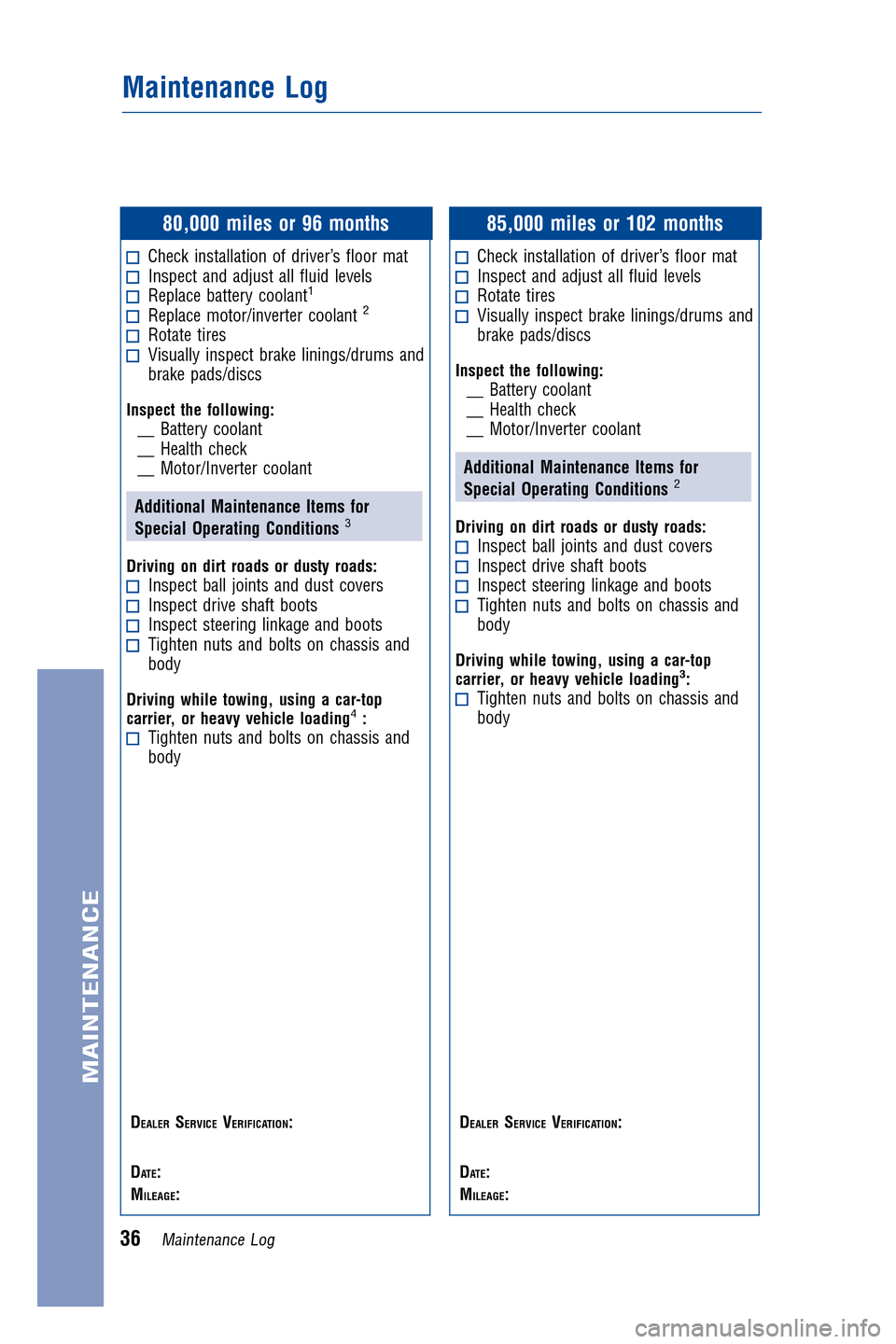

80,000 miles or 96 months
Check installation of driver’s floor matInspect and adjust all fluid levelsReplace battery coolant1
Replace motor/inverter coolant2
Rotate tiresVisually inspect brake linings/drums and
brake pads/discs
Inspect the following:__ Battery coolant
__ Health check
__ Motor/Inverter coolant
Additional Maintenance Items for
Special Operating Conditions
3
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect steering linkage and bootsTighten nuts and bolts on chassis and
body
Driving while towing, using a car-top
carrier, or heavy vehicle loading4:Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
85,000 miles or 102 months
Check installation of driver’s floor matInspect and adjust all fluid levelsRotate tiresVisually inspect brake linings/drums and
brake pads/discs
Inspect the following:__ Battery coolant
__ Health check
__ Motor/Inverter coolant
Additional Maintenance Items for
Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect steering linkage and bootsTighten nuts and bolts on chassis and
body
Driving while towing, using a car-top
carrier, or heavy vehicle loading3:Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
36Maintenance Log

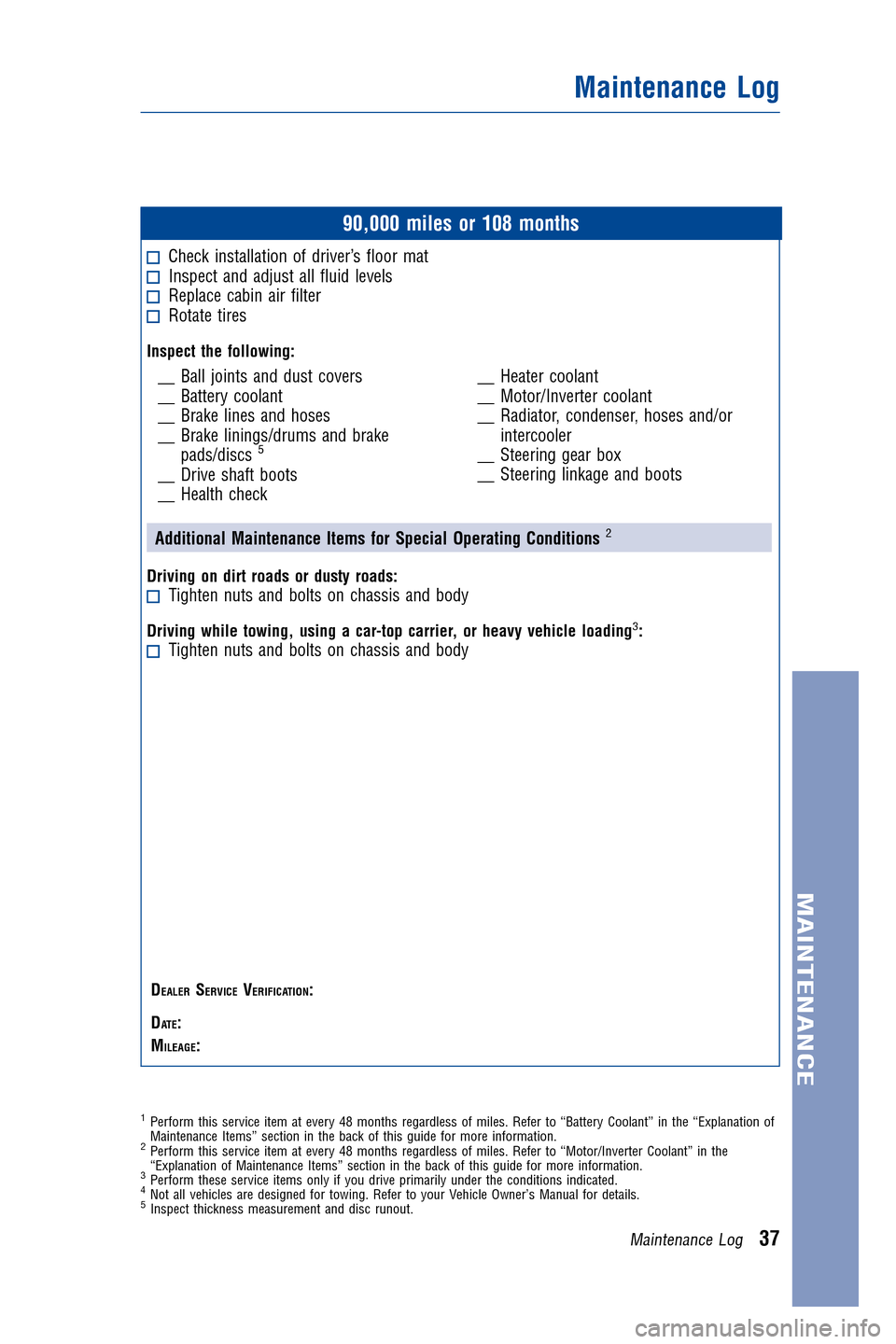

90,000 miles or 108 months
Check installation of driver’s floor matInspect and adjust all fluid levelsReplace cabin air filterRotate tires
Inspect the following:
__ Ball joints and dust covers
__ Battery coolant
__ Brake lines and hoses
__ Brake linings/drums and brakepads/discs
5
__ Drive shaft boots
__ Health check __ Heater coolant
__ Motor/Inverter coolant
__ Radiator, condenser, hoses and/or
intercooler
__ Steering gear box
__ Steering linkage and boots
Additional Maintenance Items for Special Operating Conditions
2
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading3:Tighten nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Perform this service item at every 48 months regardless of miles. Refer to “Battery Coolant” in the “Explanation of
Maintenance Items” section in the back of this guide for more information.
2Perform this service item at every 48 months regardless of miles. Refer to “Motor/Inverter Coolant” in the
“Explanation of Maintenance Items” section in the back of this guide for more information.
3Perform these service items only if you drive primarily under the conditions indicated.4Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.5Inspect thickness measurement and disc runout.
Maintenance Log
MAINTENANCE
Maintenance Log37

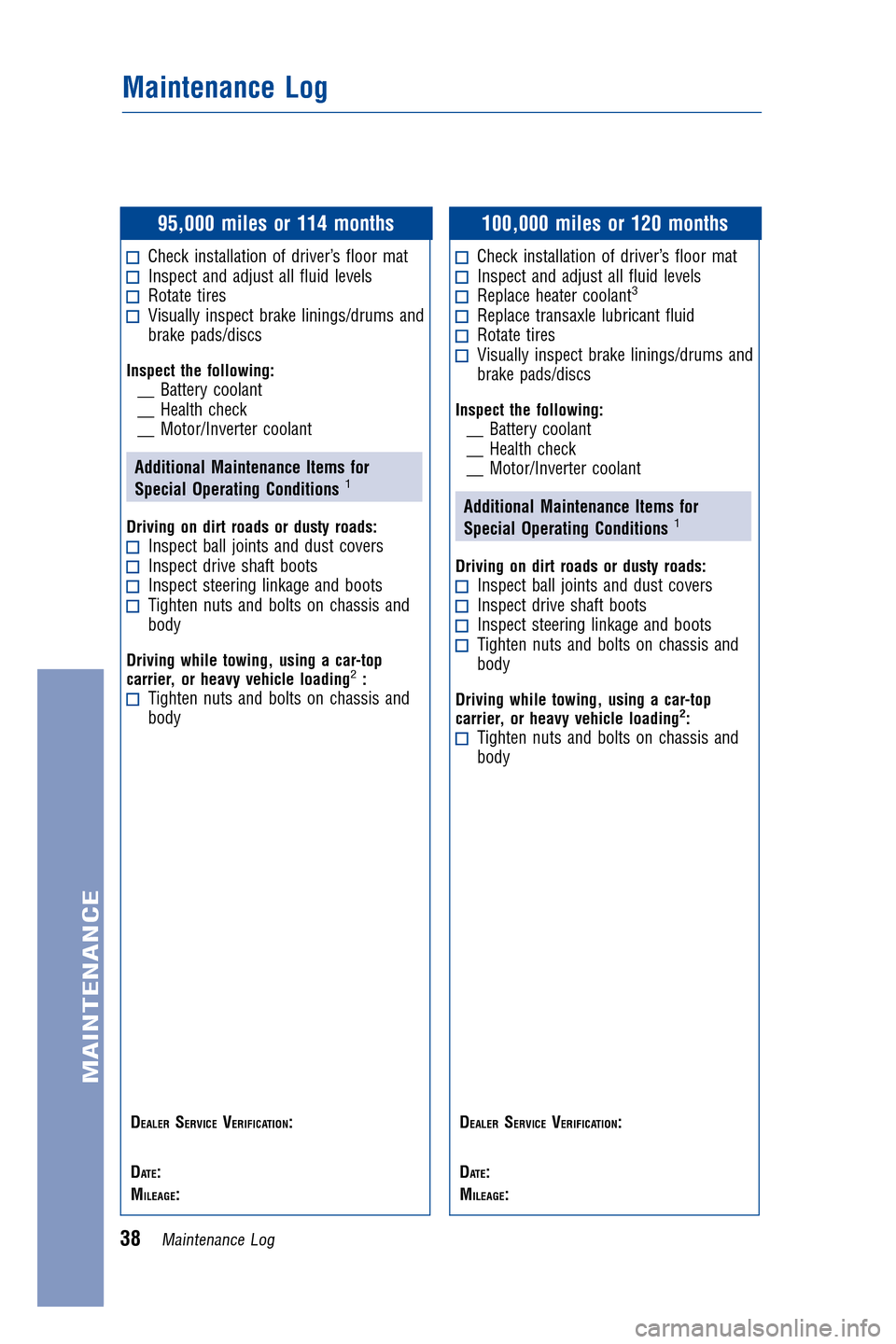

95,000 miles or 114 months
Check installation of driver’s floor matInspect and adjust all fluid levelsRotate tiresVisually inspect brake linings/drums and
brake pads/discs
Inspect the following:__ Battery coolant
__ Health check
__ Motor/Inverter coolant
Additional Maintenance Items for
Special Operating Conditions
1
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect steering linkage and bootsTighten nuts and bolts on chassis and
body
Driving while towing, using a car-top
carrier, or heavy vehicle loading2:Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
100,000 miles or 120 months
Check installation of driver’s floor matInspect and adjust all fluid levelsReplace heater coolant3
Replace transaxle lubricant fluidRotate tiresVisually inspect brake linings/drums and
brake pads/discs
Inspect the following:__ Battery coolant
__ Health check
__ Motor/Inverter coolant
Additional Maintenance Items for
Special Operating Conditions
1
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect steering linkage and bootsTighten nuts and bolts on chassis and
body
Driving while towing, using a car-top
carrier, or heavy vehicle loading2:Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
38Maintenance Log
