2614-5. Using the driving support systems
4
Driving
■Dynamic radar cruise control can be set when
●The shift lever is in D or range 4 or higher of S has been selected.
● Vehicle speed is above approximately 30 mph (50 km/h).
■ Accelerating after setting the vehicle speed
The vehicle can accelerate by operating the accelerator pedal. After acceler-
ating, the set speed resumes. However, during vehicle-to-vehicle distance
control mode, the vehicle speed may decrease below the set speed in order
to maintain the distance to the preceding vehicle.
■ Automatic cancelation of vehicle -to-vehicle distance control mode
Vehicle-to-vehicle distance control mode is automatically canceled in the fol-
lowing situations:
● Actual vehicle speed falls below approximately 25 mph (40 km/h).
● VSC is activated.
● TRAC is activated for a period of time.
● When the VSC or TRAC system is turned off by pressing the VSC OFF
switch.
● The sensor cannot detect correctly because it is covered in some way.
● Pre-collision braking is activated.
If vehicle-to-vehicle distance control mode is automatically canceled for any
other reason, there may be a malfunction in the system. Contact your Toy-
ota dealer.
■ Automatic cancelation of co nstant speed control mode
Constant speed control mode is automatically canceled in the following situa-
tions:
● Actual vehicle speed is more than approximately 10 mph (16 km/h) below
the set vehicle speed.
● Actual vehicle speed falls below approximately 25 mph (40 km/h).
● VSC is activated.
● TRAC is activated for a period of time.
● When the VSC or TRAC system is turned off by pressing the VSC OFF
switch.
● Pre-collision braking is activated.
If constant speed control mode is automatically canceled for any other rea-
son, there may be a malfunction in the system. Contact your Toyota dealer.
■ Warning messages and buzzers for dynamic radar cruise control
Warning messages and buzzers are used to indicate a system malfunction or
to inform the driver of the need for caution while driving. If a warning message
is shown on the multi-information display, read the message and follow the
instructions.

262
RAV4-HV_OM_OM42A56U_(U)
4-5. Using the driving support systems

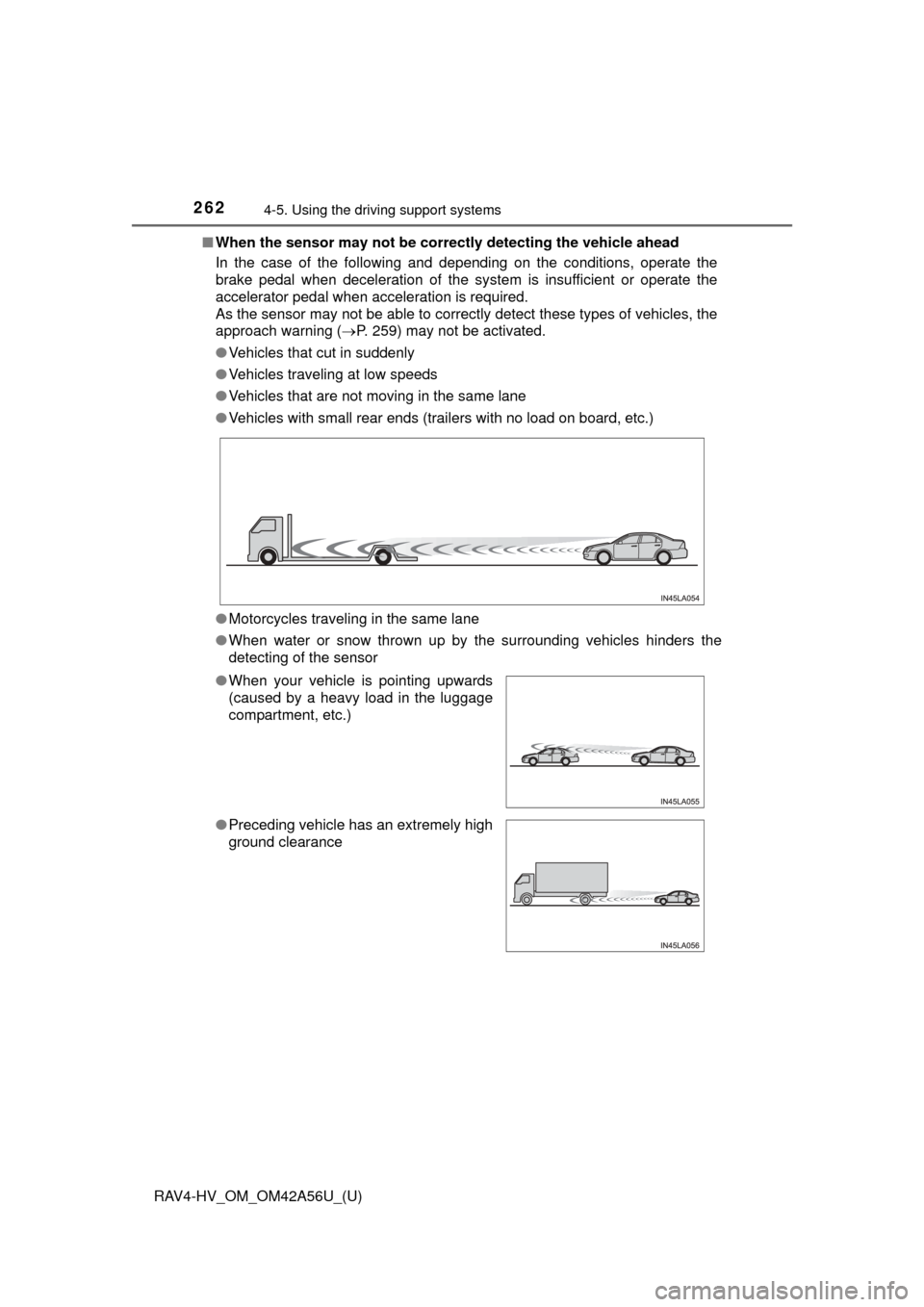

■When the sensor may not be correctly detecting the vehicle ahead
In the case of the following and depending on the conditions, operate the
brake pedal when deceleration of the system is insufficient or operate the
accelerator pedal when acceleration is required.
As the sensor may not be able to correctly detect these types of vehicles, the
approach warning ( P. 259) may not be activated.
● Vehicles that cut in suddenly
● Vehicles traveling at low speeds
● Vehicles that are not moving in the same lane
● Vehicles with small rear ends (trailers with no load on board, etc.)
● Motorcycles traveling in the same lane
● When water or snow thrown up by the surrounding vehicles hinders the
detecting of the sensor
●When your vehicle is pointing upwards
(caused by a heavy load in the luggage
compartment, etc.)
● Preceding vehicle has an extremely high
ground clearance

RAV4-HV_OM_OM42A56U_(U)
2634-5. Using the driving support systems
4
Driving

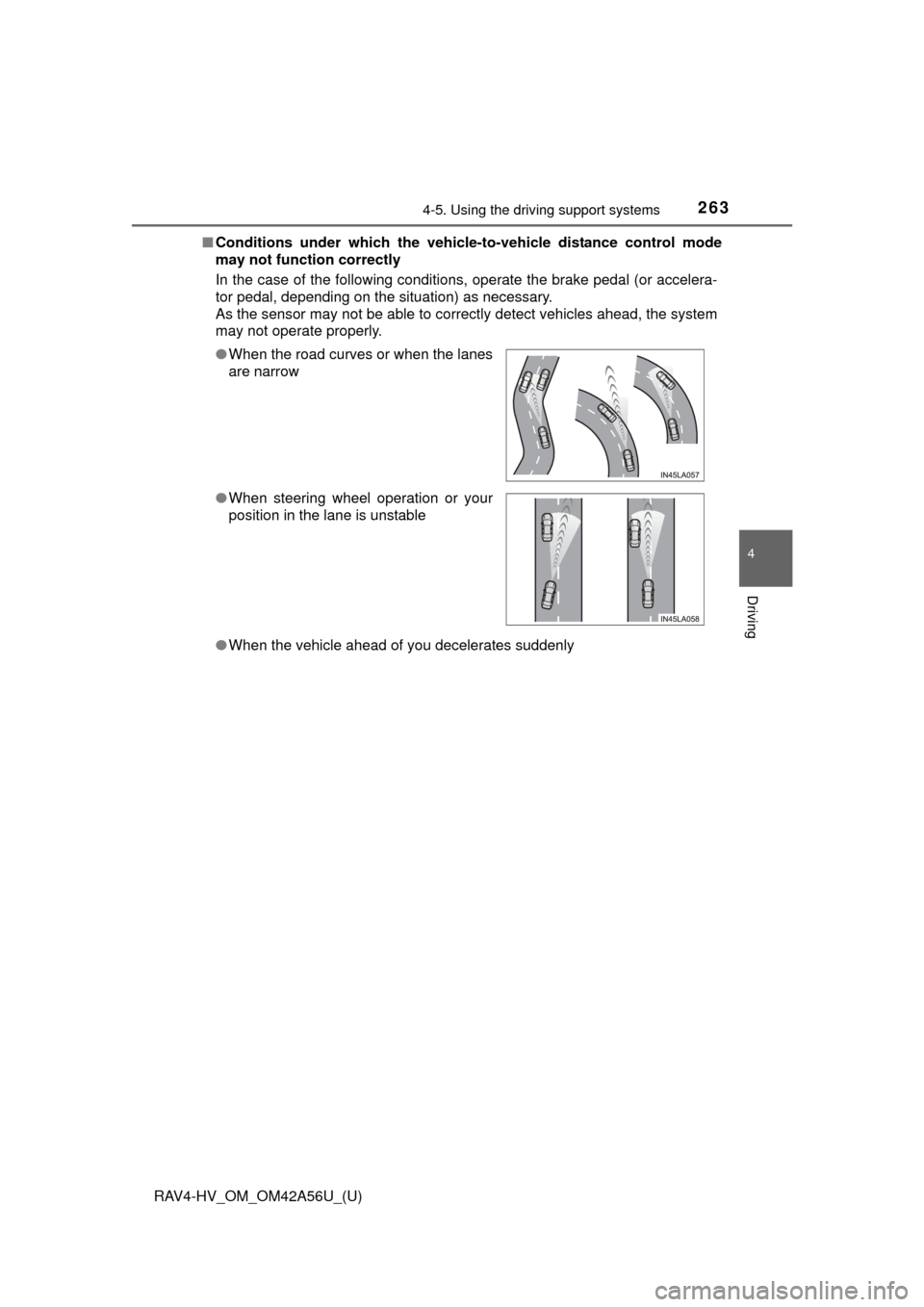

■Conditions under which the vehicle -to-vehicle distance control mode
may not function correctly
In the case of the following conditions, operate the brake pedal (or accelera-
tor pedal, depending on the situation) as necessary.
As the sensor may not be able to correctly detect vehicles ahead, the system
may not operate properly.
● When the vehicle ahead of you decelerates suddenly
●
When the road curves or when the lanes
are narrow
● When steering wheel operation or your
position in the lane is unstable

264
RAV4-HV_OM_OM42A56U_(U)
4-5. Using the driving support systems

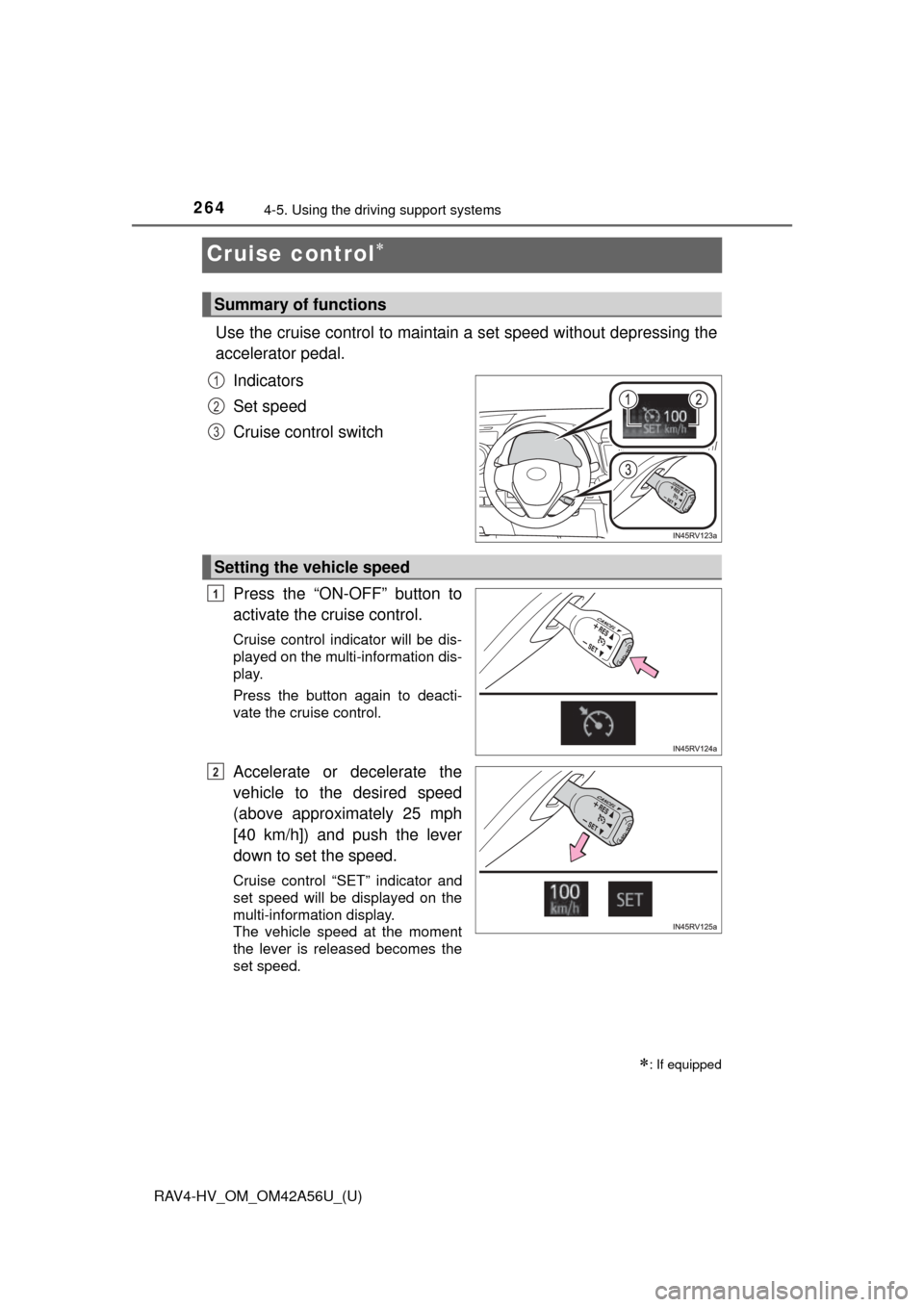

Cruise control
Use the cruise control to maintain a set speed without depressing the
accelerator pedal.
Indicators
Set speed
Cruise control switch
Press the “ON-OFF” button to
activate the cruise control.
Cruise control indicator will be dis-
played on the multi-information dis-
play.
Press the button again to deacti-
vate the cruise control.
Accelerate or decelerate the
vehicle to the desired speed
(above approximately 25 mph
[40 km/h]) and push the lever
down to set the speed.
Cruise control “SET” indicator and
set speed will be displayed on the
multi-information display.
The vehicle speed at the moment
the lever is released becomes the
set speed.
: If equipped
Summary of functions
1
2
3
Setting the vehicle speed
1
2

RAV4-HV_OM_OM42A56U_(U)
2654-5. Using the driving support systems
4
Driving
To change the set speed, operate the lever until the desired set speed
is obtained.
Increases the speed
Decreases the speed
Fine adjustment: Momentarily
move the lever in the desired direc-
tion.
Large adjustment: Hold the lever in
the desired direction.
The set speed will be increased or
decreased as follows:
Fine adjustment: By 1 mph (1.6 km/h)
*1 or 1 km/h (0.6 mph)*2 each time
the lever is operated.
Large adjustment: The set speed can be increased or decreased continu-
ally until the lever is released.
*1: When the set speed is shown in “MPH”
*2: When the set speed is shown in “km/h”
Pulling the lever toward you
cancels the constant speed
control.
The speed setting is also canceled
when the brakes are applied.
Pushing the lever up resumes
the constant speed control.
Resuming is available when the
vehicle speed is more than approx-
imately 25 mph (40 km/h).
Adjusting the set speed
1
2
Canceling and resuming the constant speed control
1
2

266
RAV4-HV_OM_OM42A56U_(U)
4-5. Using the driving support systems
■Cruise control can be set when
●The shift lever is in D or range 4 or higher of S has been selected.
● Vehicle speed is above approximately 25 mph (40 km/h).
■ Accelerating after setting the vehicle speed
●The vehicle can be accelerated normally. After acceleration, the set speed
resumes.
● Even without canceling the cruise control, the set speed can be increased
by first accelerating the vehicle to the desired speed and then pushing the
lever down to set the new speed.
■ Automatic cruise co ntrol cancelation
Cruise control will stop maintaining the vehicle speed in any of the following
situations.
● Actual vehicle speed falls more than approximately 10 mph (16 km/h) below
the preset vehicle speed.
At this time, the memorized set speed is not retained.
● Actual vehicle speed is below approximately 25 mph (40 km/h).
● VSC is activated.
● TRAC is activated for a period of time.
● When the VSC or TRAC system is turned off by pressing the VSC OFF
switch.
■ If the warning message for the crui se control is shown on the multi-
information display
Press the “ON-OFF” button once to deactivate the system, and then press
the button again to reactivate the system.
If the cruise control speed cannot be set or if the cruise control cancels imme-
diately after being activated, there may be a malfunction in the cruise control
system. Have the vehicle inspected by your Toyota dealer.

RAV4-HV_OM_OM42A56U_(U)
2674-5. Using the driving support systems
4
Driving
WARNING
■To avoid operating the cruise control by mistake
Switch the cruise control off using the “ON-OFF” button when not in use.
■ Situations unsuitable for cruise control
Do not use cruise control in any of the following situations.
Doing so may result in loss of control and could cause an accident resulting
in death or serious injury.
●In heavy traffic
● On roads with sharp bends
● On winding roads
● On slippery roads, such as those covered with rain, ice or snow
● On steep hills
Vehicle speed may exceed the set speed when driving down a steep hill.
● When your vehicle is towing a trailer or during emergency towing

268
RAV4-HV_OM_OM42A56U_(U)
4-5. Using the driving support systems

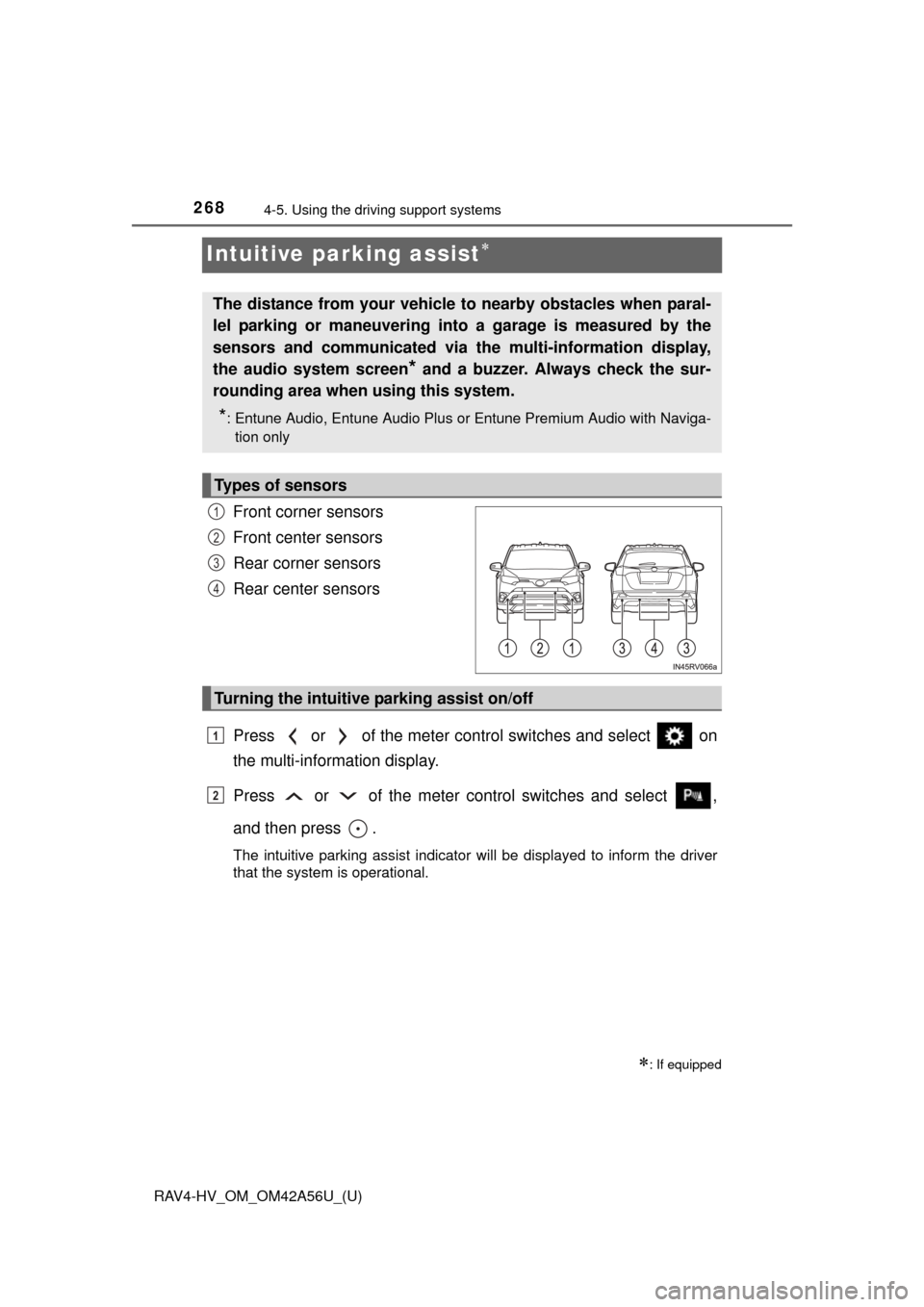

Intuitive parking assist
Front corner sensors
Front center sensors
Rear corner sensors
Rear center sensors
Press or of the meter control switches and select on
the multi-information display.
Press or of the meter control switches and select ,
and then press .
The intuitive parking assist indicator will be displayed to inform the driver
that the system is operational.
: If equipped
The distance from your vehicle to nearby obstacles when paral-
lel parking or maneuvering into a garage is measured by the
sensors and communicated via the multi-information display,
the audio system screen
* and a buzzer. Always check the sur-
rounding area when using this system.
*: Entune Audio, Entune Audio Plus or Entune Premium Audio with Naviga- tion only
Types of sensors
1
2
3
4
Turning the intuitive parking assist on/off
1
2

RAV4-HV_OM_OM42A56U_(U)
2694-5. Using the driving support systems
4
Driving

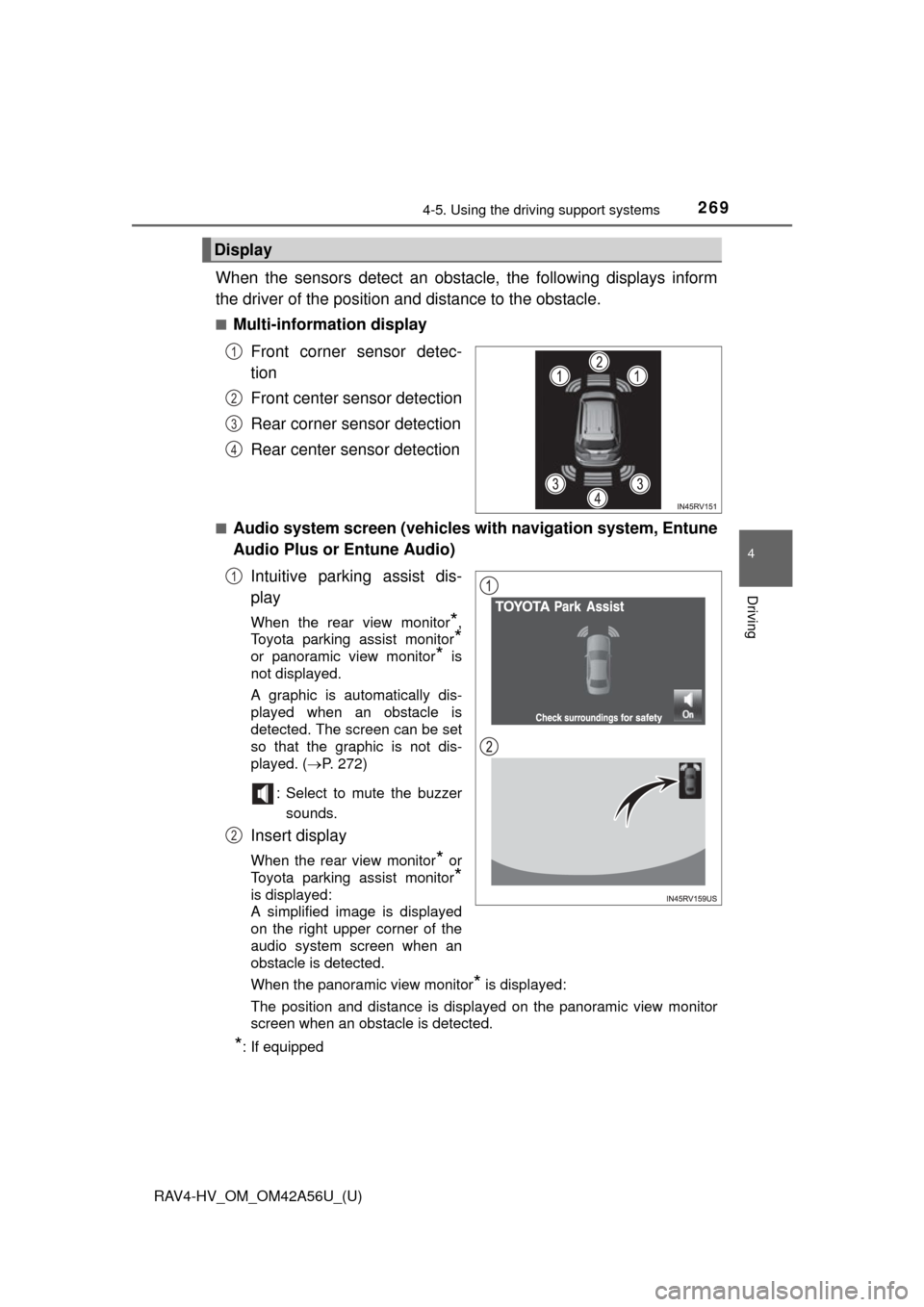

When the sensors detect an obstacle, the following displays inform
the driver of the position an d distance to the obstacle.
■Multi-information display
Front corner sensor detec-
tion
Front center sensor detection
Rear corner sensor detection
Rear center sensor detection
■Audio system screen (vehicles with navigation system, Entune
Audio Plus or Entune Audio)
Intuitive parking assist dis-
play
When the rear view monitor*,
Toyota parking assist monitor
*
or panoramic view monitor* is
not displayed.
A graphic is automatically dis-
played when an obstacle is
detected. The screen can be set
so that the graphic is not dis-
played. ( P. 272)
: Select to mute the buzzer sounds.
Insert display
When the rear view monitor* or
Toyota parking assist monitor
*
is displayed:
A simplified image is displayed
on the right upper corner of the
audio system screen when an
obstacle is detected.
When the panoramic view monitor
* is displayed:
The position and distance is displayed on the panoramic view monitor
screen when an obstacle is detected.
*: If equipped
Display
1
2
3
4
1
2

270
RAV4-HV_OM_OM42A56U_(U)
4-5. Using the driving support systems

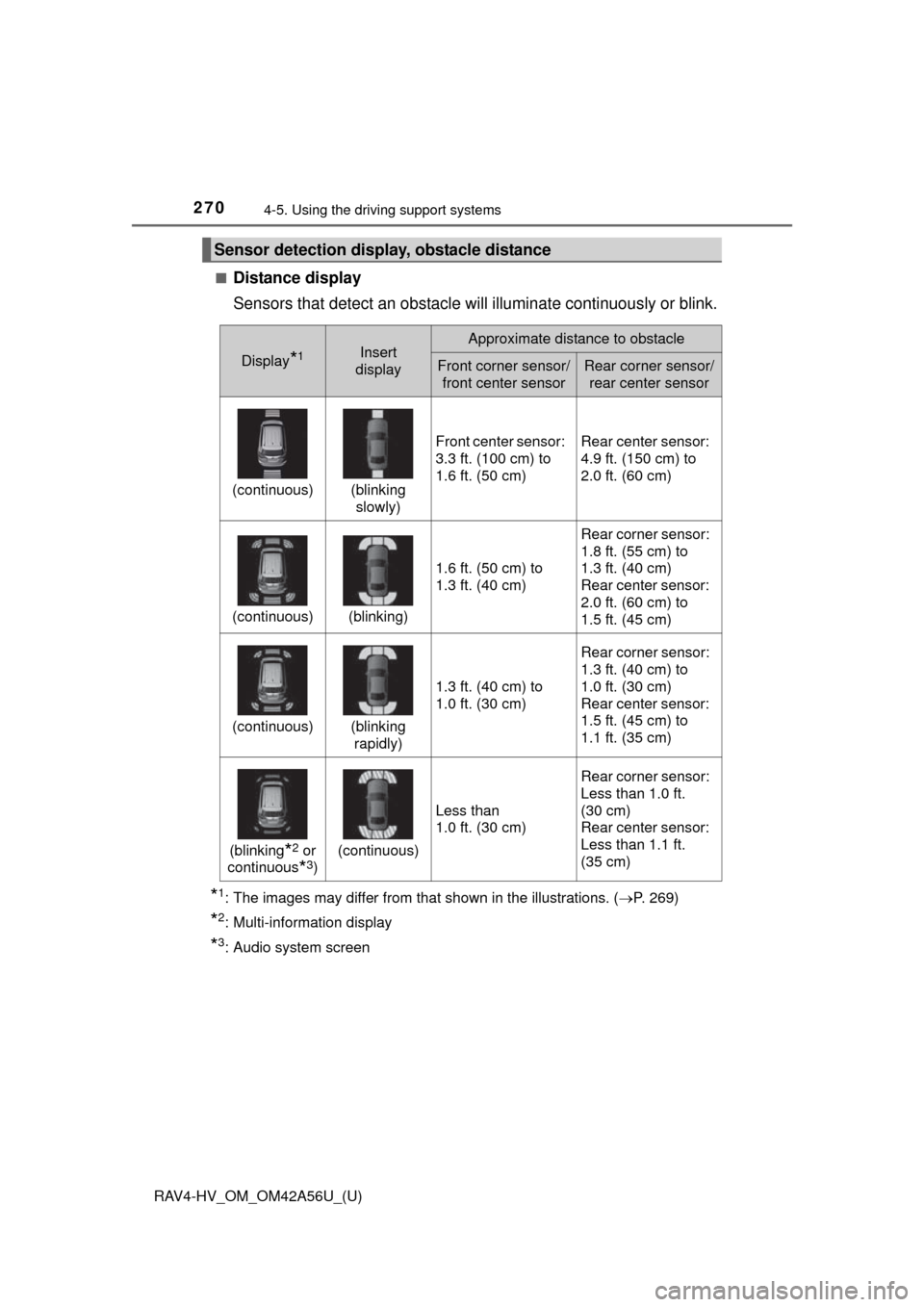

■Distance display
Sensors that detect an obstacle wi ll illuminate continuously or blink.
*1: The images may differ from that shown in the illustrations. ( P. 269)
*2: Multi-information display
*3: Audio system screen
Sensor detection display, obstacle distance
Display*1Insert
displayApproximate distance to obstacle
Front corner sensor/
front center sensorRear corner sensor/ rear center sensor
(continuous)(blinking slowly)
Front center sensor:
3.3 ft. (100 cm) to
1.6 ft. (50 cm)Rear center sensor:
4.9 ft. (150 cm) to
2.0 ft. (60 cm)
(continuous)(blinking)
1.6 ft. (50 cm) to
1.3 ft. (40 cm)
Rear corner sensor:
1.8 ft. (55 cm) to
1.3 ft. (40 cm)
Rear center sensor:
2.0 ft. (60 cm) to
1.5 ft. (45 cm)
(continuous)(blinking rapidly)
1.3 ft. (40 cm) to
1.0 ft. (30 cm)
Rear corner sensor:
1.3 ft. (40 cm) to
1.0 ft. (30 cm)
Rear center sensor:
1.5 ft. (45 cm) to
1.1 ft. (35 cm)
(blinking*2 or
continuous
*3)
(continuous)
Less than
1.0 ft. (30 cm)
Rear corner sensor:
Less than 1.0 ft.
(30 cm)
Rear center sensor:
Less than 1.1 ft.
(35 cm)
