Page 21 of 660

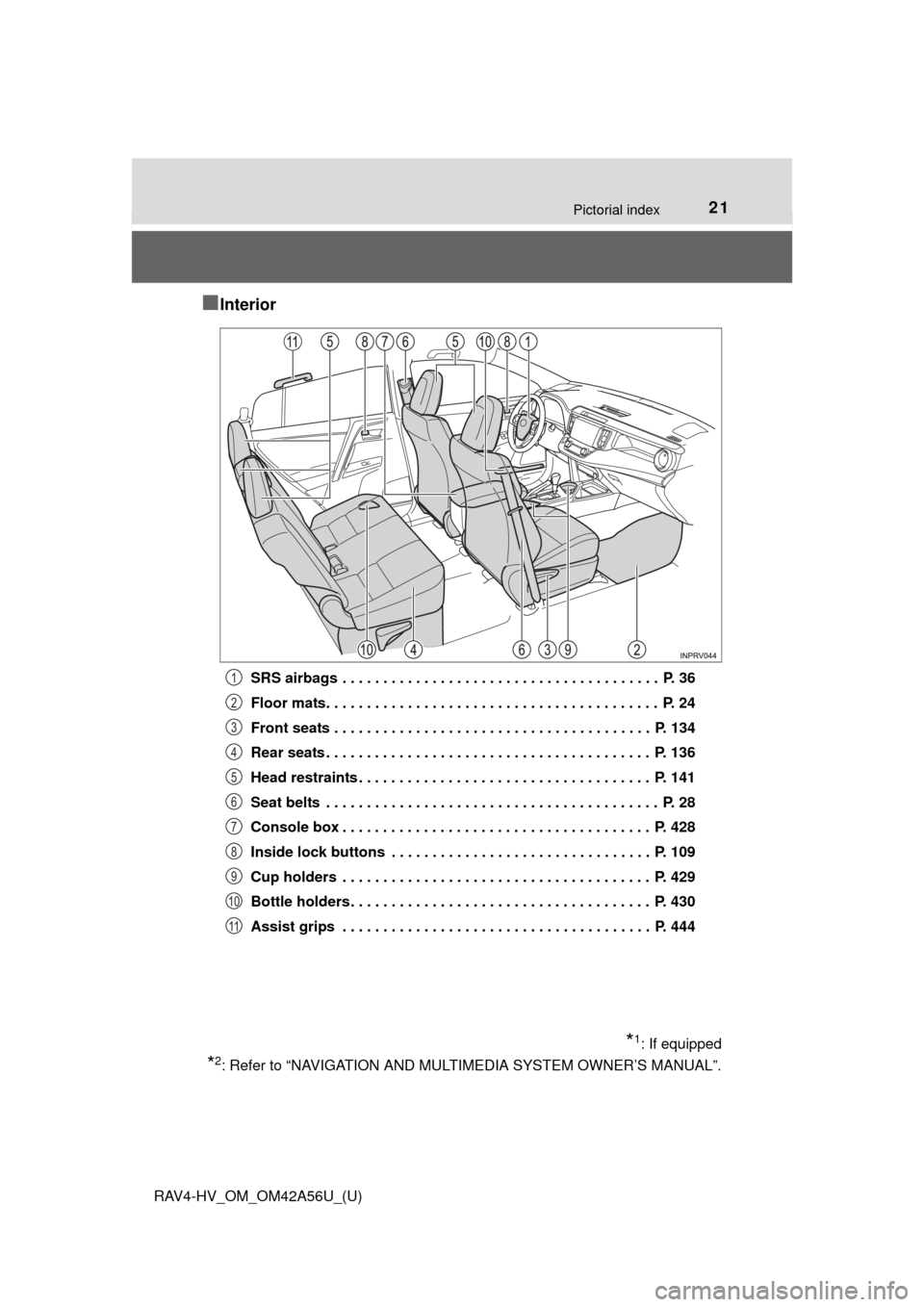

21Pictorial index
RAV4-HV_OM_OM42A56U_(U)
■Interior
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 36
Floor mats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 24
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 134
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 136
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 141
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 28
Console box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 428
Inside lock buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 109
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 429
Bottle holders. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 430
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 444
*1: If equipped
*2: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
1
2
3
4
5
6
7
8
9
10
11
Page 22 of 660

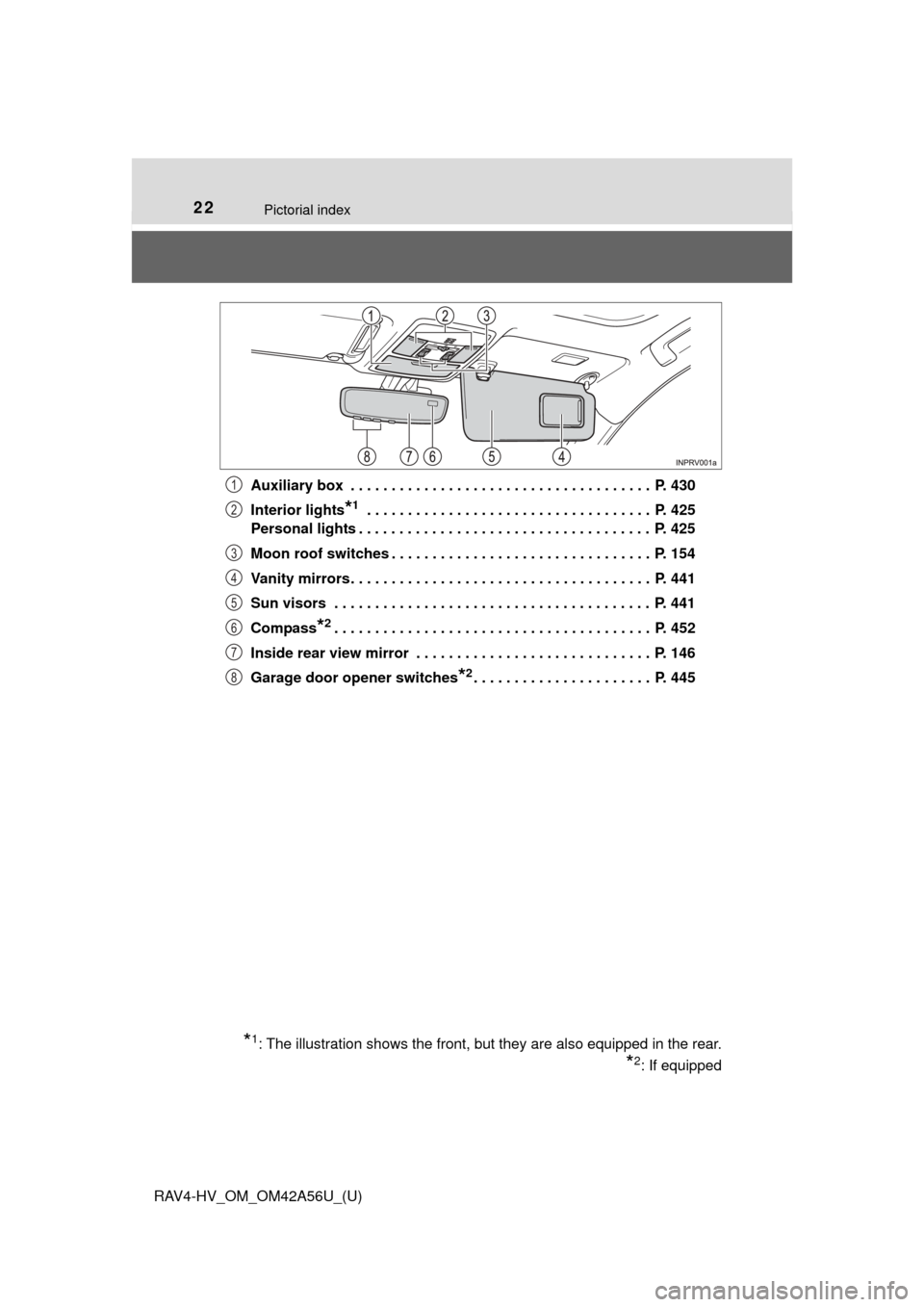

22Pictorial index
RAV4-HV_OM_OM42A56U_(U)Auxiliary box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 430
Interior lights
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 425
Personal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 425
Moon roof switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 154
Vanity mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 441
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 441
Compass
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 452
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 146
Garage door opener switches
*2. . . . . . . . . . . . . . . . . . . . . . P. 445
*1: The illustration shows the front, but they are also equipped in the rear.
*2: If equipped
1
2
3
4
5
6
7
8
Page 23 of 660
23
RAV4-HV_OM_OM42A56U_(U)
For safety and security1
1-1. For safe useBefore driving ...................... 24
For safe driving ................... 26
Seat belts ............................ 28
SRS airbags ........................ 36
Front passenger occupant classification system ......... 49
Safety information for children ........................ 56
Child restraint systems........ 57
Installing child restraints...... 61
Exhaust gas precautions..... 72
1-2. Hybrid system Hybrid system features ....... 73
Hybrid system precautions ....................... 77
1-3. Theft deterrent system Immobilizer system ............. 82
Page 24 of 660
241-1. For safe use
RAV4-HV_OM_OM42A56U_(U)

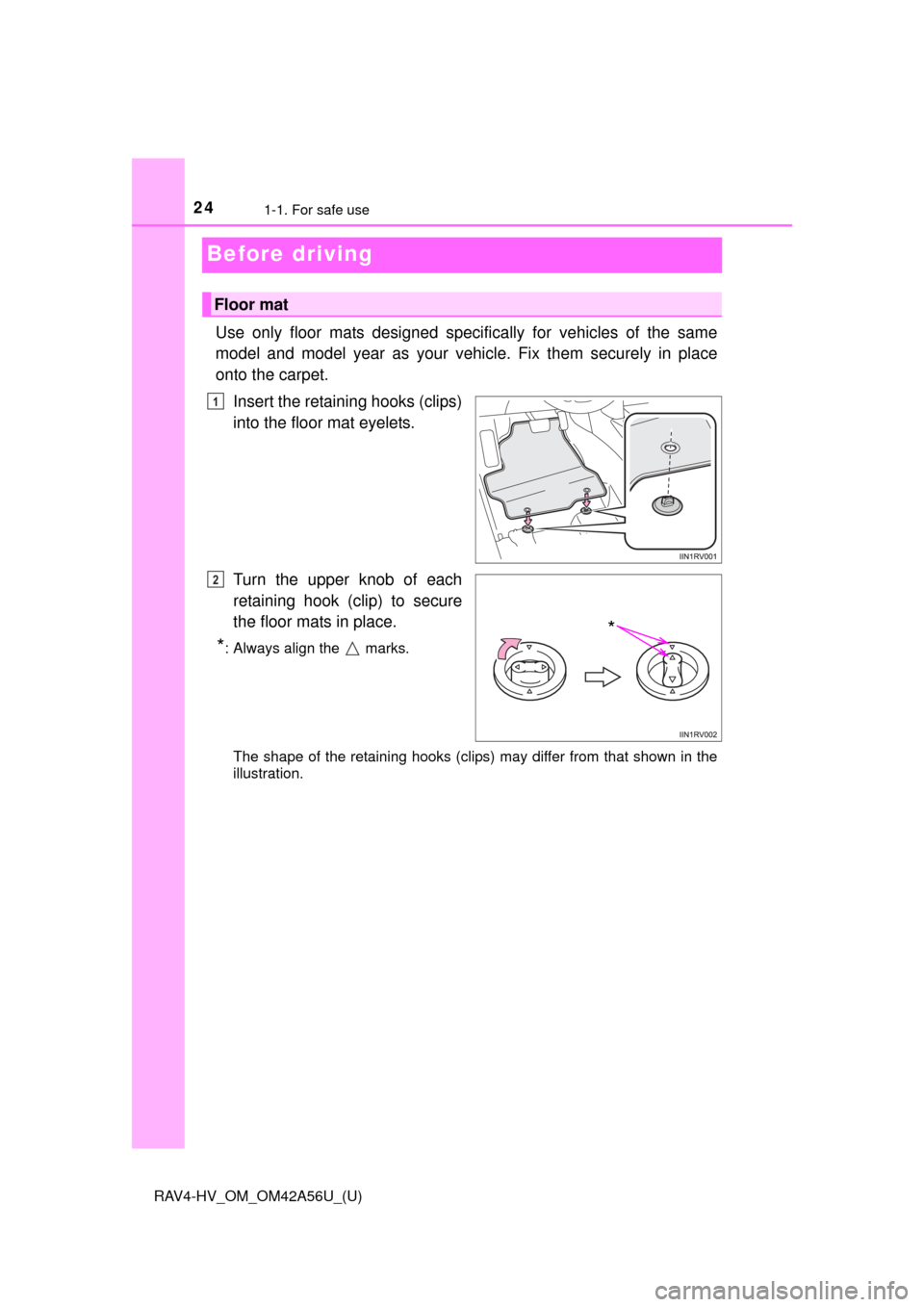

Before driving
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehi cle. Fix them securely in place
onto the carpet.
Insert the retaining hooks (clips)
into the floor mat eyelets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
Floor mat
1
*
2
Page 25 of 660
251-1. For safe use
RAV4-HV_OM_OM42A56U_(U)
1
For safety and security
WARNING
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle. This could lead to an accident, resulting in
death or serious injury.
■When installing the driver’s floor mat
●Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
● Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
●Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
● With the hybrid system stopped and the
shift lever in P, fully depress each pedal
to the floor to make sure it does not
interfere with the floor mat.
Page 26 of 660
261-1. For safe use
RAV4-HV_OM_OM42A56U_(U)
For safe driving
Adjust the angle of the seat-
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. (P. 134)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. ( P. 134)
Lock the head restraint in place with the center of the head restraint
closest to the top of your ears. ( P. 141)
Wear the seat belt correctly. ( P. 2 8 )
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle. ( P. 2 8 )
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
( P. 57)
Make sure that you can see backwar d clearly by adjusting the inside
and outside rear view mirrors properly. ( P. 146, 148)
For safe driving, adjust the seat and mirror to an appropriate
position before driving.
Correct driving posture
1
2
Correct use of the seat belts
Adjusting the mirrors
3
4
Page 27 of 660
271-1. For safe use
RAV4-HV_OM_OM42A56U_(U)
1
For safety and security
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
● Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint.
● Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an acci-
dent and the adjustment mechanism may also be damaged.
● When driving over long distances, take regular breaks before you start to
feel tired.
Also, if you feel tired or sleepy while driving, do not force yourself to con-
tinue driving and take a break immediately.
Page 28 of 660
281-1. For safe use
RAV4-HV_OM_OM42A56U_(U)

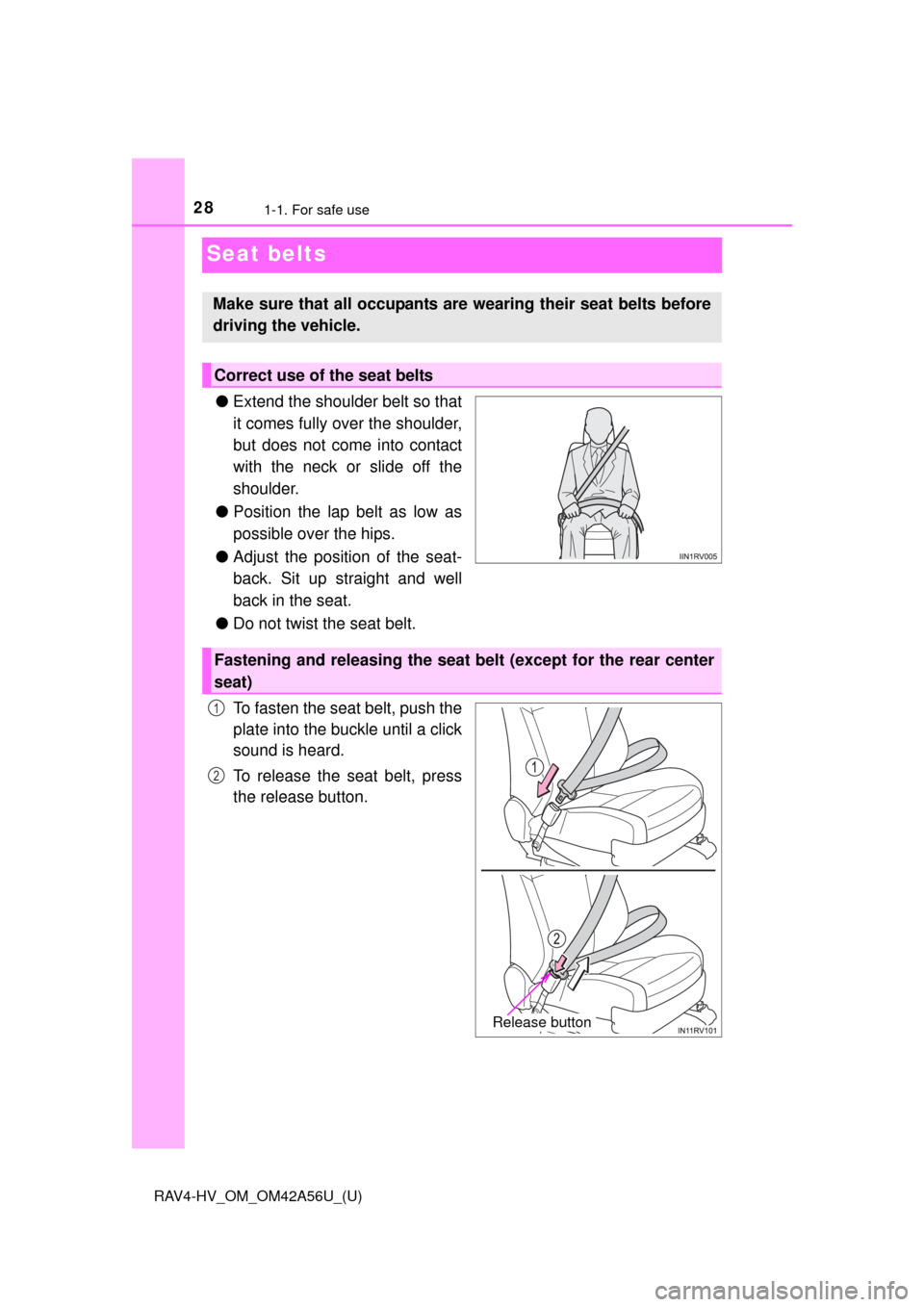

Seat belts
●Extend the shoulder belt so that
it comes fully over the shoulder,
but does not come into contact
with the neck or slide off the
shoulder.
● Position the lap belt as low as
possible over the hips.
● Adjust the position of the seat-
back. Sit up straight and well
back in the seat.
● Do not twist the seat belt.
To fasten the seat belt, push the
plate into the buckle until a click
sound is heard.
To release the seat belt, press
the release button.
Make sure that all occupants are wearing their seat belts before
driving the vehicle.
Correct use of the seat belts
Fastening and releasing the seat belt (except for the rear center
seat)
Release button
1
2
Page 29 of 660
291-1. For safe use
RAV4-HV_OM_OM42A56U_(U)
1
For safety and security
Press plate “B” to release. Then
pull the seat belt down toward
the rear seat bottom cushion.
Push plate “A” into buckle “A”
until a clicking sound is heard.
Push plate “B” into buckle “B”
until a clicking sound is heard.

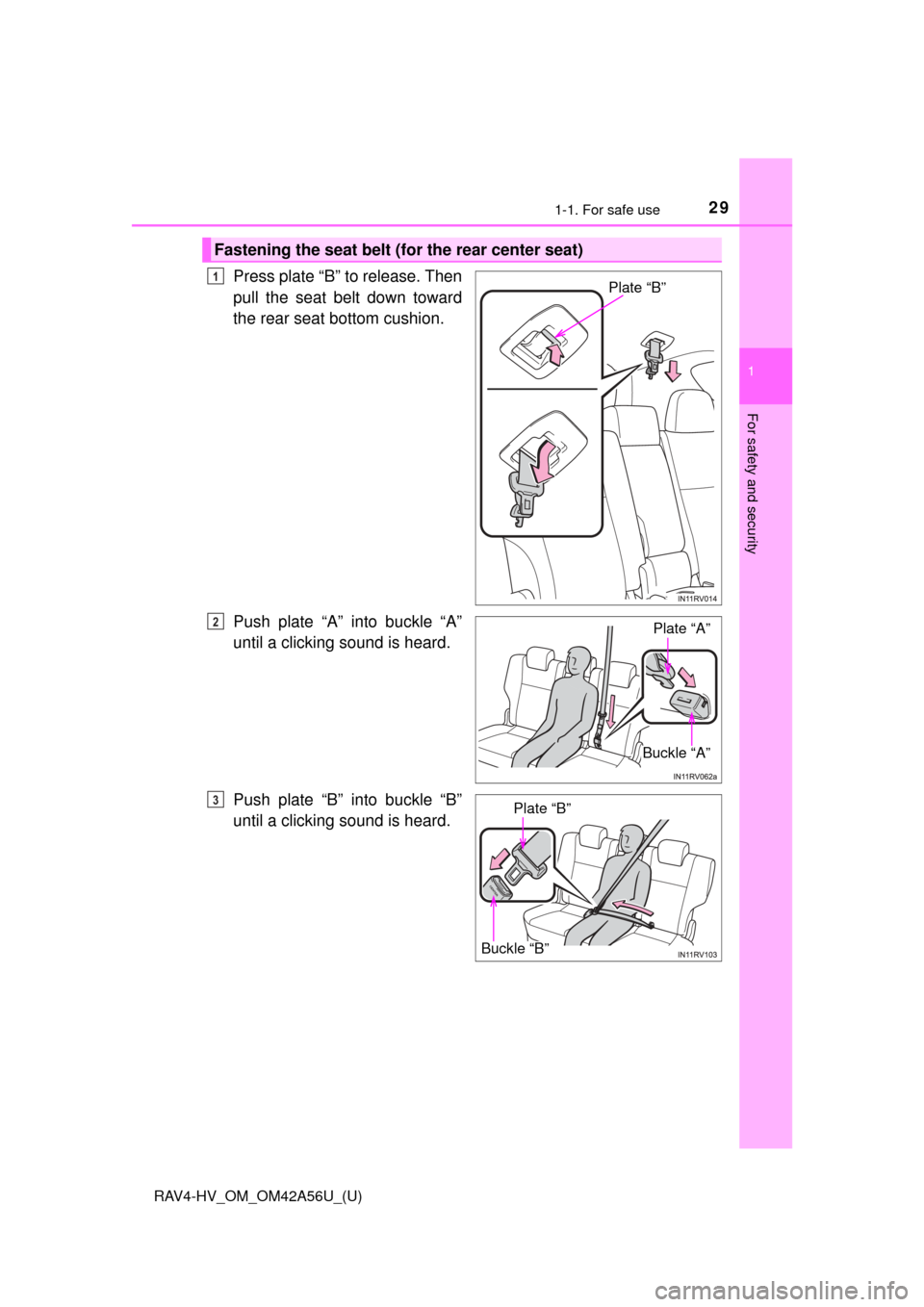

Fastening the seat belt (for the rear center seat)
Plate “B”1
Plate “A”
Buckle “A”
2
Buckle “B”
Plate “B”3
Page 30 of 660
301-1. For safe use
RAV4-HV_OM_OM42A56U_(U)
To release the hooked buckle
“B”, push the release button.
To release the hooked plate
“A”, insert the plate “B” or
mechanical key (P. 104) into
the hole on the buckle.
When releasing the seat belt,
retract it slowly.
Stow the plates in the holder.
Put plate “A” and “B”
together, and then stow the
plates in the holder.
Fully insert the plates all the
way.
Push down the plate until a
click is heard to lock it.

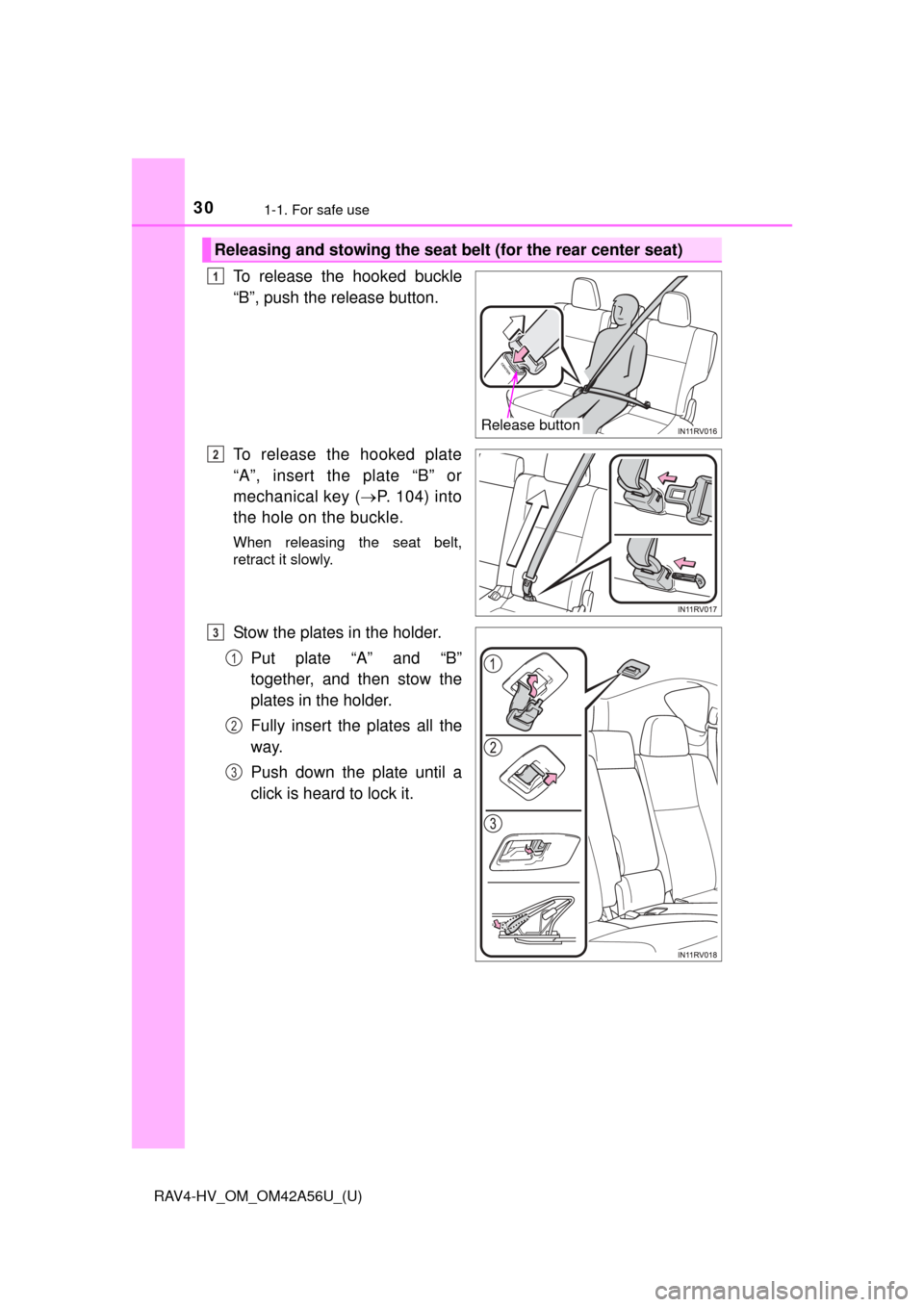

Releasing and stowing the seat belt (for the rear center seat)
Release button
1
2
3
1
2
3
