TOYOTA RAV4 HYBRID 2016 XA40 / 4.G Owners Manual

431
RAV4-HV_OM_OM42A56U_(U)
6-3. Using the storage features
6
Interior features

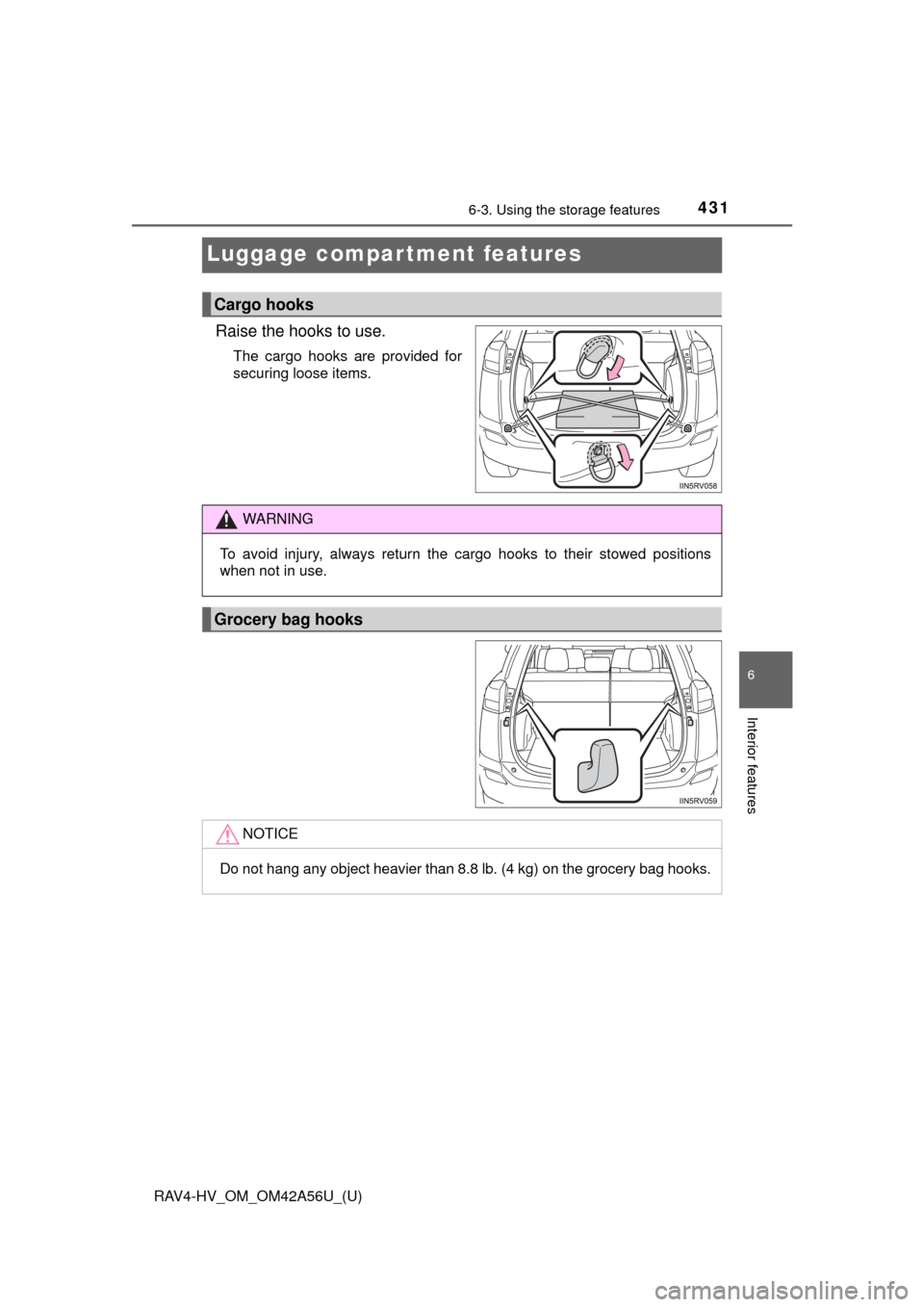

Luggage compartment features
Raise the hooks to use.
The cargo hooks are provided for
securing loose items.
Cargo hooks
WARNING
To avoid injury, always return the cargo hooks to their stowed positions
when not in use.
Grocery bag hooks
NOTICE
Do not hang any object heavier than 8.8 lb. (4 kg) on the grocery bag hooks.

432
RAV4-HV_OM_OM42A56U_(U)
6-3. Using the storage features

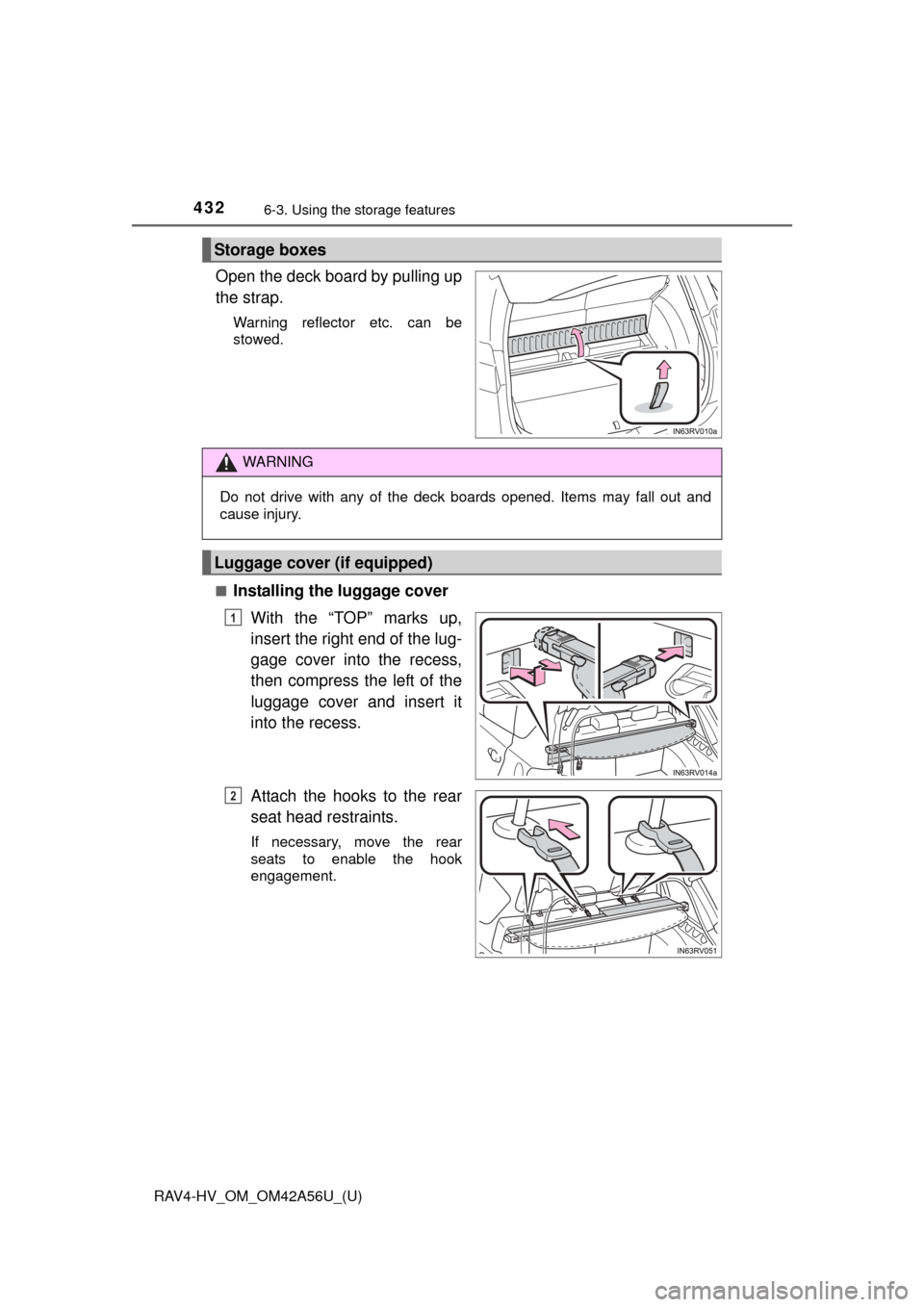

Open the deck board by pulling up
the strap.
Warning reflector etc. can be
stowed.
■
Installing the luggage cover With the “TOP” marks up,
insert the right end of the lug-
gage cover into the recess,
then compress the left of the
luggage cover and insert it
into the recess.
Attach the hooks to the rear
seat head restraints.
If necessary, move the rear
seats to enable the hook
engagement.
Storage boxes
WARNING
Do not drive with any of the deck boards opened. Items may fall out and
cause injury.
Luggage cover (if equipped)
1
2

RAV4-HV_OM_OM42A56U_(U)
4336-3. Using the storage features
6
Interior features

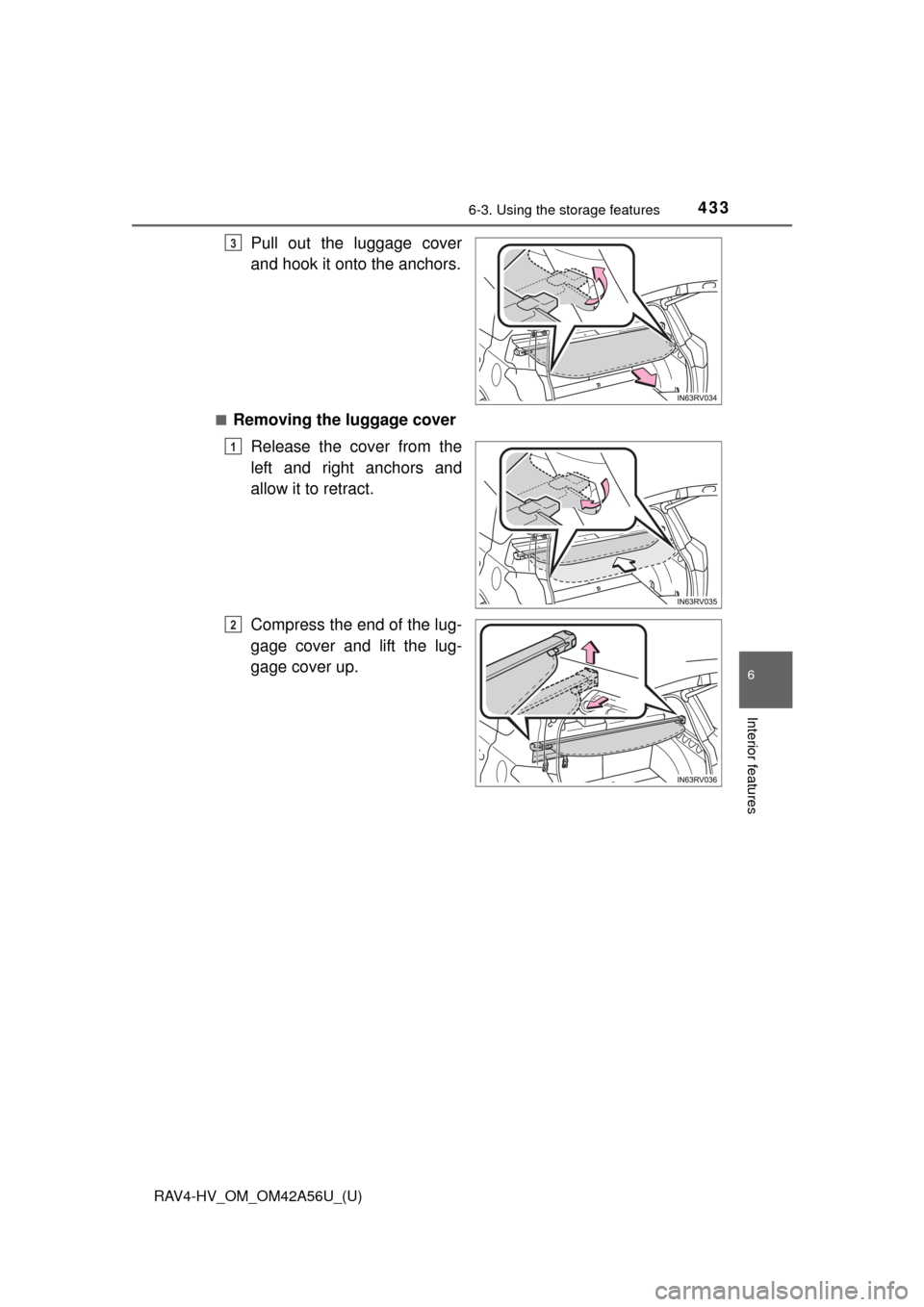

Pull out the luggage cover
and hook it onto the anchors.
■Removing the luggage coverRelease the cover from the
left and right anchors and
allow it to retract.
Compress the end of the lug-
gage cover and lift the lug-
gage cover up.
3
1
2

434
RAV4-HV_OM_OM42A56U_(U)
6-3. Using the storage features

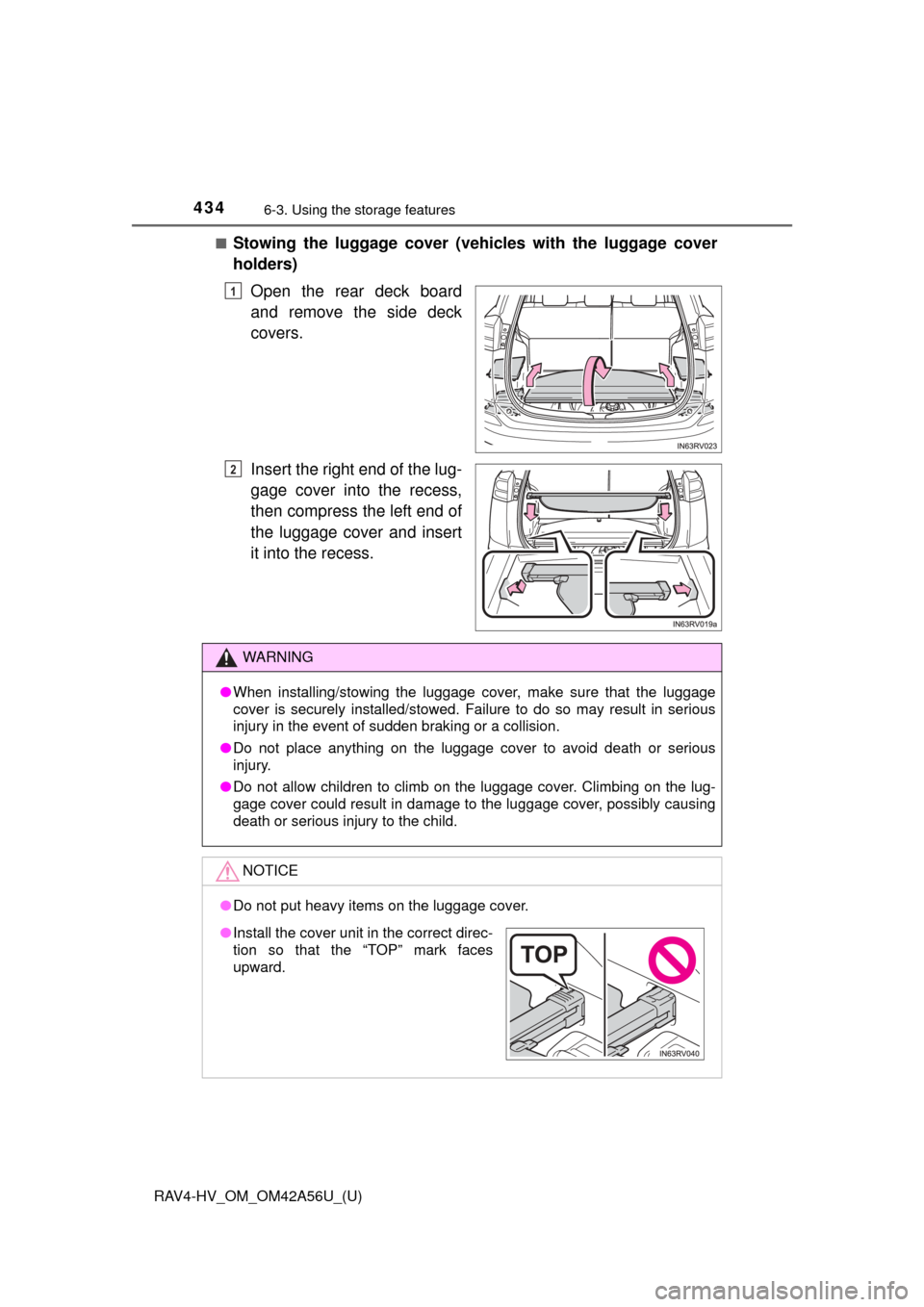

■Stowing the luggage cover (vehicles with the luggage cover
holders)
Open the rear deck board
and remove the side deck
covers.
Insert the right end of the lug-
gage cover into the recess,
then compress the left end of
the luggage cover and insert
it into the recess.
1
2
WARNING
●When installing/stowing the luggage cover, make sure that the luggage
cover is securely installed/stowed. Failure to do so may result in serious
injury in the event of sudden braking or a collision.
● Do not place anything on the luggage cover to avoid death or serious
injury.
● Do not allow children to climb on the luggage cover. Climbing on the lug-
gage cover could result in damage to the luggage cover, possibly causing
death or serious injury to the child.
NOTICE
●Do not put heavy items on the luggage cover.
●Install the cover unit in the correct direc-
tion so that the “TOP” mark faces
upward.

RAV4-HV_OM_OM42A56U_(U)
4356-3. Using the storage features
6
Interior features

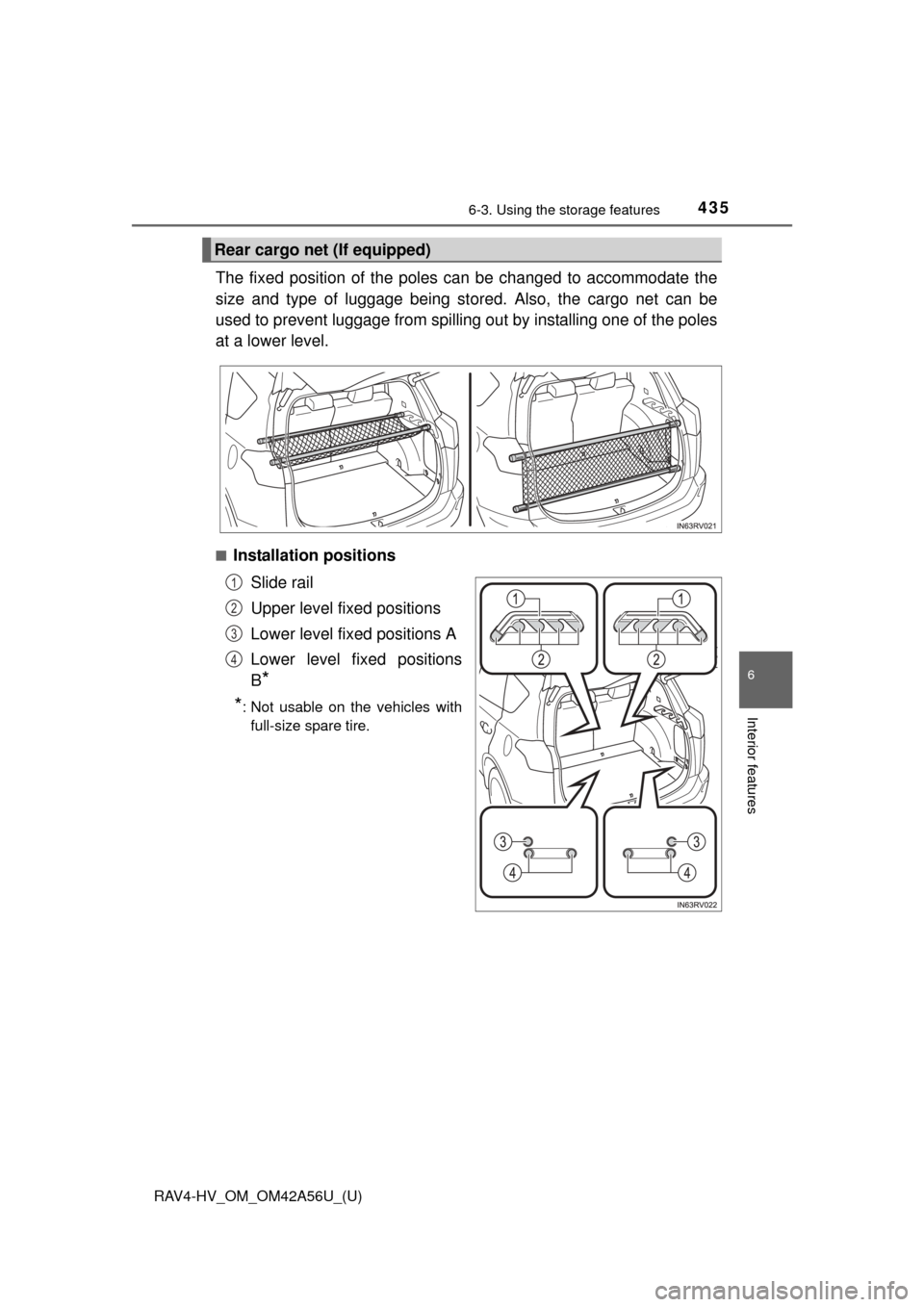

The fixed position of the poles can be changed to accommodate the
size and type of luggage being stored. Also, the cargo net can be
used to prevent lu ggage from spilling out by installing one of the poles
at a lower level.
■Installation positions
Slide rail
Upper level fixed positions
Lower level fixed positions A
Lower level fixed positions
B
*
*
: Not usable on the vehicles with full-size spare tire.
Rear cargo net (If equipped)
1
2
3
4

436
RAV4-HV_OM_OM42A56U_(U)
6-3. Using the storage features

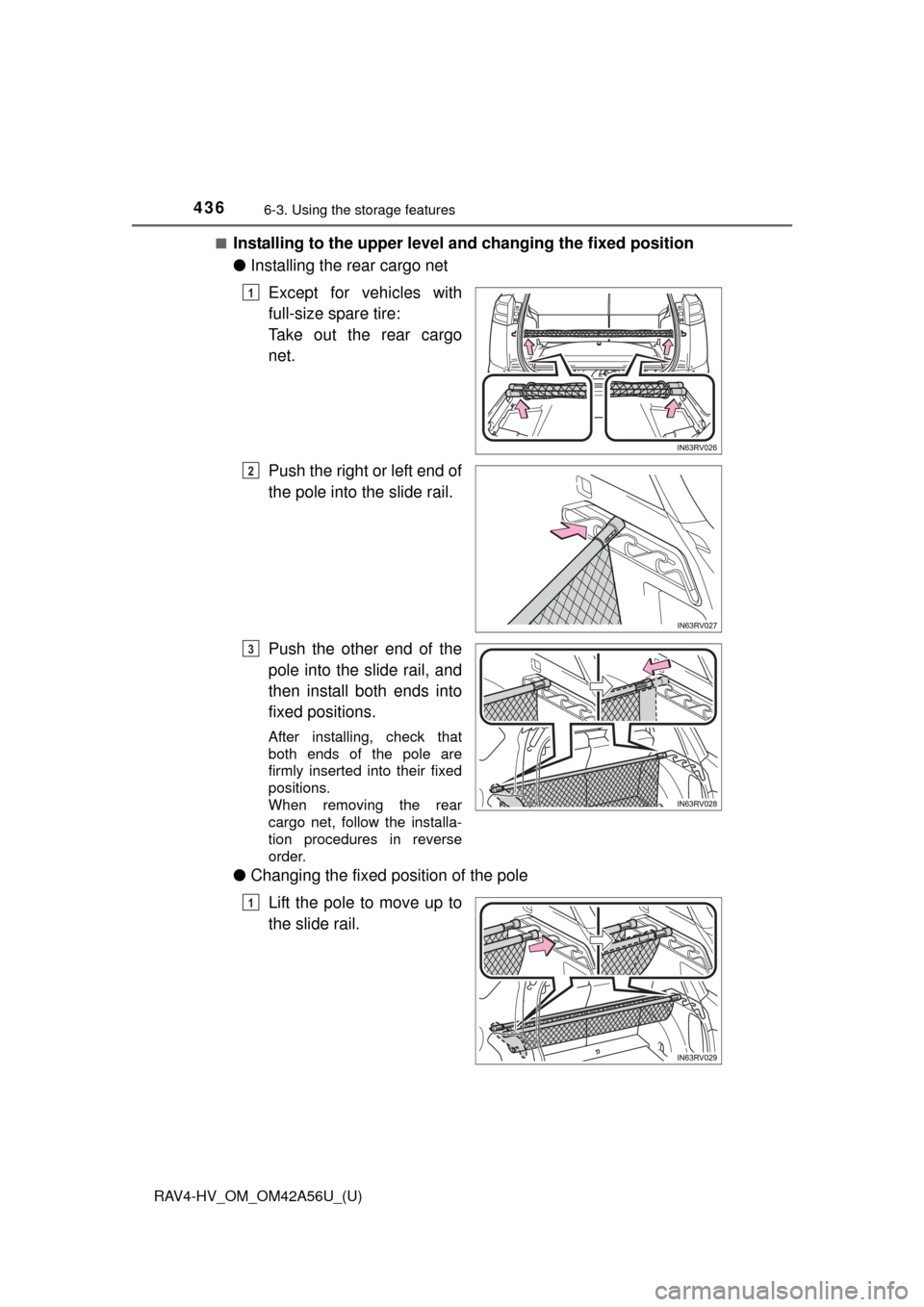

■Installing to the upper level and changing the fixed position
●Installing the rear cargo net
Except for vehicles with
full-size spare tire:
Take out the rear cargo
net.
Push the right or left end of
the pole into the slide rail.
Push the other end of the
pole into the slide rail, and
then install both ends into
fixed positions.
After installing, check that
both ends of the pole are
firmly inserted into their fixed
positions.
When removing the rear
cargo net, follow the installa-
tion procedures in reverse
order.
●Changing the fixed position of the pole
Lift the pole to move up to
the slide rail.
1
2
3
1

RAV4-HV_OM_OM42A56U_(U)
4376-3. Using the storage features
6
Interior features

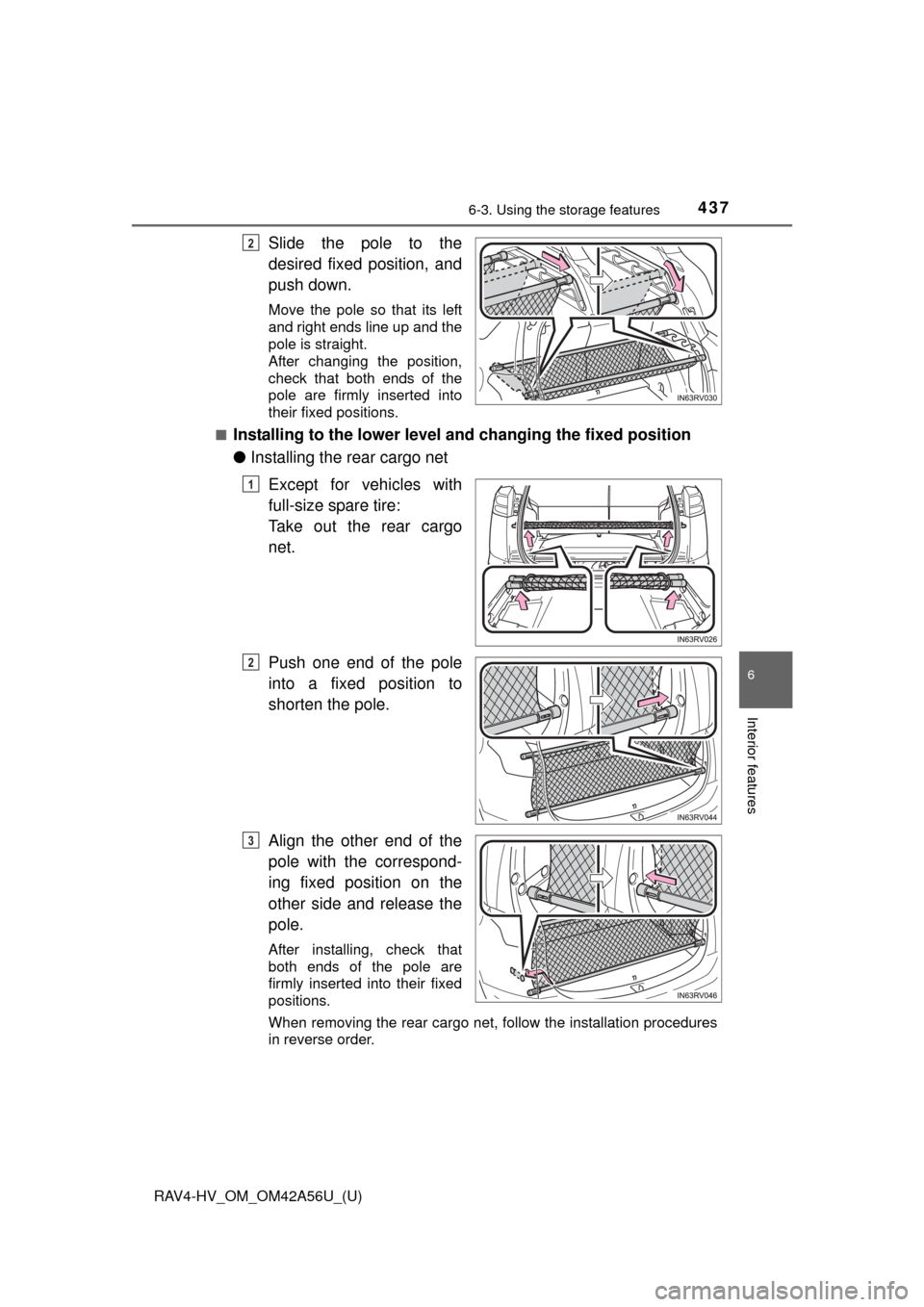

Slide the pole to the
desired fixed position, and
push down.
Move the pole so that its left
and right ends line up and the
pole is straight.
After changing the position,
check that both ends of the
pole are firmly inserted into
their fixed positions.
■
Installing to the lower level and changing the fixed position
● Installing the rear cargo net
Except for vehicles with
full-size spare tire:
Take out the rear cargo
net.
Push one end of the pole
into a fixed position to
shorten the pole.
Align the other end of the
pole with the correspond-
ing fixed position on the
other side and release the
pole.
After installing, check that
both ends of the pole are
firmly inserted into their fixed
positions.
When removing the rear cargo net, follow the installation procedures
in reverse order.
2
1
2
3

438
RAV4-HV_OM_OM42A56U_(U)
6-3. Using the storage features

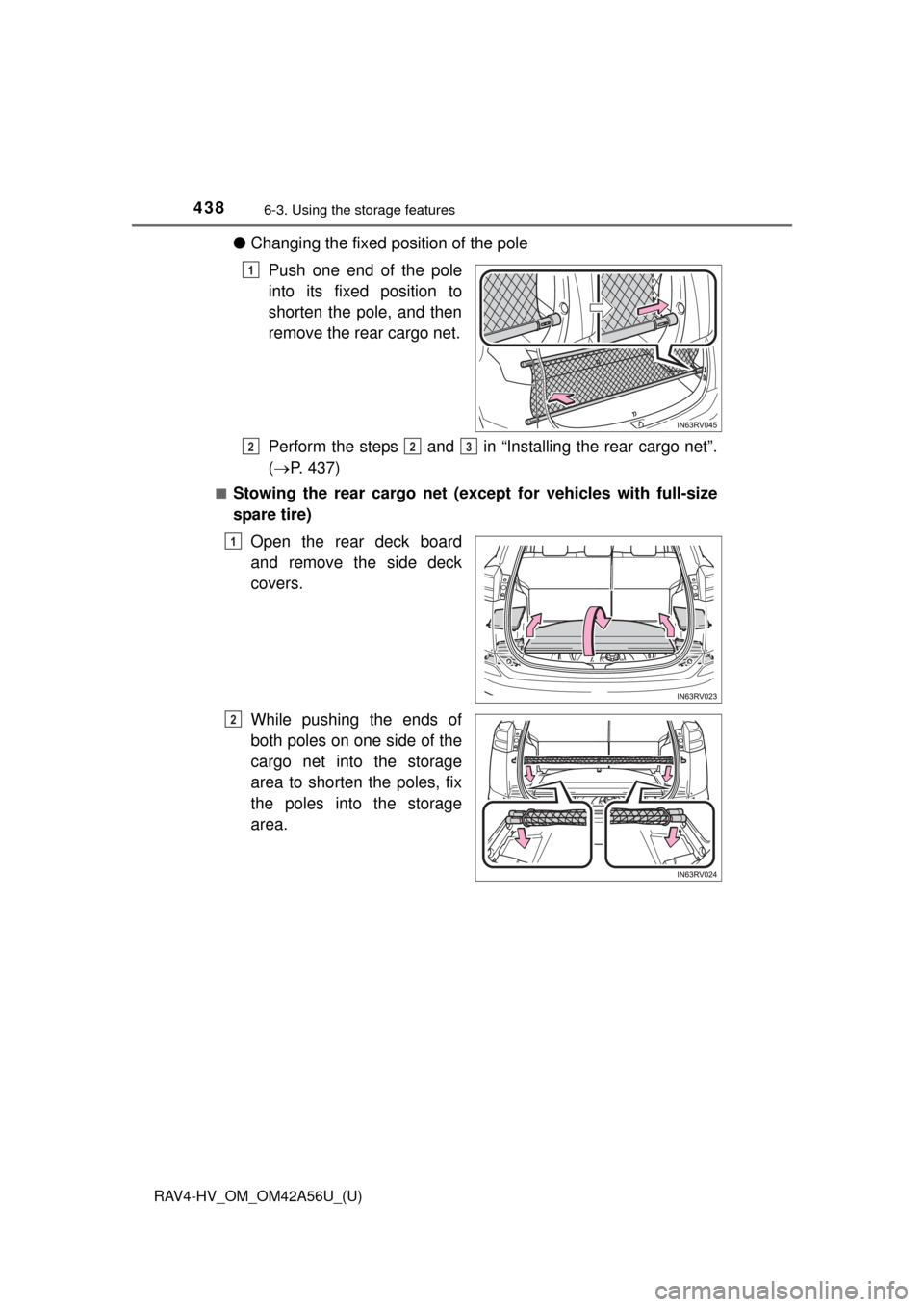

●Changing the fixed position of the pole
Push one end of the pole
into its fixed position to
shorten the pole, and then
remove the rear cargo net.
Perform the steps and in “Installing the rear cargo net”.
( P. 437)
■Stowing the rear cargo net (except for vehicles with full-size
spare tire)
Open the rear deck board
and remove the side deck
covers.
While pushing the ends of
both poles on one side of the
cargo net into the storage
area to shorten the poles, fix
the poles into the storage
area.
1
223
1
2

RAV4-HV_OM_OM42A56U_(U)
4396-3. Using the storage features
6
Interior features
WARNING
Make sure to observe the following precautions. Failure to observe these
precautions may result in death or serious injury.
●Do not allow children to climb or ride on the rear cargo net.
● Do not load any luggage into the rear cargo net that extends beyond the
height of the pole.
● When installing the rear cargo net to the vehicle, check that both ends of
the pole are securely inserted into their fixed positions.
● When stowing the rear cargo net, securely fix it into the storage area.
NOTICE
●Do not place luggage weighing approximately 22.1 lb. (10 kg) or more
onto the rear cargo net.
● Install the pole to matching fixed positions on the left and right sides so
that the pole is straight. If the pole is installed at an angle, the rear cargo
net may come loose.
● Do not use the rear cargo net with only one pole installed. The pole may
move while the vehicle is in motion, resulting in damage to the rear cargo
net pole or other equipment in the luggage compartment.

440
RAV4-HV_OM_OM42A56U_(U)
6-3. Using the storage features

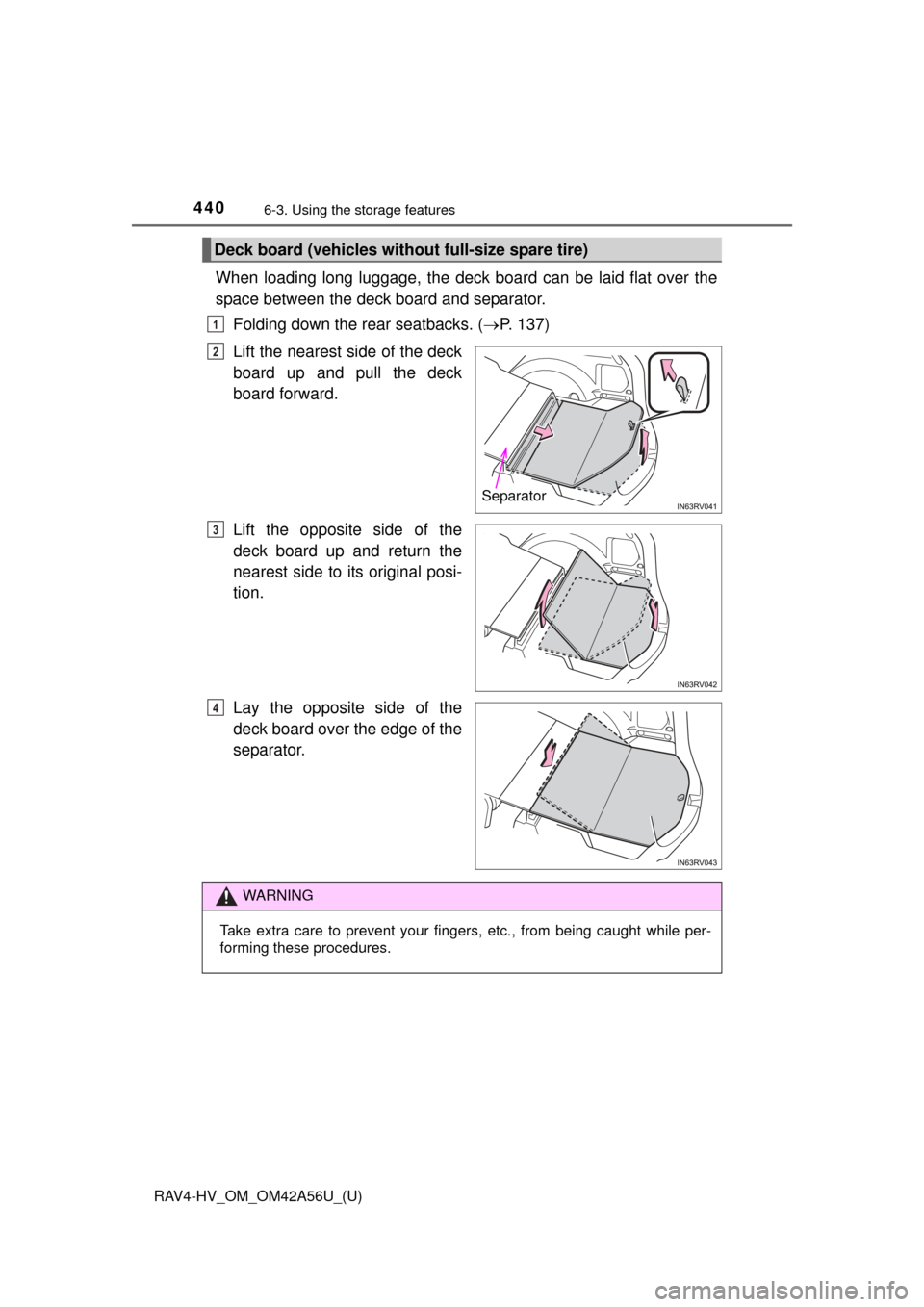

When loading long luggage, the deck board can be laid flat over the
space between the deck board and separator.
Folding down the rear seatbacks. ( P. 137)
Lift the nearest side of the deck
board up and pull the deck
board forward.
Lift the opposite side of the
deck board up and return the
nearest side to its original posi-
tion.
Lay the opposite side of the
deck board over the edge of the
separator.
Deck board (vehicles without full-size spare tire)
1
Separator
2
3
4
WARNING
Take extra care to prevent your fingers, etc., from being caught while per-
forming these procedures.
