TABLE OF CONTENTS2
RAV4-HV_OM_OM42A56U_(U)For your information....................... 8
Reading this manual .................... 12
How to search .............................. 13
Pictorial index .............................. 14
1-1. For safe use
Before driving ...................... 24
For safe driving ................... 26
Seat belts ............................ 28
SRS airbags ........................ 36
Front passenger occupant classification system ......... 49
Safety information for children ........................ 56
Child restraint systems ........ 57
Installing child restraints ...... 61
Exhaust gas precautions ..... 72
1-2. Hybrid system Hybrid system features ....... 73
Hybrid system precautions ....................... 77
1-3. Theft deterrent system Immobilizer system ............. 82 2. Instrument cluster
Warning lights and indicators .................... 86
Gauges and meters ............. 90
Multi-information display ...... 94
Energy monitor/consumption screen................................ 98
3-1. Key information Keys................................... 104
3-2. Opening, closing and locking the doors
Side doors ......................... 107
Back door .......................... 113
Smart key system .............. 126
3-3. Adjusting the seats Front seats......................... 134
Rear seats ......................... 136
Driving position memory .... 139
Head restraints .................. 141
3-4. Adjusting the steering wheel and mirrors
Steering wheel ................... 144
Inside rear view mirror ....... 146
Outside rear view mirrors ............................. 148
3-5. Opening, closing the windows and moon roof
Power windows.................. 151
Moon roof .......................... 154
1For safety and security
2Instrument cluster
3Operation of
each component

14Pictorial index
RAV4-HV_OM_OM42A56U_(U)

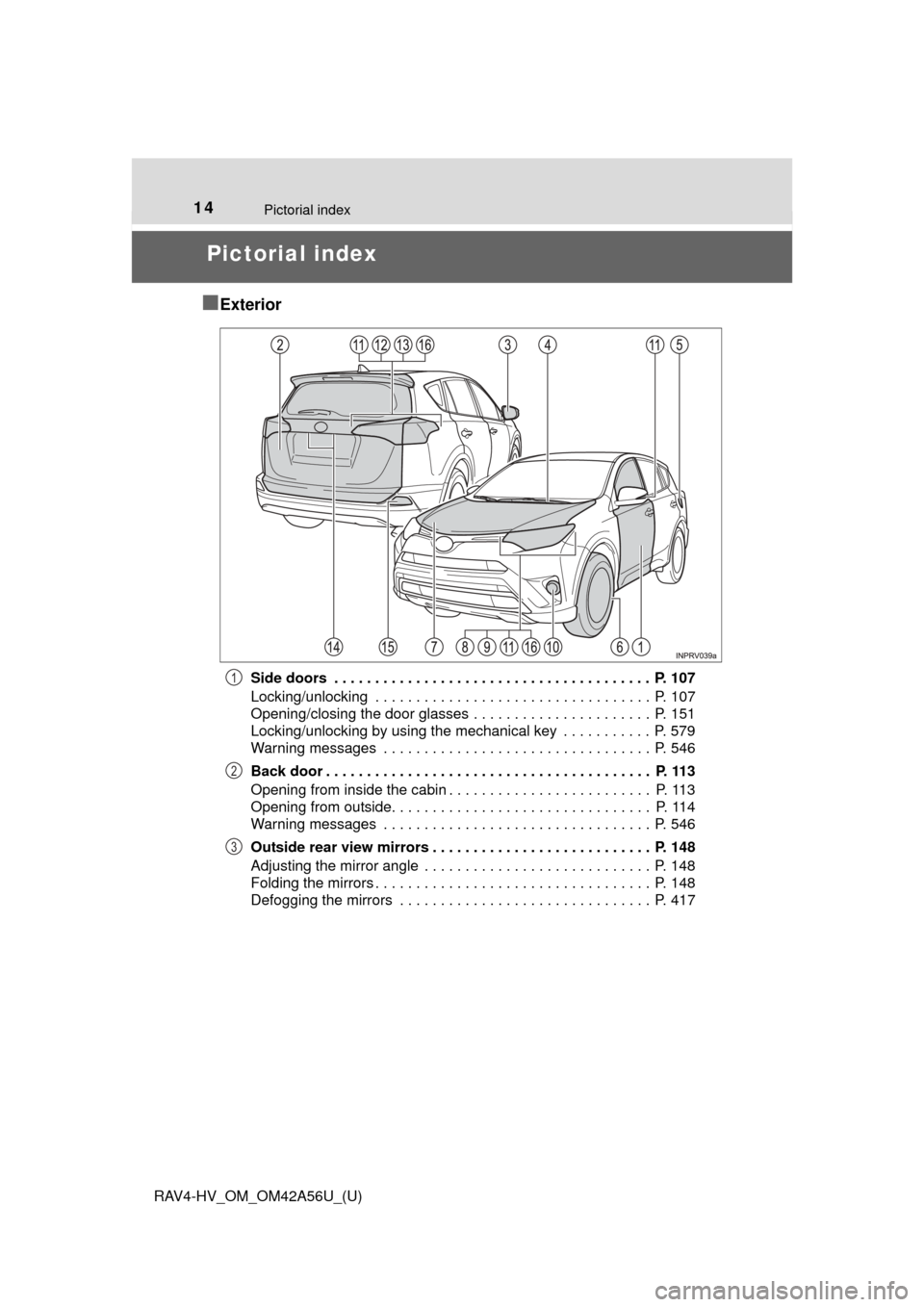

Pictorial index
■
Exterior
Side doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 107
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 107
Opening/closing the door glasses . . . . . . . . . . . . . . . . . . . . . . P. 151
Locking/unlocking by using the mechanical key . . . . . . . . . . . P. 579
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 546
Back door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 113
Opening from inside the cabin . . . . . . . . . . . . . . . . . . . . . . . . . P. 113
Opening from outside. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 114
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 546
Outside rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 148
Adjusting the mirror angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 148
Folding the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 148
Defogging the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 4171
2
3

17Pictorial index
RAV4-HV_OM_OM42A56U_(U)Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 199
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 201
Headlights/parking lights/tail lights/daytime running lights . . . . P. 201
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 210
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . P. 211
Rear window wiper and washer switch . . . . . . . . . . . . . . . . P. 215
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 211, 215
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 483
Warning message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 555
Hood lock release lever. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 473
Automatic air conditioning system . . . . . . . . . . . . . . . . . . . P. 414
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 414
Rear window defogger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 417
Audio system
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 316
Entune Audio
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 317
Entune Audio Plus/Entune Premium Audio
with Navigation
*1, 2
Fuel filler door opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 220
*1: If equipped
*2: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
6
7
8
9
10
11

18Pictorial index
RAV4-HV_OM_OM42A56U_(U)

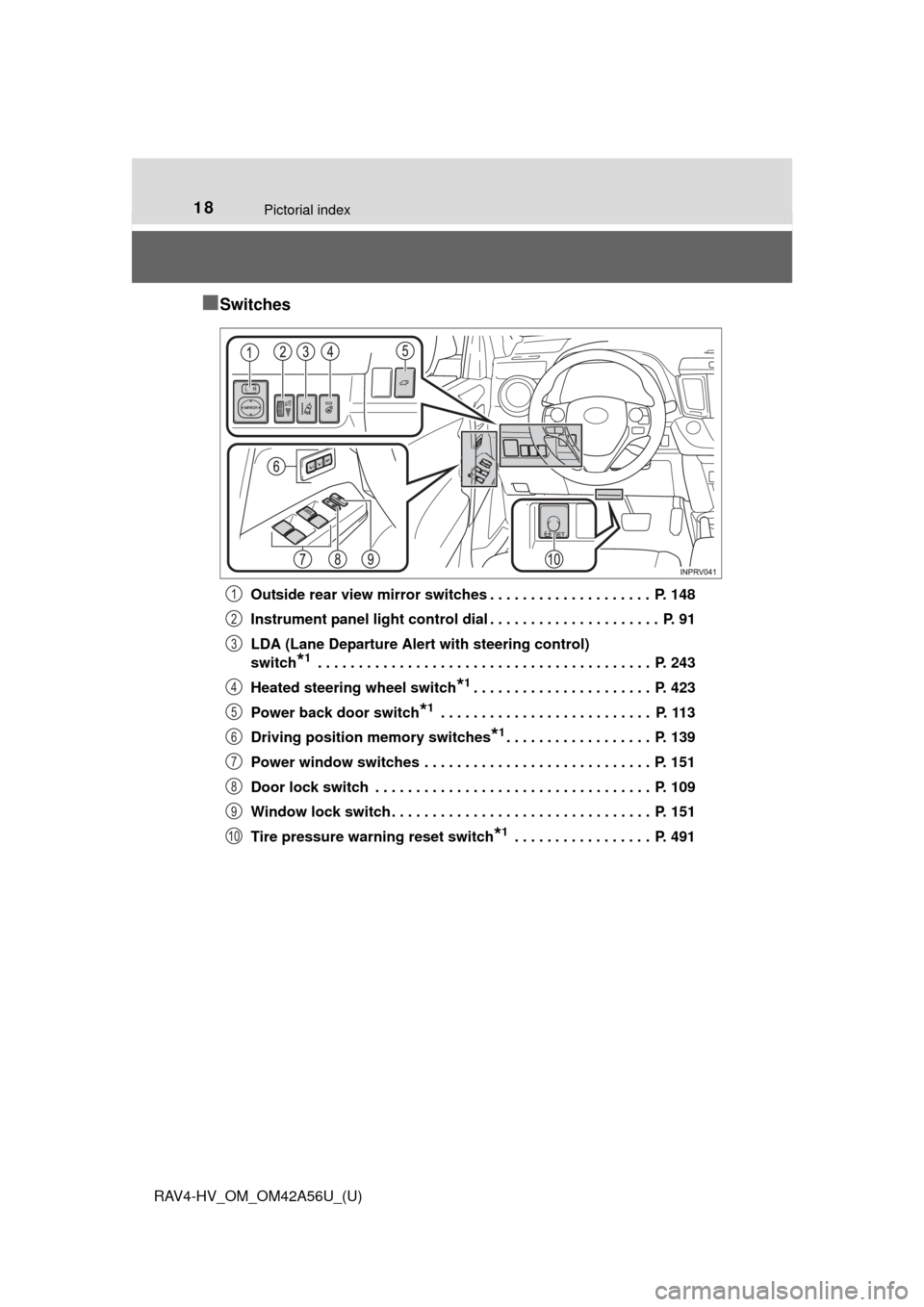

■Switches
Outside rear view mirror switches . . . . . . . . . . . . . . . . . . . . P. 148
Instrument panel light control dial . . . . . . . . . . . . . . . . . . . . . P. 91
LDA (Lane Departure Alert with steering control)
switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 243
Heated steering wheel switch
*1. . . . . . . . . . . . . . . . . . . . . . P. 423
Power back door switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . P. 113
Driving position memory switches
*1. . . . . . . . . . . . . . . . . . P. 139
Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 151
Door lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 109
Window lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 151
Tire pressure warning reset switch
*1 . . . . . . . . . . . . . . . . . P. 491
1
2
3
4
5
6
7
8
9
10

341-1. For safe use
RAV4-HV_OM_OM42A56U_(U)
WARNING
■When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
■ Seat belt pretensioners
●Do not place anything, such as a cushion, on the front passenger’s seat.
Doing so will disperse the passenger’s weight, which prevents the sensor
from detecting the passenger’s weight properly. As a result, the seat belt
pretensioner for the front passenger’s seat may not activate in the event of
a collision.
● If the pretensioner has activated, the SRS warning light will come on. In
that case, the seat belt cannot be used again and must be replaced at
your Toyota dealer.
■ Adjustable shoulder anchor
Always make sure the shoulder belt is positioned across the center of your
shoulder. The belt should be kept away from your neck, but not falling off
your shoulder. Failure to do so could reduce the amount of protection in an
accident and cause death or serious injuries in the event of a sudden stop,
sudden swerve or accident. ( P. 31)
■ Seat belt damage and wear
●Do not damage the seat belts by allowing the belt, plate, or buckle to be
jammed in the door.
● Inspect the seat belt system periodically. Check for cuts, fraying, and loose
parts. Do not use a damaged seat belt until it is replaced. Damaged seat
belts cannot protect an occupant from death or serious injury.
● Ensure that the belt and plate are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact your Toyota
dealer.
● Replace the seat assembly, including the belts, if your vehicle has been
involved in a serious accident, even if there is no obvious damage.
● Do not attempt to install, remove, modify, disassemble or dispose of the
seat belts. Have any necessary repairs carried out by your Toyota dealer.
Inappropriate handling of the pretensioner may prevent it from operating
properly resulting in death or serious injury.

561-1. For safe use
RAV4-HV_OM_OM42A56U_(U)
Safety information for children
●It is recommended that children sit in the rear seats to avoid acci-
dental contact with the shift lever, wiper switch etc.
● Use the rear door child-protector lock or the window lock switch to
avoid children opening the door while driving or operating the
power window accidentally. ( P. 110, 151)
● Do not let small children operate equipment which may catch or
pinch body parts, such as the power window, hood, back door,
seats etc.
Observe the following precautions when children are in the vehi-
cle.
Use a child restraint system appropriate for the child, until the
child becomes large enough to pr operly wear the vehicle’s seat
belt.
WARNING
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows, the moon roof or other features of the vehicle. In addition, heat
build-up or extremely cold temperatures inside the vehicle can be fatal to
children.

103
RAV4-HV_OM_OM42A56U_(U)
3
Operation of
each component
3-1. Key information
Keys .................................. 104
3-2. Opening, closing and locking the doors
Side doors ......................... 107
Back door .......................... 113
Smart key system ............. 126
3-3. Adjusting the seats Front seats ........................ 134
Rear seats......................... 136
Driving position memory ... 139
Head restraints.................. 141
3-4. Adjusting the steering wheel and mirrors
Steering wheel .................. 144
Inside rear view mirror ...... 146
Outside rear view mirrors ............................. 148
3-5. Opening, closing the windows and moon roof
Power windows ................. 151
Moon roof .......................... 154

104
RAV4-HV_OM_OM42A56U_(U)
3-1. Key information

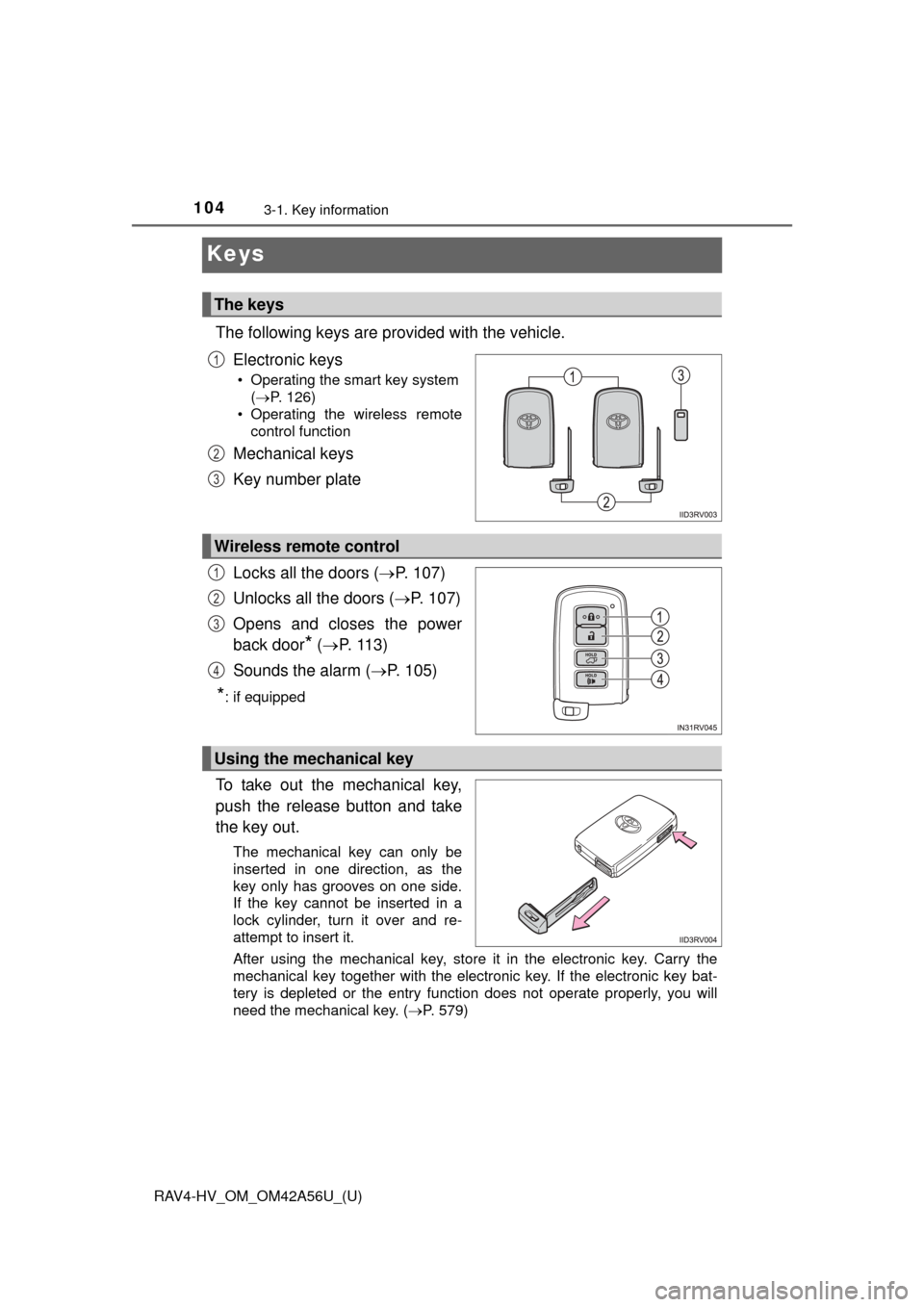

Keys
The following keys are provided with the vehicle.Electronic keys
• Operating the smart key system( P. 126)
• Operating the wireless remote control function
Mechanical keys
Key number plate
Locks all the doors ( P. 107)
Unlocks all the doors ( P. 107)
Opens and closes the power
back door
* (  P. 1 1 3 )
Sounds the alarm ( P. 105)
*: if equipped
To take out the mechanical key,
push the release button and take
the key out.
The mechanical key can only be
inserted in one direction, as the
key only has grooves on one side.
If the key cannot be inserted in a
lock cylinder, turn it over and re-
attempt to insert it.
After using the mechanical key, store it in the electronic key. Carry the
mechanical key together with the electronic key. If the electronic key bat-
tery is depleted or the entry function does not operate properly, you will
need the mechanical key. ( P. 579)
The keys
1
2
3
Wireless remote control
1
2
3
4
Using the mechanical key

107
RAV4-HV_OM_OM42A56U_(U)
3-2. Opening, closing and locking the doors
3
Operation of each component
Side doors
◆Smart key system
Carry the electronic key to enable this function.Grip the driver’s door handle
to unlock the door. Grip the
passenger’s door handle to
unlock all the doors.*
Make sure to touch the sensor
on the back of the handle.
The doors cannot be unlocked
for 3 seconds after the doors are
locked.
*: The door unlock settings can be changed. ( P. 111 )
Touch the lock sensor (the indentation on the upper part of the
door handle) to lock all the doors.
Check that the door is securely locked.
◆Wireless remote control
Locks all the doors
Check that the door is securely
locked.
Unlocks all the doors
Pressing the button unlocks the
driver’s door. Pressing the button
again within 3 seconds unlocks the
other doors.
Unlocking and locking the doors from the outside
1
2
1
2

108
RAV4-HV_OM_OM42A56U_(U)
3-2. Opening, closing and locking the doors
■Operation signals
A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: once; Unlocked: twice)
■ Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
■ When the door cannot be locked by the lock sensor on the upper part of
the door handle
■ Door lock buzzer
If an attempt to lock the doors is made when a door is not fully closed, a
buzzer sounds continuously for 5 seconds. Fully close the door to stop the
buzzer, and lock the vehicle once more.
■ If the smart key system or the wireless remote control does not operate
properly
●Use the mechanical key to lock and unlock the doors. ( P. 579)
● Replace the key battery with a new one if it is depleted. ( P. 506)
If the door will not lock even when the top-
side sensor area is touched, try touching
both the topside and underside sensor
areas at the same time.
