TOYOTA RAV4 HYBRID 2017 XA40 / 4.G Owners Manual

RAV4-HV_OM_OM42B03U_(U)
2814-5. Using the driving support systems
4
Driving

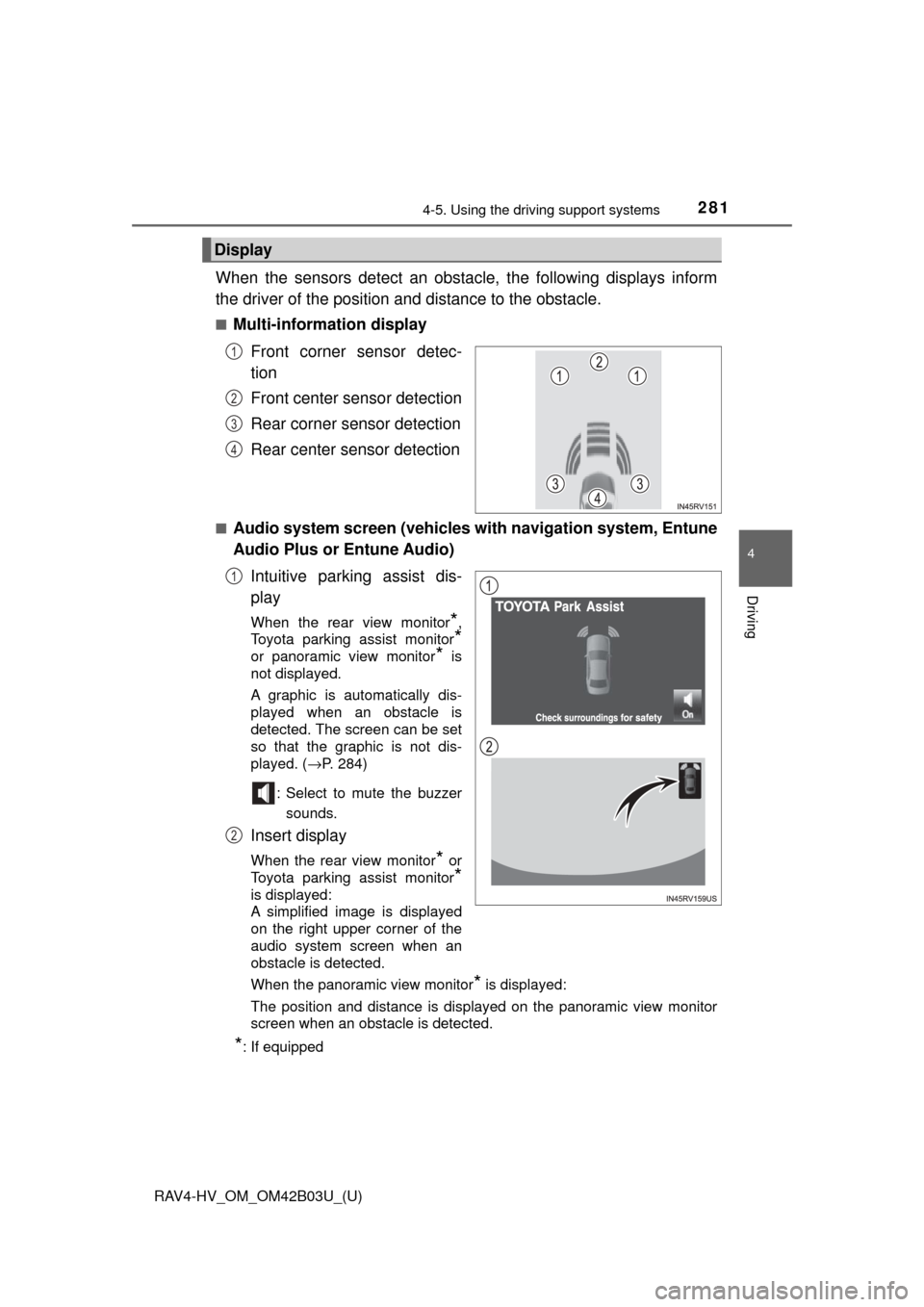

When the sensors detect an obstacle, the following displays inform
the driver of the position an d distance to the obstacle.
■Multi-information display
Front corner sensor detec-
tion
Front center sensor detection
Rear corner sensor detection
Rear center sensor detection
■Audio system screen (vehicles with navigation system, Entune
Audio Plus or Entune Audio)
Intuitive parking assist dis-
play
When the rear view monitor*,
Toyota parking assist monitor
*
or panoramic view monitor* is
not displayed.
A graphic is automatically dis-
played when an obstacle is
detected. The screen can be set
so that the graphic is not dis-
played. ( →P. 284)
: Select to mute the buzzer sounds.
Insert display
When the rear view monitor* or
Toyota parking assist monitor
*
is displayed:
A simplified image is displayed
on the right upper corner of the
audio system screen when an
obstacle is detected.
When the panoramic view monitor
* is displayed:
The position and distance is displayed on the panoramic view monitor
screen when an obstacle is detected.
*: If equipped
Display
1
2
3
4
1
2

282
RAV4-HV_OM_OM42B03U_(U)
4-5. Using the driving support systems
■Distance display
Sensors that detect an obstacle will illuminate continuously or blink.
*1: The images may differ from that shown in the illustrations. ( →P. 281)
*2: Multi-information display
*3: Audio system screen

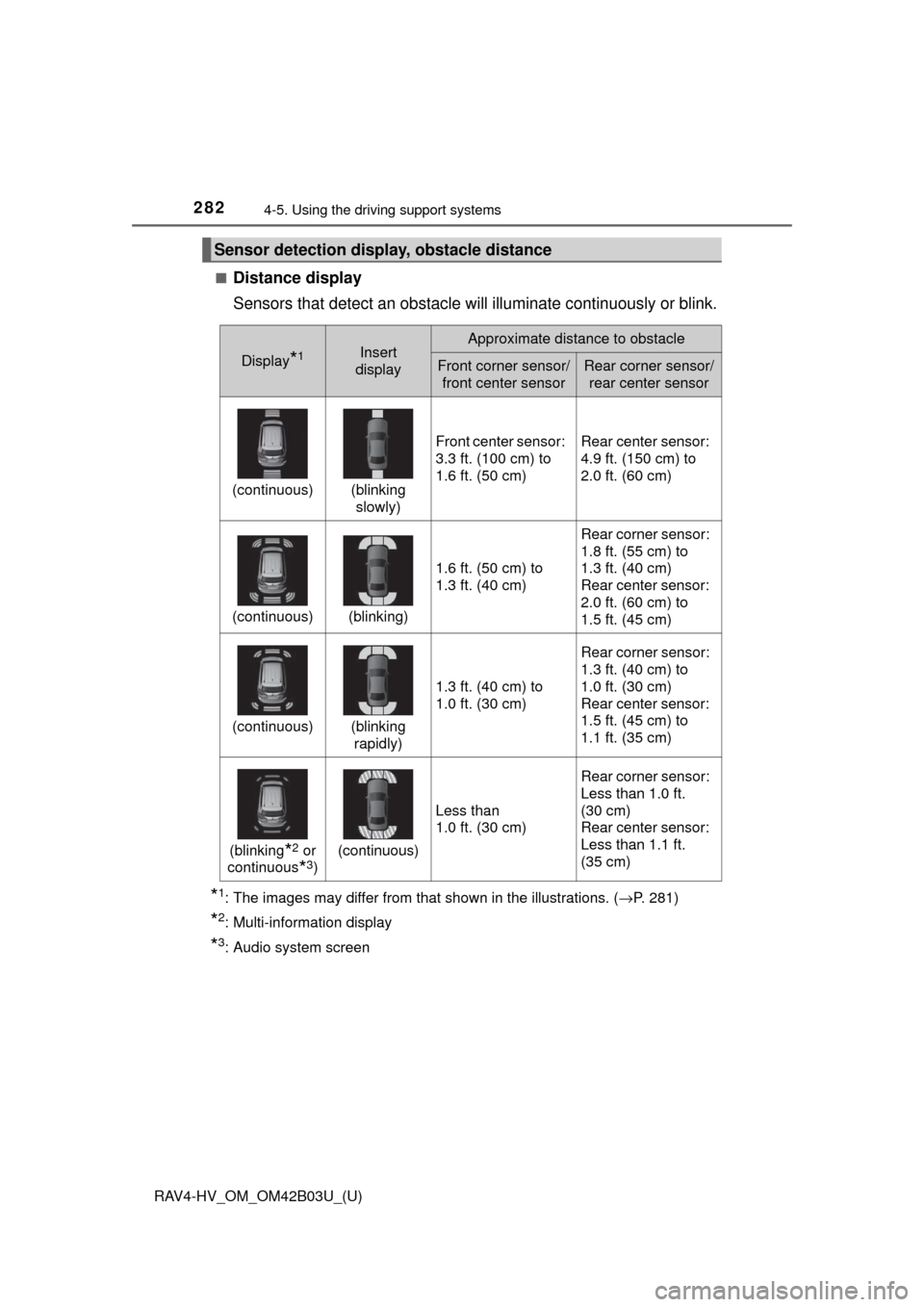

Sensor detection display, obstacle distance
Display*1Insert
displayApproximate distance to obstacle
Front corner sensor/
front center sensorRear corner sensor/ rear center sensor
(continuous)(blinking slowly)
Front center sensor:
3.3 ft. (100 cm) to
1.6 ft. (50 cm)Rear center sensor:
4.9 ft. (150 cm) to
2.0 ft. (60 cm)
(continuous)(blinking)
1.6 ft. (50 cm) to
1.3 ft. (40 cm)
Rear corner sensor:
1.8 ft. (55 cm) to
1.3 ft. (40 cm)
Rear center sensor:
2.0 ft. (60 cm) to
1.5 ft. (45 cm)
(continuous)(blinking rapidly)
1.3 ft. (40 cm) to
1.0 ft. (30 cm)
Rear corner sensor:
1.3 ft. (40 cm) to
1.0 ft. (30 cm)
Rear center sensor:
1.5 ft. (45 cm) to
1.1 ft. (35 cm)
(blinking*2 or
continuous
*3)
(continuous)
Less than
1.0 ft. (30 cm)
Rear corner sensor:
Less than 1.0 ft.
(30 cm)
Rear center sensor:
Less than 1.1 ft.
(35 cm)

RAV4-HV_OM_OM42B03U_(U)
2834-5. Using the driving support systems
4
Driving
■Buzzer operation and distance to an obstacle
A buzzer sounds when t he sensors are operating.
● The buzzer sounds faster as the vehicle approac hes an obstacle.
When the vehicle comes within the following distance of the
obstacle, the buzzer so unds continuously.
• Front and rear corner sensors: Approximately 1.0 ft. (30 cm)
• Front center sensors: Ap proximately 1.0 ft. (30 cm)
• Rear center sensors: Approximately 1.1 ft. (35 cm)
● When 2 or more obstacles ar e detected simultaneously, the
buzzer system responds to the nearest obstacle. If one or both
come within the above distanc es, the beep will repeat a long
tone, followed by fast beeps.
Approximately 3.3 ft. (100 cm)
Approximately 4.9 ft. (150 cm)
Approximately 1.8 ft. (55 cm)
Approximately 1.6 ft. (50 cm)

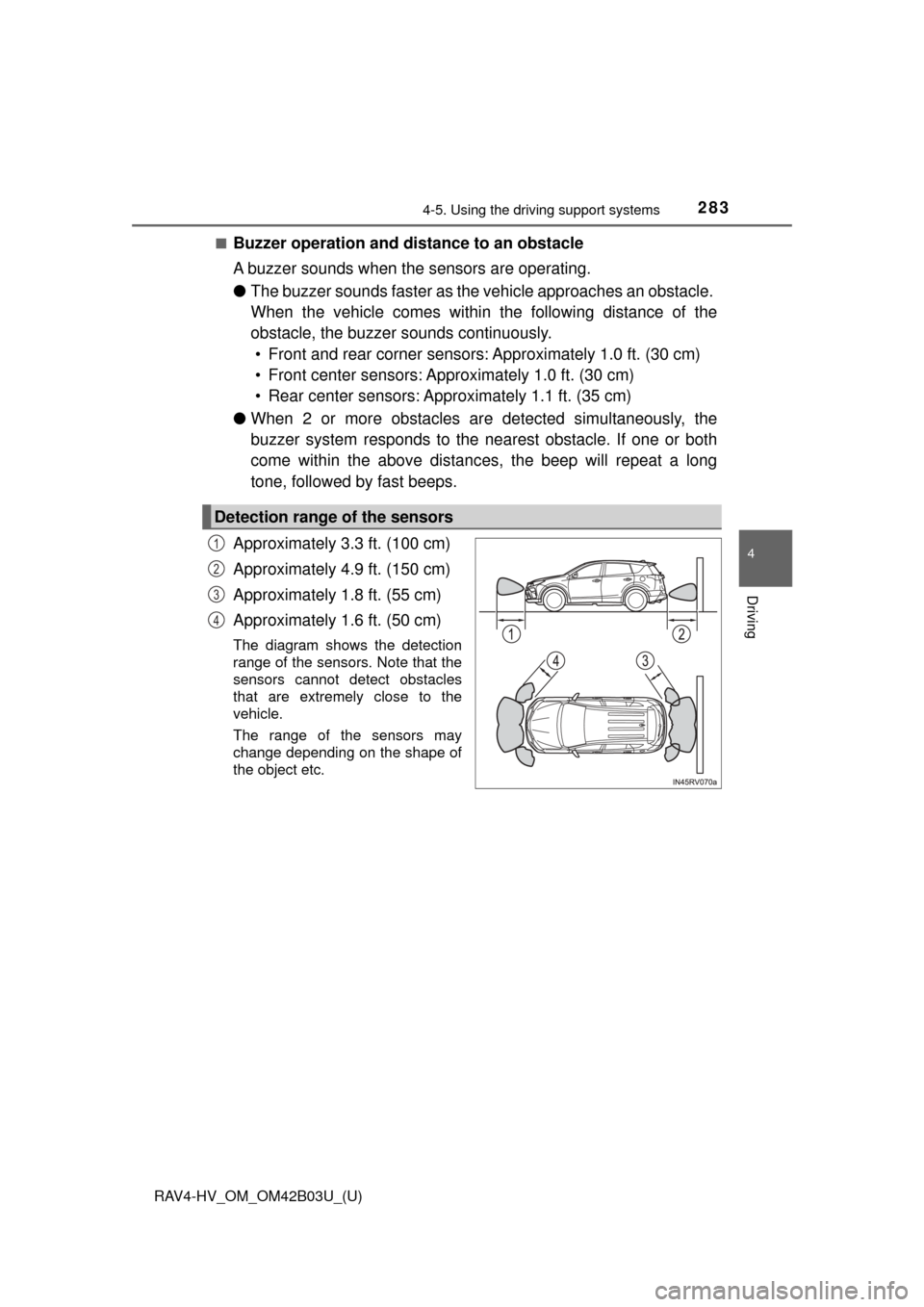

The diagram shows the detection
range of the sensors. Note that the
sensors cannot detect obstacles
that are extremely close to the
vehicle.
The range of the sensors may
change depending on the shape of
the object etc.
Detection range of the sensors
1
2
3
4

284
RAV4-HV_OM_OM42B03U_(U)
4-5. Using the driving support systems
You can change the buzzer sound volume and the screen operating
conditions.
Vehicles with an Entune Audio
Press the “SETUP” button.
Select “Vehicle” on the screen.
Select “TOYOTA Park Assi st Settings” on the screen.
Select the desired item.
Vehicles with an Entune Audio Pl us or Entune Premium Audio with
Navigation
Press the “APPS” button.
Select “Setup” on the screen.
Select “Vehicle” on the screen.
Select “TOYOTA Park Assi st Settings” on the screen.
Select the desired item.
● The buzzer sound volume can be adjusted.
● On or off can be selected for intuitive parking assist display.
● Front and rear center sensor display and tone indication can be set.
■The intuitive parking assist can be operated when
●Front corner sensors:
• The power switch is in ON mode.
• The shift lever is not in P.
• The vehicle speed is approximately 6 mph (10 km/h) or less.
● Front center sensors:
• The power switch is in ON mode.
• The shift lever is not in P or R.
• The vehicle speed is approximately 6 mph (10 km/h) or less.
● Rear corner and rear center sensors:
• The power switch is in ON mode.
• The shift lever is in R.
Setting up intuitive parking assist (vehicles with navigation sys-
tem, Entune Audio Plus or Entune Audio)
1
2
3
4
1
2
3
4
5

RAV4-HV_OM_OM42B03U_(U)
2854-5. Using the driving support systems
4
Driving
■Intuitive parking assist display
When an obstacle is detected while the rear view monitor system is in use,
the warning indicator will appear in the upper corner of the screen even if the
display setting has been set to off.
■ Sensor detection information
●The sensor’s detection areas are limited to the areas around the vehicle’s
bumper.
● Certain vehicle conditions and the surrounding environment may affect the
ability of the sensor to correctly detect obstacles. Particular instances where
this may occur are listed below.
• There is dirt, snow or ice on the sensor. (Wiping the sensors will resolve
this problem.)
• The sensor is frozen. (Thawing the area will resolve this problem.) In especially cold weather, if a sensor is frozen the screen may show an
abnormal display, or obstacles may not be detected.
• The sensor is covered in any way.
• The vehicle is leaning considerably to one side.
• On an extremely bumpy road, on an incline, on gravel, or on grass
• The vicinity of the vehicle is noisy due to vehicle horns, motorcycle engines, air brakes of large vehicles, or other loud noises producing ultra-
sonic waves.
• There is another vehicle equipped with parking assist sensors in the vicinity.
• The sensor is coated with a sheet of spray or heavy rain.
• The vehicle is equipped with a fender pole or wireless antenna.
• The bumper or sensor receives a strong impact.
• The vehicle is approaching a tall or curved curb.
• In harsh sunlight or intense cold weather
• The area directly under the bumpers is not detected.
• If obstacles draw too close to the sensor.
• A non-genuine Toyota suspension (lowered suspension etc.) is installed.
• People may not be detected if they are wearing certain types of clothing.
In addition to the examples above, there are instances in which, because of
their shapes, signs and other objects may be judged by the sensor to be
closer than they are.

286
RAV4-HV_OM_OM42B03U_(U)
4-5. Using the driving support systems
●The shape of the obstacle may prevent the sensor from detecting it. Pay
particular attention to the following obstacles:
• Wires, fences, ropes, etc.
• Cotton, snow and other materials that absorb sound waves
• Sharply-angled objects
• Low obstacles
• Tall obstacles with upper sections projecting outwards in the direction of
your vehicle
● The following situations may occur during use.
• Depending on the shape of the obstacle and other factors, the detection
distance may shorten, or detection may be impossible.
• Obstacles may not be detected if they are too close to the sensor.
• There will be a short delay between obstacle detection and display. Even at slow speeds, there is a possibility that the obstacle will come within the
sensor’s detection areas before the display is shown and the beep
sounds.
• Thin posts or objects lower than the sensor may not be detected when
approached, even if they have been detected once.
• It might be difficult to hear beeps due to the volume of audio system or air flow noise of the air conditioning system.
■ Customization
Setting of buzzer volume can be changed.
(Customizable features →P. 638)
■ If a message is displayed on the multi-information display
→P. 558
■ Certification (Canada only)
This ISM device complies with Canadian ICES-001.
WARNING
■When using the Intuitive parking assist
Observe the following precautions.
Failure to do so may result in the vehicle being unable to be driven safely
and possibly cause an accident.
● Do not use the sensor at speeds in excess of 6 mph (10 km/h).
● The sensors’ detection areas and reaction times are limited. When mov-
ing, check the areas surrounding the vehicle (especially the sides of the
vehicle) for safety, and drive slowly, using the brake to control the vehicle’s
speed.
● Do not install accessories within the sensors’ detection areas.

RAV4-HV_OM_OM42B03U_(U)
2874-5. Using the driving support systems
4
Driving
NOTICE
■When using intuitive parking assist
In the following situations, the system may not function correctly due t\
o a
sensor malfunction etc. Have the vehicle checked by your Toyota dealer.
● The intuitive parking assist operation display flashes, and a beep sounds
when no obstacles are detected.
● If the area around a sensor collides with something, or is subjected to
strong impact.
● If the bumper collides with something.
● If the display shows continuously without a beep.
● If a display error occurs, first check the sensor.
If the error occurs even when there is no ice, snow or mud on the sensor, it
is likely that the sensor is malfunctioning.
■ Notes when washing the vehicle
Do not apply intensive bursts of water or steam to the sensor area.
Doing so may result in the sensor malfunctioning.

288
RAV4-HV_OM_OM42B03U_(U)
4-5. Using the driving support systems

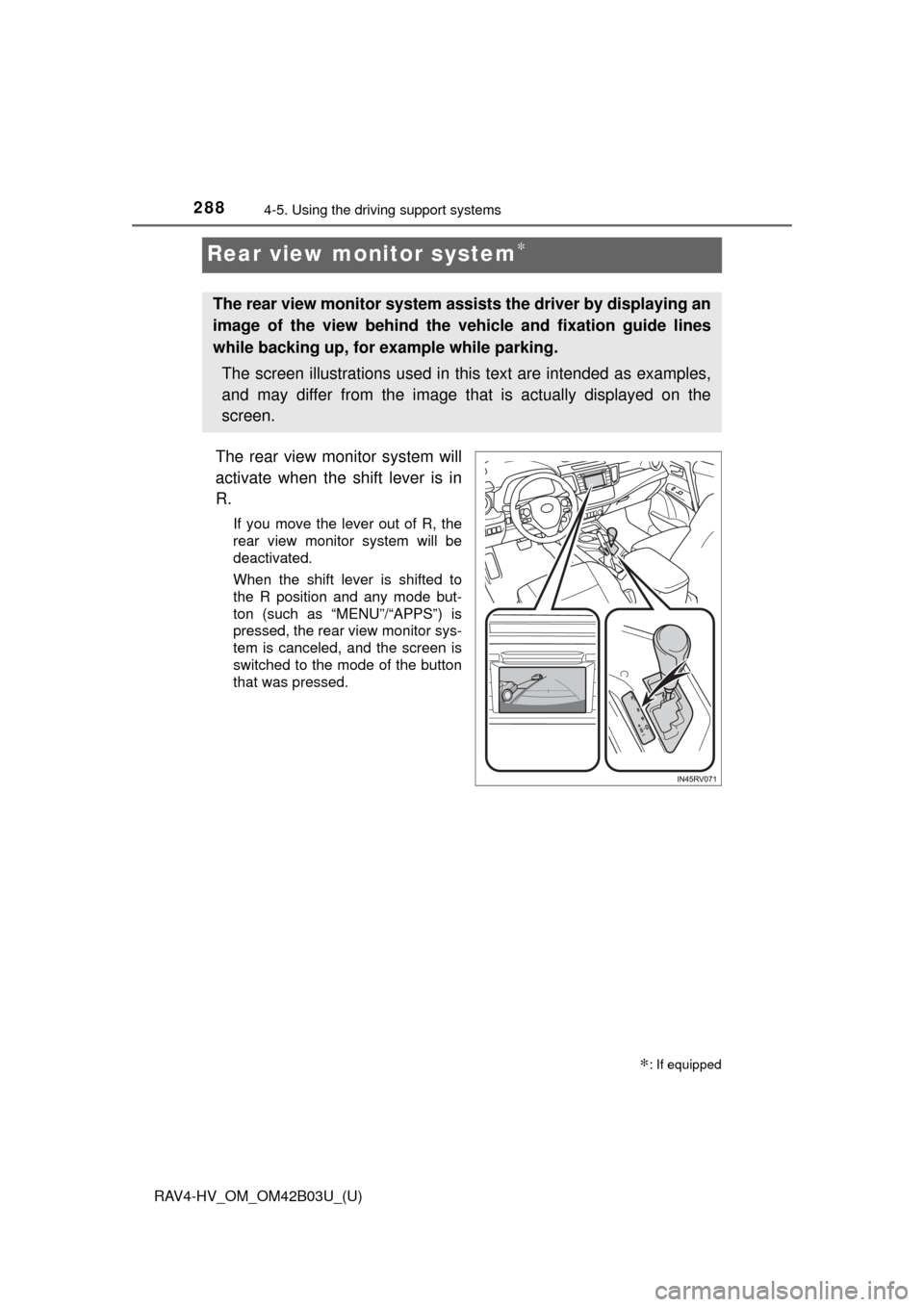

Rear view monitor system∗
The rear view monitor system will
activate when the shift lever is in
R.
If you move the lever out of R, the
rear view monitor system will be
deactivated.
When the shift lever is shifted to
the R position and any mode but-
ton (such as “MENU”/“APPS”) is
pressed, the rear view monitor sys-
tem is canceled, and the screen is
switched to the mode of the button
that was pressed.
∗: If equipped
The rear view monitor system assists the driver by displaying an
image of the view behind the vehicle and fixation guide lines
while backing up, for example while parking.
The screen illustrations used in this text are intended as examples,
and may differ from the image that is actually displayed on the
screen.

RAV4-HV_OM_OM42B03U_(U)
2894-5. Using the driving support systems
4
Driving

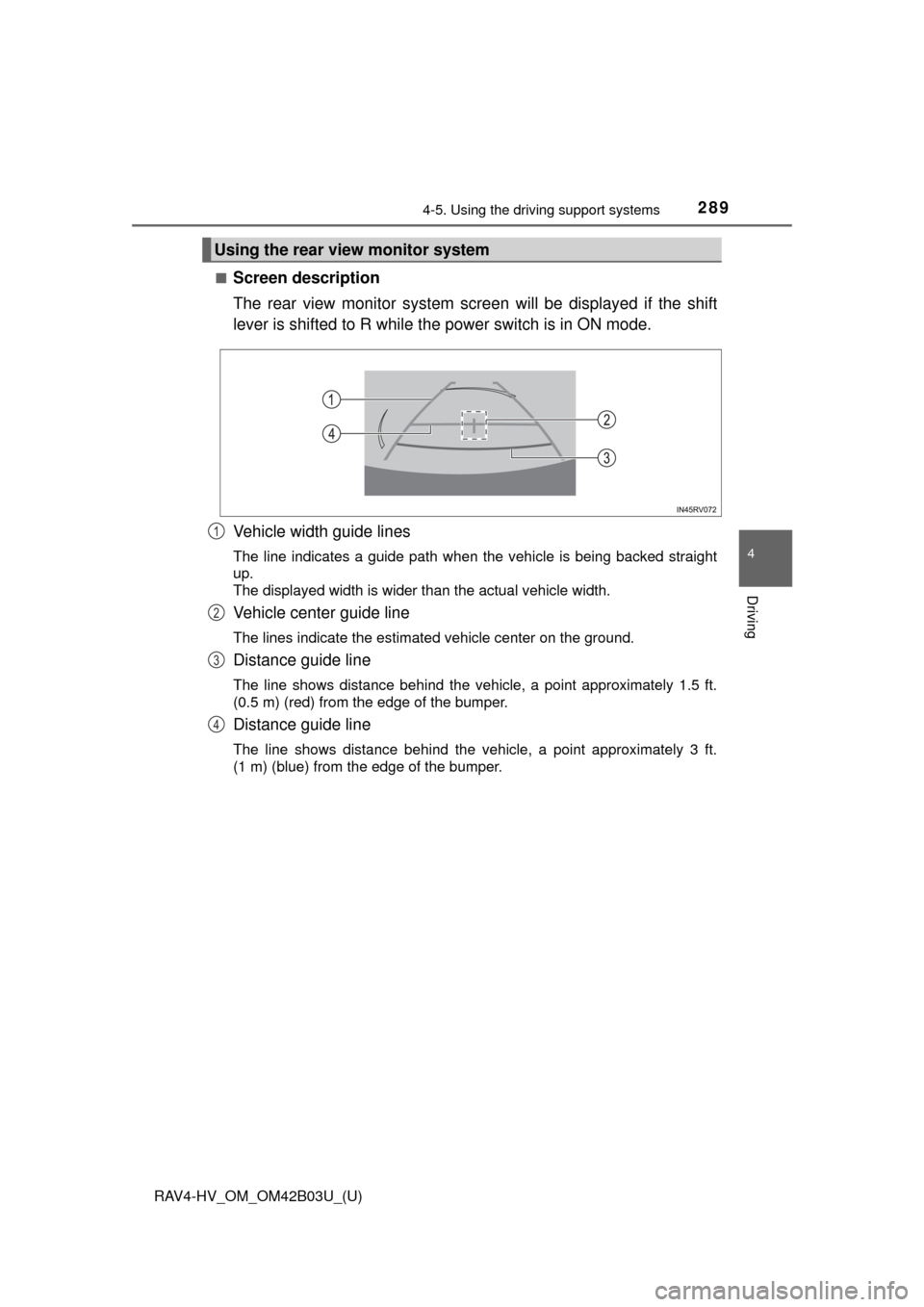

■Screen description
The rear view monitor system scr een will be displayed if the shift
lever is shifted to R while the power switch is in ON mode.
Vehicle width guide lines
The line indicates a guide path when the vehicle is being backed straight
up.
The displayed width is wider than the actual vehicle width.
Vehicle center guide line
The lines indicate the estimated vehicle center on the ground.
Distance guide line
The line shows distance behind the vehicle, a point approximately 1.5 ft.
(0.5 m) (red) from the edge of the bumper.
Distance guide line
The line shows distance behind the vehicle, a point approximately 3 ft.
(1 m) (blue) from the edge of the bumper.
Using the rear view monitor system
1
2
3
4

290
RAV4-HV_OM_OM42B03U_(U)
4-5. Using the driving support systems
■Area displayed on screen
The rear view monitor system
displays an image of the view
from the bumper of the rear
area of the vehicle.
The image on the rear view
monitor system can be
adjusted: refer to P. 342.
• The area displayed on the
screen may vary according to
vehicle orientation conditions.
• Objects which are close to either corner of the bumper or under
the bumper cannot be dis-
played.
• The camera uses a special lens.
The distance of the image that
appears on the screen differs
from the actual distance.
• Items which are located higher than the camera may not be dis-
played on the monitor.
• If your vehicle is equipped with a backlit license plate, it may interfere with the display.
Rear view monitor system precautions
Corners of bumper
